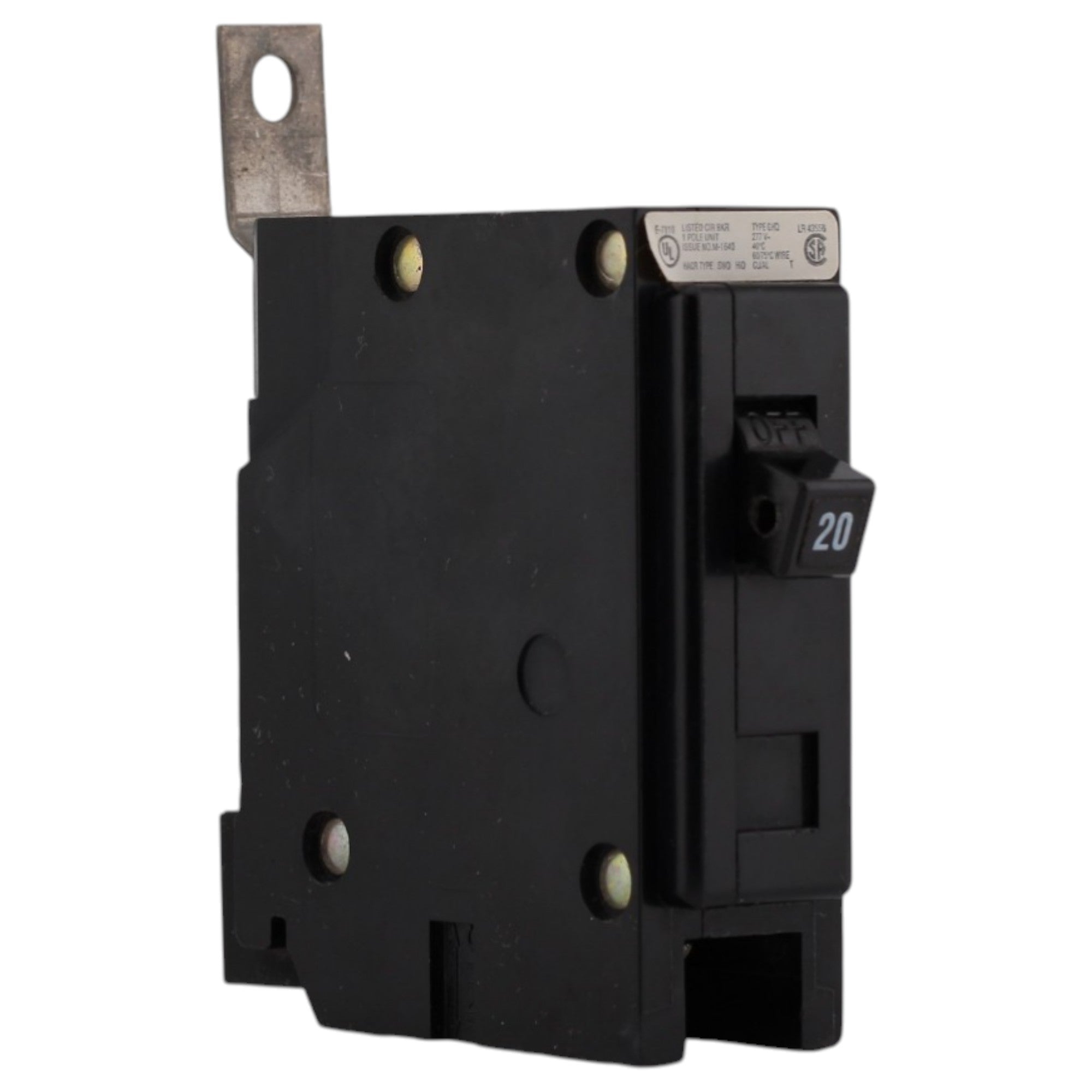

Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker

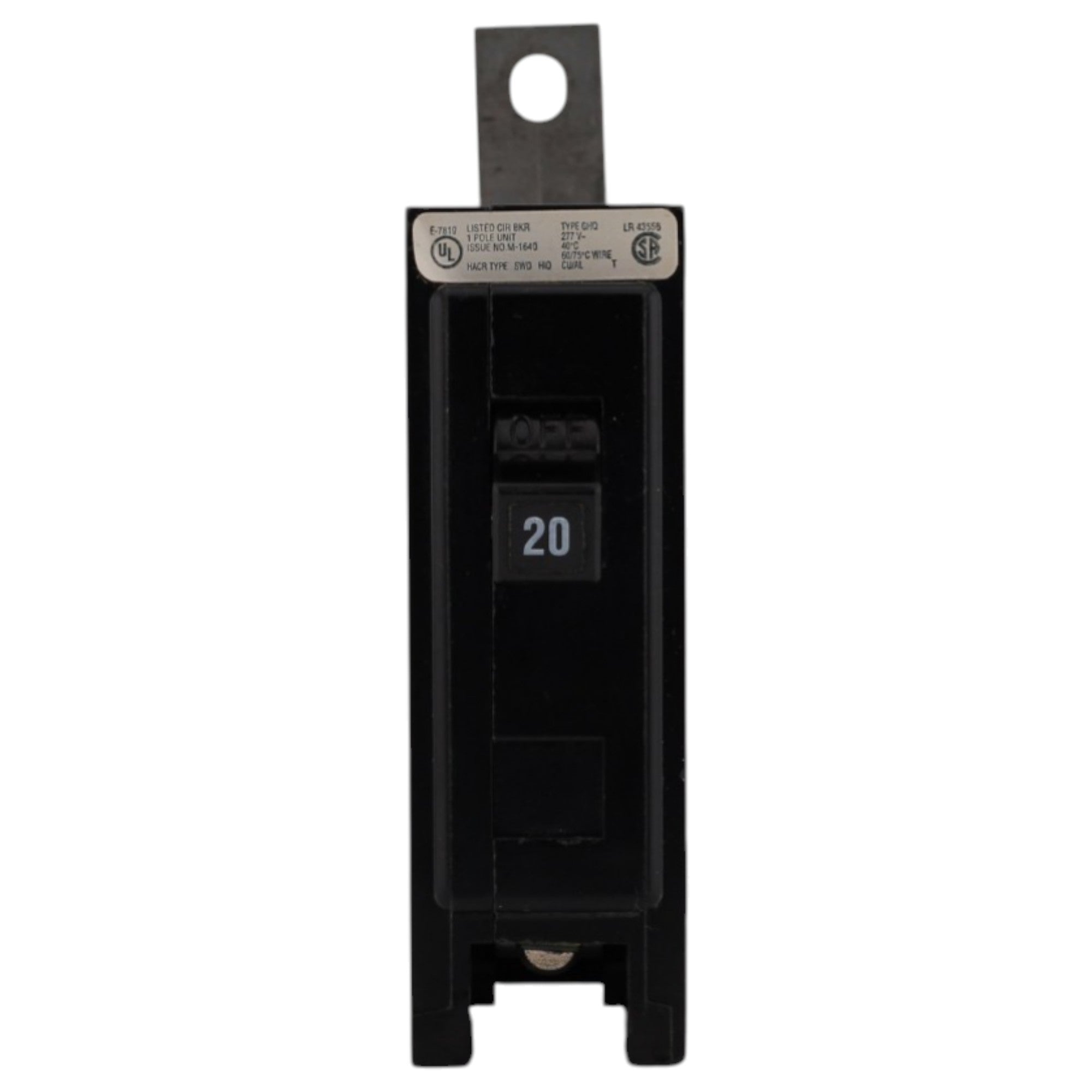

Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 2

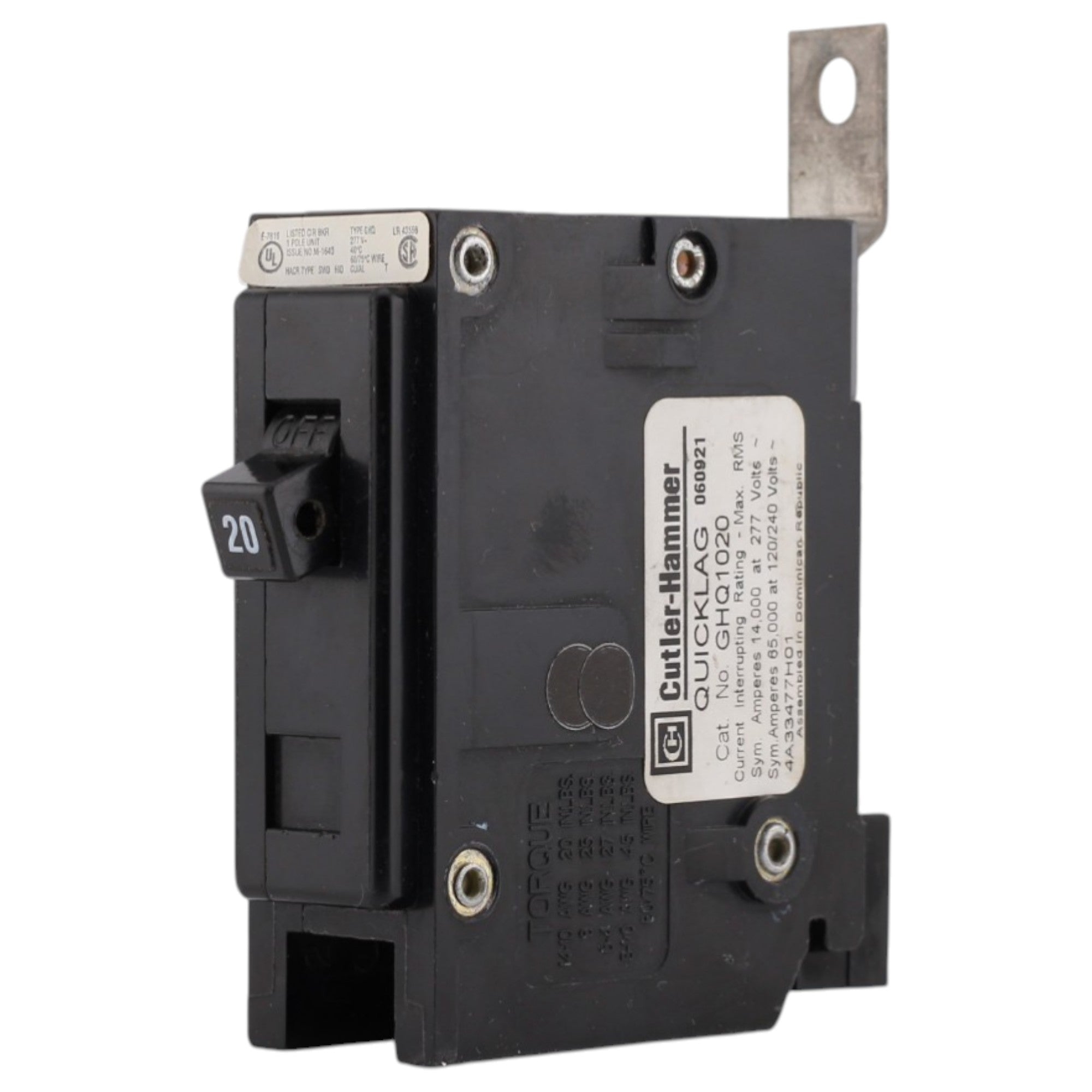

Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 3
Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 4

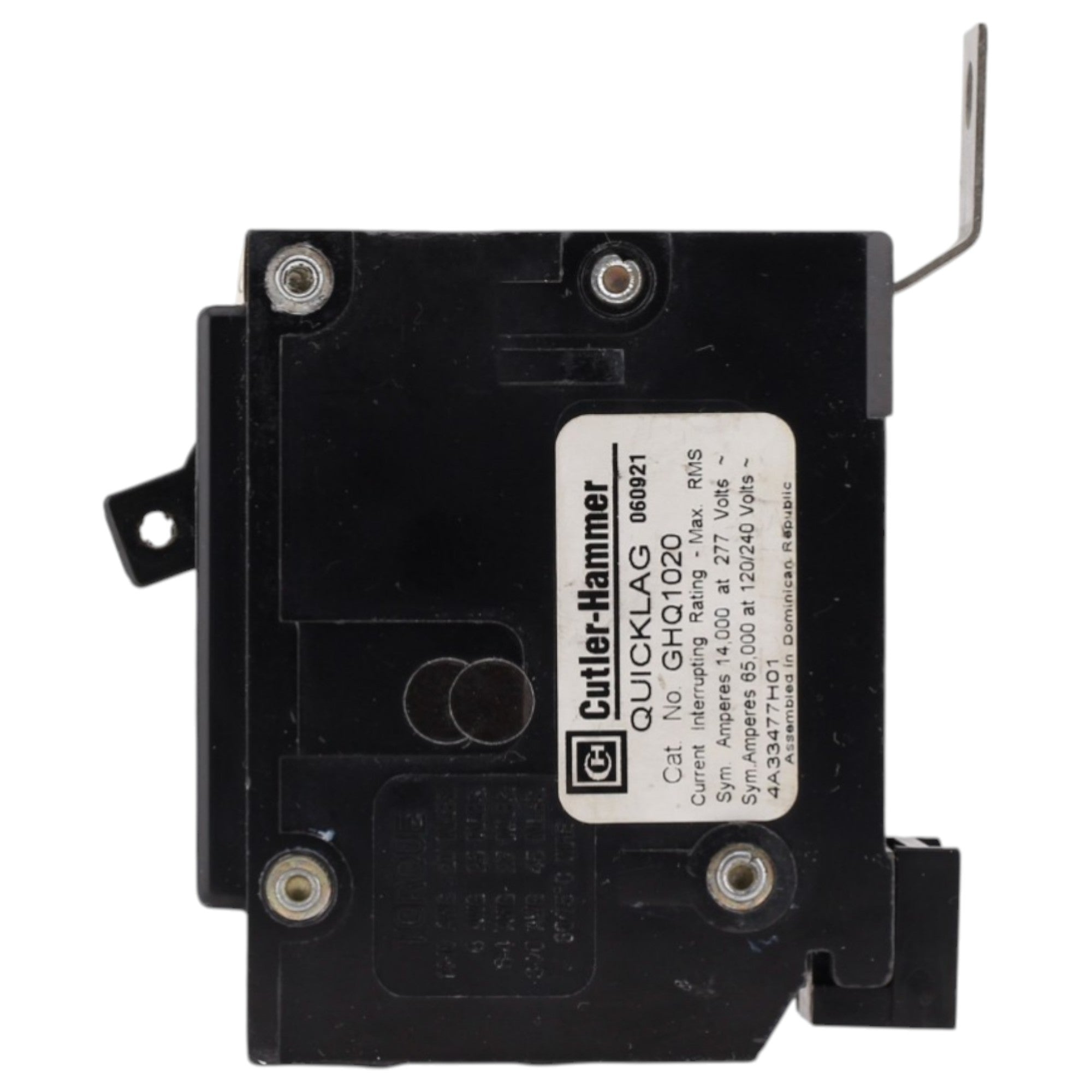

Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 5
Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 6

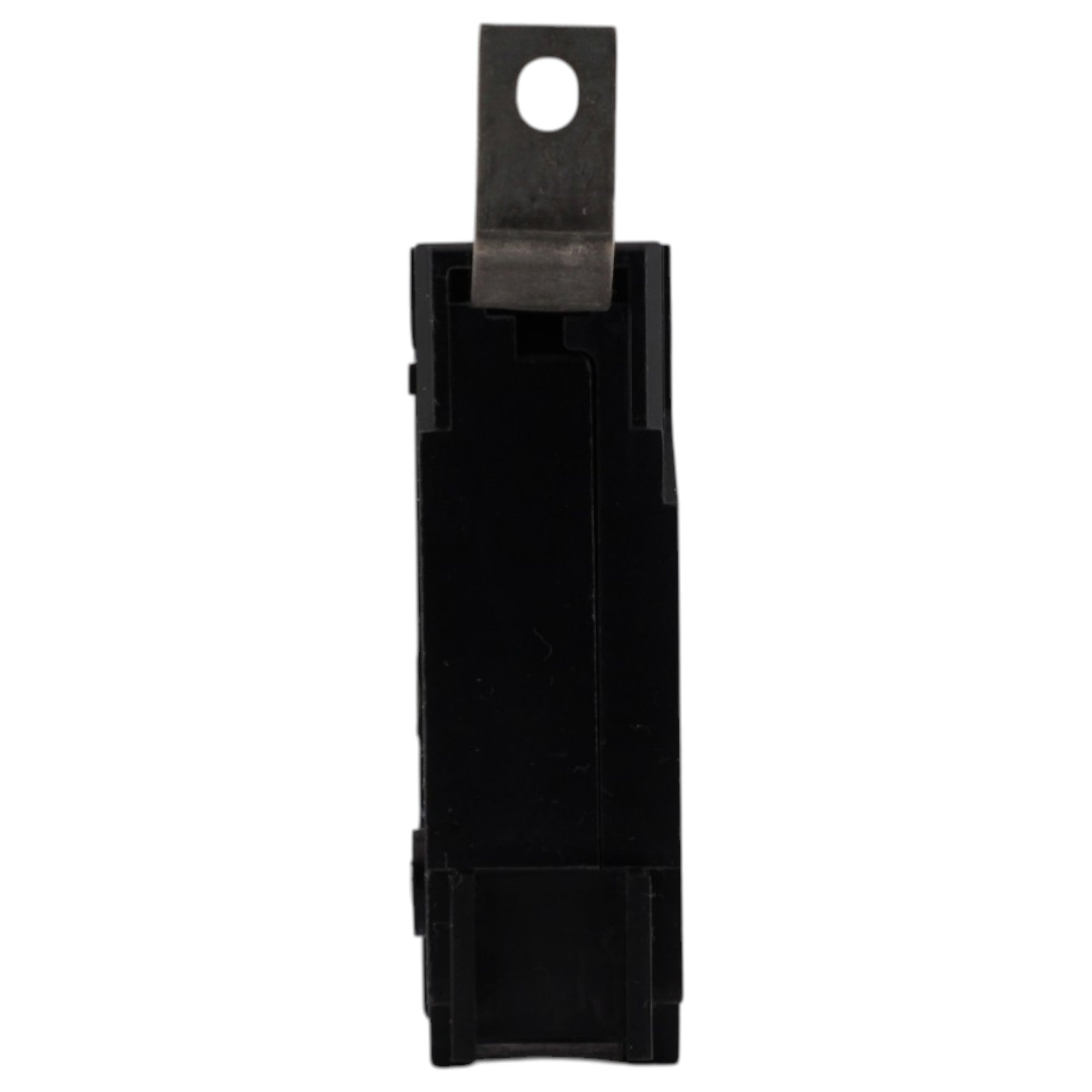

Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 7

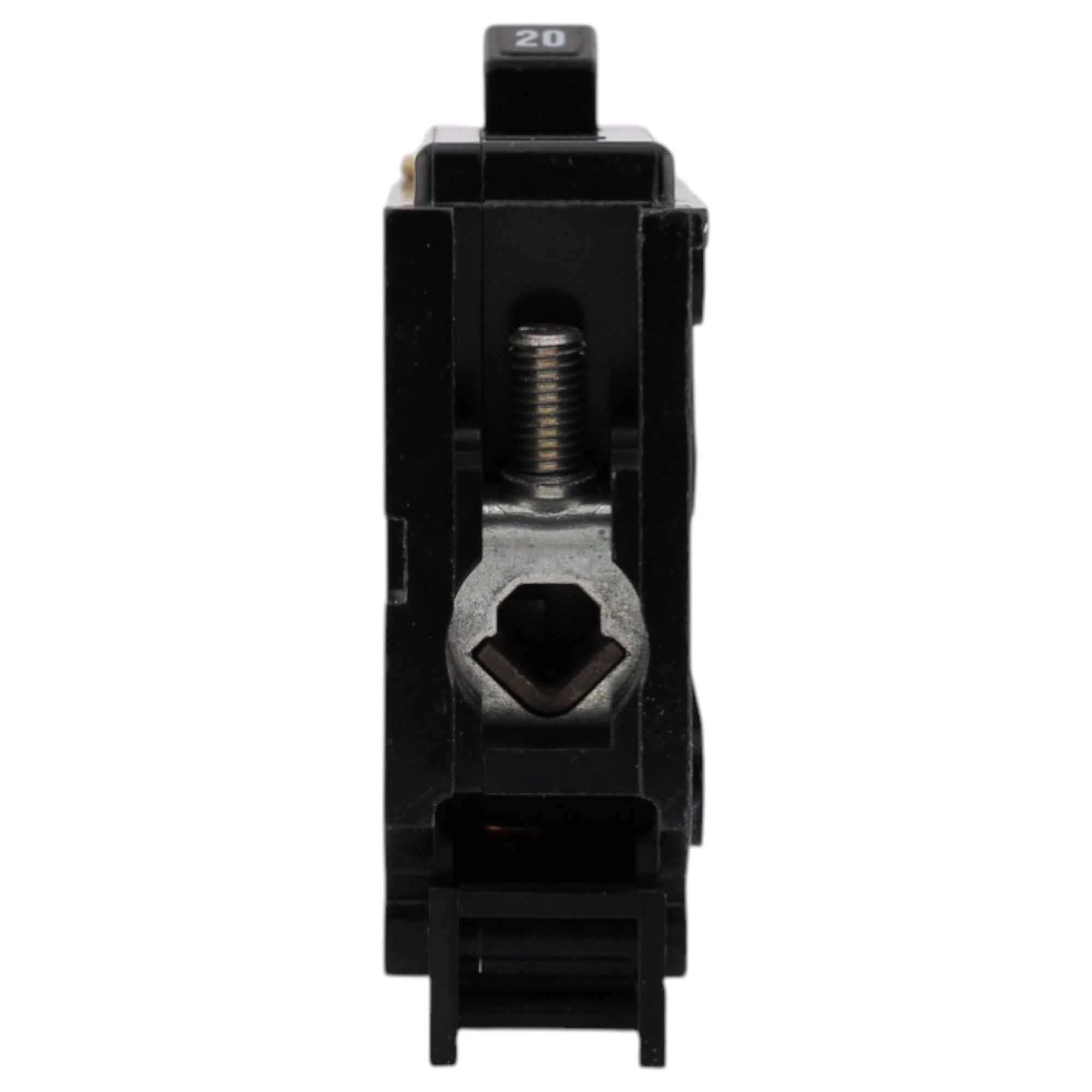

Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 8
Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 9
Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 10
Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 11

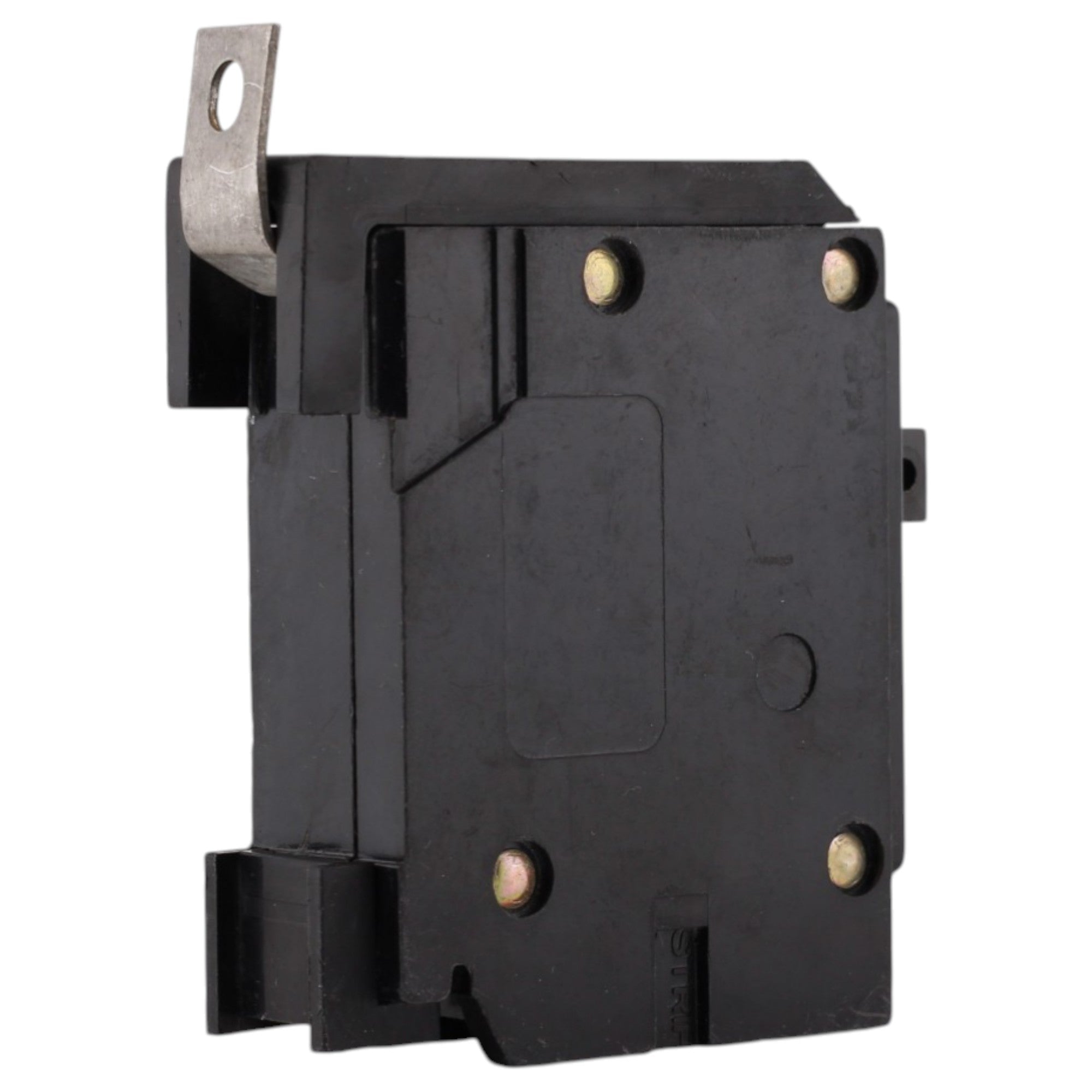

Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 12

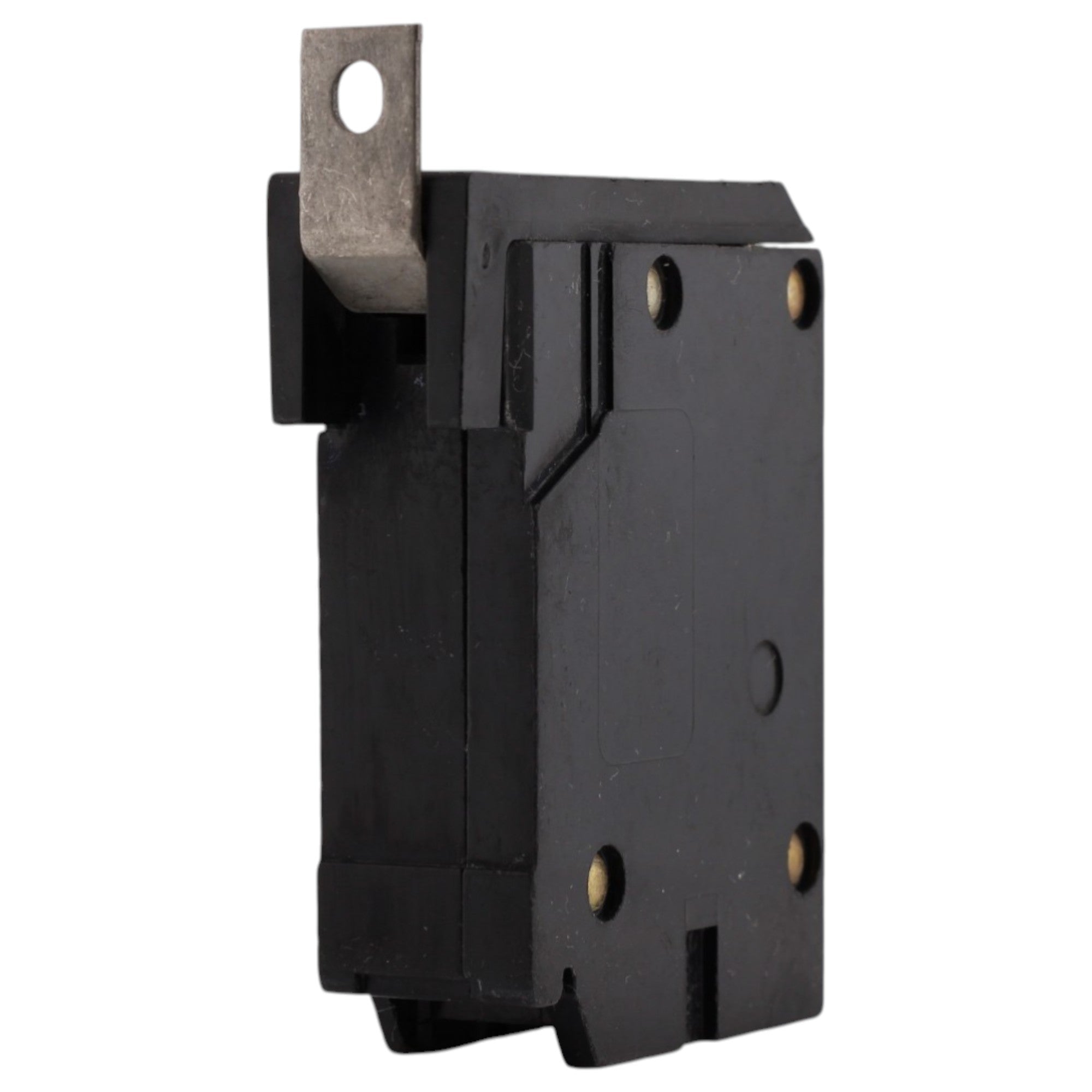

Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 13
Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker
Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 2
Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 3
Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 4
Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 5
Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 6
Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 7
Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 8
Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 9
Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 10
Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 11
Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 12
Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker - Image 13

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

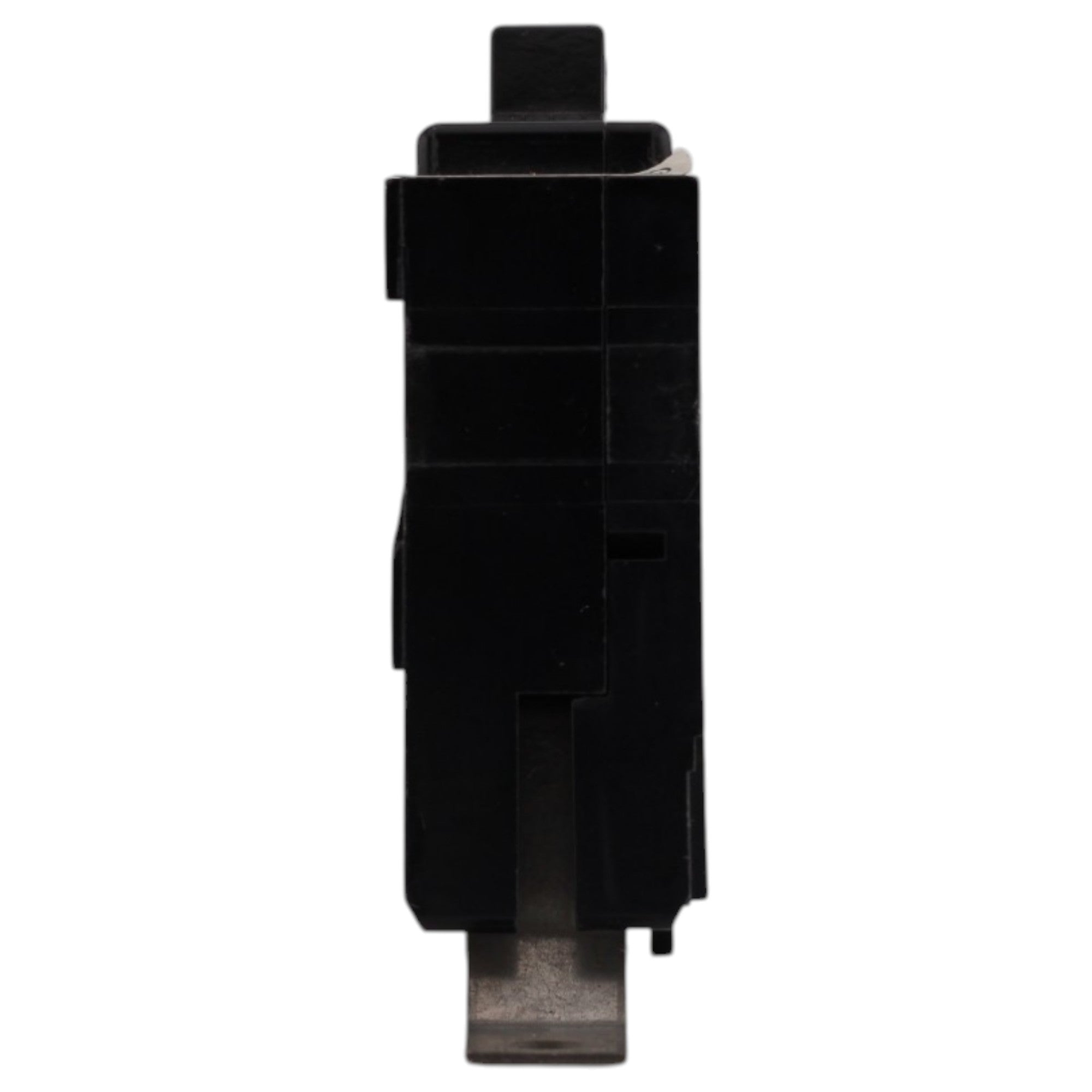

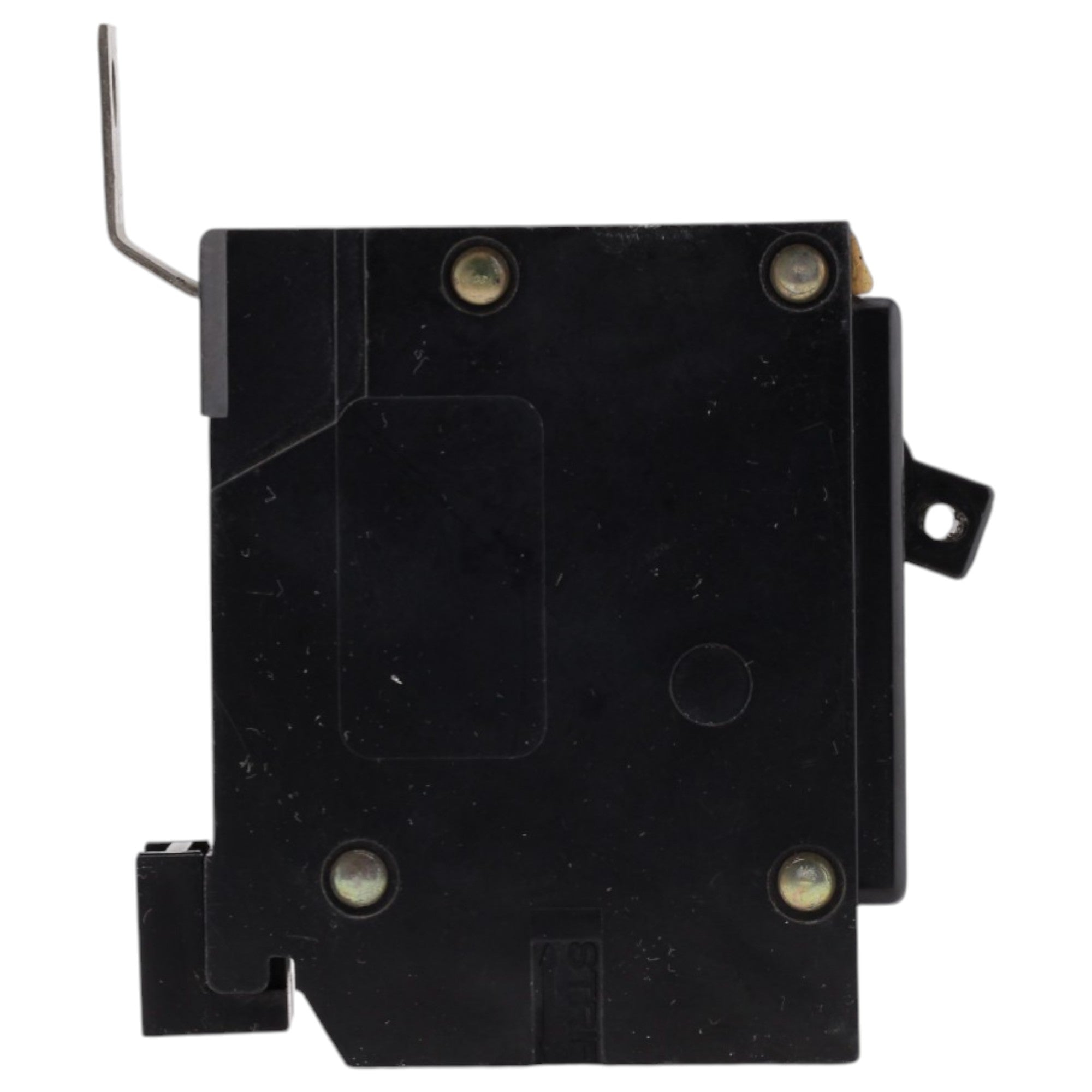

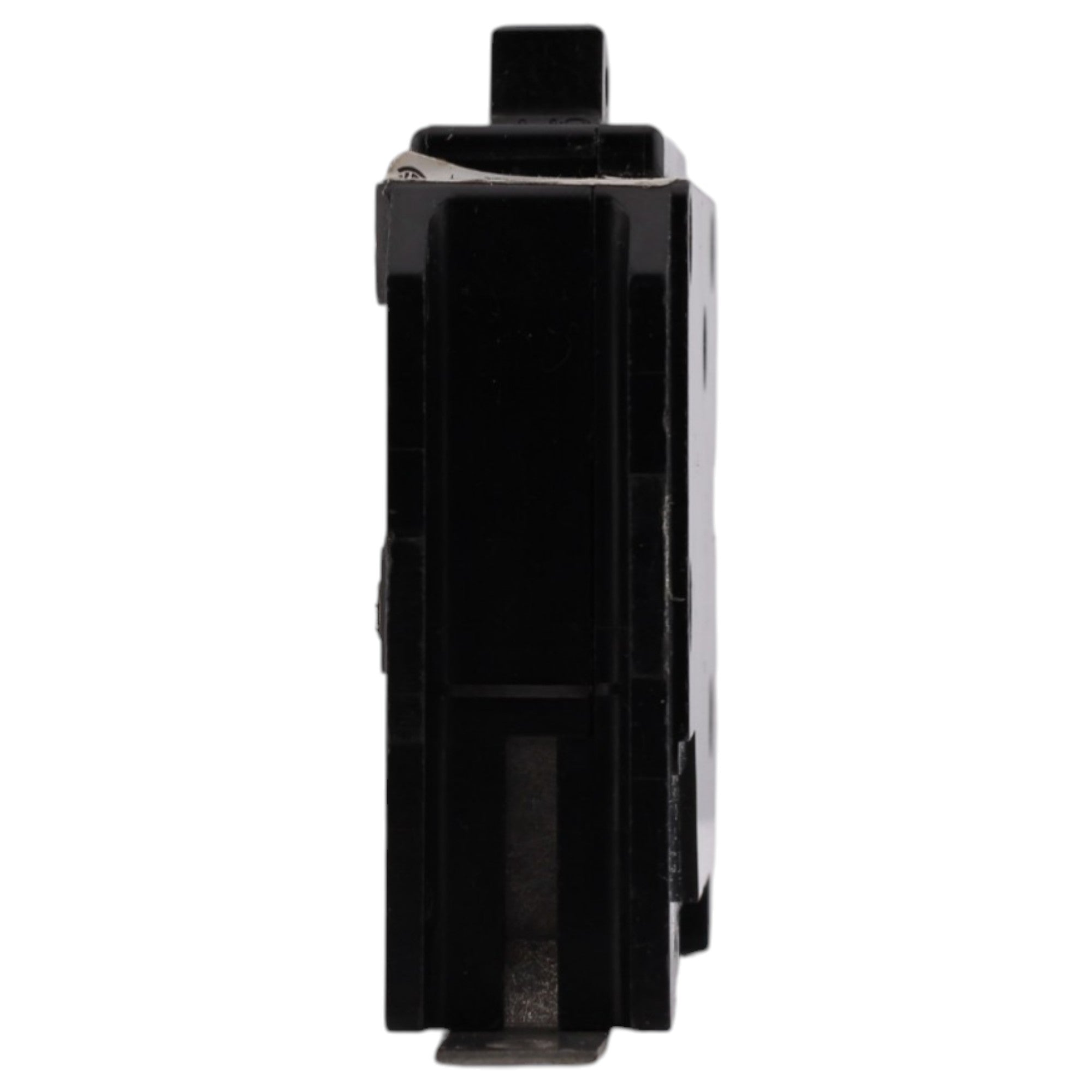

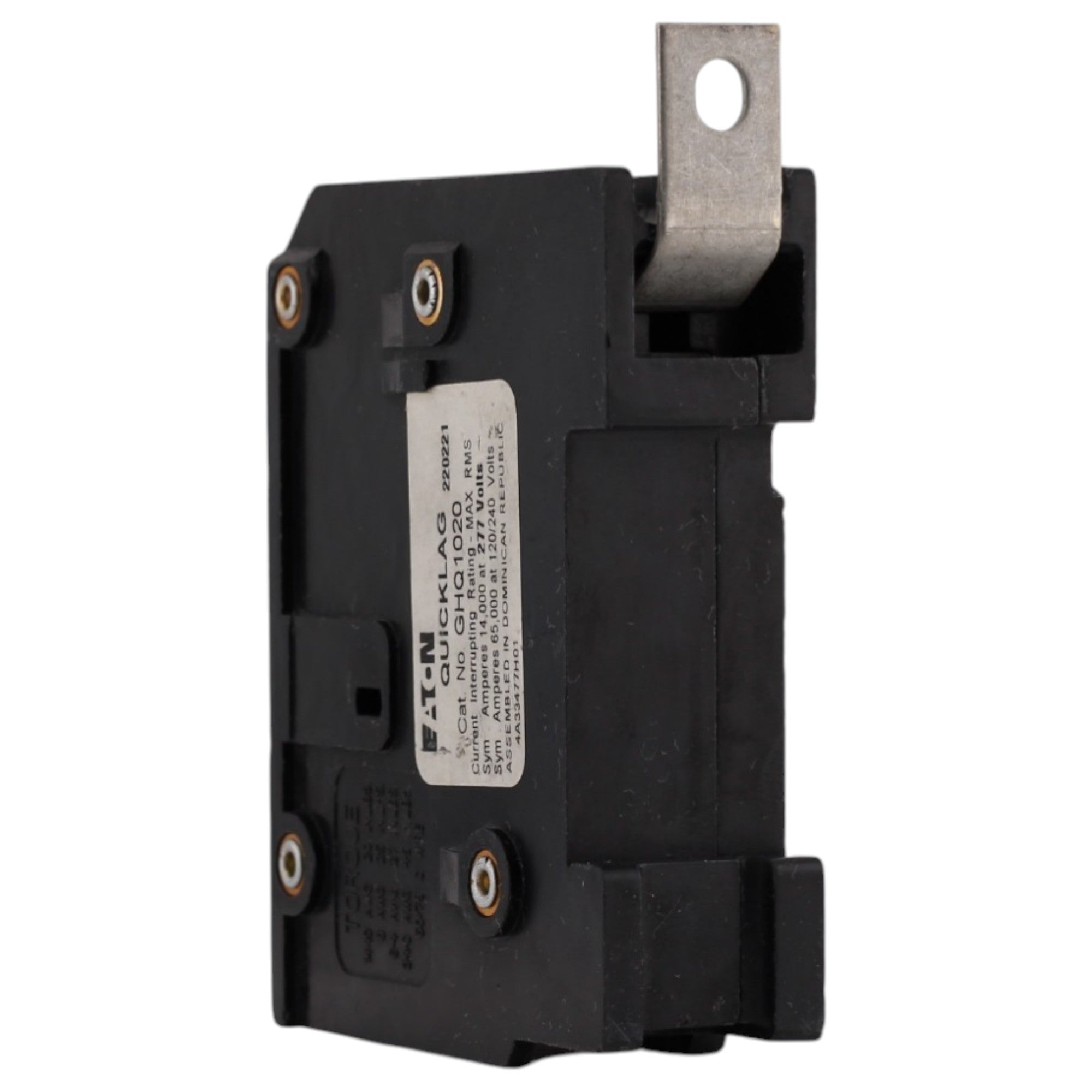

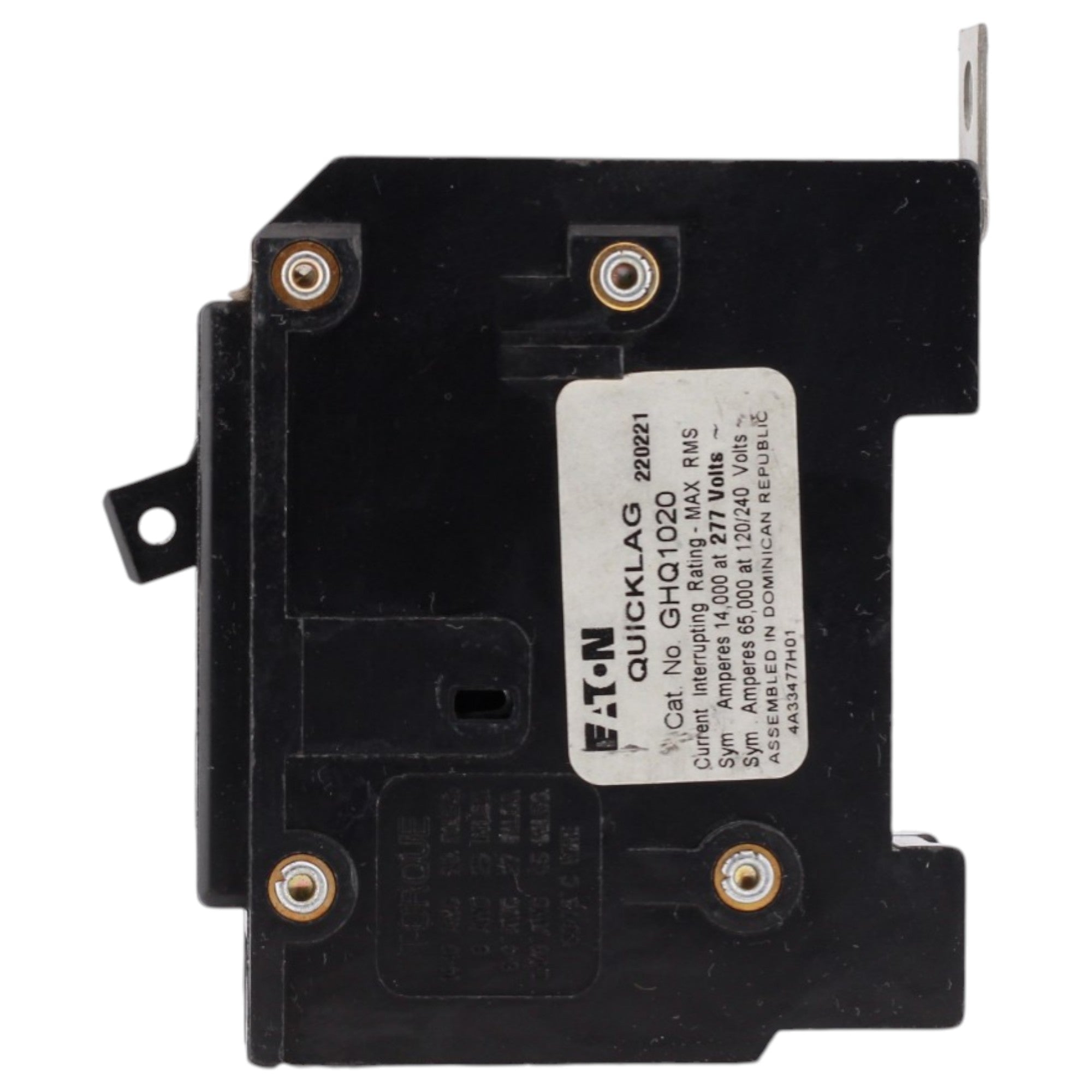

Eaton GHQ, GHQ1020, 20A, 1P, 277V, Bolt-On, Circuit Breaker

Out of stock
SKU: GHQ1020 UPC: 782114985113
(0)
$25.00
-29% $35.00 $25.00
Out of stock
Condition

Eaton GHQ1020: 20 Amp, 1-Pole, Series C NEMA G-Frame Thermal Magnetic circuit breaker, 277V, 14kA, bolt-on mounting, UL listed.

  • Manufacturer: Eaton
  • Brand: Eaton Cutler-Hammer
  • Product Range: GHQ Series / Quicklag (for Eaton Pow-R-Line 2a and 4 panelboards for 277/480V applications)
  • UPC: 782114985113
  • Model Number: GHQ1020
  • Breaker Type: Thermal Magnetic Molded Case Circuit Breaker
  • Frame: Series C NEMA G-Frame (GHP, GDB-Frame)
  • Amperage: 20 Amps
  • Poles: 1-Pole (Single-Pole)
  • Voltage: 277 Volts AC (single-pole)
  • Interrupt Rating: 14 kAIC at 277V, 65 kAIC at 120/240V
  • Mounting Mode: Bolt-On
  • Trip Type: Non-Interchangeable, Fixed Thermal Magnetic
  • Trip Functions: Long-Time and Instantaneous
  • Wire Size: #14-10 AWG (20 lb-in), #8 AWG (25 lb-in), #6-4 AWG (27 lb-in), #3-1/0 AWG (45 lb-in)
  • Terminal Type: Screw clamp connection, box lug terminals
  • Shunt Trip Voltage: 120/208/240V available
  • Dimensions: Height: 4 in; Width: 3 in; Depth: 2.63 in
  • Weight: 0.4 lbs
  • Certifications: UL 489 Listed

This Eaton GHQ1020 bolt-on circuit breaker delivers dependable 20A, 1-pole thermal magnetic protection for 277V circuits in Pow-R-Line panelboards. Designed for commercial and industrial applications with 14kA interrupt rating at 277V and secure bolt-on mounting, it supports high-voltage branch circuit protection including fluorescent lighting systems and HVAC equipment in 277/480V panelboard installations.
