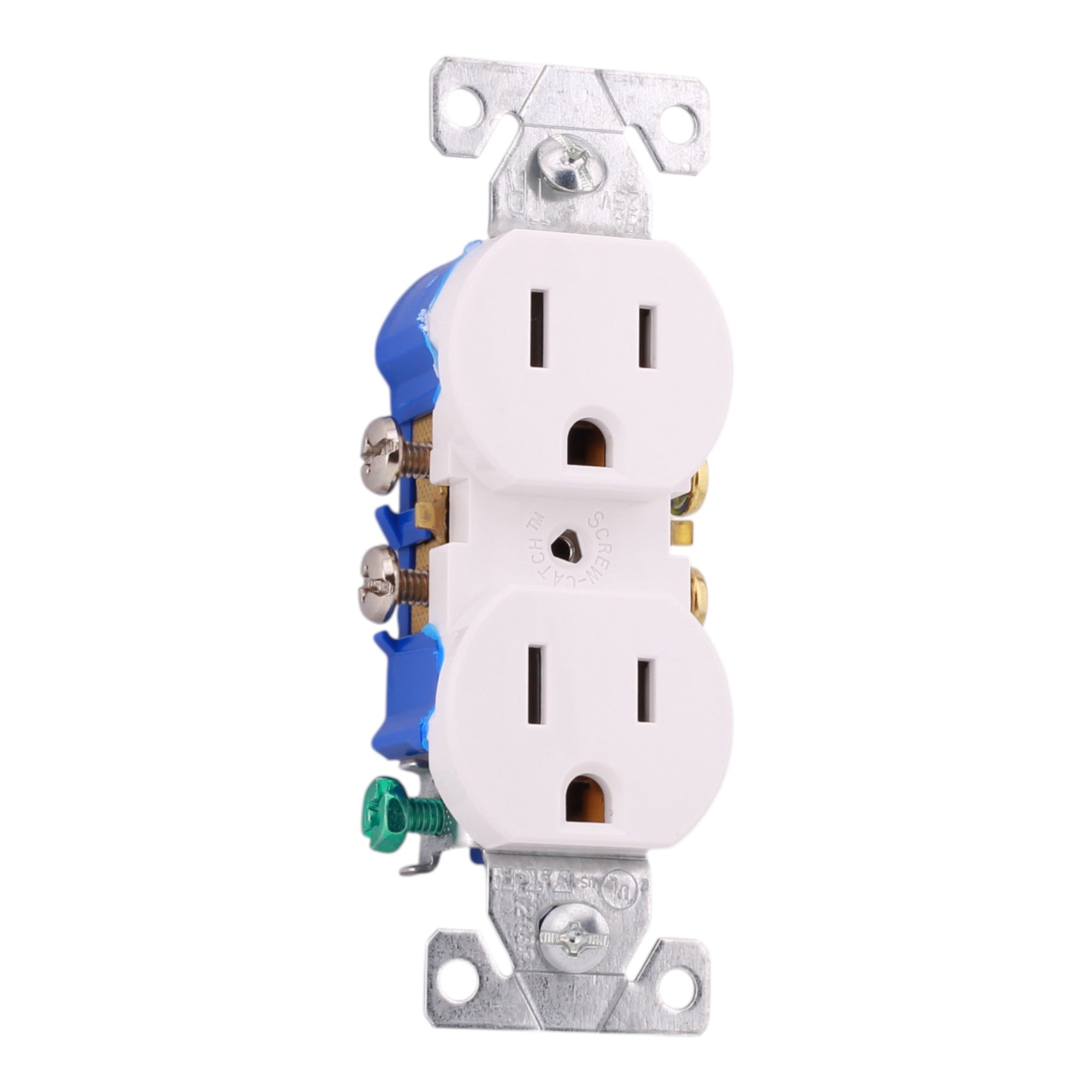

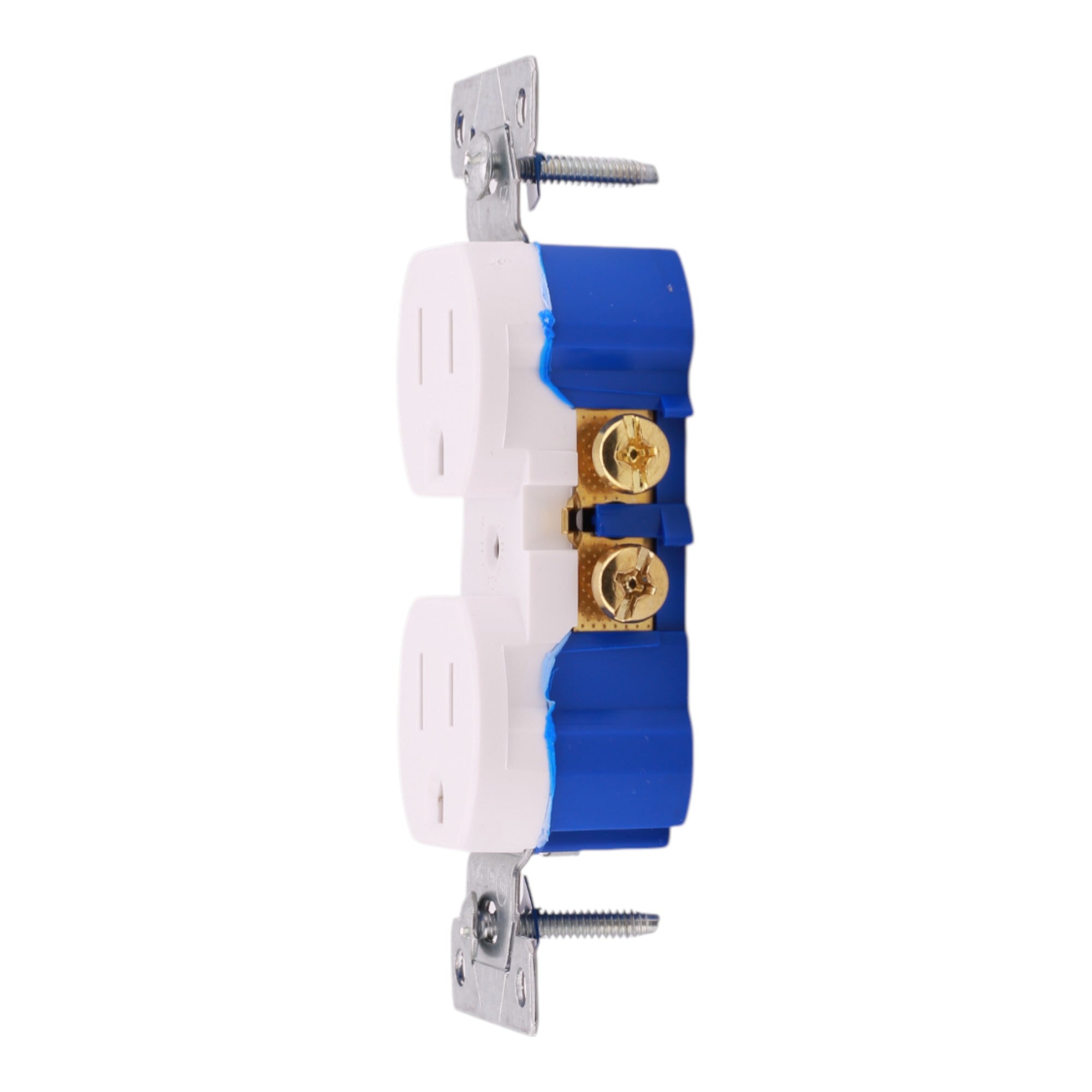

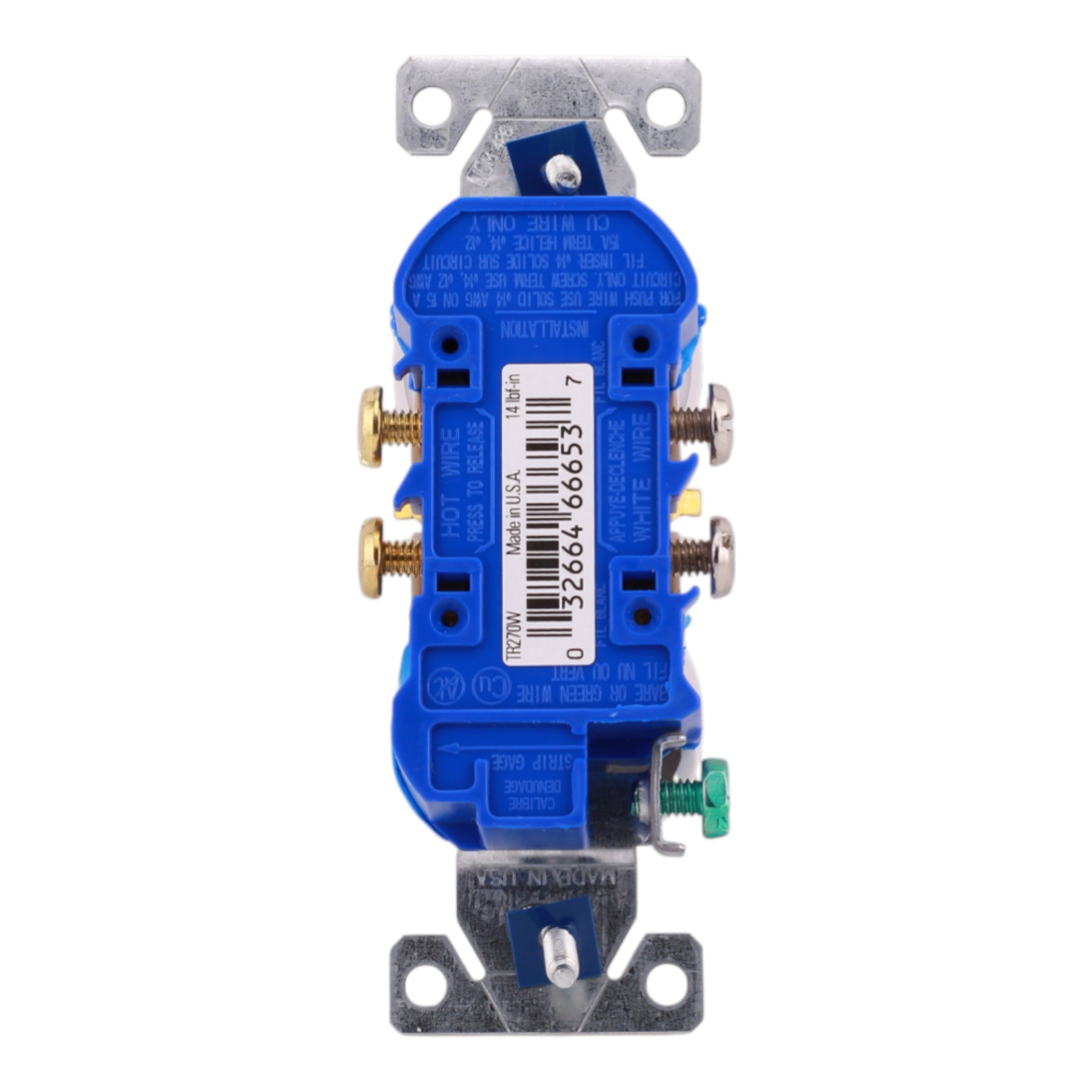

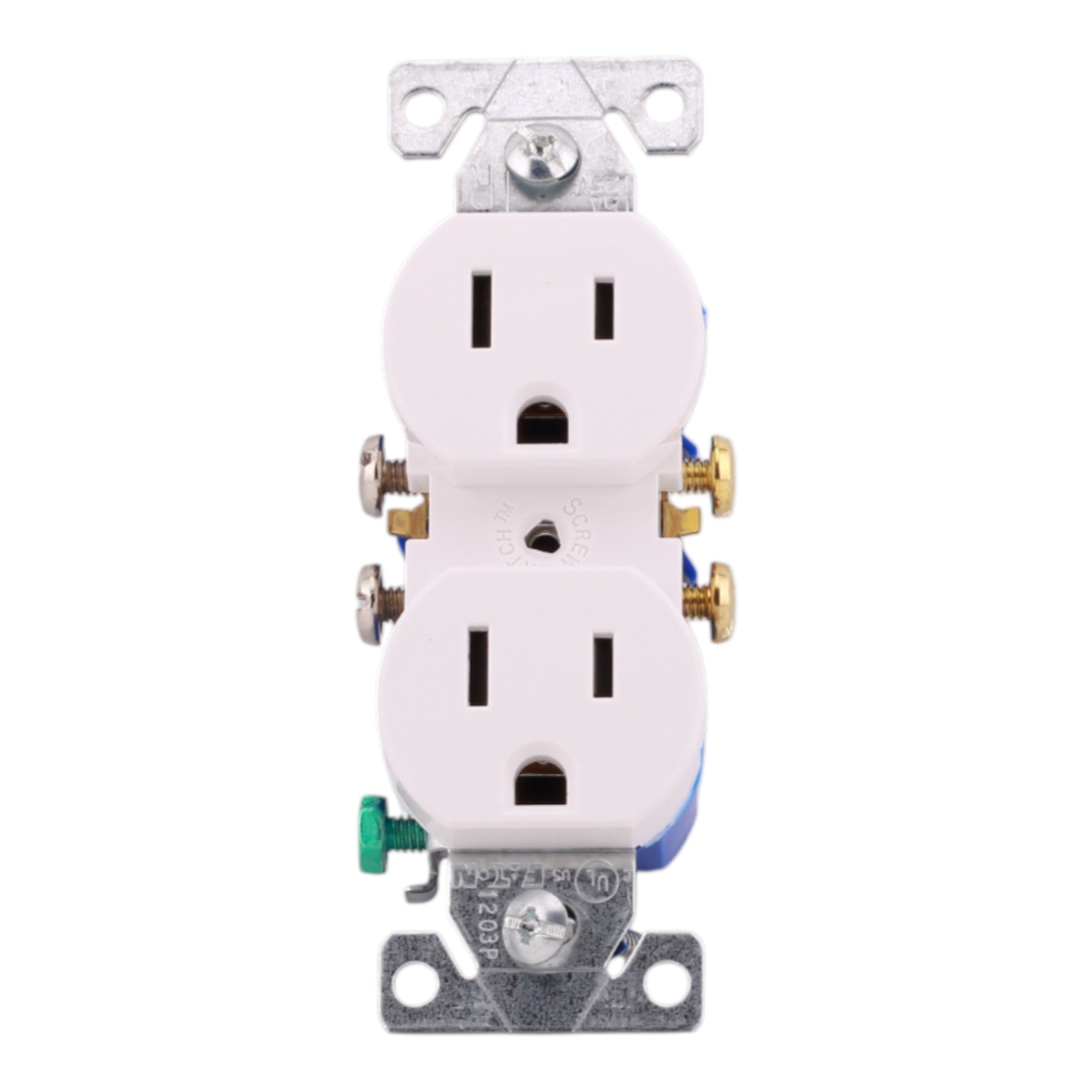

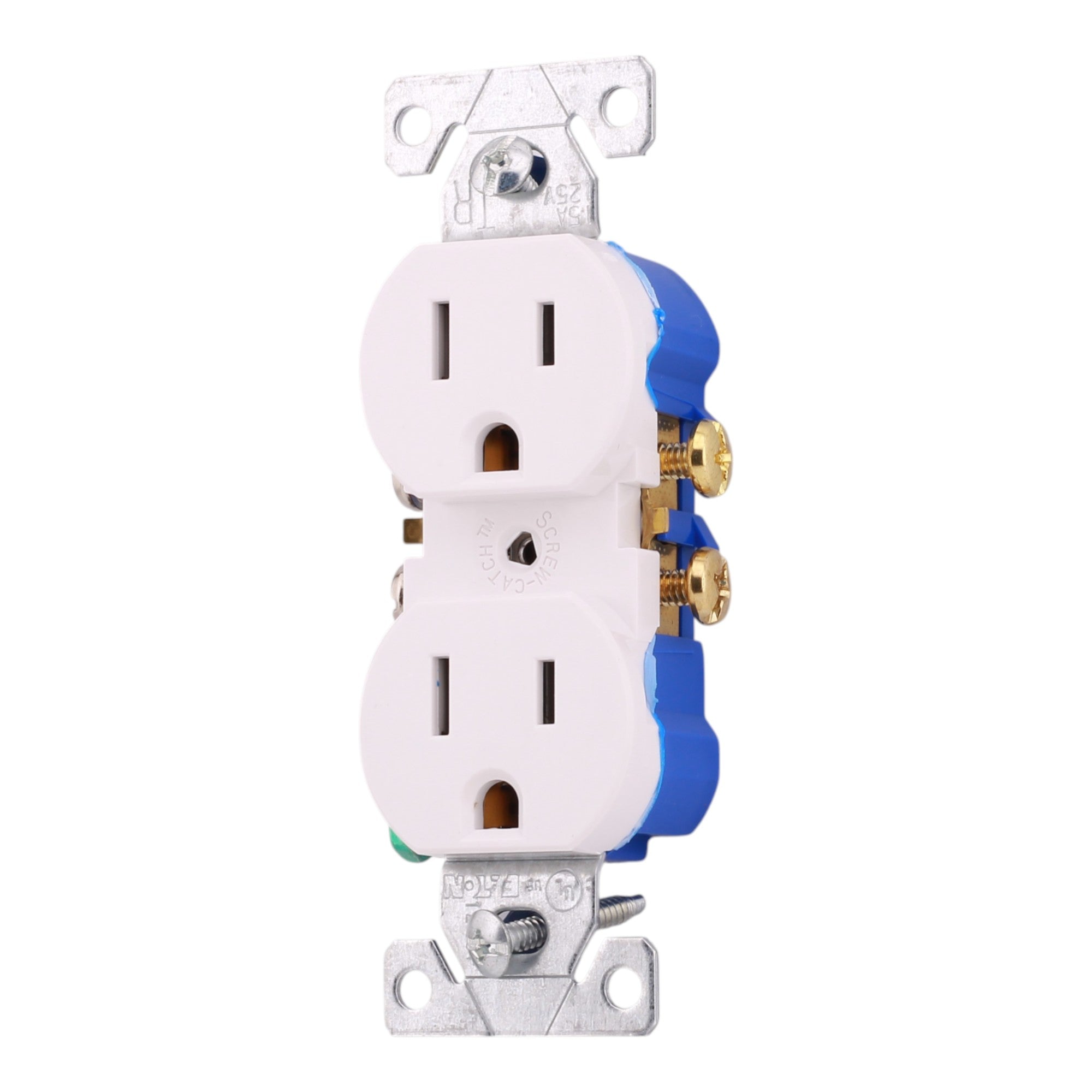

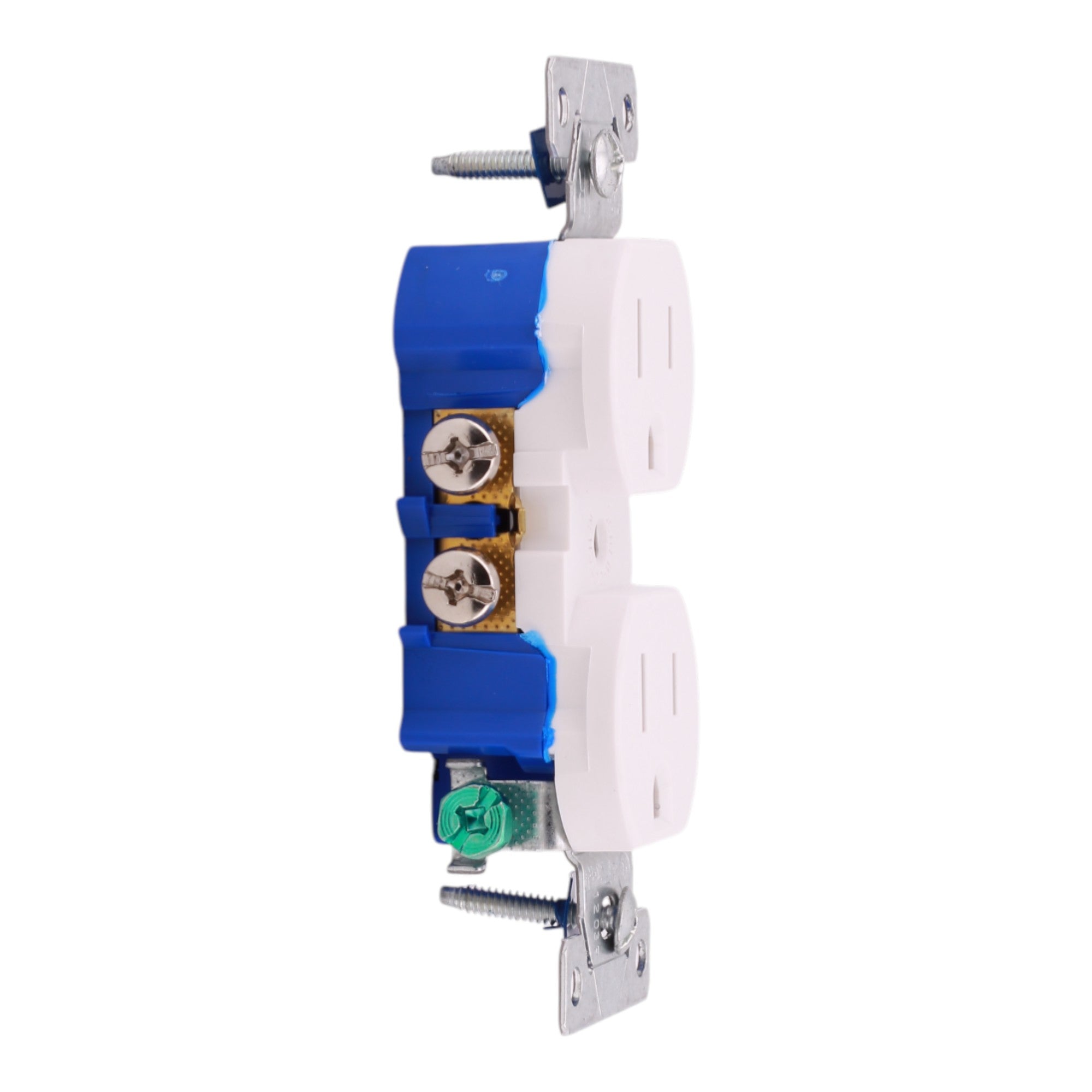

Eaton TR270W-BX-LW 15A 2P 125V Tamper Resistant Duplex Receptacle White

TR270W-BX-LW Eaton 15A 2P 125V Tamper Resistant Duplex Receptacle White.

TR270W-BX-LW specifications

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: Eaton Wiring Devices (for commercial and residential applications)
• UPC: 032664666537
• Model Number: TR270W-BX-LW
• Product Type: Duplex Receptacle
• Receptacle Type: Straight Blade
• Amperage: 15 Amps
• Poles: 2-Pole
• Voltage: 125 Volts AC
• NEMA Configuration: 5-15R
• Wiring Method: Side and Push
• Allowable Wire Size: #14-10 AWG (Copper or Copper Clad Aluminum)
• Tightening Torque: 14 lb-in
• Mounting Method: Flush
• Material: Impact-resistant thermoplastic face, PVC body
• Contact Material: Brass
• Dimensions: Height: 4.0 in; Width: 0.79 in; Depth: 1.24 in
• Weight: 0.13 lbs
• Certifications: cULus Listed, NOM Certified
• Features: Tamper Resistant

This Eaton TR270W-BOX tamper resistant duplex receptacle provides reliable 15A, 2-pole, 125V power delivery for commercial and residential applications. Featuring side and push wiring for easy installation and a durable thermoplastic face with PVC body, it ensures safety and compatibility with NEMA 5-15R configurations.
