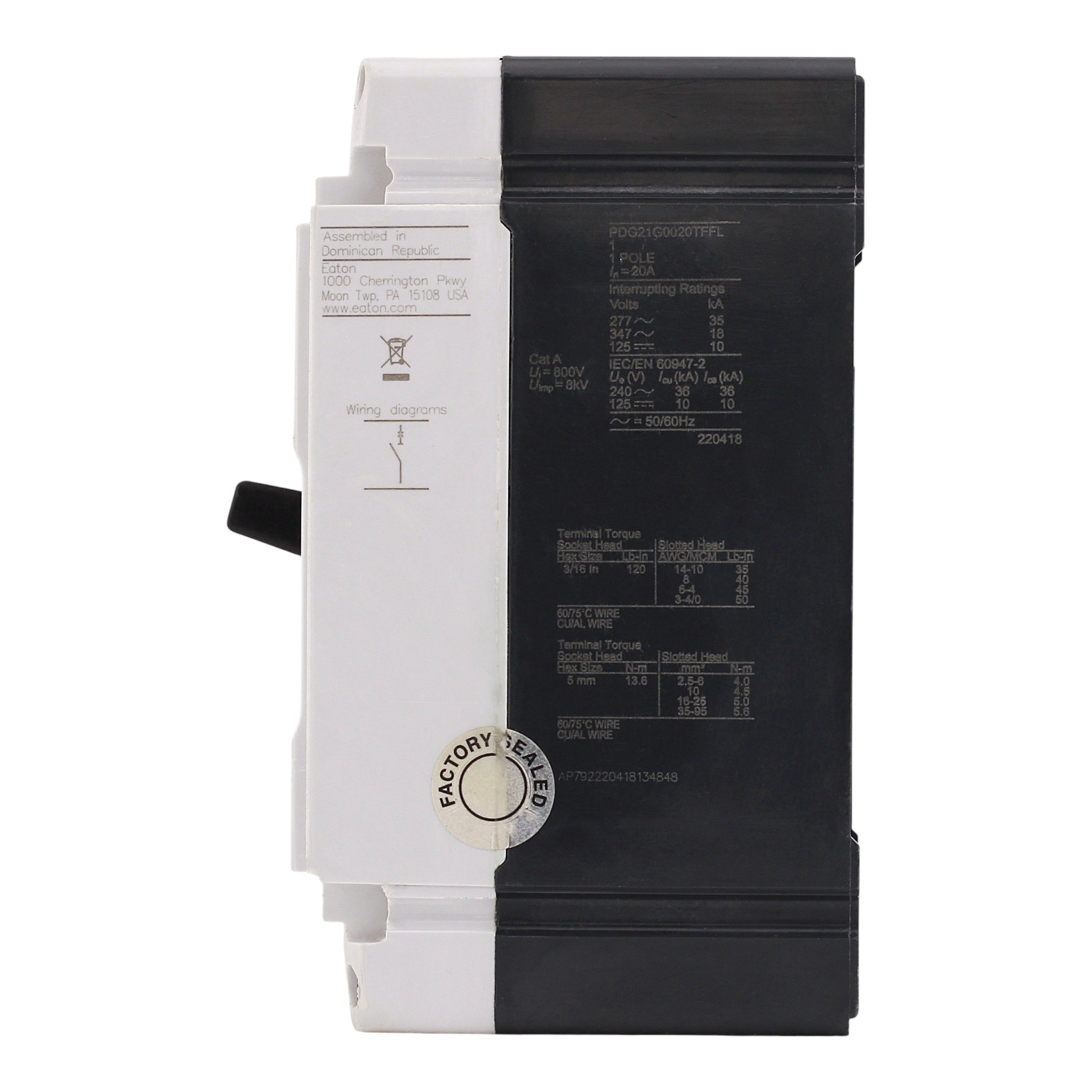

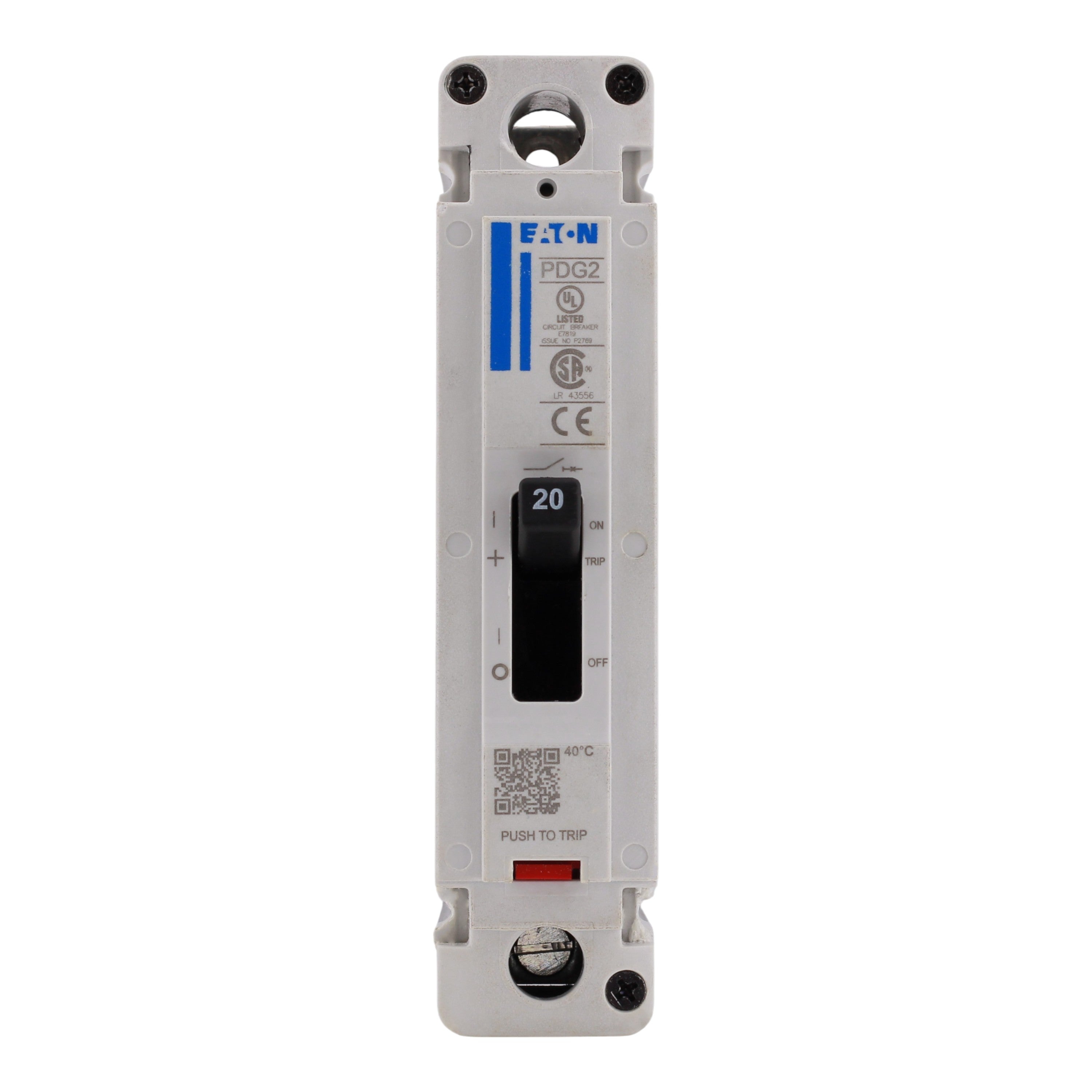

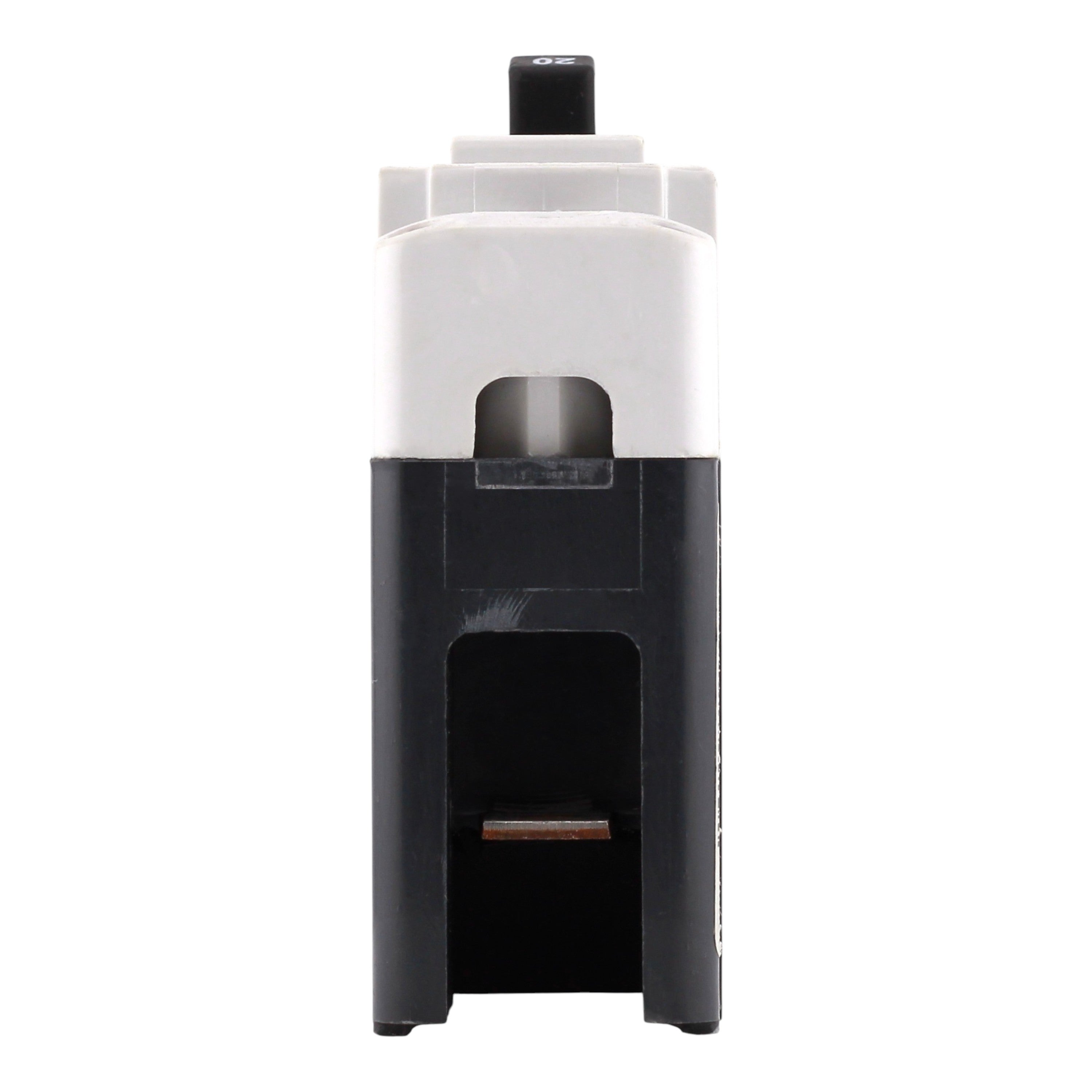

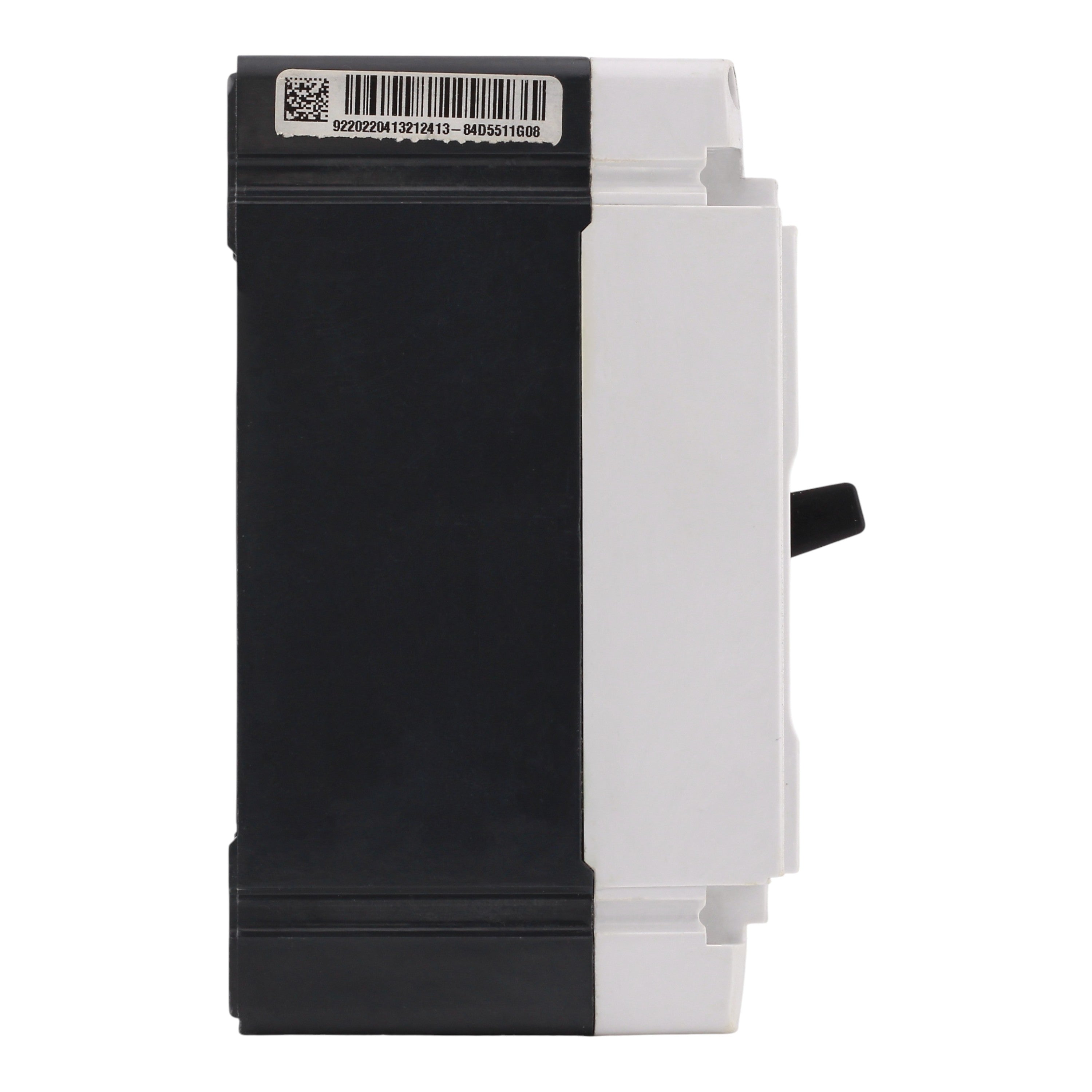

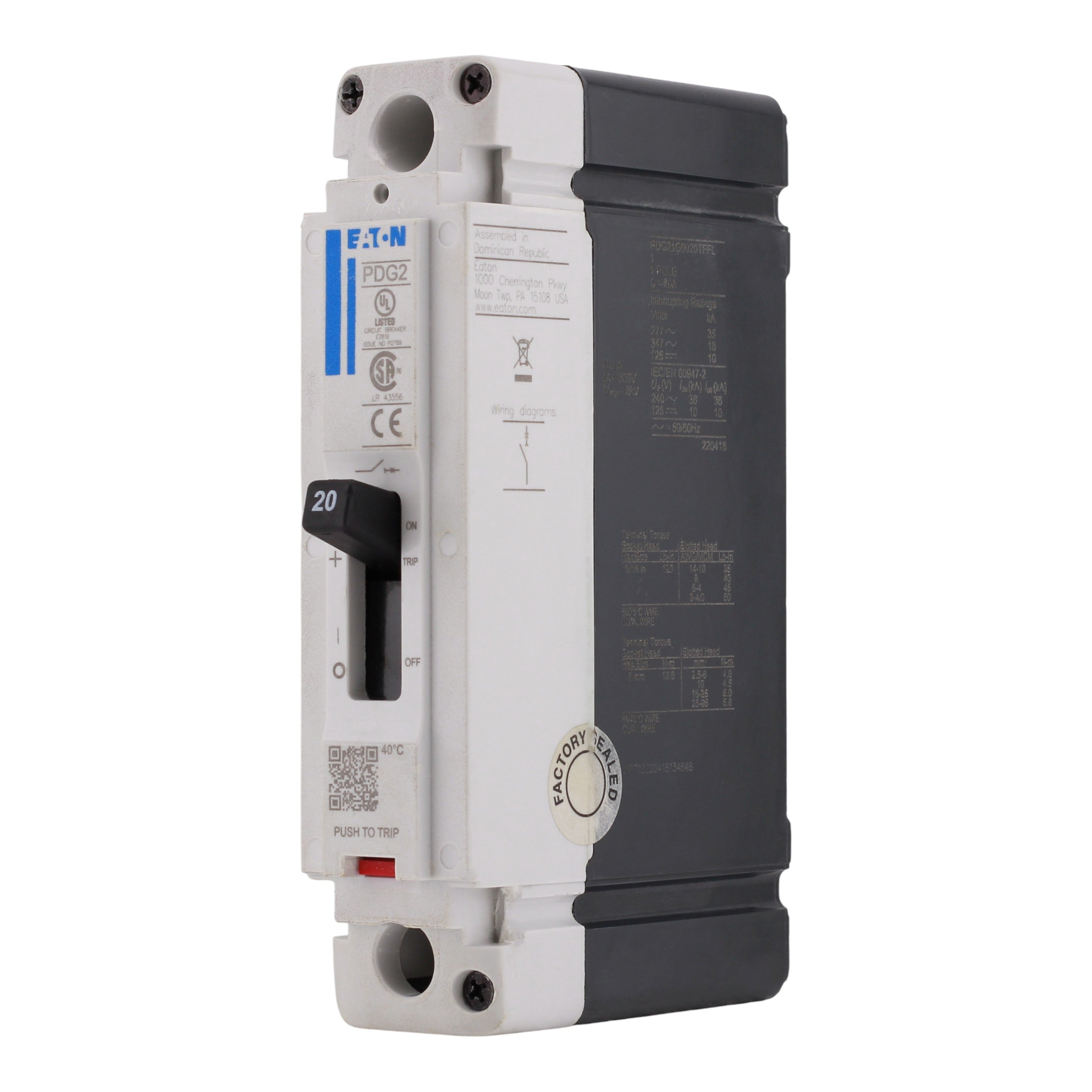

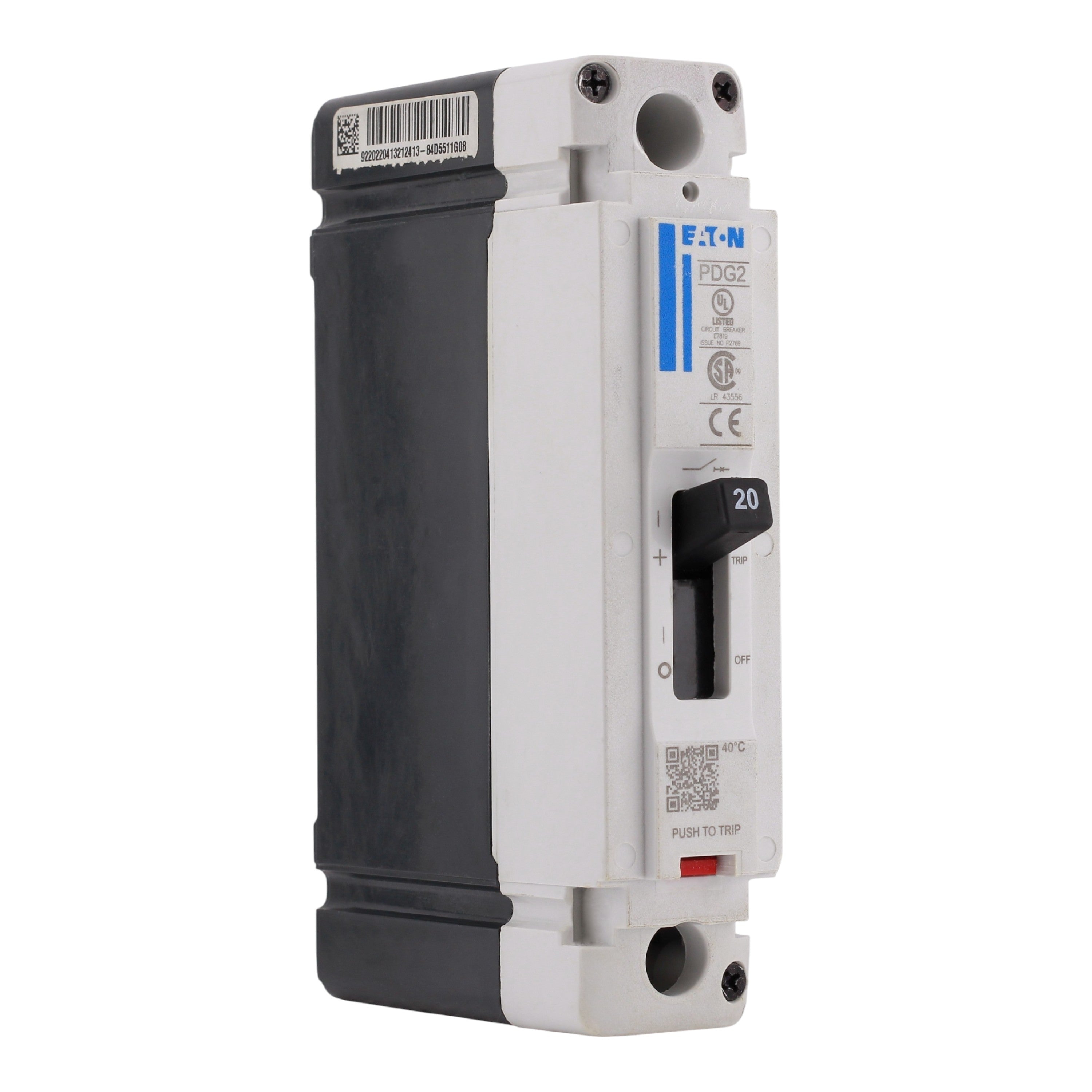

Eaton Power Defense PDG21G0020TFFL: 20 Amp 1-Pole Molded Case Circuit Breaker, Globally Rated Frame 2, 600 Vac, 35 kAIC at 480V, Fixed Thermal-Fixed Magnetic Trip, Standard Terminals Load Only, UL 489 Listed, IEC 60947-2, CSA Certified.
-
Manufacturer: Eaton
-
Brand: Eaton
-
Product Range: Power Defense (Globally Rated, Frame 2)
-
UPC: 786687041641
-
Model Number: PDG21G0020TFFL
-
Product Type: Molded case circuit breaker
-
Amperage: 20 Amps
-
Poles: 1-Pole
-
Voltage: 600 Vac
-
Interrupt Rating: 35 kAIC at 480 Vac (UL), 18 kAIC at 600 Vac (UL/CSA), 65 kAIC at 240 Vac (UL)
-
Trip Type: Thermal-Magnetic (Fixed-Fixed)
-
Mounting Mode: Bolt-on / Panel Mount
-

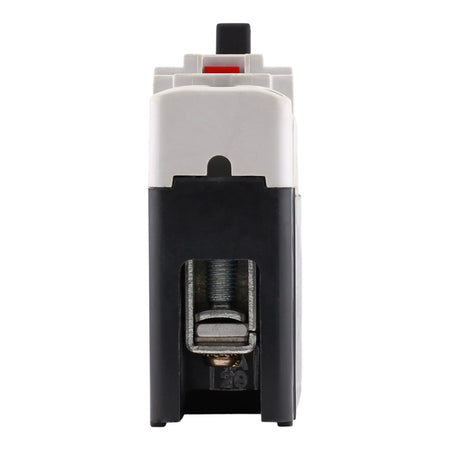

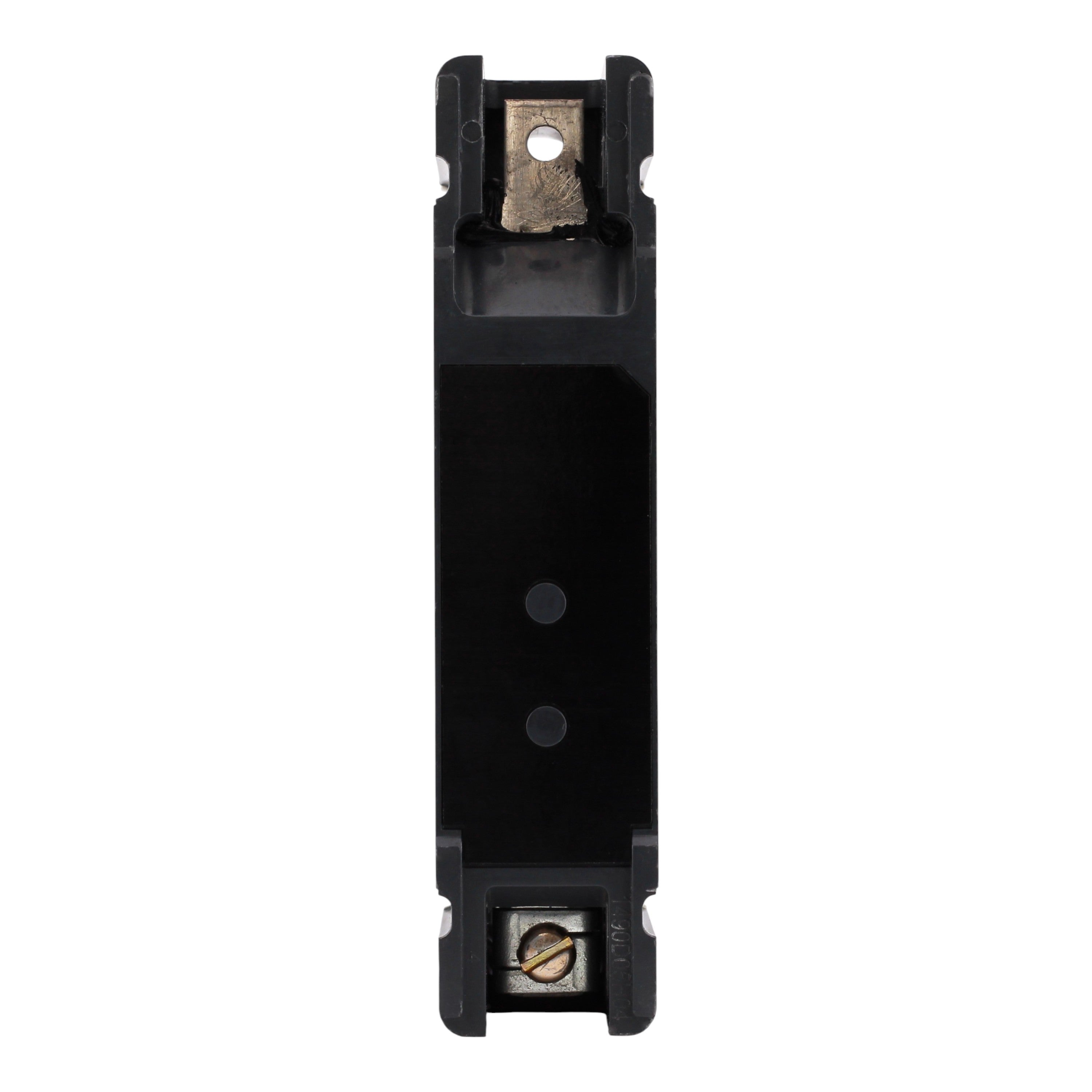

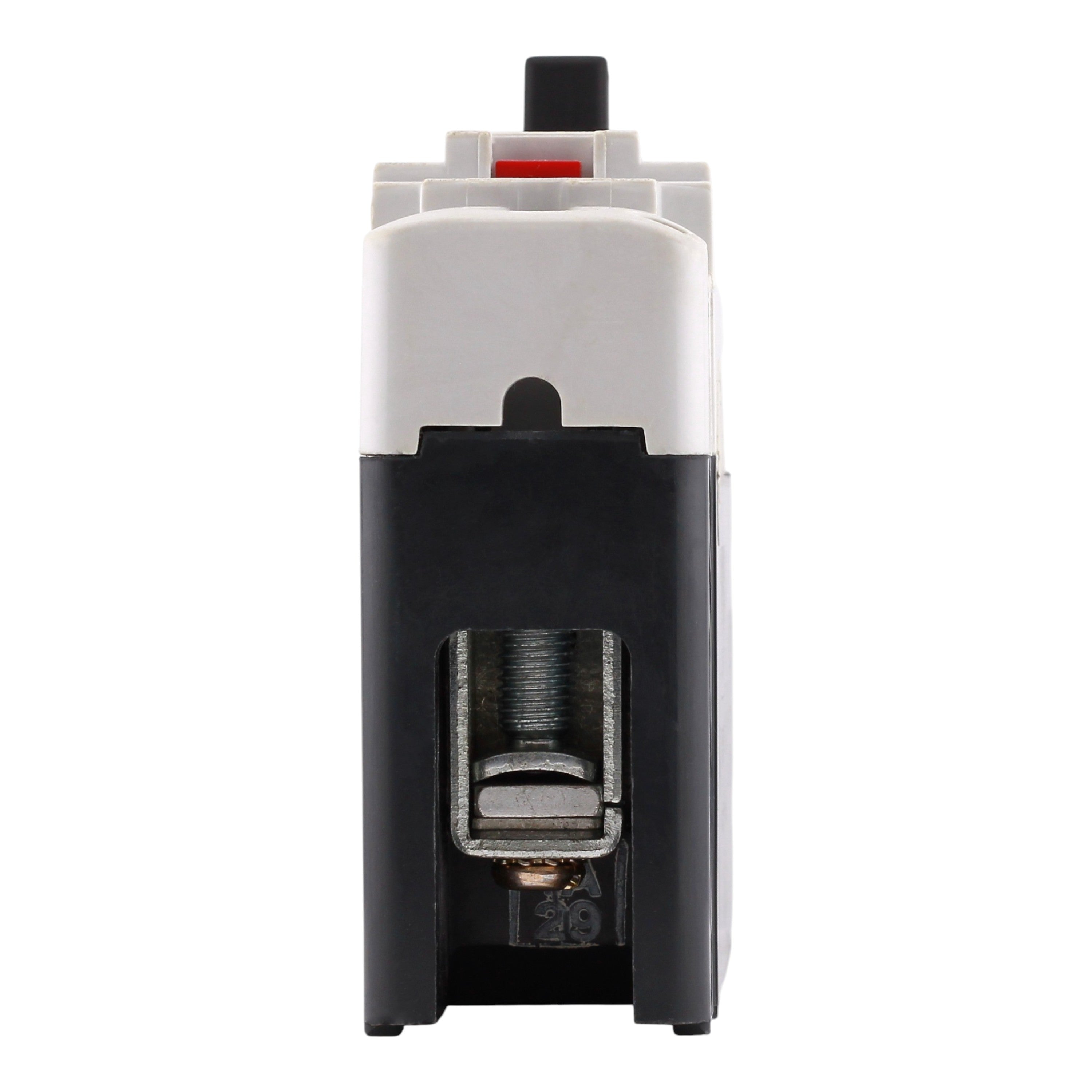

Connections Terminals: Standard Terminals Load Only
-
Frame Size: 2
-
Dimensions: Height: 5.51 in; Width: 1.38 in; Depth: 3.50 in
-
Weight: 1.80 lbs
-
Certifications: UL 489 Listed, CSA Certified, IEC 60947-2, CCC Marked, RoHS Compliant
The Eaton Power Defense PDG21G0020TFFL is a globally rated Frame 2 molded case circuit breaker delivering reliable 20A single-pole protection up to 600 Vac with 35 kAIC interrupt capacity at 480V. Featuring fixed thermal-magnetic trip and standard load-side terminals, this UL 489 and IEC 60947-2 compliant breaker is ideal for commercial, industrial, and OEM panelboard applications requiring robust performance and worldwide approvals.
