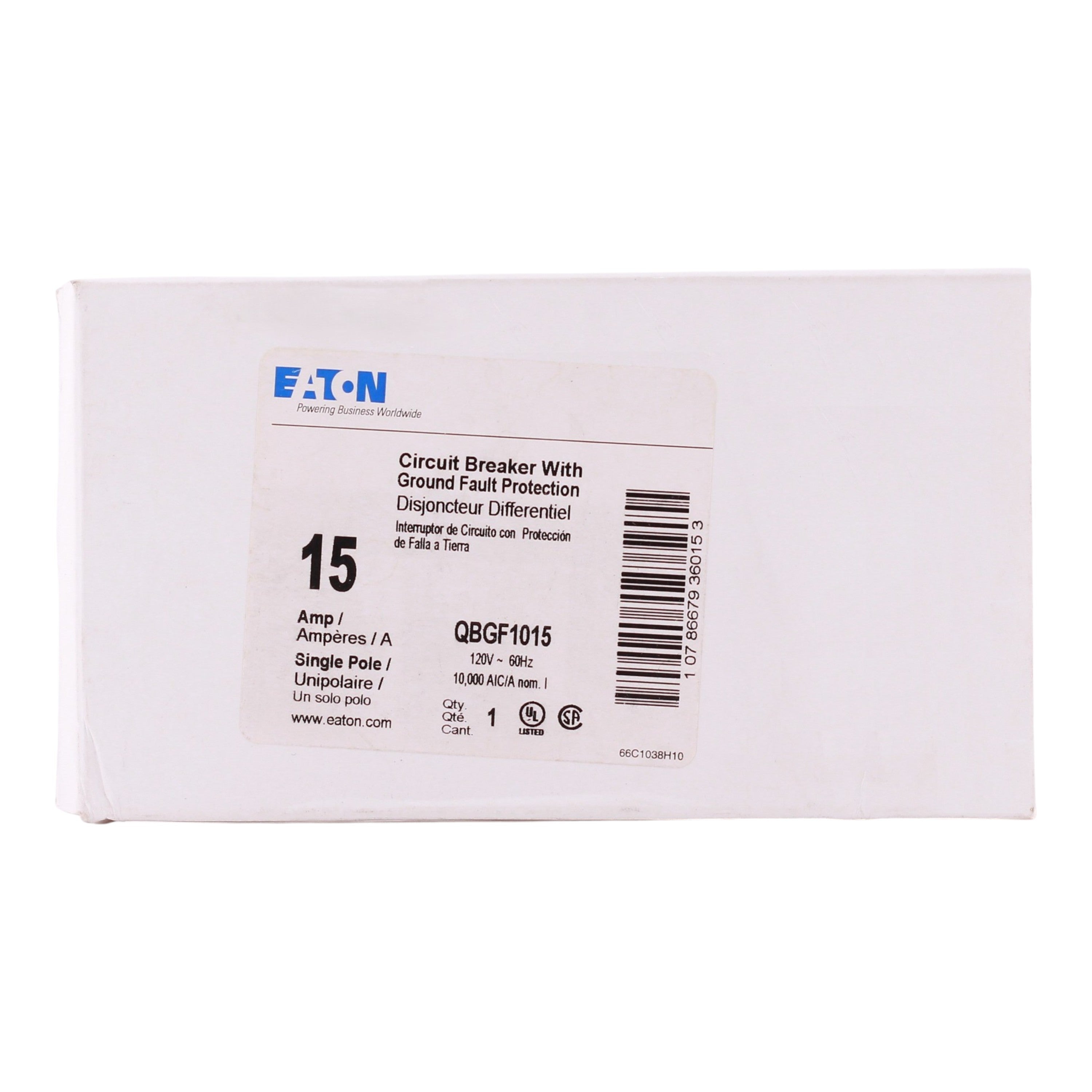

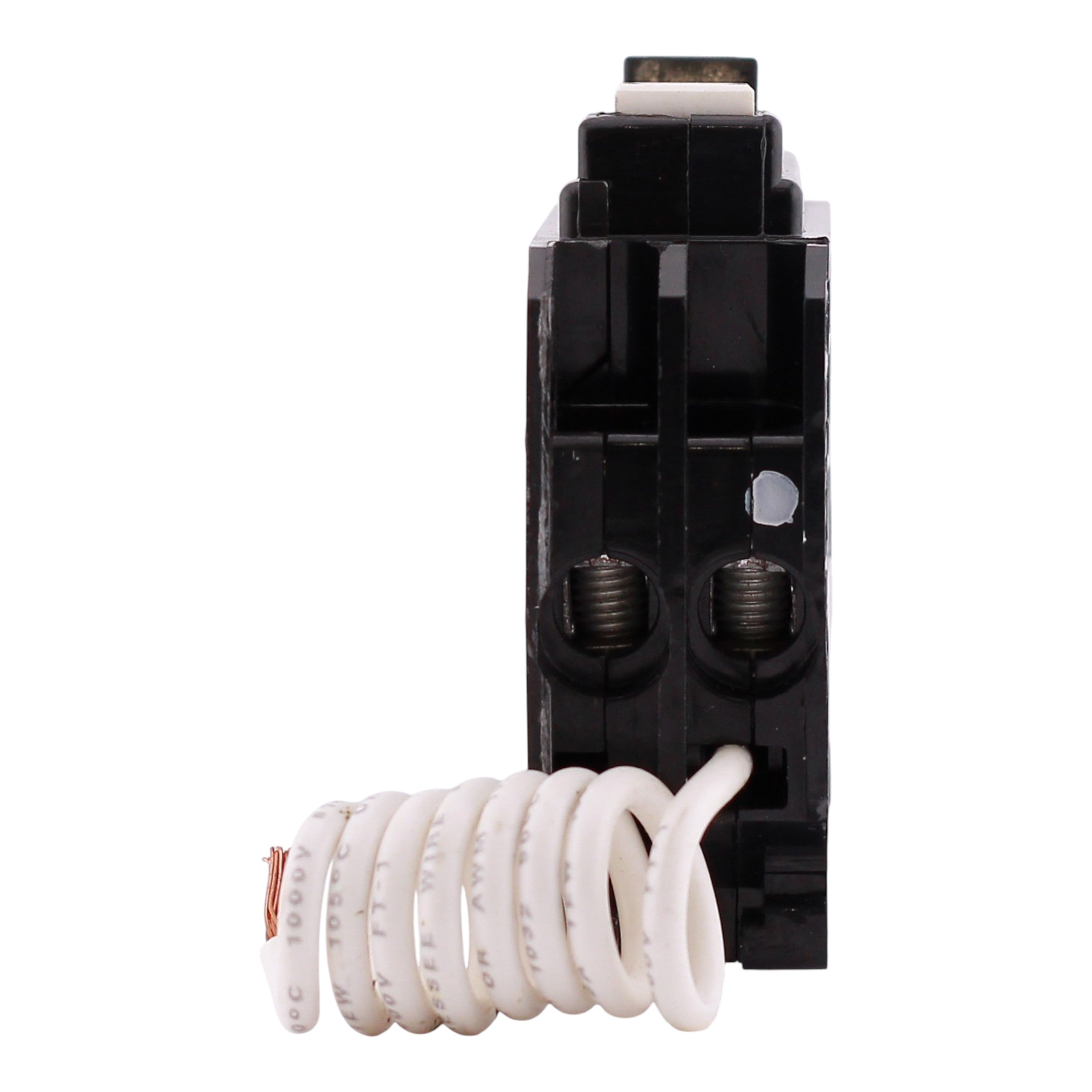

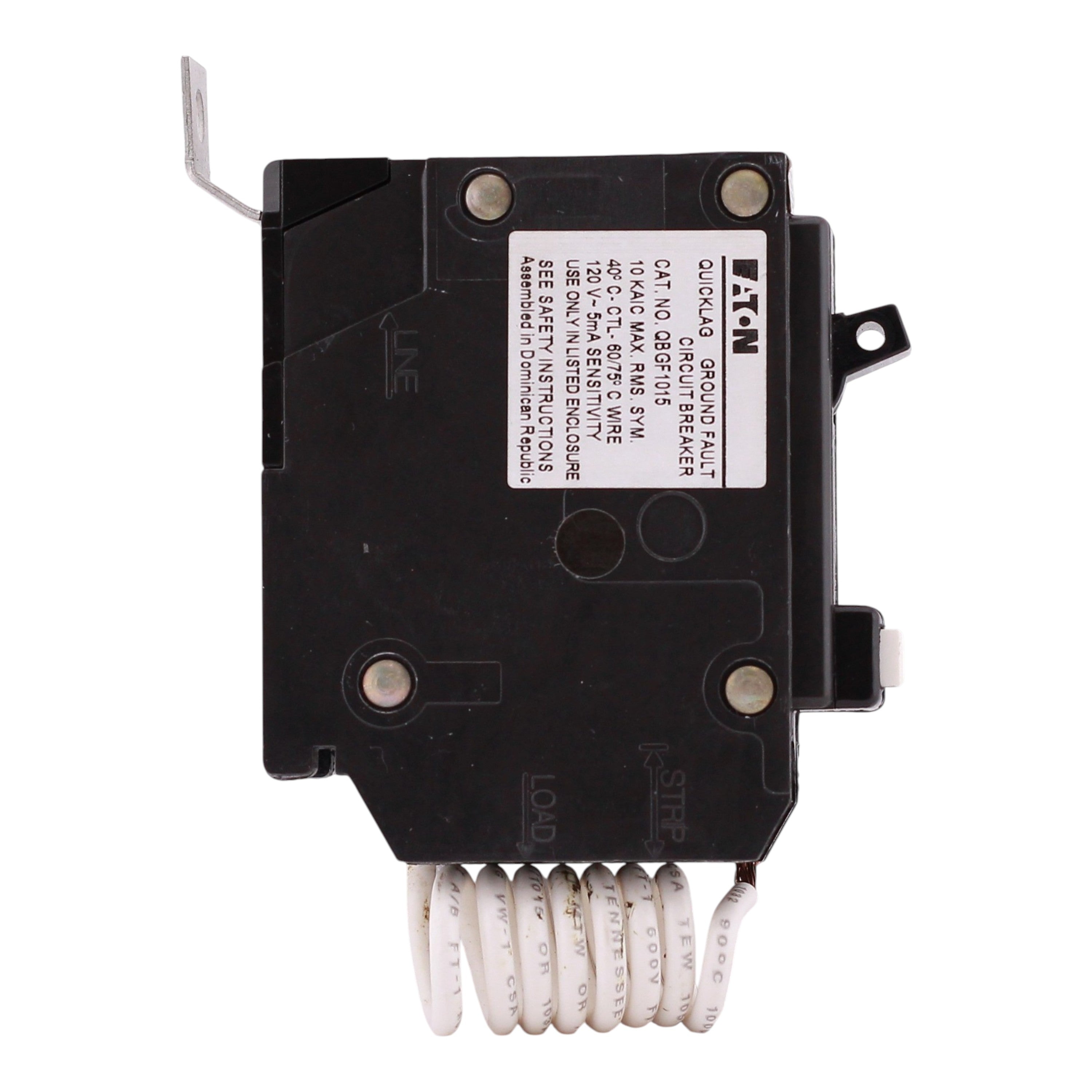

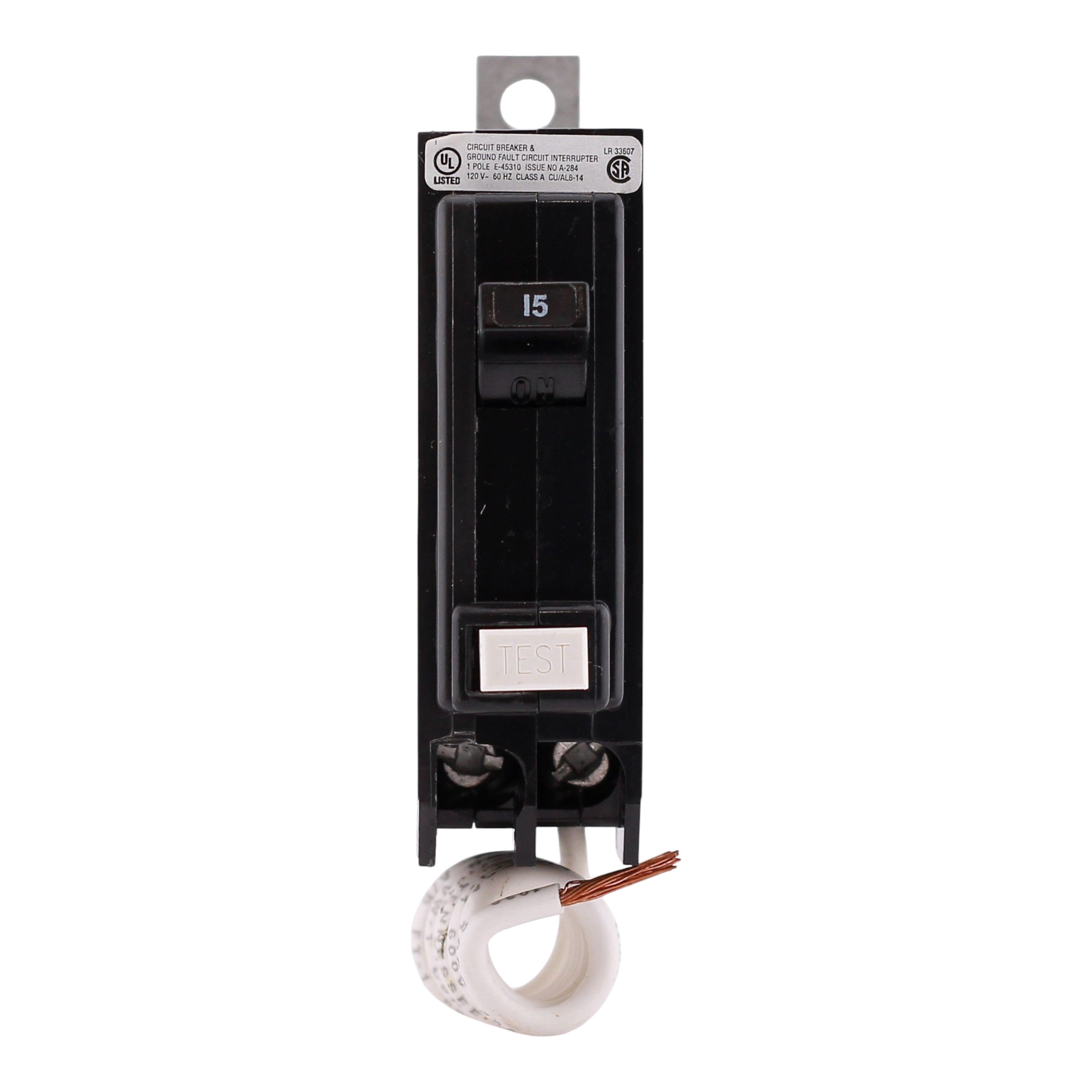

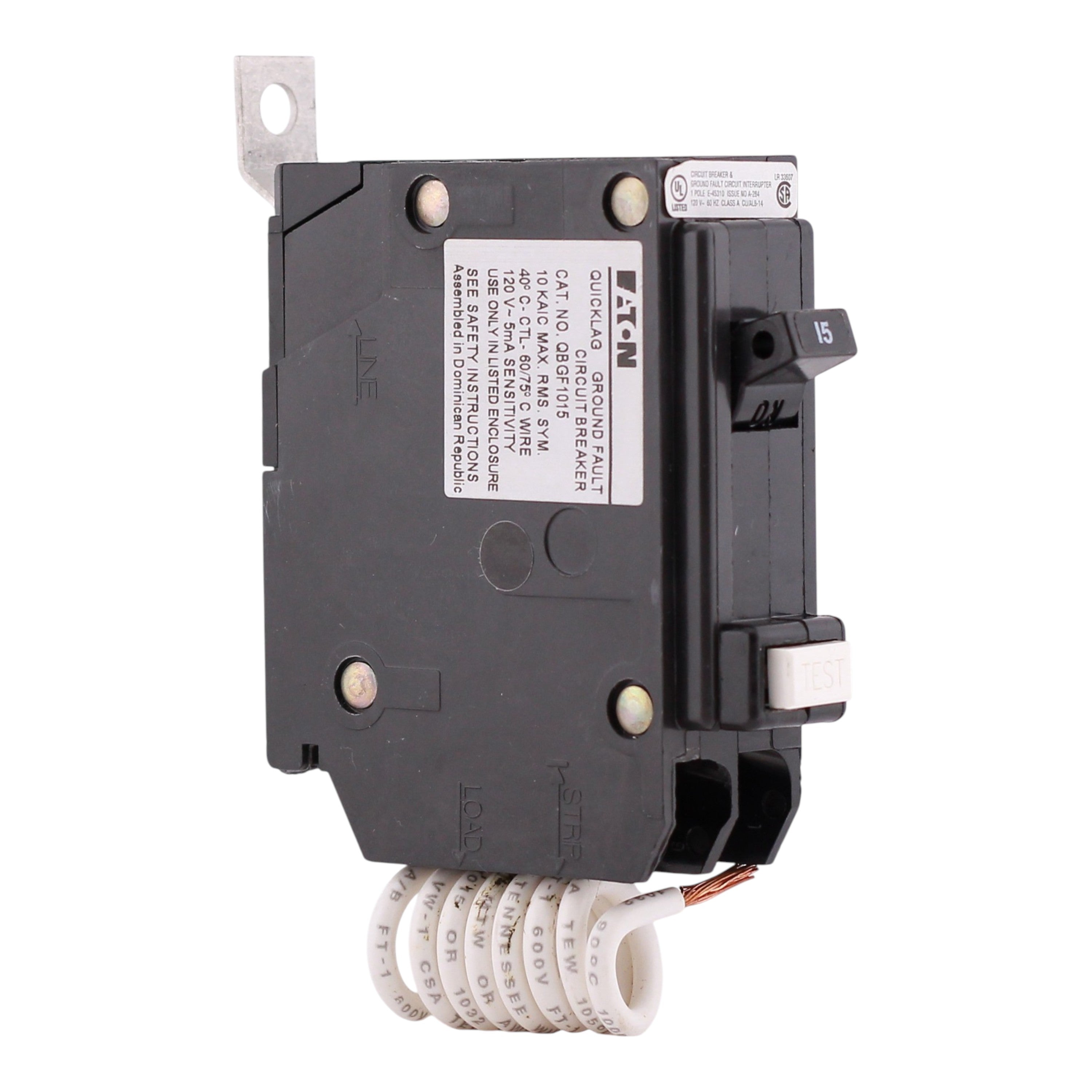

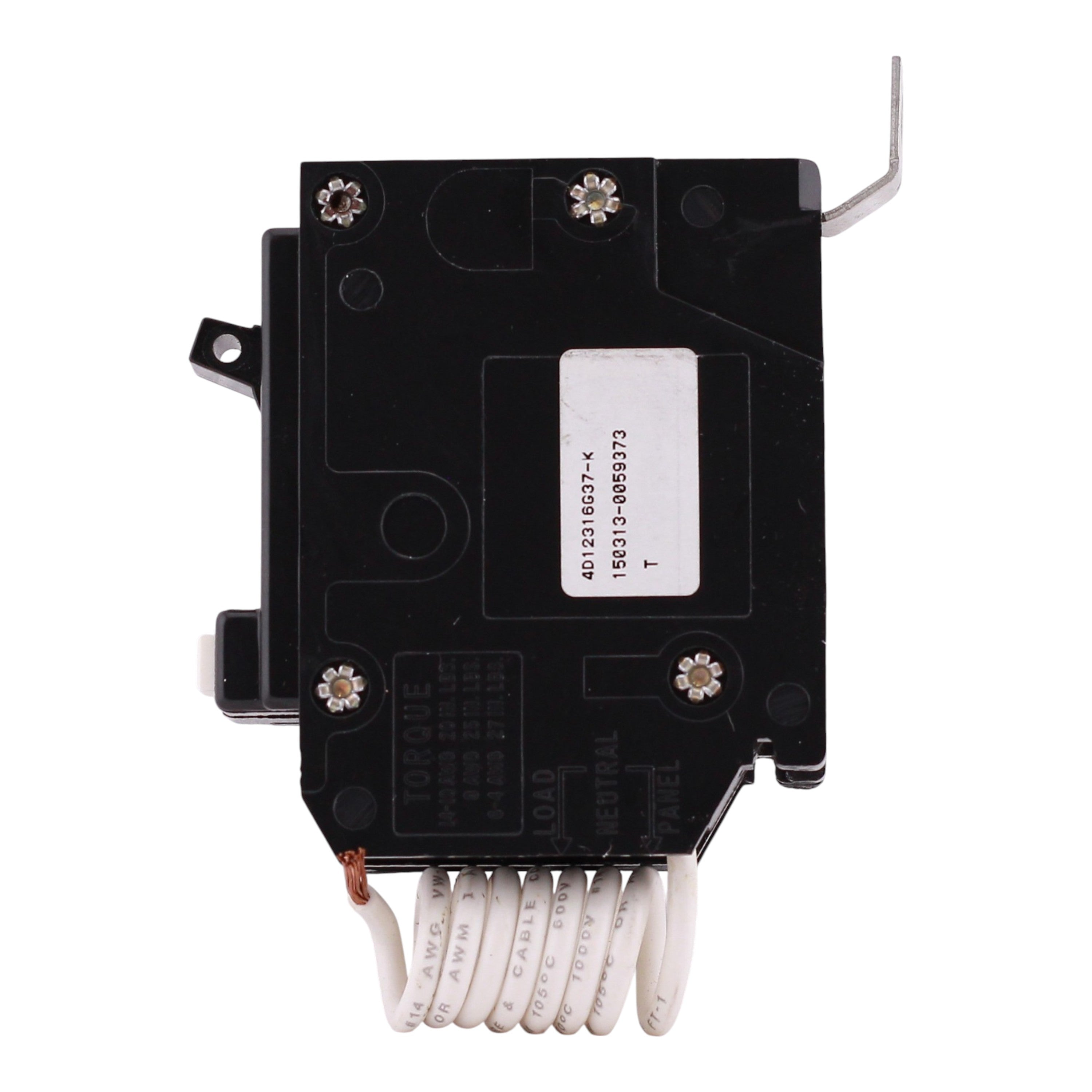

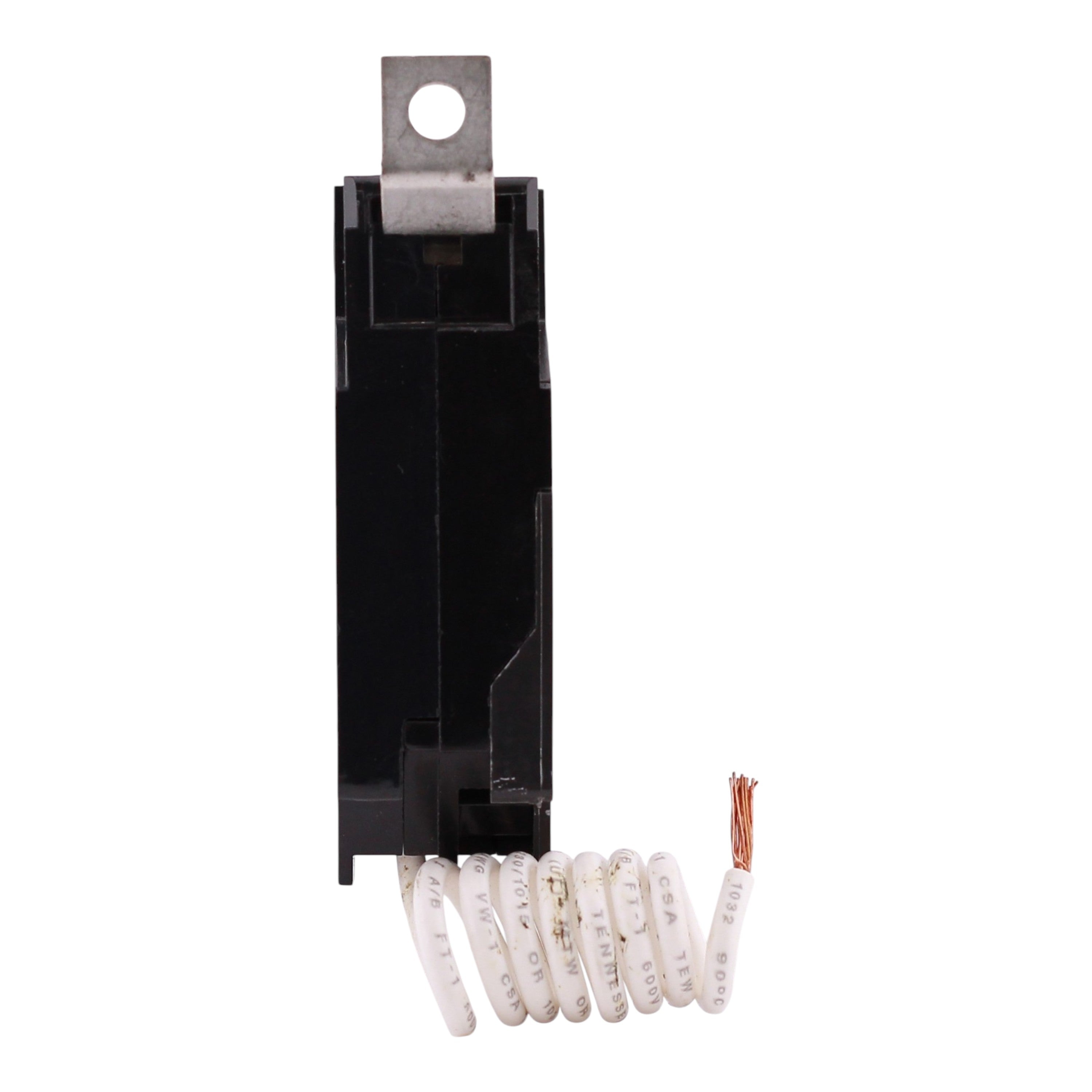

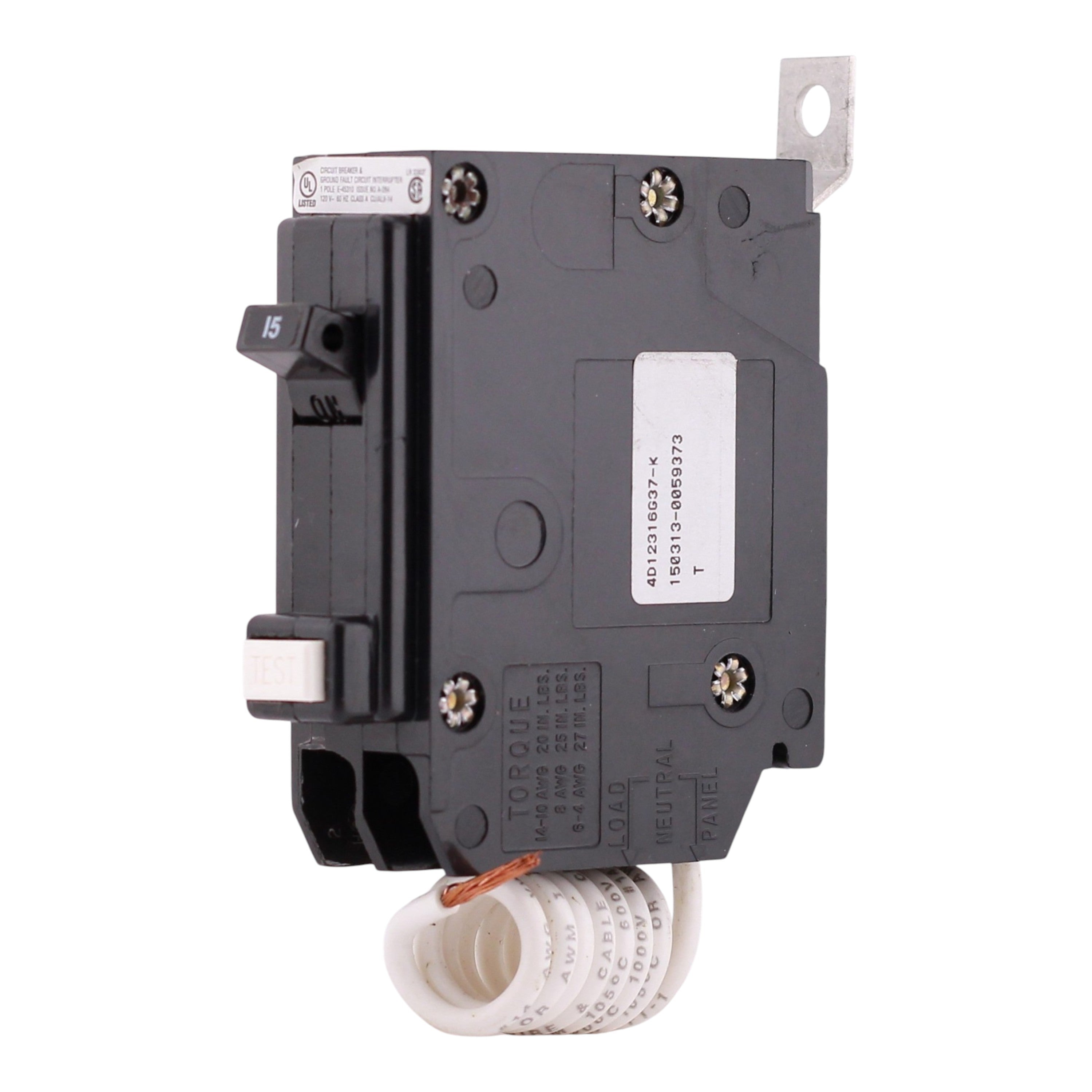

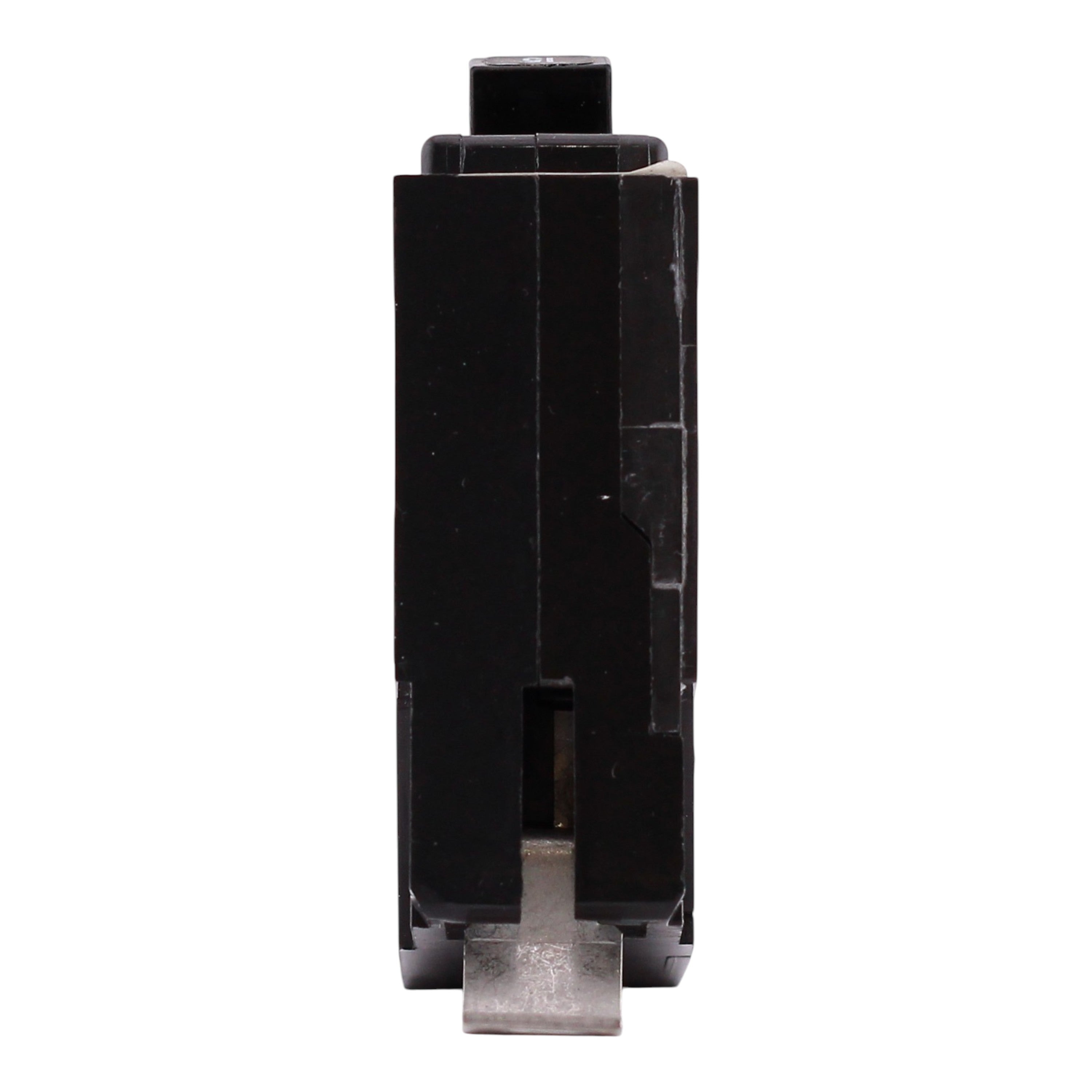

Eaton QB, QBGF1015, 15A, 1P, 120V, GFCI, Pigtail Neutral, Circuit Breaker

Eaton QBGF1015: 15 Amp, 1-Pole, GFCI Ground-Fault Circuit Interrupter breaker, 120V, 10kA, pigtail neutral, 5mA trip sensitivity, UL listed.

• Manufacturer: Eaton
• Brand: Eaton (Cutler-Hammer / Quicklag)
• Product Range: QB (Quicklag, for Eaton Pow-R-Line panelboards)
• UPC: 786679360156
• Model Number: QBGF1015
• Breaker Type: Ground-Fault Circuit Interrupter (GFCI)
• Amperage: 15 Amps
• Poles: 1-Pole
• Voltage: 120 Volts AC
• Interrupt Rating: 10 kAIC
• Mounting Mode: Bolt-on
• Connections Terminals: Pigtail Neutral
• Dimensions: Height: 1.2 in; Width: 3.3 in; Depth: 5.1 in
• Weight: 0.4 lbs
• Certifications: UL Listed (UL 489), HACR Rated, CSA
• Trip Sensitivity: 5 mA ground fault protection

This Eaton QBGF1015 pigtail neutral circuit breaker provides reliable 15 Amp, 1-Pole GFCI ground-fault protection for 120V circuits in QB Quicklag Pow-R-Line panelboards. With 5mA trip sensitivity and 10kA interrupt rating, it ensures personnel protection for commercial applications.
