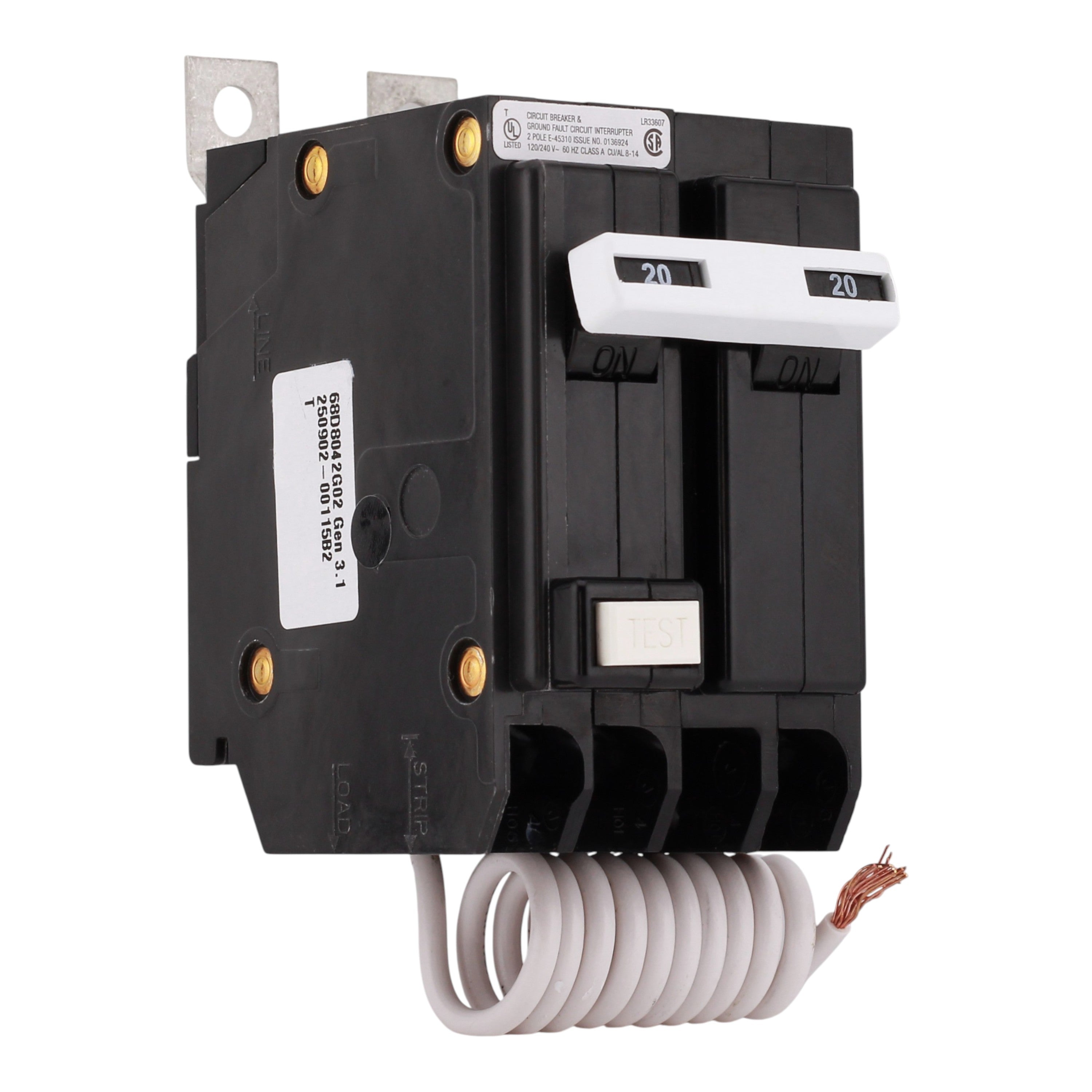

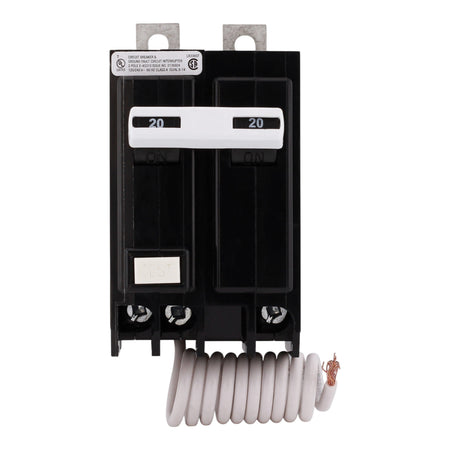

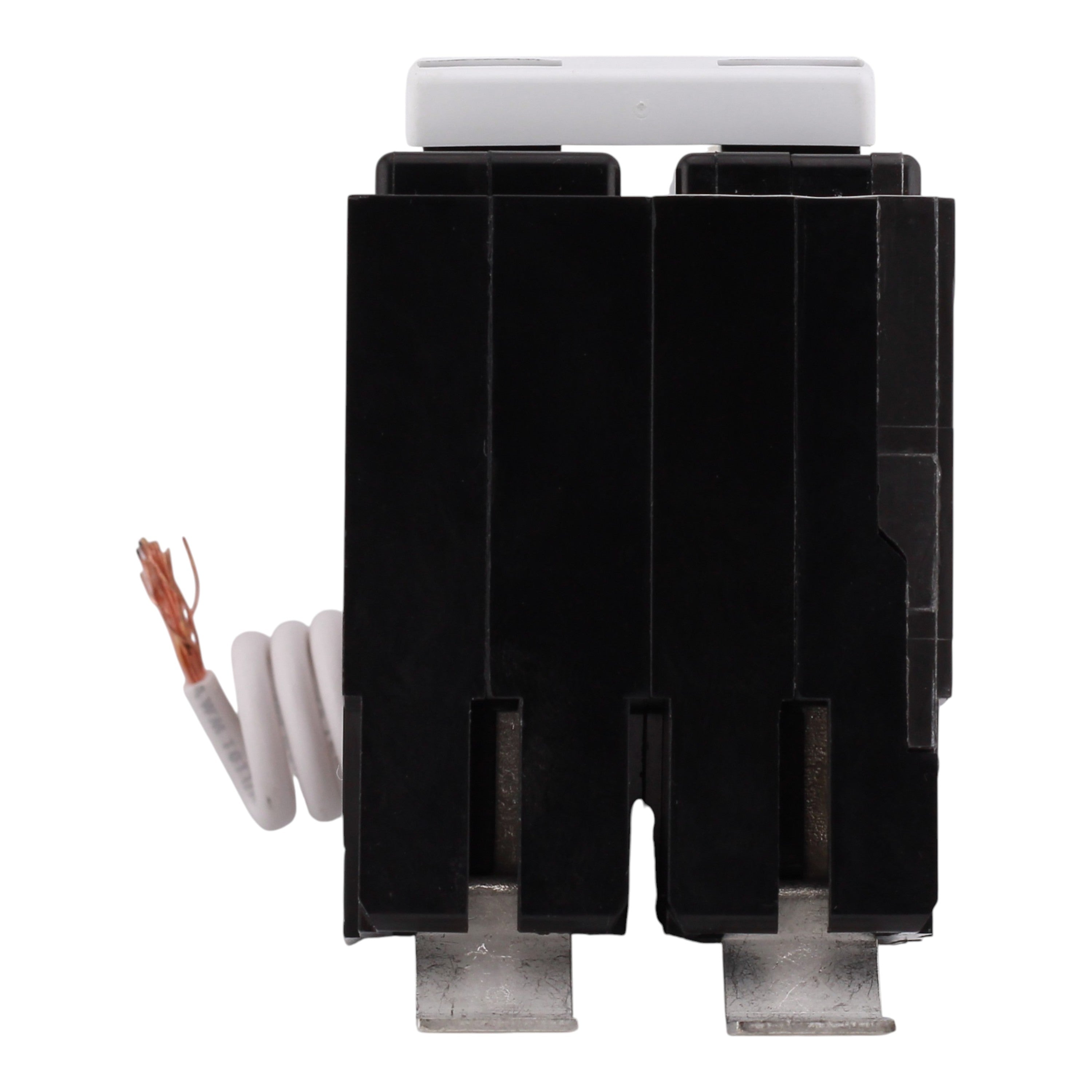

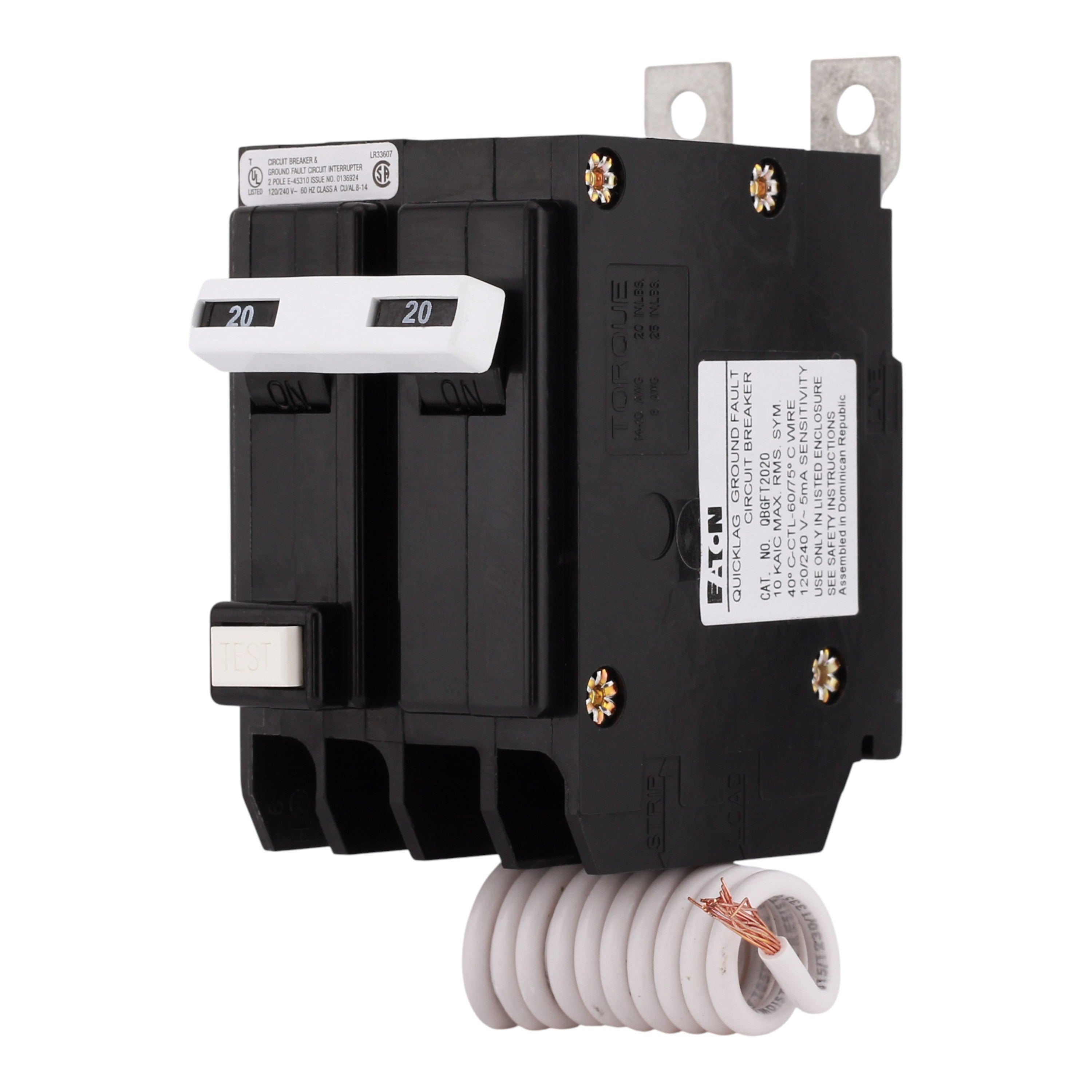

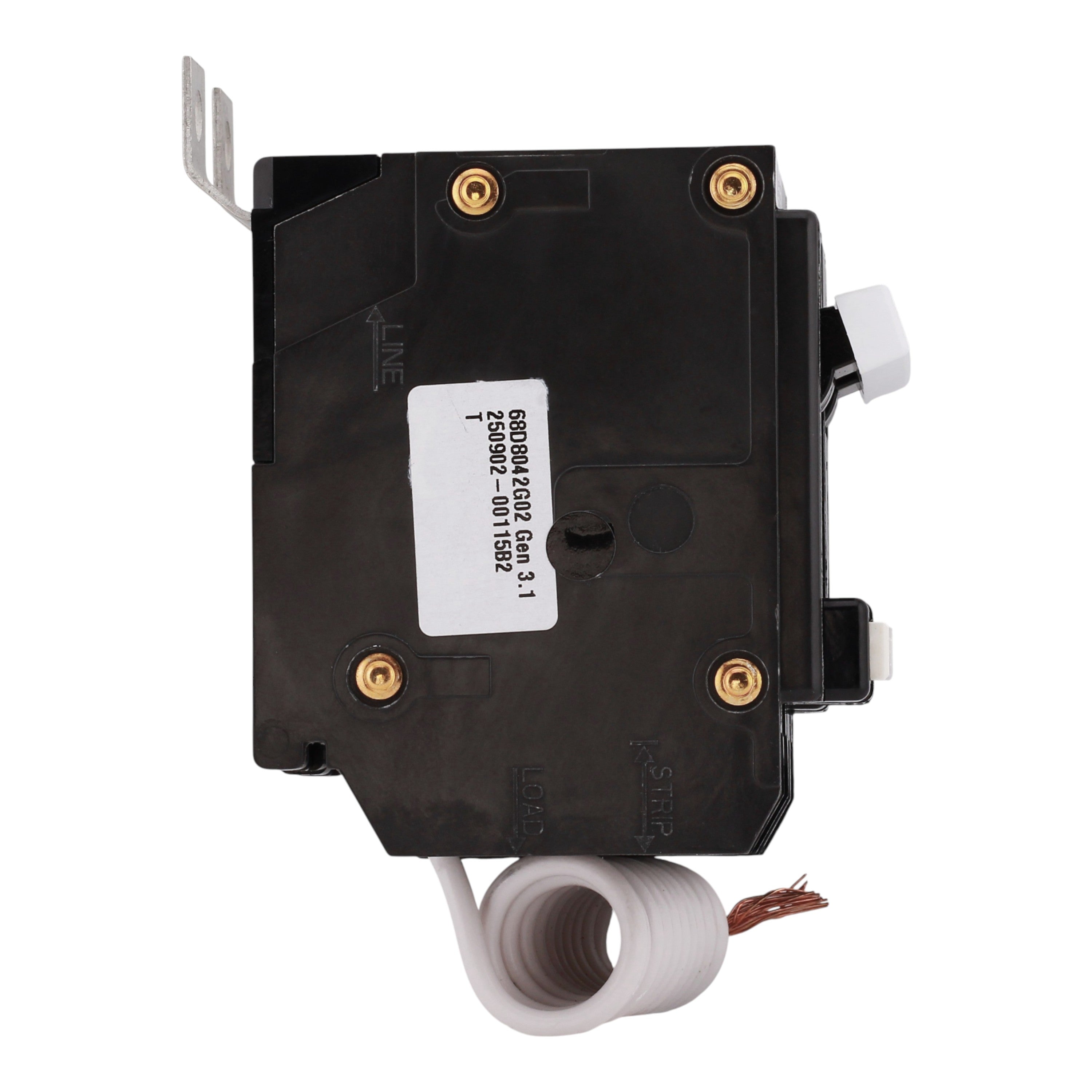

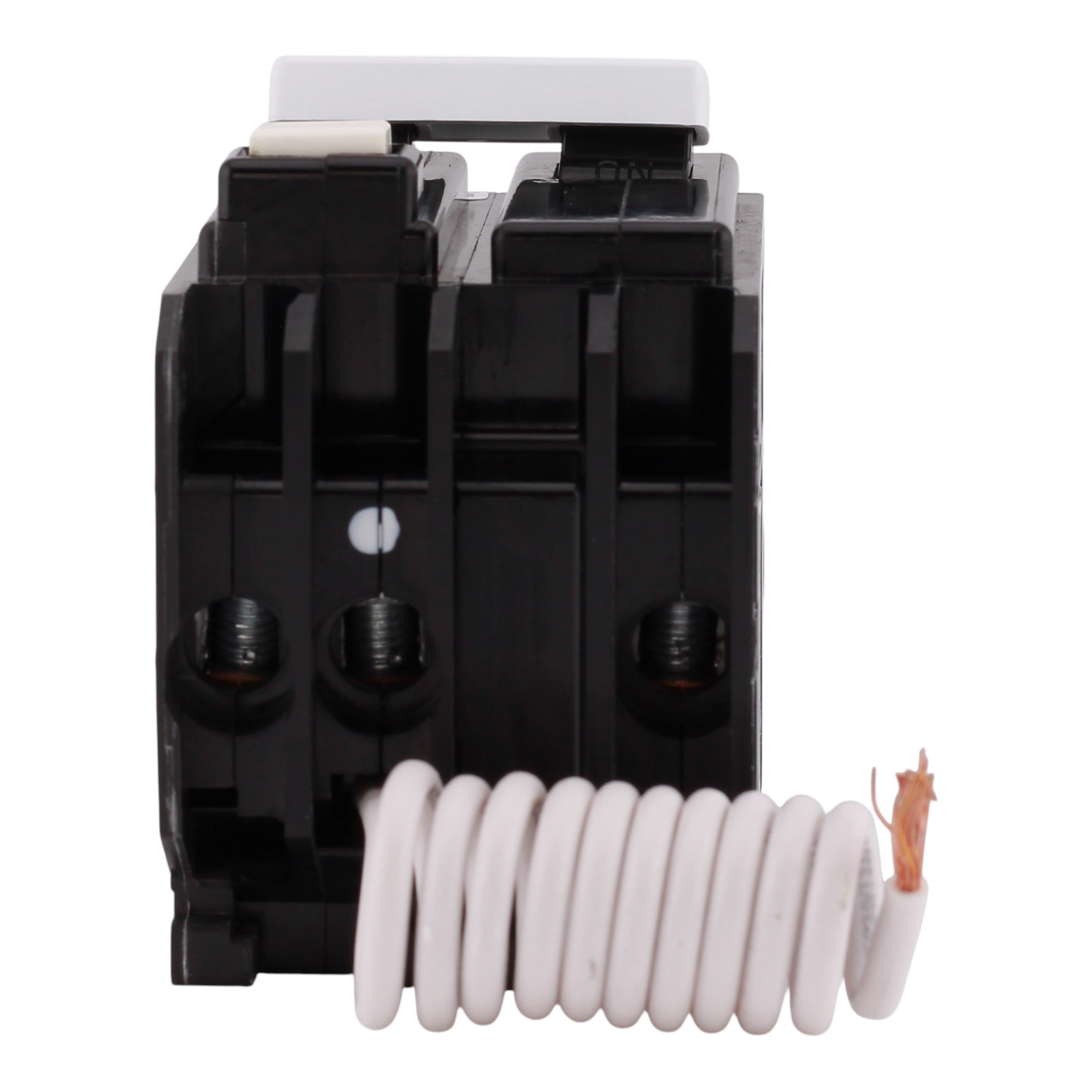

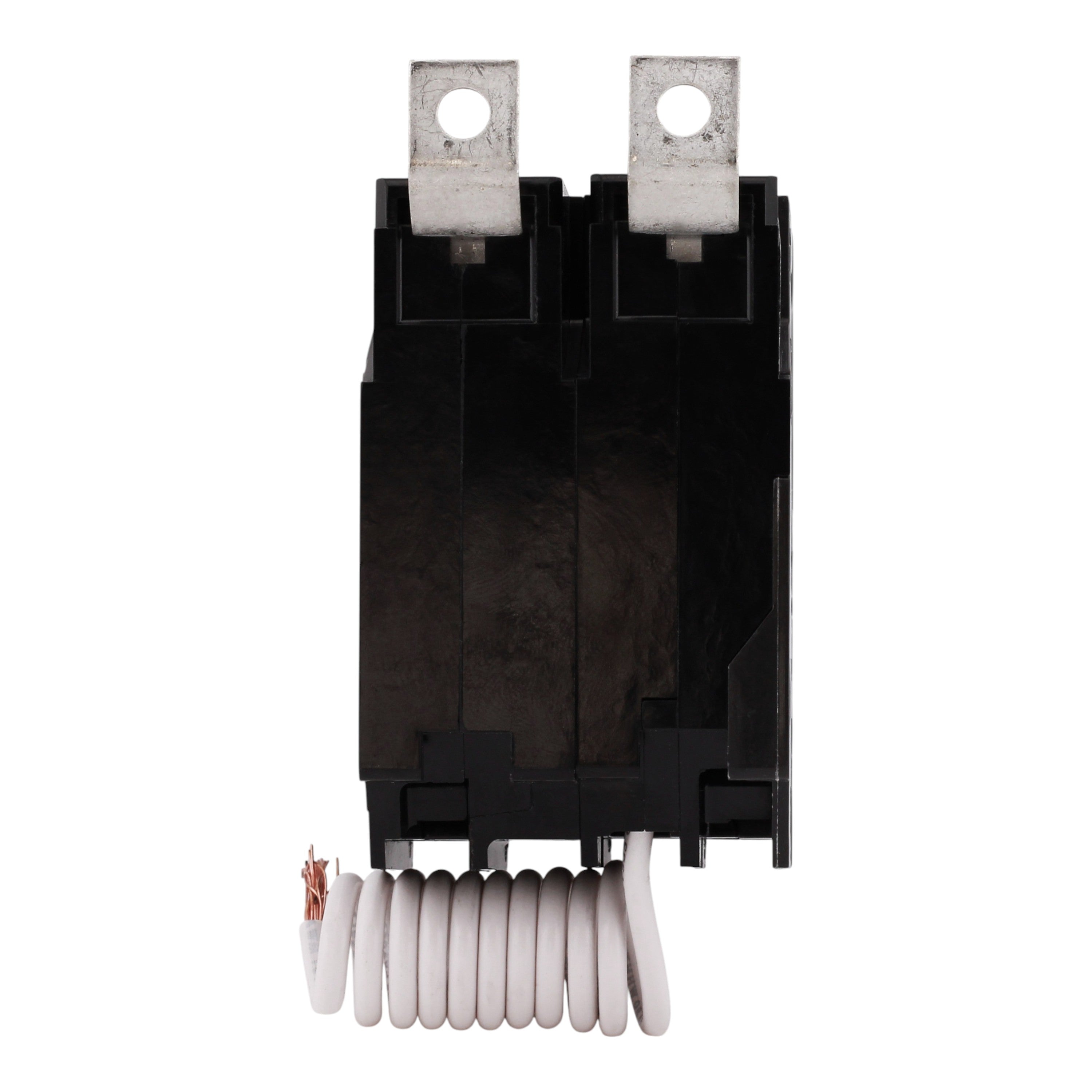

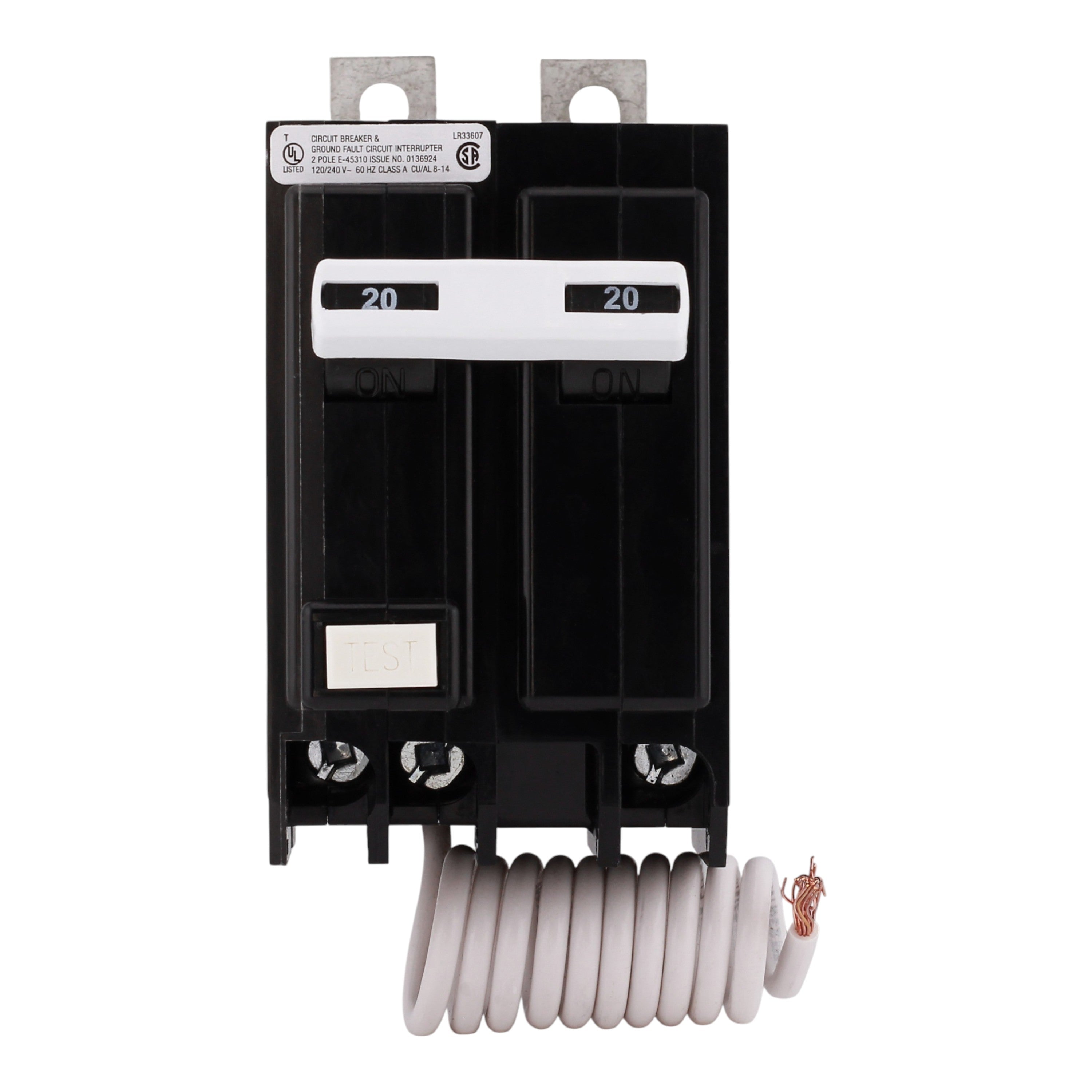

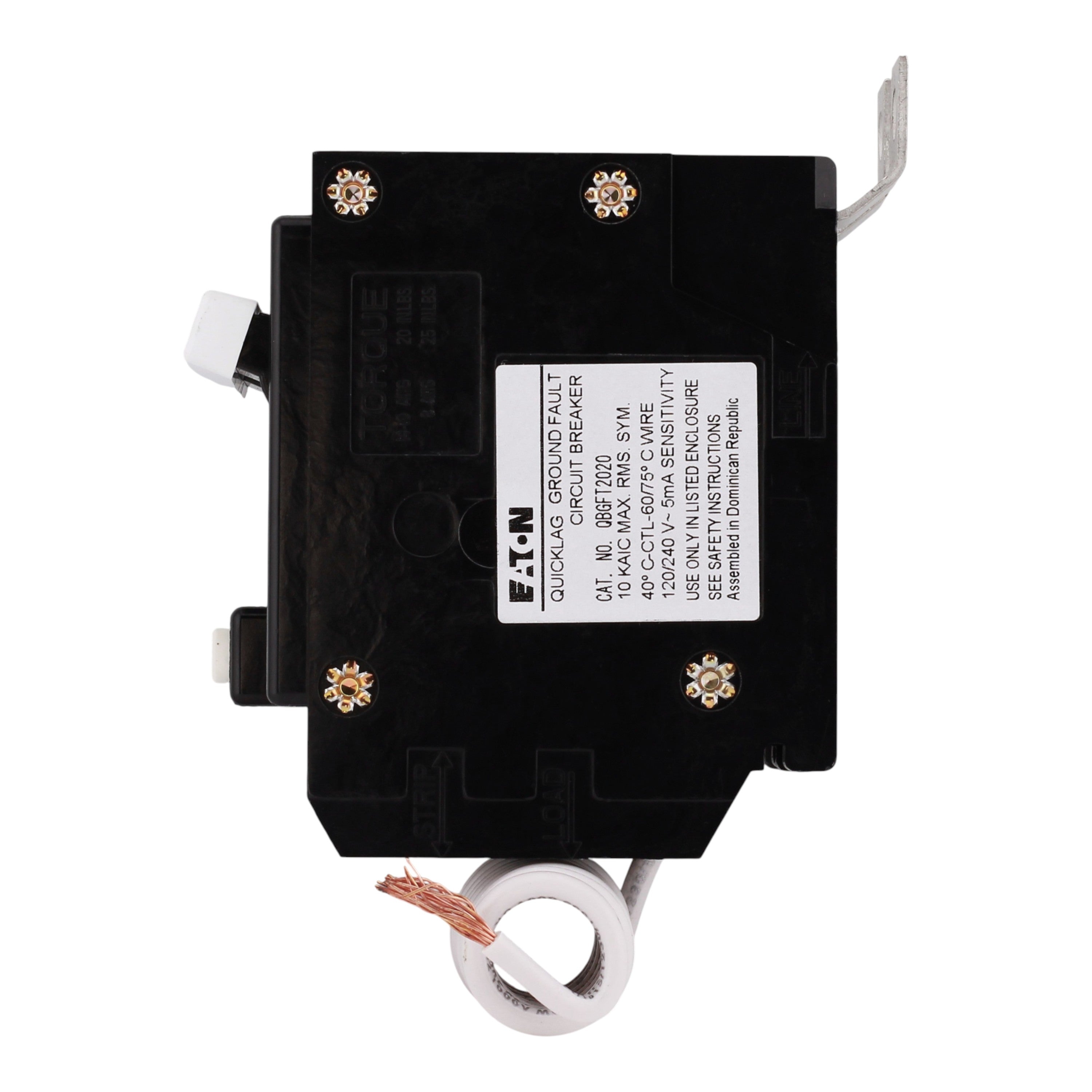

Eaton QBGFT2020: 20 Amp 2-Pole GFCI Ground Fault Circuit Interrupter breaker, 120/240V, 10kA interrupt rating, bolt-on mounting, 5 mA trip sensitivity, common trip, UL 489 listed, HACR rated.
-
Manufacturer: Eaton
-
Brand: Eaton
-
Product Range: QB (for use in Eaton Type BR and other bolt-on loadcenters accepting QBGF/QBHW/QBGFT series breakers)
-
UPC: 786676026710
-
Model Number: QBGFT2020
-
Breaker Type: Ground Fault Circuit Interrupter (GFCI)
-
Amperage: 20 Amps
-
Poles: 2-Pole
-
Voltage: 120/240 Volts AC
-
Interrupt Rating: 10 kAIC
-
Mounting Mode: Bolt-on
-
Connections Terminals: Cable-in/Cable-out
-
Wire Size: #14-10 AWG Cu / #12-10 AWG Al
-
Tightening Torque: 25 lb-in
-
Dimensions: Height: 2.0 in; Width: 2.75 in; Depth: 4.5 in
-
Weight: 0.6 lbs
-
Certifications: UL 489 Listed, HACR Rated
-
Trip Sensitivity: 5 mA ground fault protection
This Eaton QBGFT2020 bolt-on GFCI circuit breaker delivers reliable 20A, 2-pole ground fault protection for 120/240V circuits in Eaton QB and compatible bolt-on loadcenters. Featuring fast 5 mA trip sensitivity, 10 kAIC interrupt rating, and common trip functionality, it provides essential personnel and equipment protection for residential and light commercial applications requiring Class A GFCI safety.
