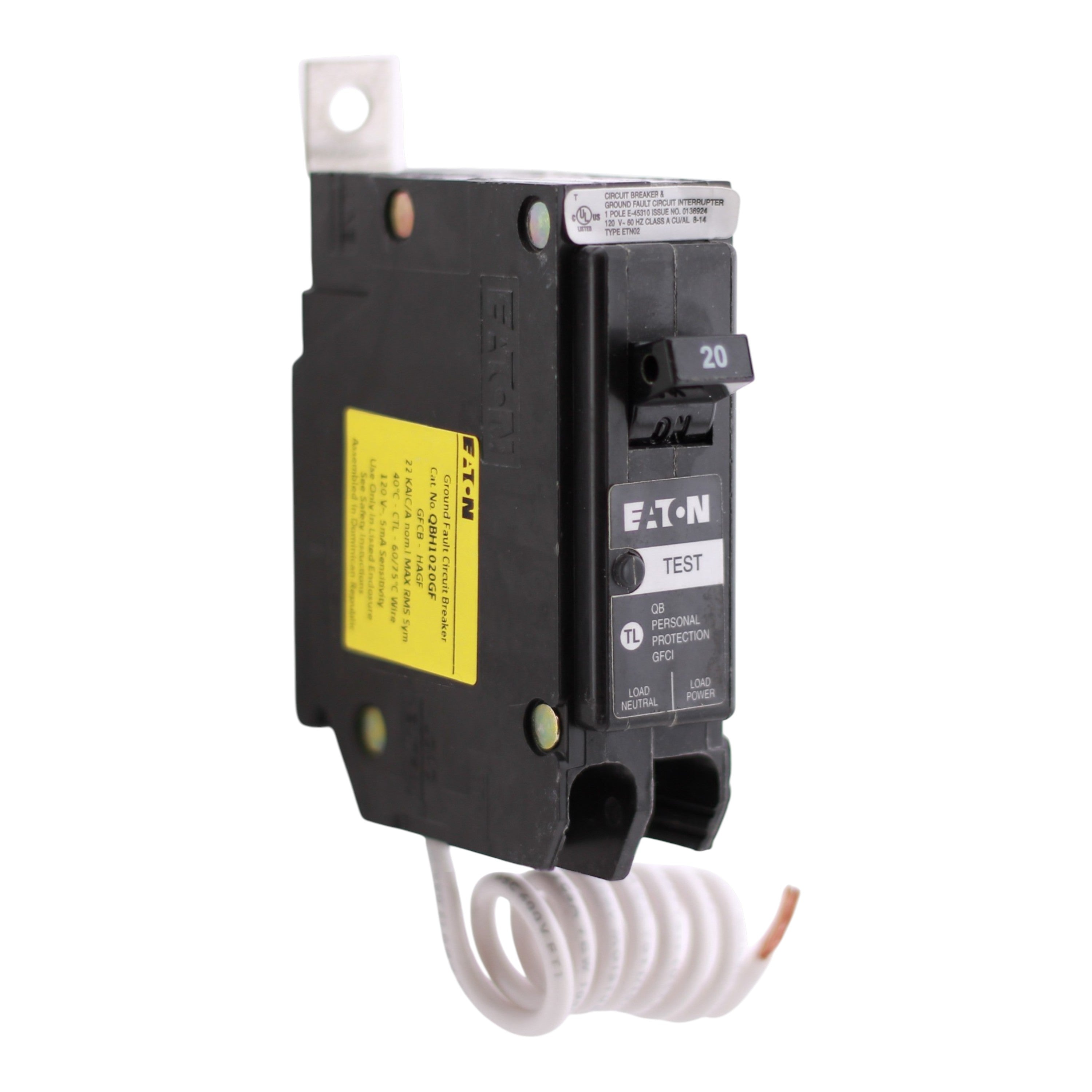

Eaton QB, QBH1020GF, 20A, 1P, 120/240V, GFCI, Bolt-On, Circuit Breaker

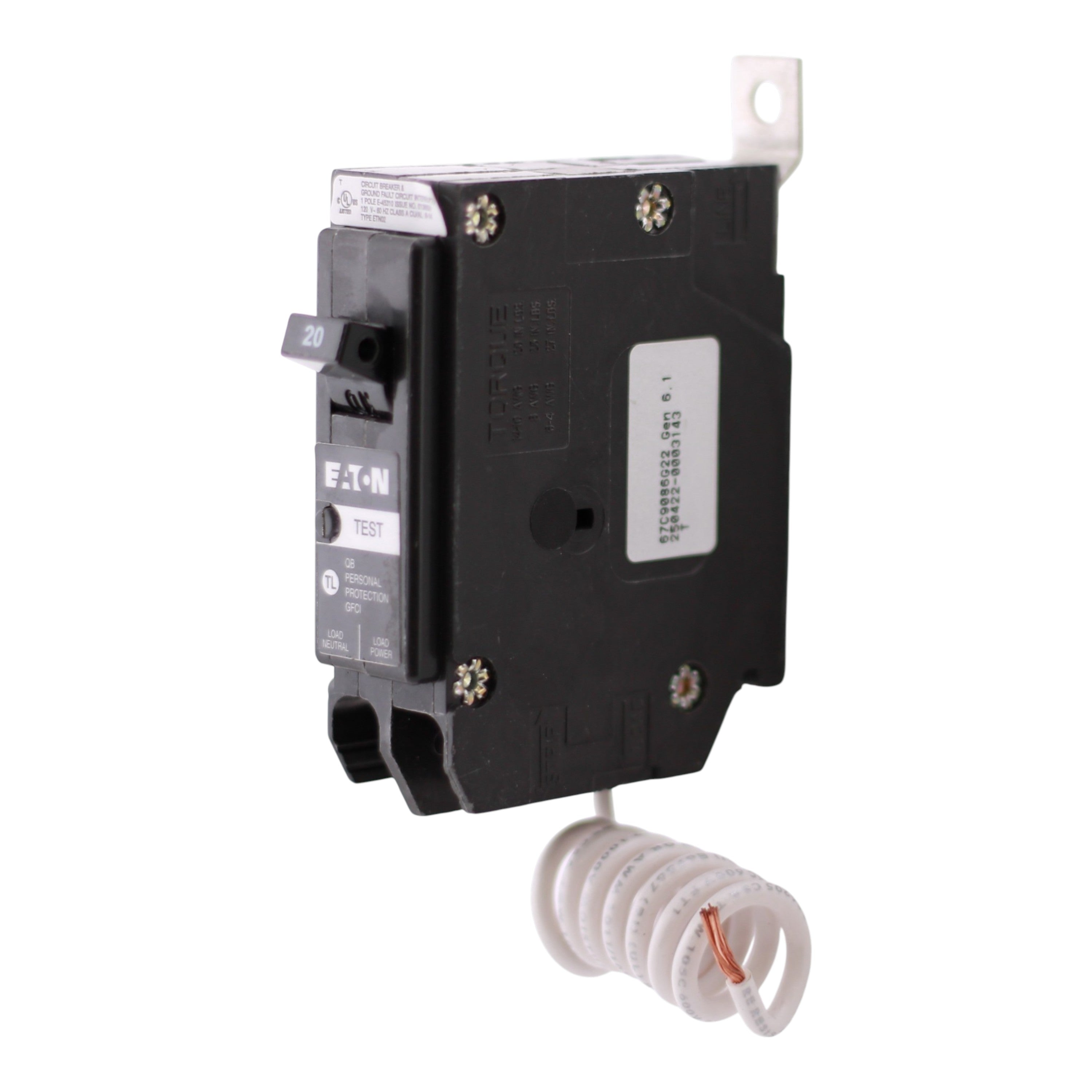

Eaton QB, QBH1020GF, 20A, 1P, 120/240V, GFCI, Bolt-On, Circuit Breaker - Image 2

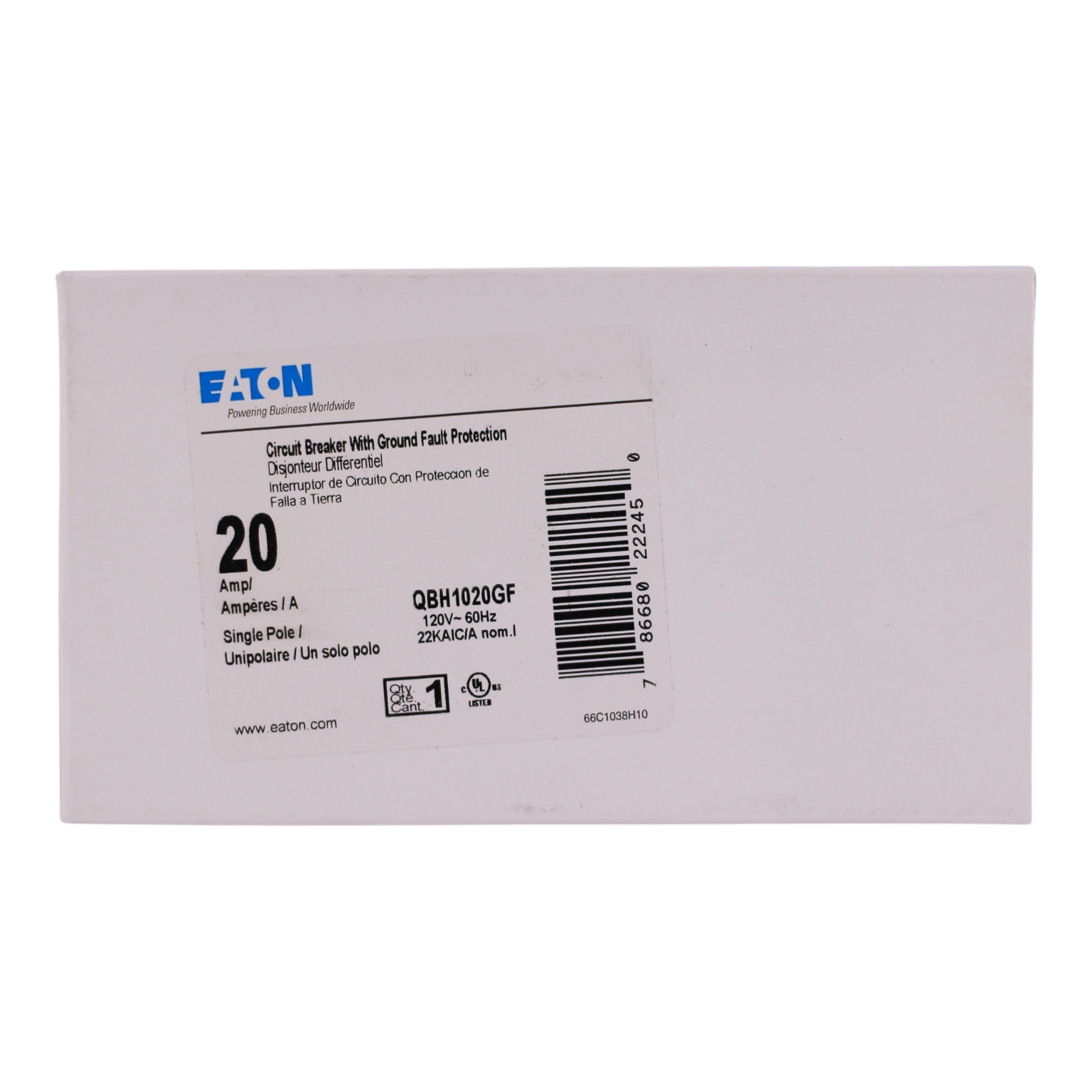

Eaton QB, QBH1020GF, 20A, 1P, 120/240V, GFCI, Bolt-On, Circuit Breaker - Image 3

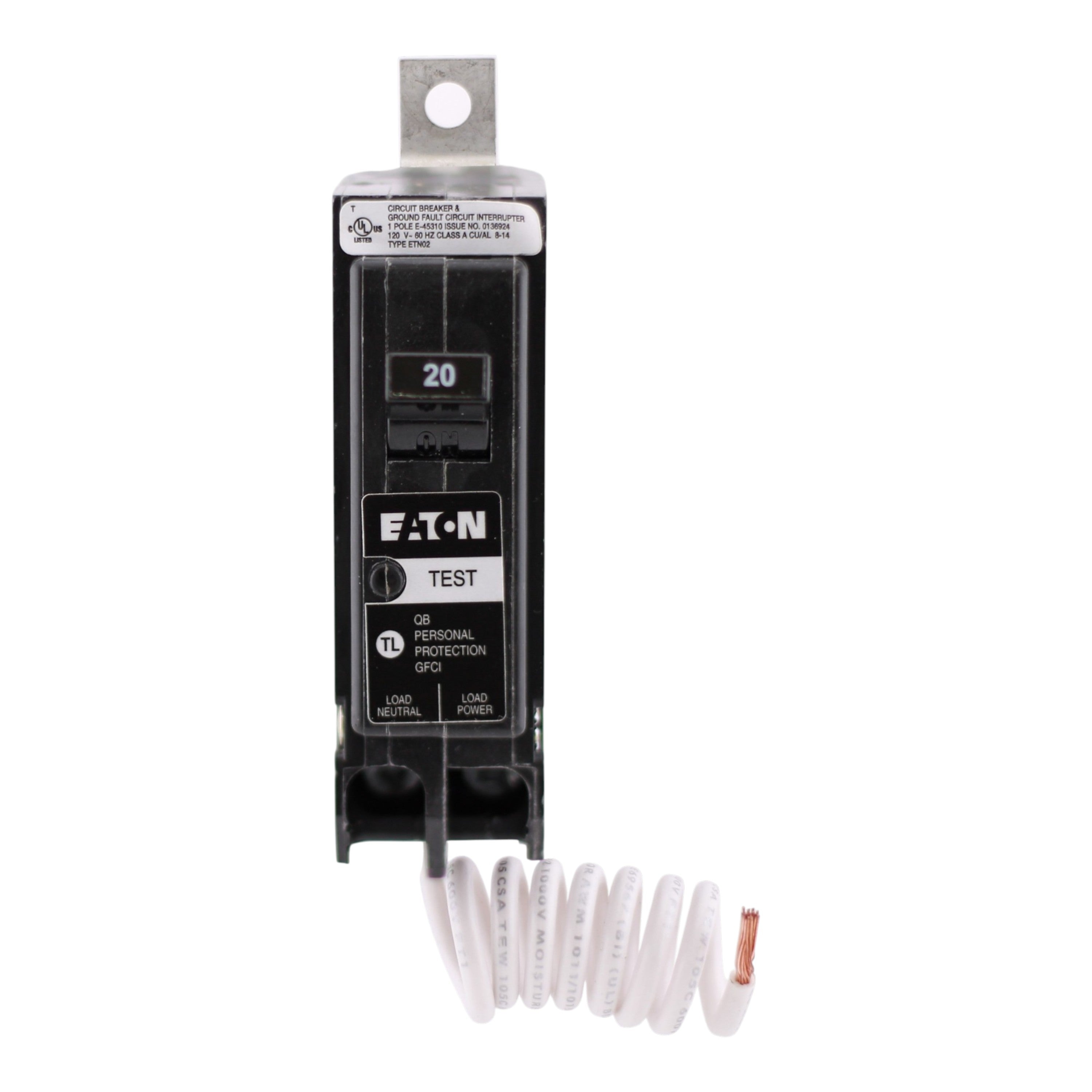

Eaton QB, QBH1020GF, 20A, 1P, 120/240V, GFCI, Bolt-On, Circuit Breaker - Image 4

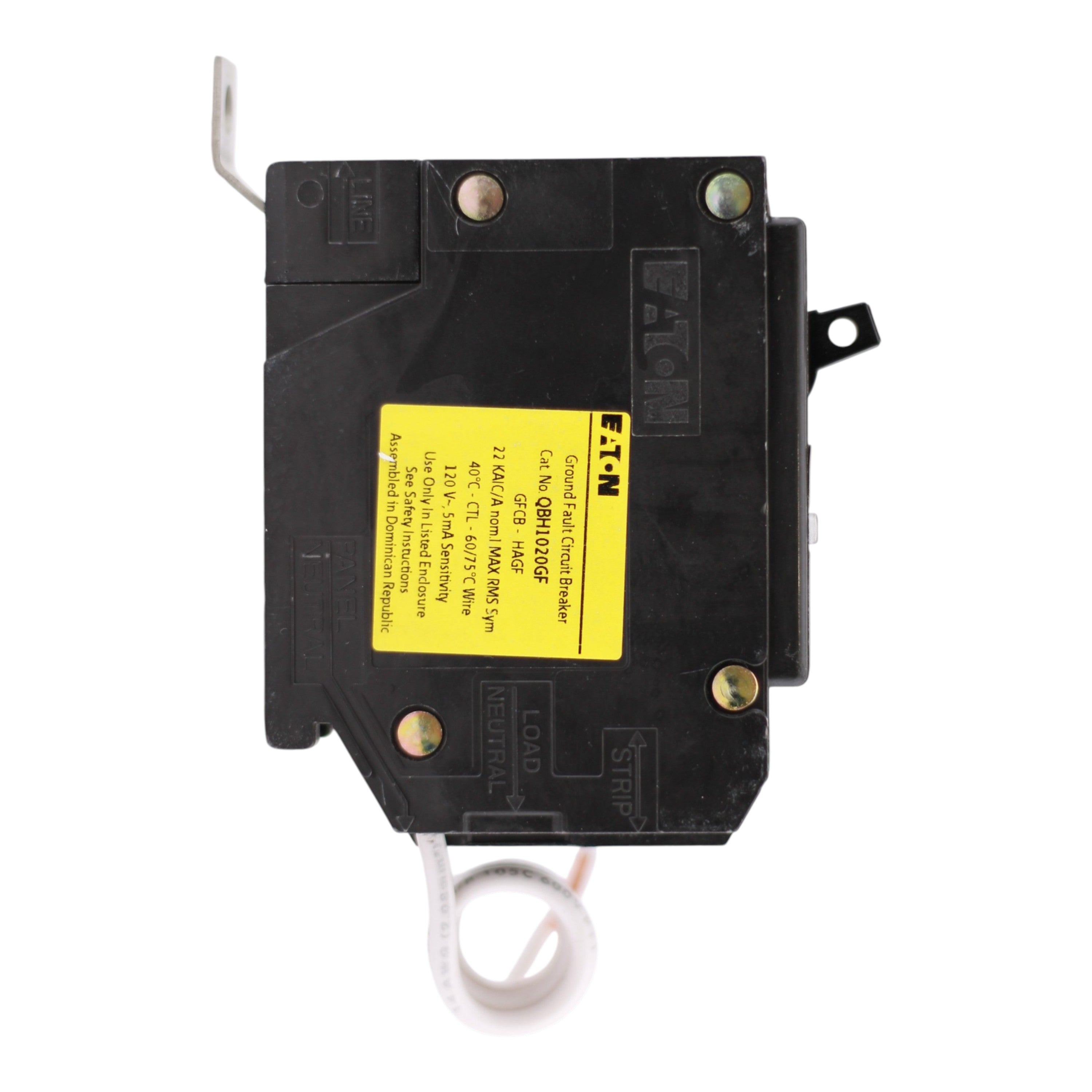

Eaton QB, QBH1020GF, 20A, 1P, 120/240V, GFCI, Bolt-On, Circuit Breaker - Image 5

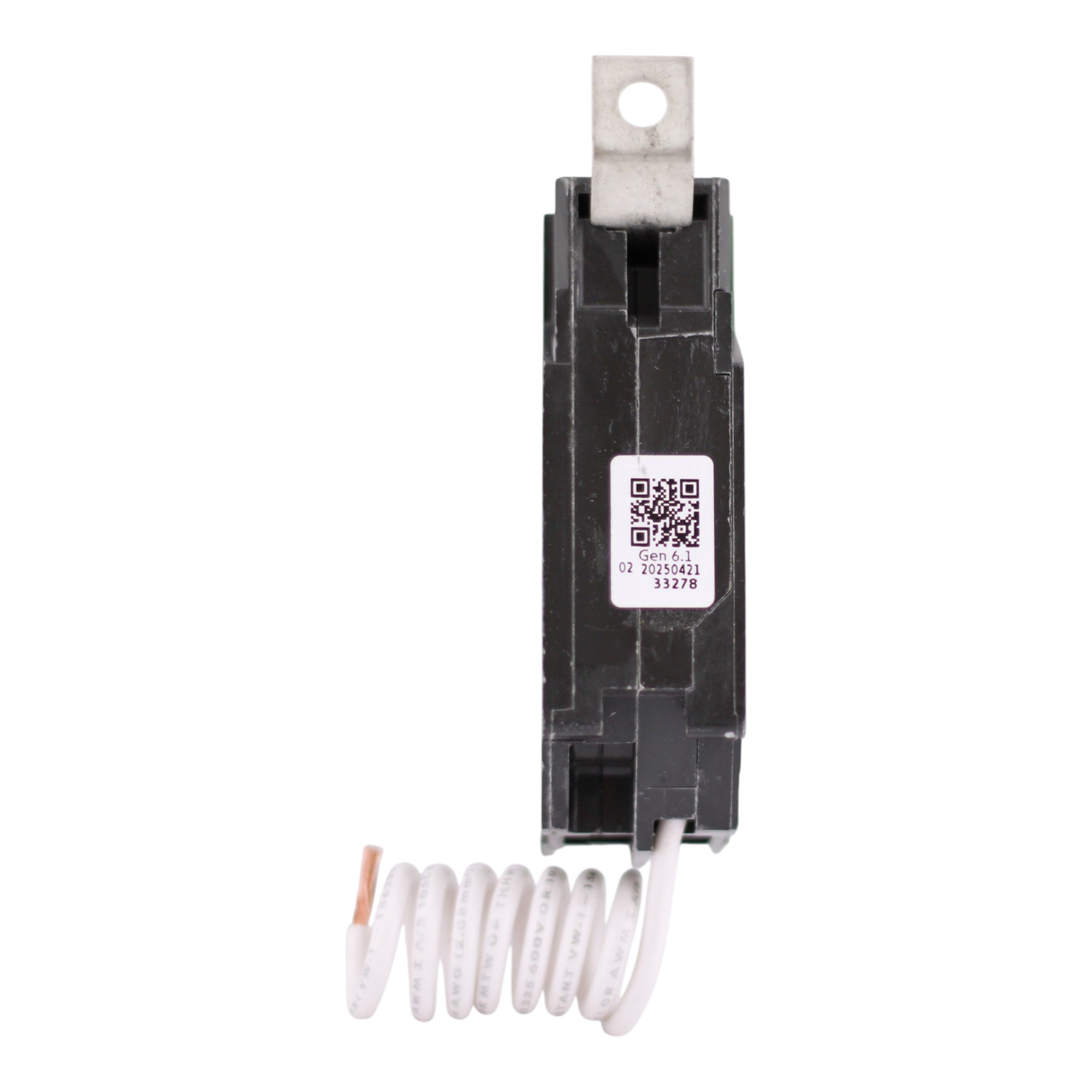

Eaton QB, QBH1020GF, 20A, 1P, 120/240V, GFCI, Bolt-On, Circuit Breaker - Image 6

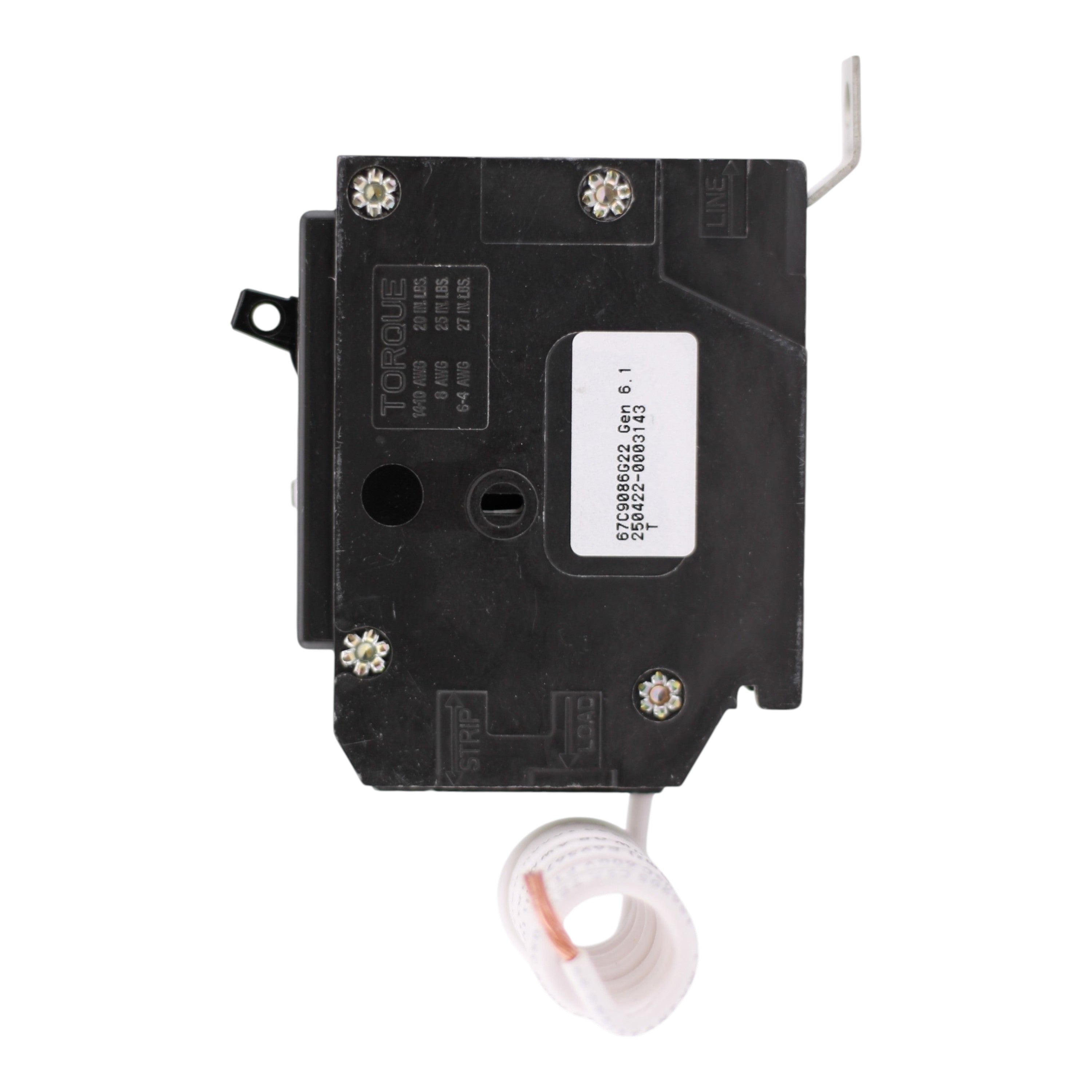

Eaton QB, QBH1020GF, 20A, 1P, 120/240V, GFCI, Bolt-On, Circuit Breaker - Image 7

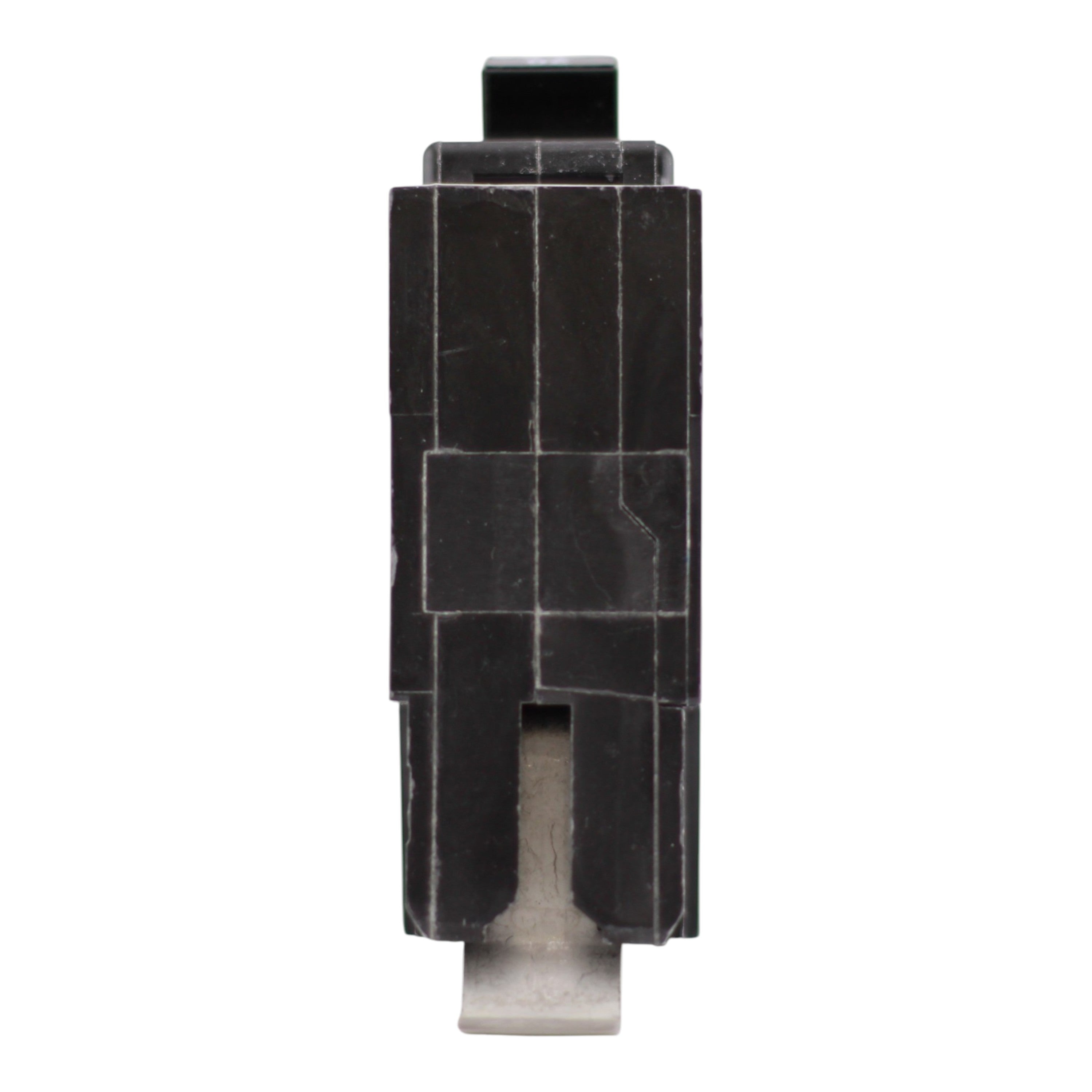

Eaton QB, QBH1020GF, 20A, 1P, 120/240V, GFCI, Bolt-On, Circuit Breaker - Image 8

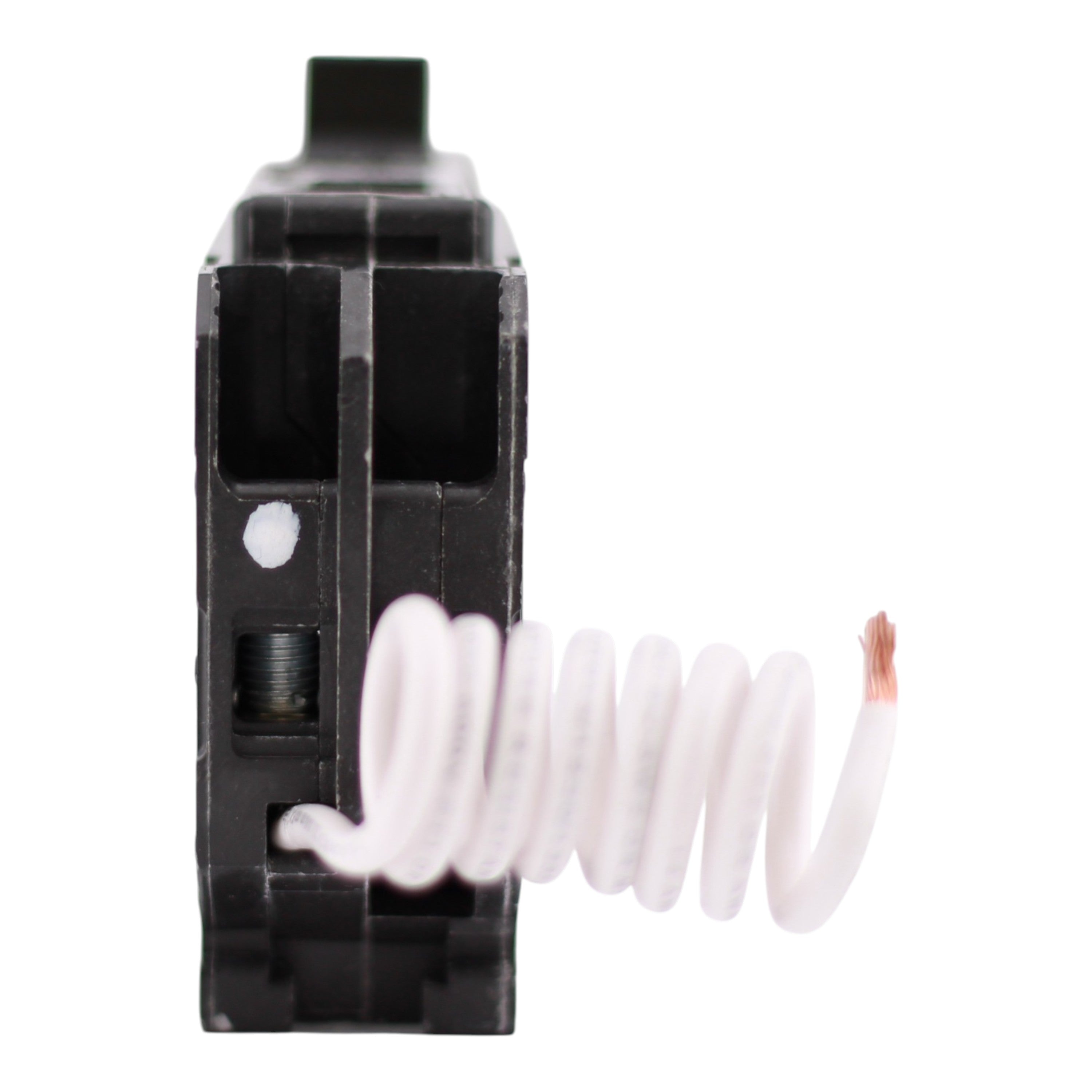

Eaton QB, QBH1020GF, 20A, 1P, 120/240V, GFCI, Bolt-On, Circuit Breaker - Image 9
Eaton QB, QBH1020GF, 20A, 1P, 120/240V, GFCI, Bolt-On, Circuit Breaker
Eaton QB, QBH1020GF, 20A, 1P, 120/240V, GFCI, Bolt-On, Circuit Breaker - Image 2
Eaton QB, QBH1020GF, 20A, 1P, 120/240V, GFCI, Bolt-On, Circuit Breaker - Image 3
Eaton QB, QBH1020GF, 20A, 1P, 120/240V, GFCI, Bolt-On, Circuit Breaker - Image 4
Eaton QB, QBH1020GF, 20A, 1P, 120/240V, GFCI, Bolt-On, Circuit Breaker - Image 5
Eaton QB, QBH1020GF, 20A, 1P, 120/240V, GFCI, Bolt-On, Circuit Breaker - Image 6
Eaton QB, QBH1020GF, 20A, 1P, 120/240V, GFCI, Bolt-On, Circuit Breaker - Image 7
Eaton QB, QBH1020GF, 20A, 1P, 120/240V, GFCI, Bolt-On, Circuit Breaker - Image 8
Eaton QB, QBH1020GF, 20A, 1P, 120/240V, GFCI, Bolt-On, Circuit Breaker - Image 9

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton QB, QBH1020GF, 20A, 1P, 120/240V, GFCI, Bolt-On, Circuit Breaker

Only 4 left
SKU: QBH1020GF UPC: 786680222450
(0)
$175.00
-20% $220.00 $175.00
Only 4 left
Low inventory - Hurry up!
Condition

QBH1020GF high-interrupt detail: Eaton QBH1020GF provides 5mA ground-fault protection on a 20-amp single-pole circuit in listed QB bolt-on equipment. The H in the catalog number corresponds to its 22kA interrupting capability.

QBH1020GF specifications

  • Model: QBH1020GF
  • Type: QB ground-fault circuit breaker
  • Rating: 20A, 1-pole, 120/240VAC class
  • Ground-fault threshold: 5mA
  • Interrupting rating: 22kAIC
  • Mounting: Bolt-on

Difference from QB1020GF

The standard QB1020GF is rated 10kAIC. This QBH version is chosen when both the equipment listing and fault-current study require the 22kA model; equal amperage alone is not enough.

Compatibility checkpoint

Read the panelboard label for the accepted QB/QBH type, and verify system voltage, conductor range, hardware, terminal torque, and ground-fault application. It is not an AFCI. Installation and testing belong with a qualified electrical professional.
