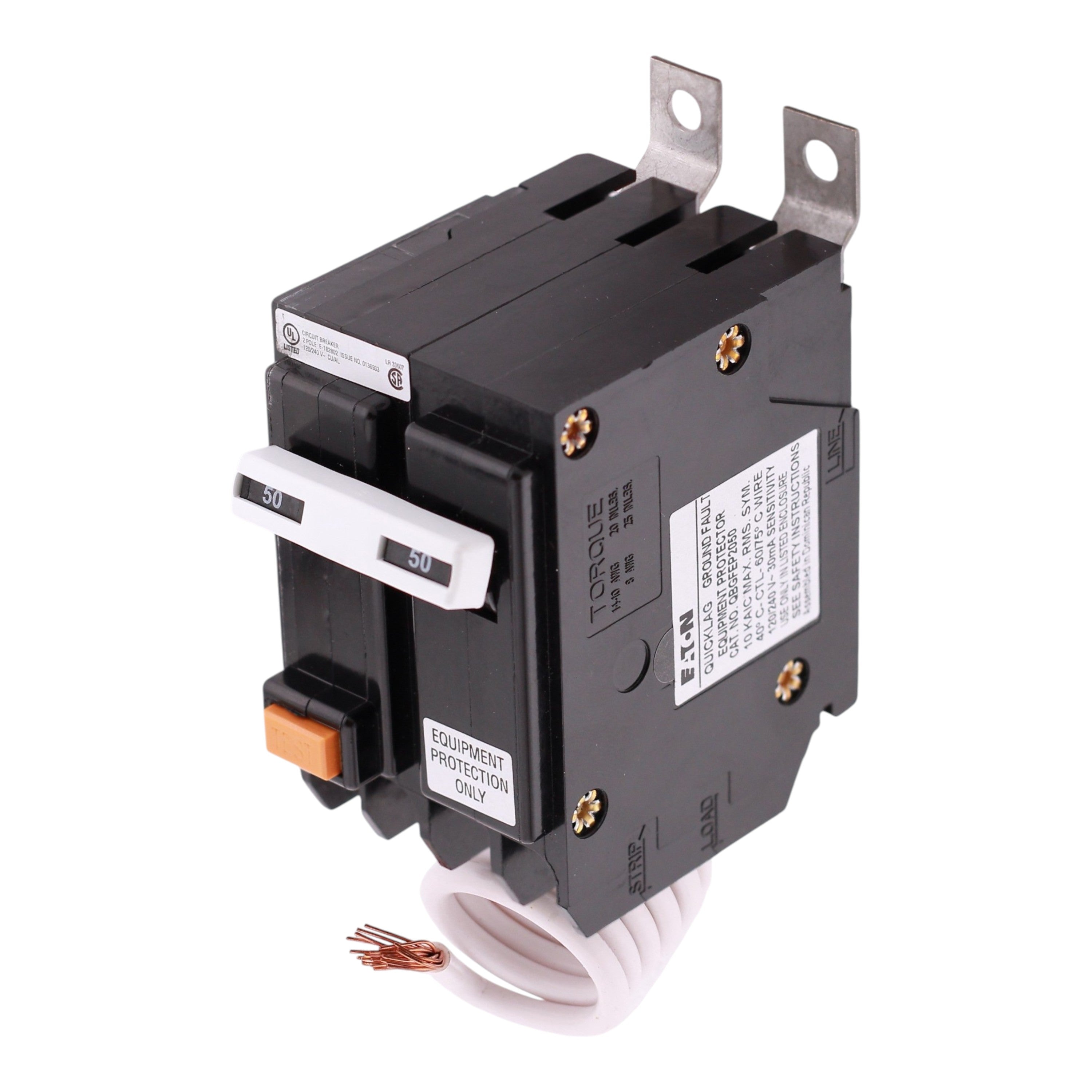

Eaton QBGFEP, QBGFEP2050, 50A, 2P, 120/240V, GFCI, Pigtail Neutral, Circuit Breaker - Image 3

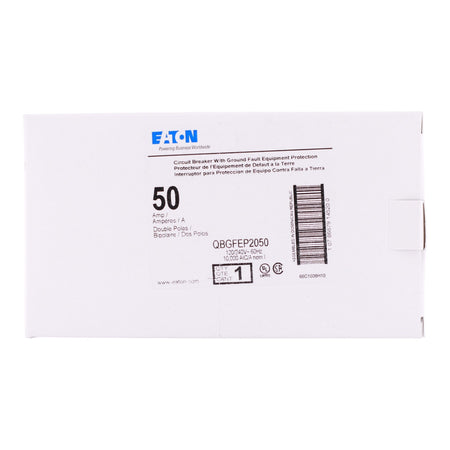

Eaton QBGFEP, QBGFEP2050, 50A, 2P, 120/240V, GFCI, Pigtail Neutral, Circuit Breaker - Image 4
Eaton QBGFEP, QBGFEP2050, 50A, 2P, 120/240V, GFCI, Pigtail Neutral, Circuit Breaker - Image 5
Eaton QBGFEP, QBGFEP2050, 50A, 2P, 120/240V, GFCI, Pigtail Neutral, Circuit Breaker - Image 6
Eaton QBGFEP, QBGFEP2050, 50A, 2P, 120/240V, GFCI, Pigtail Neutral, Circuit Breaker - Image 7
Eaton QBGFEP, QBGFEP2050, 50A, 2P, 120/240V, GFCI, Pigtail Neutral, Circuit Breaker - Image 8

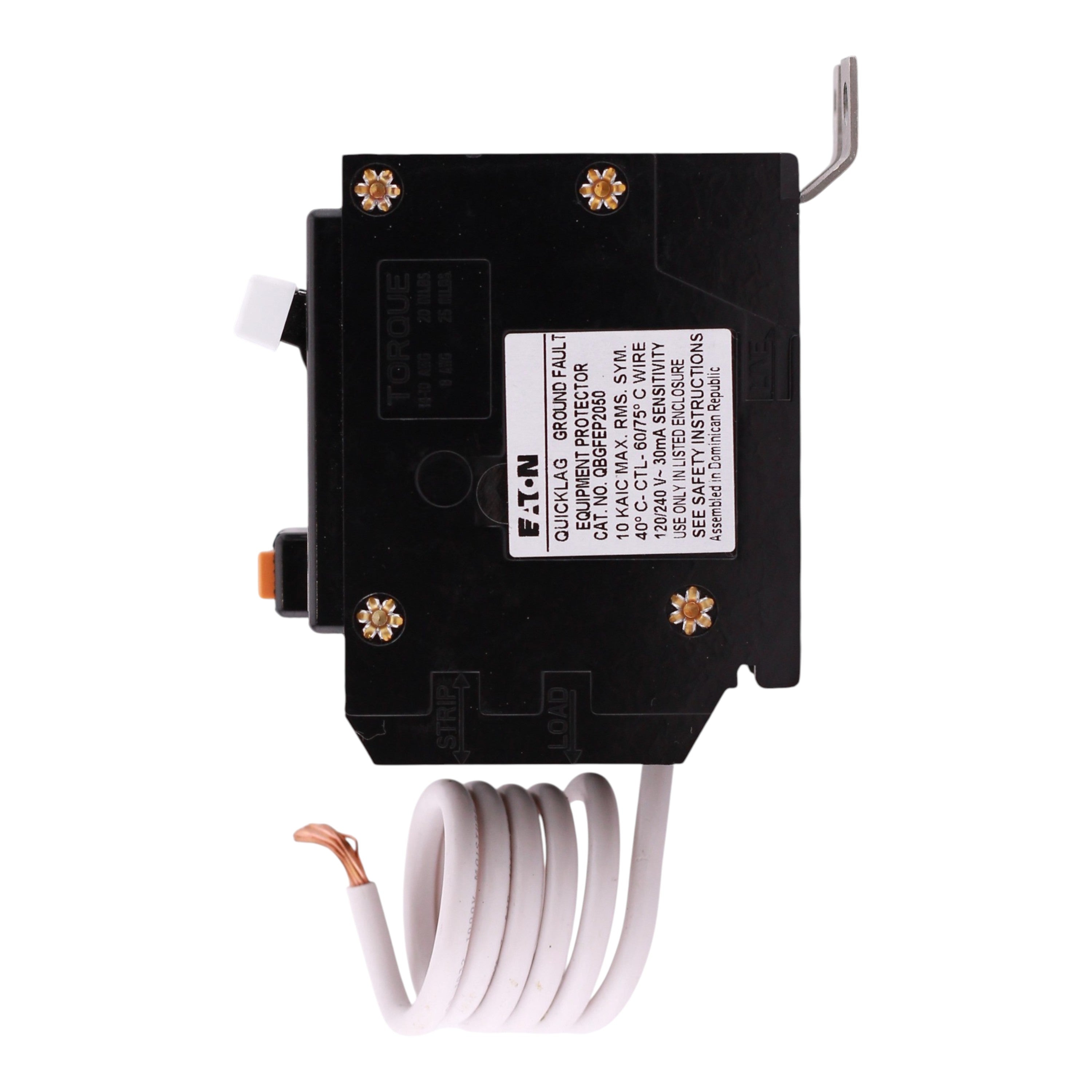

Eaton QBGFEP, QBGFEP2050, 50A, 2P, 120/240V, GFCI, Pigtail Neutral, Circuit Breaker - Image 9

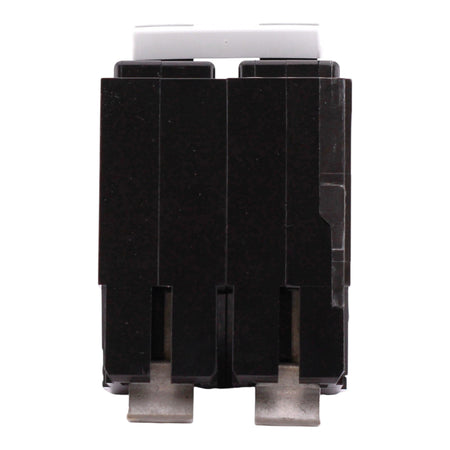

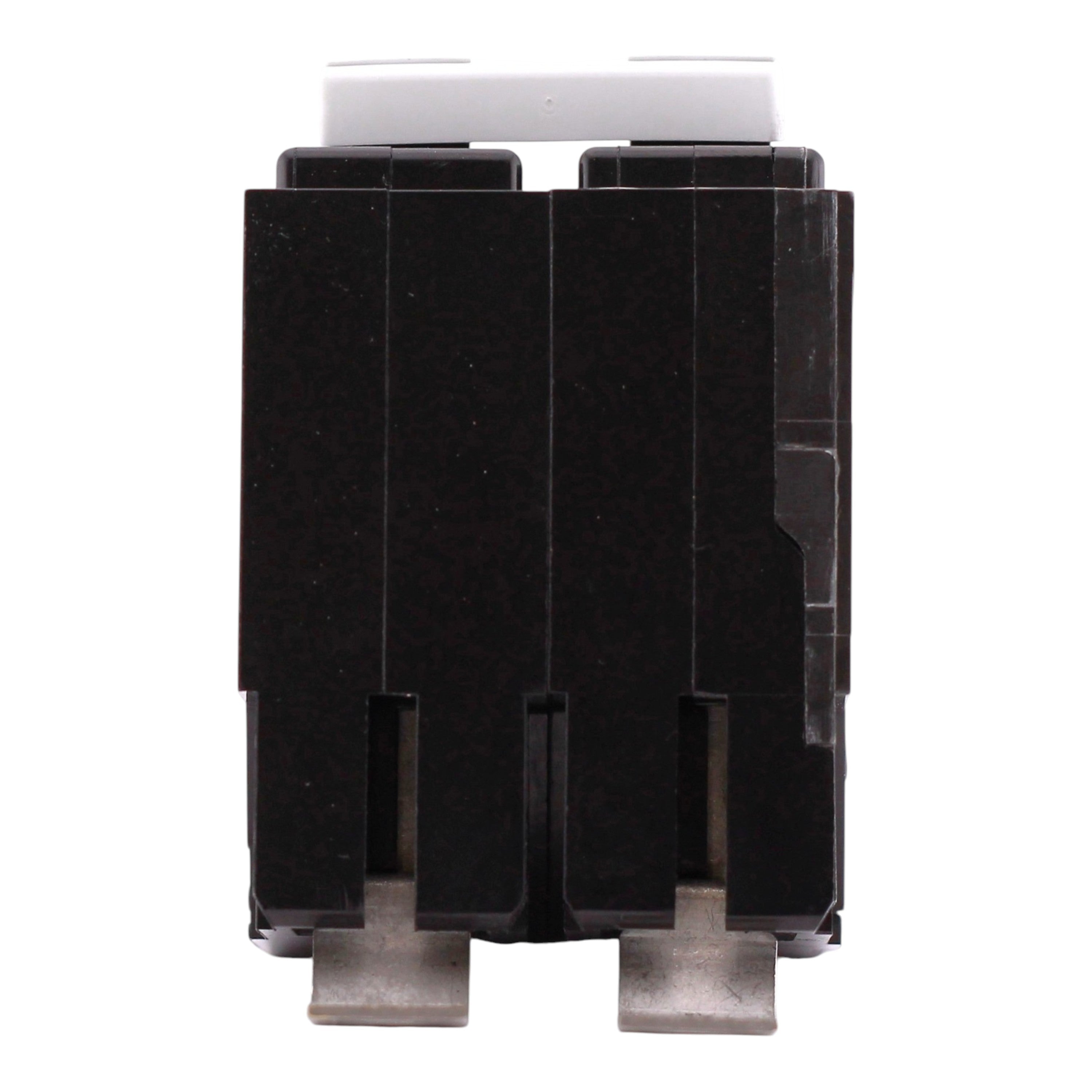

Eaton QBGFEP, QBGFEP2050, 50A, 2P, 120/240V, GFCI, Pigtail Neutral, Circuit Breaker - Image 10
Eaton QBGFEP, QBGFEP2050, 50A, 2P, 120/240V, GFCI, Pigtail Neutral, Circuit Breaker - Image 11

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton QBGFEP, QBGFEP2050, 50A, 2P, 120/240V, GFCI, Pigtail Neutral, Circuit Breaker

Out of stock
SKU: QBGFEP2050 UPC: 786679145203
(0)
$175.00
-49% $339.99 $175.00
Out of stock
Condition

QBGFEP2050 specifications

  • Manufacturer: Eaton
  • Brand: Eaton (Cutler-Hammer)
  • Product Range: QBGFEP (QB Quicklag Cable-In/Cable-Out Ground Fault Equipment Protector — for bolt-on panelboard applications)
  • UPC: 786679145203
  • Model Number: QBGFEP2050
  • Breaker Type: Ground Fault Circuit Interrupter (GFCI), Class B — Equipment Protection Device
  • Trip Functions: LIG — Long-Time, Instantaneous, and Ground Fault
  • Amperage: 50 Amps
  • Poles: 2-Pole
  • Phase: 1-Phase
  • Voltage: 120/240 Volts AC
  • Interrupt Rating: 10 kAIC
  • Trip Type: Non-Interchangeable
  • Mounting Mode: Bolt-on
  • Connections / Terminals: Extended tang line terminal; box lug load terminal
  • Wire Size: #14–4 AWG Cu/Al (load)
  • Dimensions: Height: 4.4 in; Width: 3.0 in; Depth: 5.8 in
  • Weight: 0.90 lbs
  • Certifications: UL 943, HACR Rated
  • Trip Sensitivity: 30 mA ground fault protection (Class B)

This Eaton QBGFEP2050 pigtail neutral circuit breaker provides reliable 50 Amp, 2-Pole Class B GFCI equipment protection for 120/240V circuits in Eaton QB bolt-on panelboards. With 30mA ground fault detection, cable-in/cable-out flexible power feed connections, and 10kAIC interrupt rating, it is designed for equipment protection applications including motors, pumps, and machinery in commercial and industrial settings.
