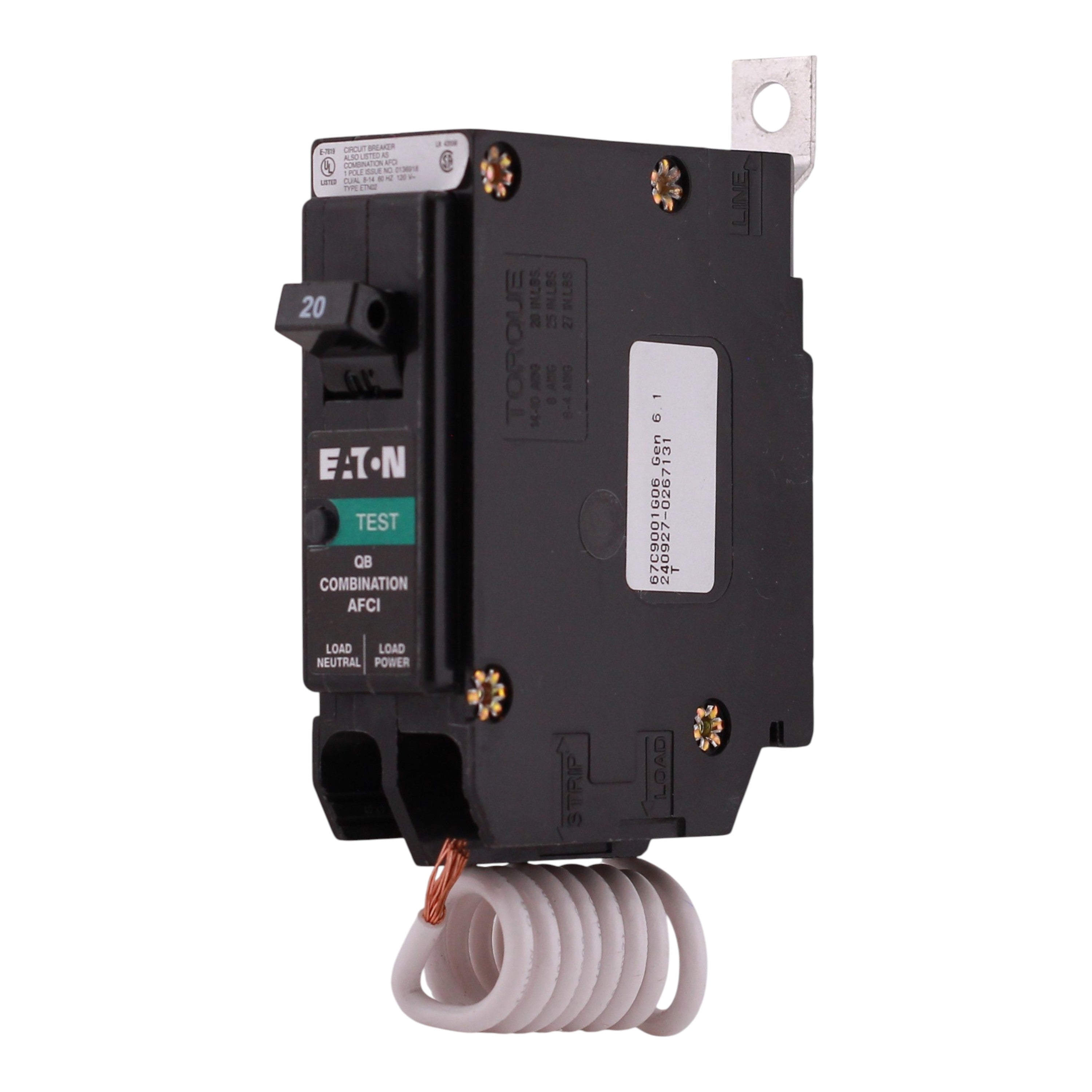

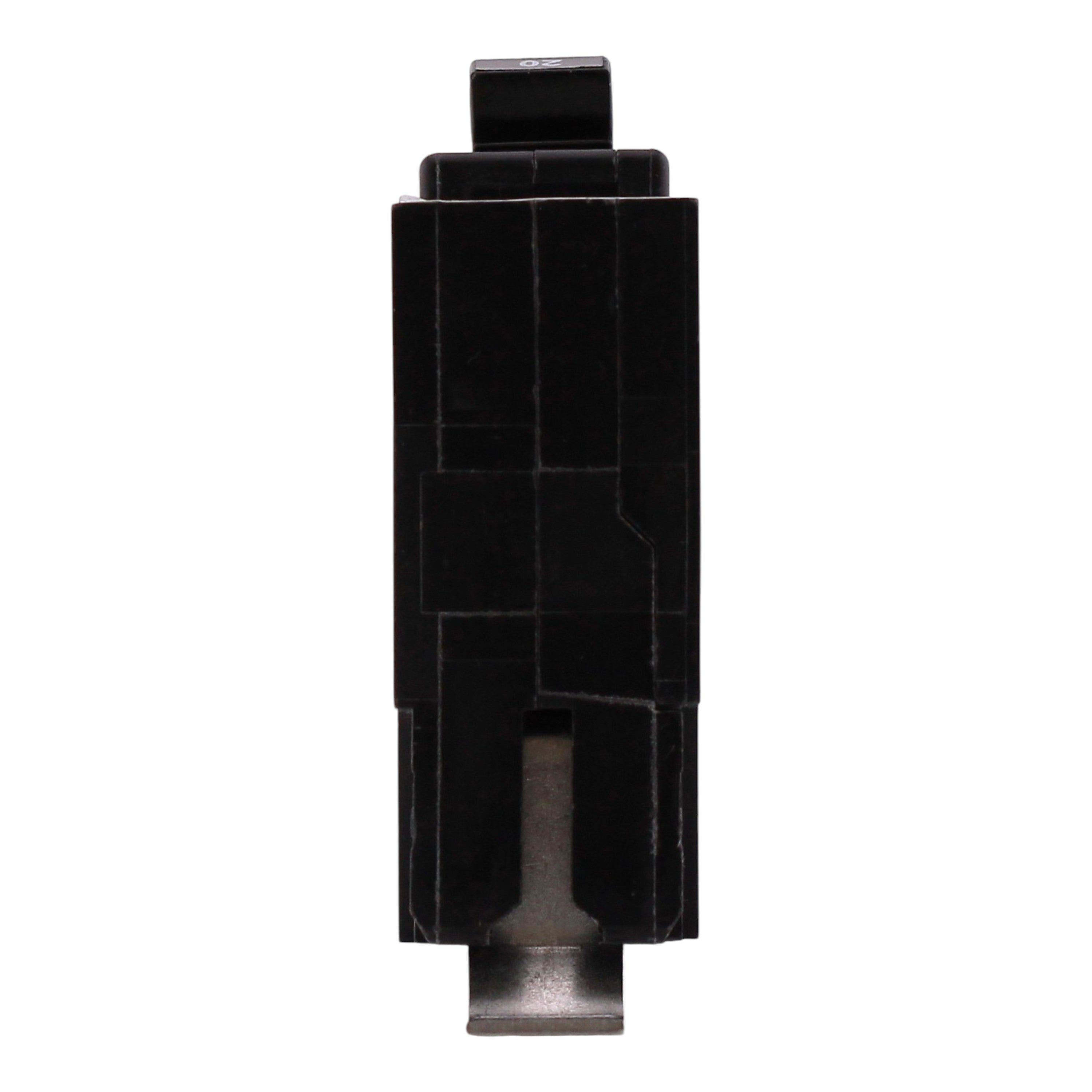

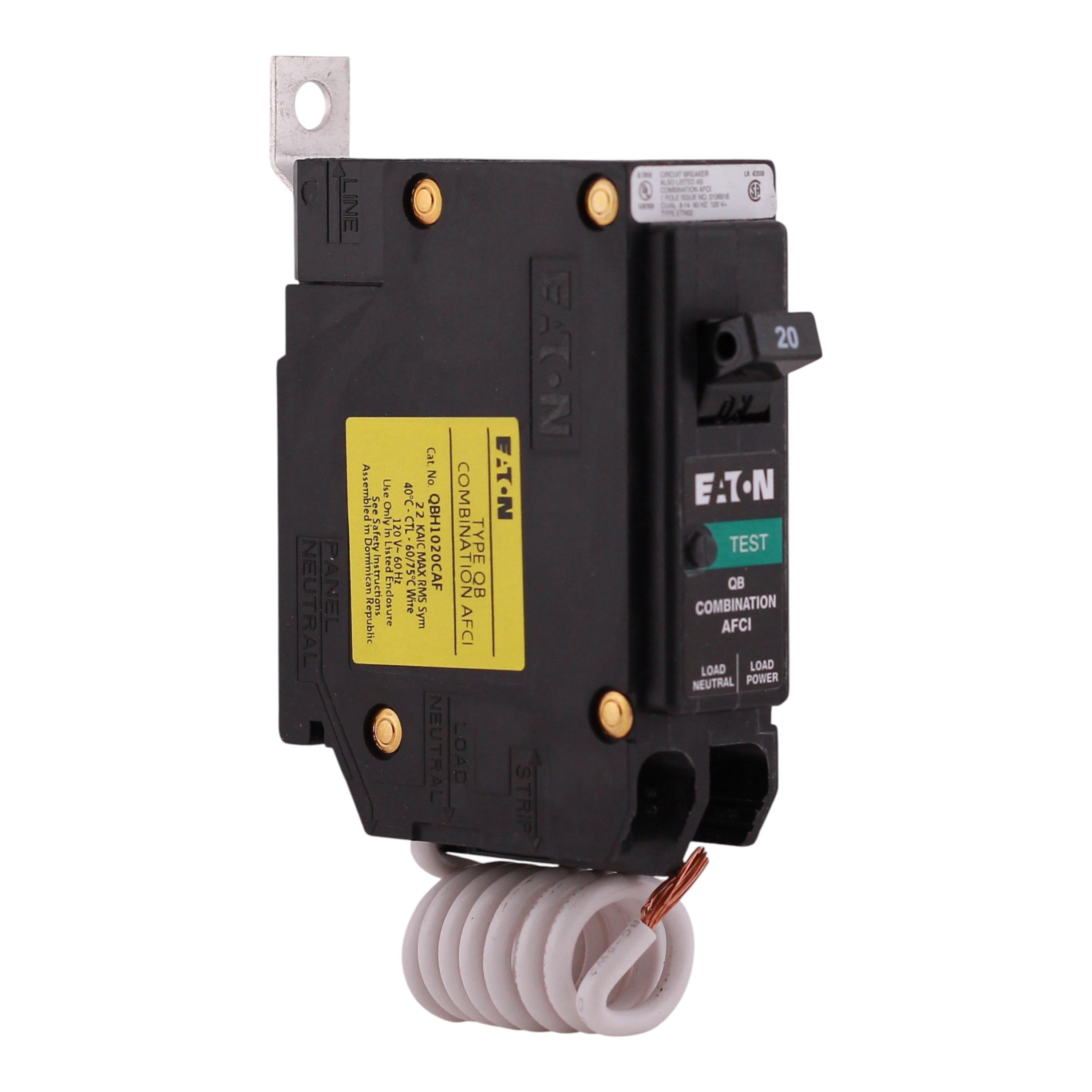

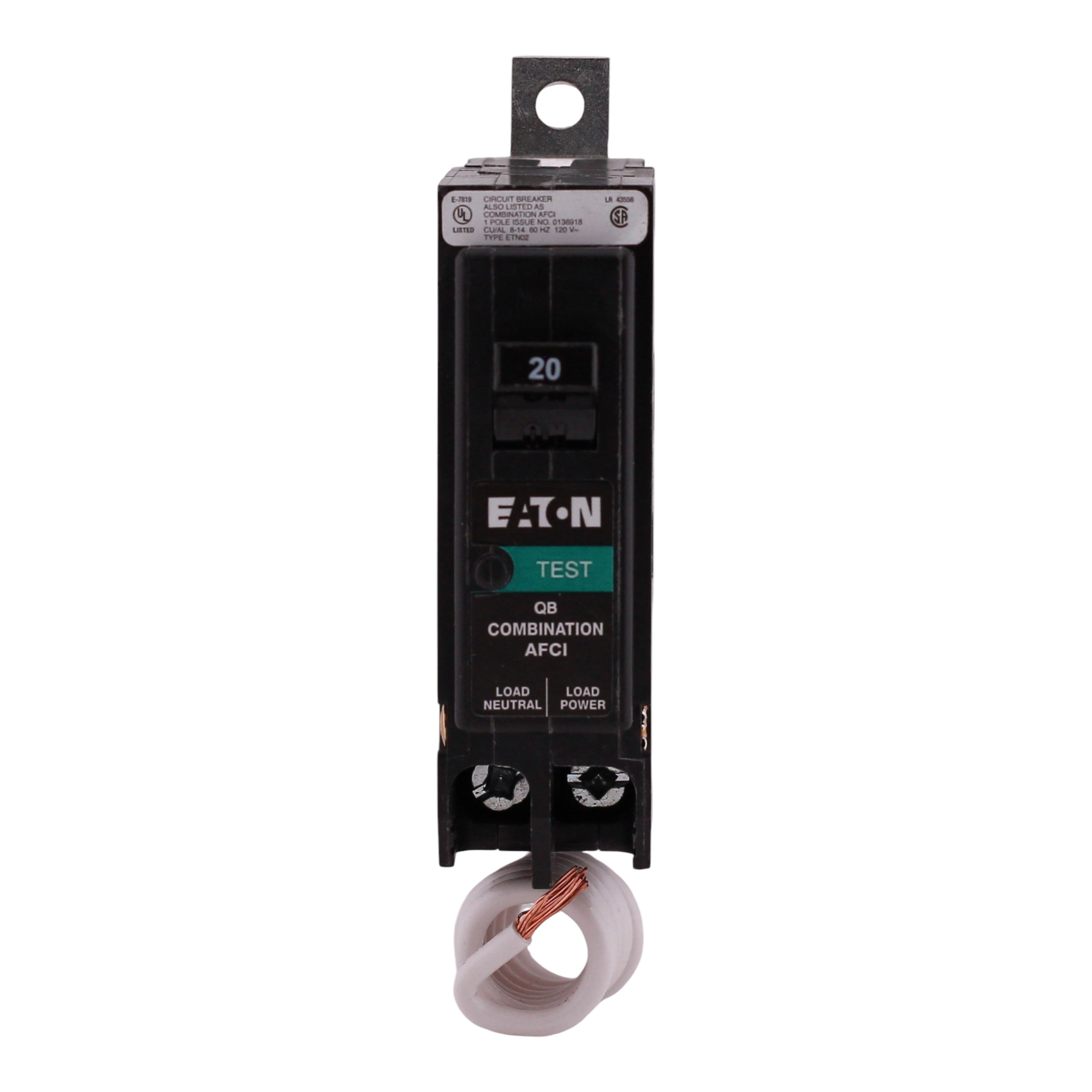

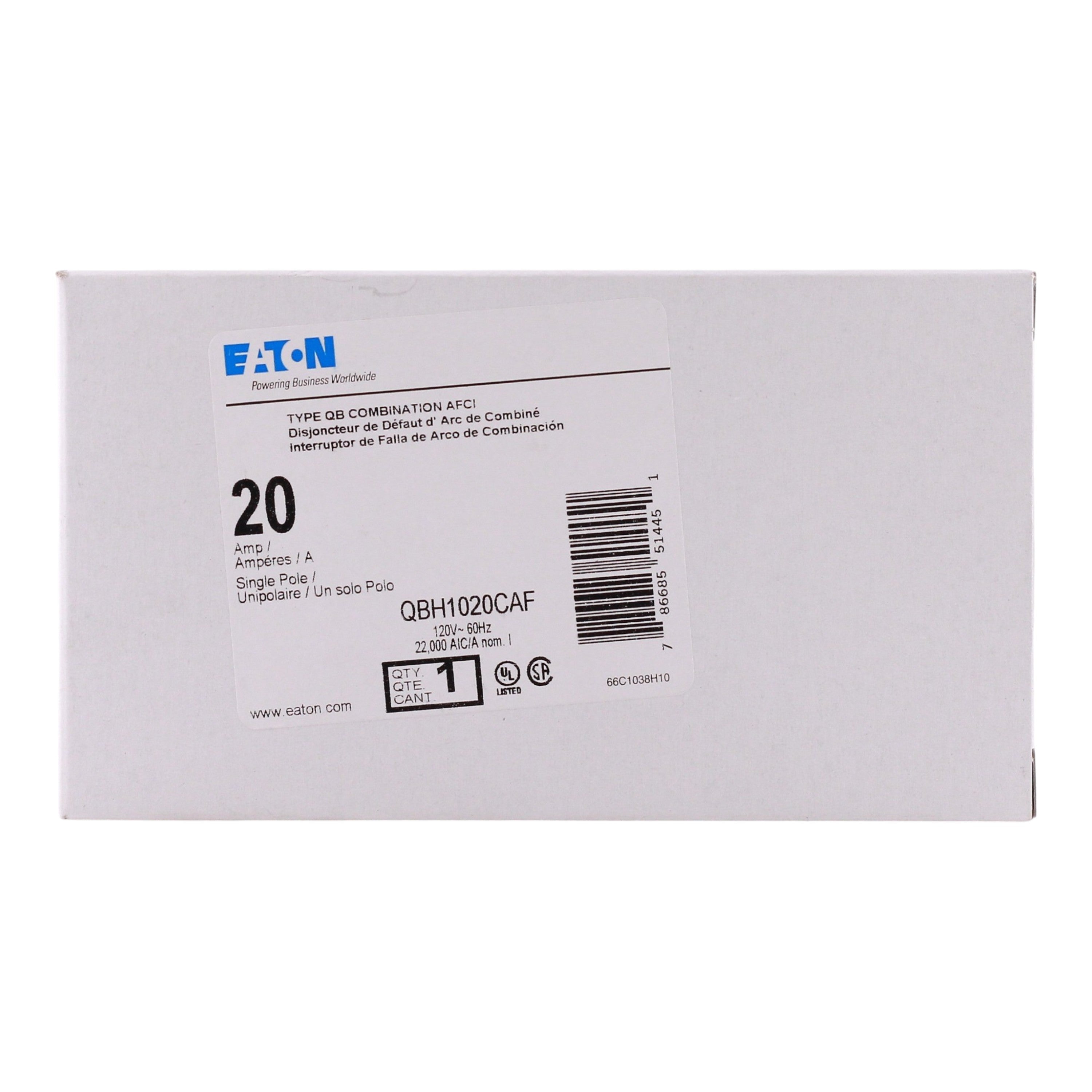

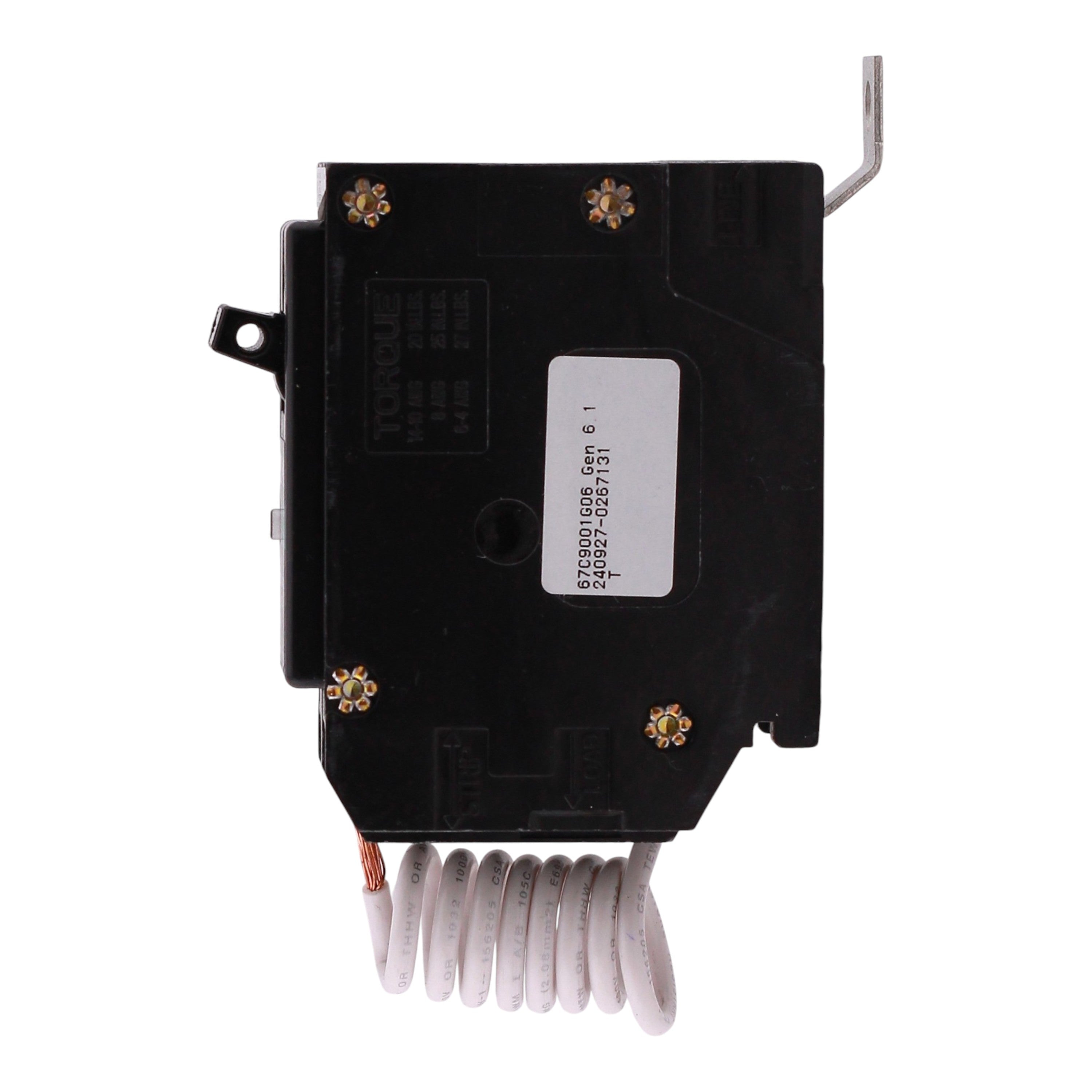

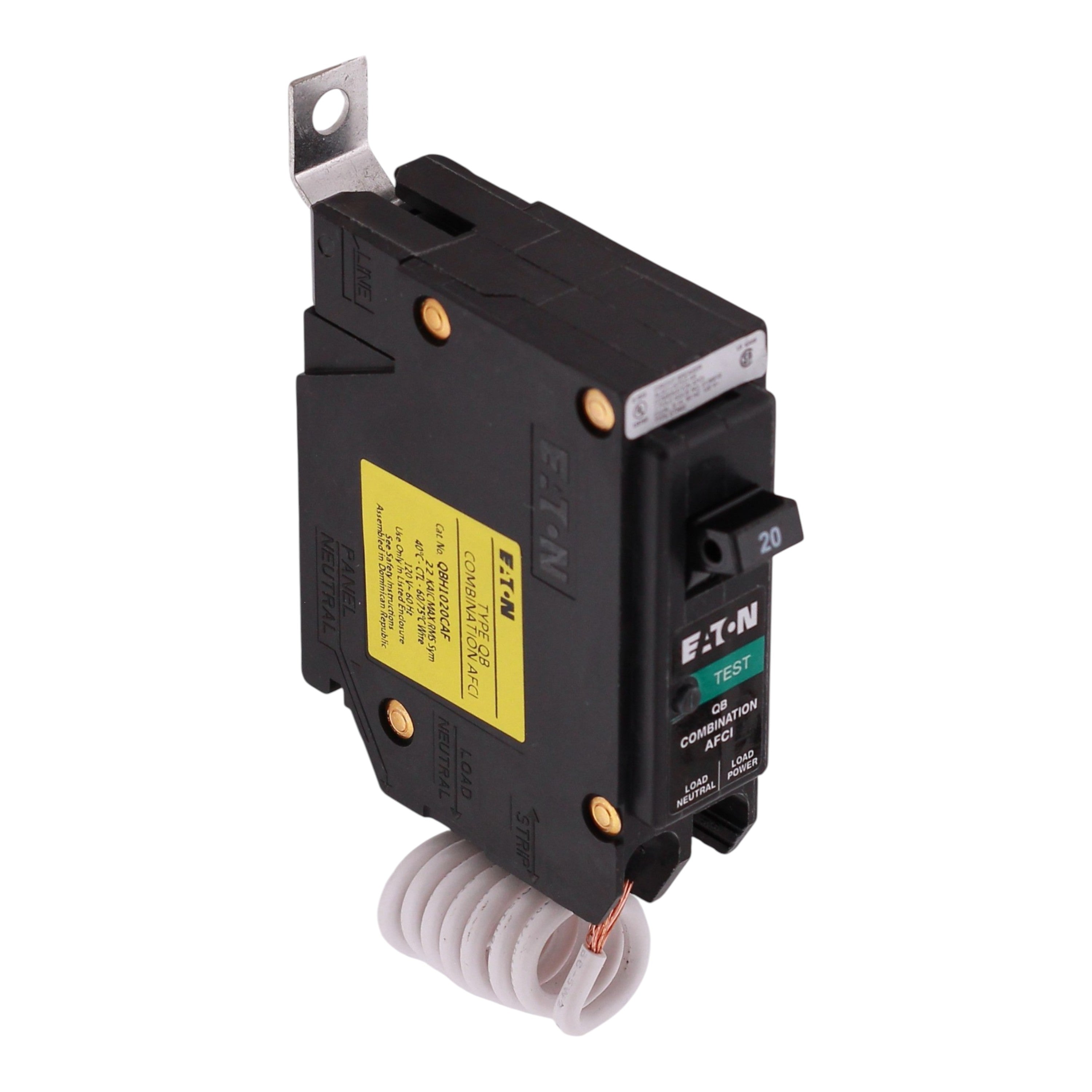

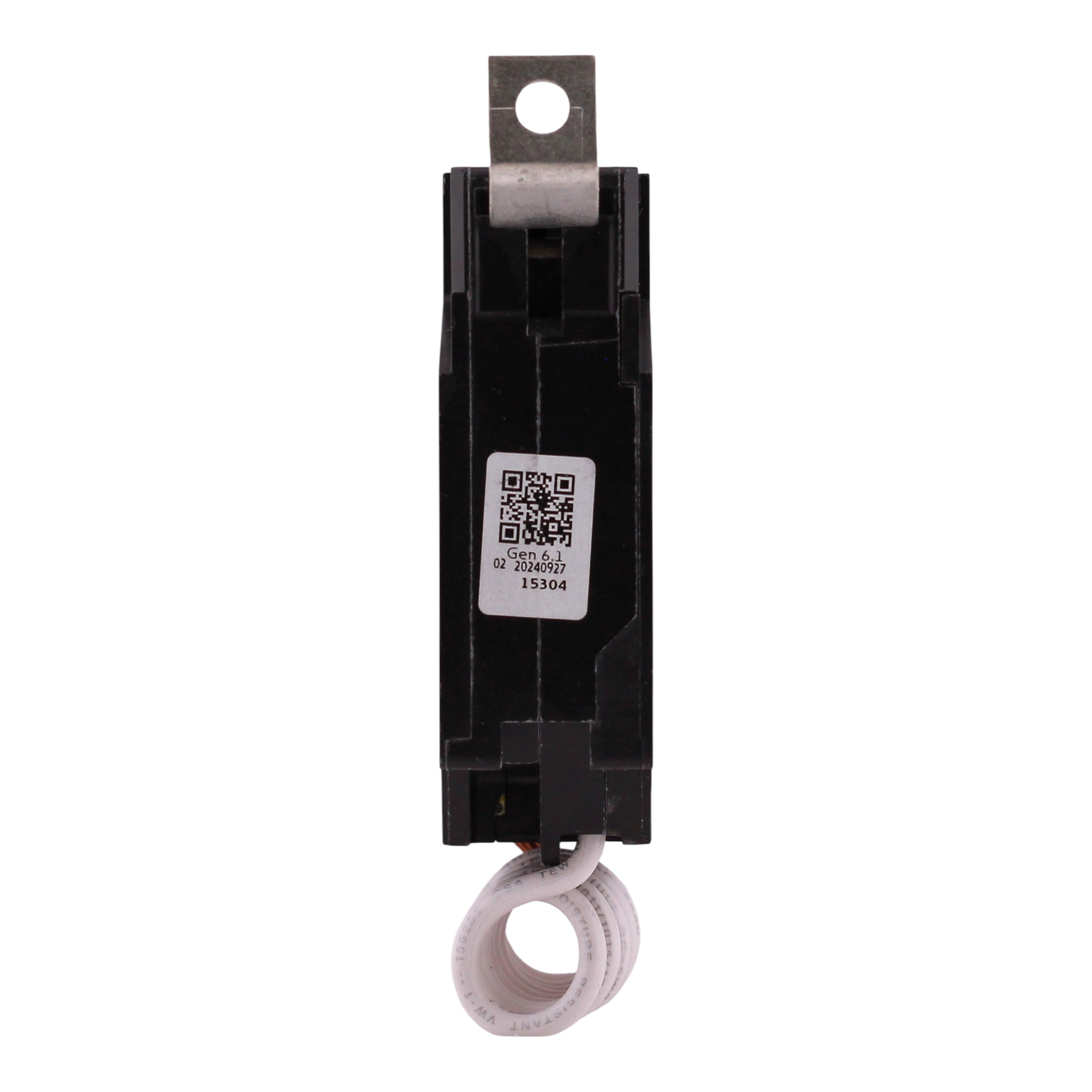

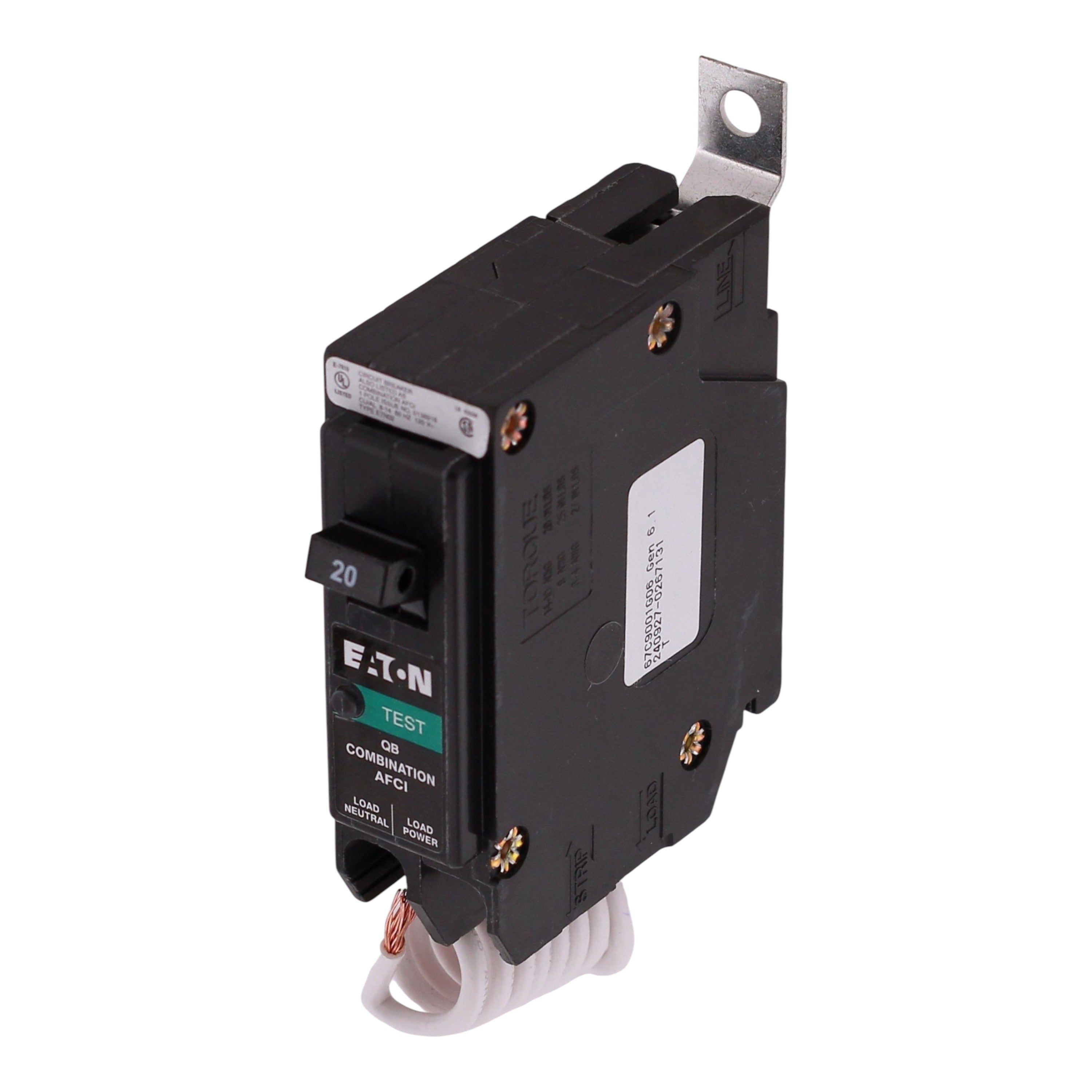

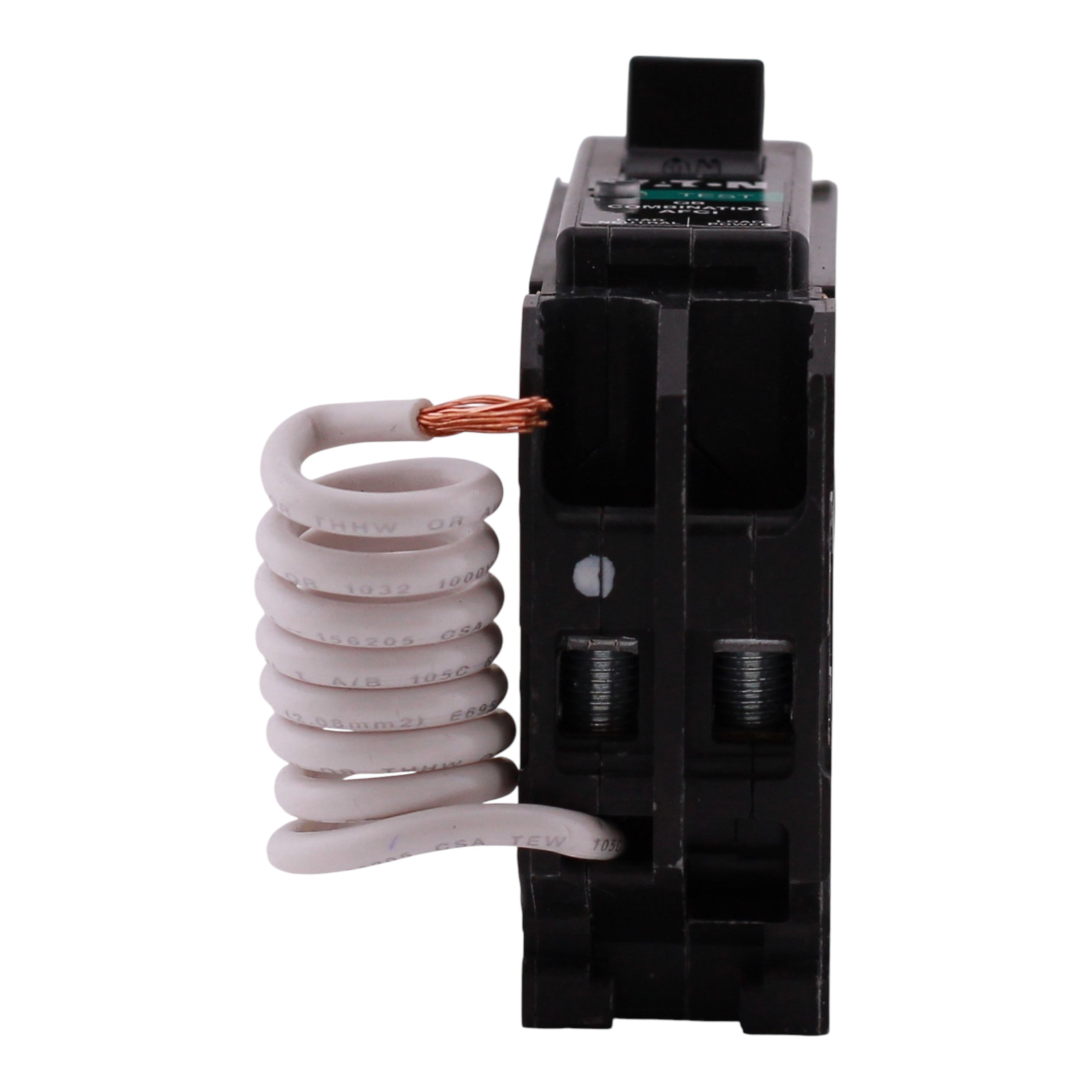

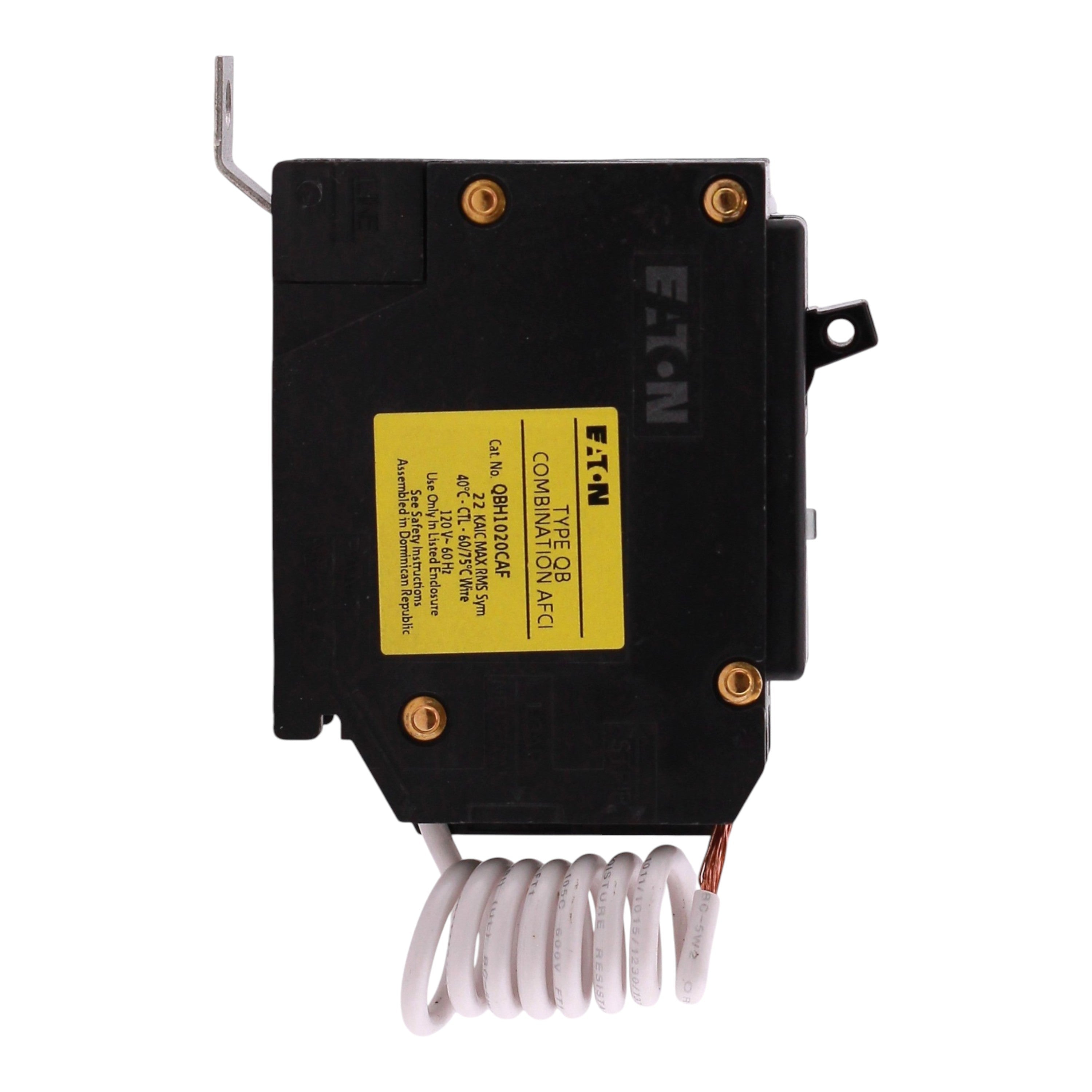

Eaton QBH1020CAF: 20 Amp, 1-Pole, Combination AFCI Arc-Fault Circuit Interrupter breaker, 120/240V, 22kA, pigtail neutral, bolt-on, UL listed.
-
Manufacturer: Eaton (Cutler-Hammer)
-
Brand: Eaton
-
Product Range: QBHCAF (QB Quicklag Cable-In/Cable-Out CAFCI — for Commander B/BC, CEB, and Sylvania bolt-on panelboards; also compatible with plug-on neutral panels)
-
UPC: 786685514451
-
Model Number: QBH1020CAF
-
Breaker Type: Combination Arc-Fault Circuit Interrupter (CAFCI) — with LED Diagnostic Trip Indicator
-
Trip Functions: LI — Long-Time and Instantaneous
-
Trip Adjustability: Fixed Thermal, Fixed Magnetic
-
Amperage: 20 Amps
-
Poles: 1-Pole
-
Voltage: 120/240 Volts AC
-
Interrupt Rating: 22 kAIC
-
Mounting Mode: Bolt-on
-
Connections / Terminals: Pigtail Neutral; Box Lugs
-
Wire Size: #14–4 AWG Cu/Al
-
Dimensions: Height: 3.0 in; Width: 1.0 in; Depth: 3.5 in
-
Certifications: UL 489, UL 1699, CSA C22.2 No. 5, HACR Rated, SWD Rated
This Eaton QBH1020CAF pigtail neutral circuit breaker provides reliable 20 Amp, 1-Pole combination AFCI protection for 120/240V circuits in Commander B/BC, CEB, and Sylvania bolt-on panelboards — and is also compatible with plug-on neutral panels. With 22kAIC high interrupt rating, arc-fault detection, built-in LED diagnostic trip indicator, HACR and SWD ratings, and quick-make/quick-break mechanism, it ensures enhanced safety for residential and commercial applications.
