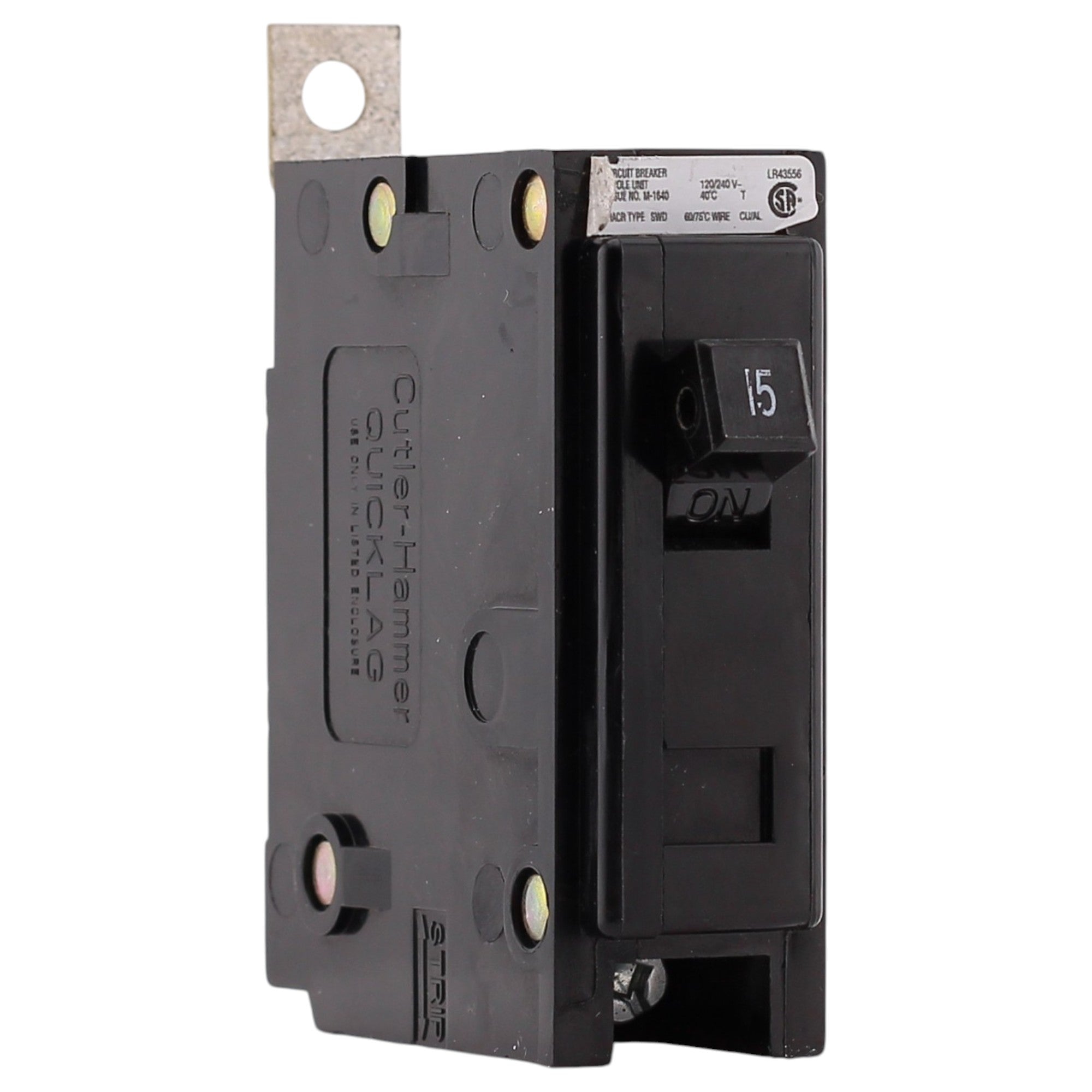

Eaton QBHW, QBHW1015, 15A, 1P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker

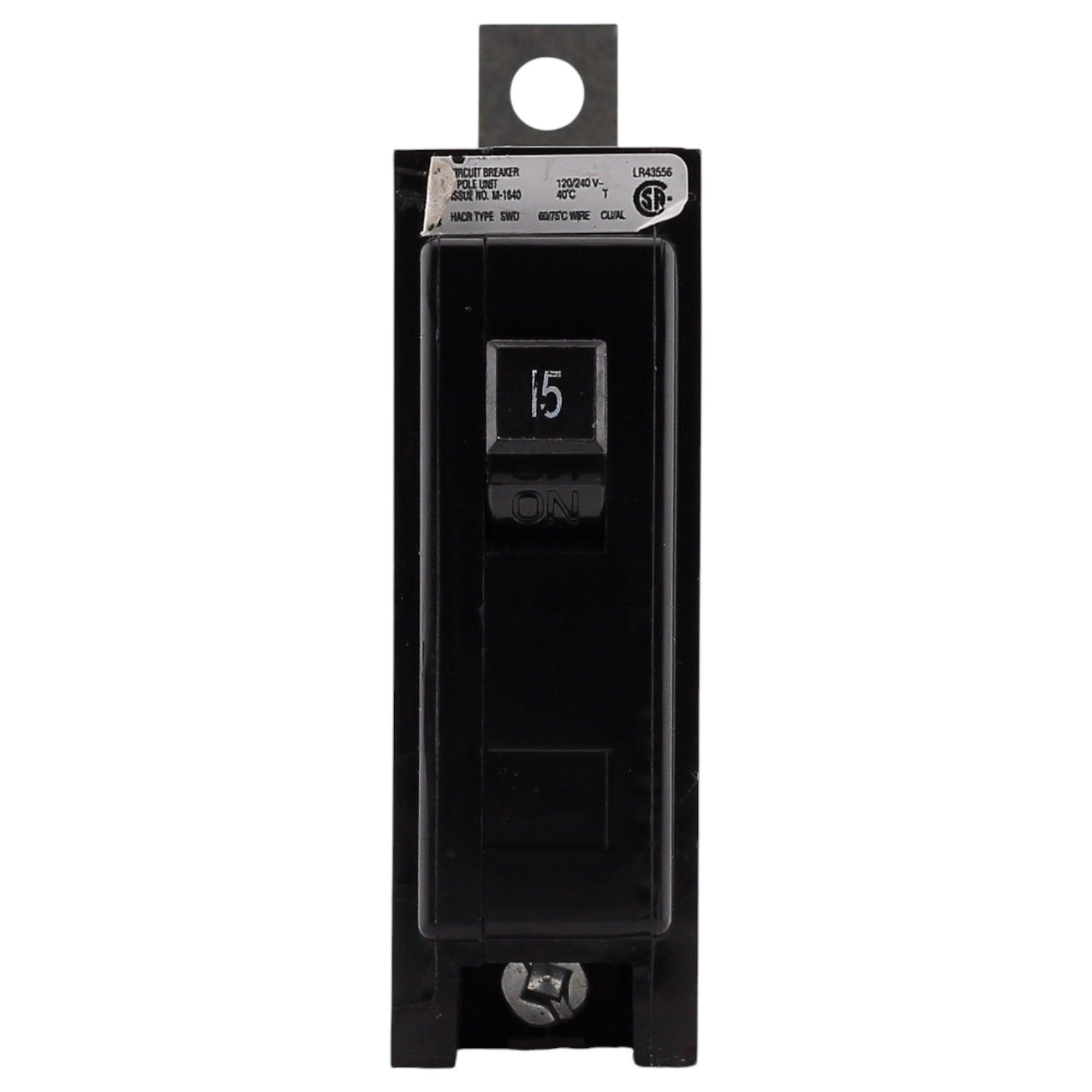

Eaton QBHW, QBHW1015, 15A, 1P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 2

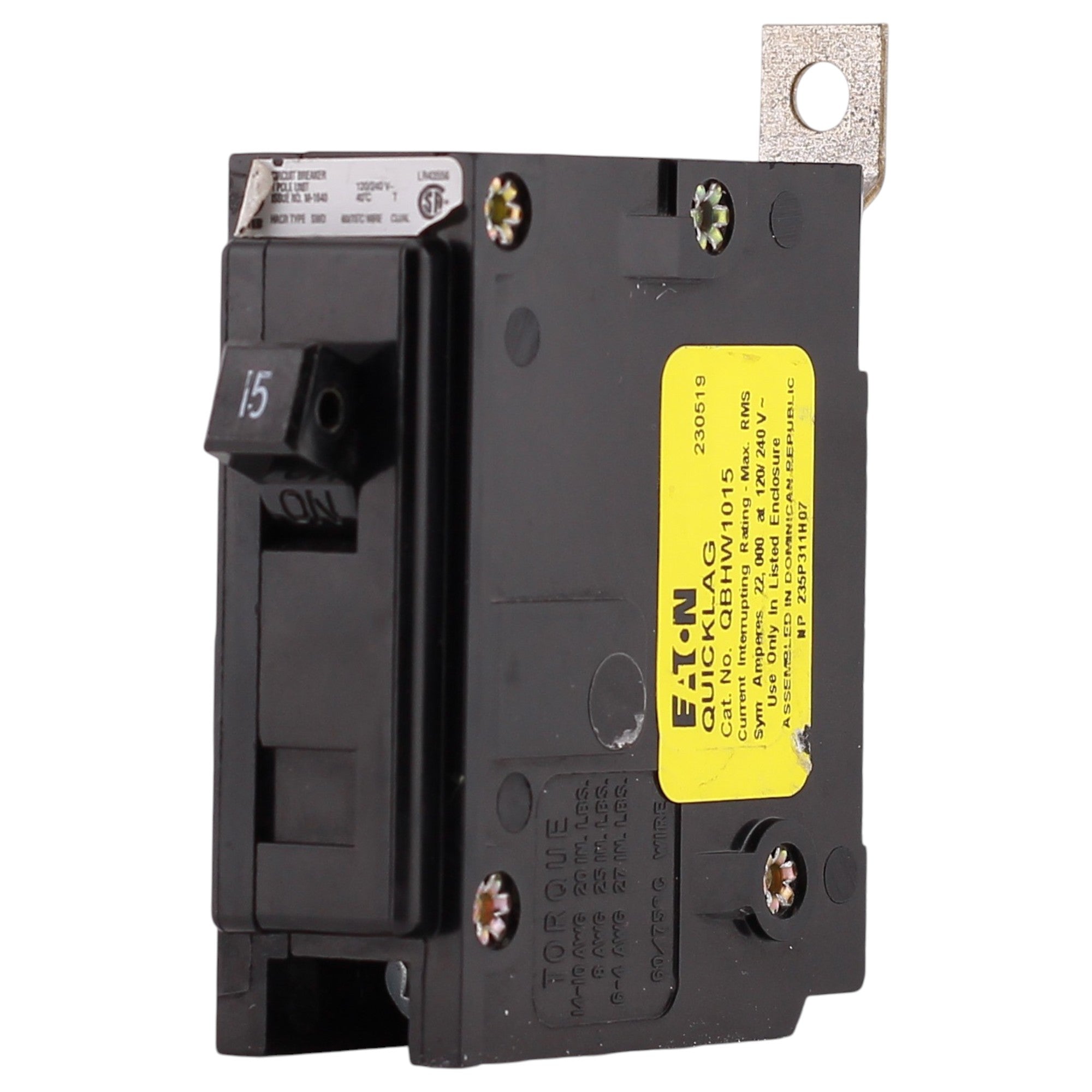

Eaton QBHW, QBHW1015, 15A, 1P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 3

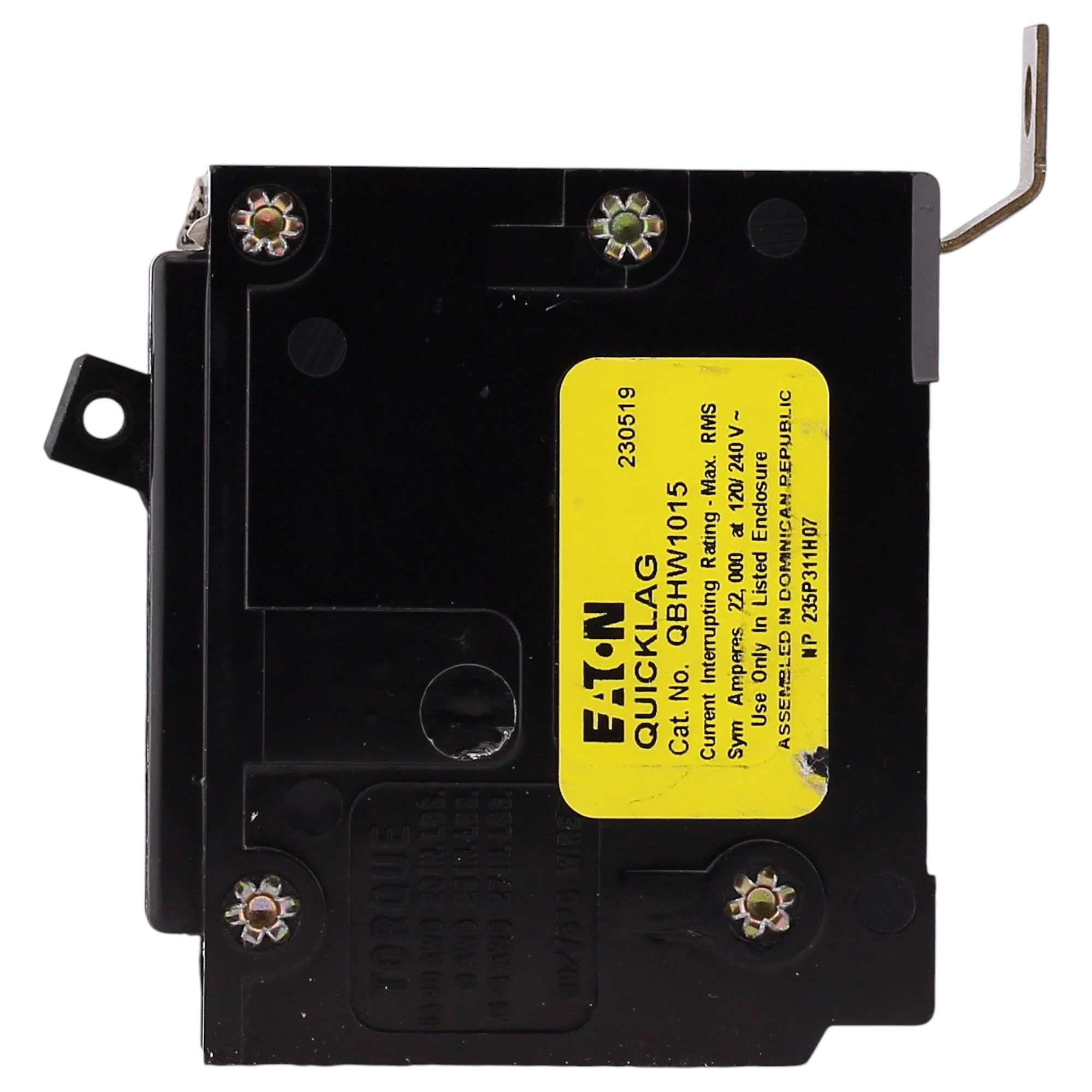

Eaton QBHW, QBHW1015, 15A, 1P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 4

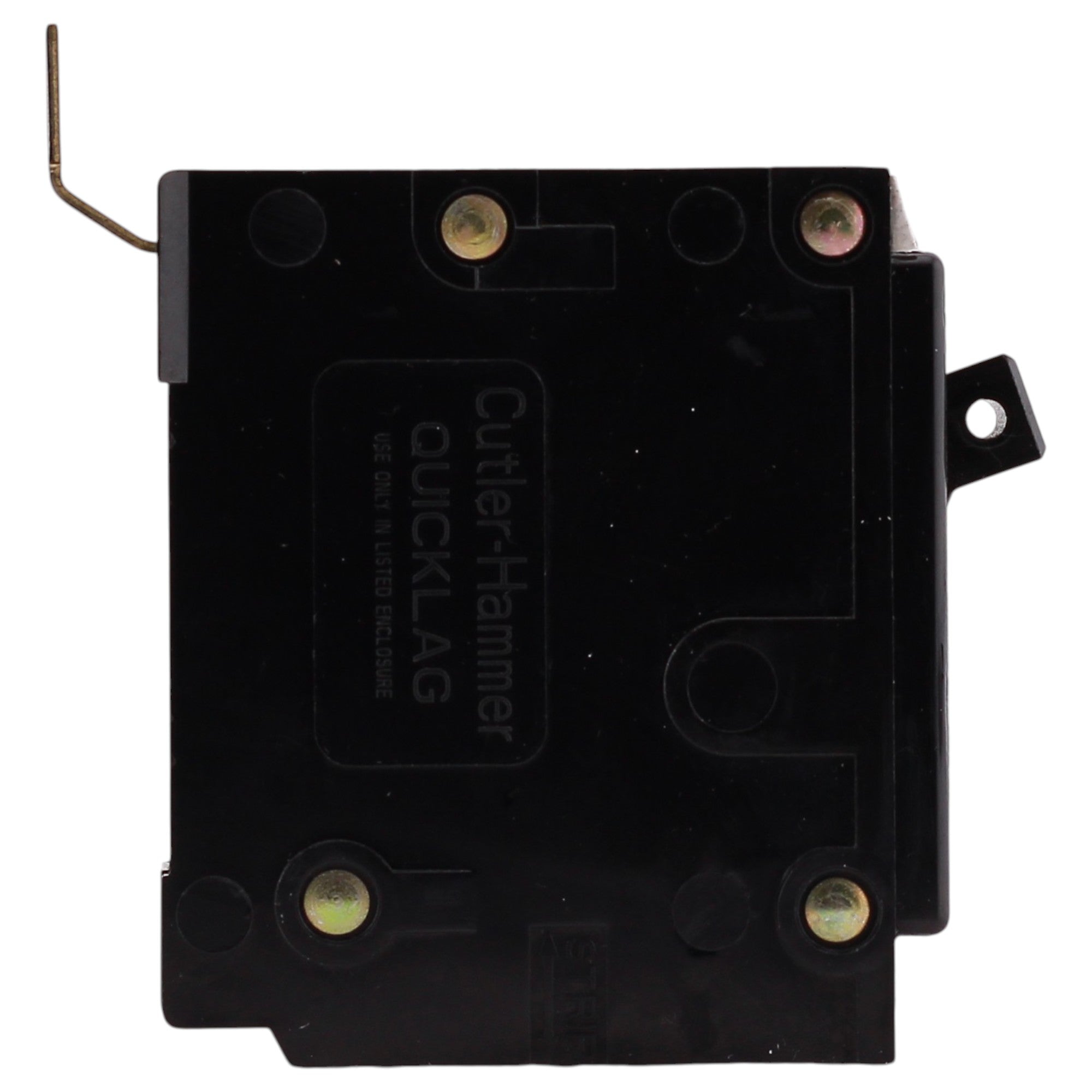

Eaton QBHW, QBHW1015, 15A, 1P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 5

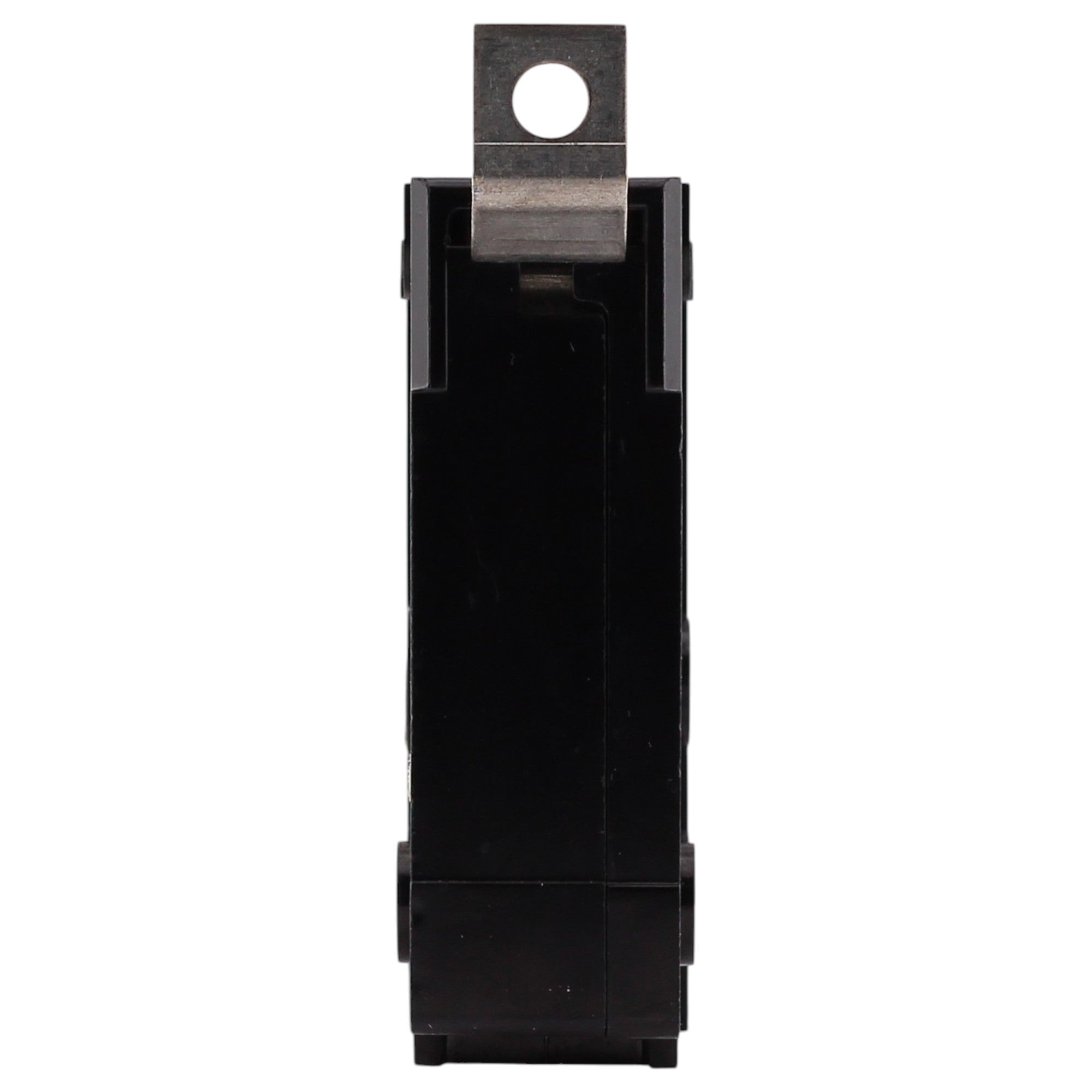

Eaton QBHW, QBHW1015, 15A, 1P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 6

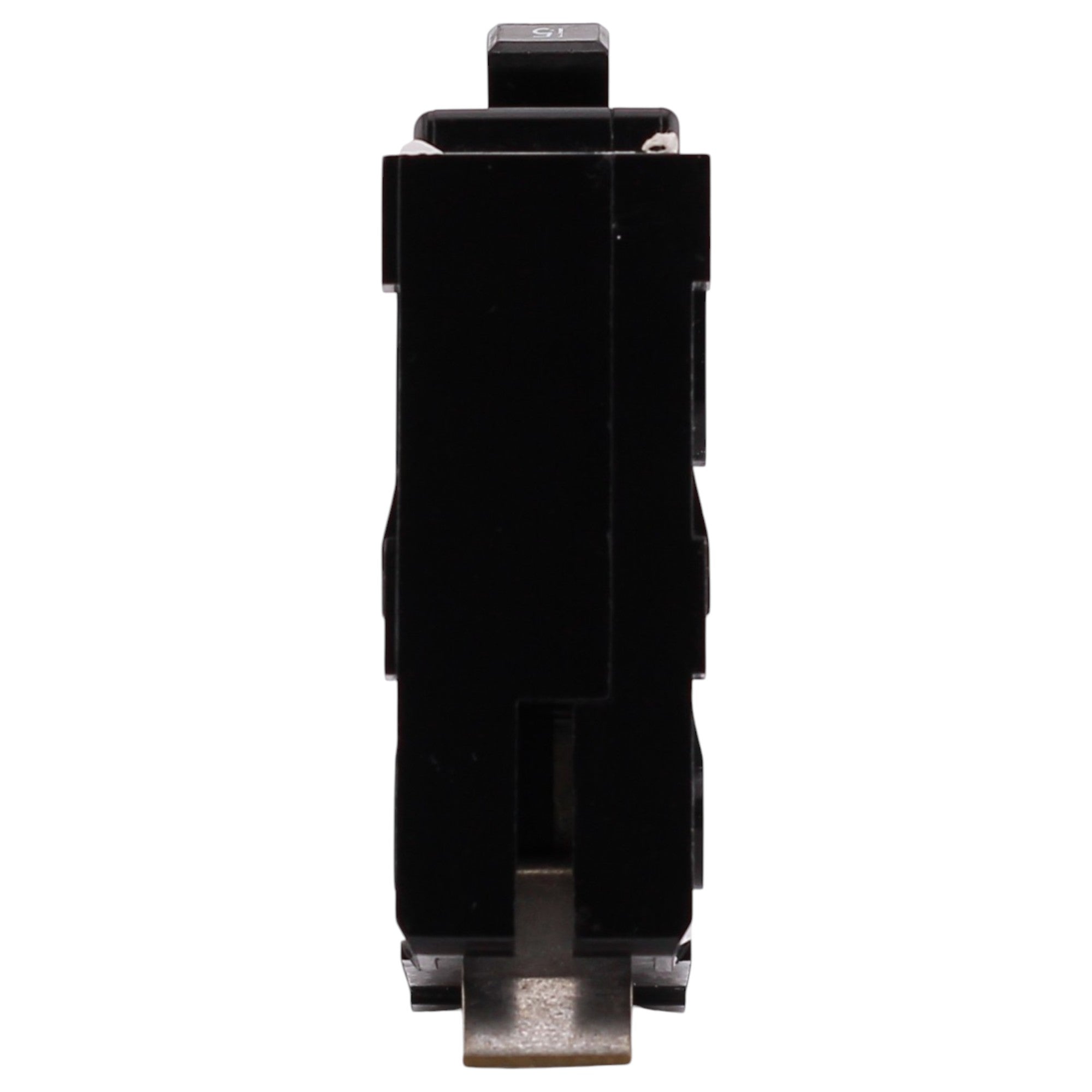

Eaton QBHW, QBHW1015, 15A, 1P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 7

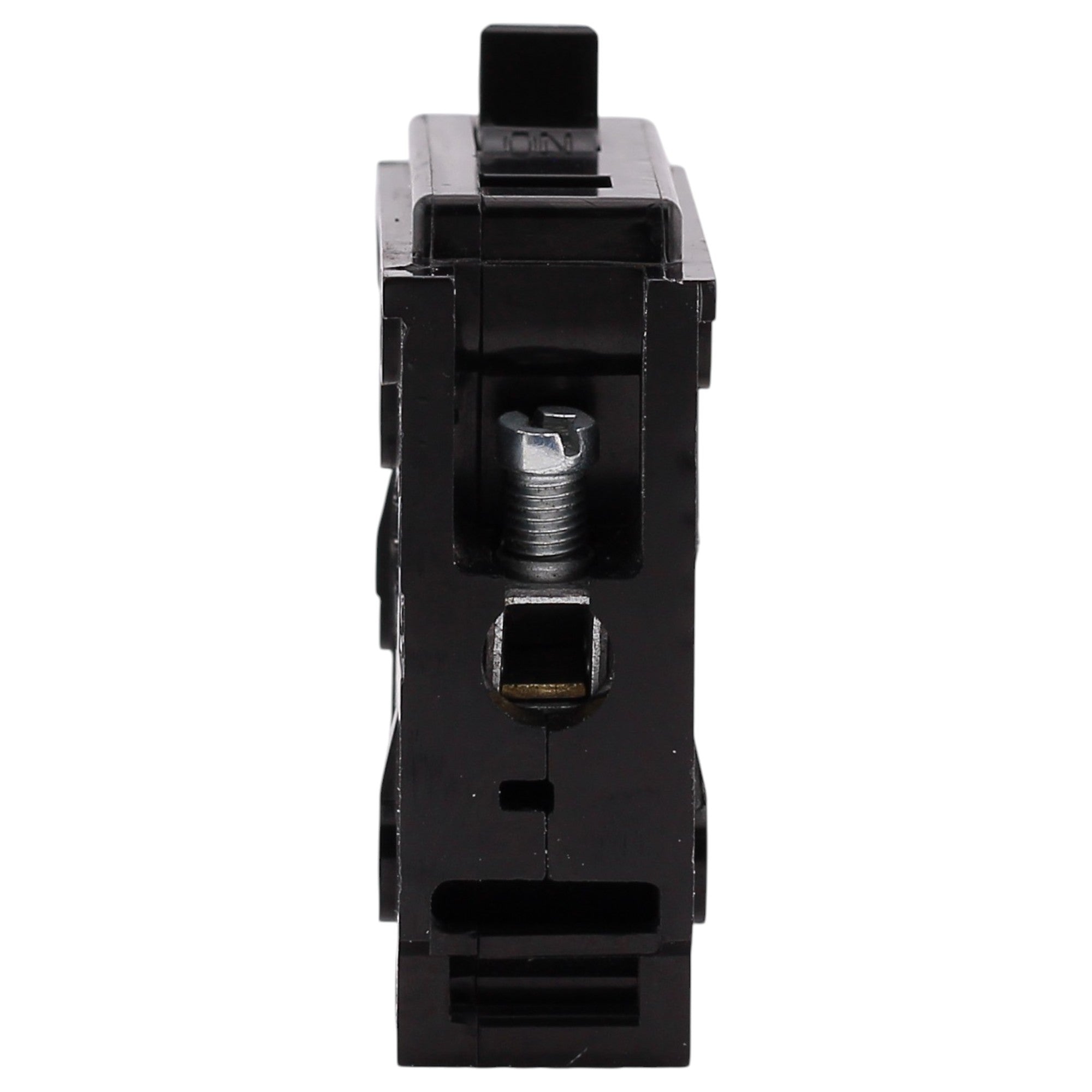

Eaton QBHW, QBHW1015, 15A, 1P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 8
Eaton QBHW, QBHW1015, 15A, 1P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker
Eaton QBHW, QBHW1015, 15A, 1P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 2
Eaton QBHW, QBHW1015, 15A, 1P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 3
Eaton QBHW, QBHW1015, 15A, 1P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 4
Eaton QBHW, QBHW1015, 15A, 1P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 5
Eaton QBHW, QBHW1015, 15A, 1P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 6
Eaton QBHW, QBHW1015, 15A, 1P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 7
Eaton QBHW, QBHW1015, 15A, 1P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 8

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton QBHW, QBHW1015, 15A, 1P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker

SKU: QBHW1015
(0)
$16.00
-20% $20.00 $16.00
Out of stock
Condition

Eaton QBHW1015: 15 Amp, 1-Pole, Quicklag Industrial Thermal Magnetic Circuit Breaker, 120/240V, 22kA, Bolt-On, Non-Interchangeable, UL Listed.

  • Manufacturer: Eaton
  • Brand: Eaton
  • Product Range: QBHW (Quicklag Industrial Cable-In/Cable-Out — for bolt-on panelboard applications)
  • UPC: 786679392003
  • Model Number: QBHW1015
  • Breaker Type: Thermal Magnetic Miniature Circuit Breaker, Non-Interchangeable Trip
  • Trip Functions: LI — Long-Time and Instantaneous
  • Amperage: 15 Amps
  • Poles: 1-Pole
  • Phase: 1-Phase
  • Voltage: 120/240 Volts AC
  • Interrupt Rating: 22 kAIC @ 120/240VAC; 5 kAIC @ 24–48VDC; 3.8 kAIC @ 62.5VDC
  • Mounting Mode: Bolt-on
  • Connections / Terminals: Extended tang line terminal; box lug load terminal
  • Wire Size: #14–4 AWG Cu/Al (load)
  • Dimensions: Height: 4.8 in; Width: 1.2 in; Depth: 3.9 in
  • Certifications: UL 489, CSA Certified, HACR Rated, SWD Rated
  • Weight: 0.25 lbs

This Eaton QBHW1015 Quicklag industrial thermal magnetic circuit breaker delivers dependable 15 Amp, 1-Pole protection for 120/240V circuits in bolt-on panelboard applications. With 22kAIC interrupt rating, flexible cable-in/cable-out power feed connections, non-interchangeable trip, and field-mountable accessories, it supports commercial and light industrial distribution applications.
