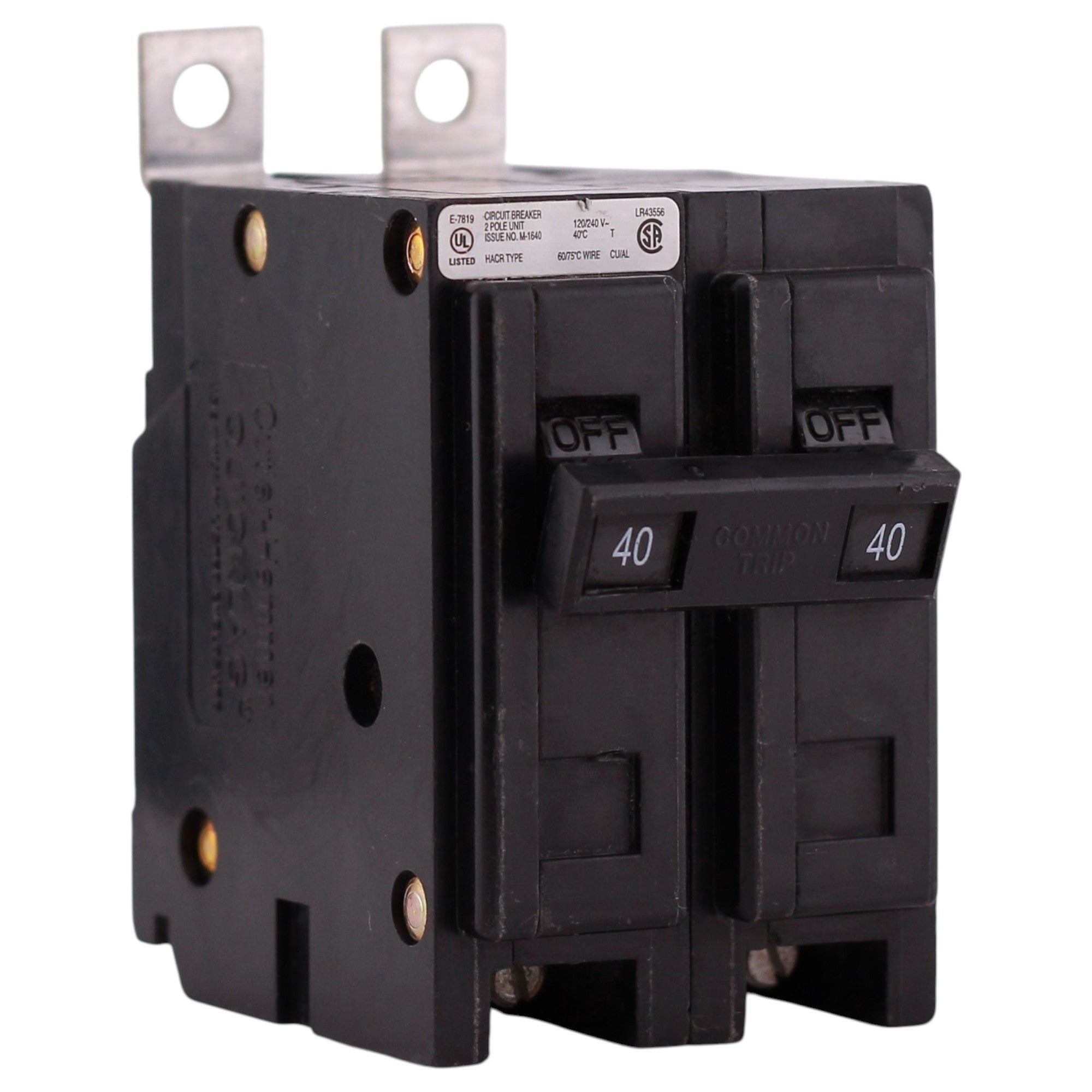

Eaton QBHW, QBHW2040, 40A, 2P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker

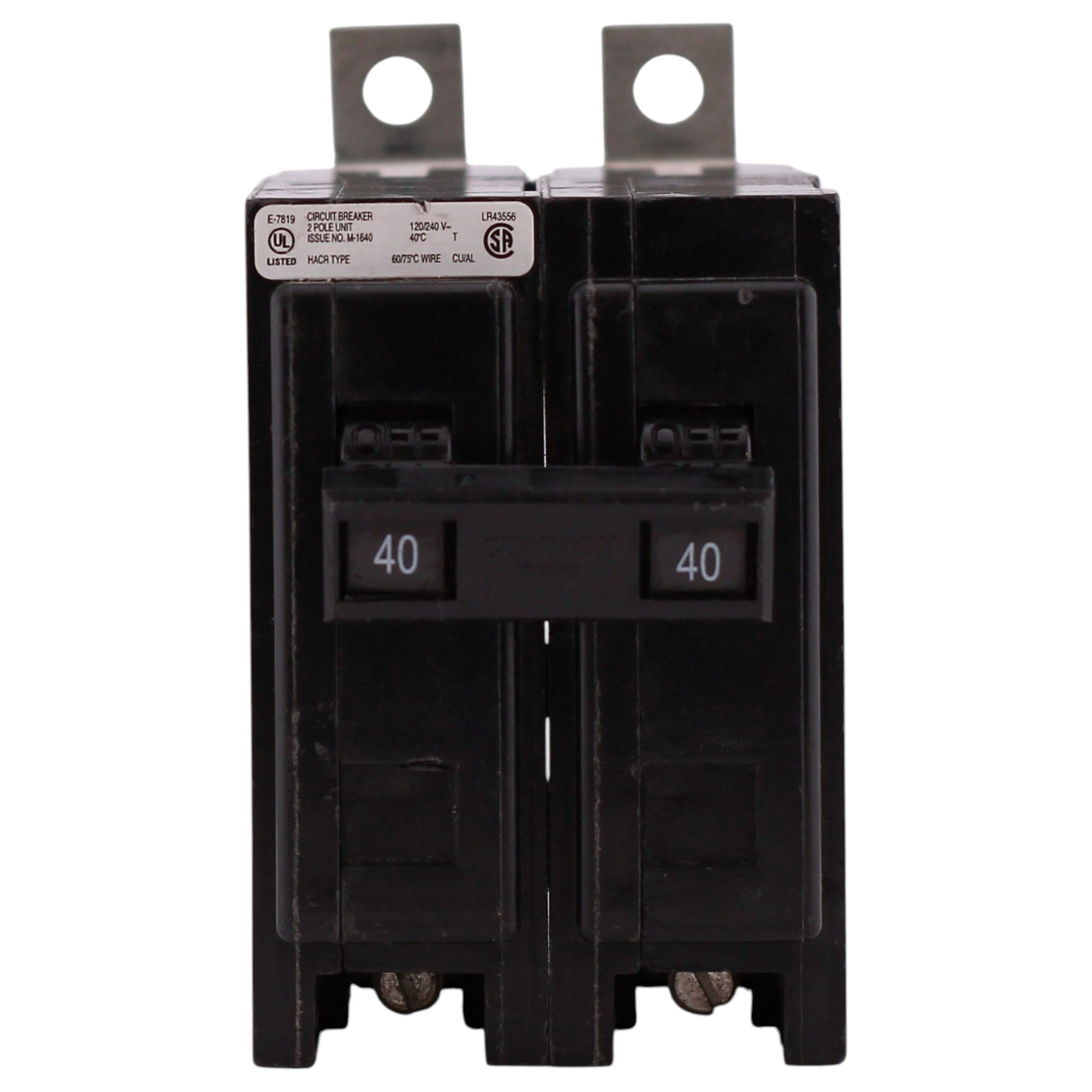

Eaton QBHW, QBHW2040, 40A, 2P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 2

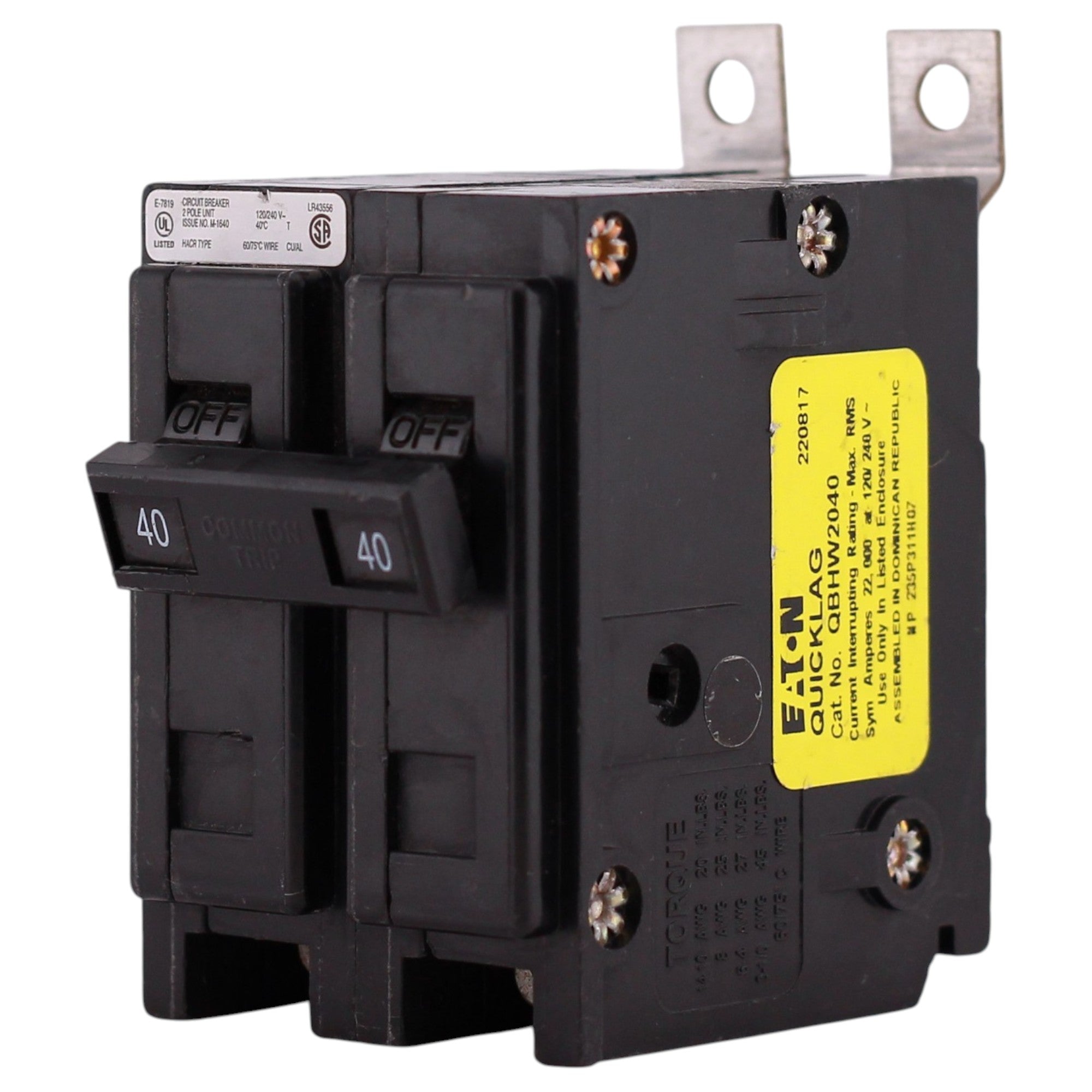

Eaton QBHW, QBHW2040, 40A, 2P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 3

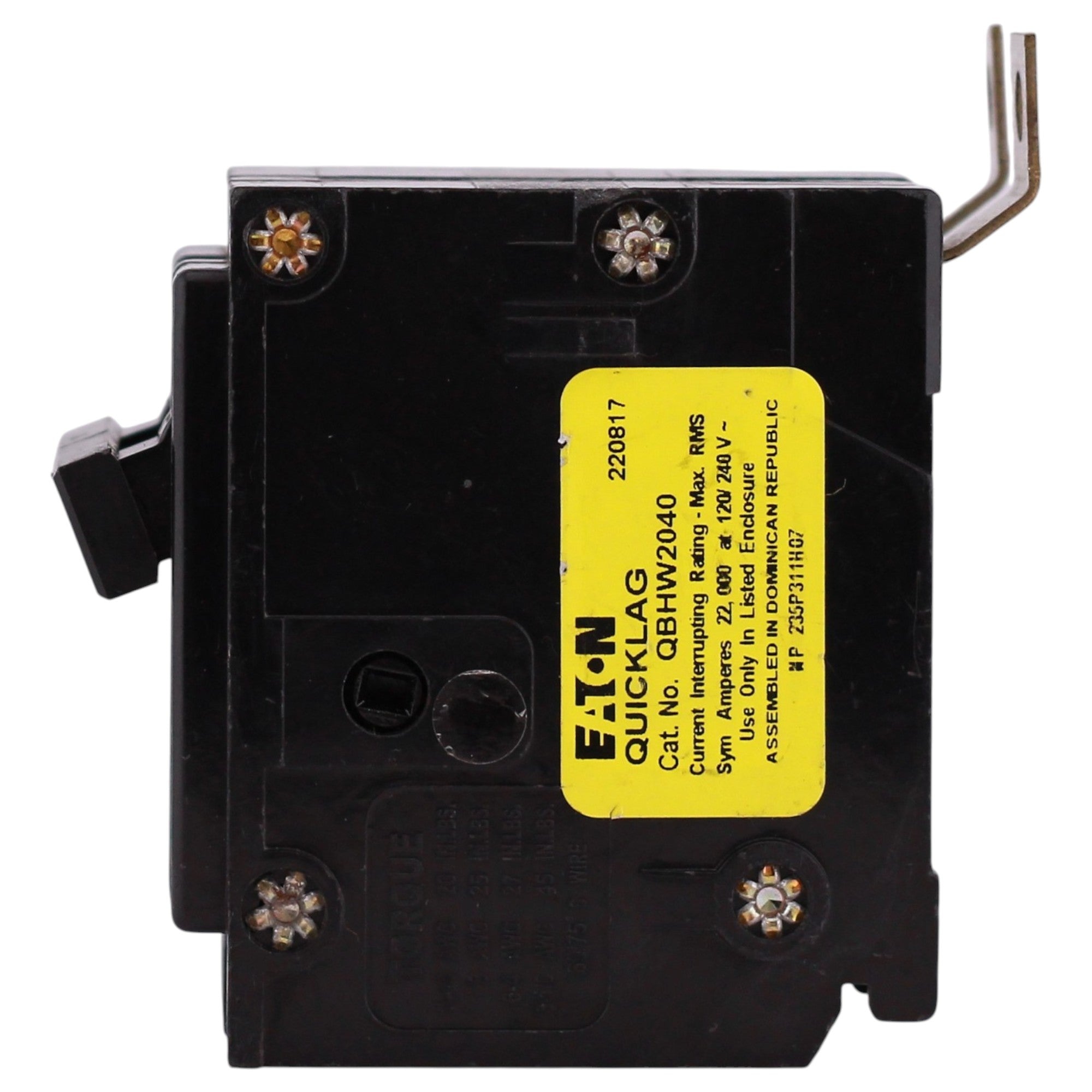

Eaton QBHW, QBHW2040, 40A, 2P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 4

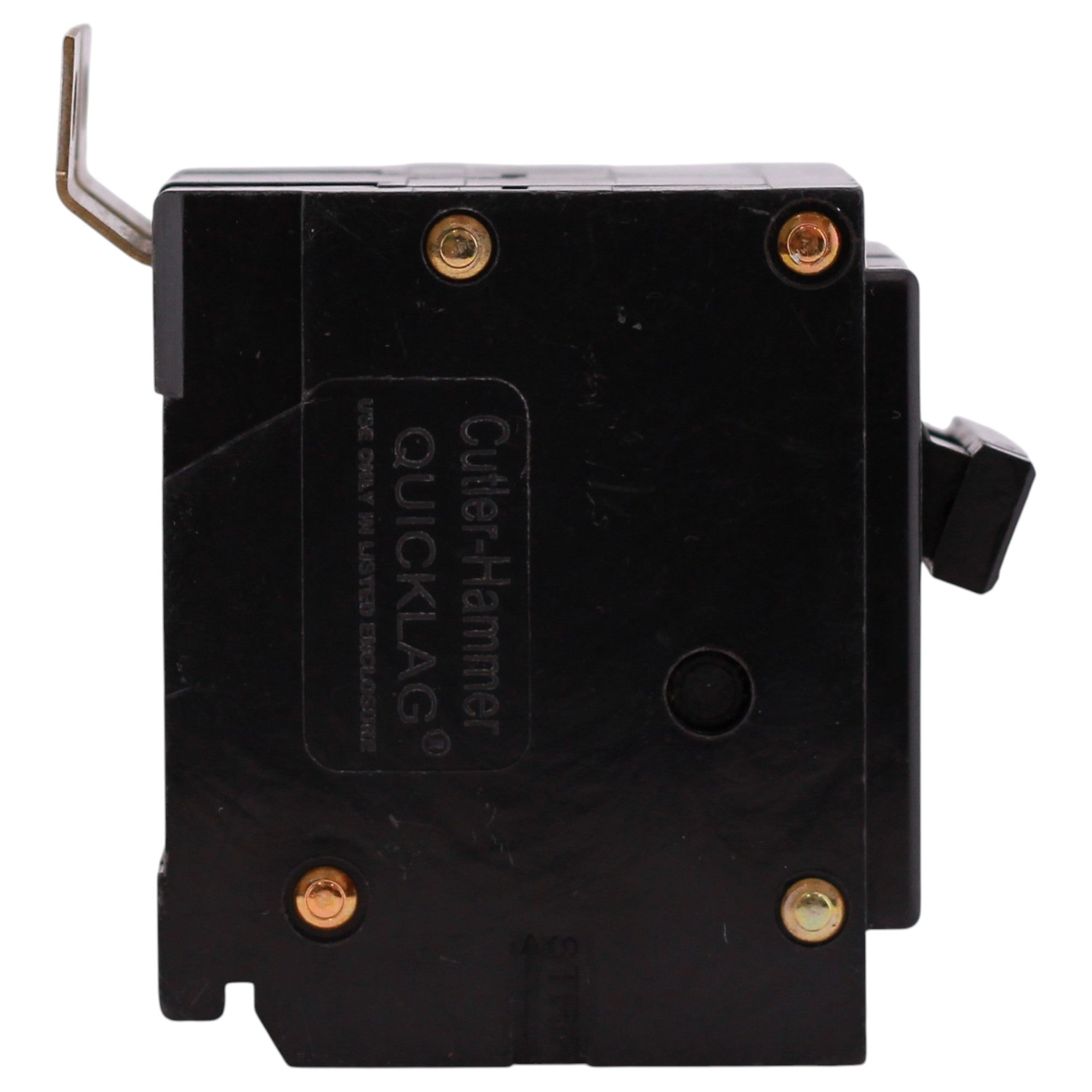

Eaton QBHW, QBHW2040, 40A, 2P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 5

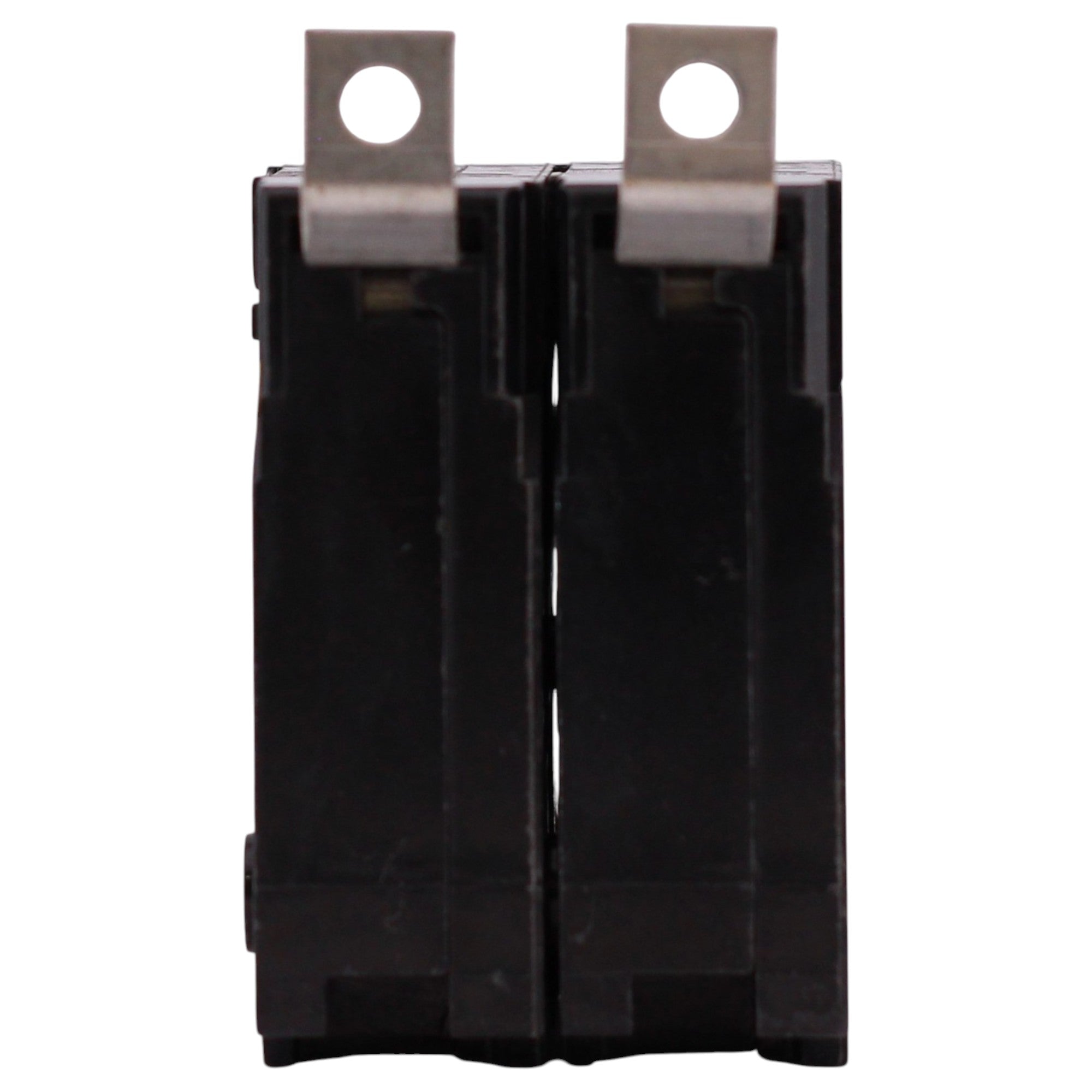

Eaton QBHW, QBHW2040, 40A, 2P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 6

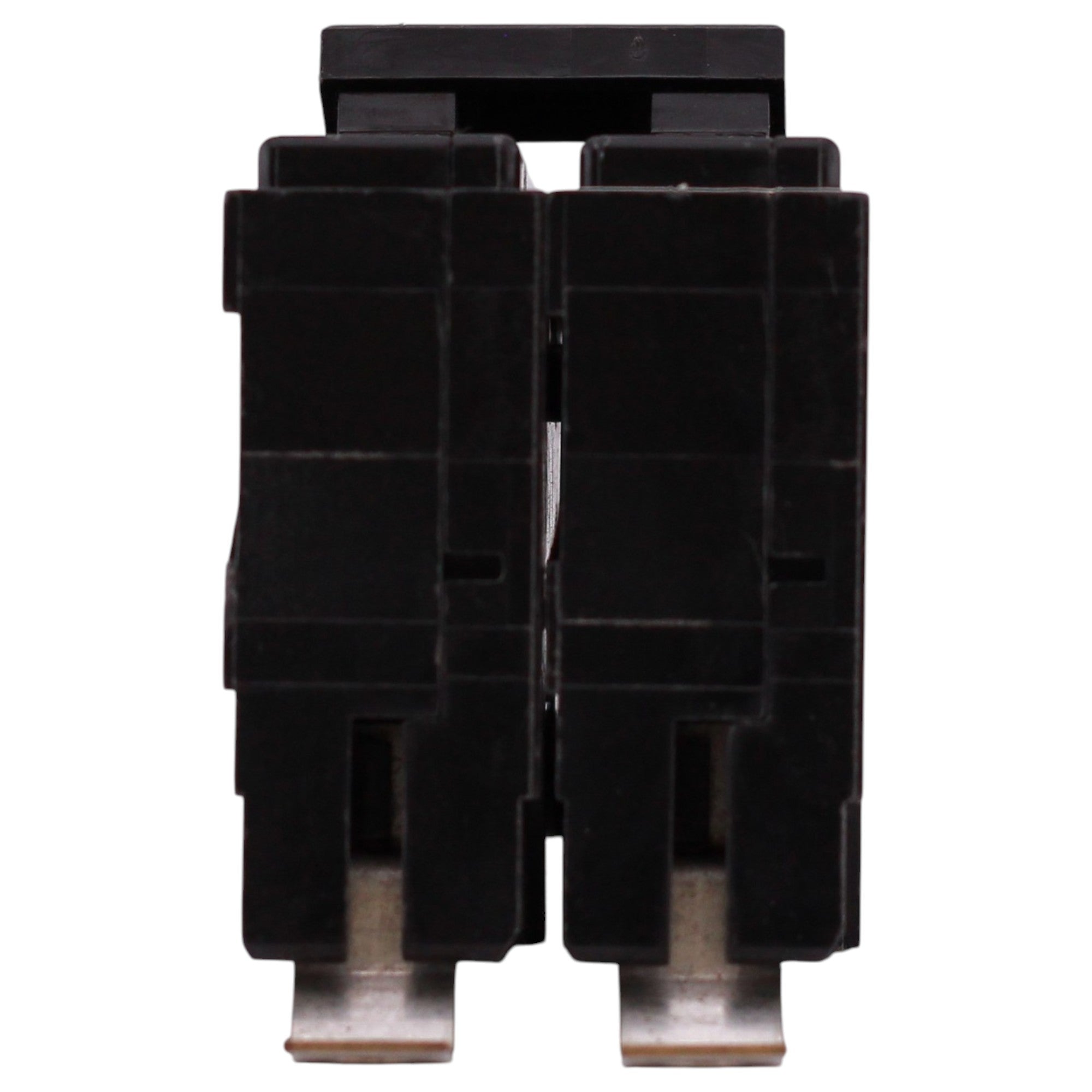

Eaton QBHW, QBHW2040, 40A, 2P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 7

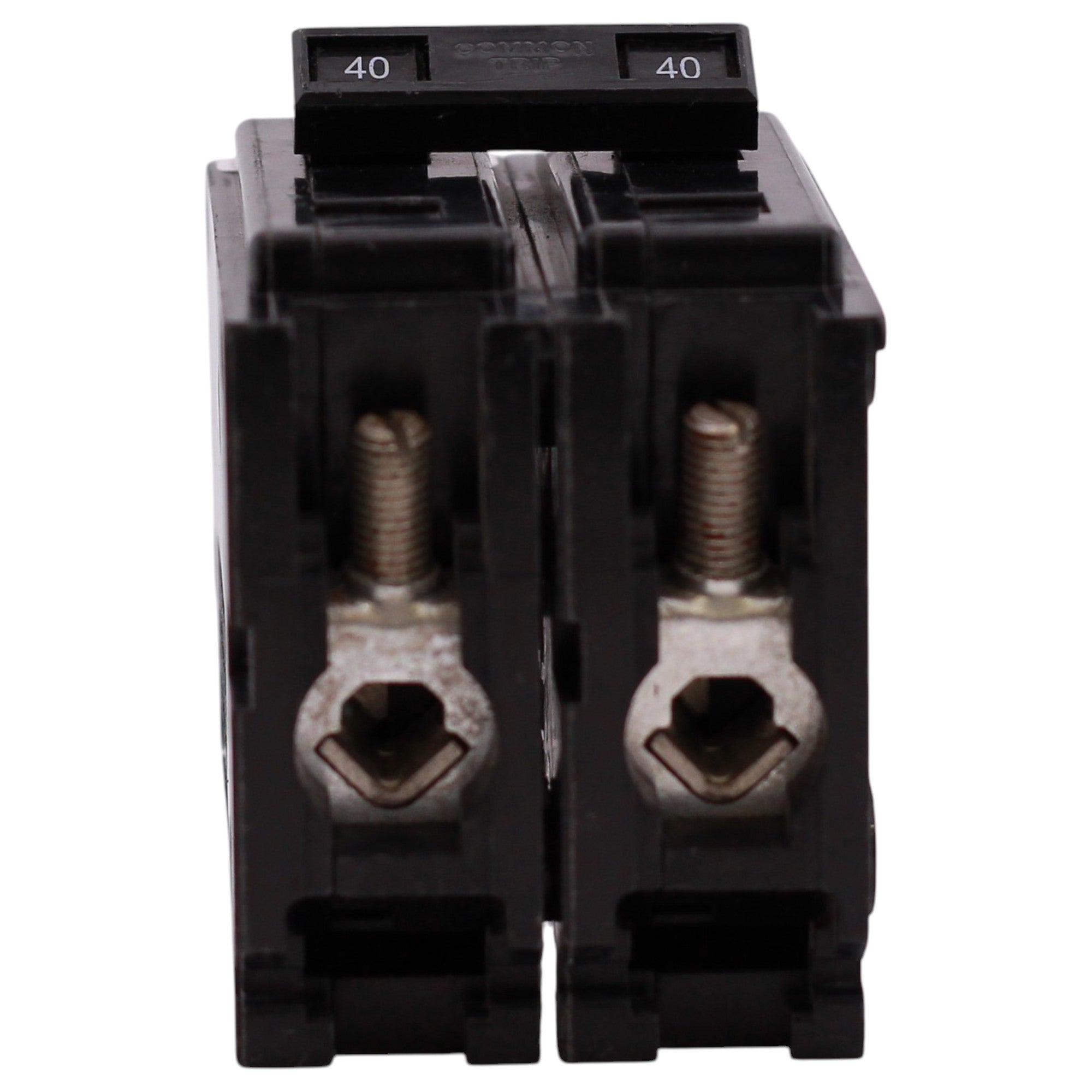

Eaton QBHW, QBHW2040, 40A, 2P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 8
Eaton QBHW, QBHW2040, 40A, 2P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker
Eaton QBHW, QBHW2040, 40A, 2P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 2
Eaton QBHW, QBHW2040, 40A, 2P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 3
Eaton QBHW, QBHW2040, 40A, 2P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 4
Eaton QBHW, QBHW2040, 40A, 2P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 5
Eaton QBHW, QBHW2040, 40A, 2P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 6
Eaton QBHW, QBHW2040, 40A, 2P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 7
Eaton QBHW, QBHW2040, 40A, 2P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker - Image 8

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton QBHW, QBHW2040, 40A, 2P, 120/240V, Quicklag, Thermal Magnetic, Bolt-On, Circuit Breaker

Out of stock
SKU: QBHW2040 UPC: 786679392751
(0)
$60.00
-14% $70.00 $60.00
Out of stock
Condition

Eaton QBHW2040: 40 Amp, 2-Pole, Quicklag Industrial Thermal Magnetic Circuit Breaker, 120/240V, 22kA, Bolt-On, Non-Interchangeable, UL Listed.

  • Manufacturer: Eaton
  • Brand: Eaton
  • Product Range: QBHW (Quicklag Industrial Cable-In/Cable-Out — for bolt-on panelboard applications)
  • UPC: 786679392751
  • Model Number: QBHW2040
  • Breaker Type: Thermal Magnetic Miniature Circuit Breaker, Non-Interchangeable Trip
  • Trip Functions: LI — Long-Time and Instantaneous
  • Amperage: 40 Amps
  • Poles: 2-Pole
  • Phase: 1-Phase
  • Voltage: 120/240 Volts AC
  • Interrupt Rating: 22 kAIC @ 120/240V; 5 kA @ 24–80V DC
  • Mounting Mode: Bolt-on
  • Connections / Terminals: Extended tang line terminal; box lug load terminal
  • Wire Size: #14–4 AWG Cu/Al (load)
  • Dimensions: Height: 2.90 in; Width: 2.00 in; Depth: 2.90 in
  • Weight: 0.65 lbs
  • Certifications: UL 489, CSA Certified, HACR Rated

This Eaton QBHW2040 Quicklag industrial thermal magnetic circuit breaker delivers dependable 40 Amp, 2-Pole protection for 120/240V circuits in bolt-on panelboard applications. With 22kAIC interrupt rating, cable-in/cable-out flexible power feed connections, non-interchangeable trip, and field-mountable accessories, it supports commercial and light industrial distribution applications.
