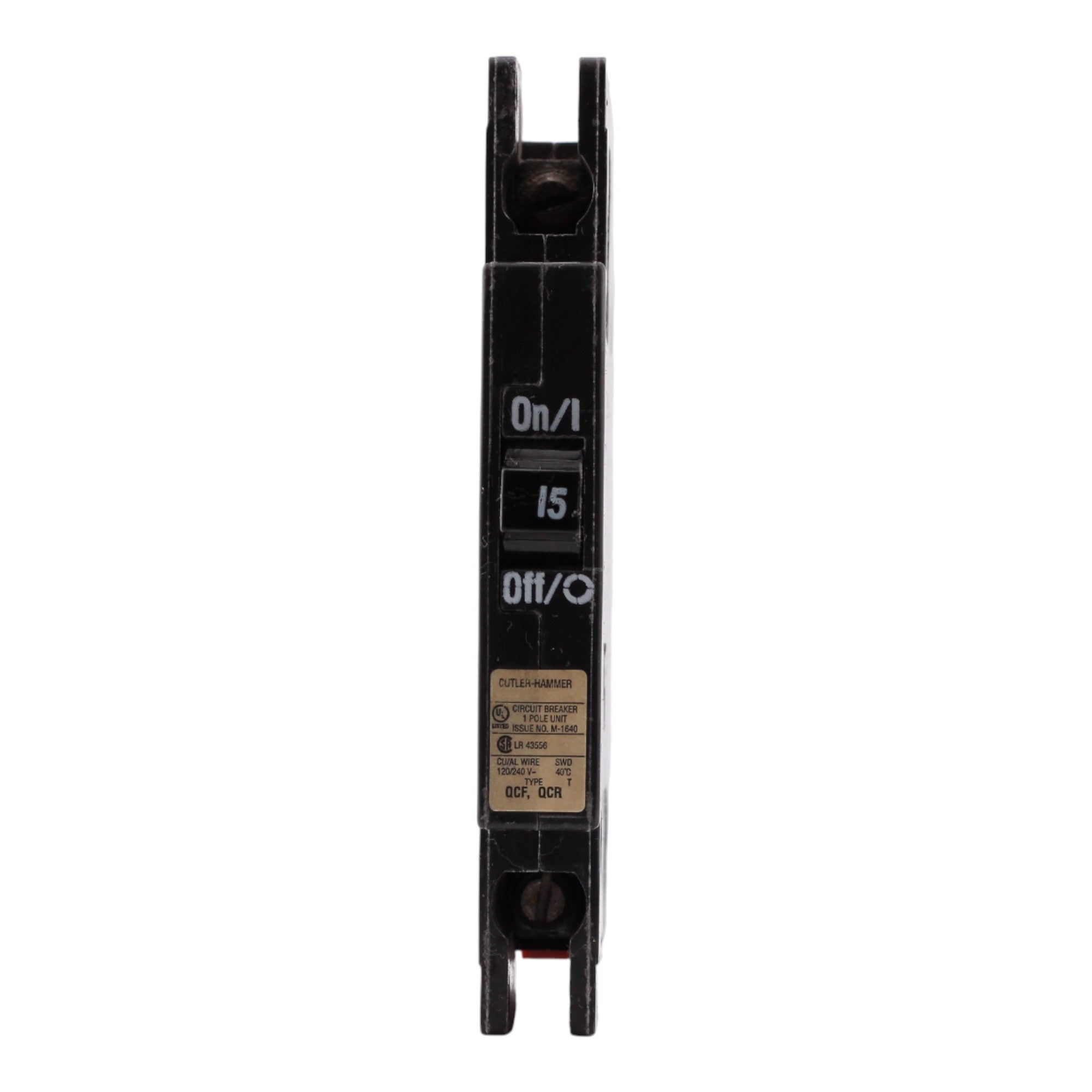

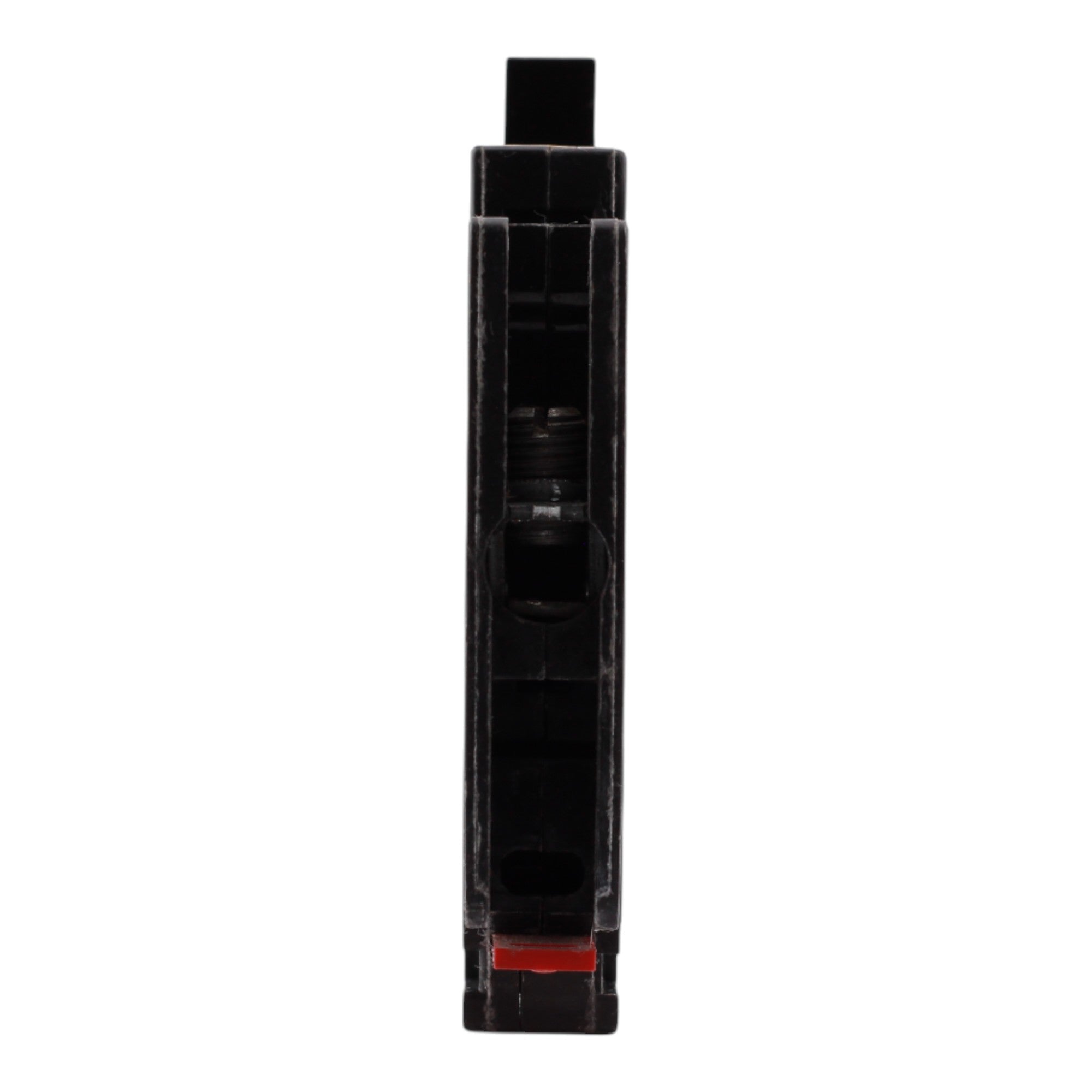

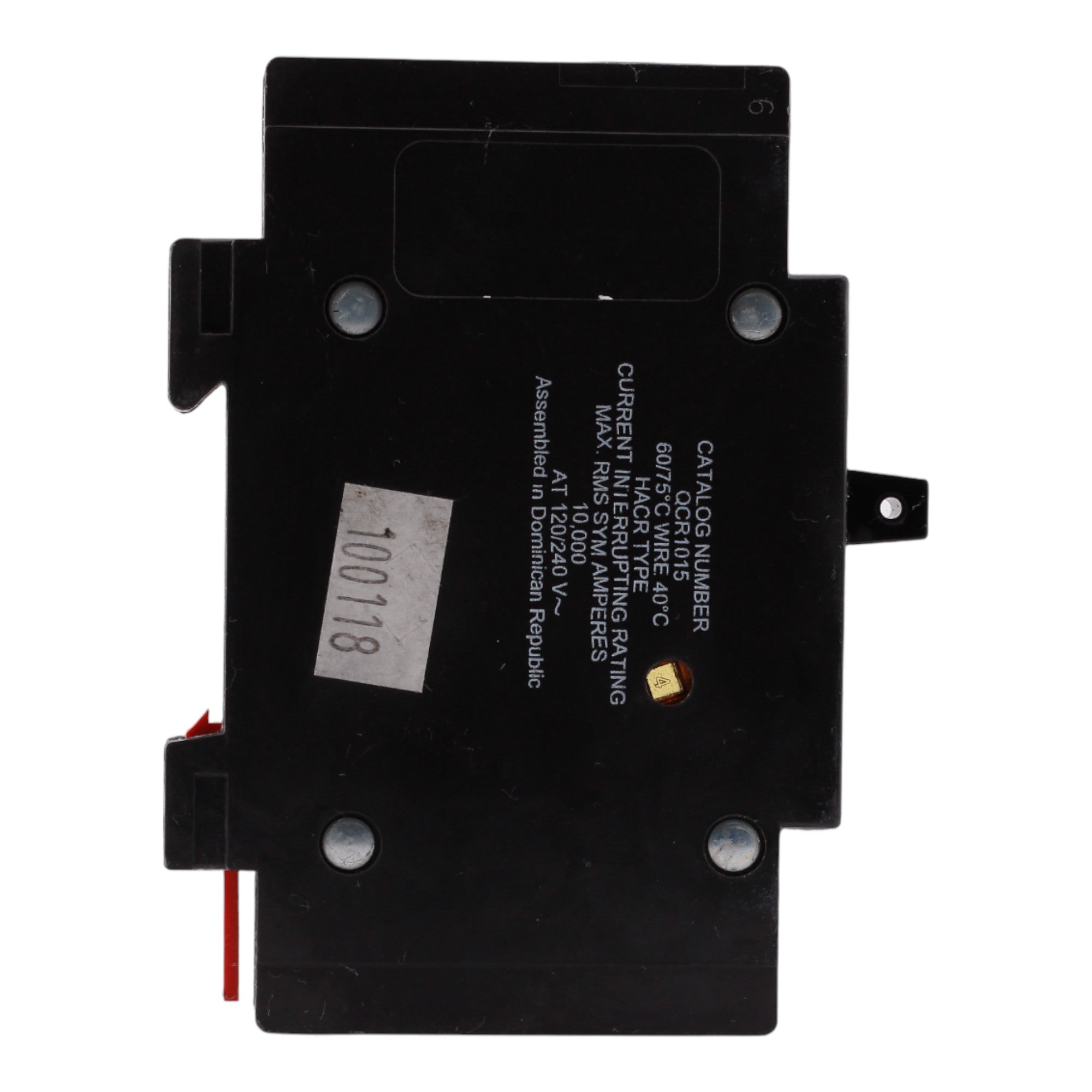

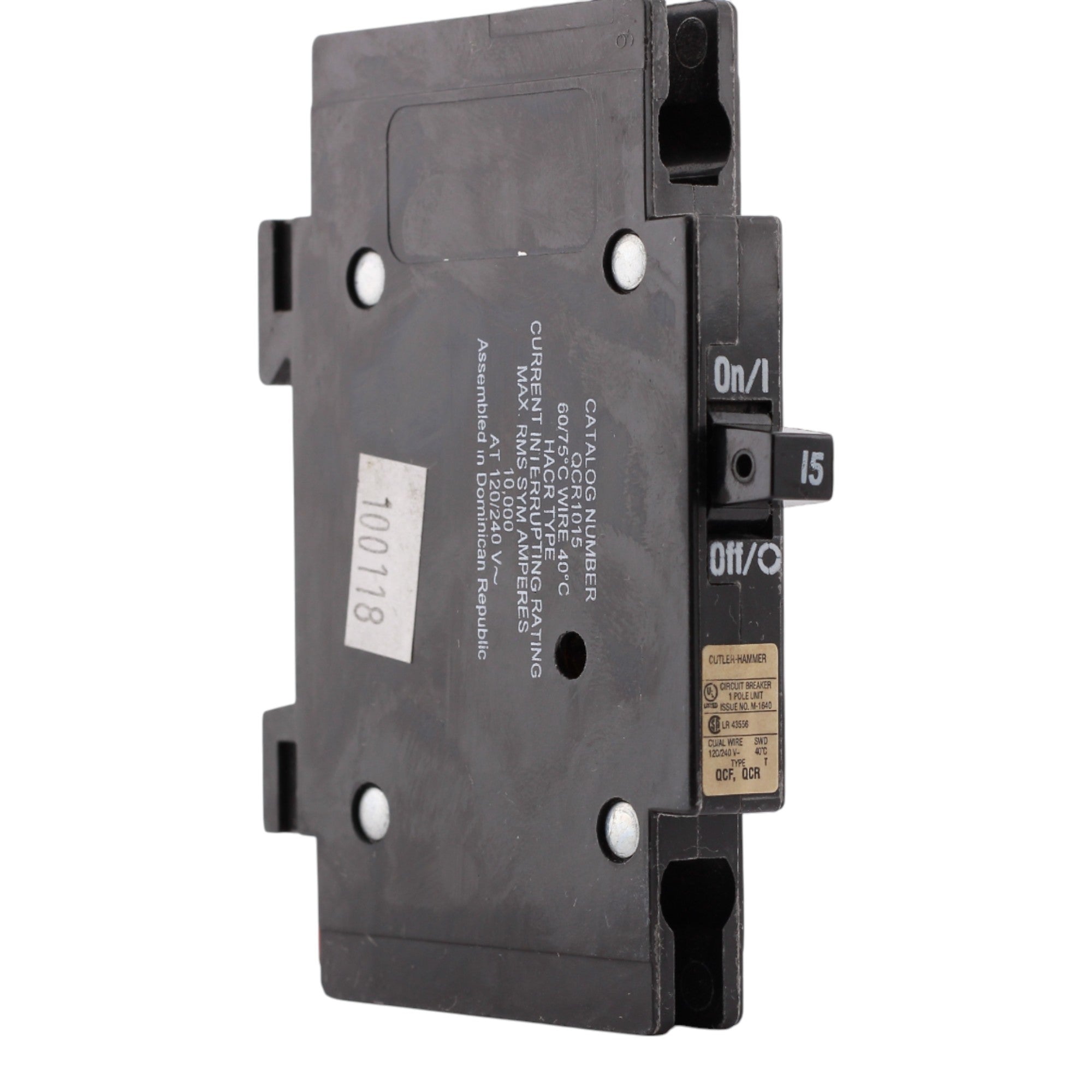

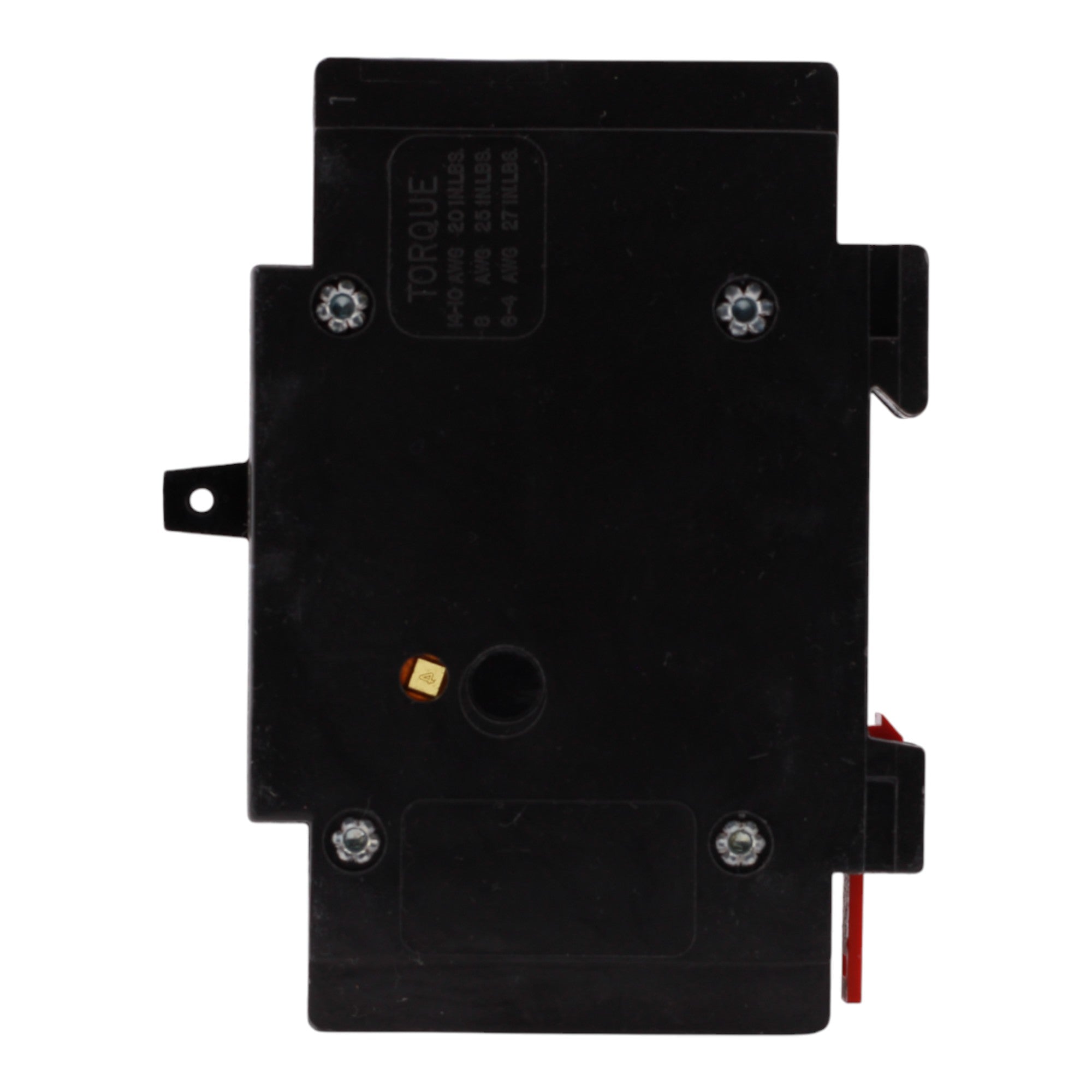

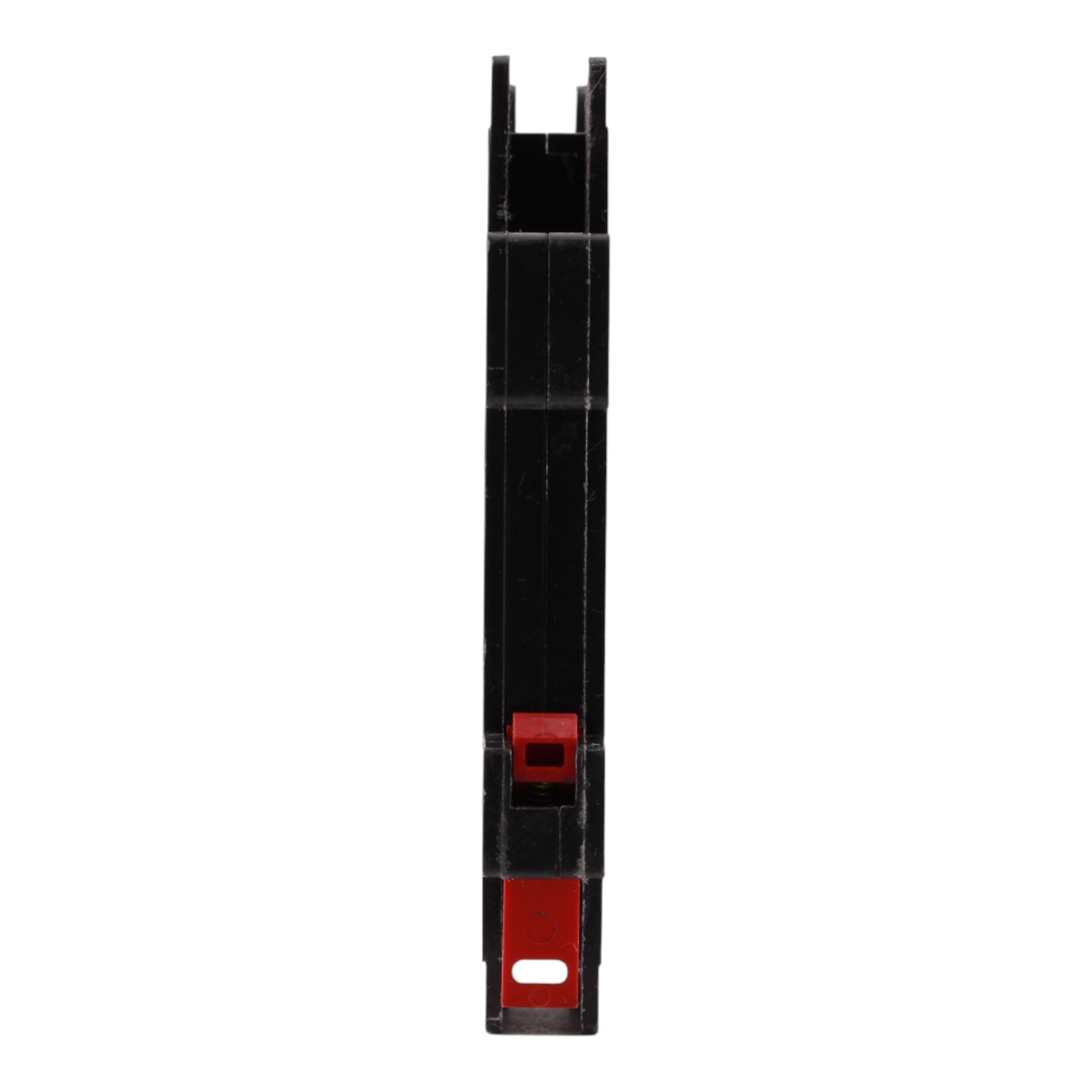

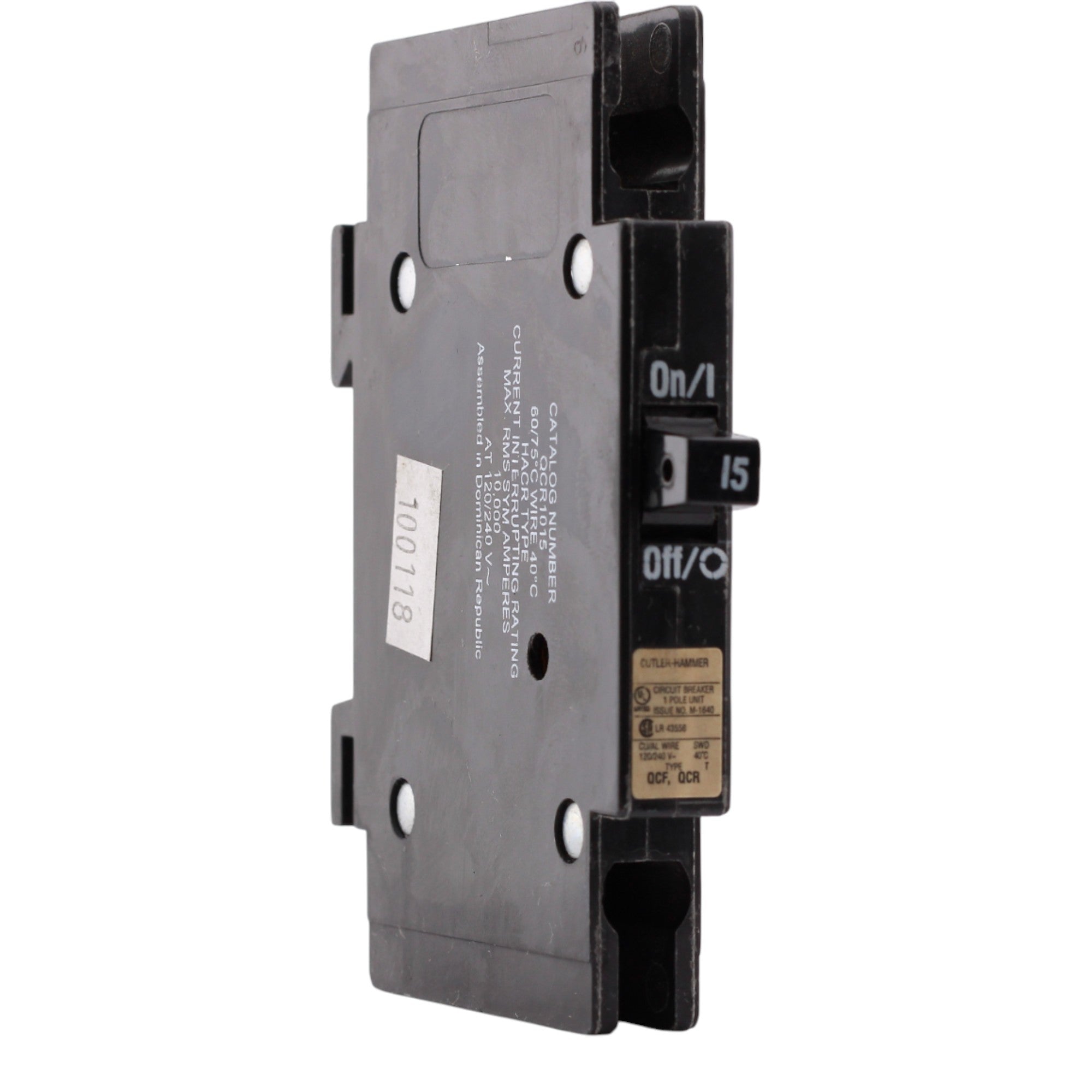

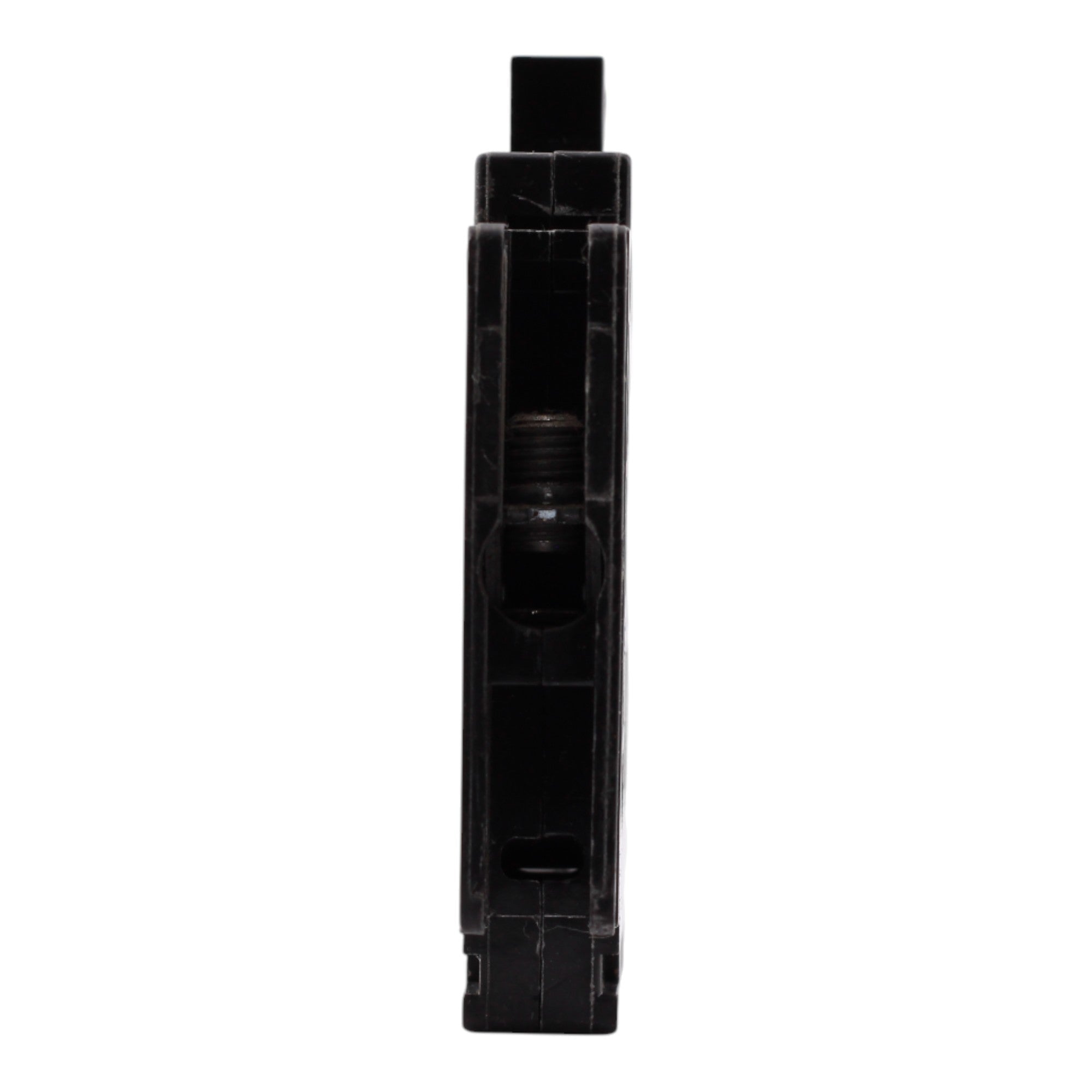

Eaton QuickLag QCR1015 15A, 1P, 120/240V, Thermal Magnetic, Circuit Breaker

Eaton QCR1015: 15 Amp, 1-Pole, Thermal Magnetic Miniature Circuit Breaker, 120/240V, 10kA, DIN rail rear mount, cable-in/cable-out, UL Listed, HACR Rated.

• Manufacturer: Eaton
• Brand: Eaton (Cutler-Hammer)
• Product Range: QuickLag QCR (for industrial loadcenters, fuseboxes, and similar devices with 35mm DIN rail rear mounting)
• UPC: 786679473504
• Model Number: QCR1015
• Breaker Type: Thermal Magnetic Miniature Circuit Breaker
• Amperage: 15 Amps
• Poles: 1-Pole
• Voltage: 120/240 Volts AC
• Interrupt Rating: 10 kAIC
• Mounting Mode: 35mm DIN Rail Rear Mounting
• Connections Terminals: Cable-In/Cable-Out
• Wire Size: #14–10 AWG Cu
• Dimensions: Height: 4.6 in; Width: 2.9 in; Depth: 1.2 in
• Certifications: UL Listed, HACR Rated, CSA Certified
• Weight: 0.25 lbs
