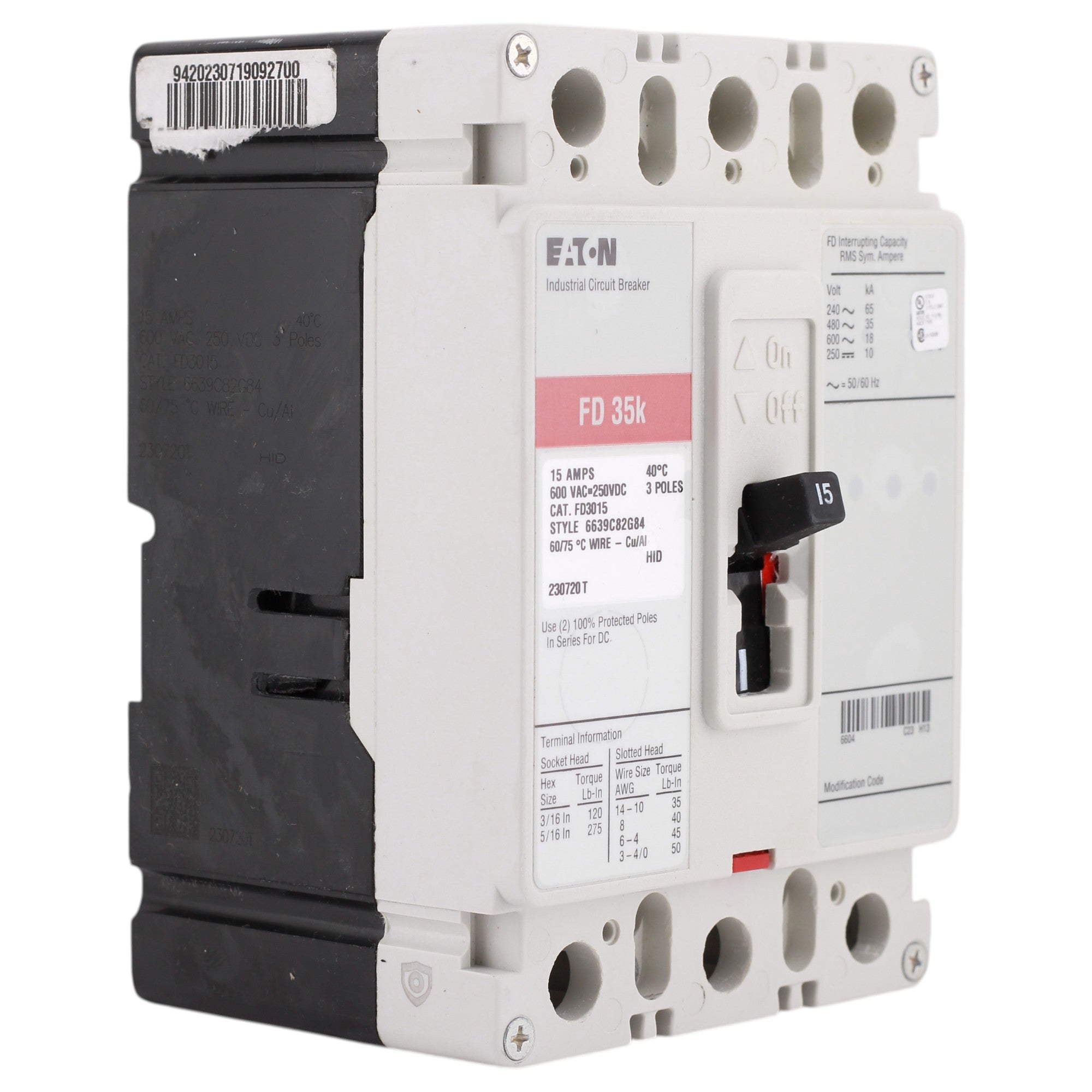

Eaton Series C, FD3015, 15A, 3P, 600V, Thermal Magnetic, Circuit Breaker
Eaton Series C, FD3015, 15A, 3P, 600V, Thermal Magnetic, Circuit Breaker - Image 2

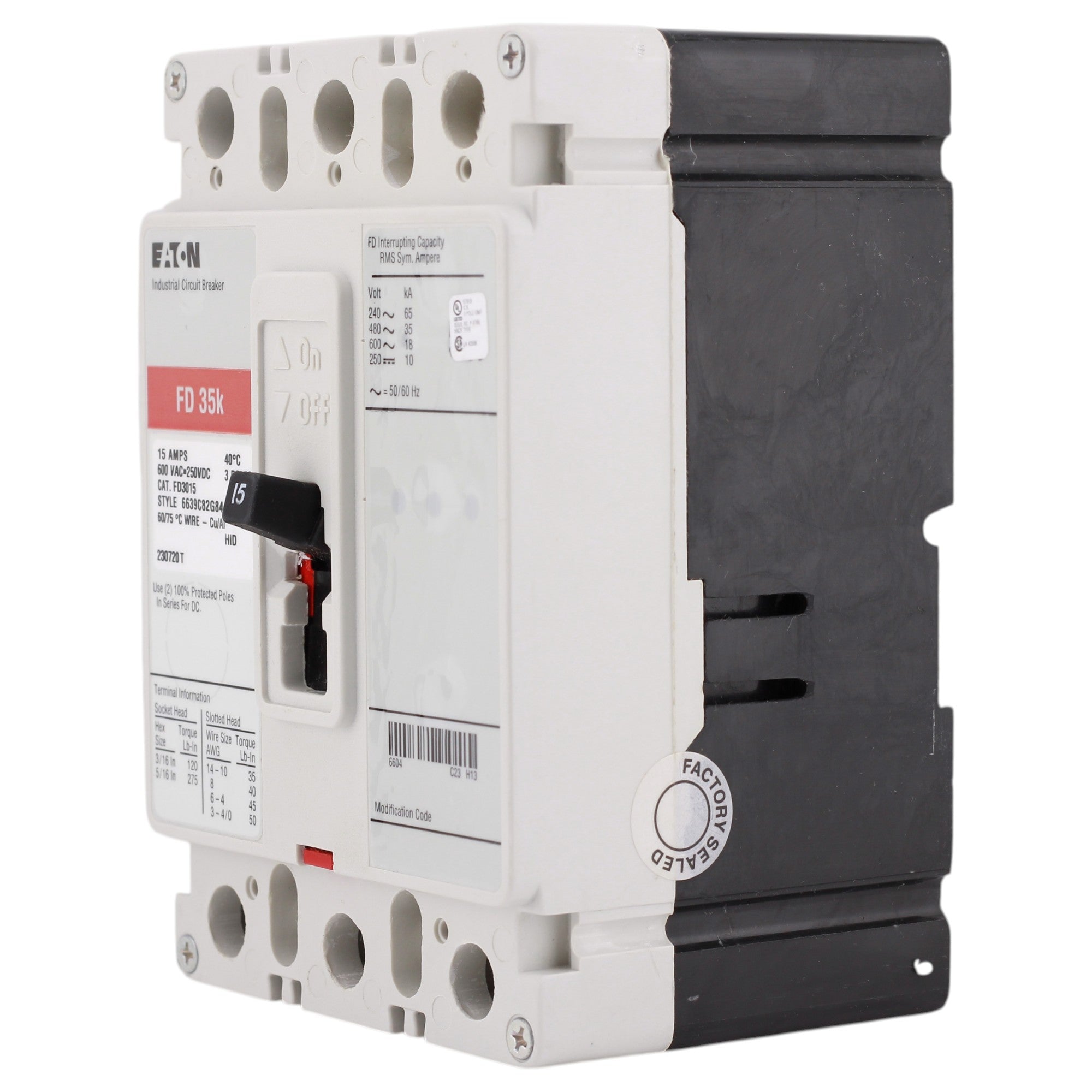

Eaton Series C, FD3015, 15A, 3P, 600V, Thermal Magnetic, Circuit Breaker - Image 3
Eaton Series C, FD3015, 15A, 3P, 600V, Thermal Magnetic, Circuit Breaker - Image 4
Eaton Series C, FD3015, 15A, 3P, 600V, Thermal Magnetic, Circuit Breaker - Image 5
Eaton Series C, FD3015, 15A, 3P, 600V, Thermal Magnetic, Circuit Breaker - Image 6
Eaton Series C, FD3015, 15A, 3P, 600V, Thermal Magnetic, Circuit Breaker - Image 7
Eaton Series C, FD3015, 15A, 3P, 600V, Thermal Magnetic, Circuit Breaker - Image 8
Eaton Series C, FD3015, 15A, 3P, 600V, Thermal Magnetic, Circuit Breaker

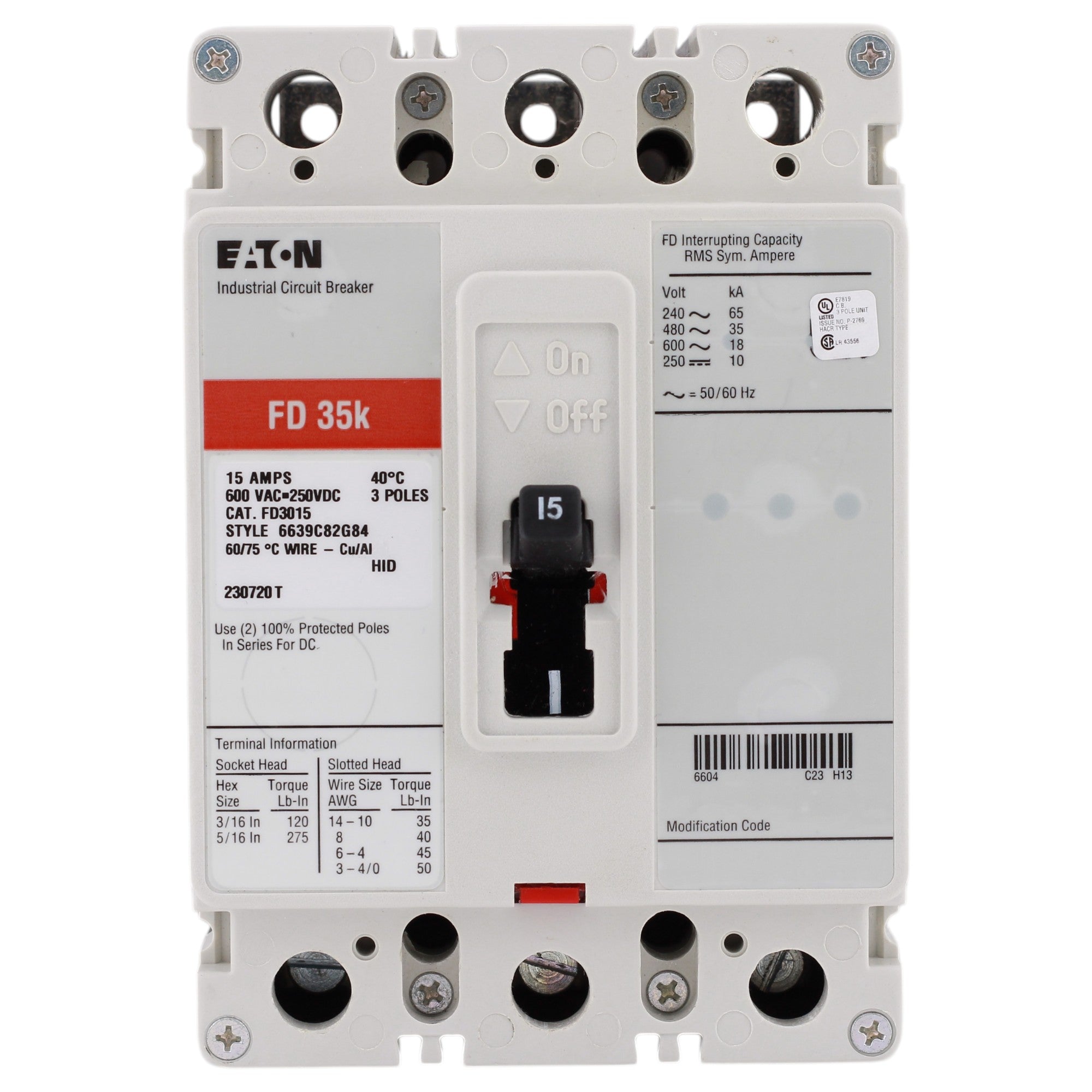

Eaton Series C, FD3015, 15A, 3P, 600V, Thermal Magnetic, Circuit Breaker - Image 2
Eaton Series C, FD3015, 15A, 3P, 600V, Thermal Magnetic, Circuit Breaker - Image 3

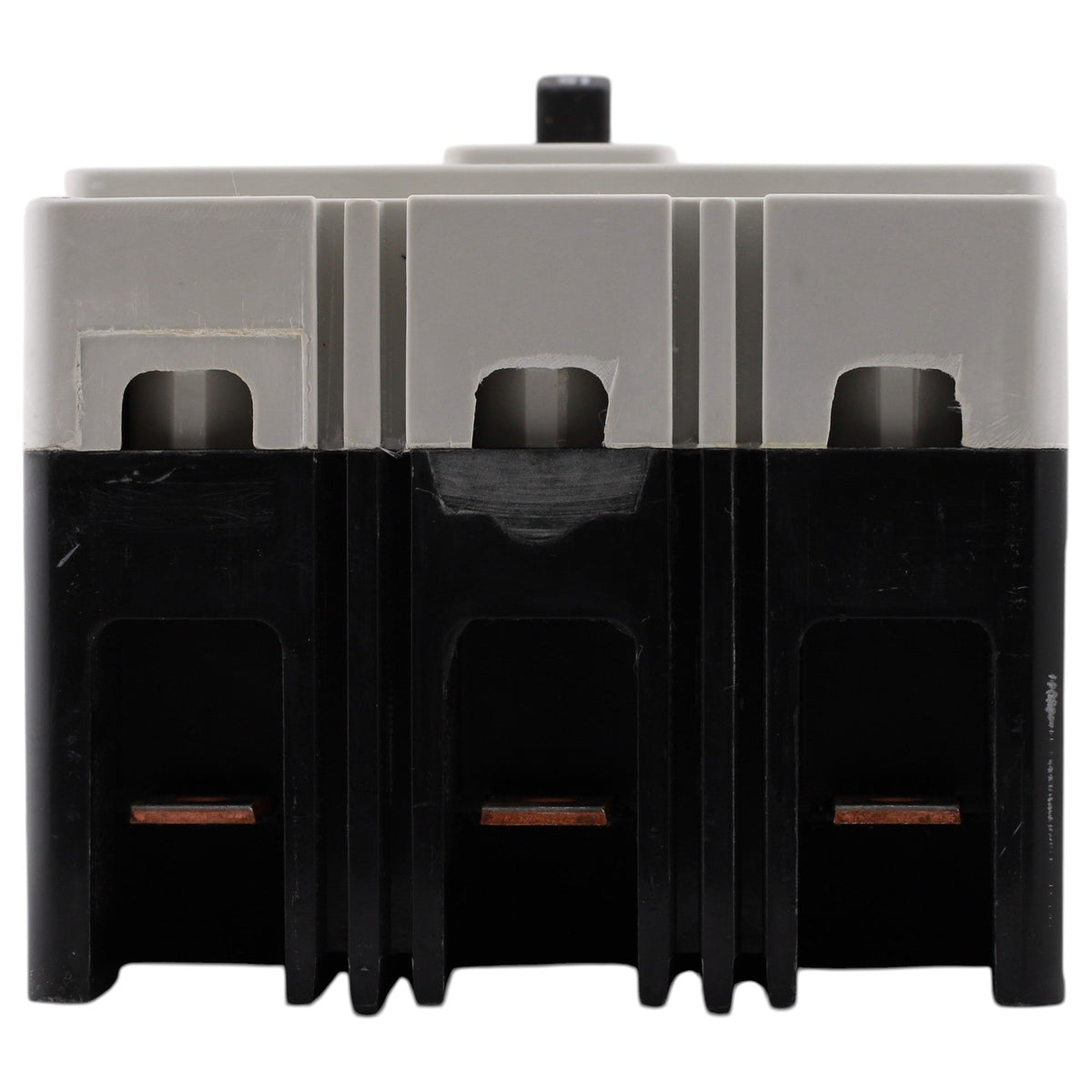

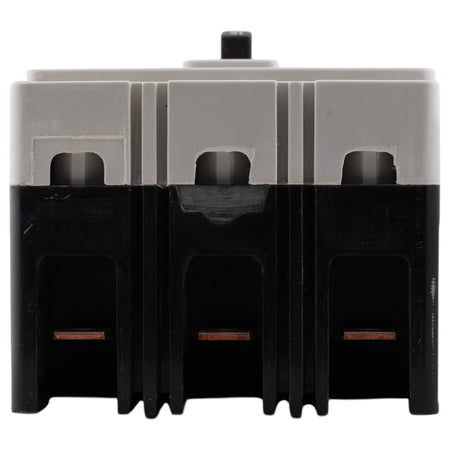

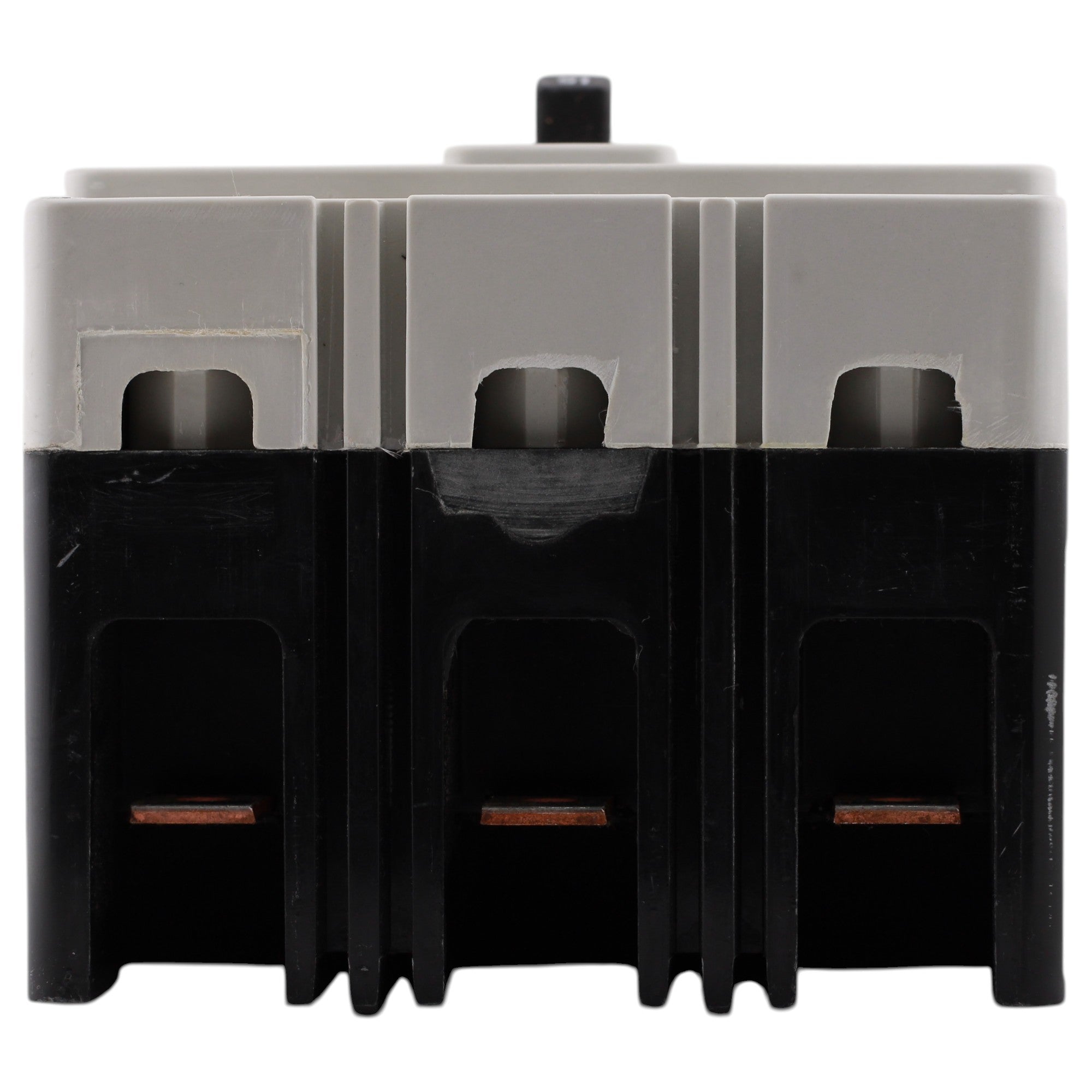

Eaton Series C, FD3015, 15A, 3P, 600V, Thermal Magnetic, Circuit Breaker - Image 4

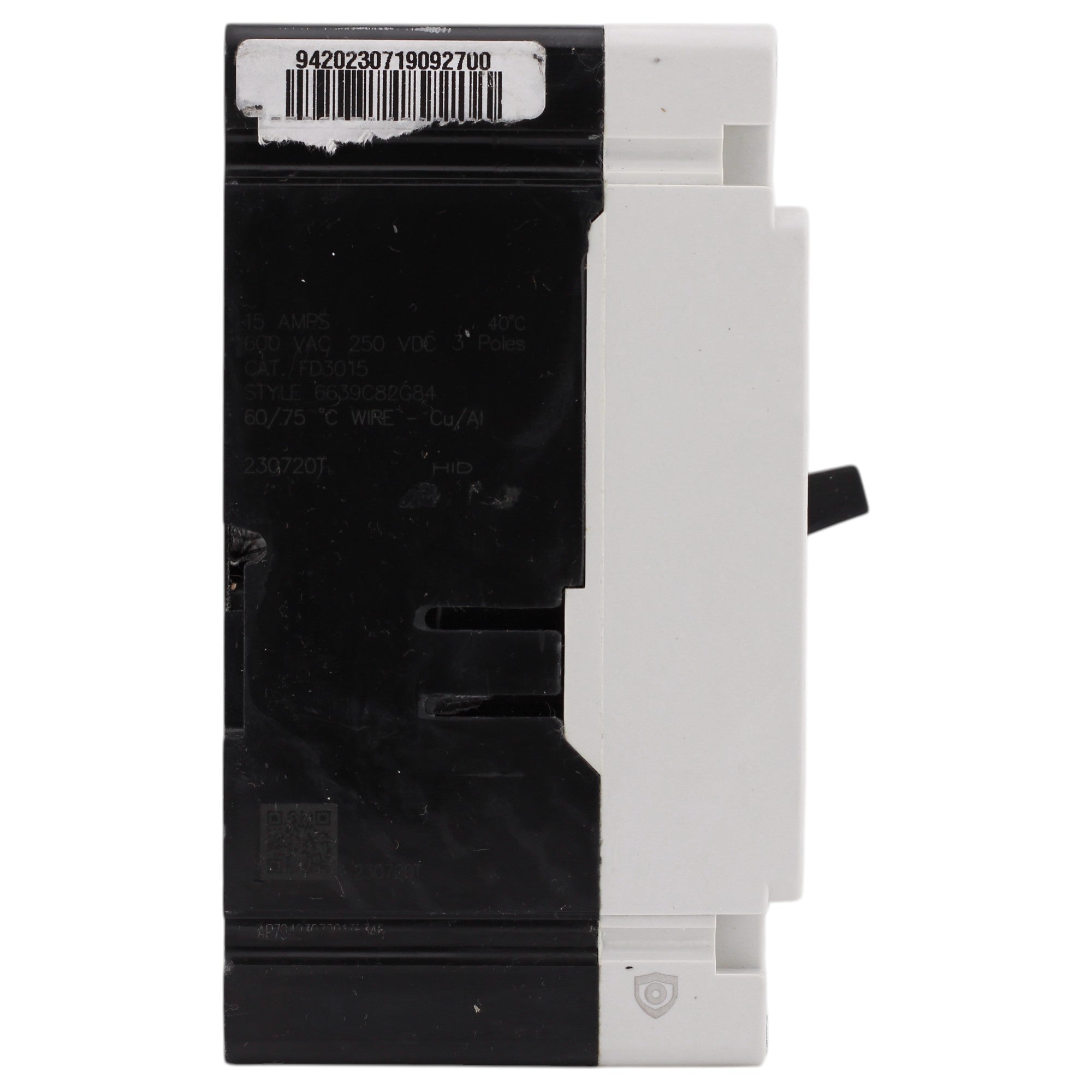

Eaton Series C, FD3015, 15A, 3P, 600V, Thermal Magnetic, Circuit Breaker - Image 5

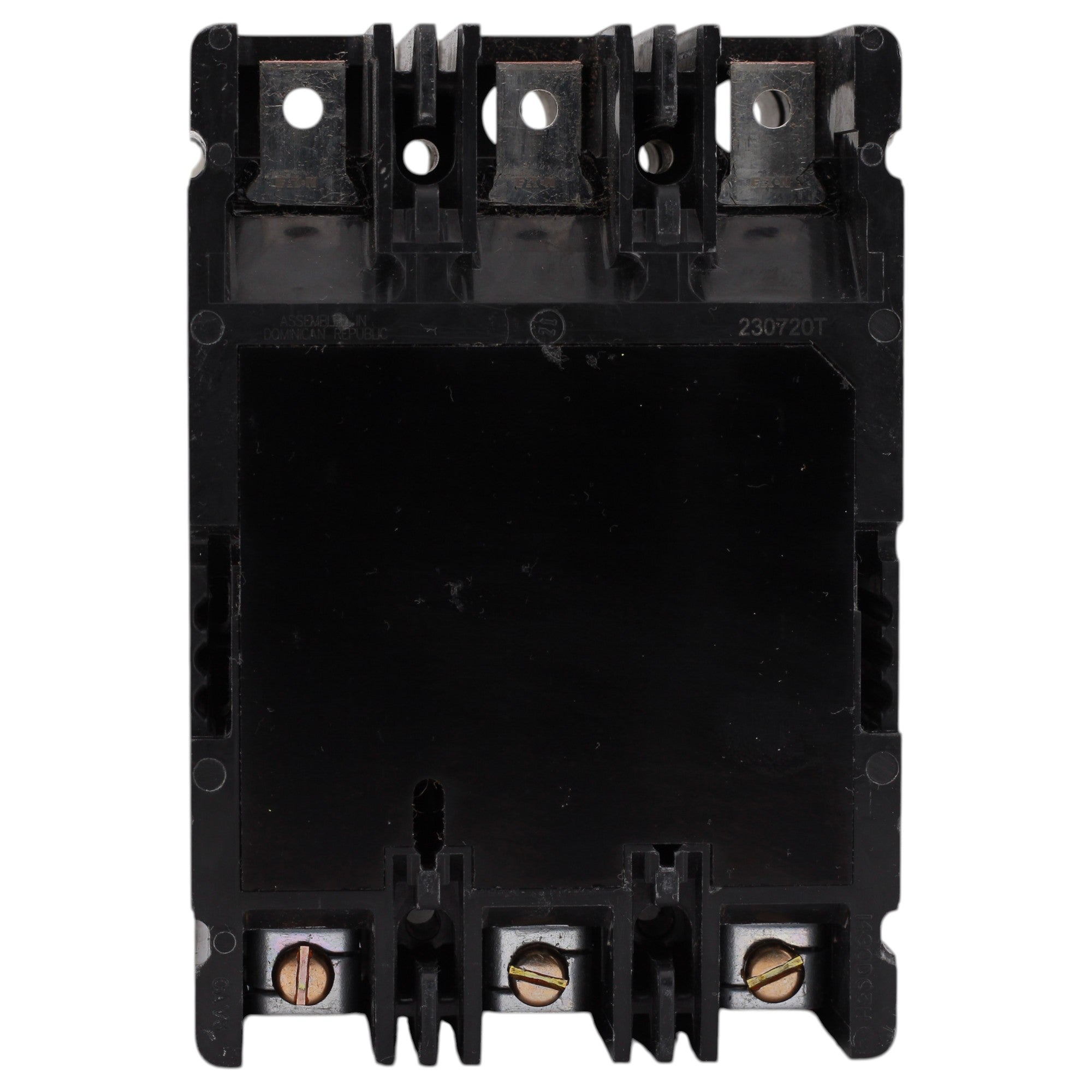

Eaton Series C, FD3015, 15A, 3P, 600V, Thermal Magnetic, Circuit Breaker - Image 6

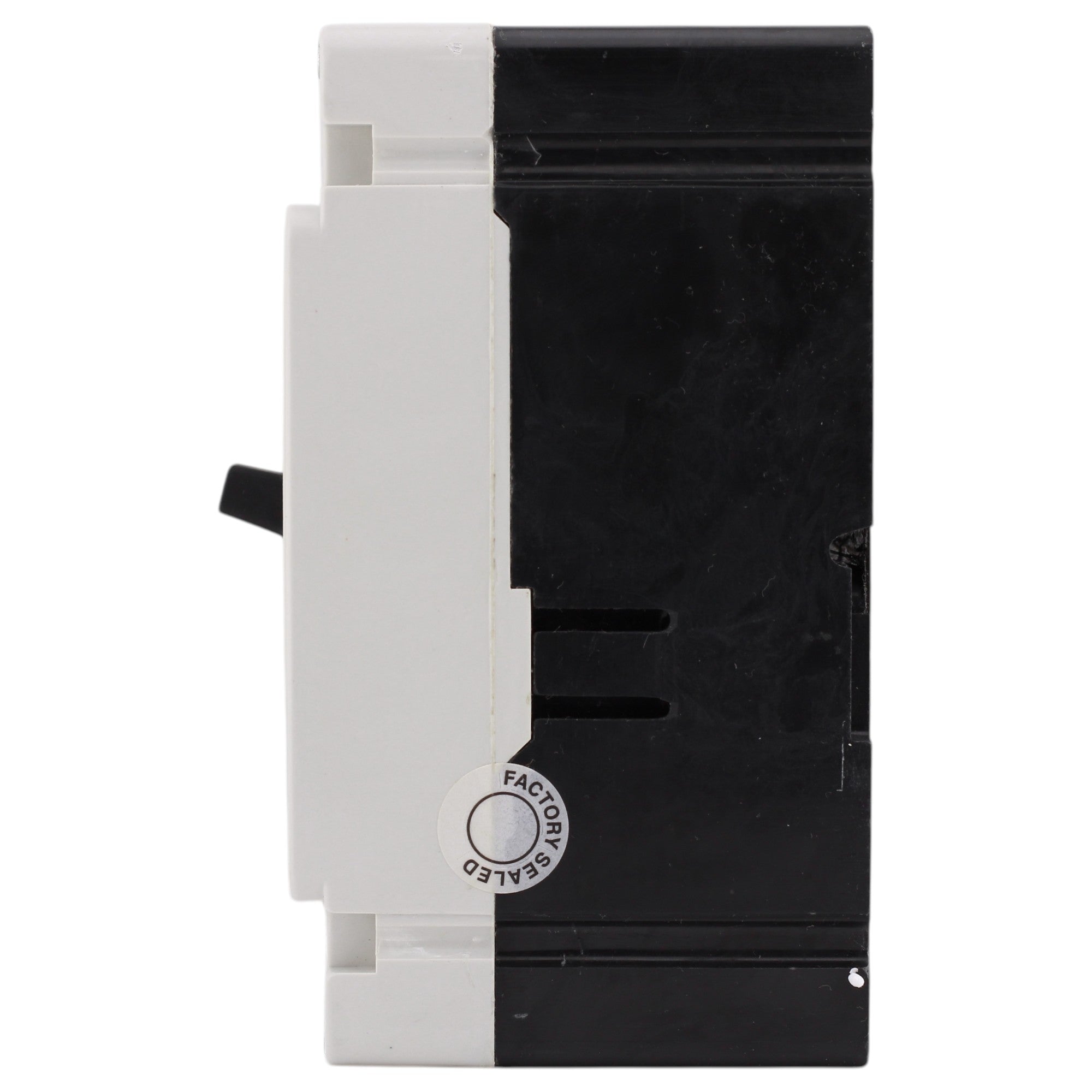

Eaton Series C, FD3015, 15A, 3P, 600V, Thermal Magnetic, Circuit Breaker - Image 7

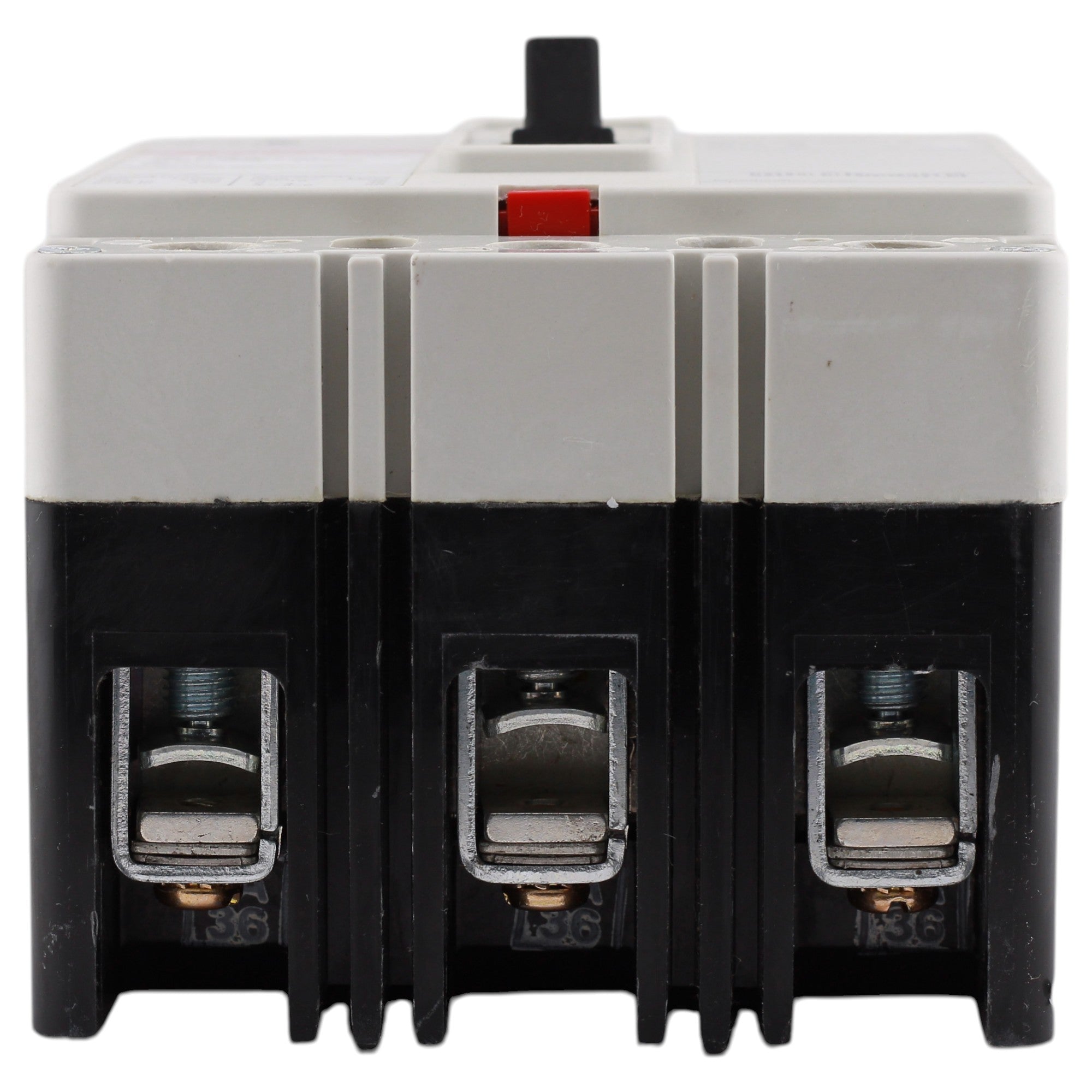

Eaton Series C, FD3015, 15A, 3P, 600V, Thermal Magnetic, Circuit Breaker - Image 8

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton Series C, FD3015, 15A, 3P, 600V, Thermal Magnetic, Circuit Breaker

SKU: FD3015
(0)
$220.00
-12% $250.00 $220.00
Out of stock
Condition

Eaton FD3015: 15 Amp, 3-Pole, Thermal Magnetic Molded Case Circuit Breaker, 600VAC/250VDC, 35kA @ 480V, bolt-on, HACR rated, UL listed, CSA certified.

  • Manufacturer: Eaton
  • Brand: Eaton (Cutler-Hammer)
  • Product Range: Series C, F-Frame (for industrial panelboard and commercial applications)
  • UPC: 786679305607
  • Model Number: FD3015
  • Breaker Type: Thermal Magnetic Molded Case Circuit Breaker (MCCB)
  • Amperage: 15 Amps
  • Poles: 3-Pole
  • Voltage: 600 Volts AC (50/60 Hz); 250 Volts DC
  • Interrupt Rating: 65 kAIC @ 240V AC; 35 kAIC @ 480V AC; 18 kAIC @ 600V AC; 10 kAIC @ 250V DC
  • Frame Size: F-Frame (15–225A frame)
  • Trip Type: Fixed thermal, fixed magnetic (non-interchangeable)
  • Mounting Mode: Bolt-on / panel mount
  • Connections Terminals: Standard pressure line & load side terminals; #14–1/0 AWG Copper or Aluminum
  • Dimensions: Height: 6.00 in; Width: 4.13 in; Depth: 3.38 in
  • Weight: 4.5 lbs
  • Certifications: UL Listed, CSA Certified, HACR Rated

This Eaton FD3015 thermal magnetic molded case circuit breaker delivers dependable 15 Amp, 3-Pole protection for 600V AC circuits in Series C F-Frame panelboard applications. Designed for bolt-on installation with 35kA interrupt rating at 480V, it supports industrial, commercial, and infrastructure applications with reverse-feed capability.
