Eaton Series C, FDB3200KWC03S24, F-Frame, 200A, 3P, 600VAC/250VDC, Molded Case Switch, with Auxiliary Switch & Shunt Trip

Out of stock
SKU: FDB3200KWC03S24
(0)
$1,600.00
-29% $2,249.99 $1,600.00
Out of stock
Condition

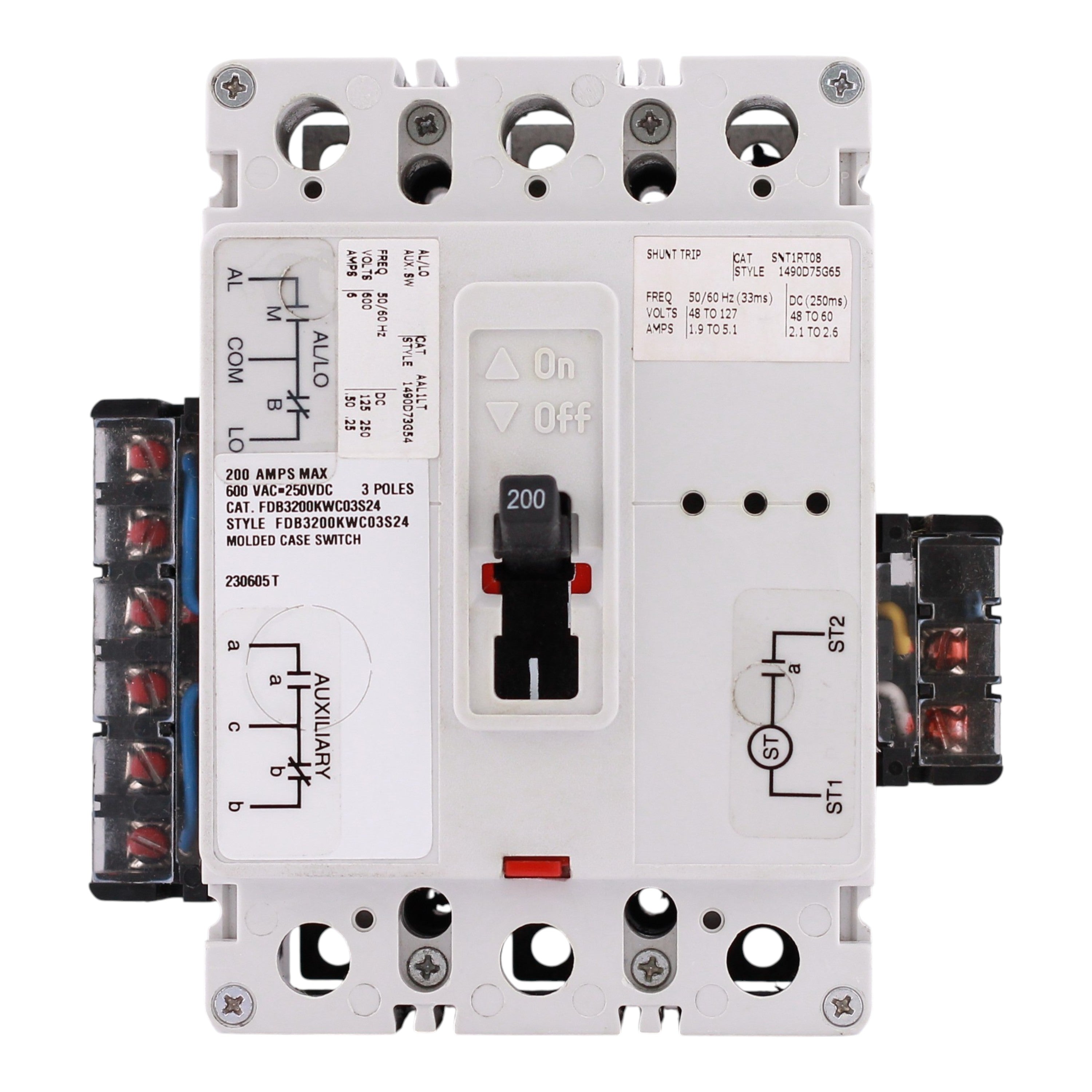

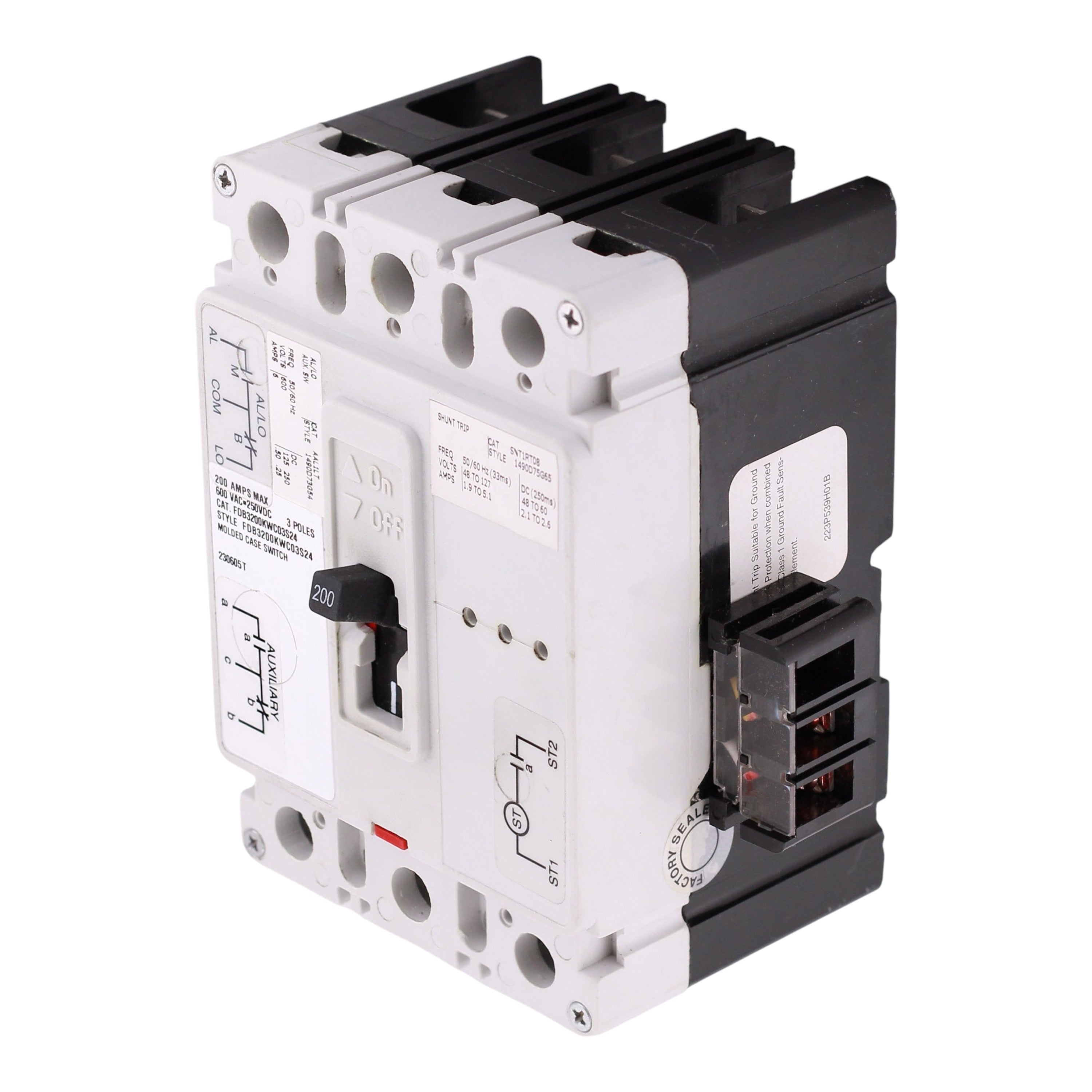

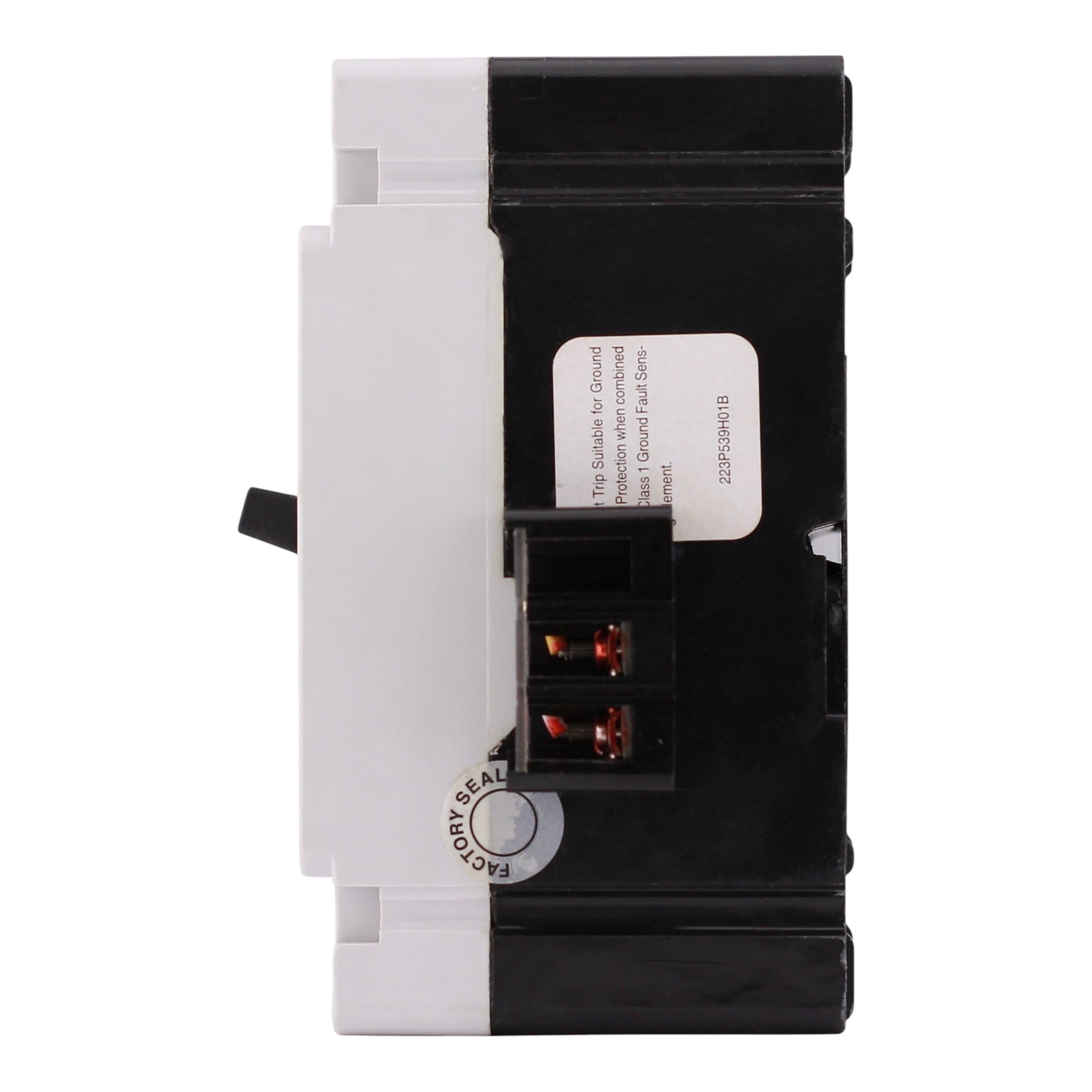

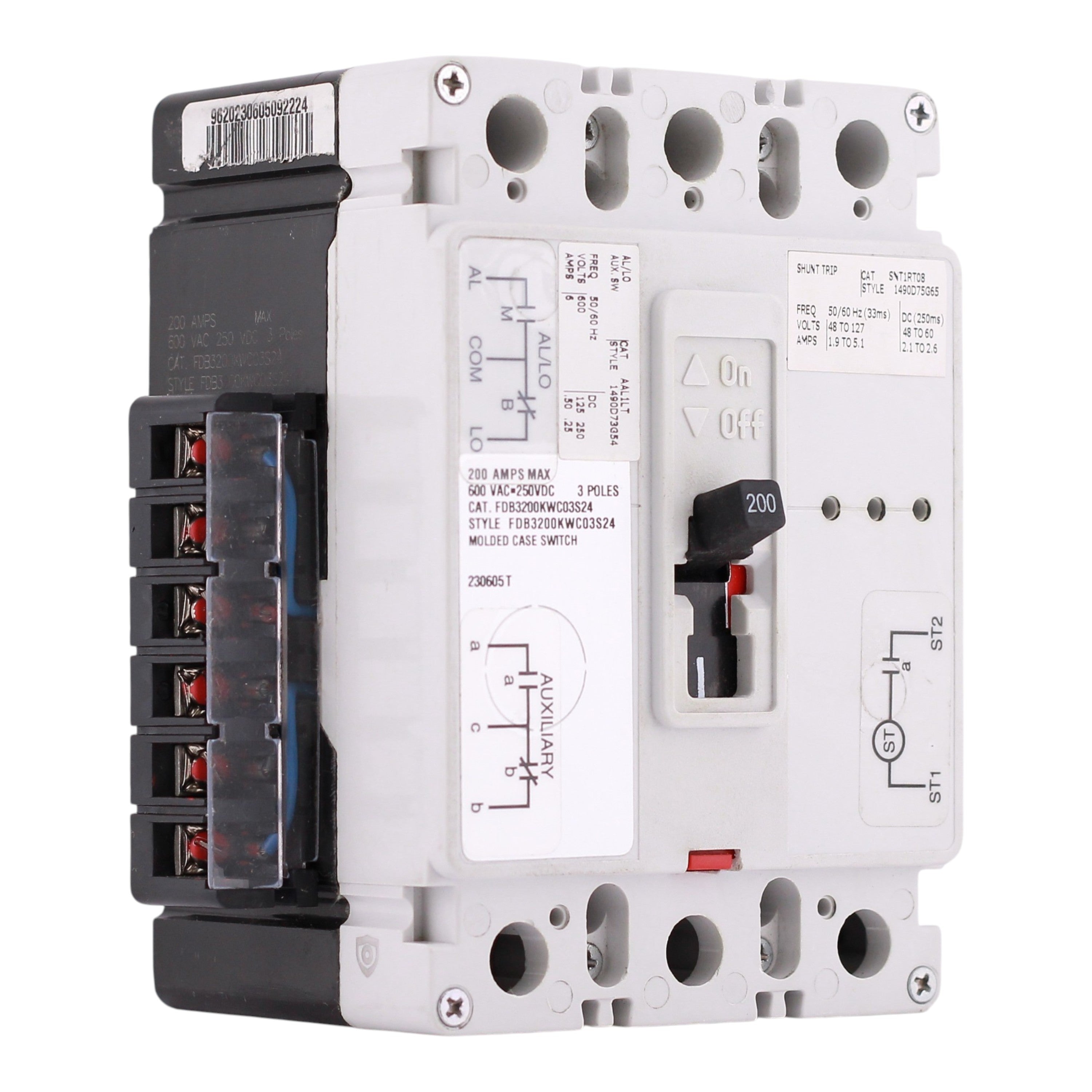

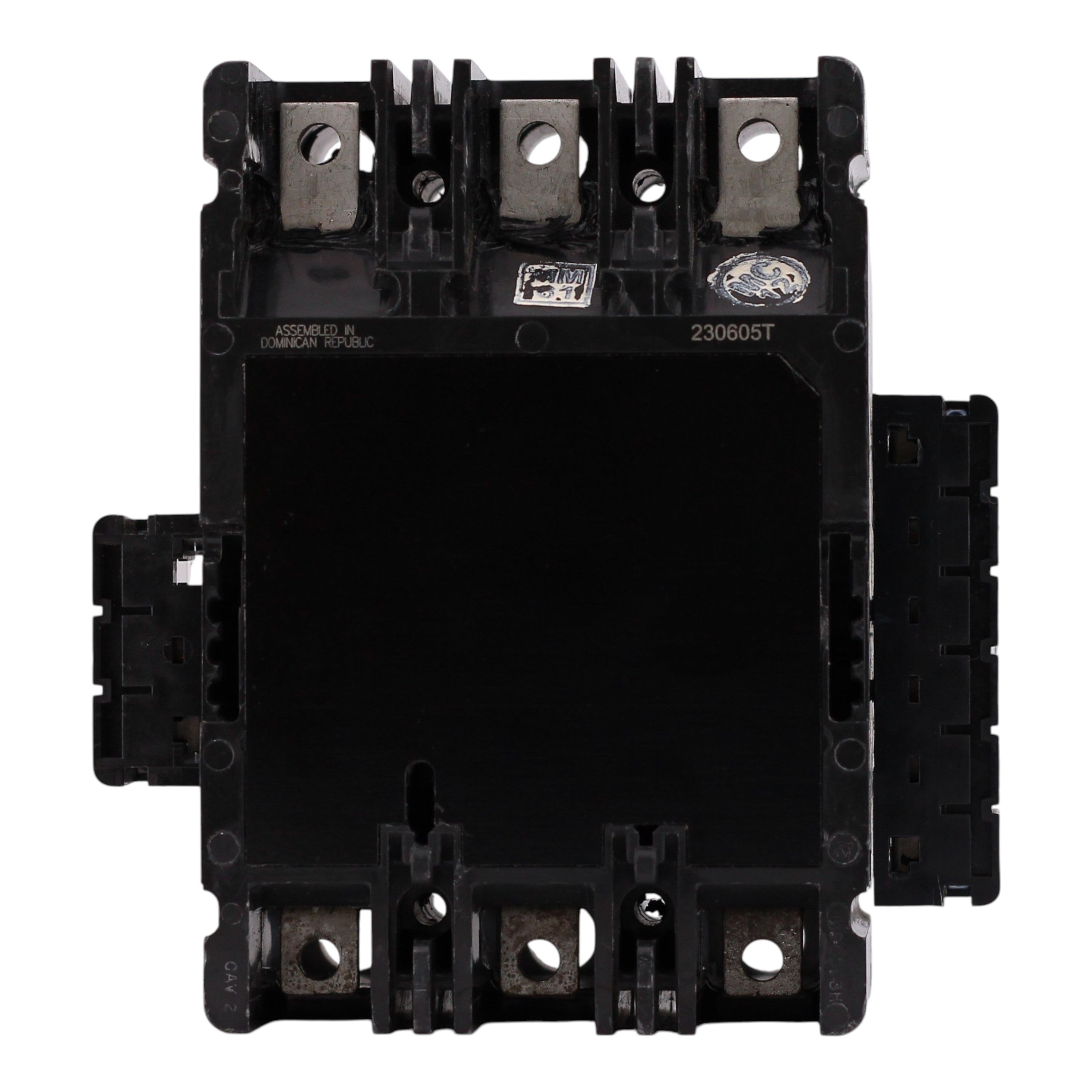

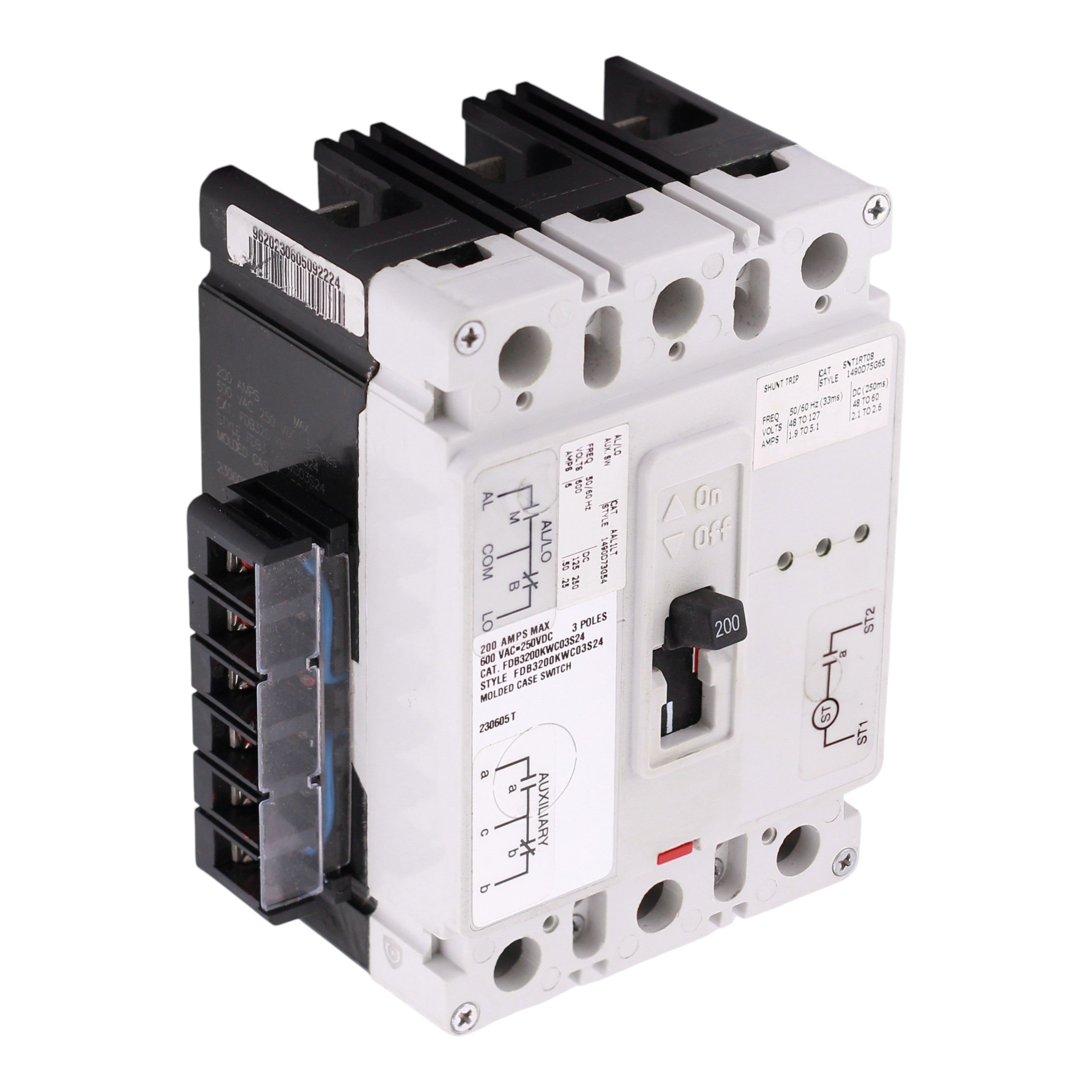

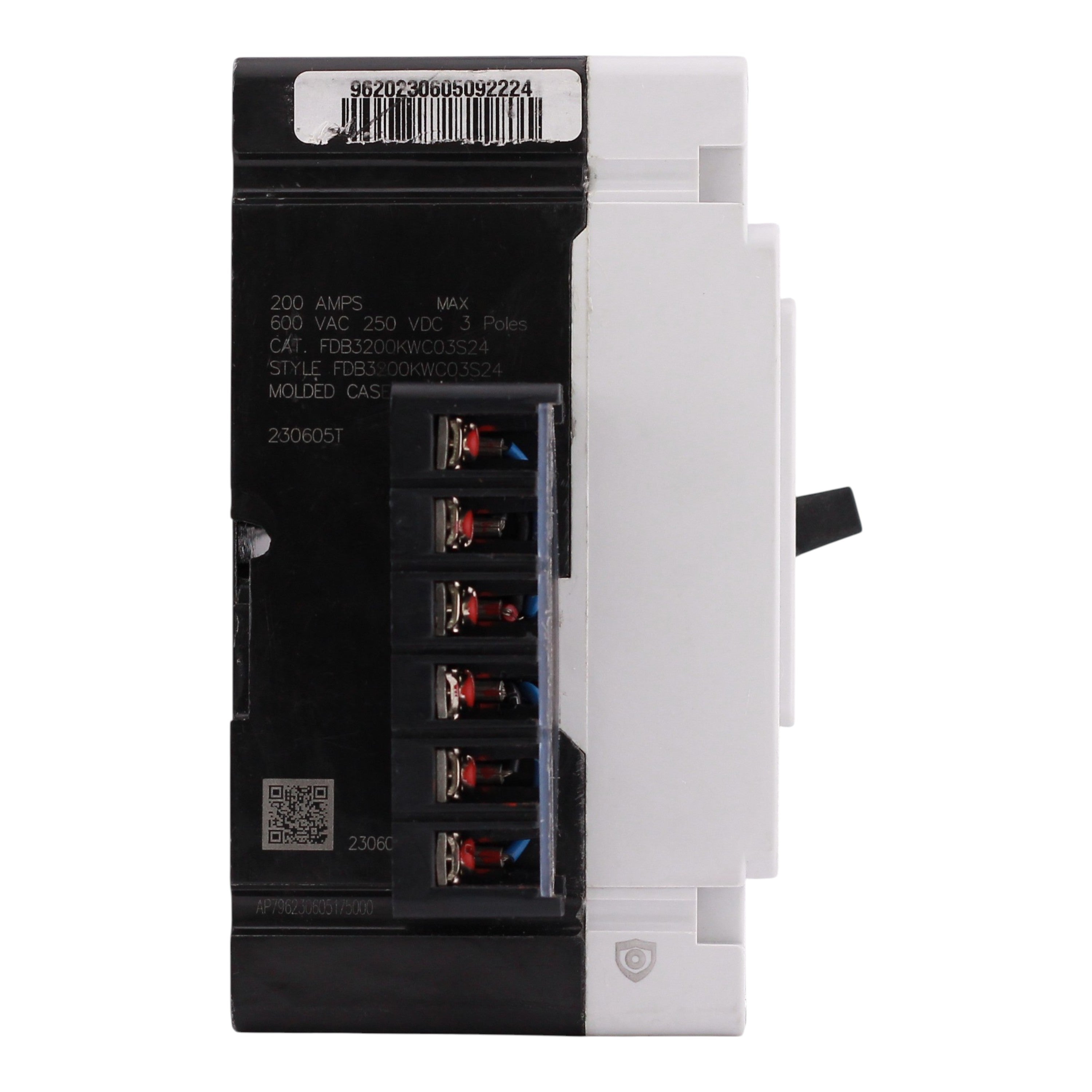

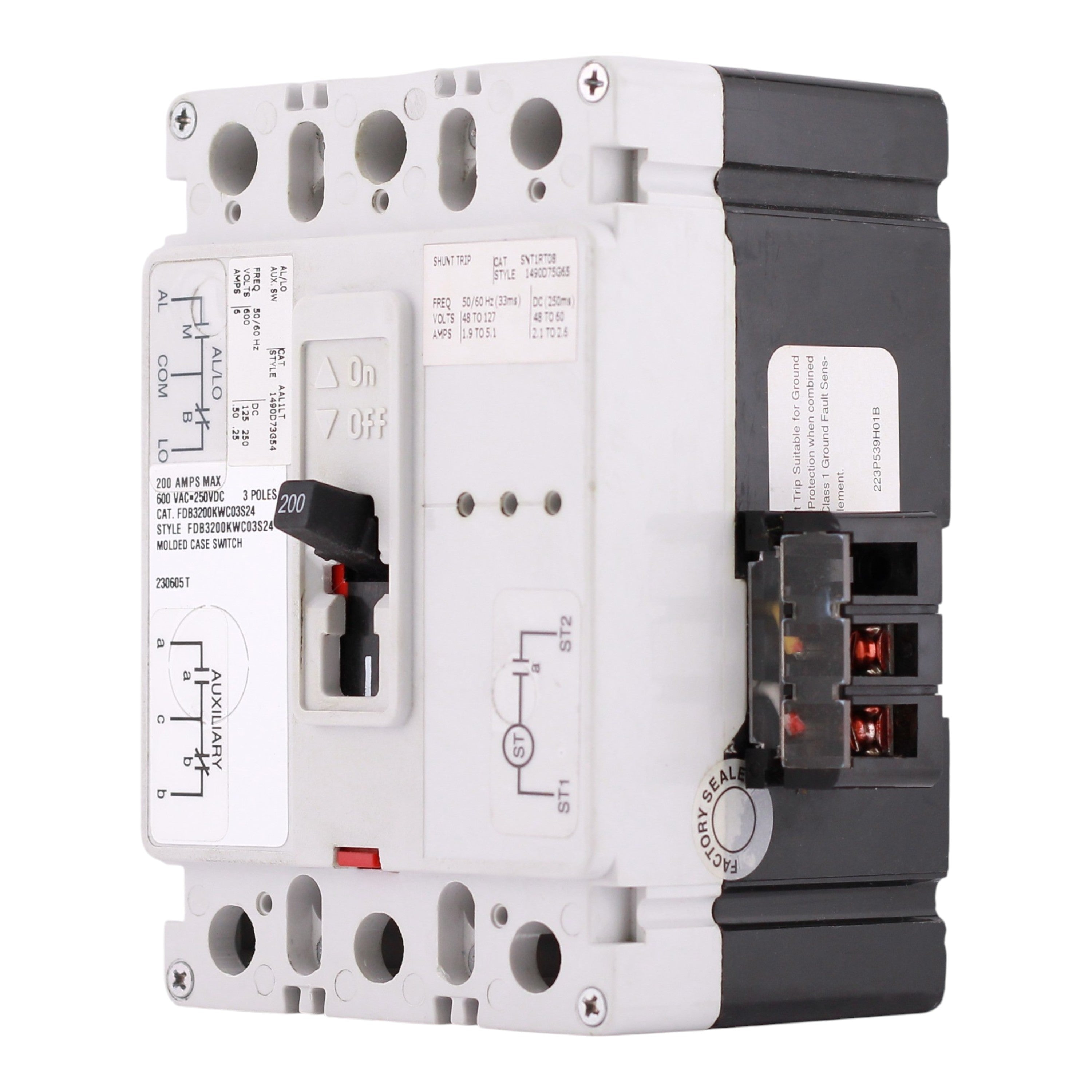

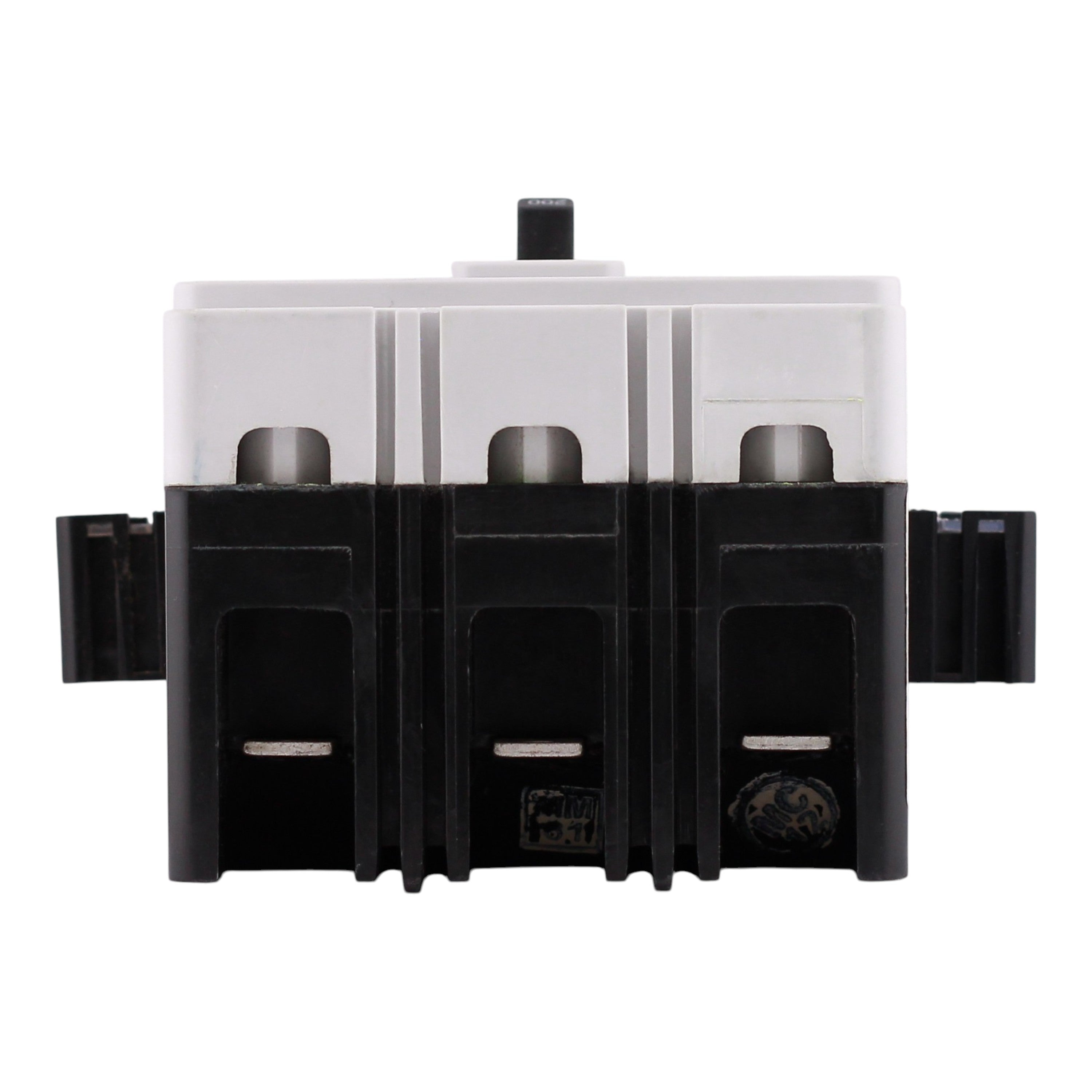

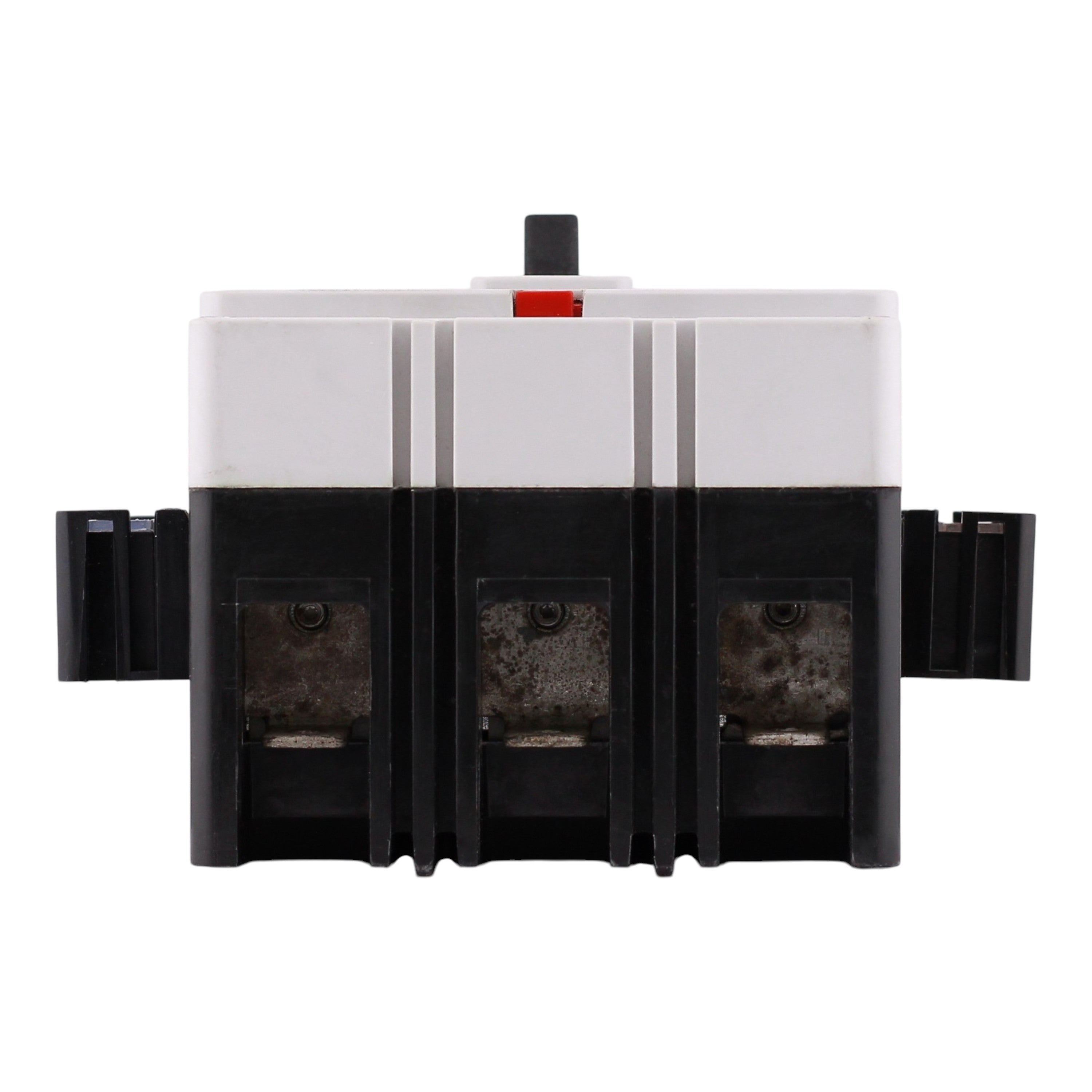

Eaton FDB3200KWC03S24: 200 Amp Max, 3-Pole, F-Frame Series C Molded Case Switch, 600VAC/250VDC, with Auxiliary Switch (AAL1LT) and Shunt Trip (SNT1RT08).

  • Manufacturer: Eaton
  • Brand: Eaton Series C
  • Product Range: FDB (F-Frame — Molded Case Switch / Non-Automatic Disconnect)
  • Catalog/Style Number: FDB3200KWC03S24
  • Product Type: Molded Case Switch (Non-Automatic, No Overcurrent Protection) — Factory Configured with Accessories
  • Amperage: 200 Amps Max
  • Poles: 3-Pole
  • Phase: 3-Phase
  • Voltage: 600 VAC / 250 VDC
  • Interrupt Rating: 35,000 AIC (35 kAIC) @ 480VAC
  • Frequency: 50/60 Hz
  • Frame: F-Frame
  • Mounting Mode: Panel mount (line and load lugs both sides, blue/red conductors visible)
  • Connections / Terminals: Lug terminals not included (sold separately)

Auxiliary Switch (AL/LO + Auxiliary), Cat. AAL1LT, Style 1490D73G54:

  • AL/LO contact (M/B): 600V AC, 50/60Hz, 6A; DC ratings 125V/0.50A, 250V/0.25A
  • Auxiliary contacts (a/b): additional 1-NO/1-NC switching for remote position indication

Shunt Trip, Cat. SNT1RT08, Style 1490D75G65:

  • Frequency: 50/60 Hz (33ms) or DC (250ms)
  • Voltage: 48–127V AC or 48–60V DC
  • Current: 1.9–5.1A AC or 2.1–2.6A DC

This Eaton FDB3200KWC03S24 Series C F-Frame molded case switch provides a 200 Amp max, 3-Pole disconnect rated 600VAC/250VDC, factory-equipped with an auxiliary/AL-LO position indicating switch and a 48–127VAC shunt trip for remote tripping. The auxiliary switch provides both a dedicated AL/LO contact and separate "a"/"b" auxiliary contacts for status monitoring in industrial power distribution and control applications.
