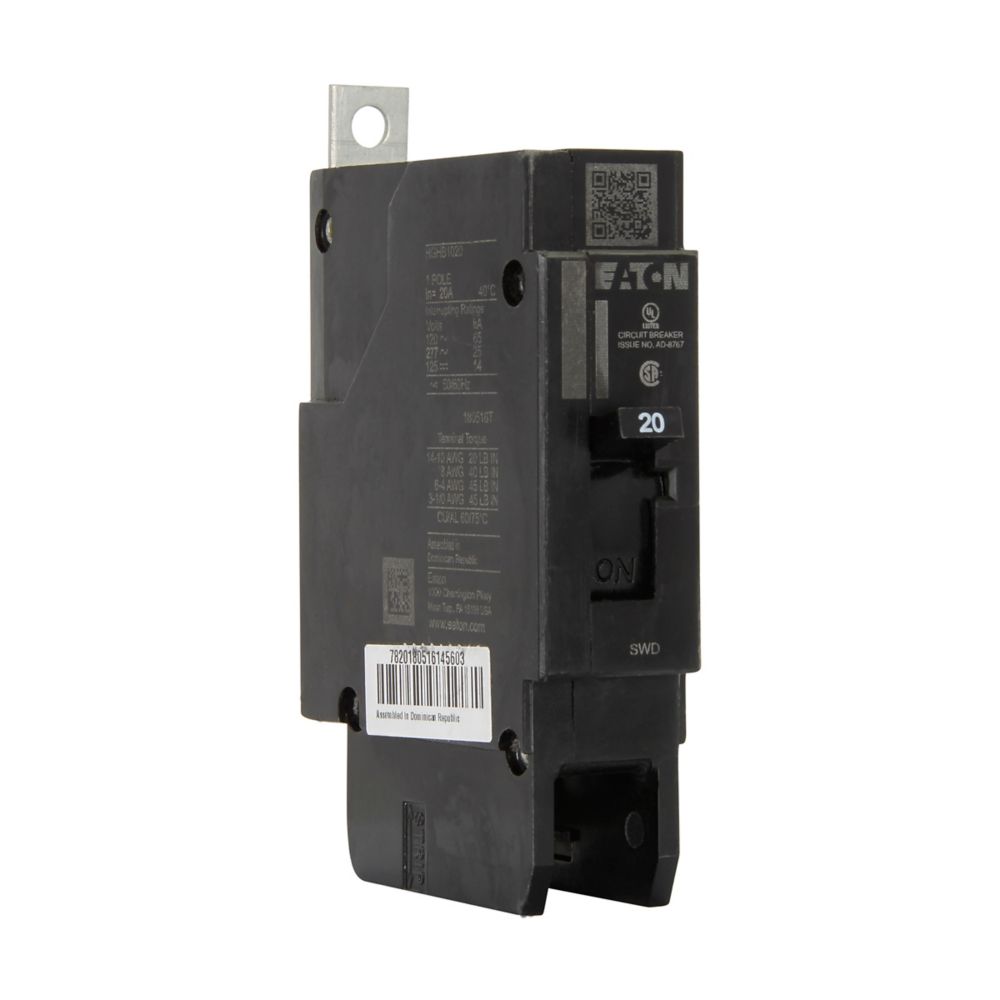

Eaton Series C GHB1020 20A 1P 277V Thermal Magnetic Bolt-On Circuit Breaker

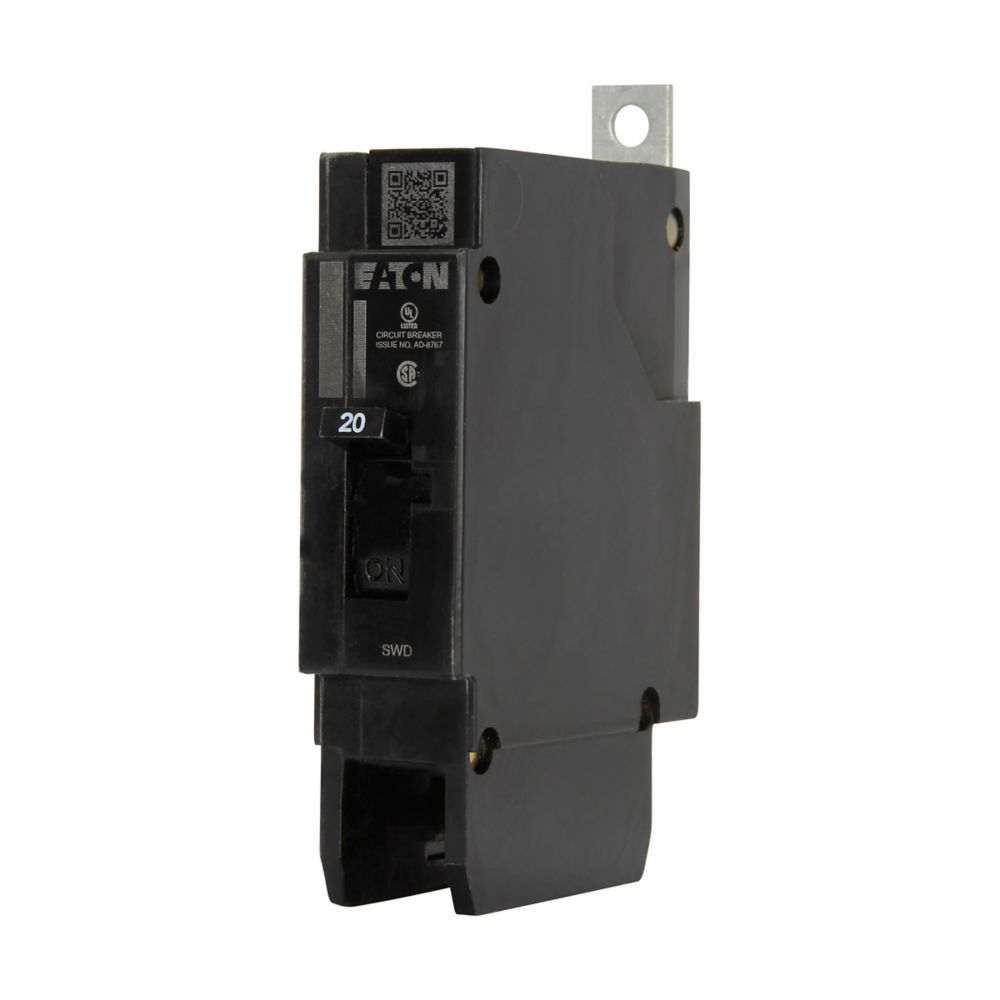

Eaton Series C GHB1020 20A 1P 277V Thermal Magnetic Bolt-On Circuit Breaker - Image 2

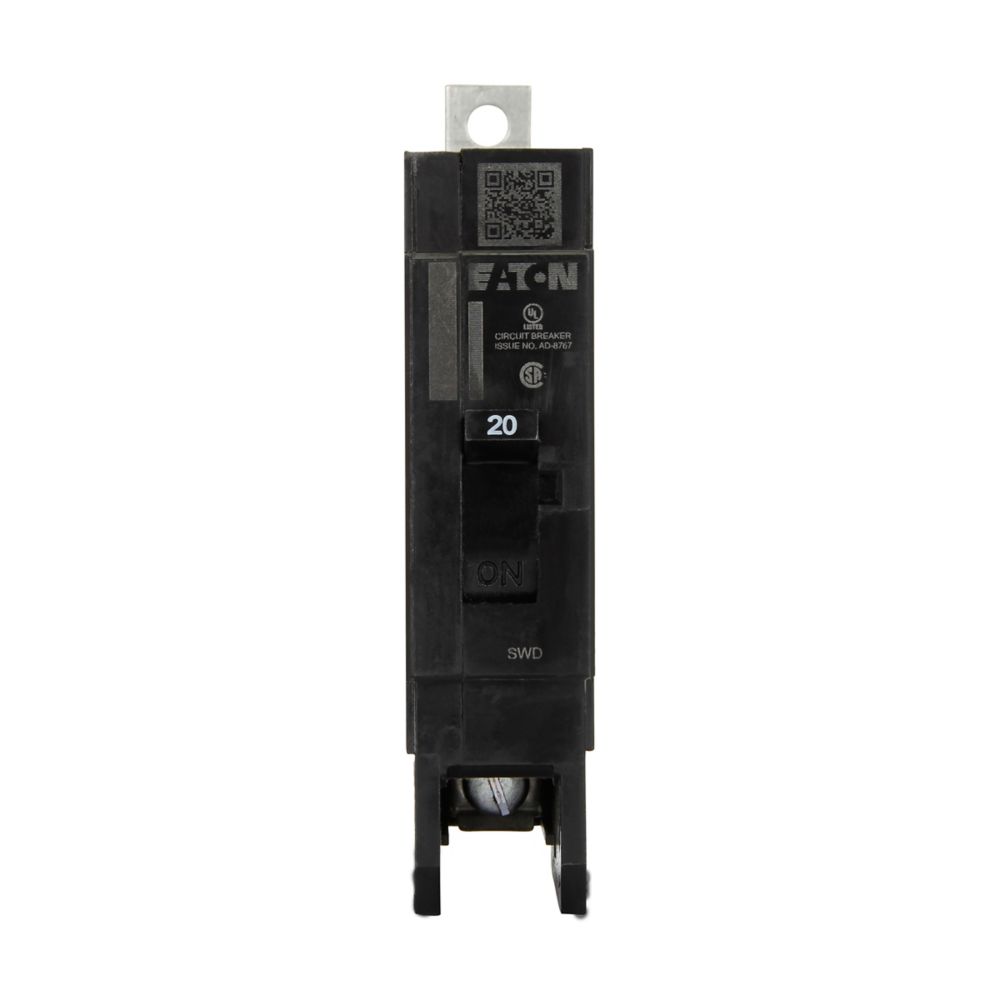

Eaton Series C GHB1020 20A 1P 277V Thermal Magnetic Bolt-On Circuit Breaker - Image 3
Eaton Series C GHB1020 20A 1P 277V Thermal Magnetic Bolt-On Circuit Breaker
Eaton Series C GHB1020 20A 1P 277V Thermal Magnetic Bolt-On Circuit Breaker - Image 2
Eaton Series C GHB1020 20A 1P 277V Thermal Magnetic Bolt-On Circuit Breaker - Image 3

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton Series C GHB1020 20A 1P 277V Thermal Magnetic Bolt-On Circuit Breaker

Out of stock
SKU: GHB1020 UPC: 786679023624
(0)
$36.00
-32% $53.00 $36.00
Out of stock
Condition

GHB1020 specifications

  • Manufacturer: Eaton
  • Brand: Eaton
  • Product Range: Series C (G-frame molded case circuit breakers)
  • UPC: 786679023624
  • Model Number: GHB1020
  • Breaker Type: Thermal Magnetic
  • Amperage: 20 Amps
  • Poles: 1-Pole
  • Voltage: 277 Volts AC, 125 Volts DC
  • Interrupt Rating: 14 kAIC
  • Mounting Mode: Bolt-on
  • Wire Size: #14-10 AWG Cu/Al
  • Dimensions: Height: 4.0 in; Width: 1.0 in; Depth: 2.63 in
  • Weight: 0.65 lbs
  • Certifications: UL Listed

This Eaton GHB1020 thermal magnetic bolt-on circuit breaker delivers reliable 20A, 1-pole overcurrent protection for 277V AC or 125V DC circuits in commercial and industrial panelboards. With a 14kA interrupt rating and fixed trip settings, it provides essential safety and performance for demanding applications.
