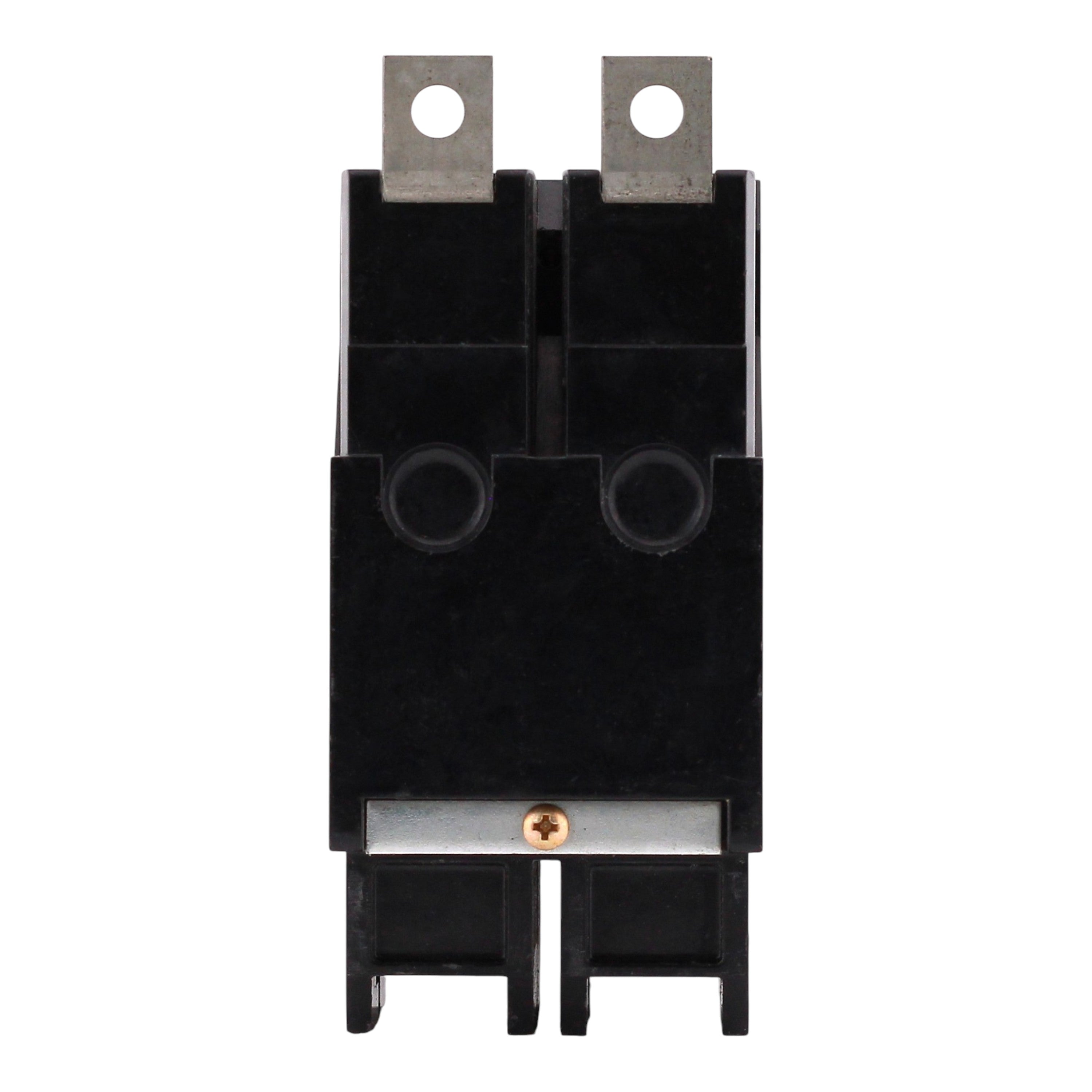

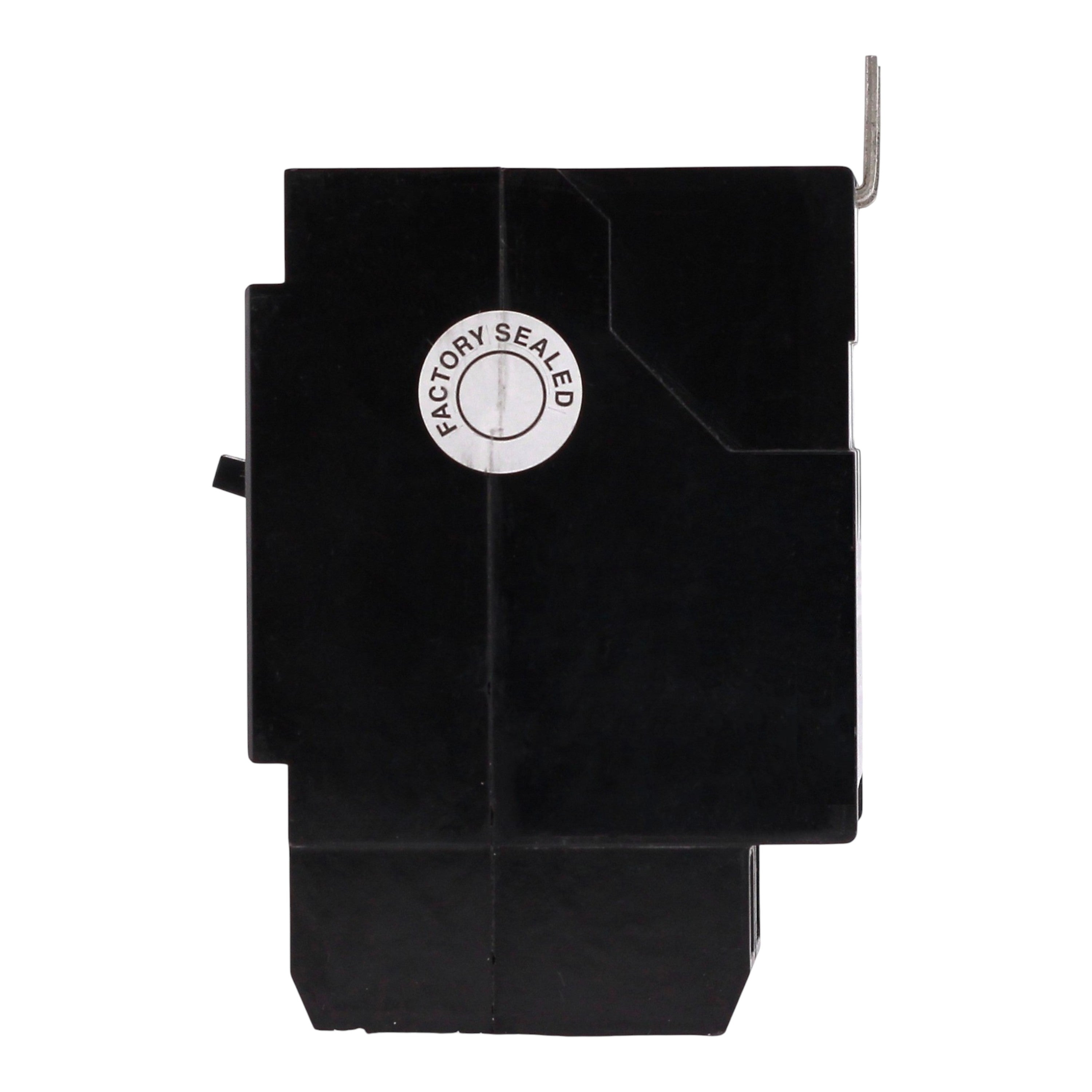

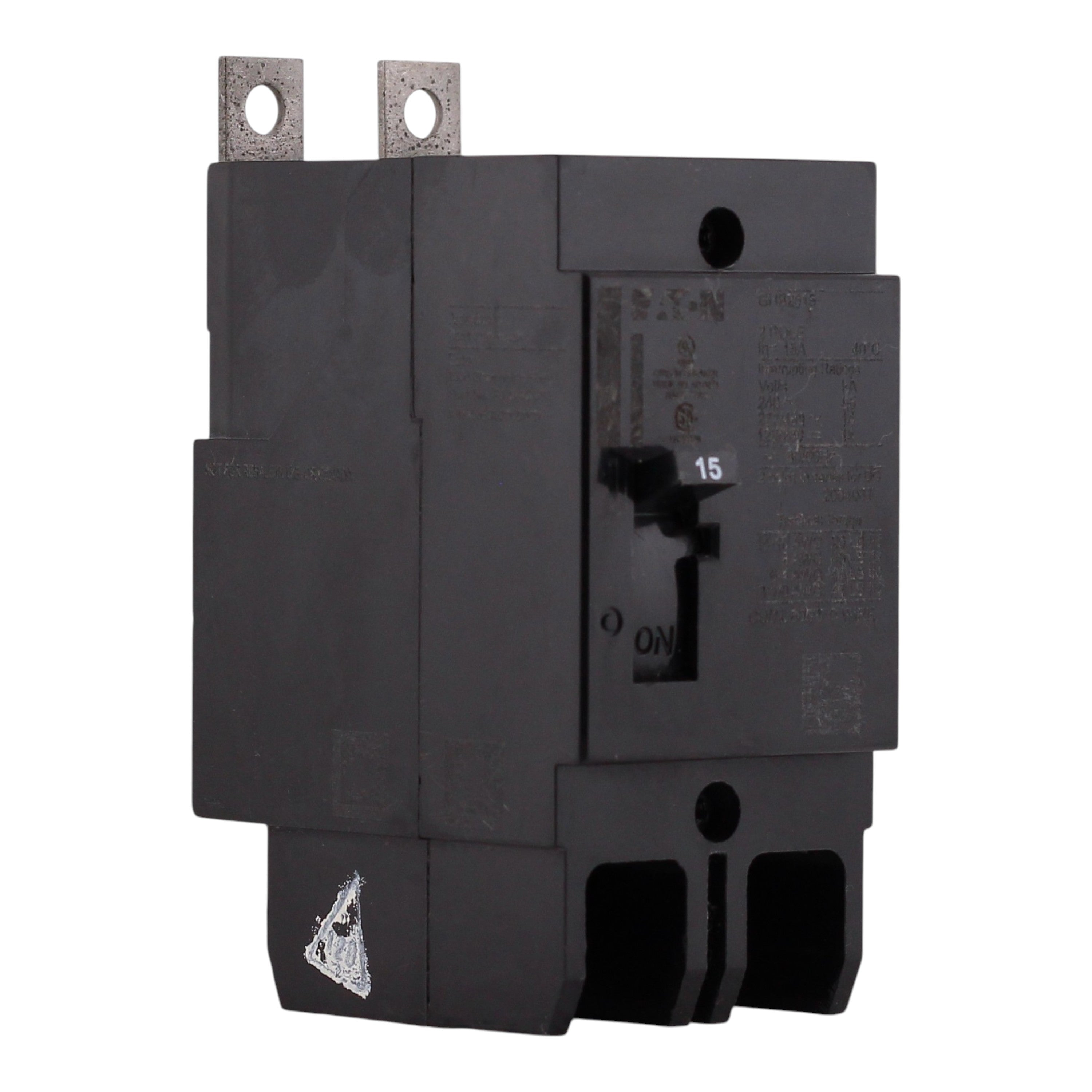

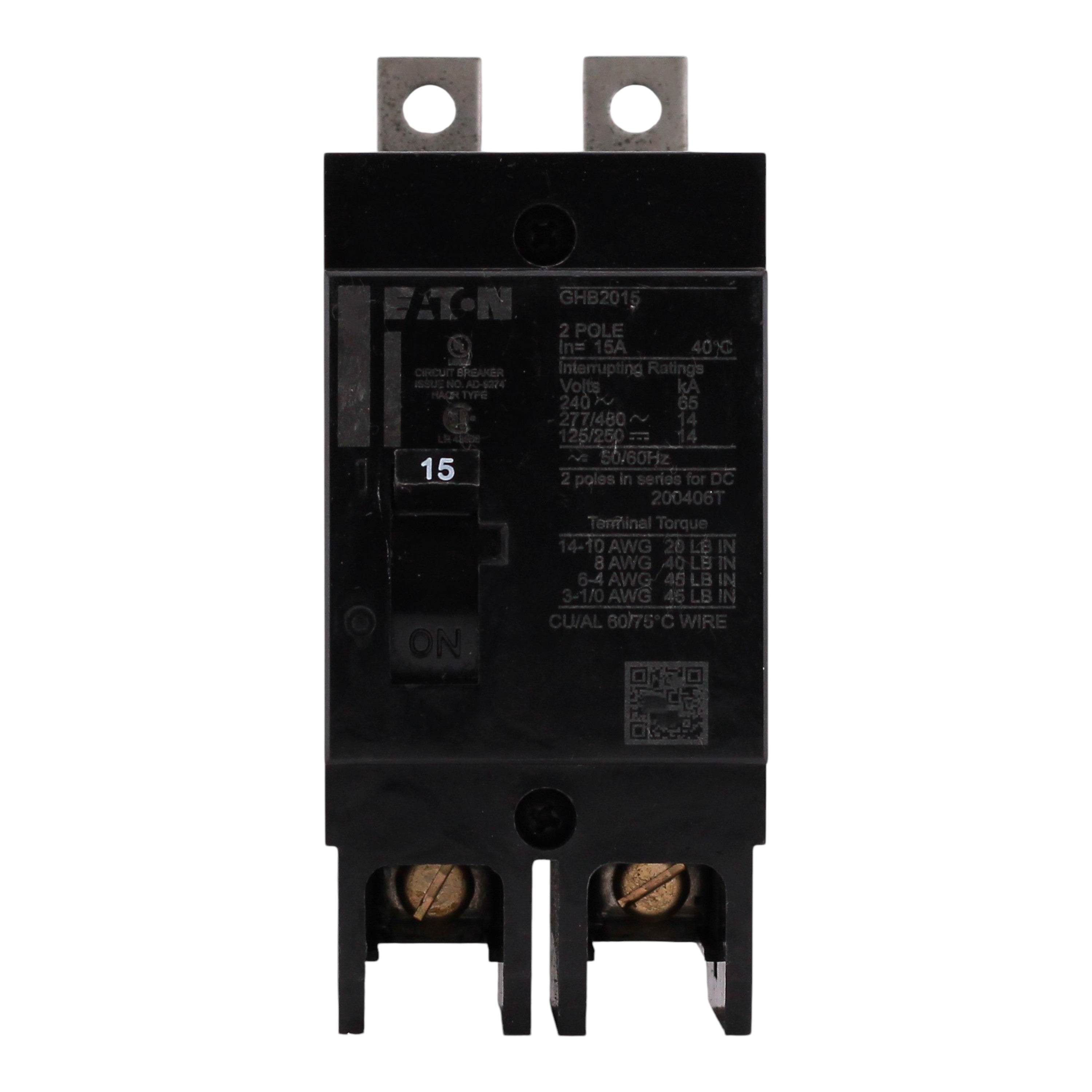

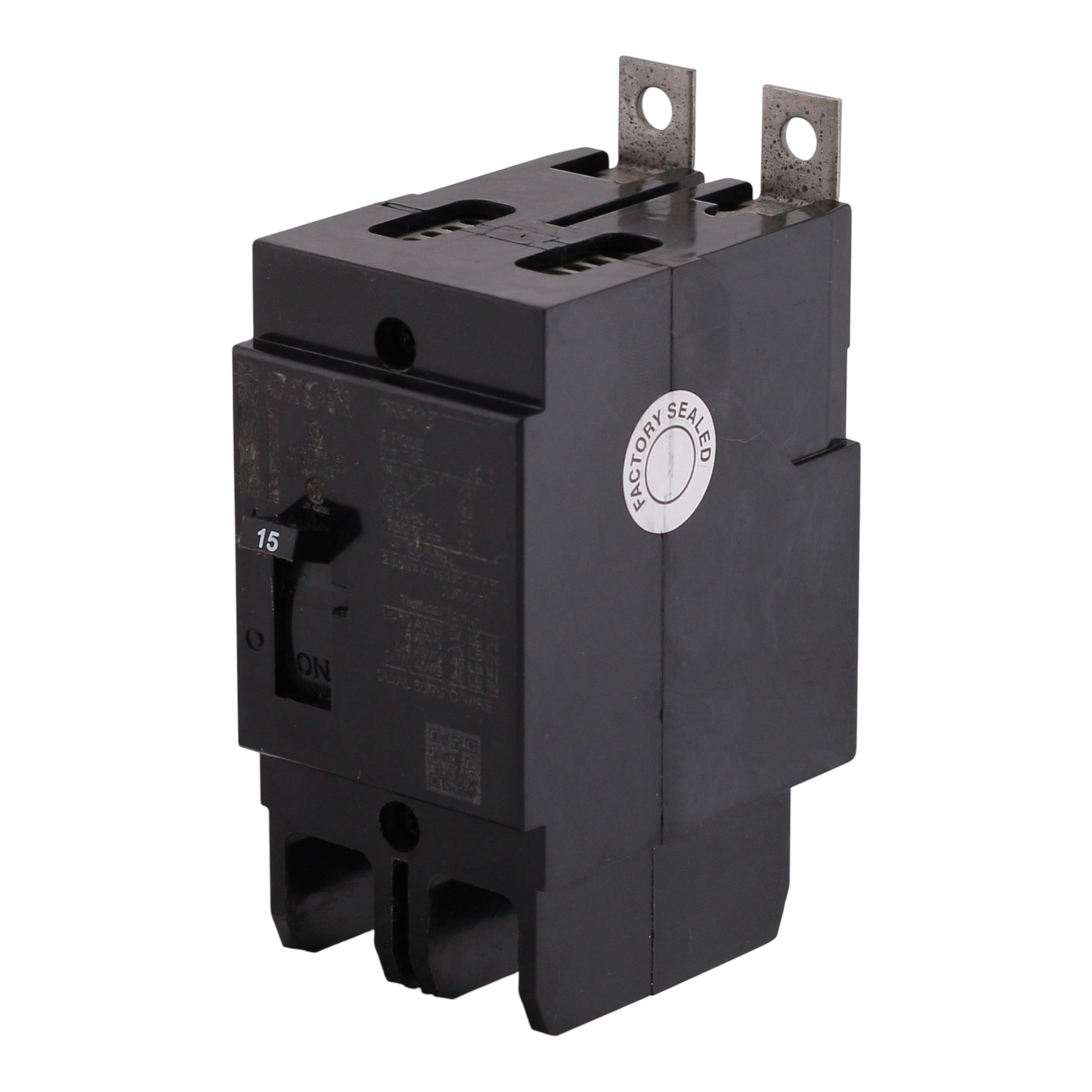

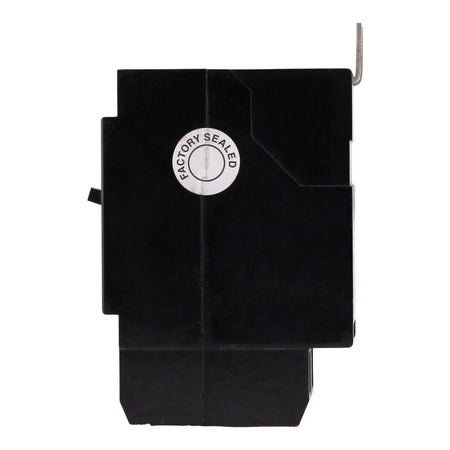

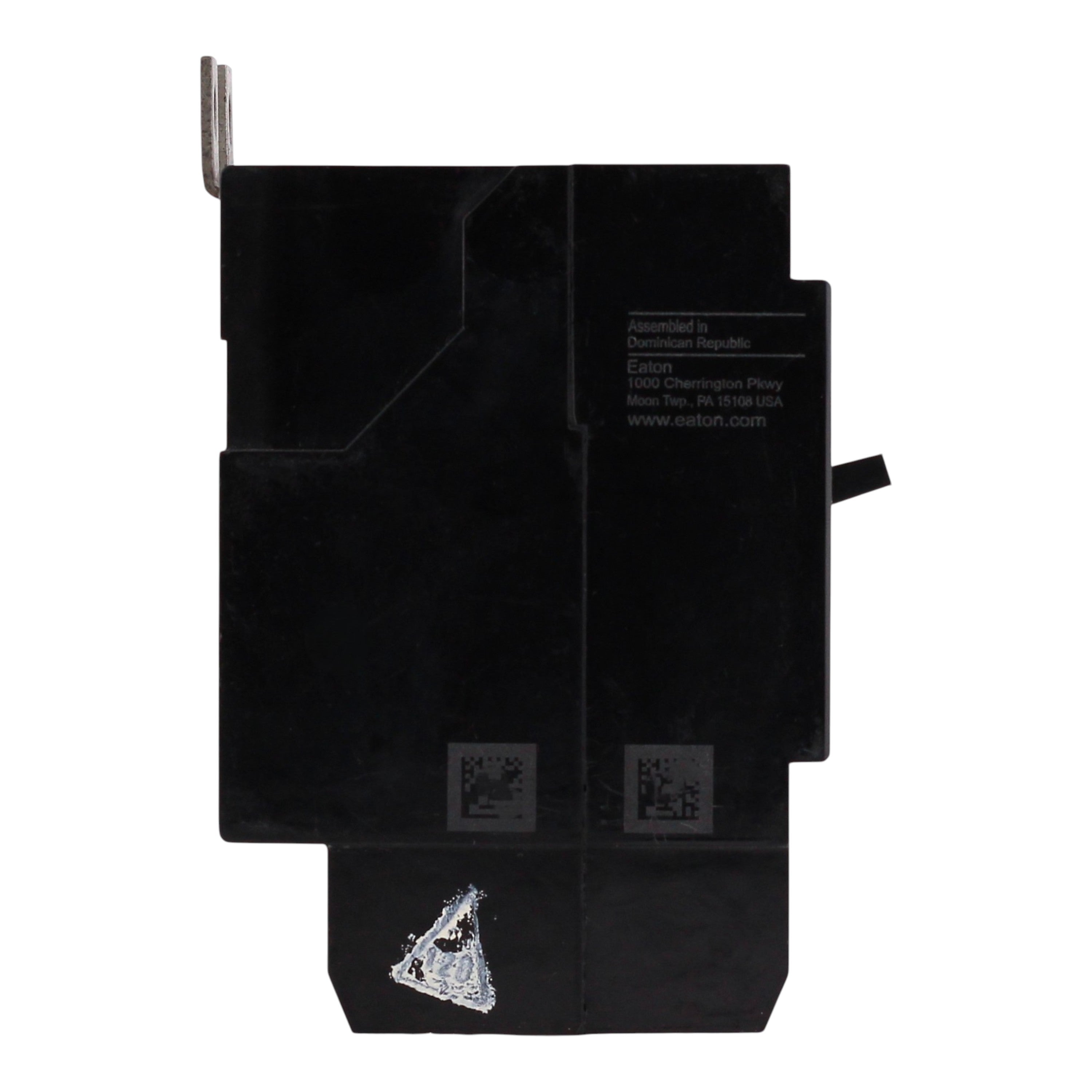

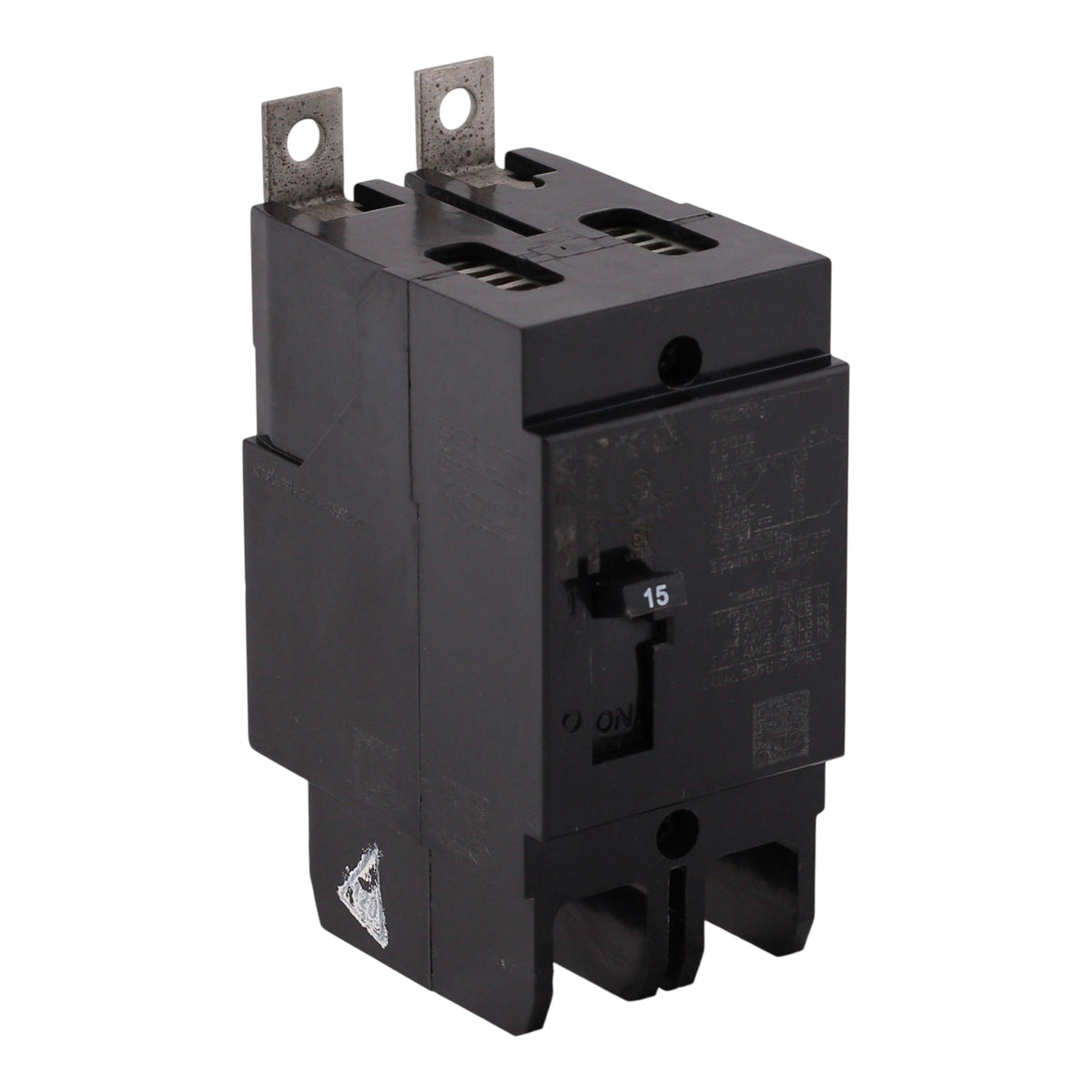

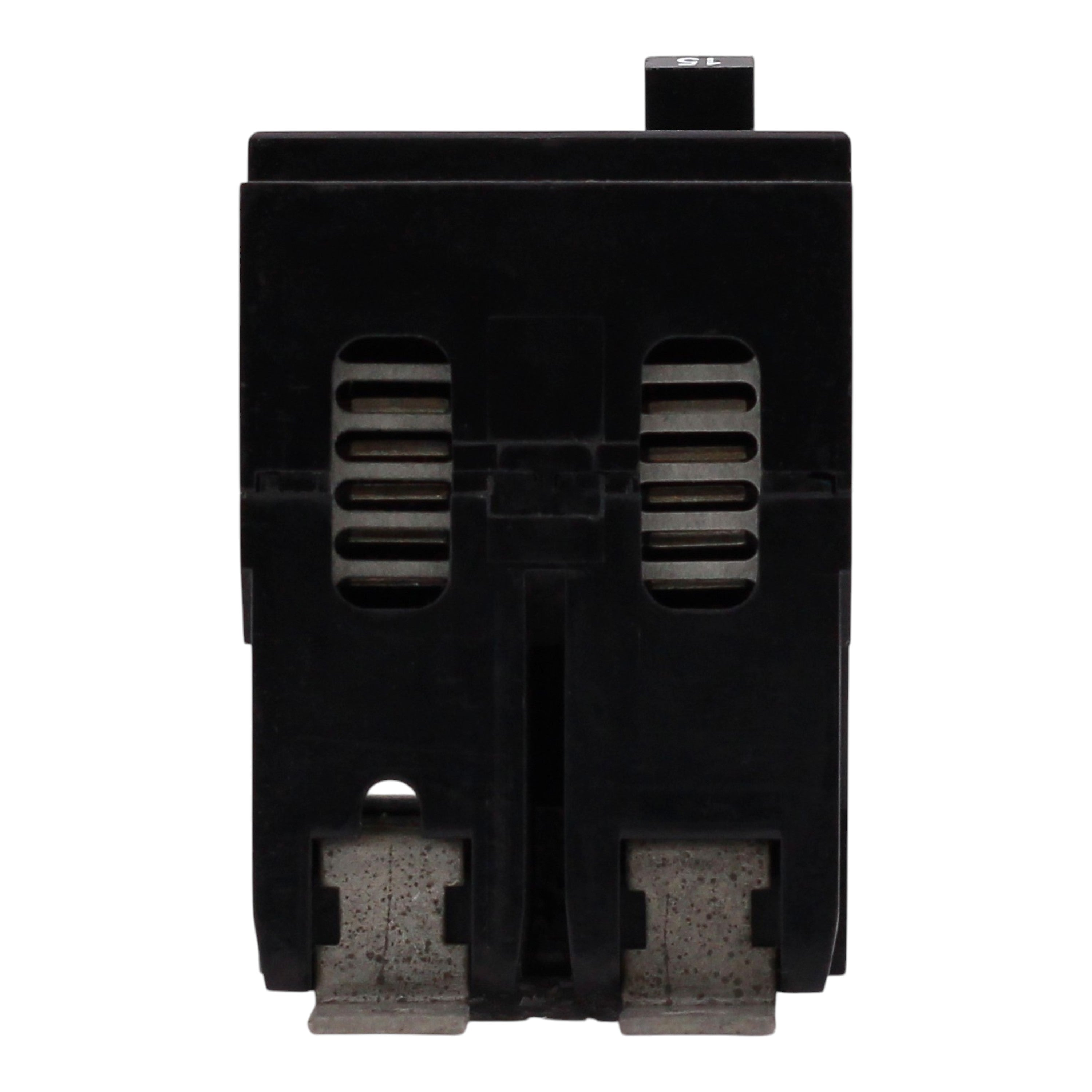

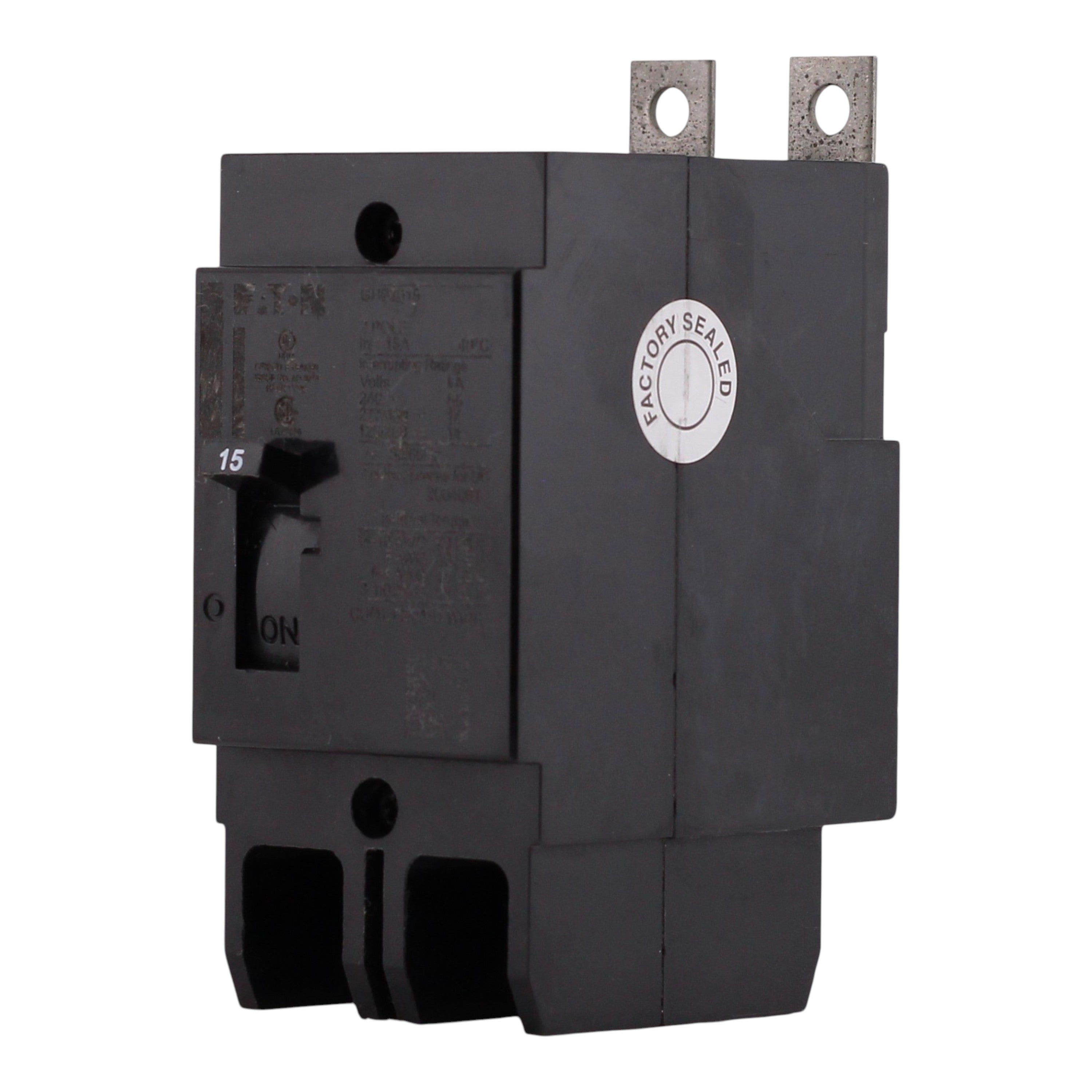

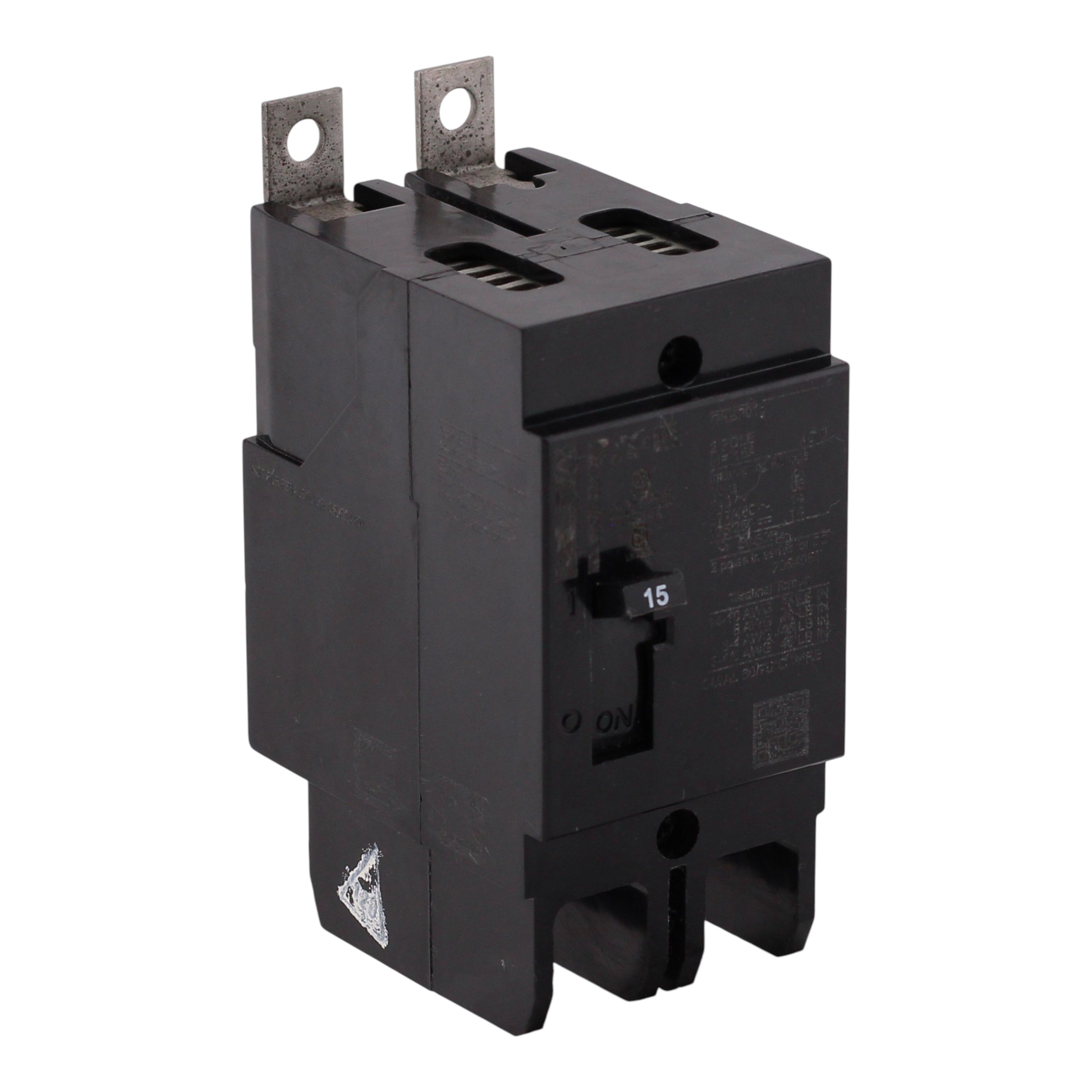

Eaton GHB2015: 15 Amp, 2-Pole, Series C G-Frame Molded Case Circuit Breaker, 480Y/277VAC, 14kA @ 480V / 65kA @ 240V, Fixed Thermal/Fixed Magnetic Trip, UL Listed.
-
Manufacturer: Eaton
-
Brand: Eaton (Cutler-Hammer)
-
Product Range: Series C — G-Frame (for Eaton GHB-series switchboards and panelboards)
-
UPC: 786679911198
-
Model Number: GHB2015
-
Breaker Type: Thermal Magnetic Molded Case Circuit Breaker — Fixed Thermal, Fixed Magnetic Trip
-
Trip Type: T186
-
Trip Functions: LI — Long-Time and Instantaneous
-
Amperage: 15 Amps
-
Poles: 2-Pole
-
Voltage: 480Y/277 Volts AC; 125/250 Volts DC
-
Frequency: 50/60 Hz
-
Interrupt Rating: 14 kAIC @ 480Y/277VAC; 65 kAIC @ 240VAC
-
Frame: G-Frame
-
Series: Series C (Complete Breaker)
-
Mounting Mode: Panel mount
-

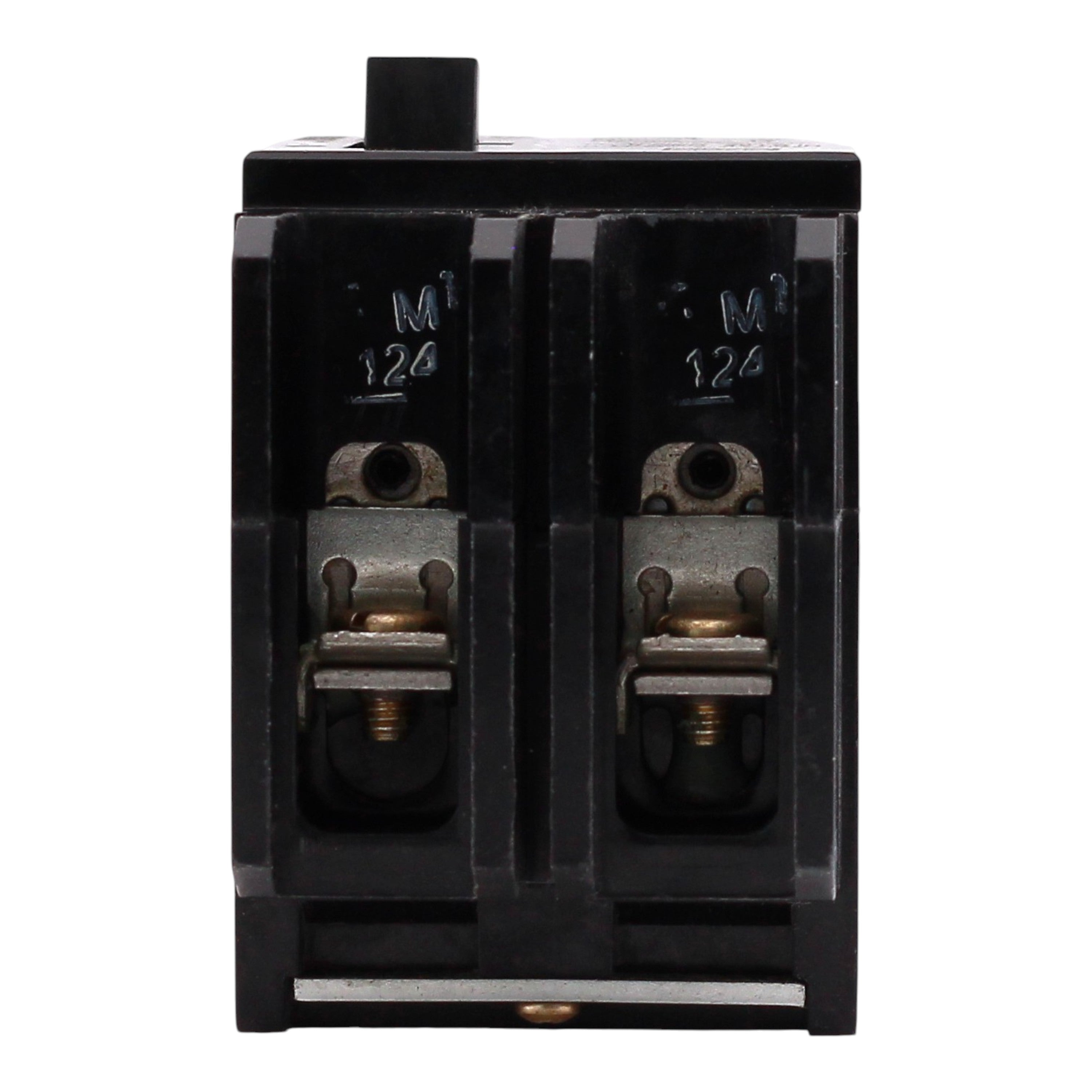

Wire Size: #14–1 AWG Cu/Al
-
Tightening Torque: 20 lb-in (#14–10 AWG); 40 lb-in (#8 AWG); 45 lb-in (#6–1/0 AWG)
-
Dimensions: Height: 4.00 in; Width: 2.00 in; Depth: 2.63 in
-
Weight: 1.00 lb
-
Certifications: UL Listed, Federal Specifications Classification W-C375B
This Eaton GHB2015 Series C G-Frame thermal magnetic molded case circuit breaker delivers dependable 15 Amp, 2-Pole protection for 480Y/277VAC, 3-phase circuits in switchboards and panelboards. With 14kAIC interrupt capacity at 480Y/277VAC, 65kAIC at 240VAC, and fixed thermal/magnetic trip, it supports commercial and industrial distribution applications.
