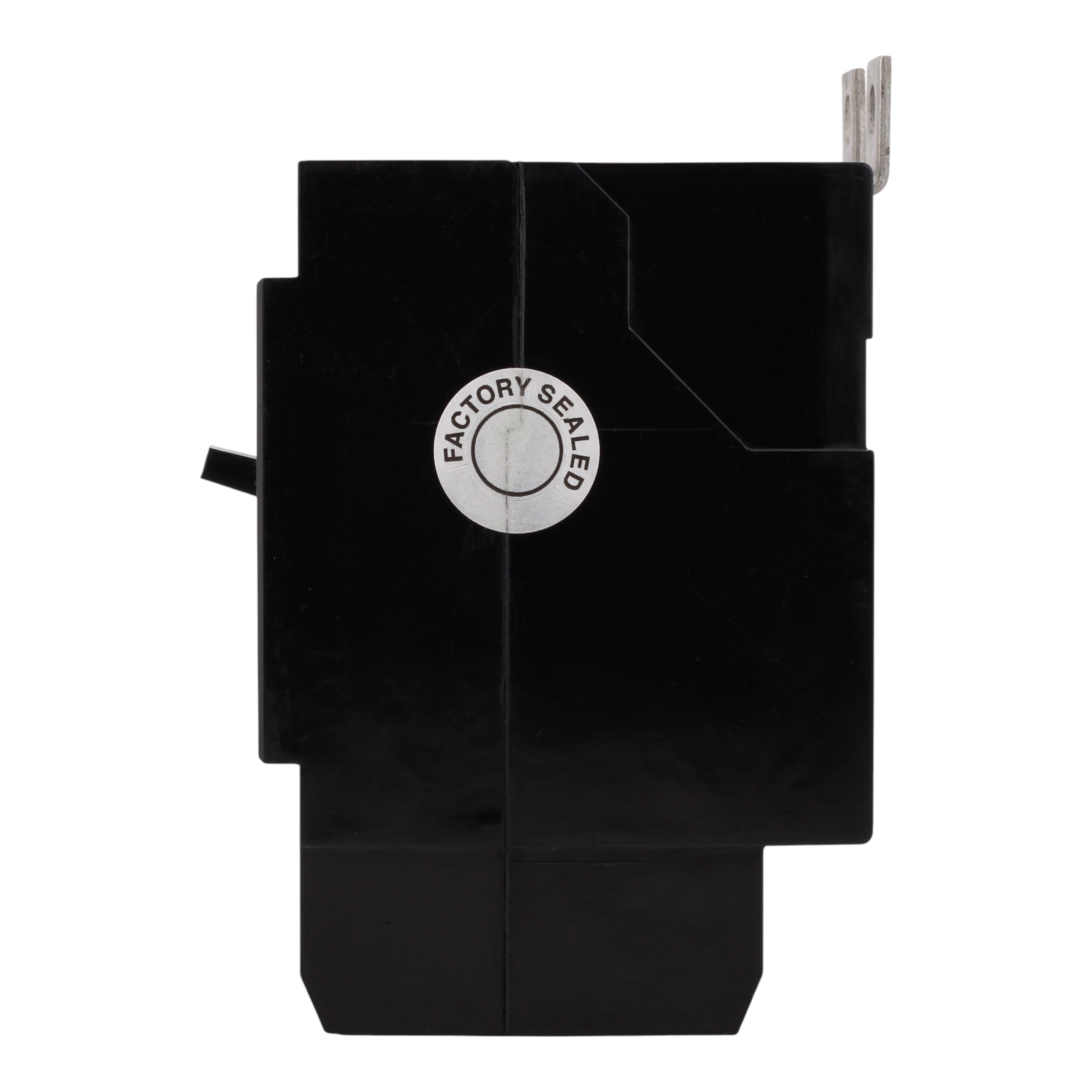

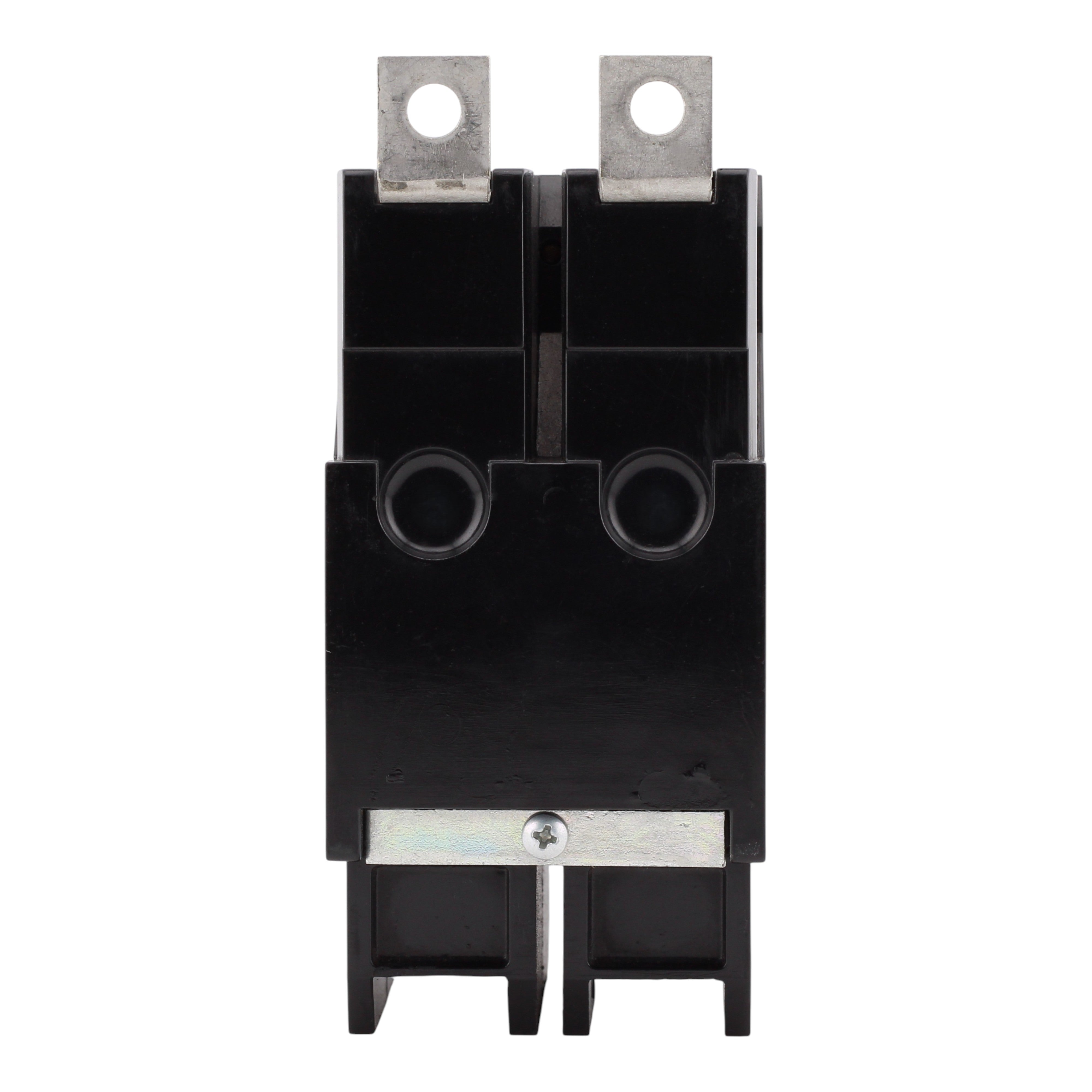

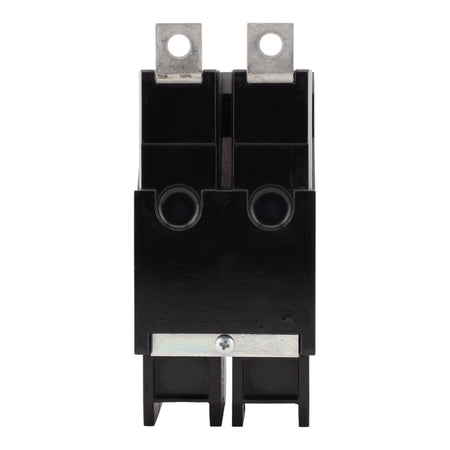

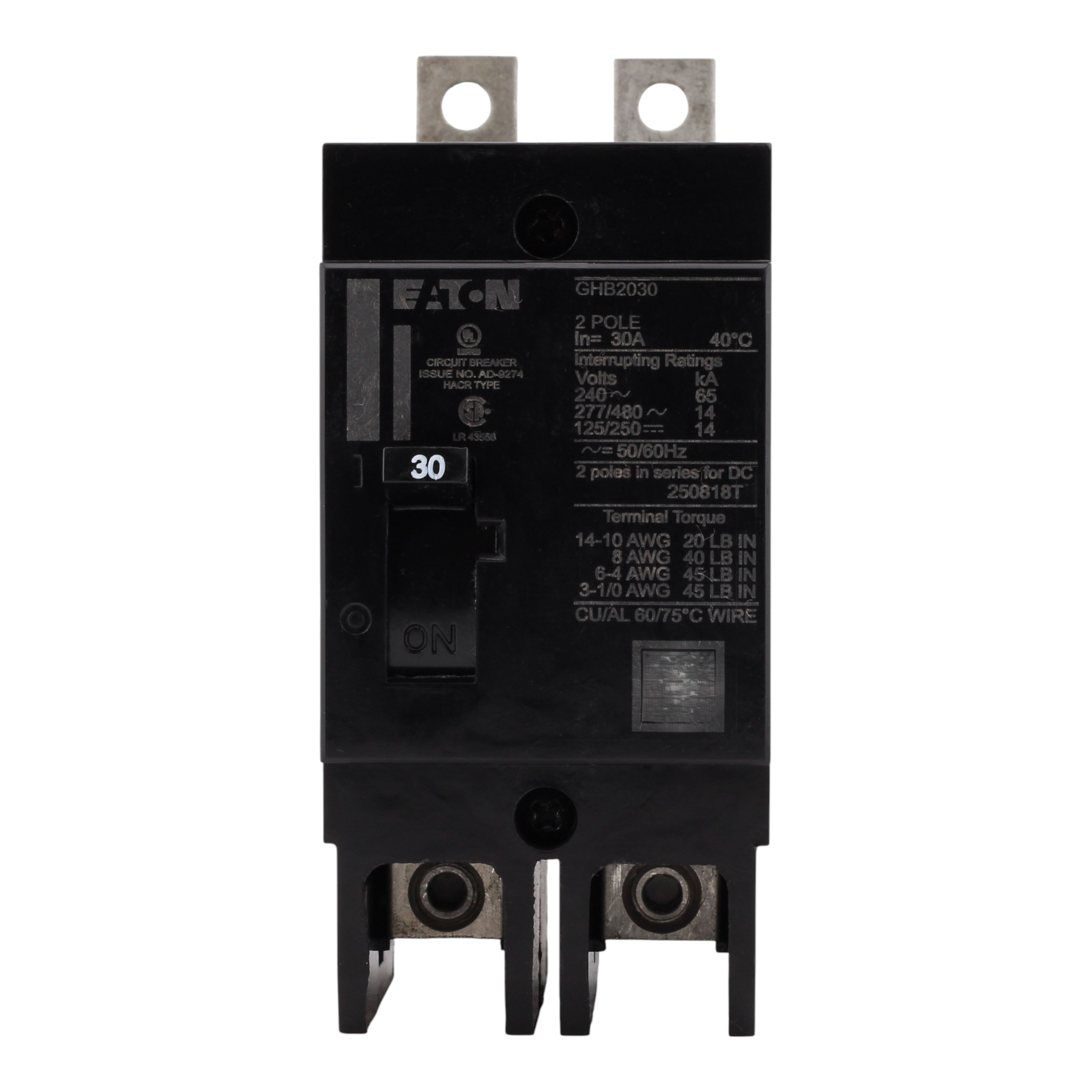

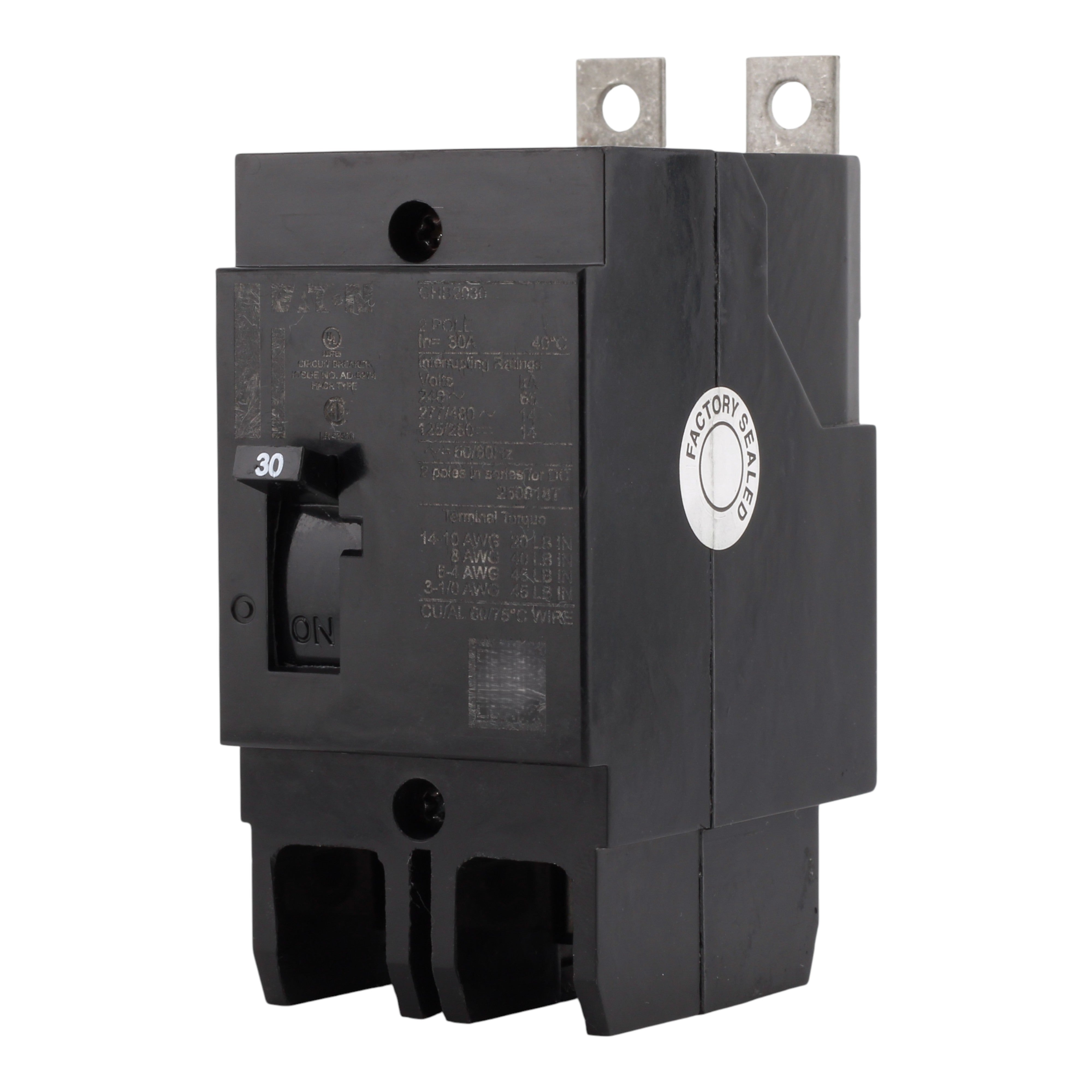

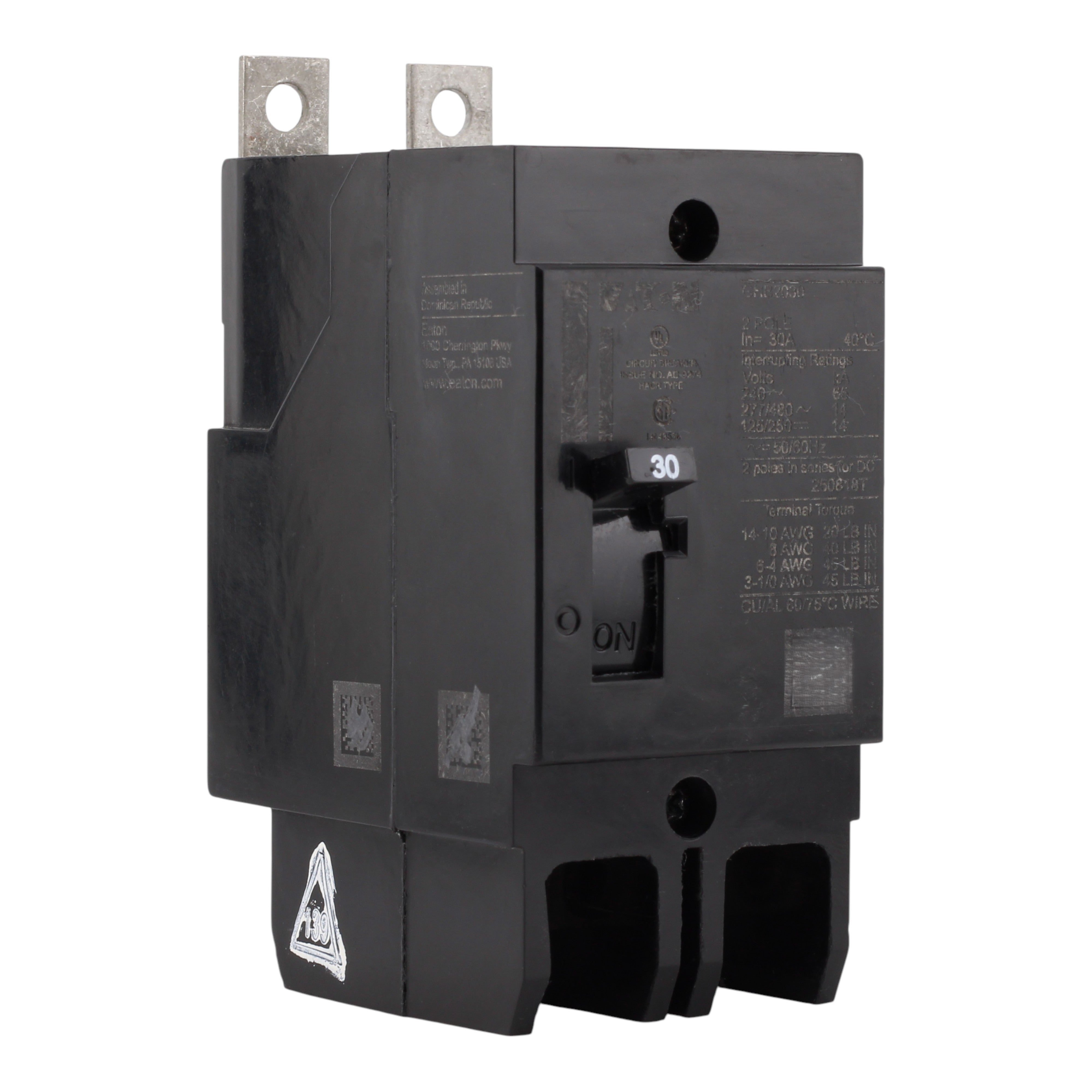

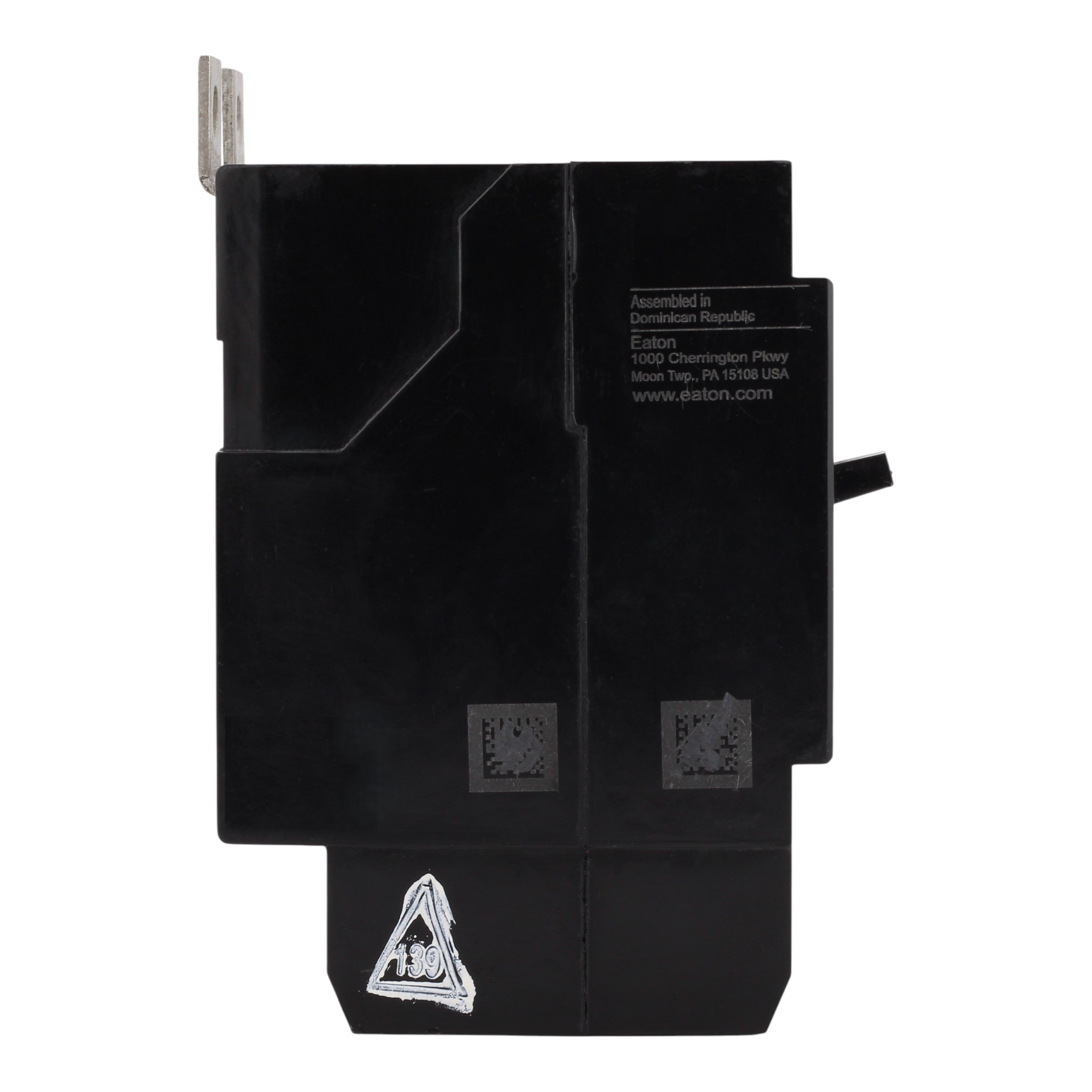

Eaton Series C GHB2030 30A 2P 480Y/277V Molded Case Circuit Breaker

Eaton GHB2030: 30 Amp 2-Pole molded case circuit breaker, 480Y/277 VAC, 125/250 VDC, 14 kAIC@480Y/277V, fixed thermal/magnetic trip, UL listed.

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: Series C (for Eaton Series C loadcenters and equipment)
• UPC: 786679911211
• Model Number: GHB2030
• Product Type: Molded Case Circuit Breaker
• Amperage: 30 Amps
• Poles: 2-Pole
• Voltage: 480Y/277 Volts AC, 125/250 Volts DC
• Interrupt Rating: 14 kAIC at 480Y/277 VAC; 65 kAIC at 240 VAC

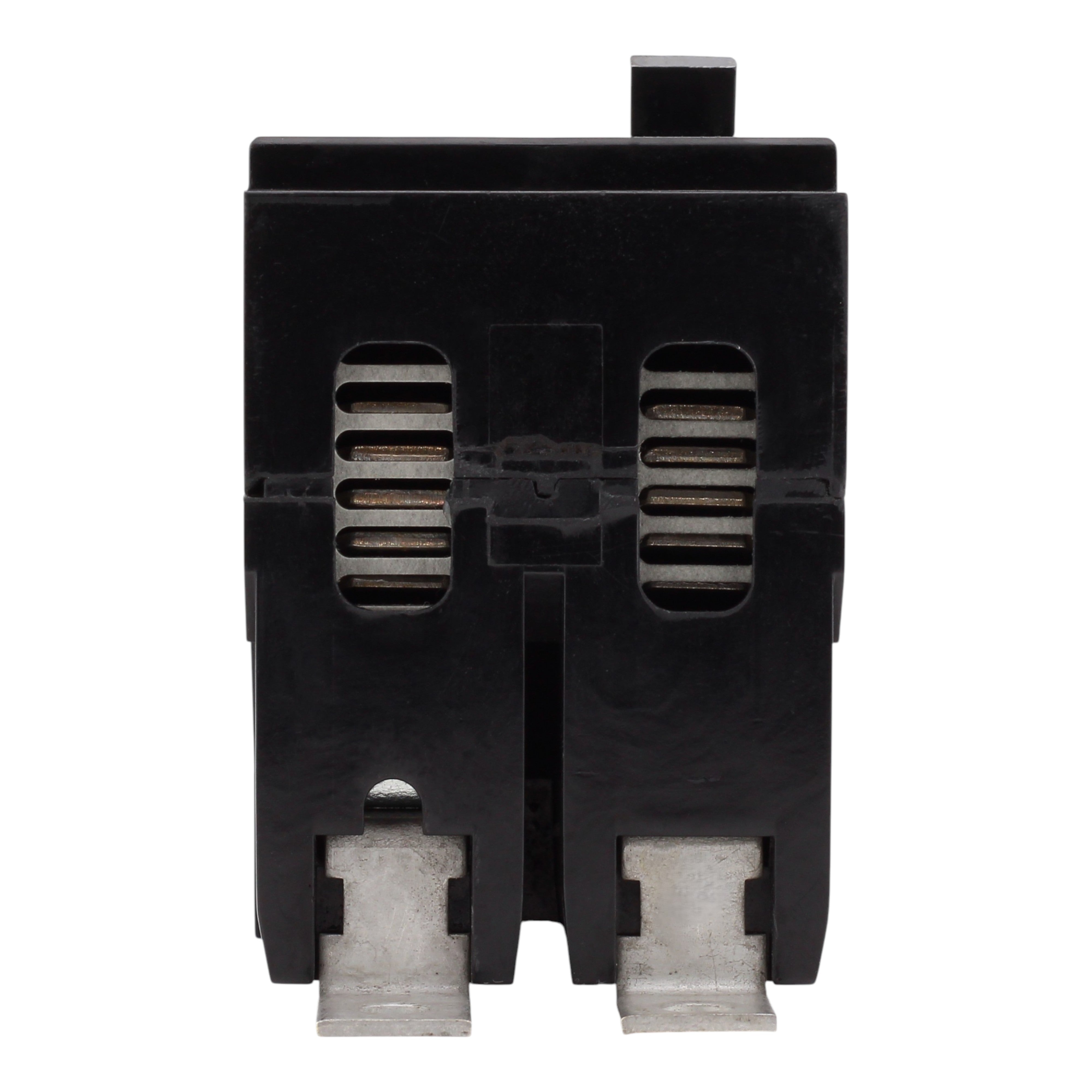

• Mounting Mode: Bolt-on

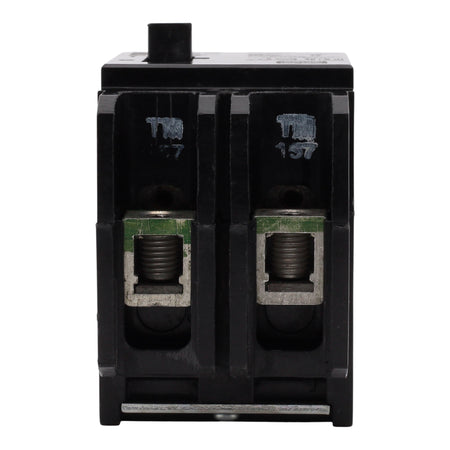

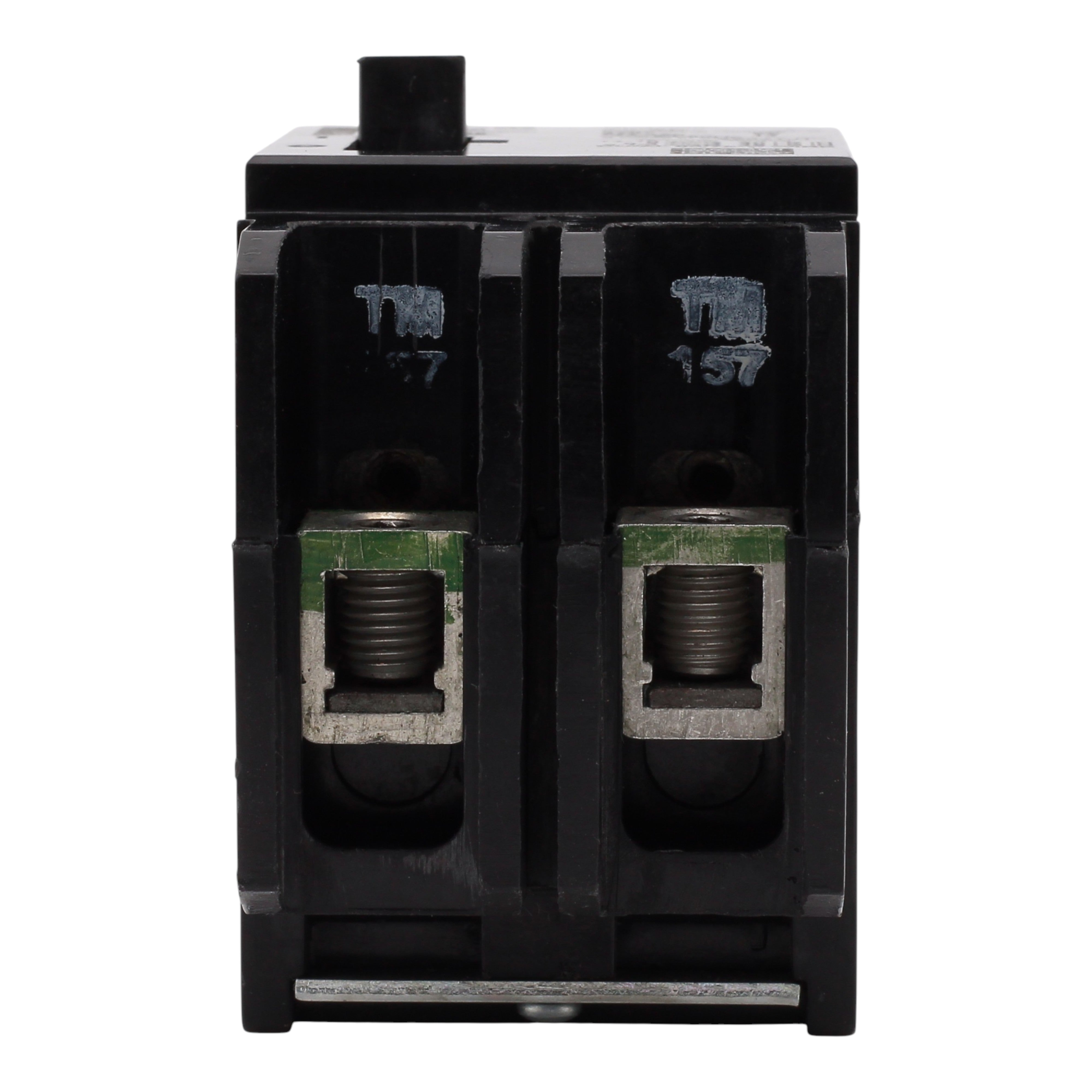

• Connections Terminals: Line and load lugs
• Wire Size: #14-4/0 AWG Cu/Al
• Tightening Torque: 50 lb-in
• Dimensions: Height: 4.0 in; Width: 2.0 in; Depth: 2.63 in
• Weight: 1.15 lbs
• Certifications: UL Listed
• Trip Type: Fixed thermal, fixed magnetic

This Eaton GHB2030 molded case circuit breaker provides reliable 30A, 2-pole protection for 480Y/277V AC circuits in Series C loadcenters. With fixed thermal/magnetic trip and high interrupt rating, it ensures robust overcurrent protection for commercial and industrial applications.
