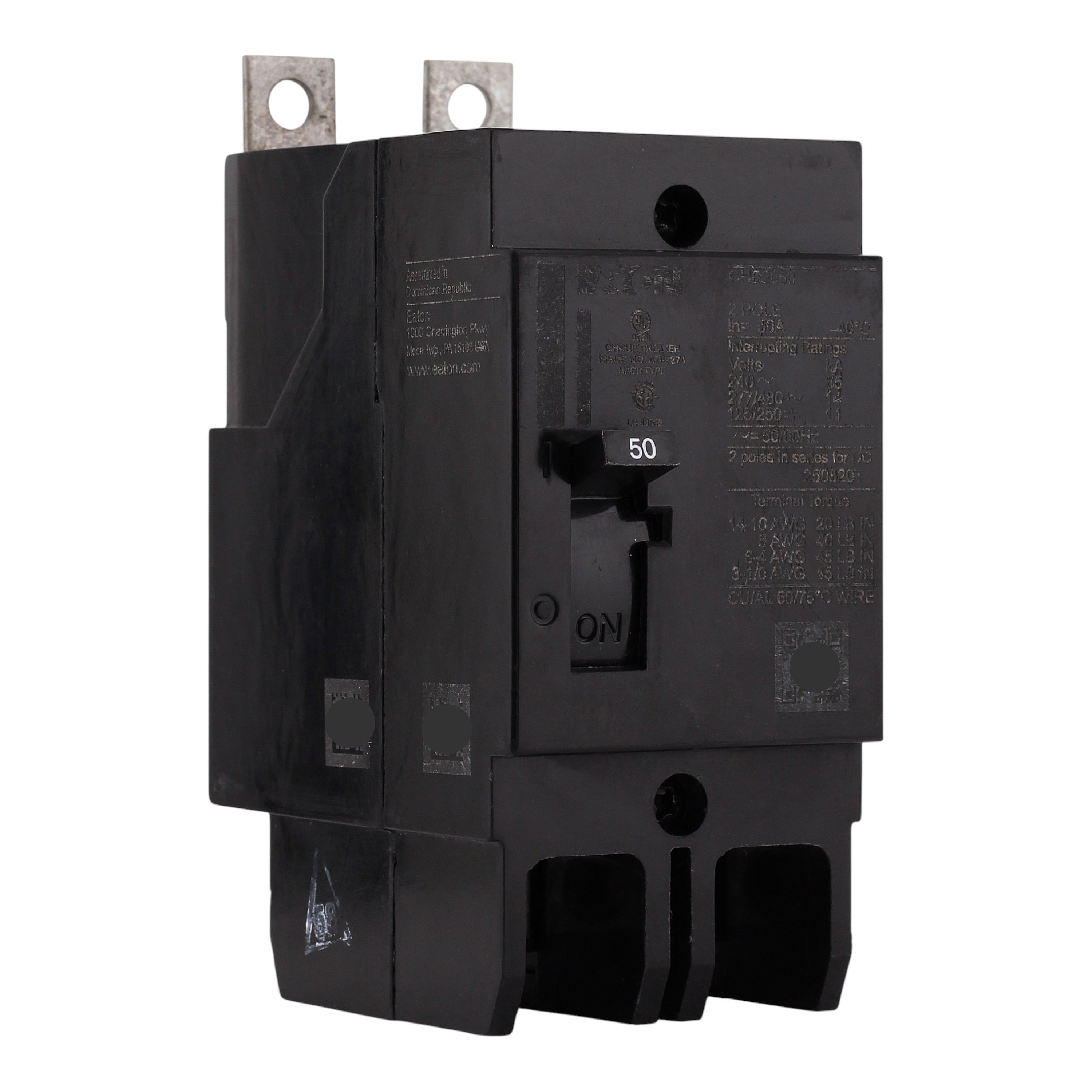

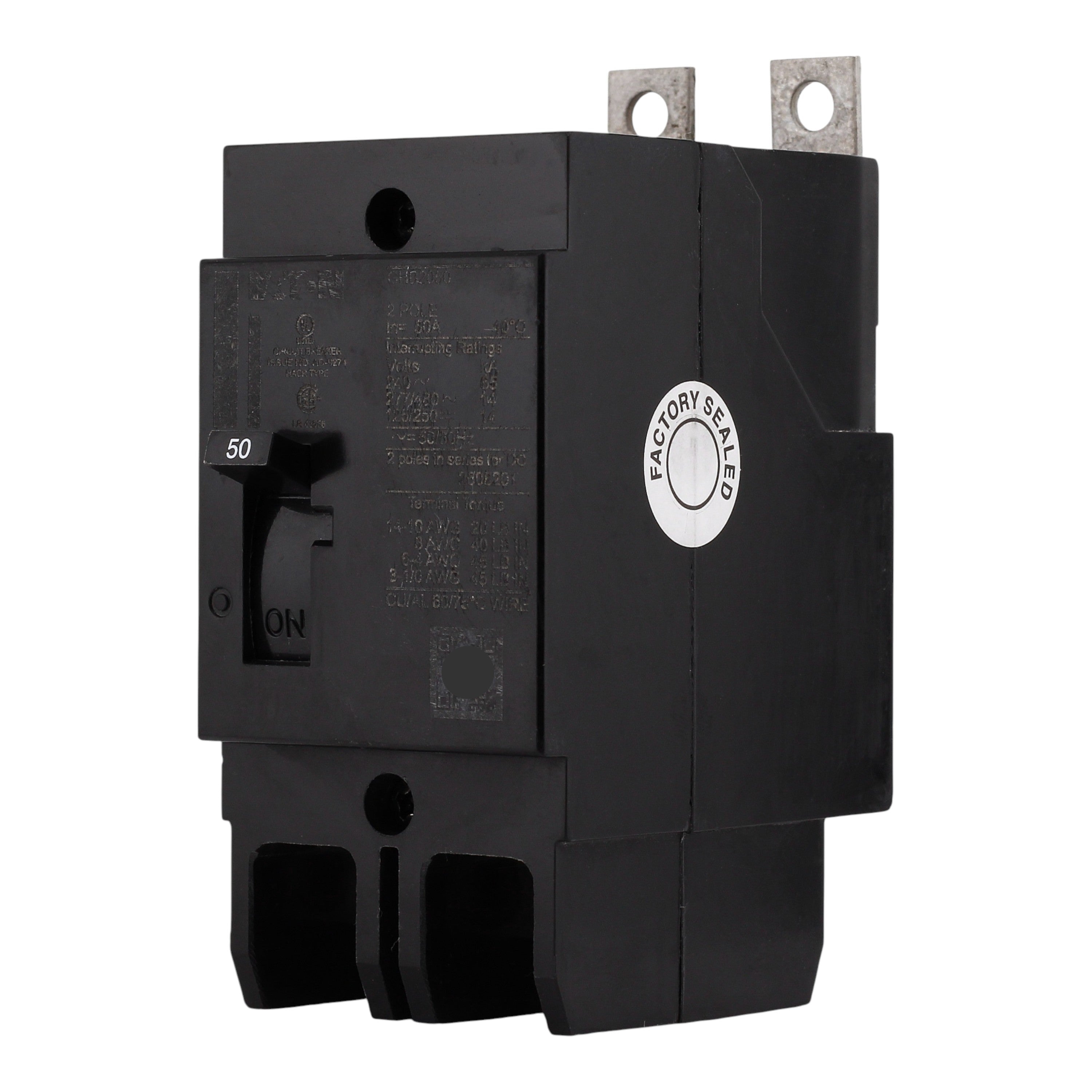

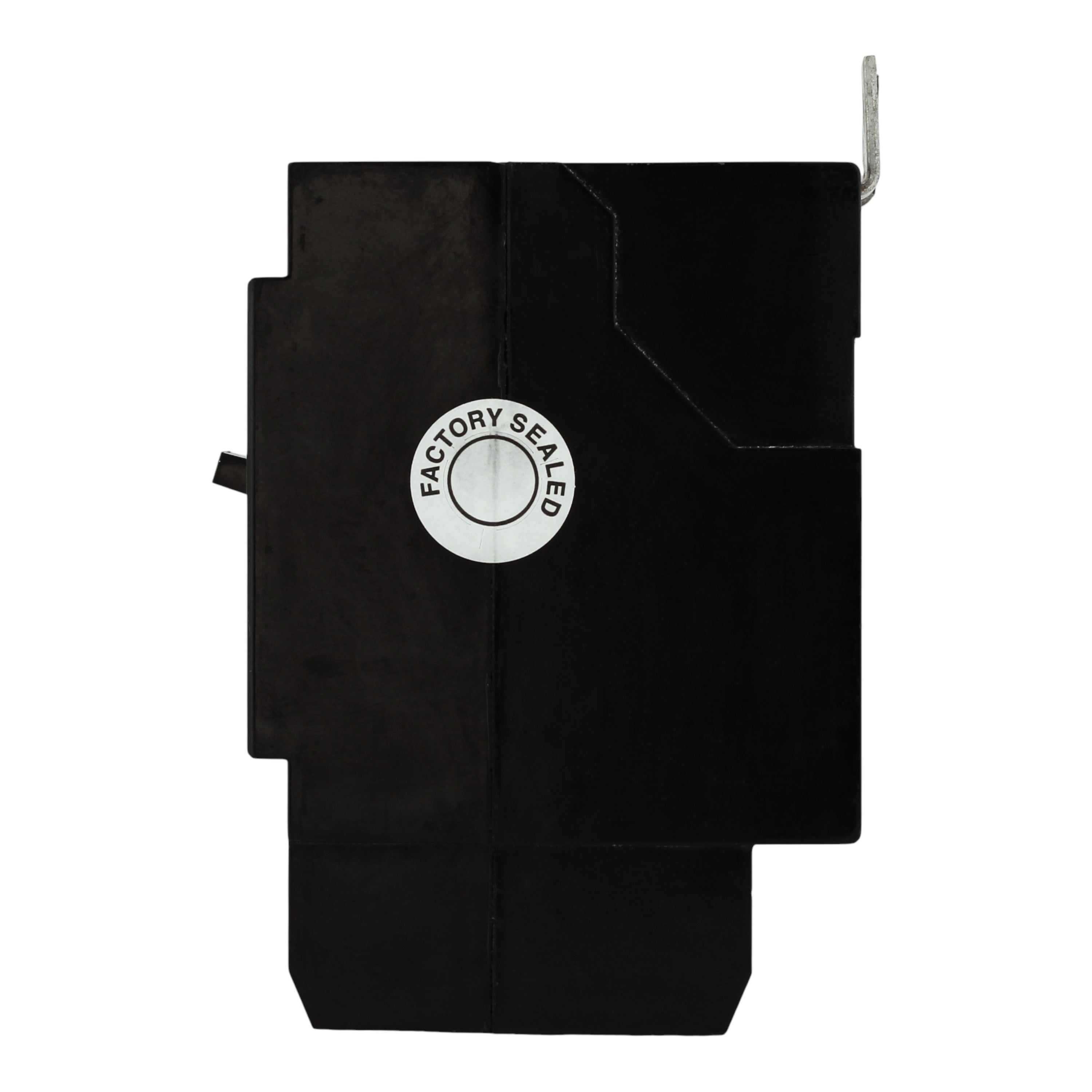

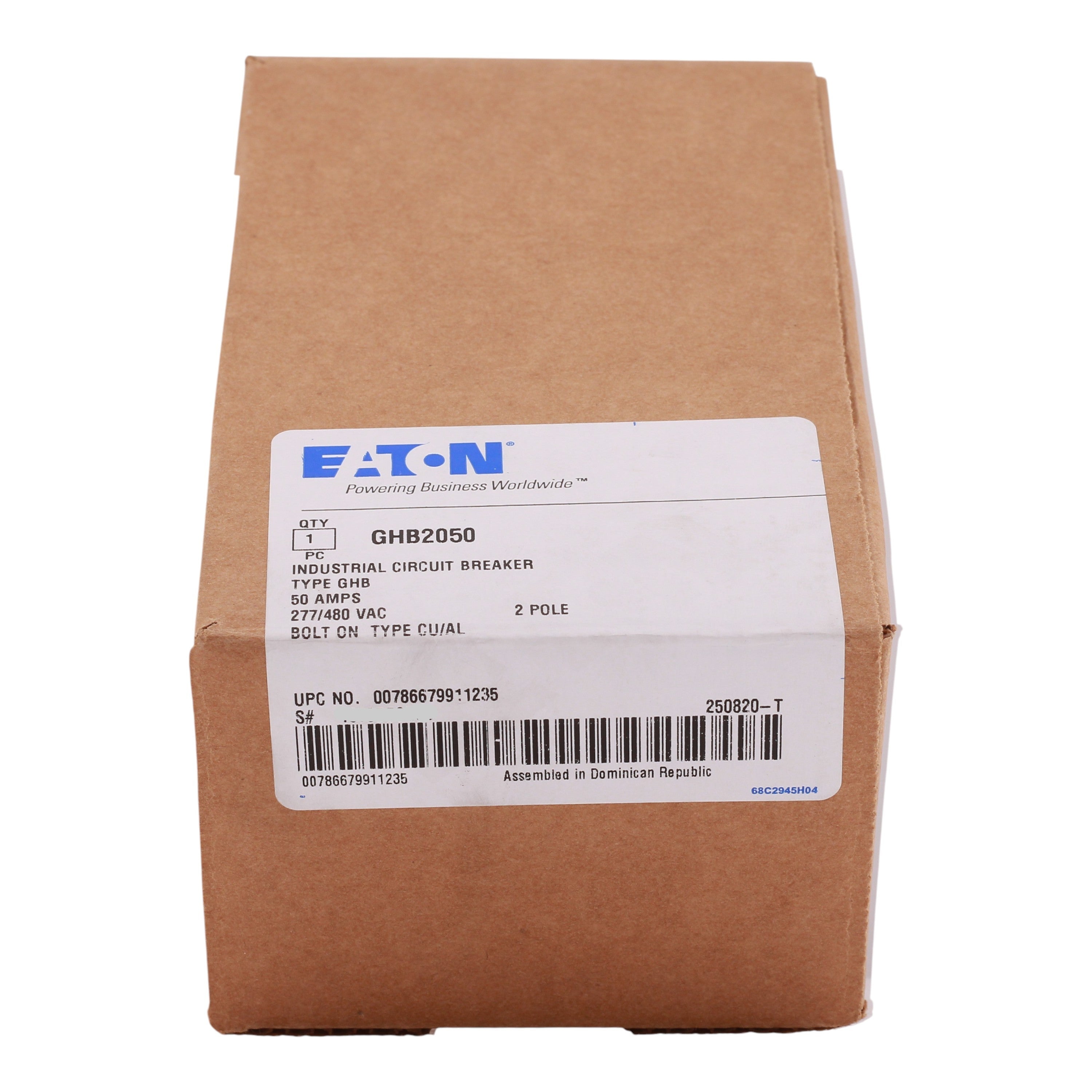

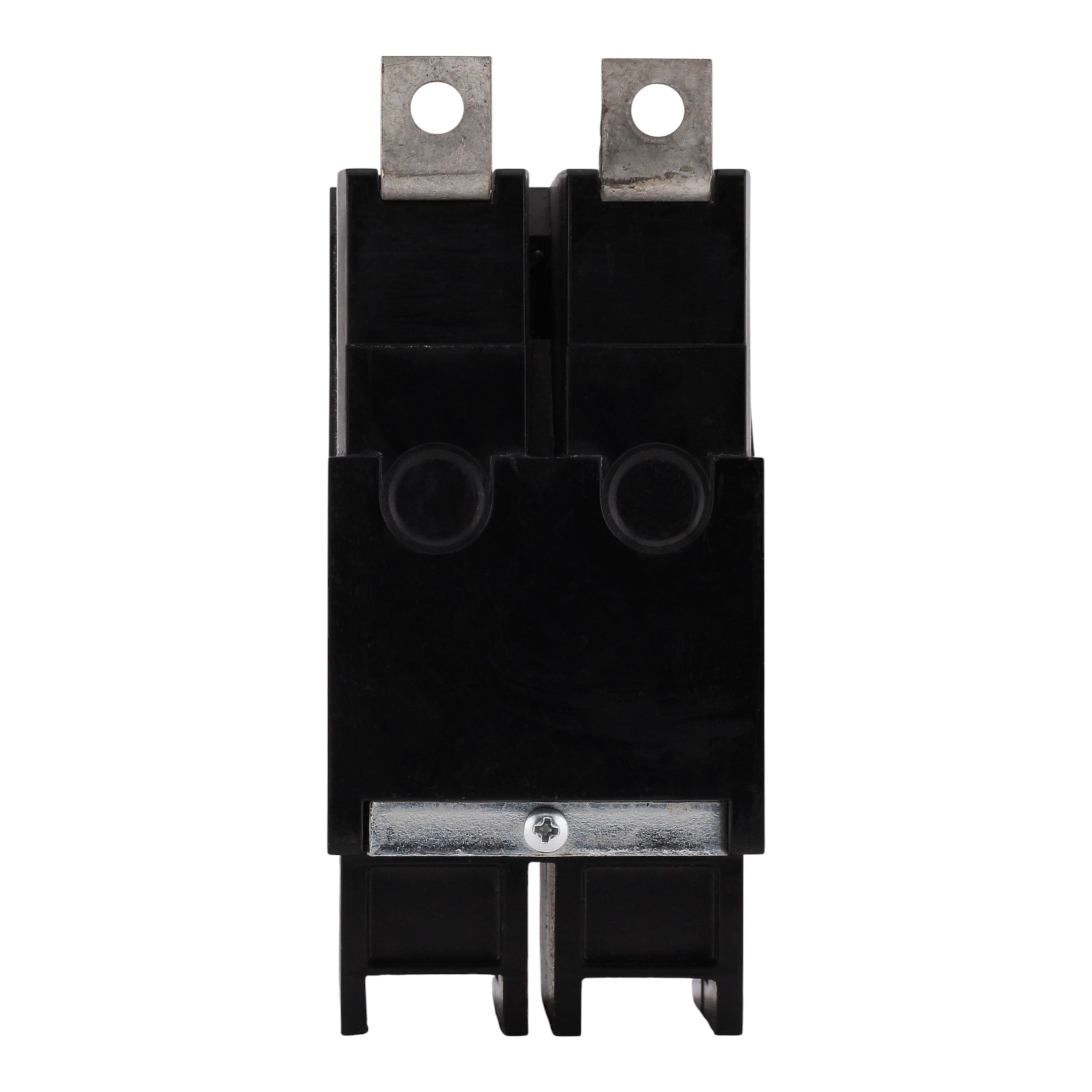

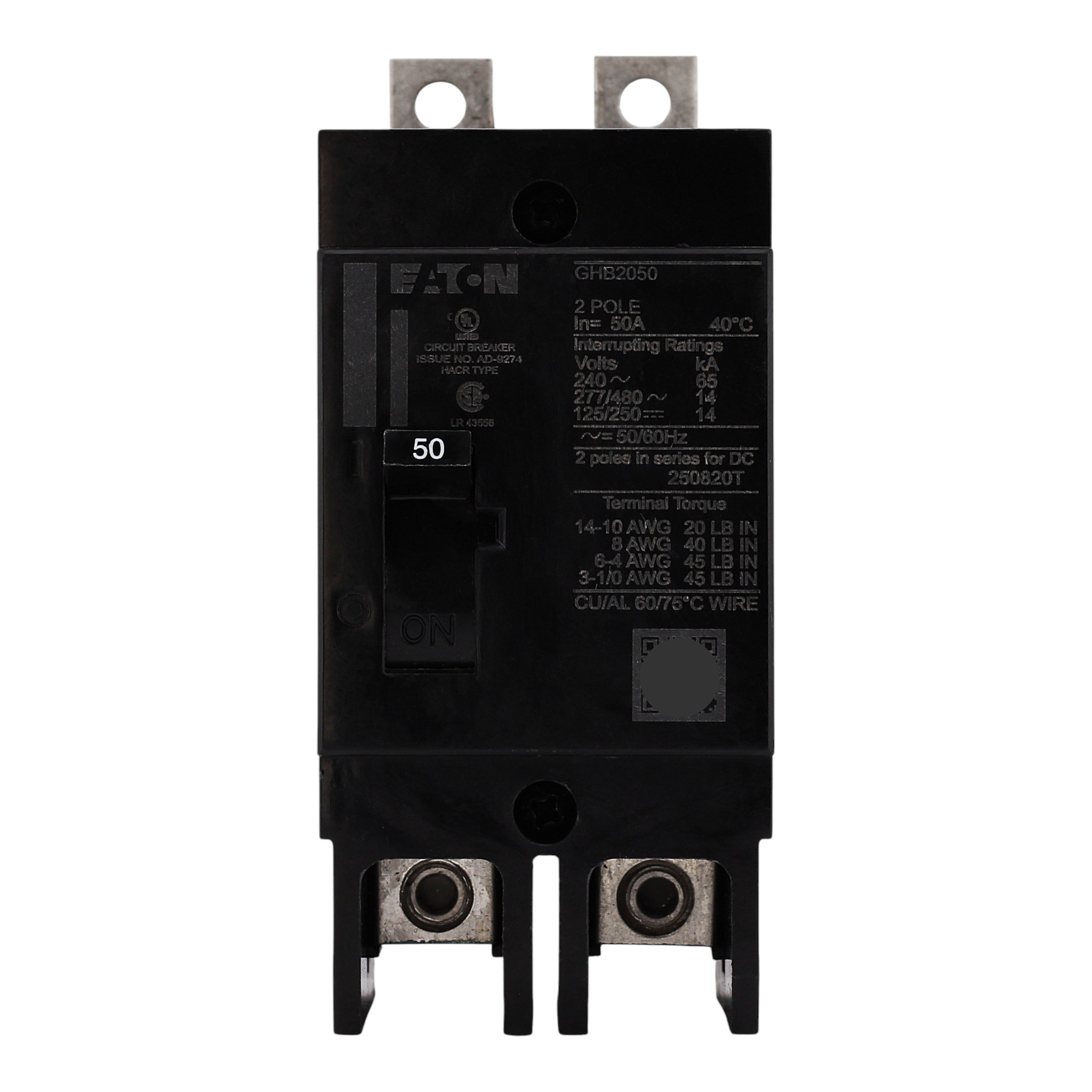

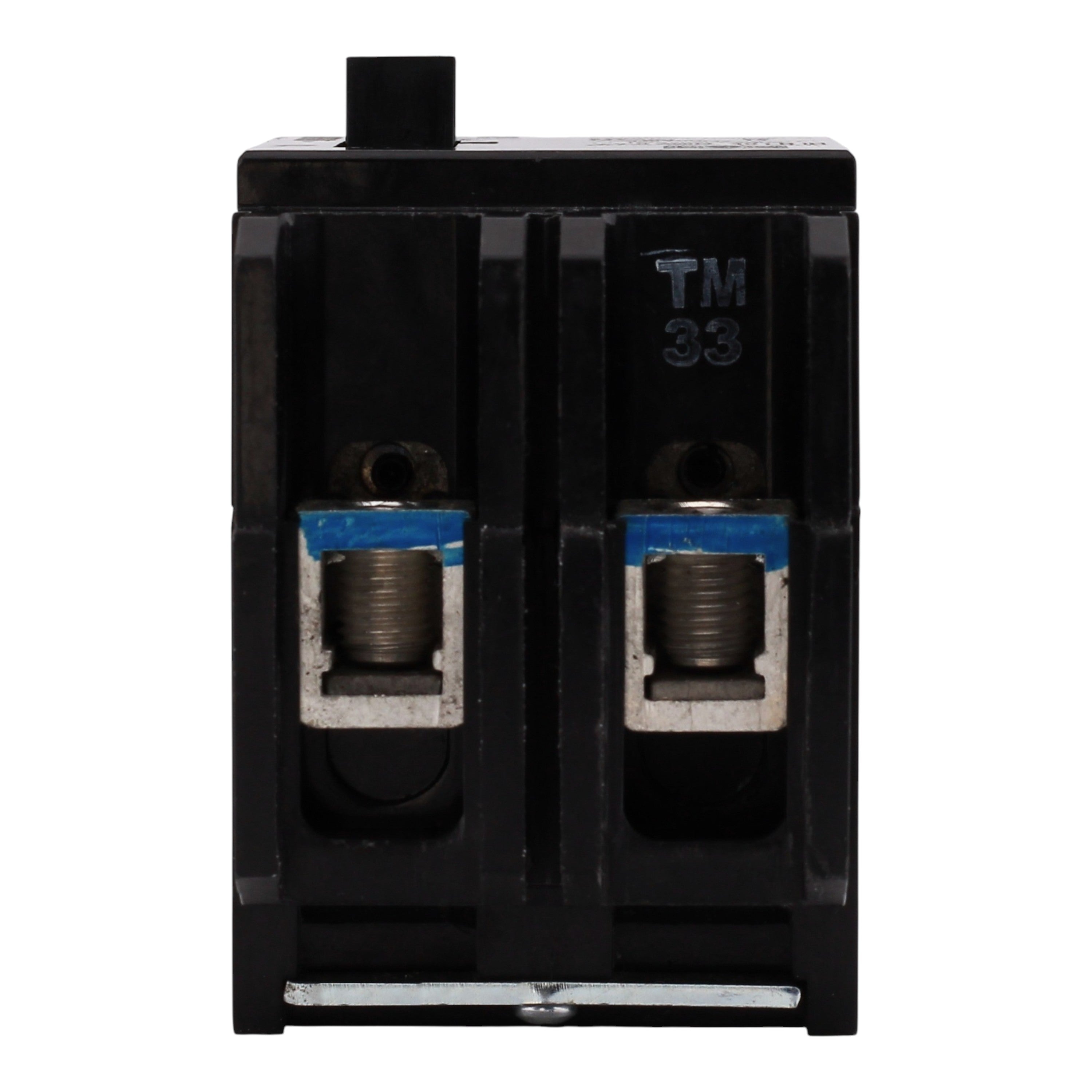

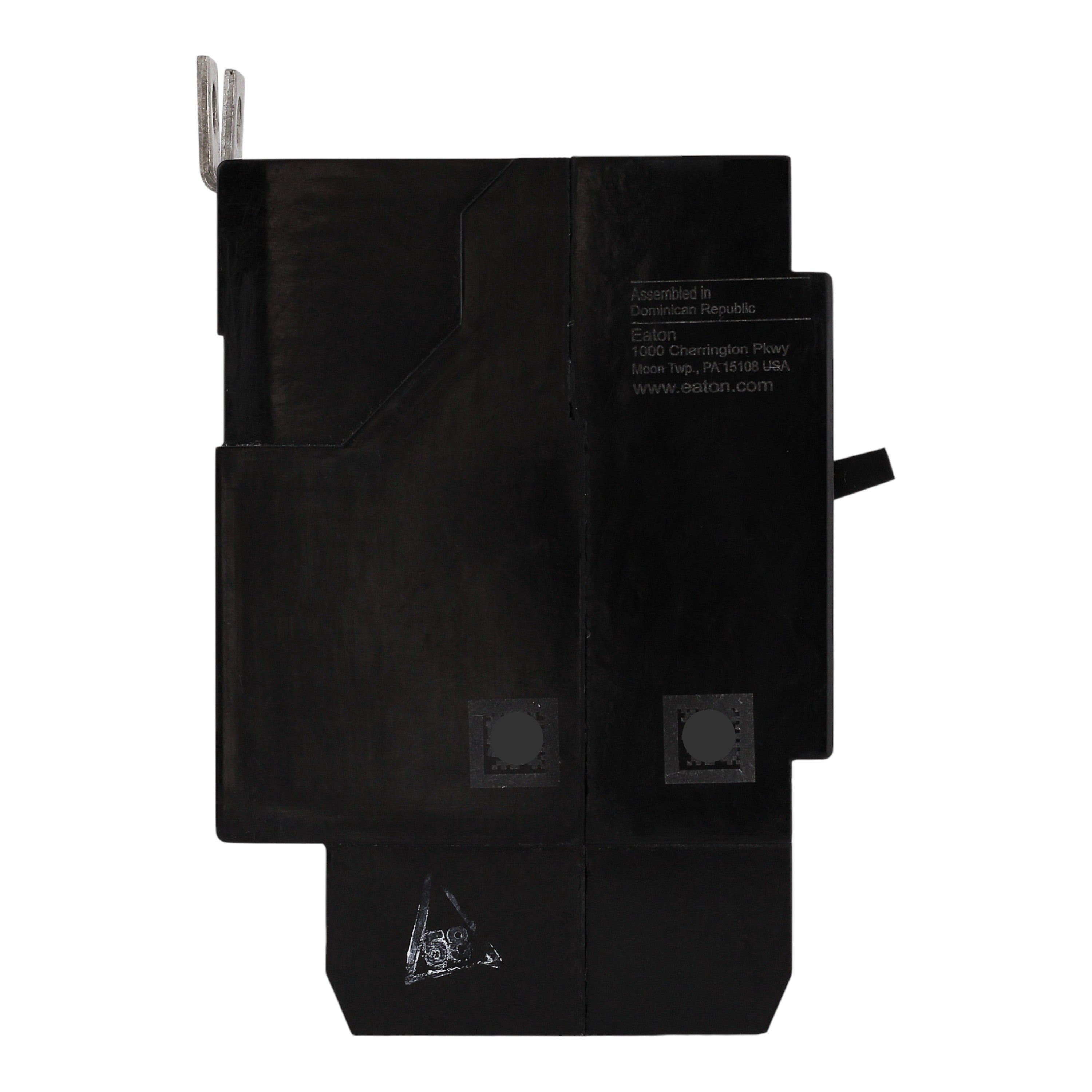

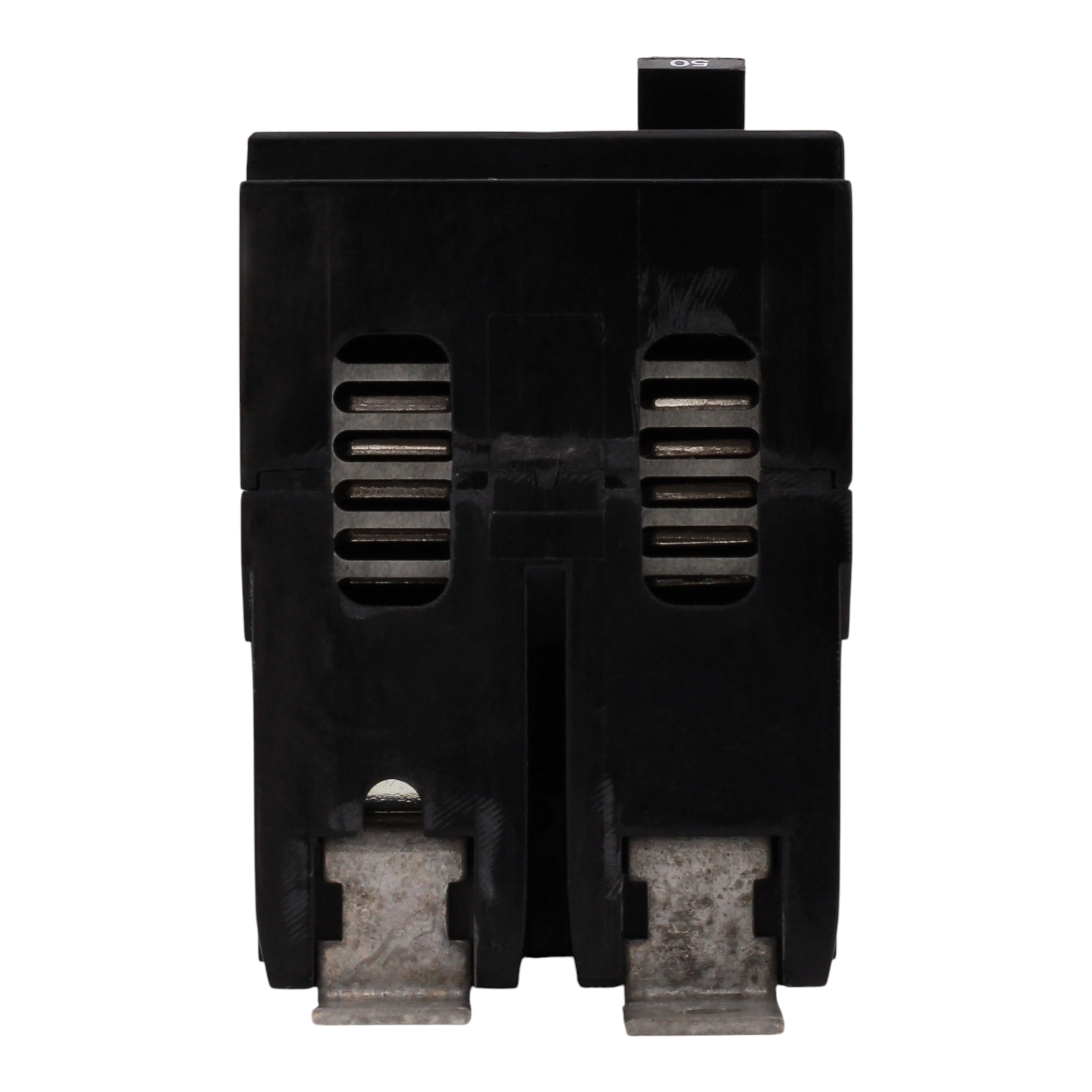

Eaton GHB2050: 50 Amp 2-Pole Series C Molded Case Circuit Breaker, G-Frame, 480Y/277 Vac / 125/250 Vdc, 14kA at 480Y/277V, 65kA at 240V, Fixed Thermal-Fixed Magnetic Trip, UL Listed
-
Manufacturer: Eaton
-
Brand: Eaton
-
Product Range: Series C (compatible with Eaton Series C panelboards and switchboards)
-
UPC: 786679911235
-
Model Number: GHB2050
-
Product Type: Molded case circuit breaker
-
Breaker Type: Fixed thermal, fixed magnetic
-
Amperage: 50 Amps
-
Poles: 2-Pole
-
Voltage: 480Y/277 Vac, 125/250 Vdc
-
Interrupt Rating: 65 kAIC at 240 Vac, 14 kAIC at 480Y/277 Vac
-
Mounting Mode: Bolt-on
-
Trip Type: Fixed thermal, fixed magnetic
-
Frame: G-Frame
-
Frequency Rating: 50/60 Hz
-
Dimensions: Height: 4.0 in; Width: 2.0 in; Depth: 2.63 in
-
Weight: 1.05 lbs
-
Certifications: UL Listed
This Eaton Series C GHB2050 50A 2-pole molded case circuit breaker delivers reliable overcurrent protection for commercial and industrial applications up to 480Y/277 Vac. Featuring fixed thermal and fixed magnetic trips, 65 kAIC at 240V and 14 kAIC at 480Y/277V interrupting capacity, and bolt-on mounting, it is ideal for Eaton Series C panelboards and switchboards requiring robust performance and UL-listed safety.
