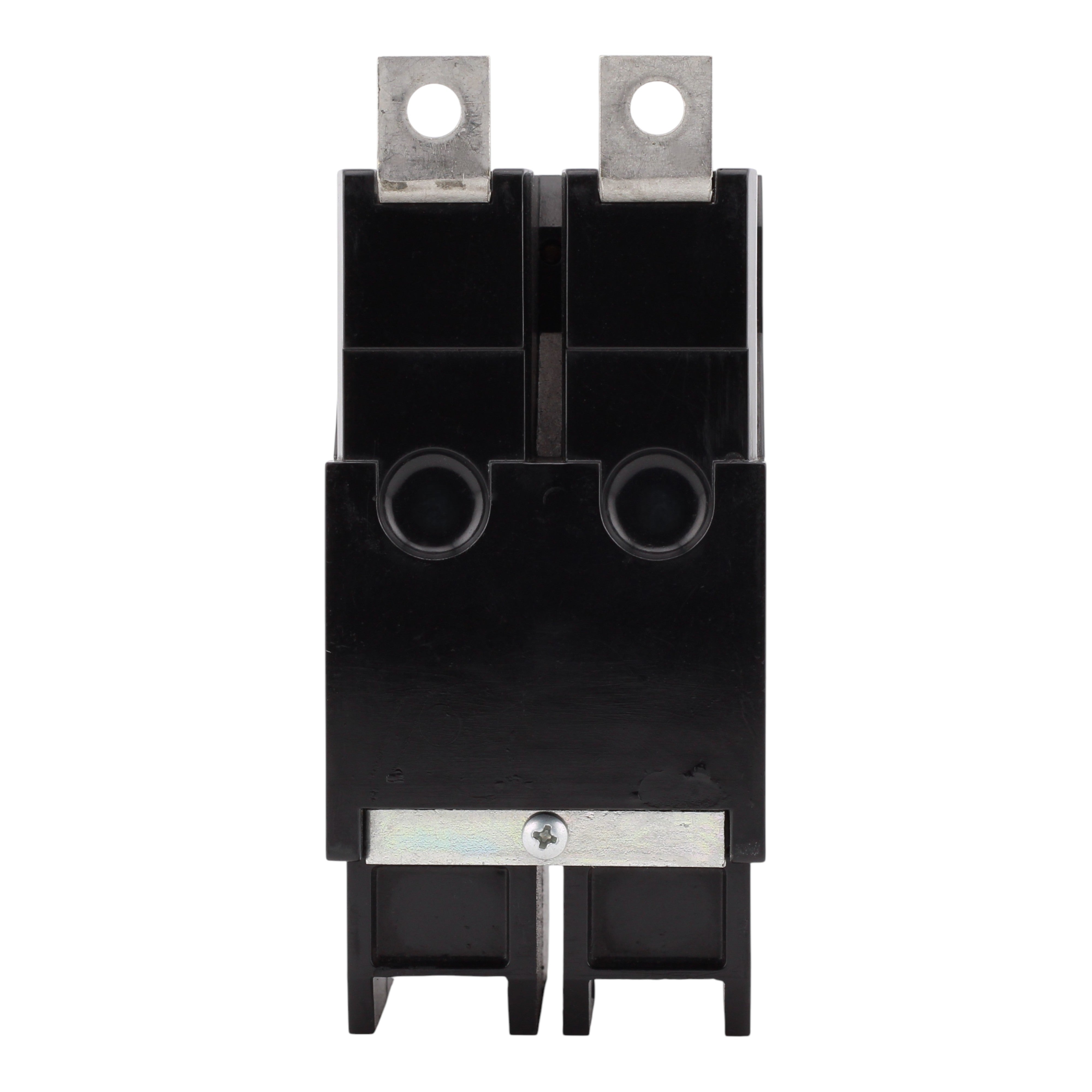

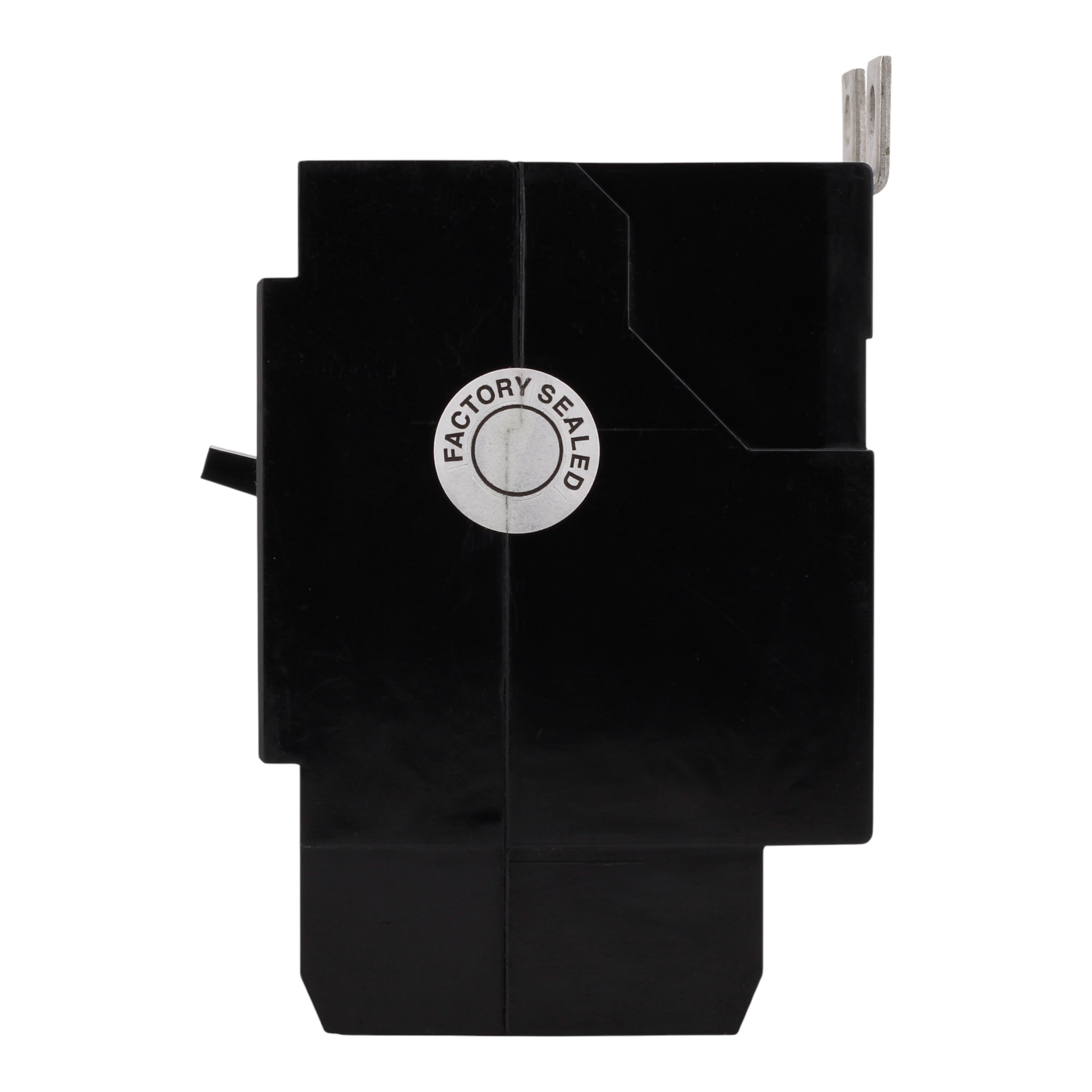

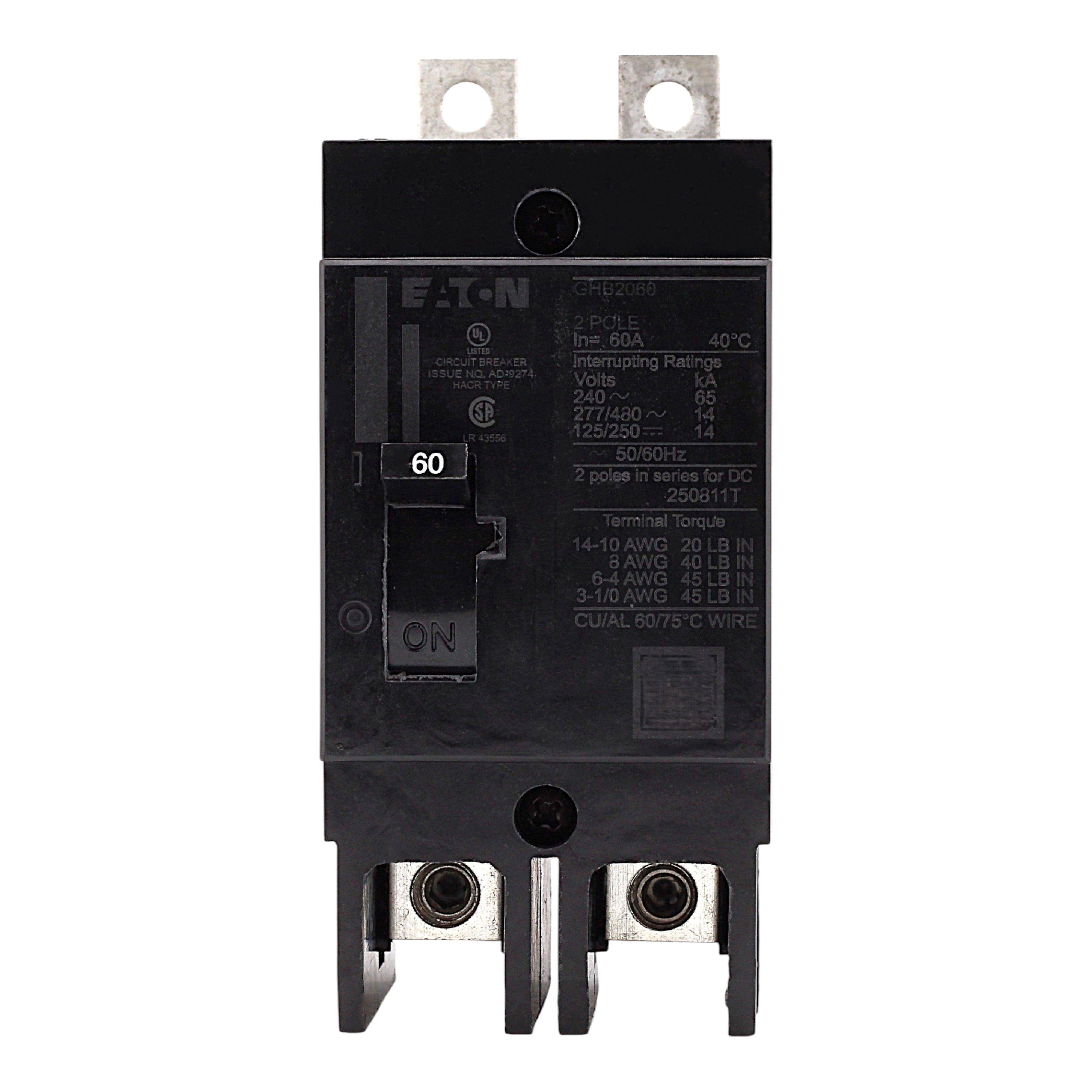

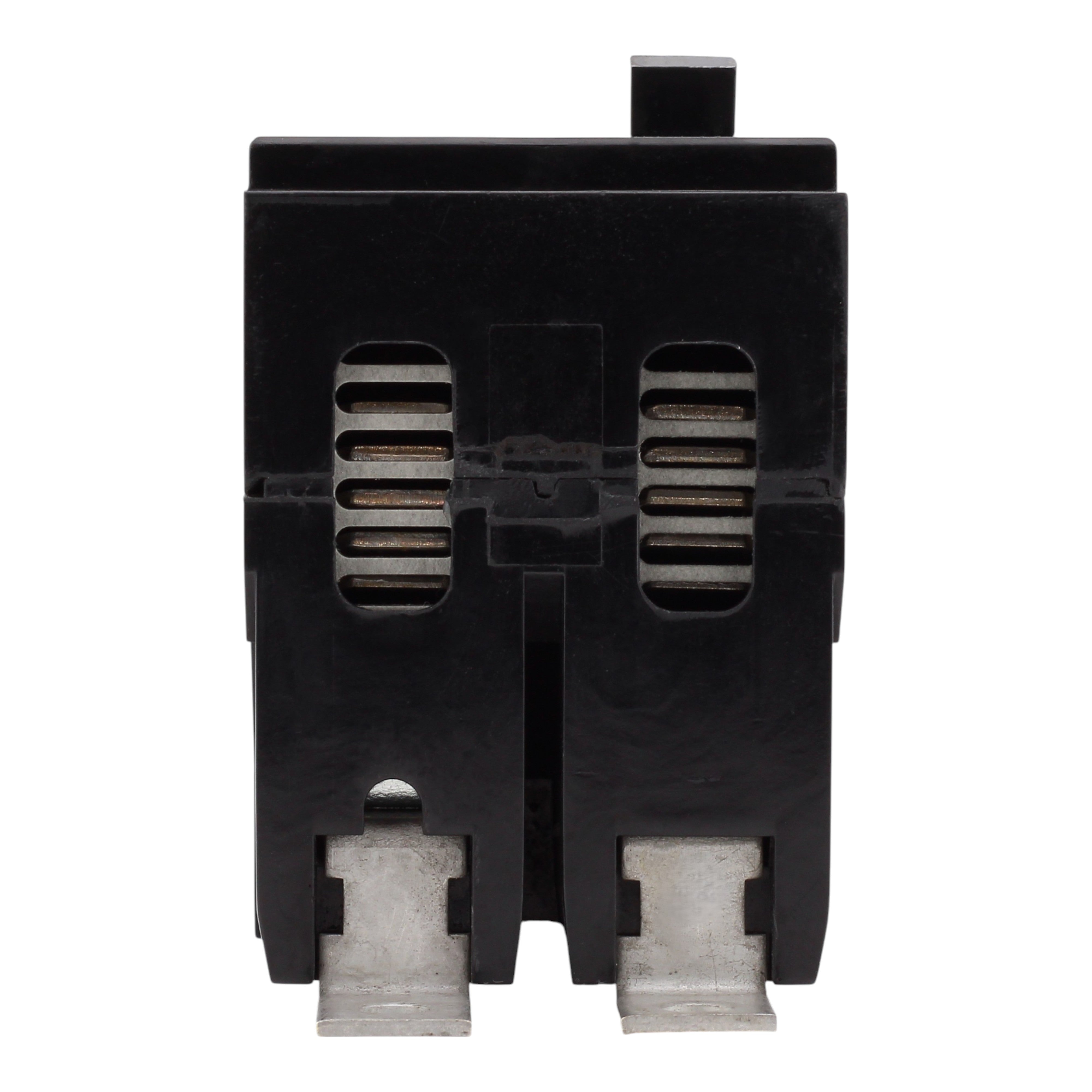

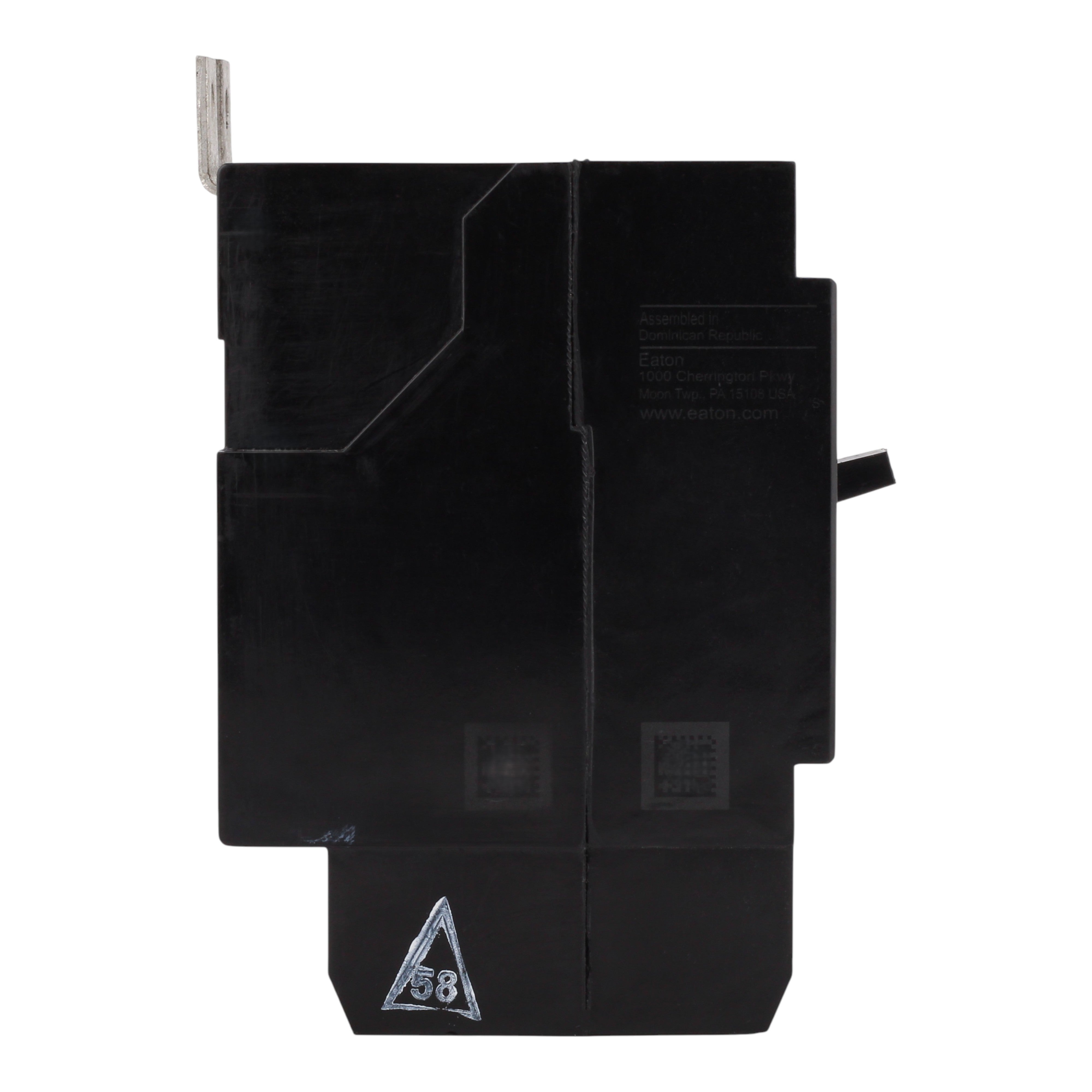

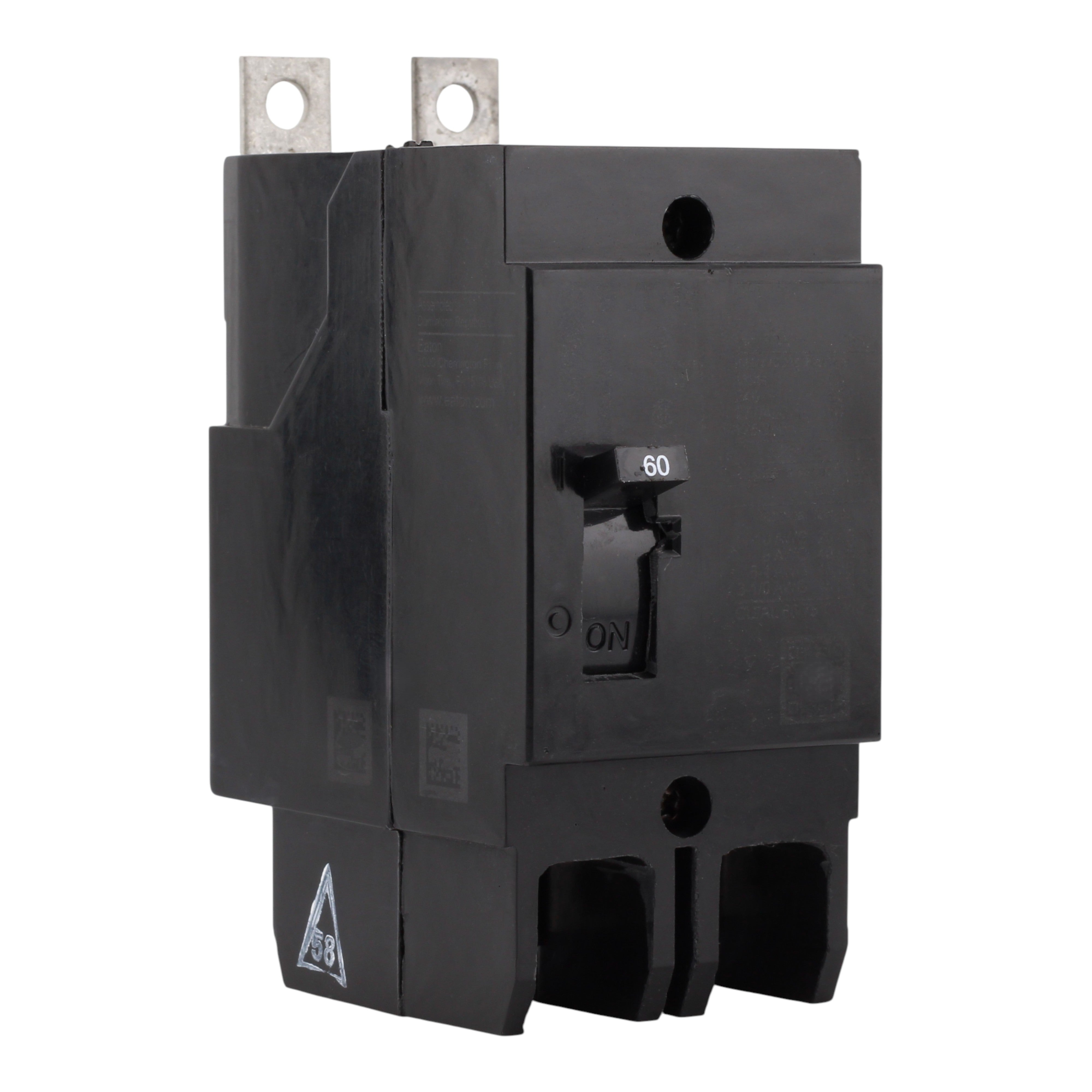

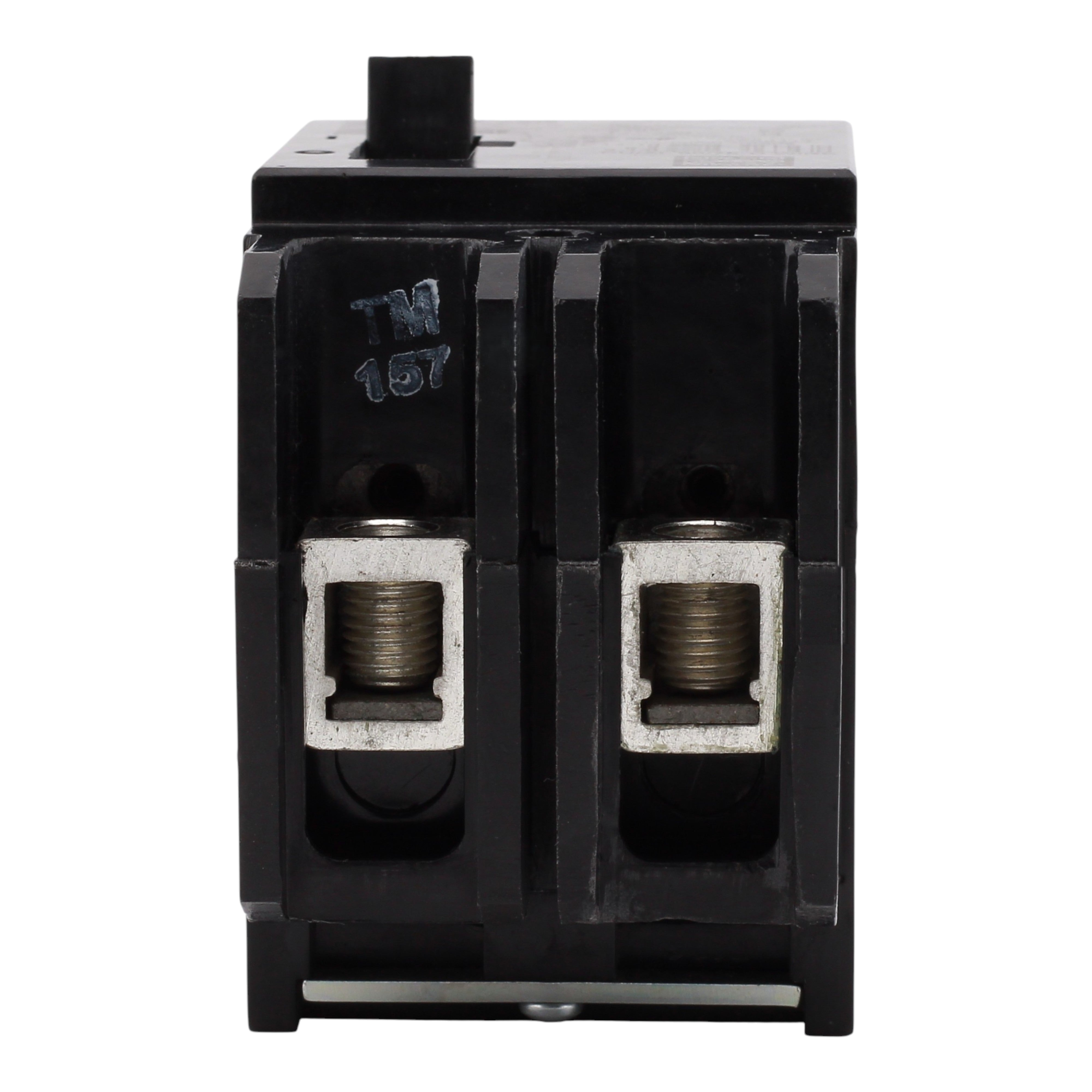

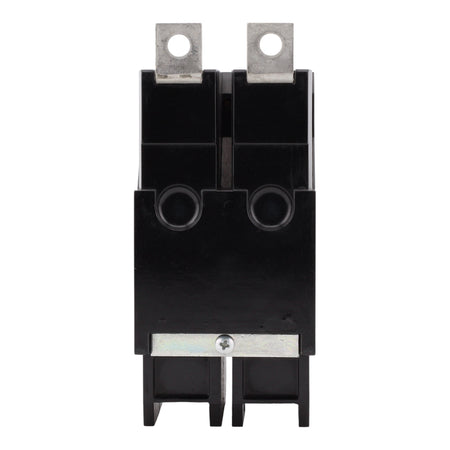

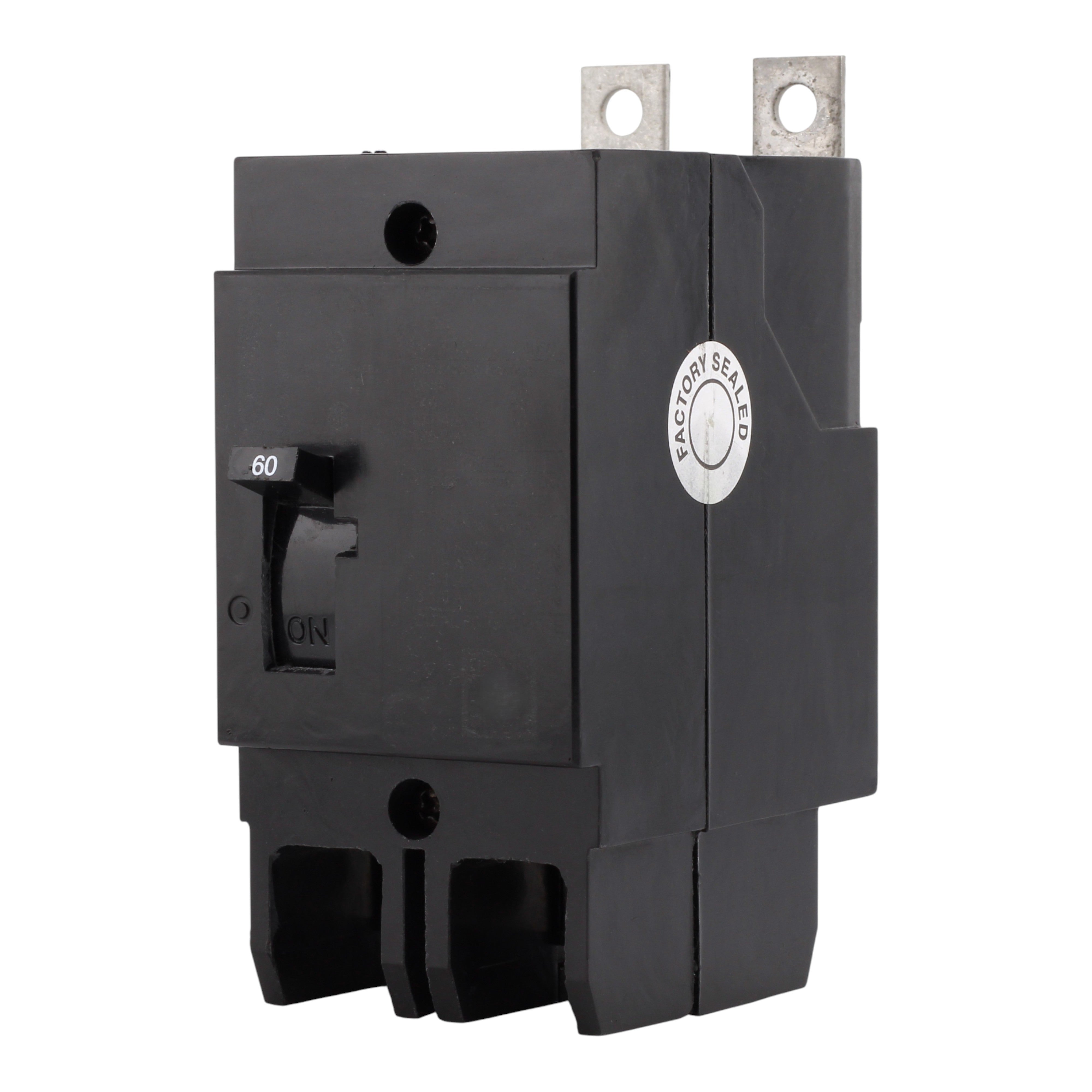

Eaton GHB2060: 60 Amp 2-Pole molded case circuit breaker, 480Y/277 Vac, 125/250 Vdc, fixed thermal/magnetic trip, 65 kAIC@240V/14 kAIC@480V, 50/60 Hz, UL listed.
-
Manufacturer: Eaton
-
Brand: Eaton
-
Product Range: Series C (for Eaton Series C loadcenters and equipment)
-
UPC: 786679172407
-
Model Number: GHB2060
-
Product Type: Molded Case Circuit Breaker
-
Amperage: 60 Amps
-
Poles: 2-Pole
-
Voltage: 480Y/277 Volts AC, 125/250 Volts DC
-
Trip Type: Fixed Thermal, Fixed Magnetic
-
Interrupt Rating: 65 kAIC at 240 Vac; 14 kAIC at 480Y/277 Vac
-
Mounting Mode: Bolt-on
-
Connections Terminals: Line/Load lug
-
Wire Size: #6-350 kcmil Cu/Al
-
Tightening Torque: 275 lb-in
-
Dimensions: Height: 4.0 in; Width: 2.0 in; Depth: 2.63 in
-
Weight: 1.15 lbs
-
Certifications: UL Listed
-
Frequency: 50/60 Hz
This Eaton GHB2060 molded case circuit breaker provides reliable 60A, 2-pole protection for 480Y/277V AC circuits in Series C loadcenters. With fixed thermal/magnetic trip and high interrupt ratings up to 65 kAIC@240V, it ensures robust overcurrent protection for commercial and industrial applications.
