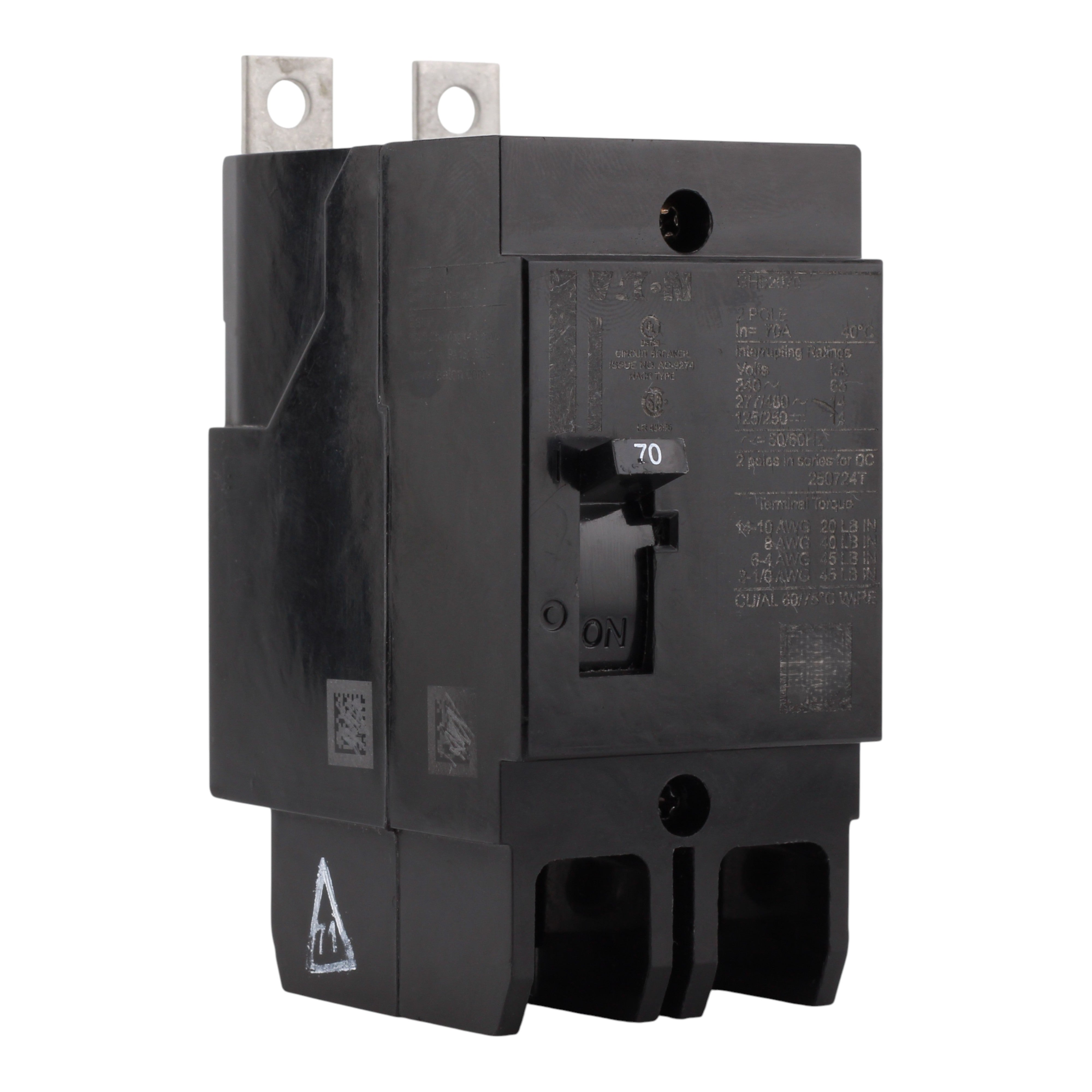

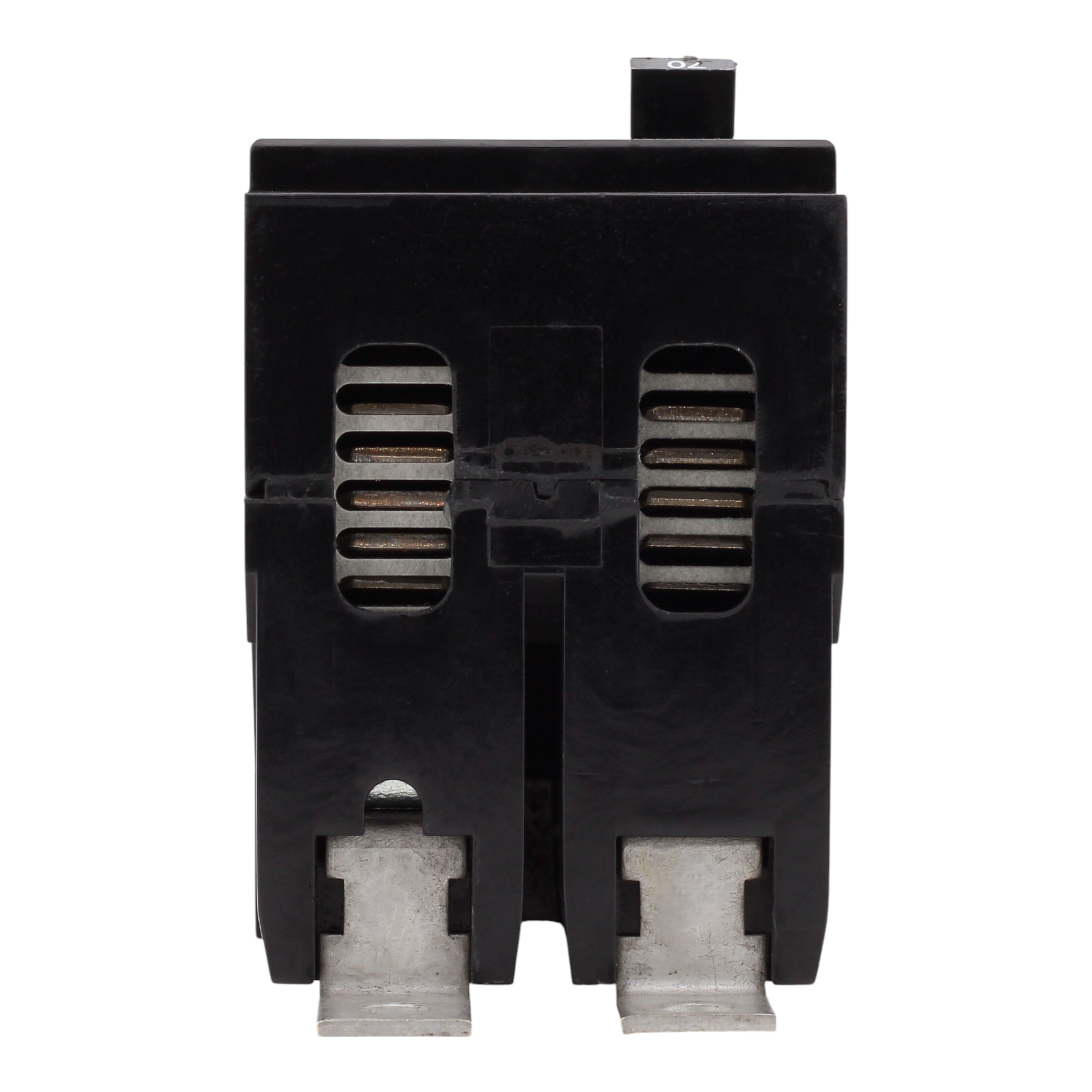

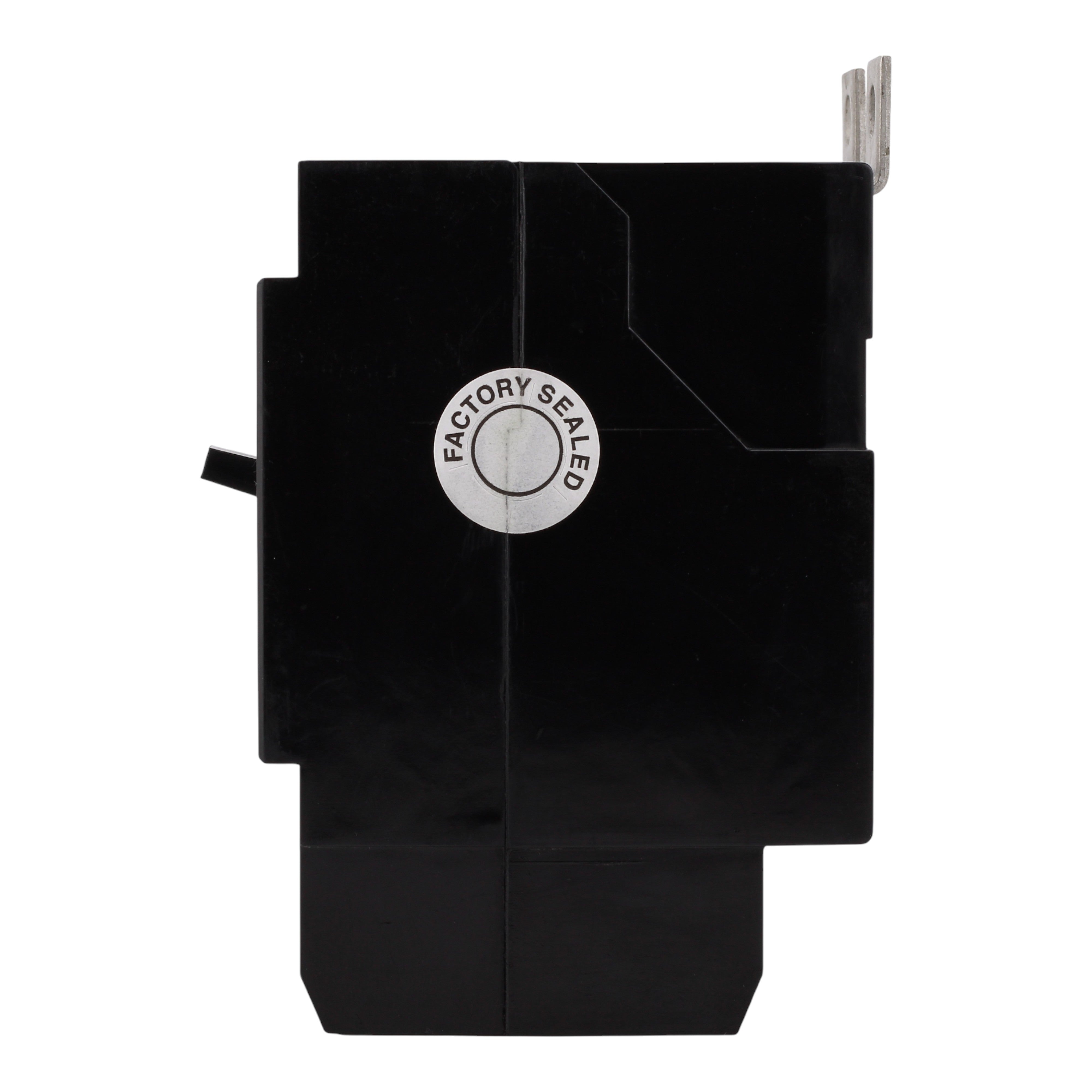

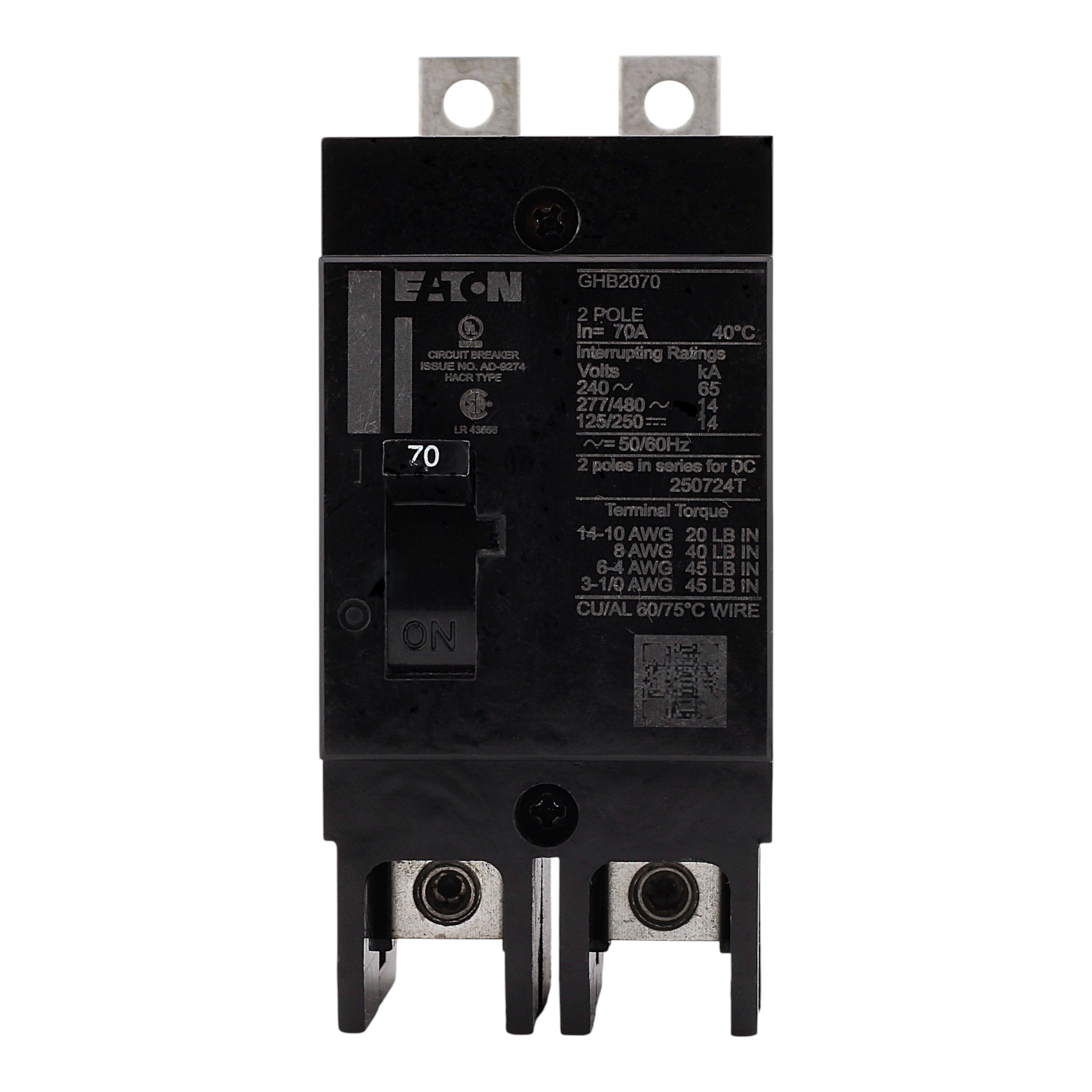

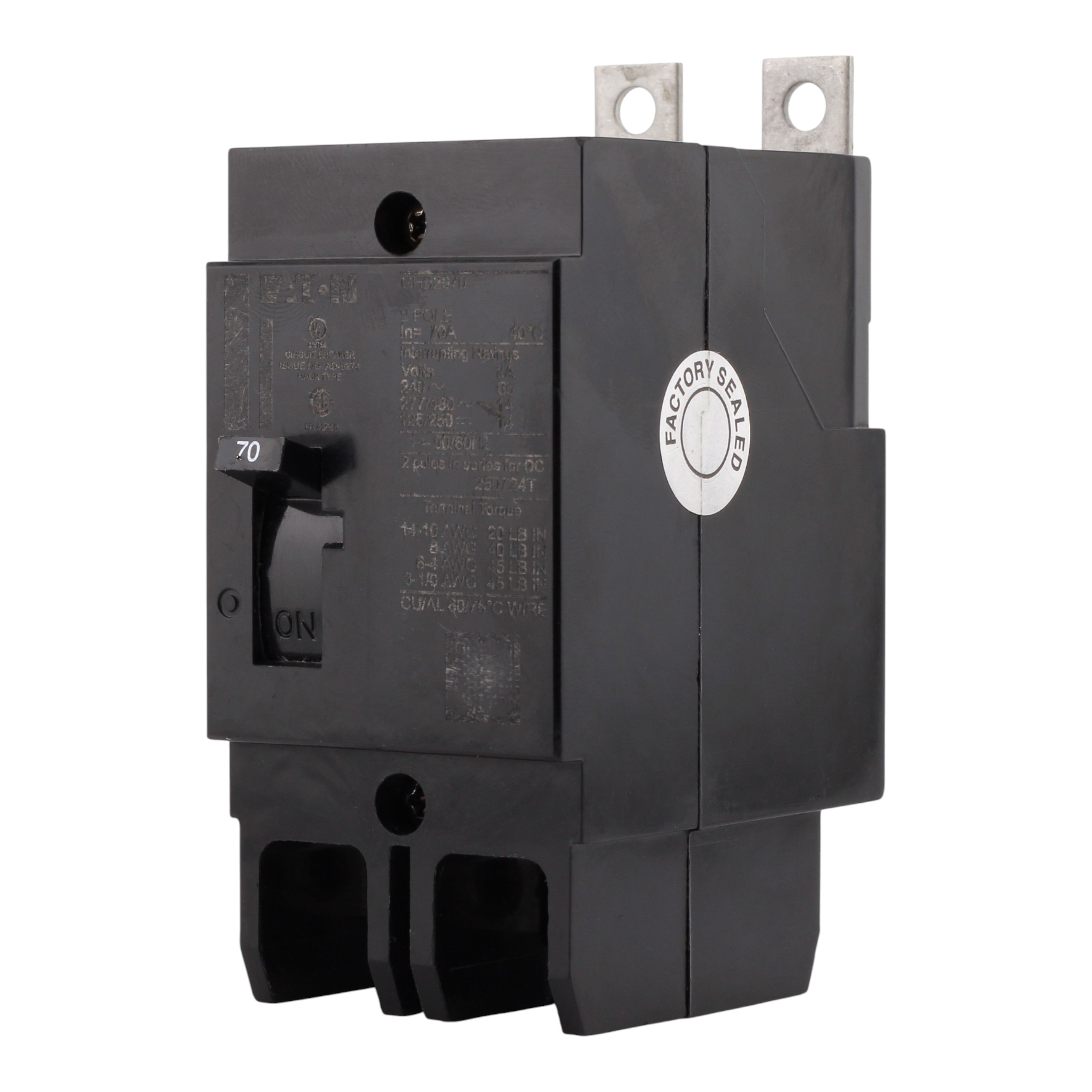

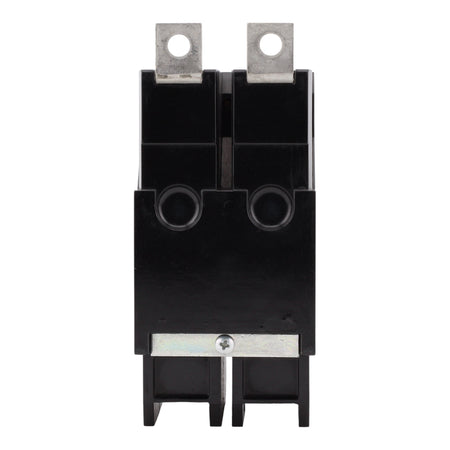

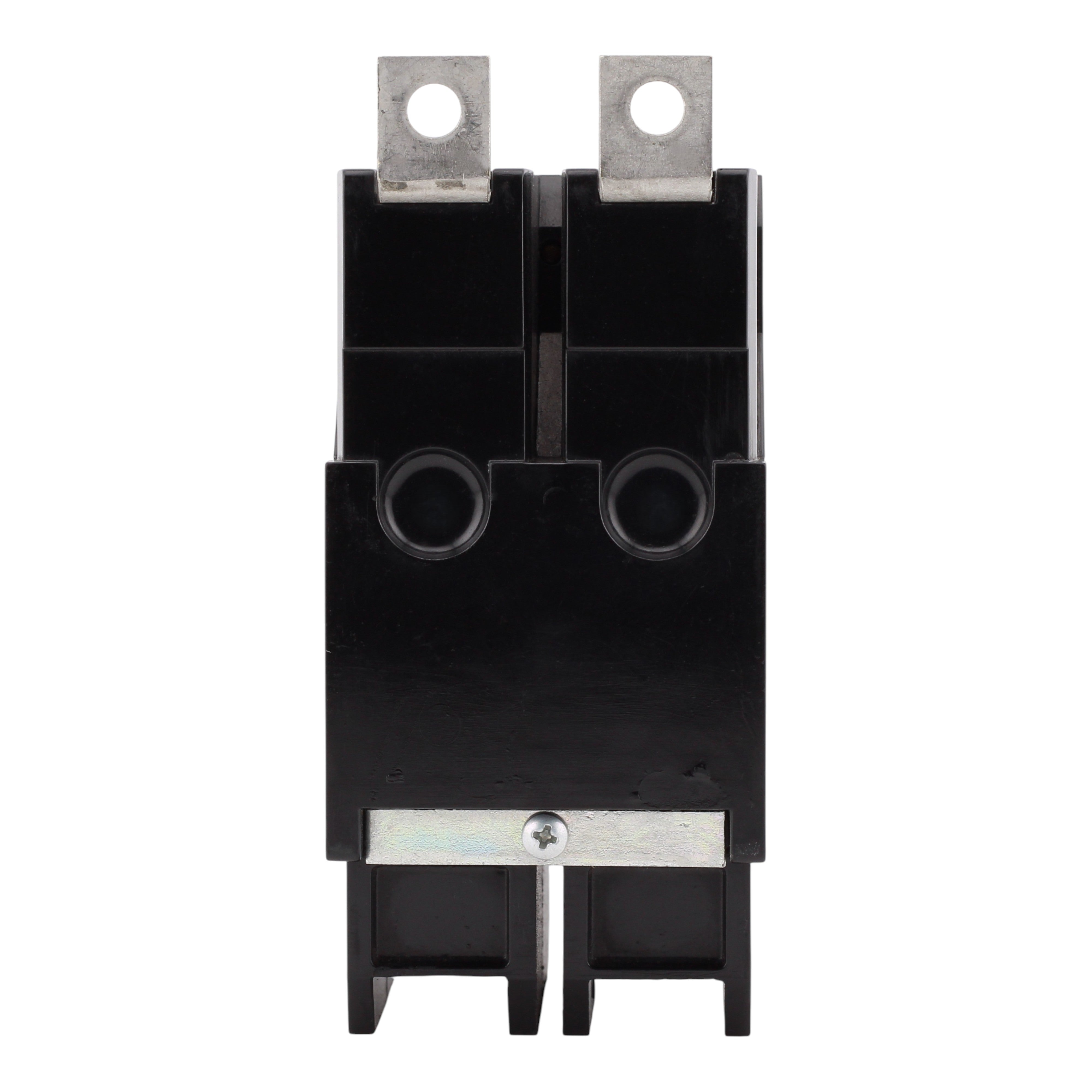

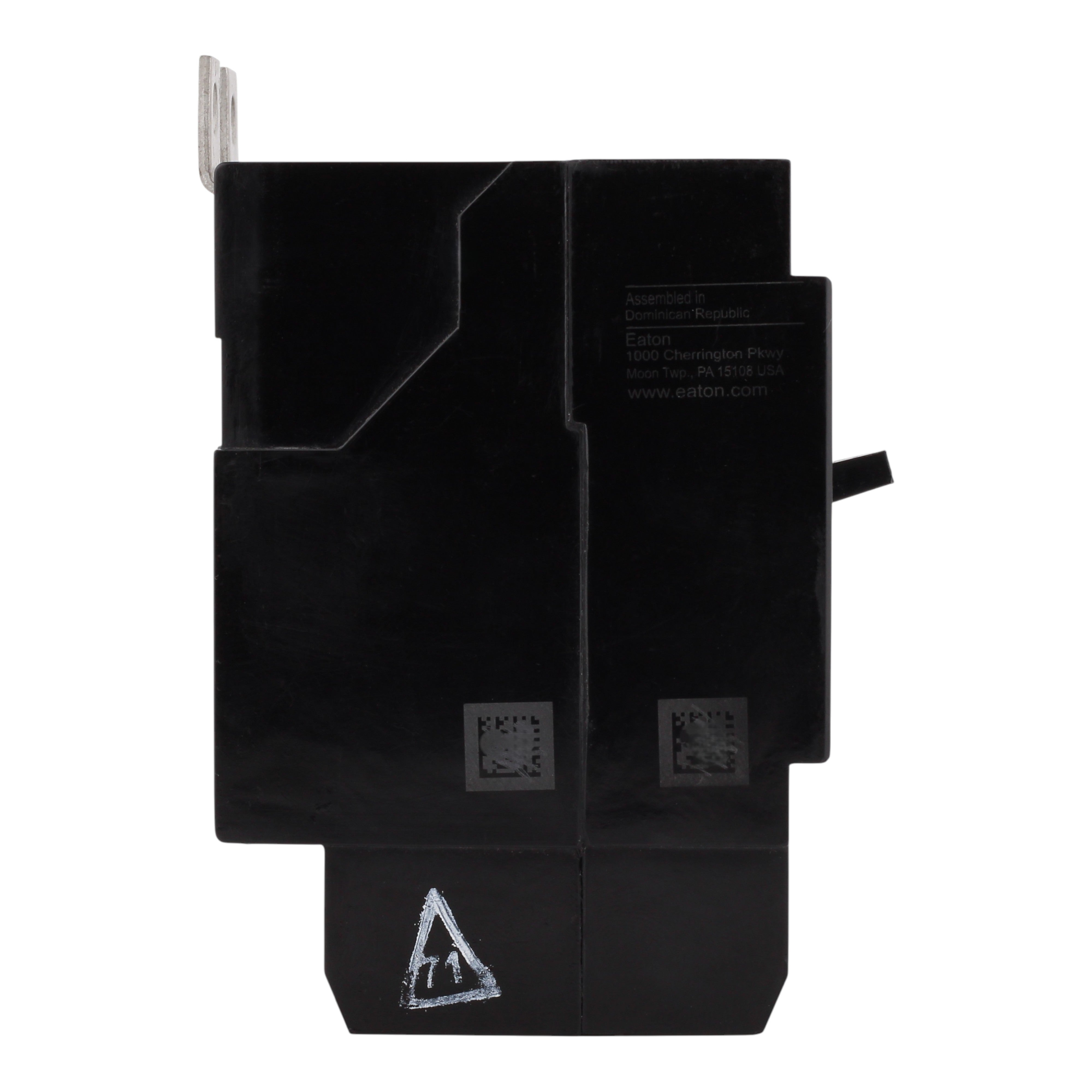

Eaton Series C GHB2070 70A 2P 480Y/277V Molded Case Circuit Breaker

Eaton GHB2070: 70 Amp 2-Pole molded case circuit breaker, 480Y/277 Vac, 125/250 Vdc, fixed thermal/magnetic trip, 65 kAIC@240V/14 kAIC@480V, UL listed.

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: Series C (for Eaton Series C loadcenters and equipment)
• UPC: 786679172520
• Model Number: GHB2070
• Product Type: Molded Case Circuit Breaker
• Amperage: 70 Amps
• Poles: 2-Pole
• Voltage: 480Y/277 Volts AC, 125/250 Volts DC
• Interrupt Rating: 65 kAIC at 240 Vac; 14 kAIC at 480Y/277 Vac
• Mounting Mode: Bolt-on
• Connections Terminals: Line/Load lugs
• Wire Size: (1) #4-300 kcmil Cu/Al per terminal
• Tightening Torque: 50 lb-in
• Dimensions: Height: 4.0 in; Width: 2.0 in; Depth: 2.63 in
• Weight: 1.15 lbs
• Certifications: UL Listed
• Frequency: 50/60 Hz

This Eaton GHB2070 molded case circuit breaker provides reliable 70A, 2-pole protection for 480Y/277V AC circuits in Series C loadcenters. With fixed thermal/magnetic trip and high interrupt ratings up to 65 kAIC@240V, it ensures enhanced safety for commercial and industrial applications.
