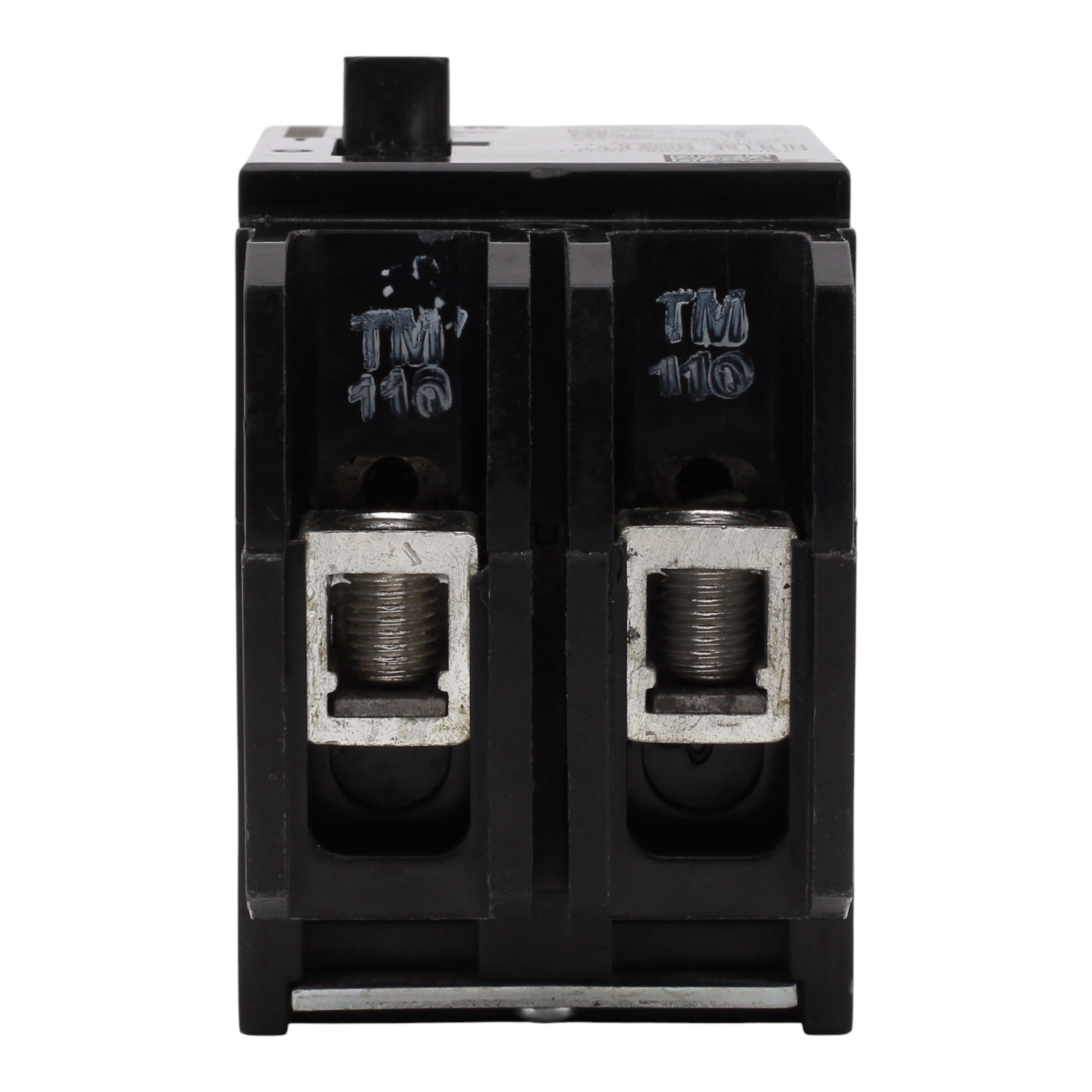

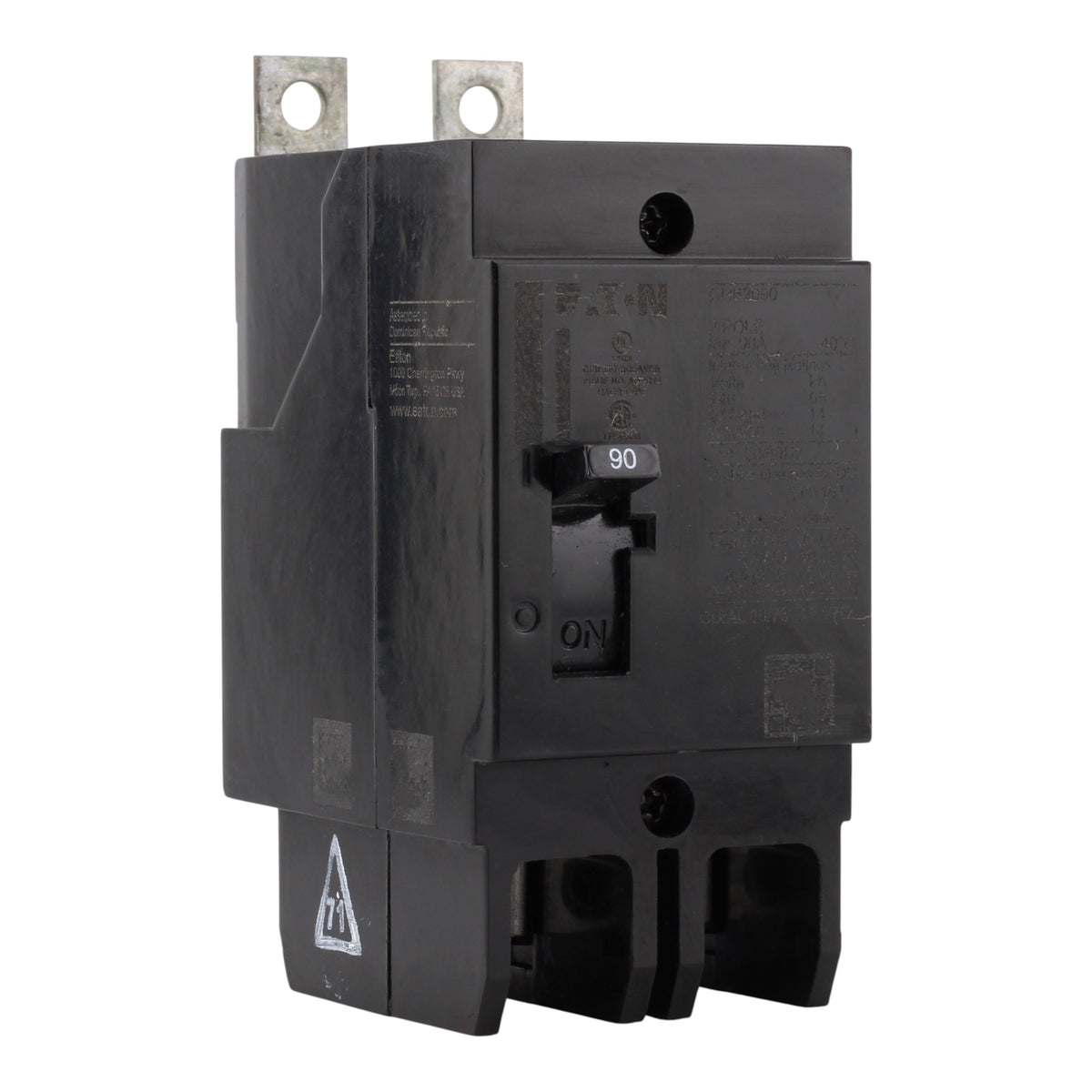

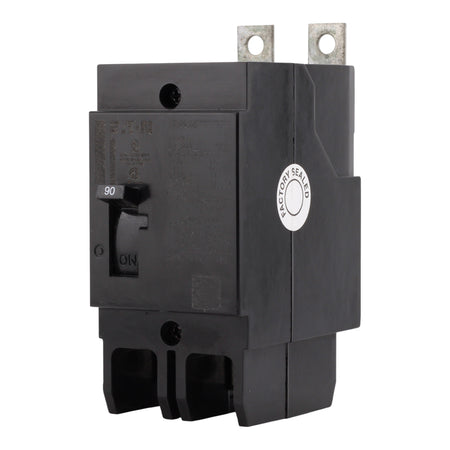

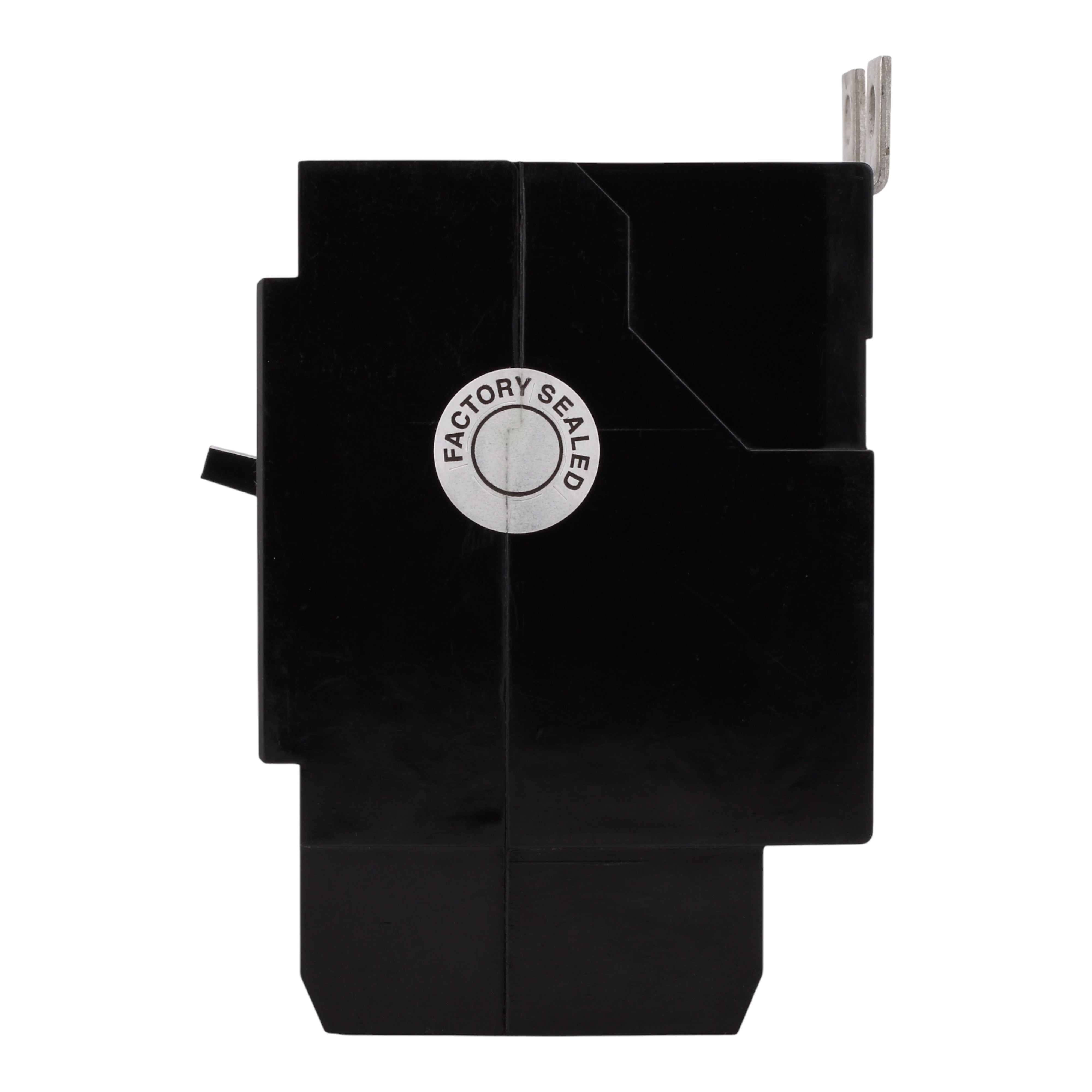

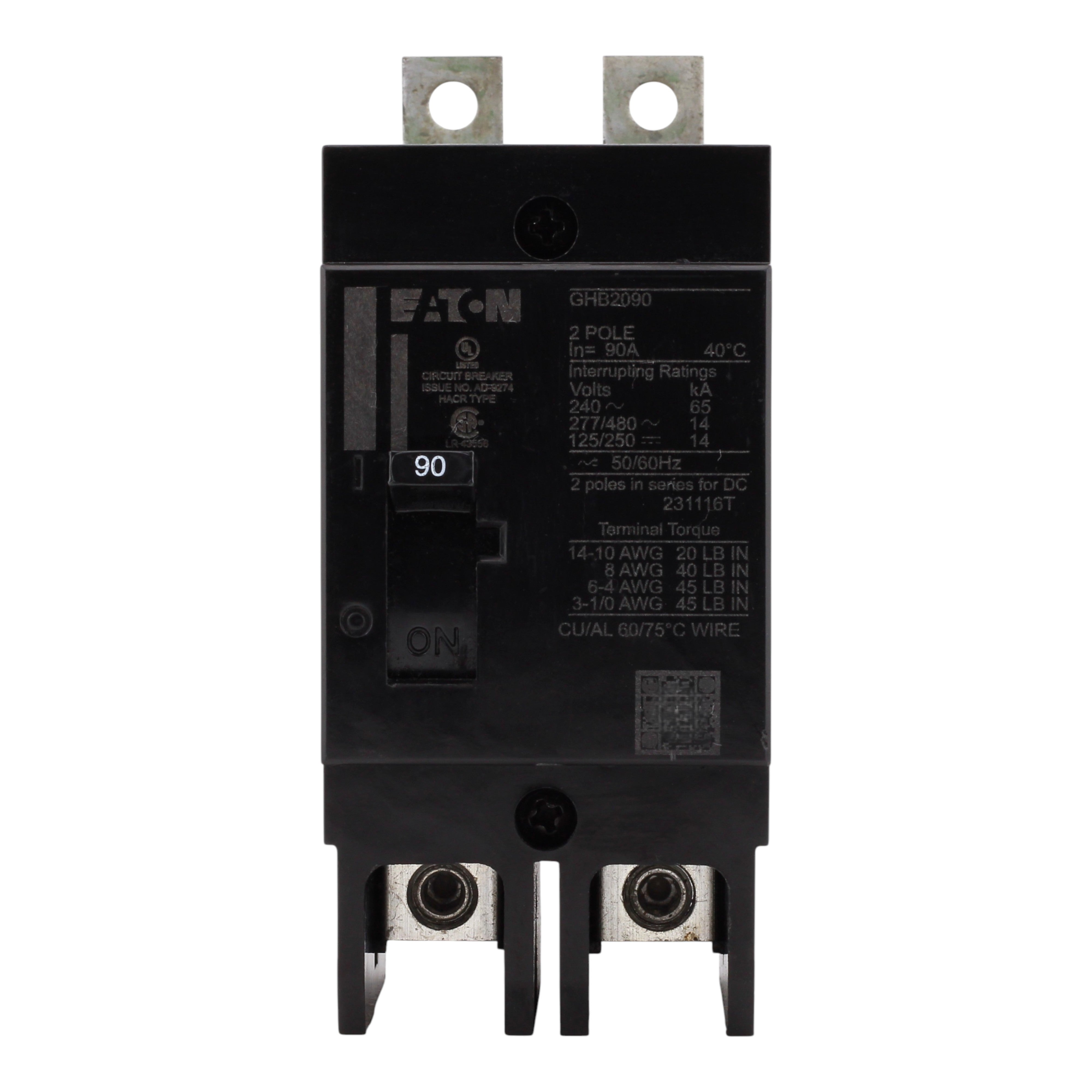

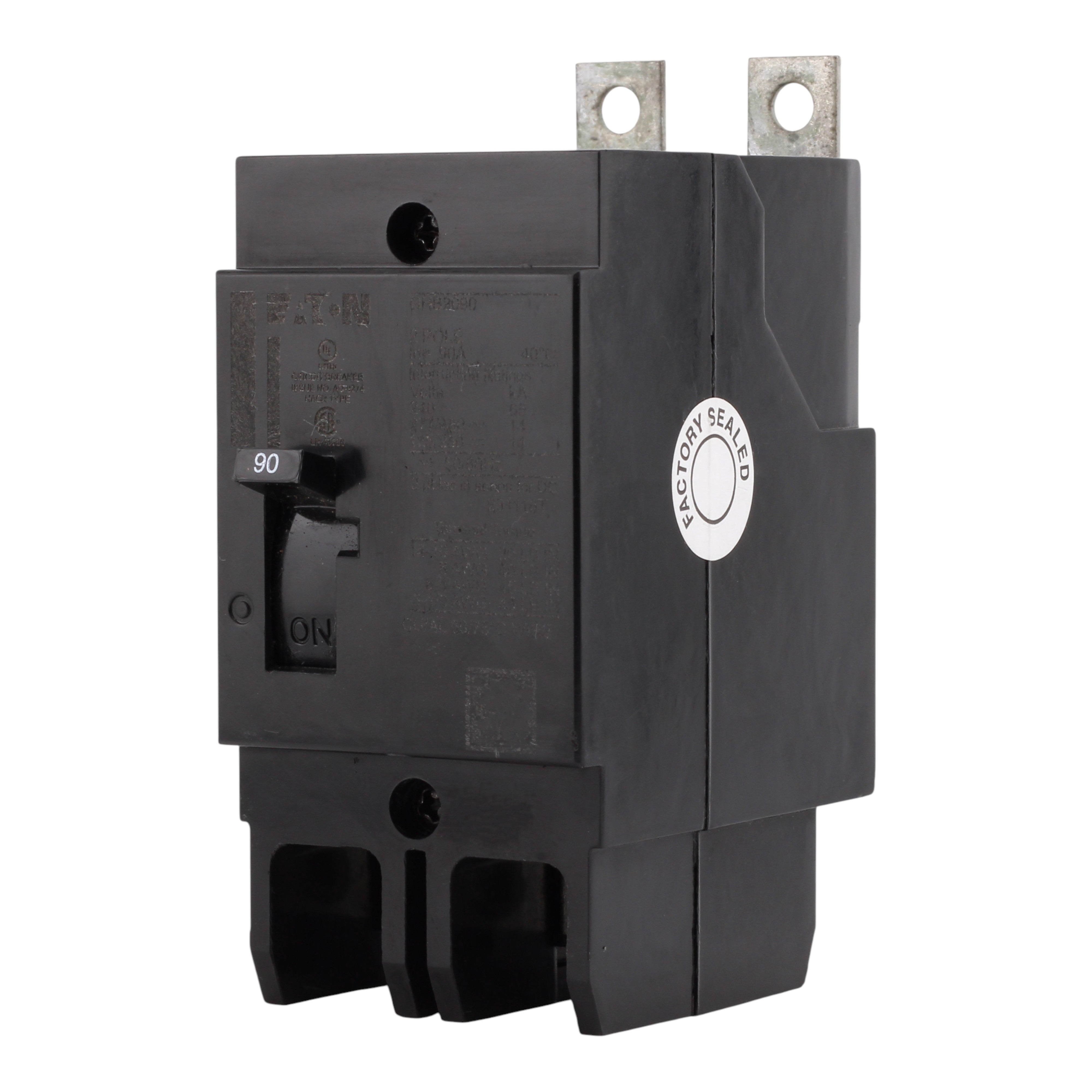

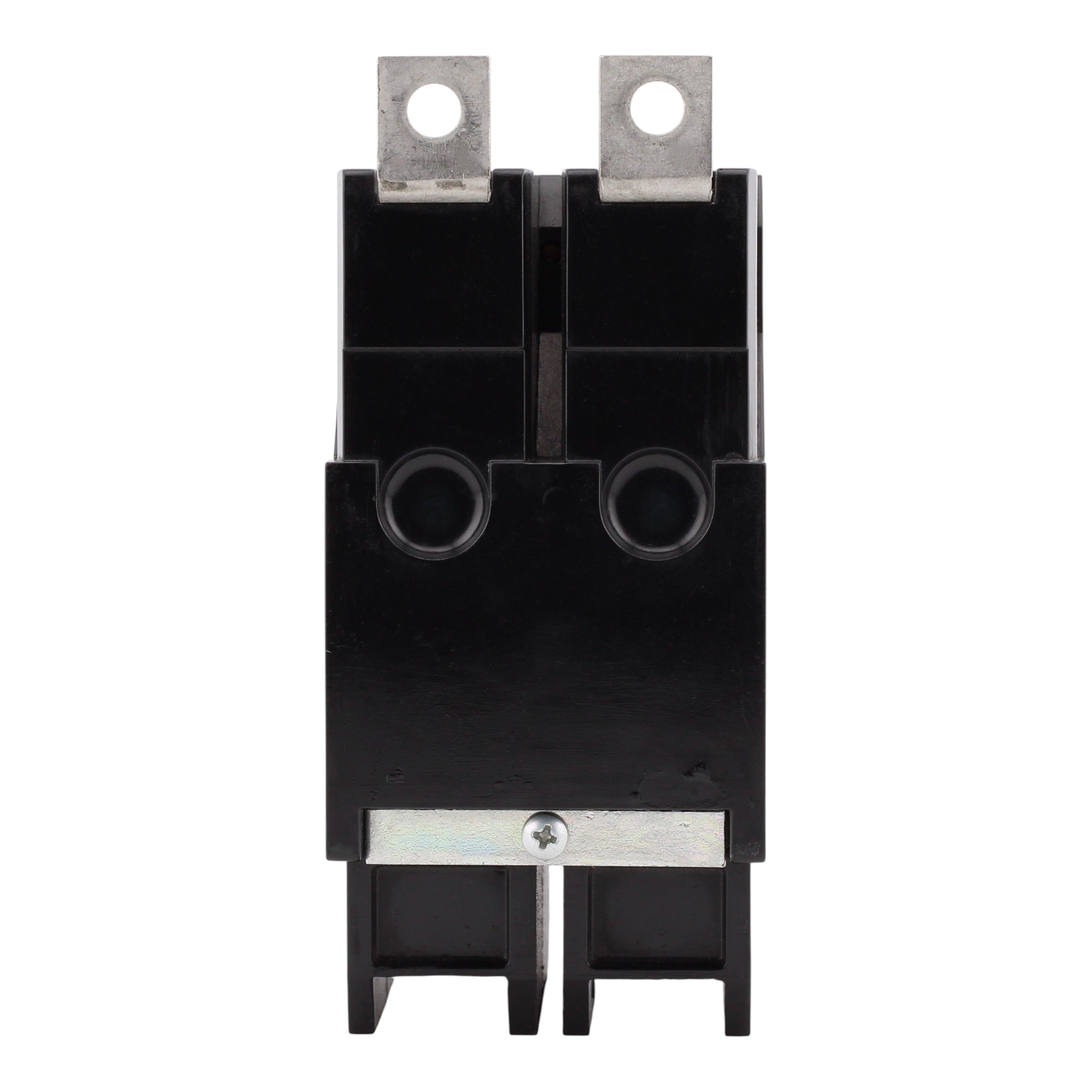

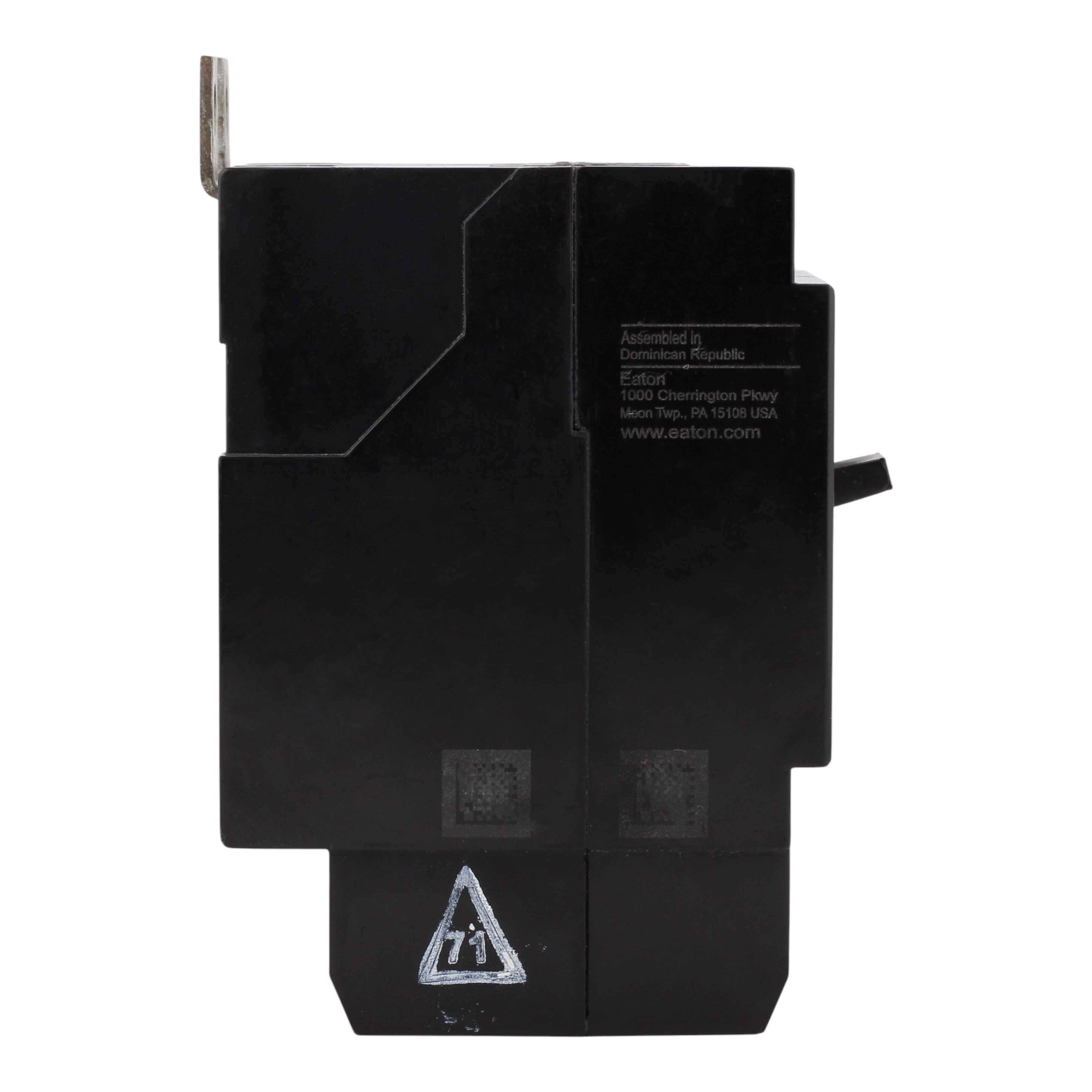

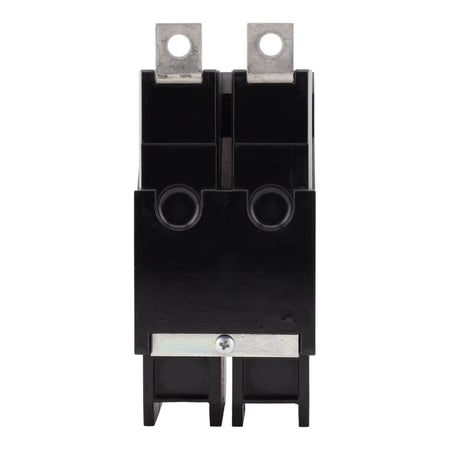

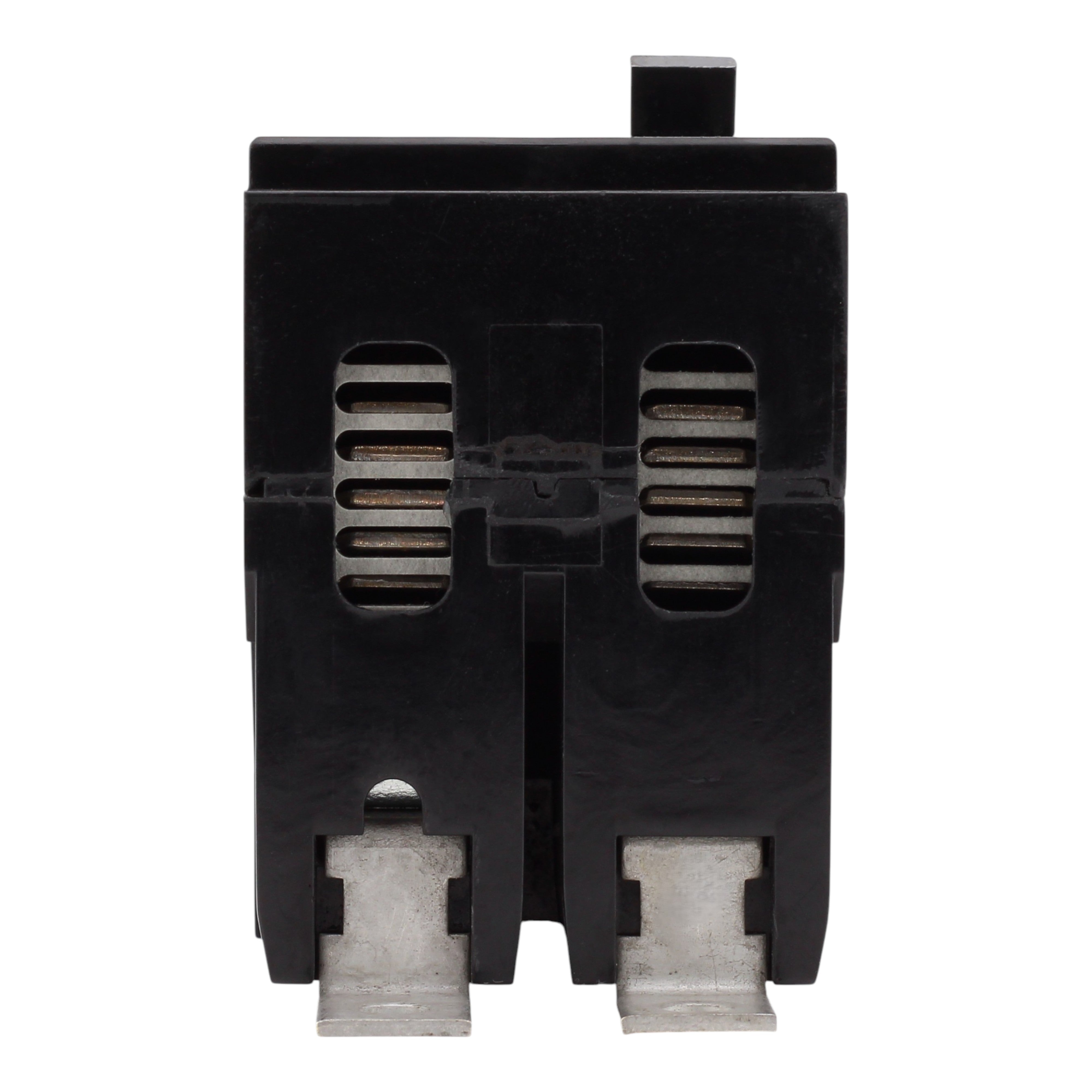

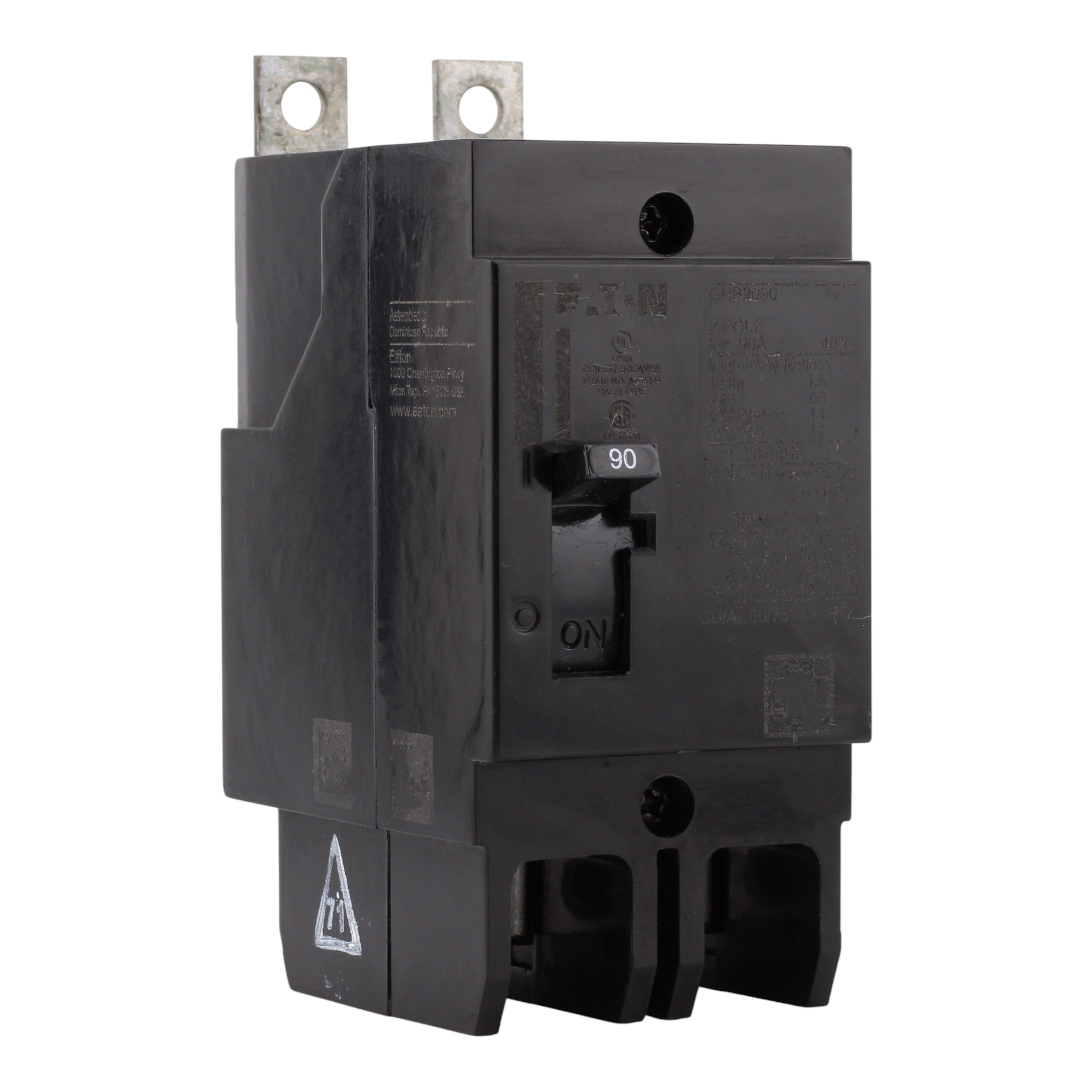

Eaton GHB2090: 90 Amp 2-Pole molded case circuit breaker, 480Y/277 Vac, 125/250 Vdc, fixed thermal/magnetic trip, 65kAIC@240V/14kAIC@480V, 50/60 Hz, UL listed.
-
Manufacturer: Eaton
-
Brand: Eaton
-
Product Range: Series C (for Eaton Series C loadcenters and equipment)
-
UPC: 786679172544
-
Model Number: GHB2090
-
Product Type: Molded Case Circuit Breaker
-
Amperage: 90 Amps
-
Poles: 2-Pole
-
Voltage: 480Y/277 Volts AC, 125/250 Volts DC
-
Interrupt Rating: 65 kAIC at 240 Vac; 14 kAIC at 480Y/277 Vac
-
Mounting Mode: Bolt-on
-
Connections Terminals: Box lug
-
Wire Size: (1) #4-300 kcmil Cu/Al per pole
-
Tightening Torque: 50 lb-in
-
Dimensions: Height: 4.0 in; Width: 2.0 in; Depth: 2.63 in
-
Weight: 1.15 lbs
-
Certifications: UL Listed
-
Frequency: 50/60 Hz
-
Trip Type: Fixed thermal, fixed magnetic
This Eaton GHB2090 molded case circuit breaker provides reliable 90A, 2-pole protection for 480Y/277V AC circuits in Series C loadcenters. With fixed thermal/magnetic trip and high interrupt ratings up to 65kAIC@240V, it ensures robust overcurrent protection for commercial and industrial applications.
