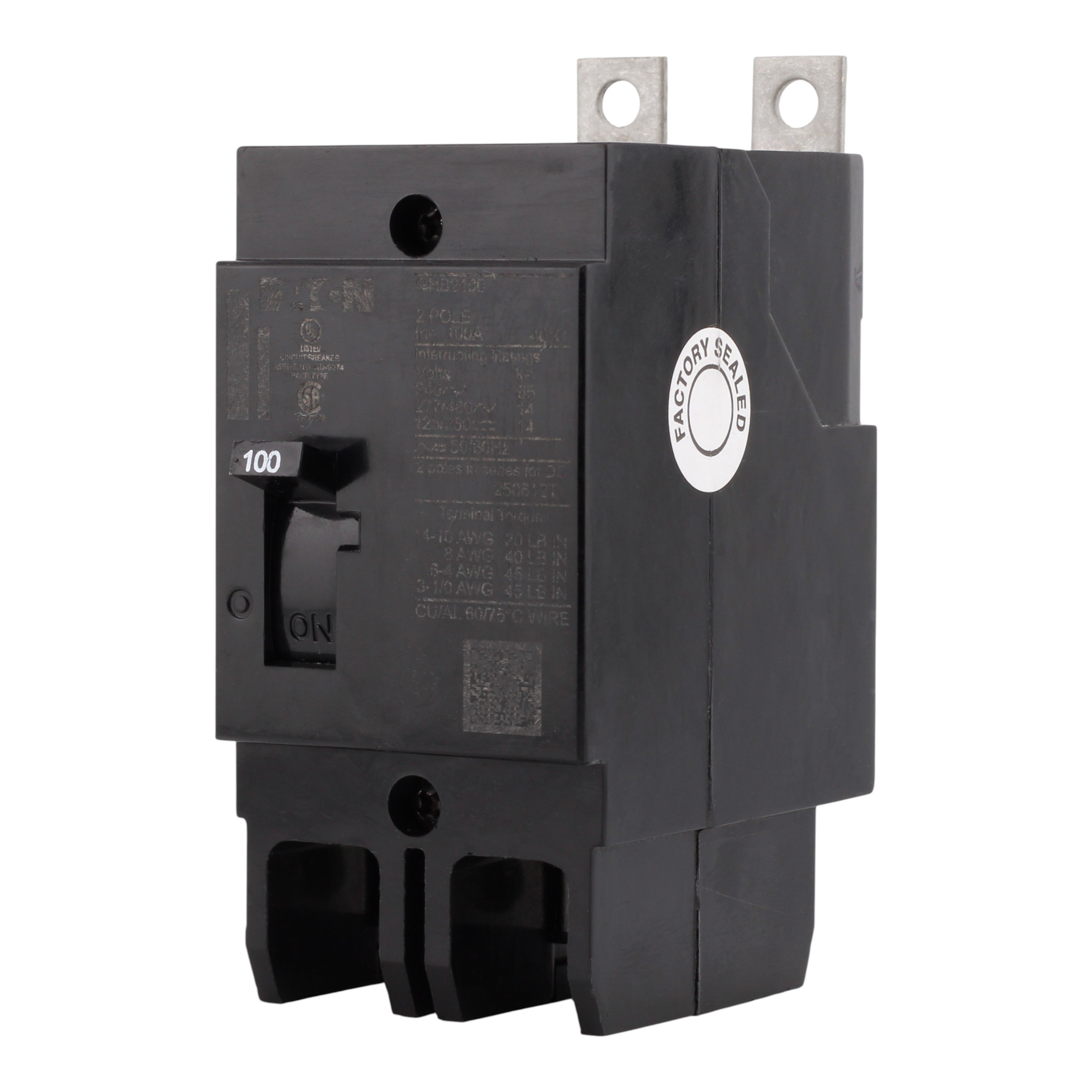

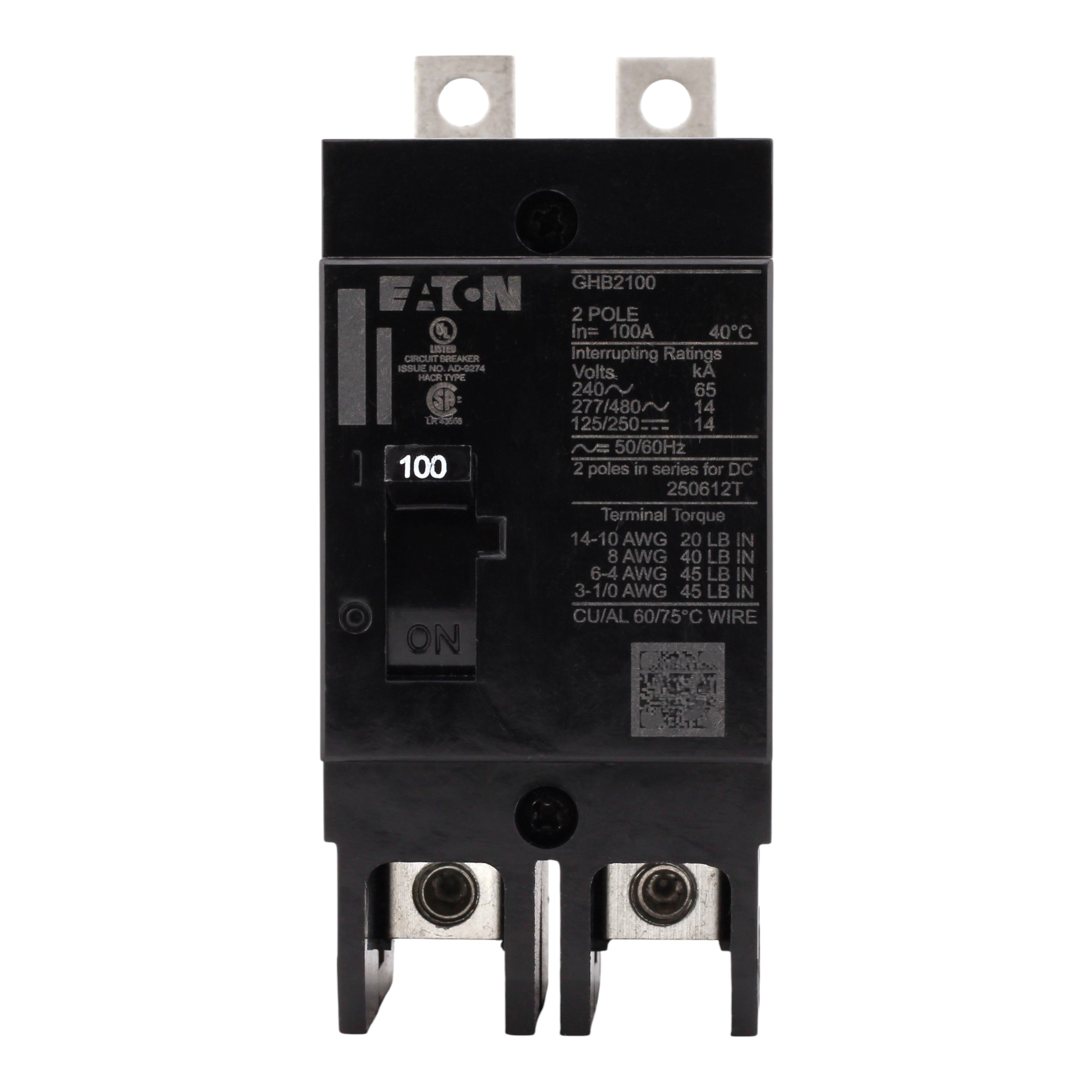

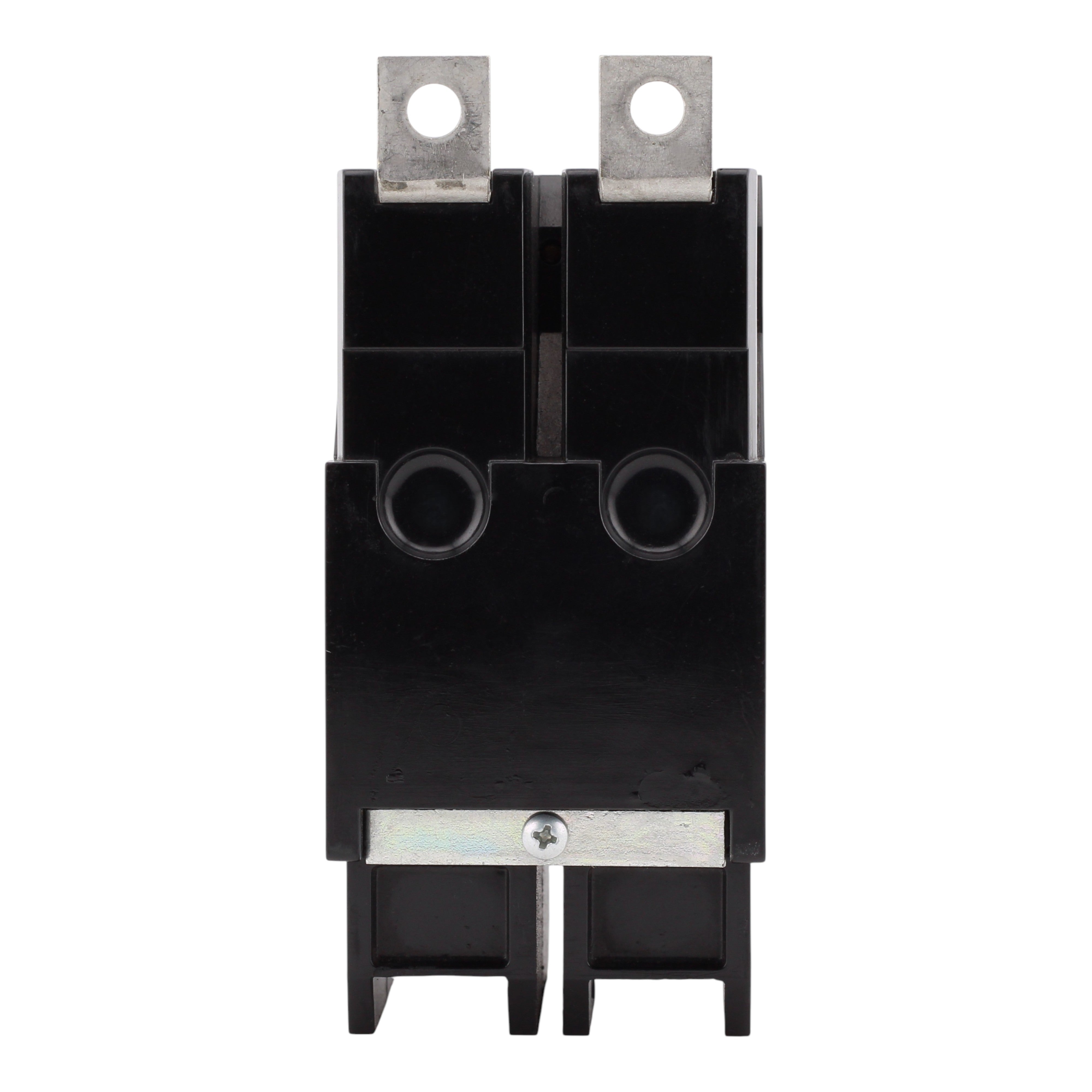

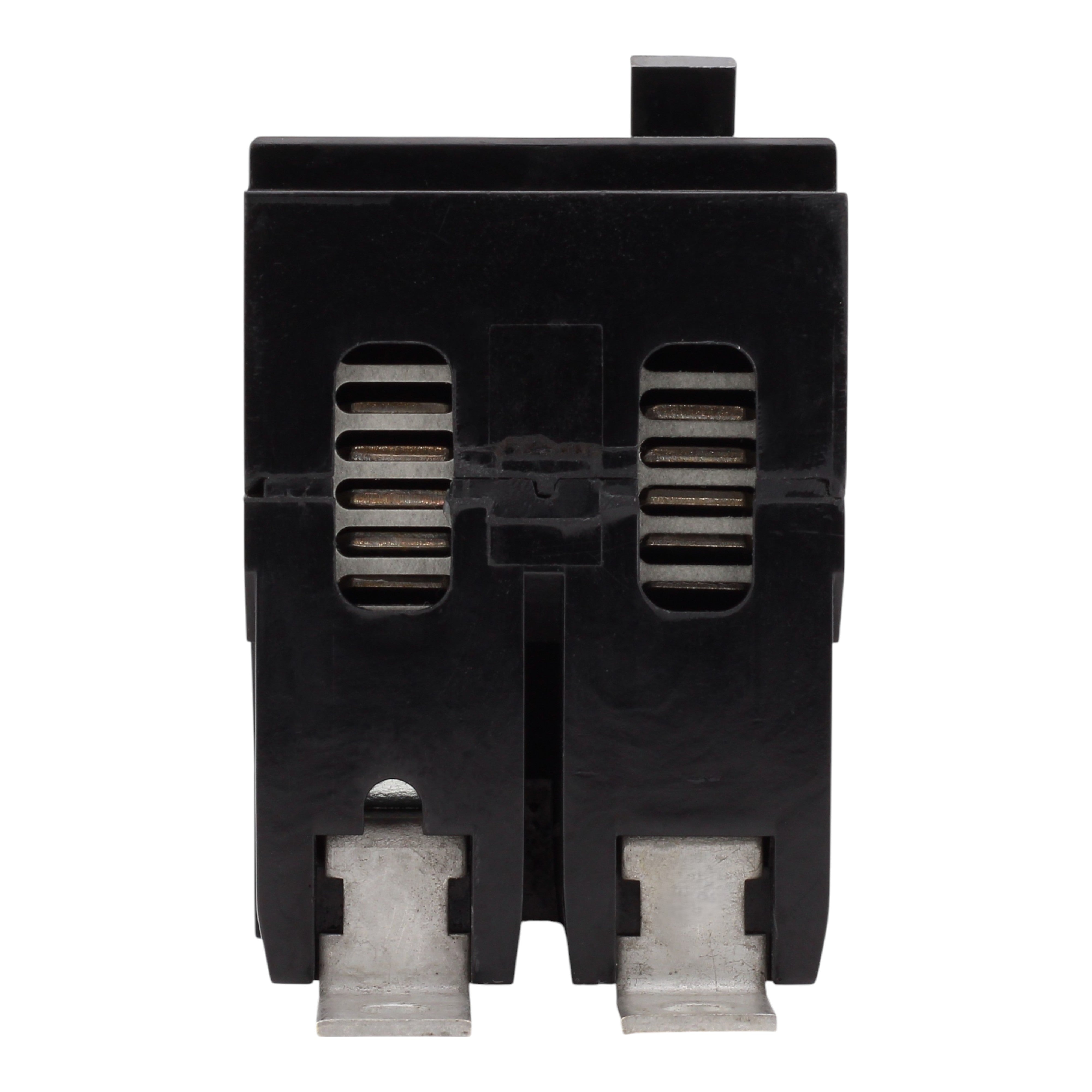

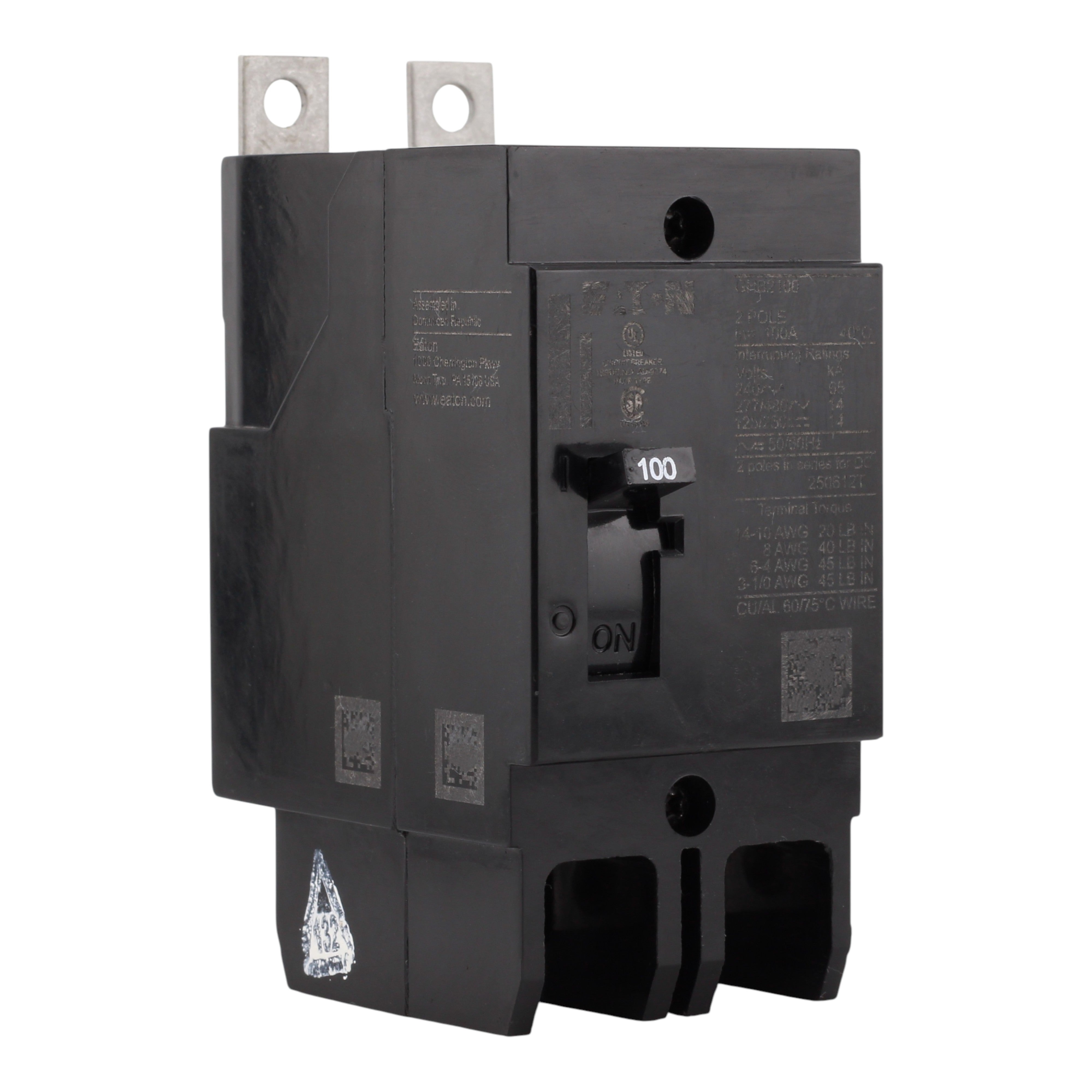

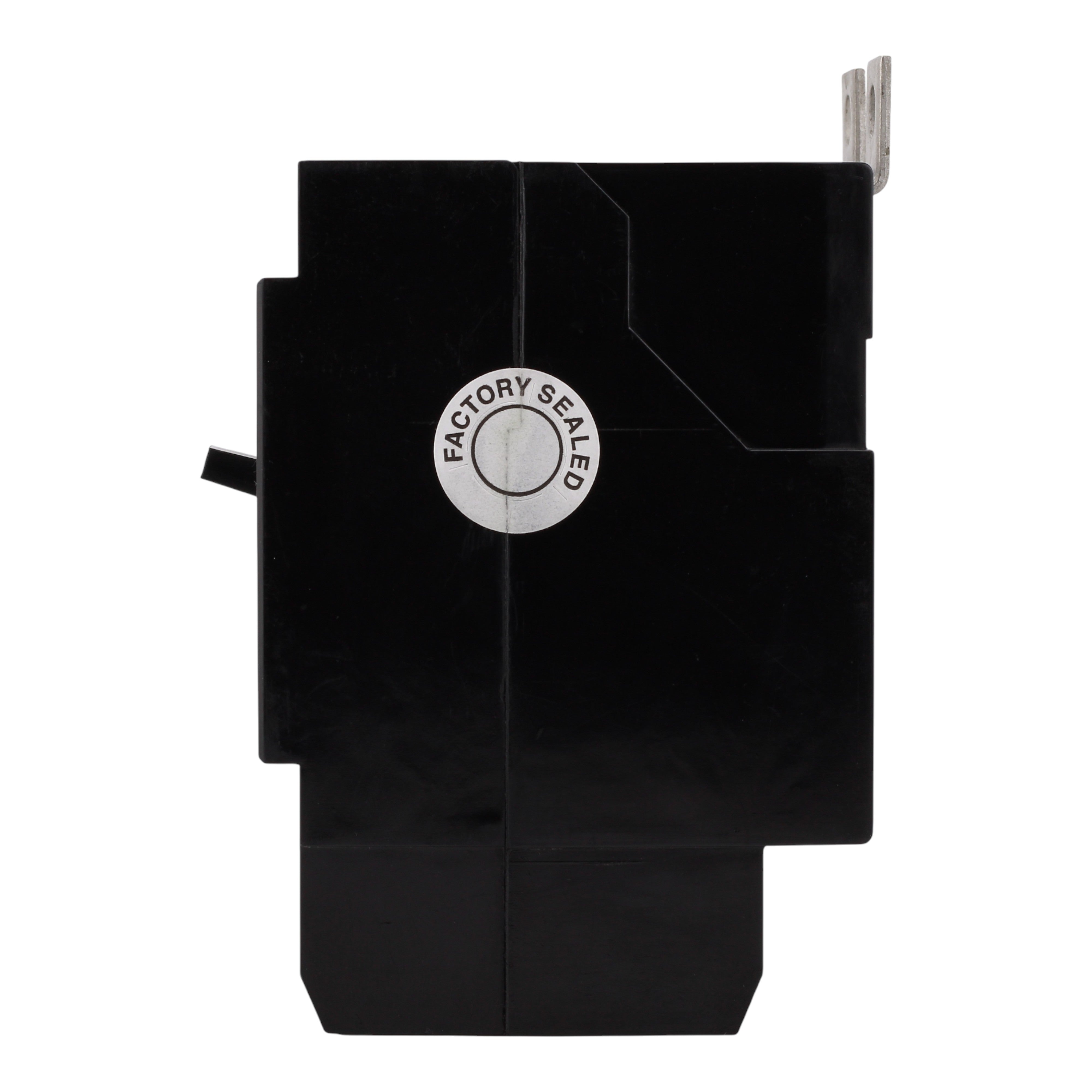

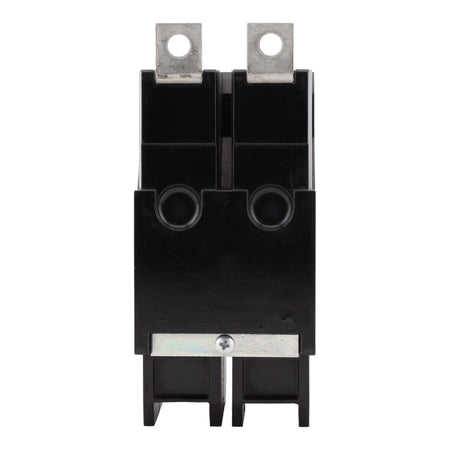

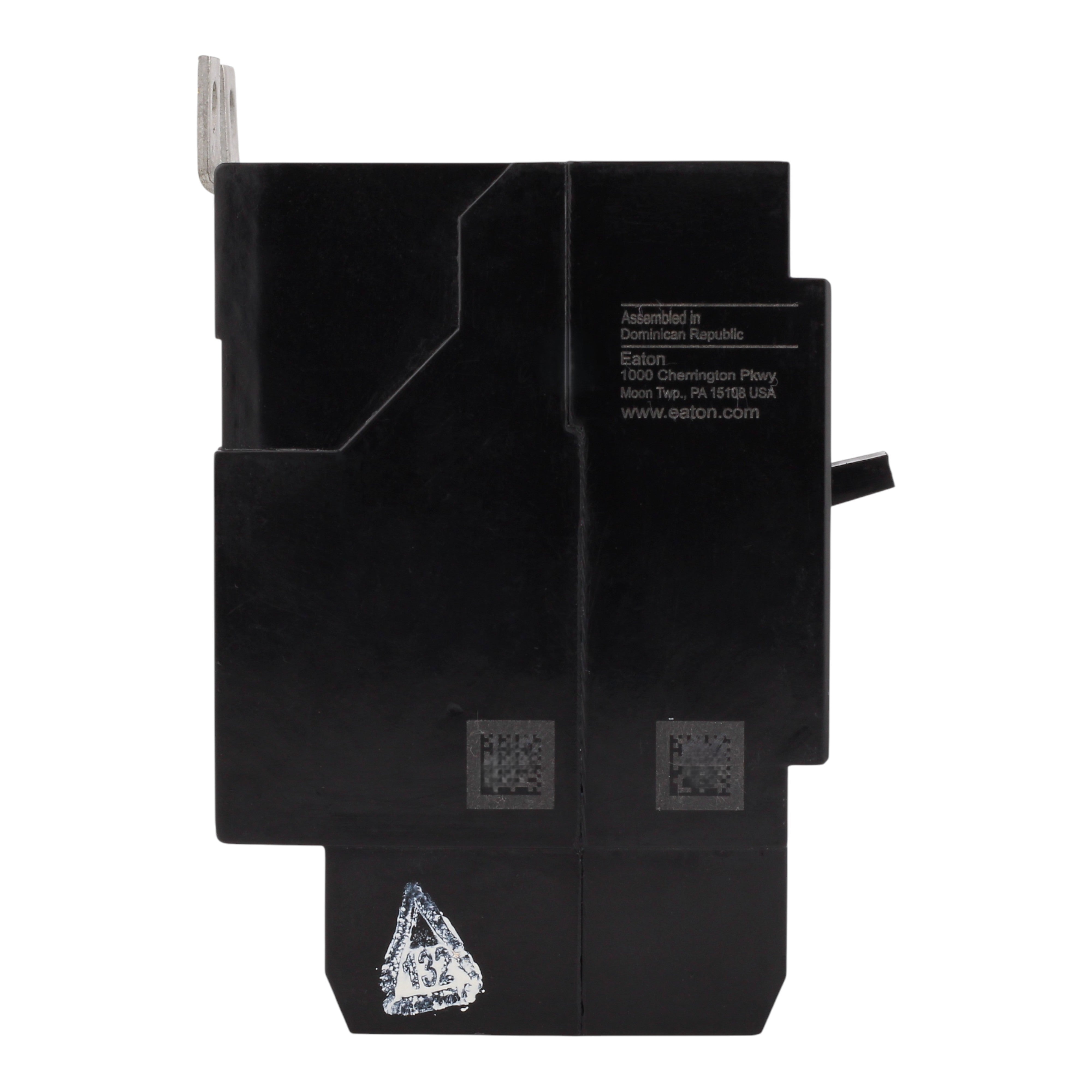

Eaton GHB2100: 100 Amp 2-Pole Molded Case Circuit Breaker, 480Y/277V, 65kAIC at 240V, 14kAIC at 480Y/277V, UL Listed
-
Manufacturer: Eaton
-
Brand: Eaton
-
Product Range: Series C (for Eaton Series C loadcenters and equipment)
-
UPC: 786679911242
-
Model Number: GHB2100
-
Breaker Type: Molded Case Circuit Breaker
-
Amperage: 100 Amps
-
Poles: 2-Pole
-
Voltage: 480Y/277 Volts AC, 125/250 Volts DC
-
Interrupt Rating: 65 kAIC at 240 Volts AC, 14 kAIC at 480Y/277 Volts AC
-
Mounting Mode: Bolt-on
-

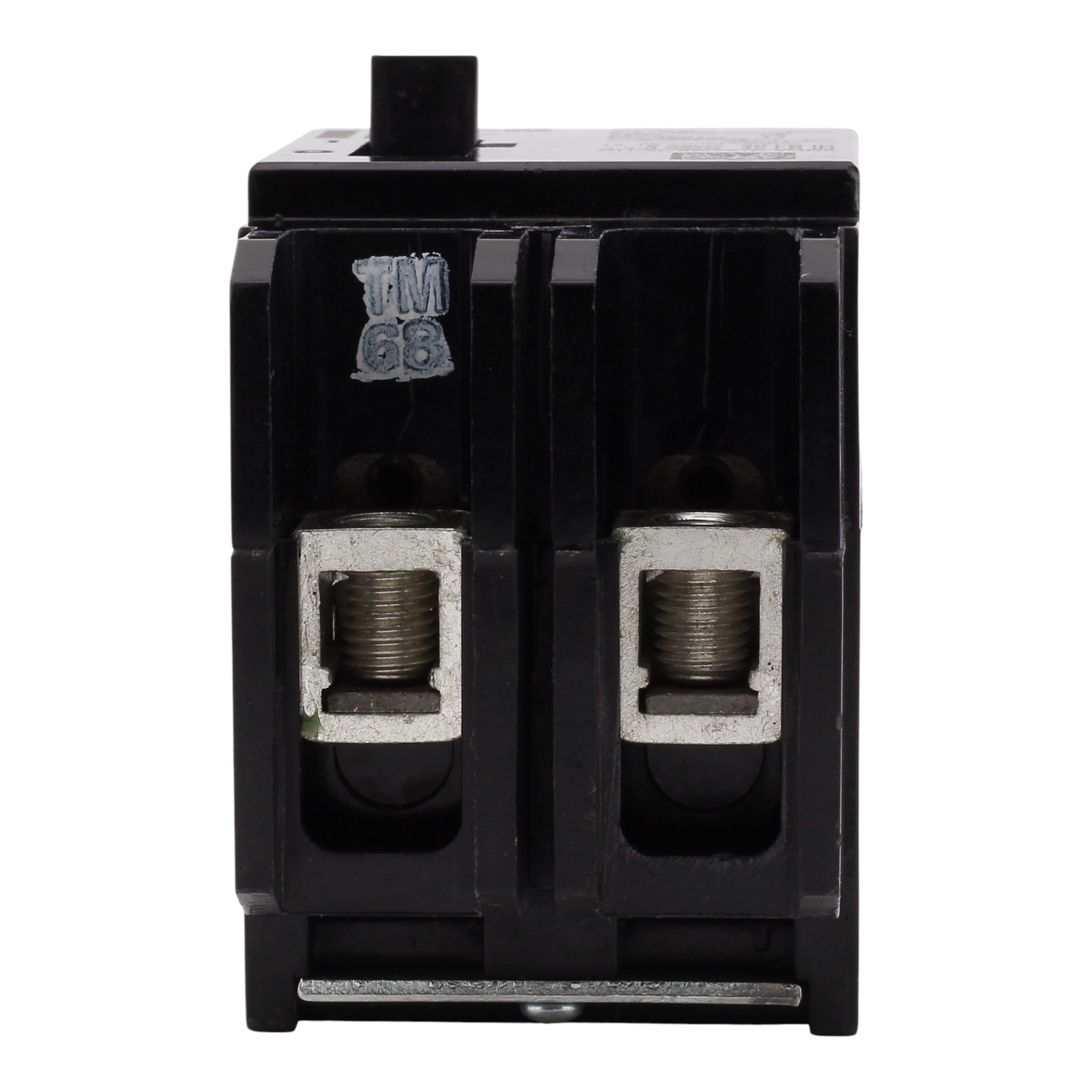

Connections Terminals: Line and load lugs
-
Wire Size: #4 AWG–300 kcmil Cu/Al
-
Tightening Torque: 275 lb-in for #4–4/0 AWG, 200 lb-in for 250–300 kcmil
-
Dimensions: Height: 4.0 in; Width: 2.0 in; Depth: 2.63 in
-
Weight: 1.15 lbs
-
Certifications: UL Listed, Federal Specifications Classification W-C375B
-
Frequency Rating: 50/60 Hz
This Eaton Series C GHB2100 molded case circuit breaker delivers reliable 100A, 2-pole protection for 480Y/277V circuits in Series C loadcenters. With a 65kAIC interrupt rating at 240V and 14kAIC at 480Y/277V, it ensures robust performance and safety for commercial and industrial applications.
