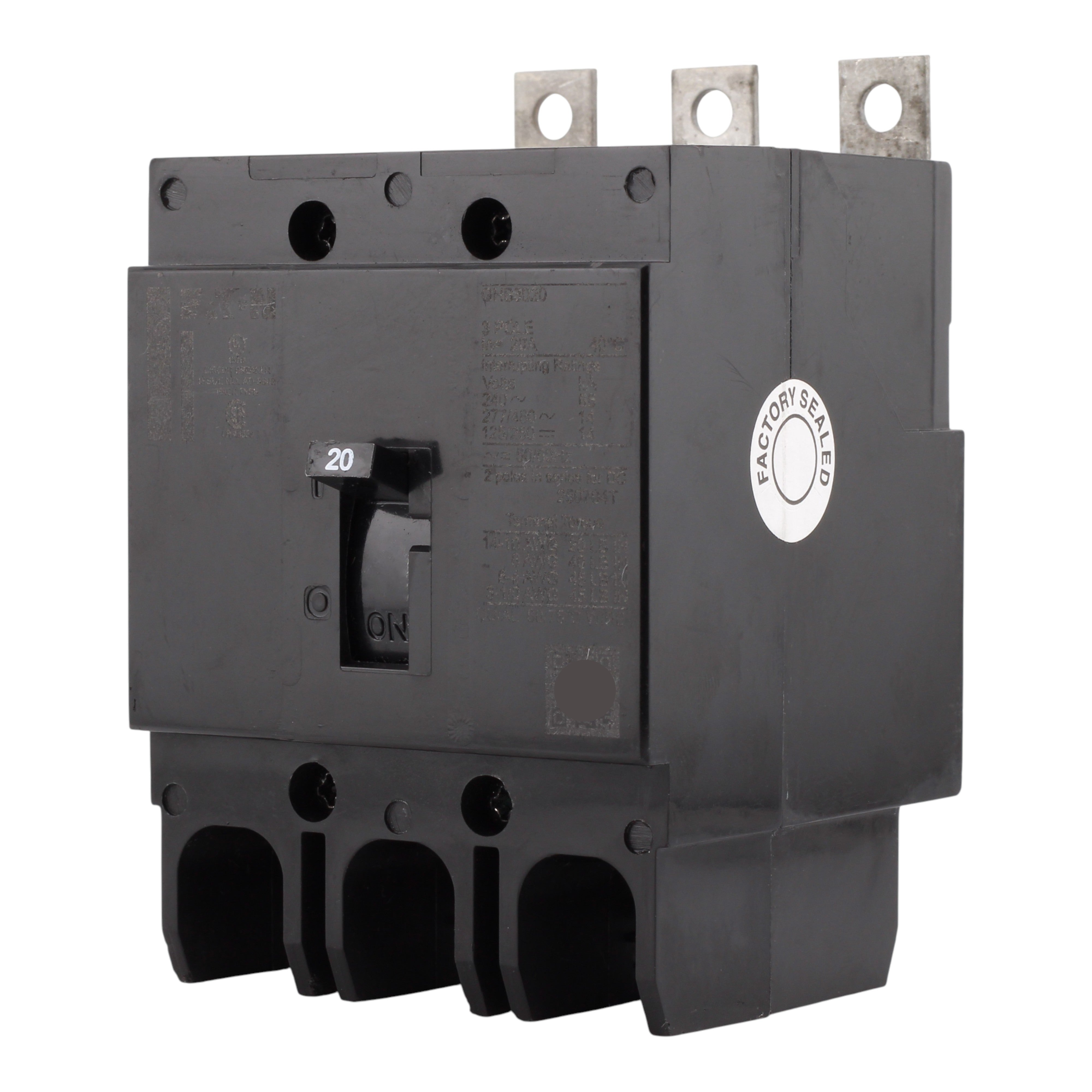

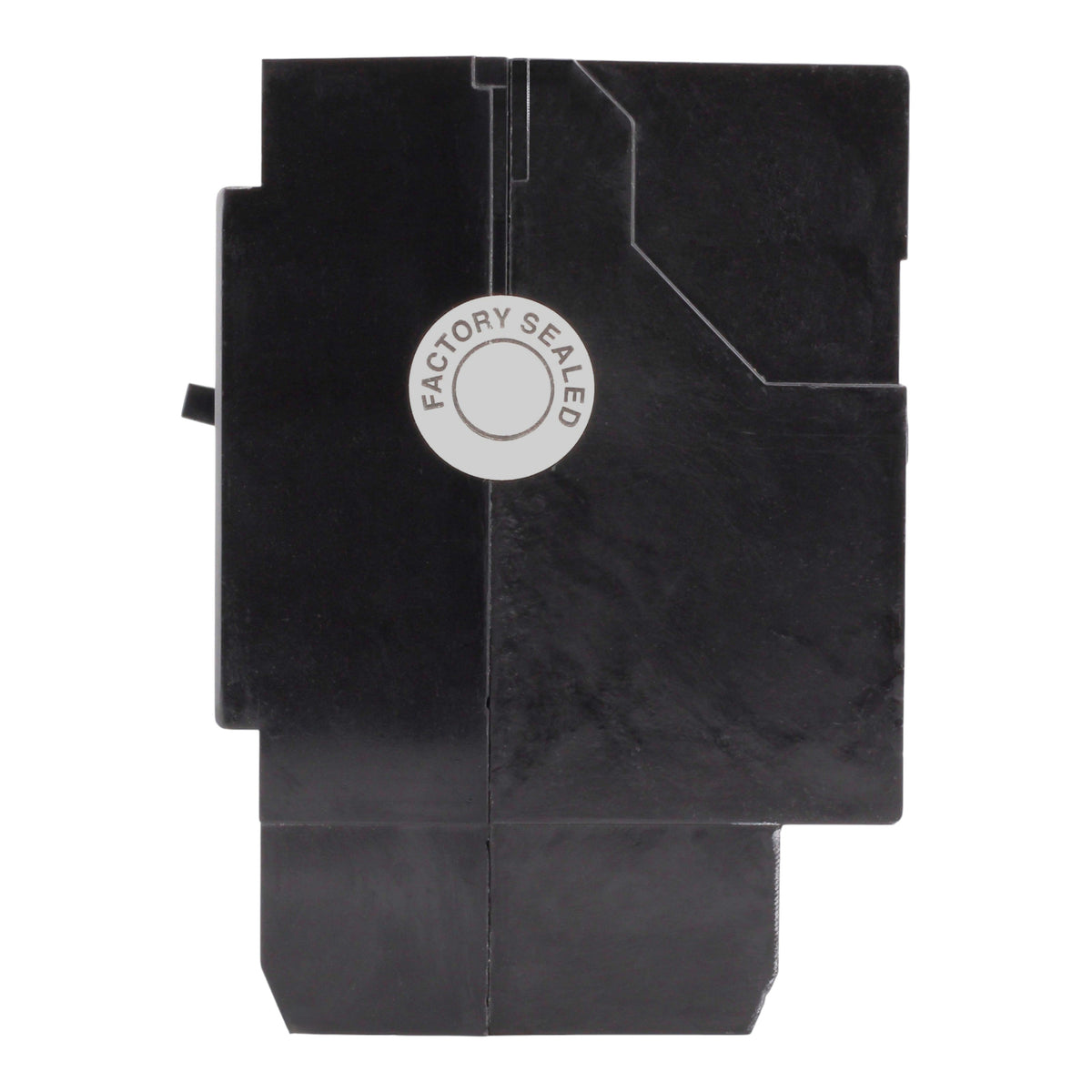

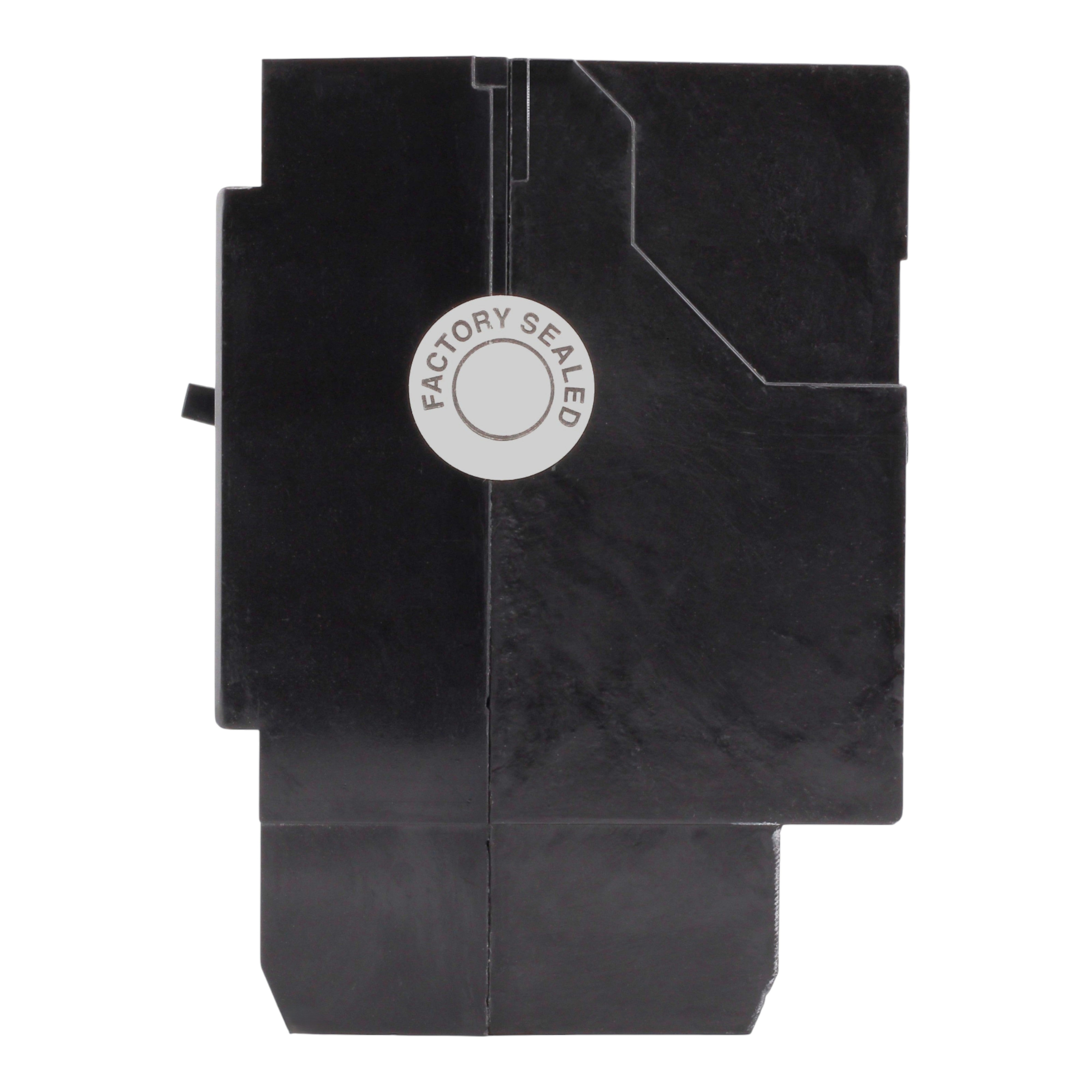

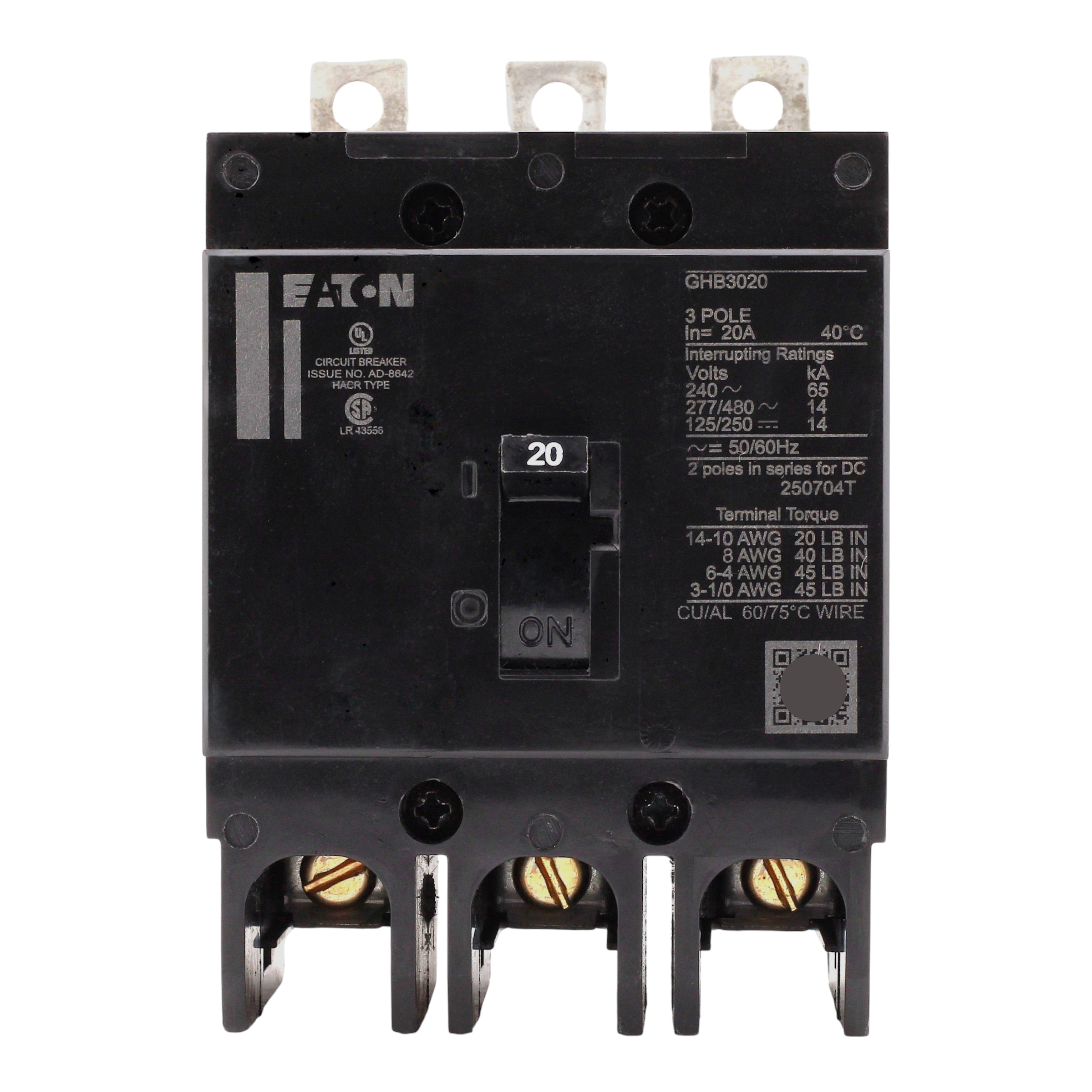

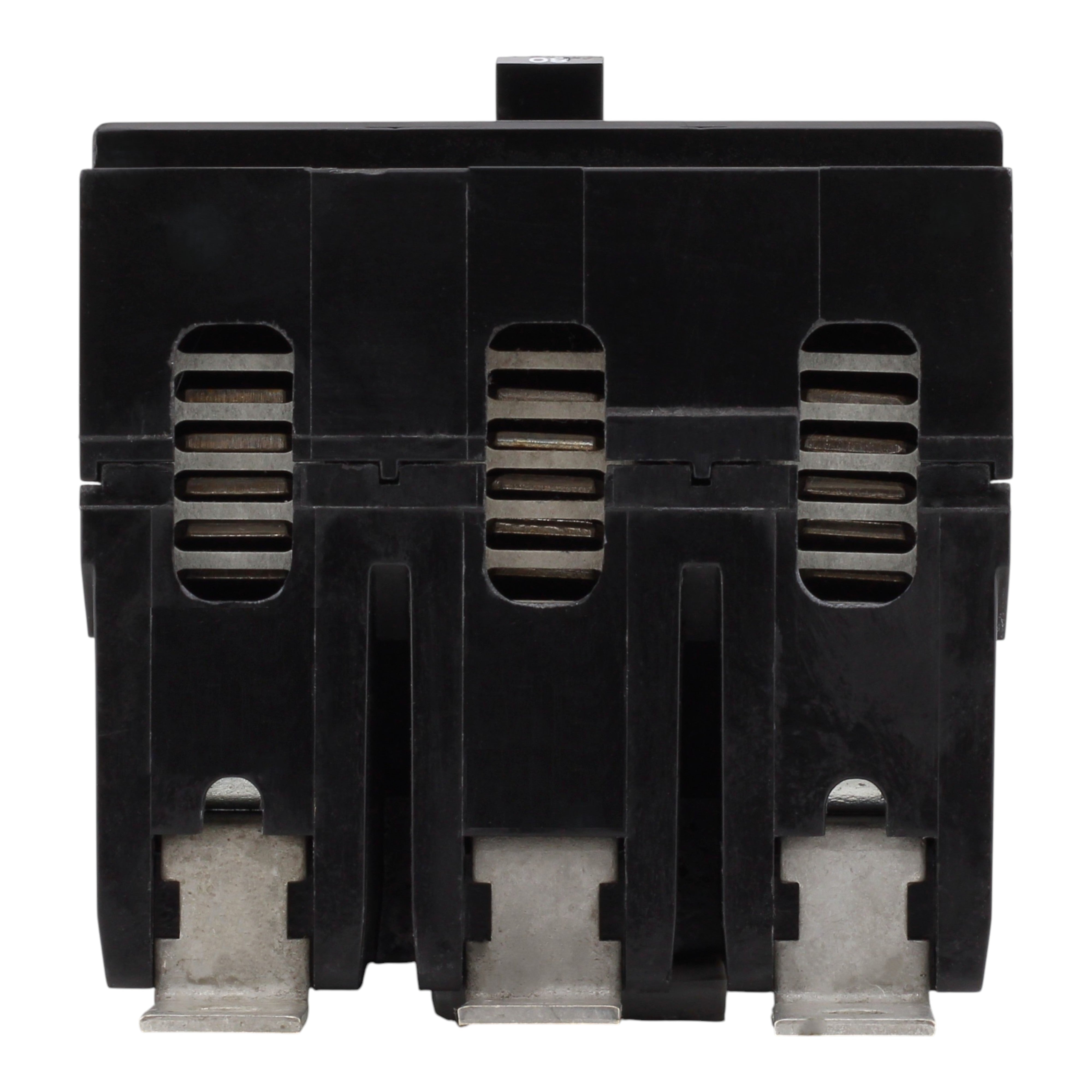

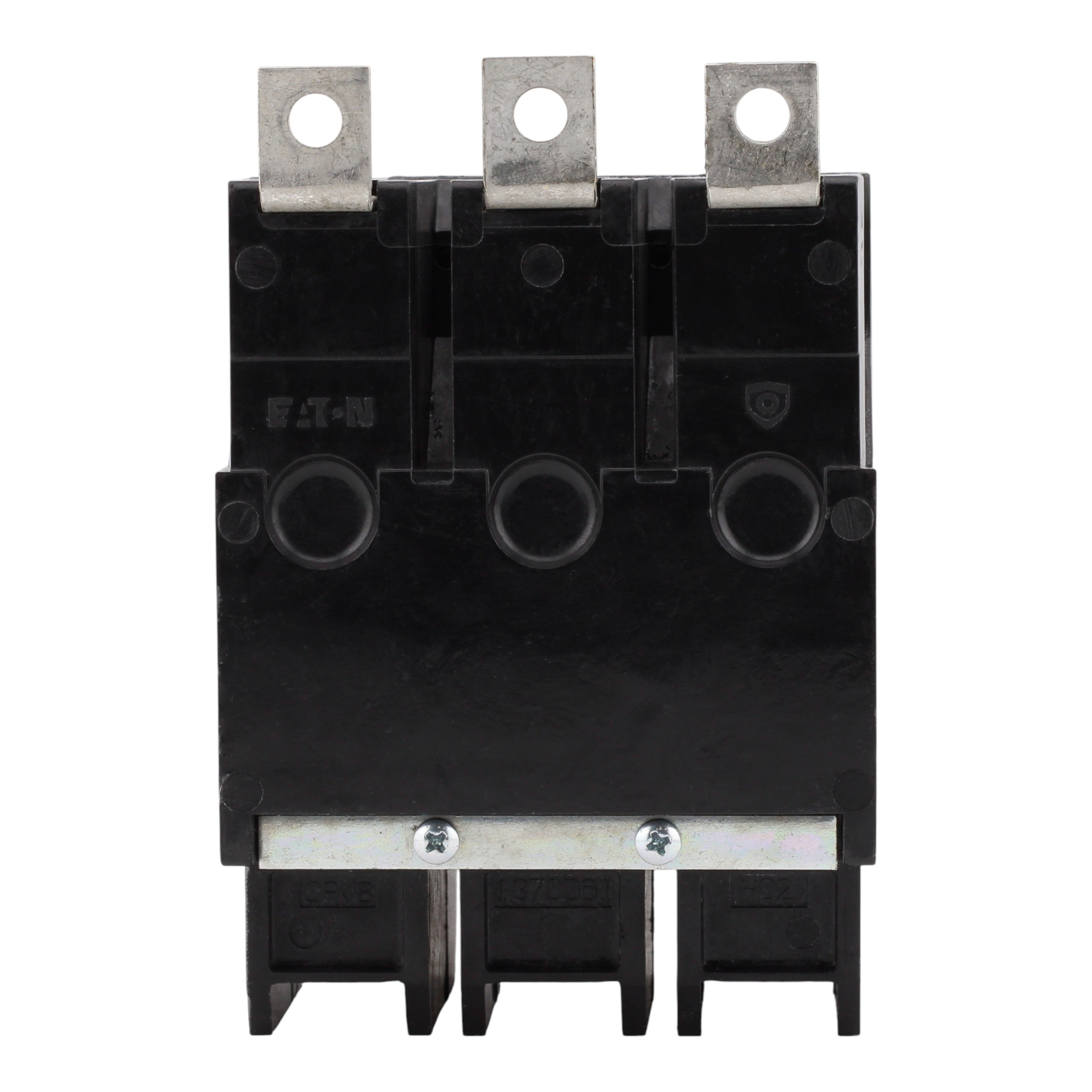

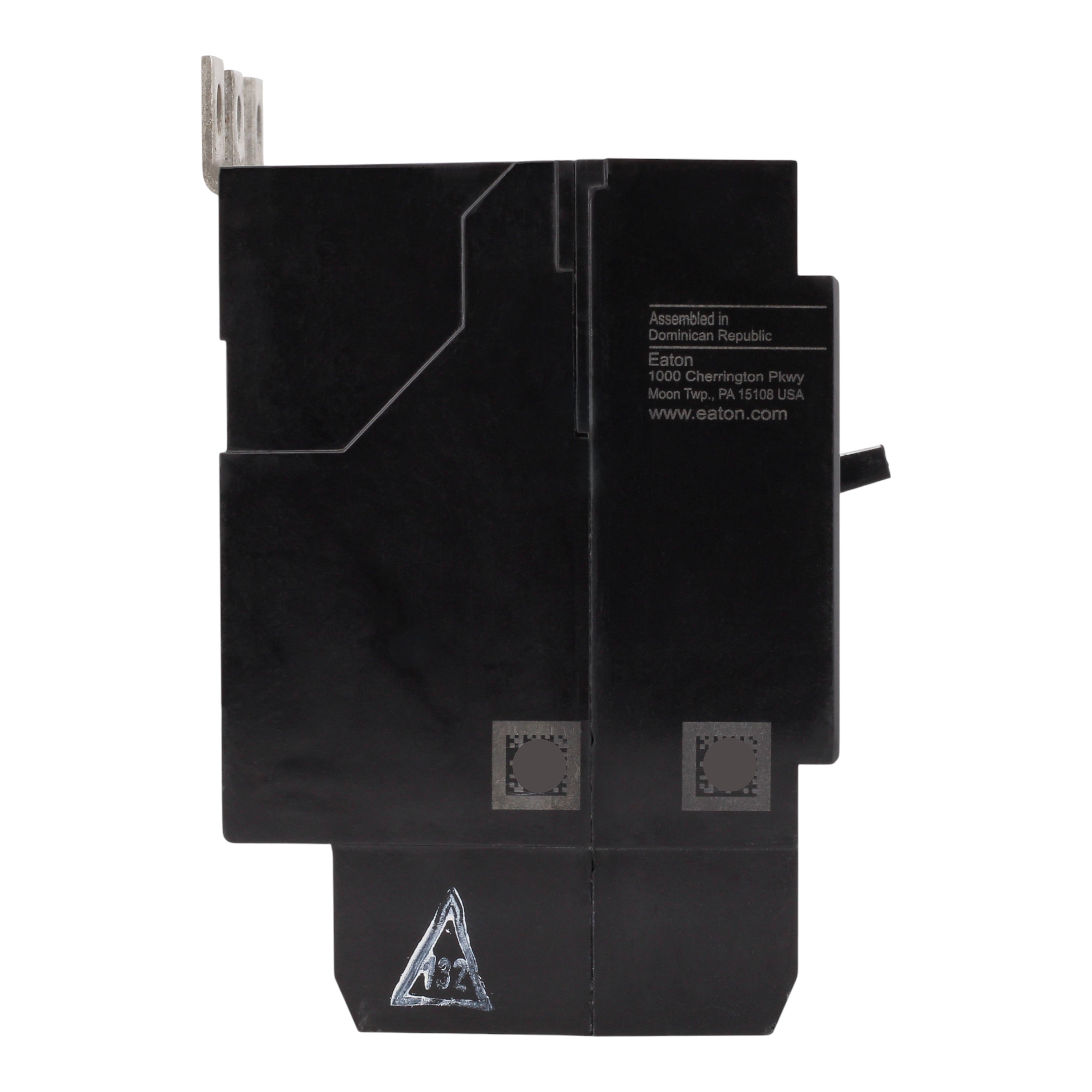

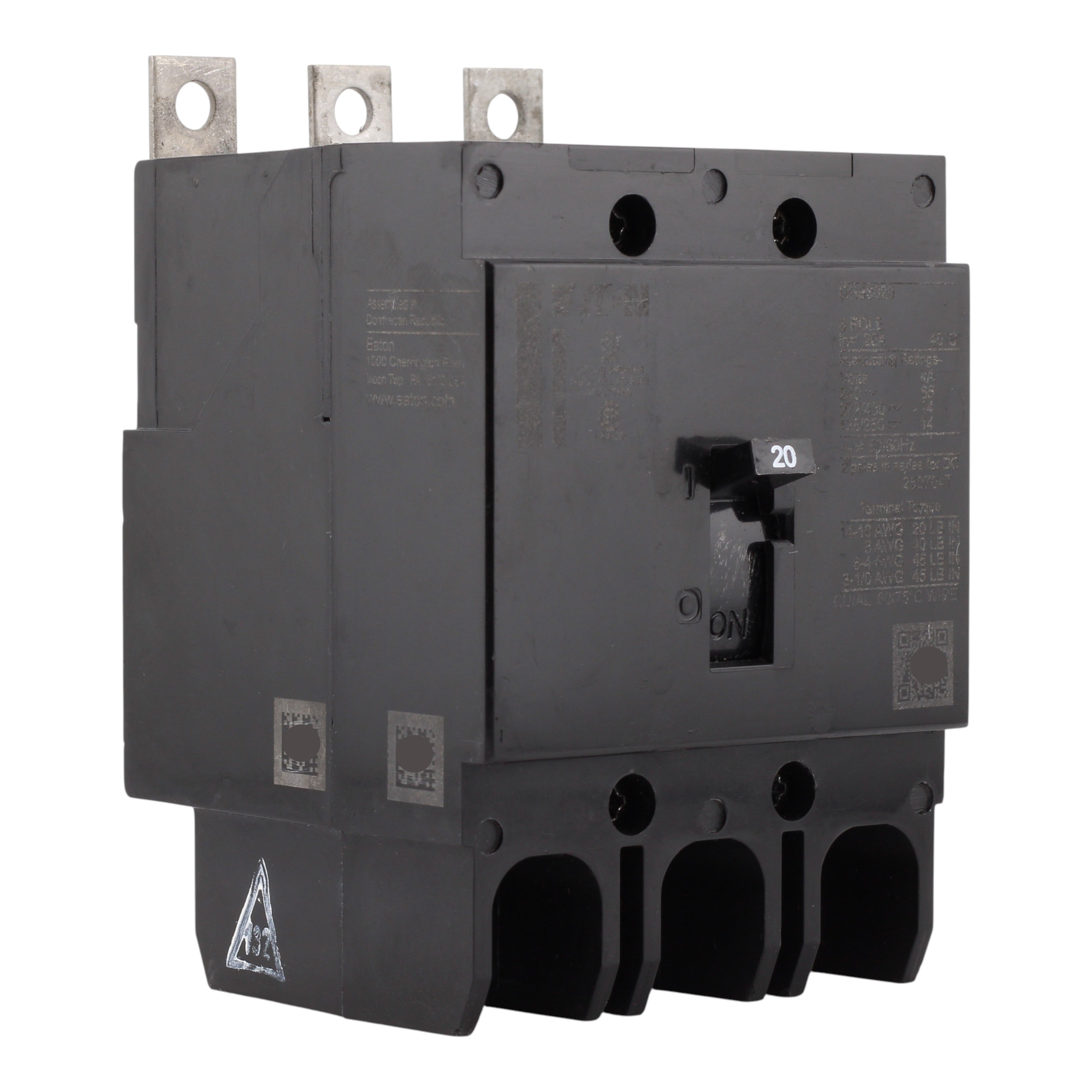

Eaton Series C GHB3020 20A 3P 480Y/277V Thermal-Magnetic Circuit Breaker

Eaton GHB3020: 20 Amp 3-Pole thermal-magnetic molded case circuit breaker, 480Y/277 Vac, 125/250 Vdc, 14kA at 480Y/277V, 65kA at 240V, 50/60 Hz, UL listed.

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: Series C (for Eaton molded case circuit breaker applications)
• UPC: 786679911266
• Model Number: GHB3020
• Breaker Type: Thermal-Magnetic
• Amperage: 20 Amps
• Poles: 3-Pole
• Voltage: 480Y/277 Volts AC, 125/250 Volts DC
• Interrupt Rating: 14 kAIC at 480Y/277 Vac, 65 kAIC at 240 Vac
• Mounting Mode: Bolt-on

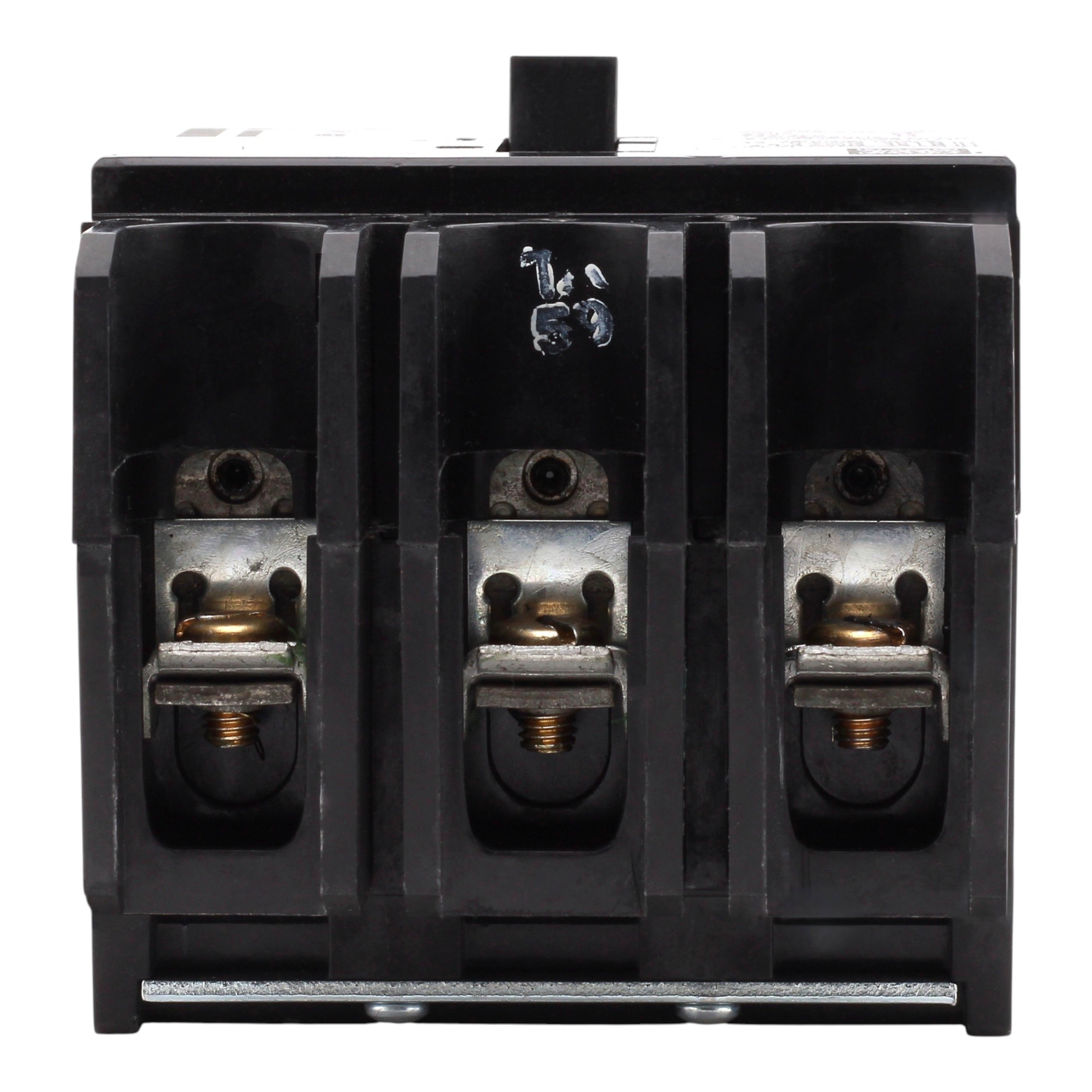

• Connections Terminals: Line and load lugs
• Wire Size: #14-4 AWG Cu/Al
• Tightening Torque: 27 lb-in (line/load)
• Dimensions: Height: 4.0 in; Width: 3.0 in; Depth: 2.63 in
• Weight: 1.75 lbs
• Certifications: UL Listed

This Eaton Series C GHB3020 thermal-magnetic molded case circuit breaker delivers reliable 20A, 3-pole overcurrent protection for 480Y/277 Vac and 125/250 Vdc systems. With fixed thermal and magnetic trips, high interrupt ratings of 14kA at 480Y/277V and 65kA at 240V, it ensures robust performance in commercial and industrial applications.
