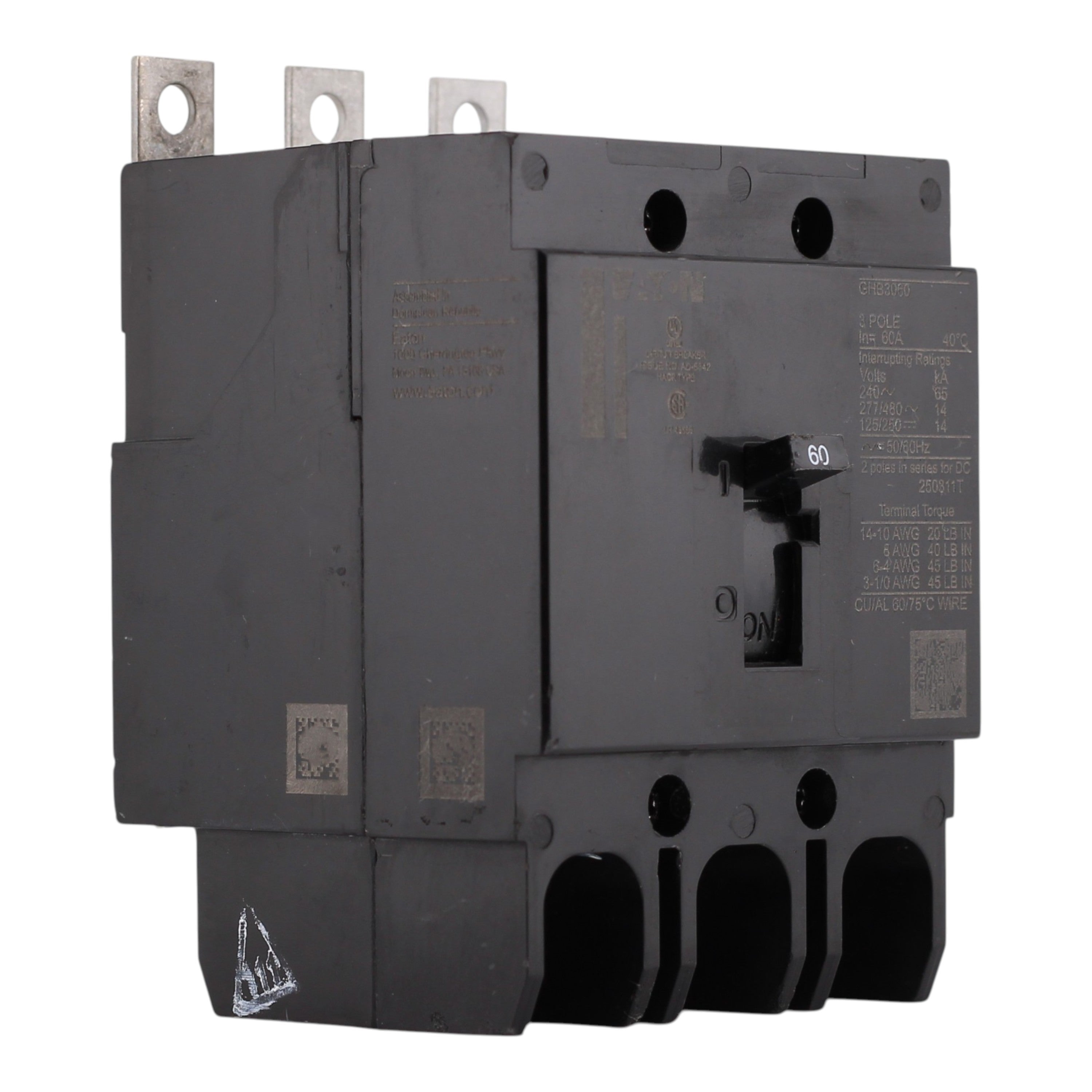

Eaton Series C, GHB3060, 60A, 3P, 480Y/277V, Molded Case Circuit Breaker

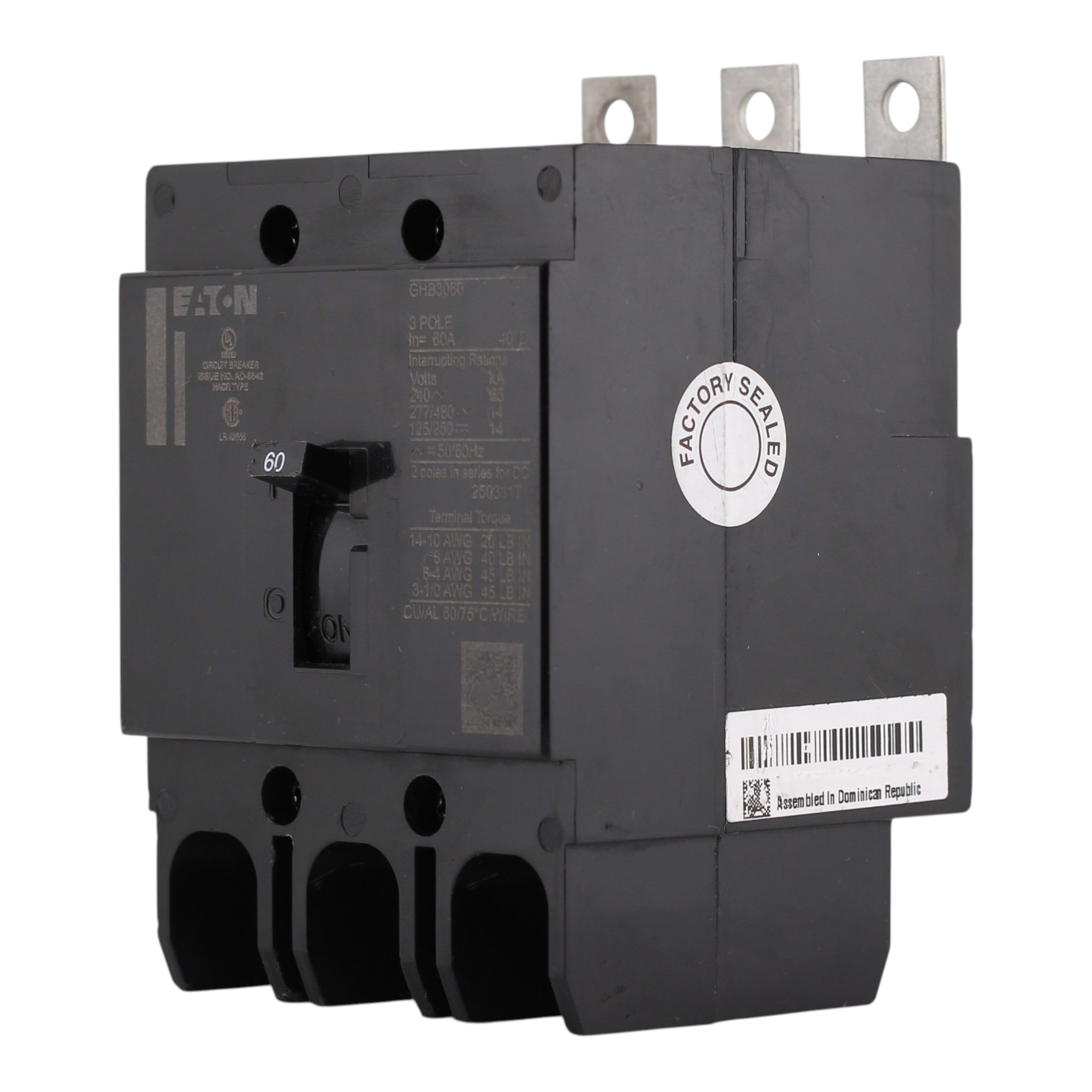

Eaton Series C, GHB3060, 60A, 3P, 480Y/277V, Molded Case Circuit Breaker - Image 2
Eaton Series C, GHB3060, 60A, 3P, 480Y/277V, Molded Case Circuit Breaker - Image 3

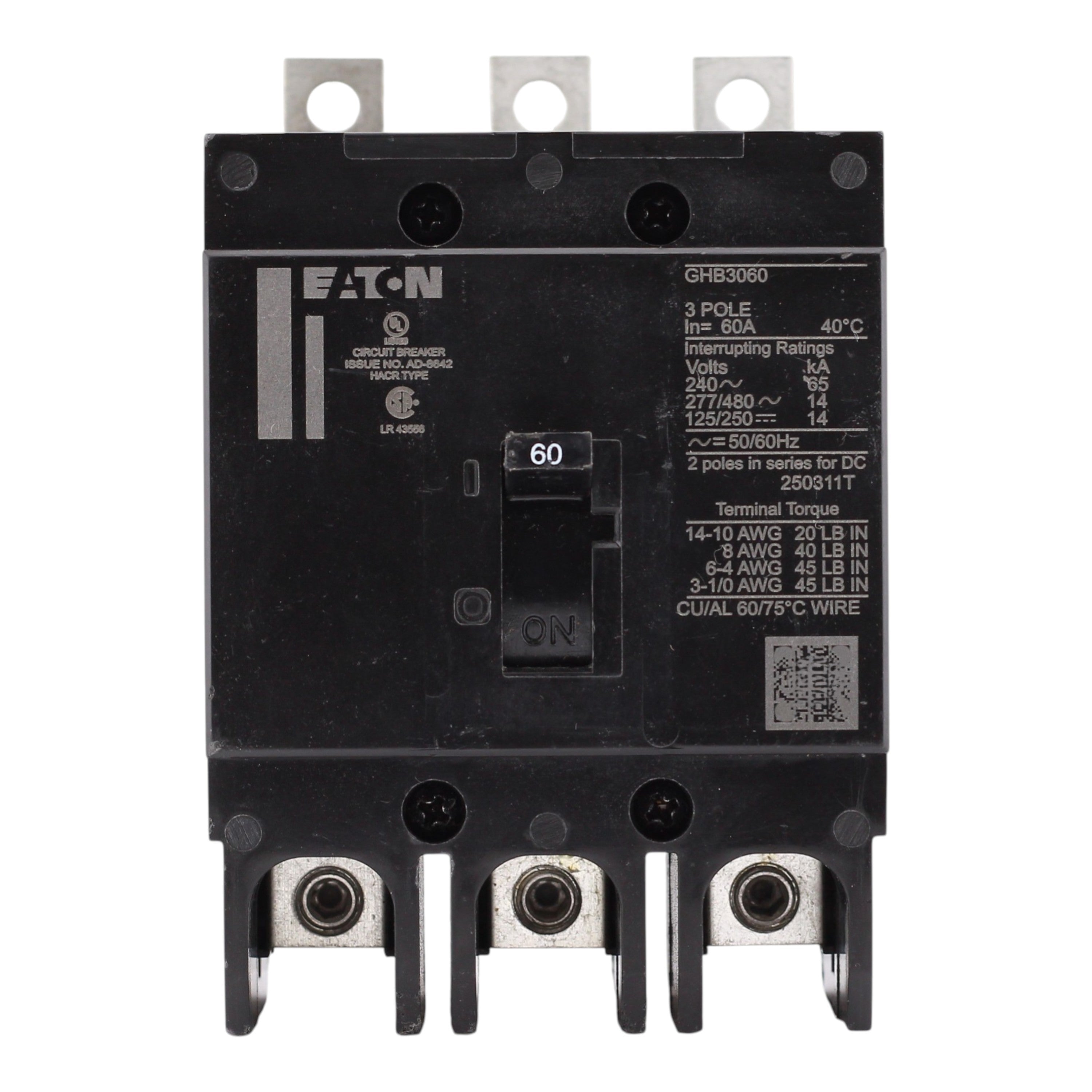

Eaton Series C, GHB3060, 60A, 3P, 480Y/277V, Molded Case Circuit Breaker - Image 4
Eaton Series C, GHB3060, 60A, 3P, 480Y/277V, Molded Case Circuit Breaker - Image 5

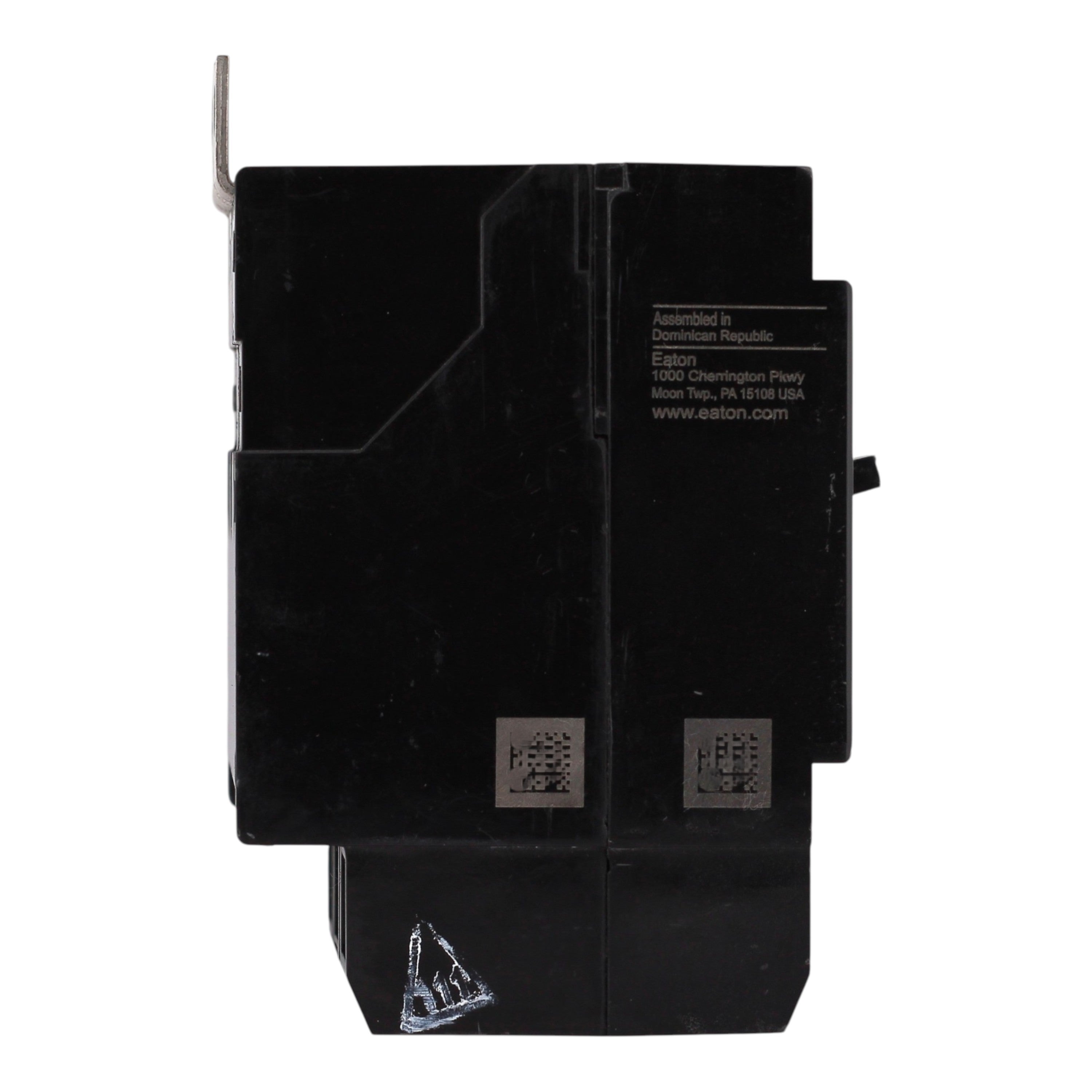

Eaton Series C, GHB3060, 60A, 3P, 480Y/277V, Molded Case Circuit Breaker - Image 6

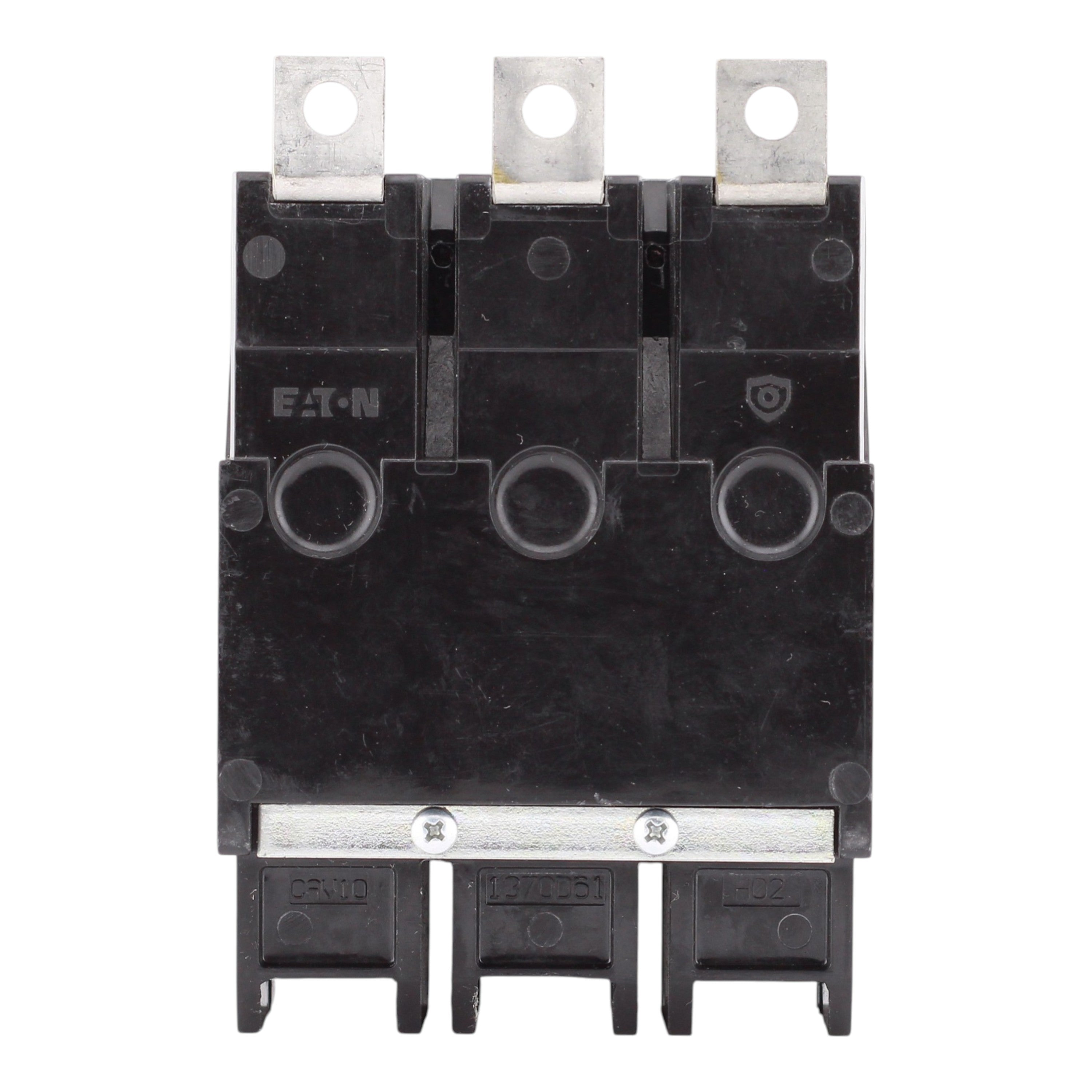

Eaton Series C, GHB3060, 60A, 3P, 480Y/277V, Molded Case Circuit Breaker - Image 7

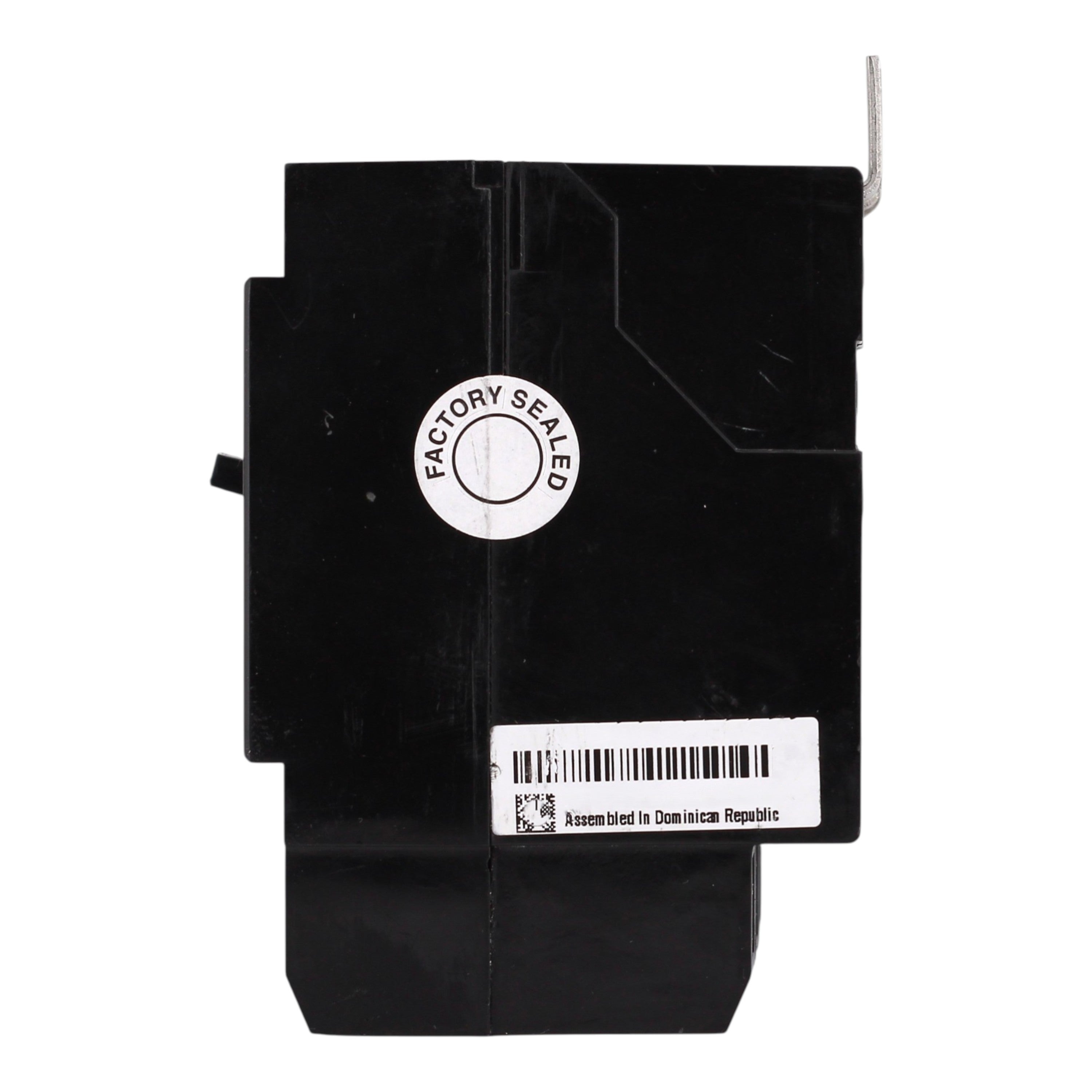

Eaton Series C, GHB3060, 60A, 3P, 480Y/277V, Molded Case Circuit Breaker - Image 8

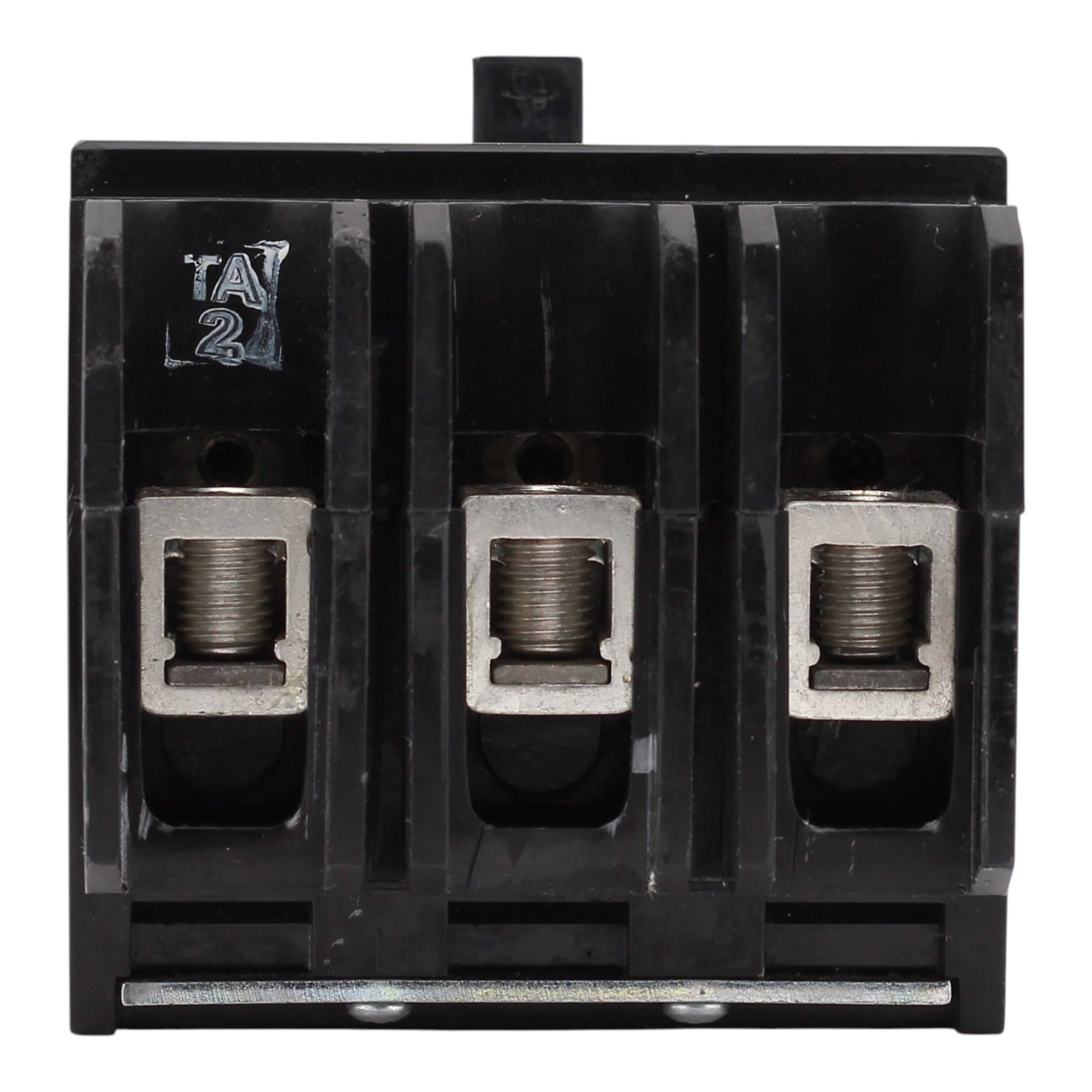

Eaton Series C, GHB3060, 60A, 3P, 480Y/277V, Molded Case Circuit Breaker - Image 9

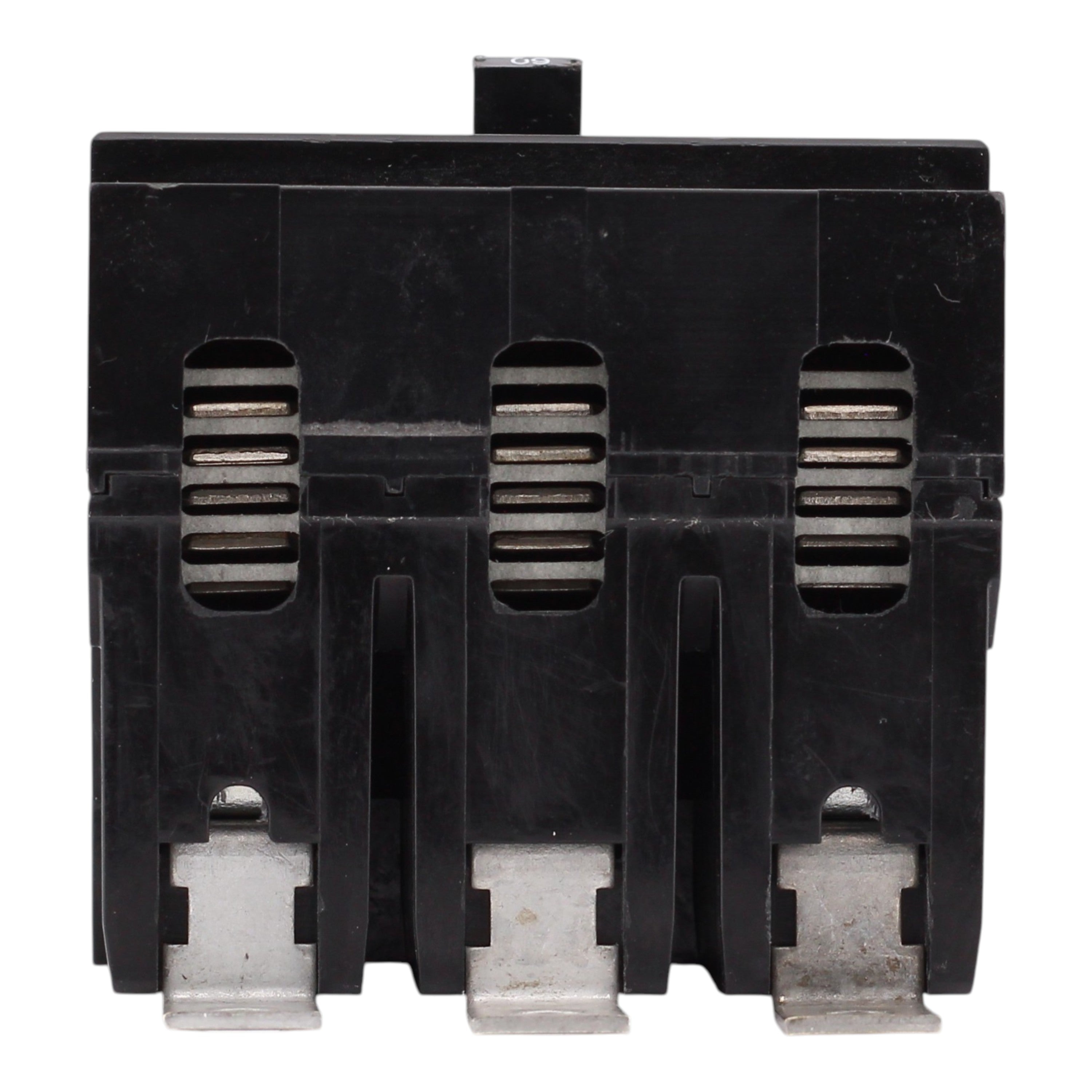

Eaton Series C, GHB3060, 60A, 3P, 480Y/277V, Molded Case Circuit Breaker

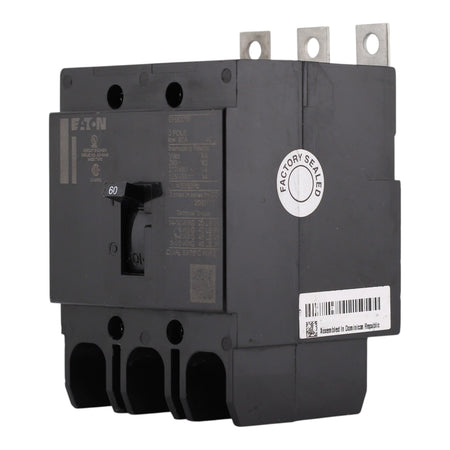

Eaton Series C, GHB3060, 60A, 3P, 480Y/277V, Molded Case Circuit Breaker - Image 2

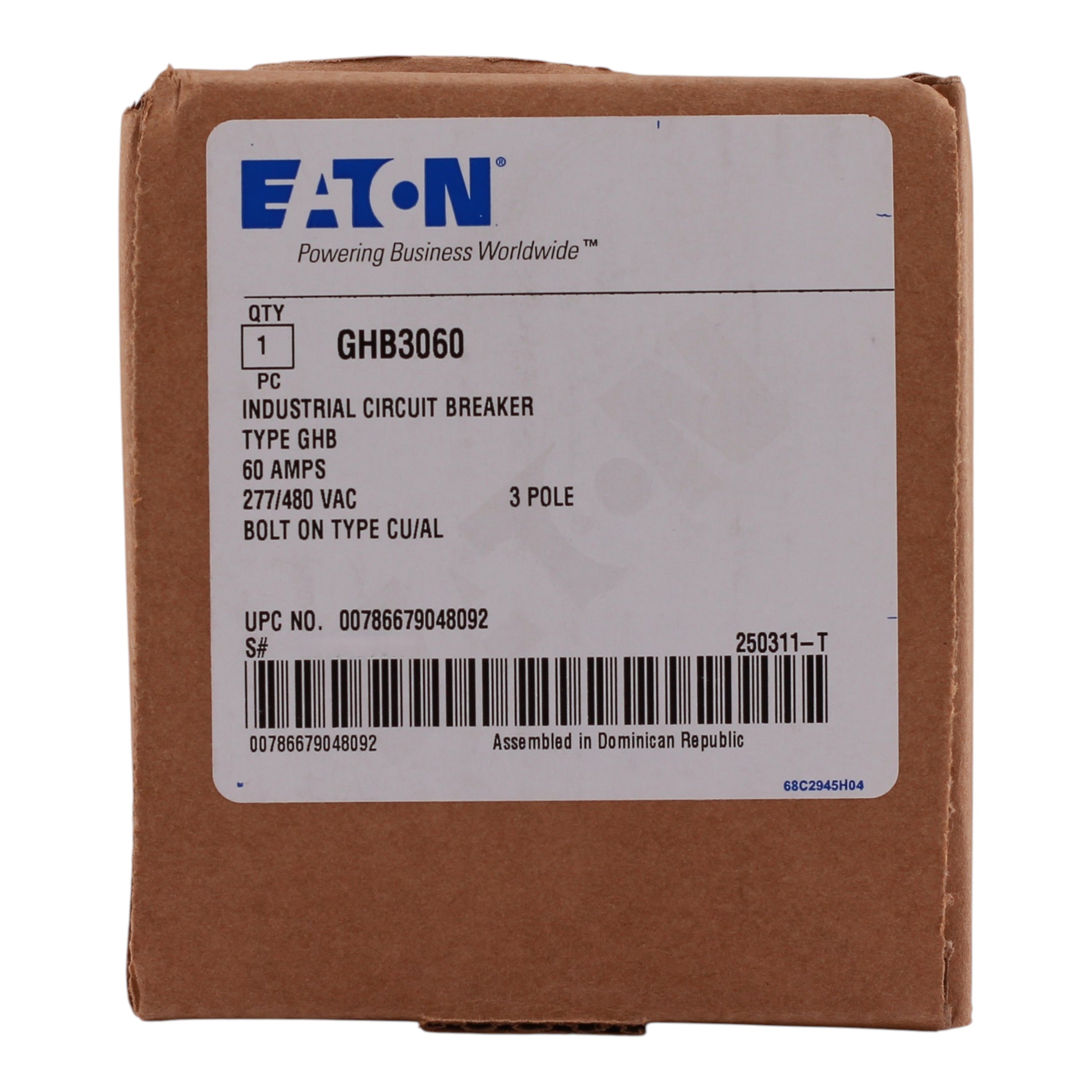

Eaton Series C, GHB3060, 60A, 3P, 480Y/277V, Molded Case Circuit Breaker - Image 3
Eaton Series C, GHB3060, 60A, 3P, 480Y/277V, Molded Case Circuit Breaker - Image 4
Eaton Series C, GHB3060, 60A, 3P, 480Y/277V, Molded Case Circuit Breaker - Image 5
Eaton Series C, GHB3060, 60A, 3P, 480Y/277V, Molded Case Circuit Breaker - Image 6
Eaton Series C, GHB3060, 60A, 3P, 480Y/277V, Molded Case Circuit Breaker - Image 7
Eaton Series C, GHB3060, 60A, 3P, 480Y/277V, Molded Case Circuit Breaker - Image 8
Eaton Series C, GHB3060, 60A, 3P, 480Y/277V, Molded Case Circuit Breaker - Image 9

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton Series C, GHB3060, 60A, 3P, 480Y/277V, Molded Case Circuit Breaker

Out of stock
SKU: GHB3060 UPC: 786679048092
(0)
$240.00
-38% $389.00 $240.00
Out of stock
Condition

Eaton GHB3060: 60 Amp, 3-Pole, Thermal-Magnetic Molded Case Circuit Breaker, 480Y/277V AC, 125/250V DC, 65kAIC/14kAIC, bolt-on, UL Listed, CSA, HACR Rated.

Specifications

  • Manufacturer: Eaton
  • Brand: Eaton (Cutler-Hammer)
  • Product Range: Series C (for G-frame panelboards, switchboards, motor control centers, and busway applications)
  • UPC: 786679048092
  • Model Number: GHB3060
  • Breaker Type: Molded Case Circuit Breaker (MCCB), Fixed Thermal / Fixed Magnetic Trip (Non-Interchangeable)
  • Amperage: 60 Amps
  • Poles: 3-Pole
  • Voltage: 480Y/277 Volts AC, 125/250 Volts DC
  • Frequency: 50/60 Hz
  • Interrupt Rating: 65 kAIC at 240V AC; 14 kAIC at 480Y/277V AC
  • Mounting Mode: Bolt-On
  • Wire Size: #10–1/0 AWG
  • Dimensions: Height: 4 in; Width: 3 in; Depth: 2.63 in
  • Weight: 1.7 lbs
  • Certifications: UL Listed, CSA Certified, HACR Rated

This Eaton GHB3060 Series C molded case circuit breaker delivers dependable 60 Amp, 3-Pole thermal-magnetic protection for 480Y/277V AC commercial circuits. Bolt-on mounted for G-frame panelboards, switchboards, and motor control centers, it supports branch circuit protection in light industrial and commercial applications.
