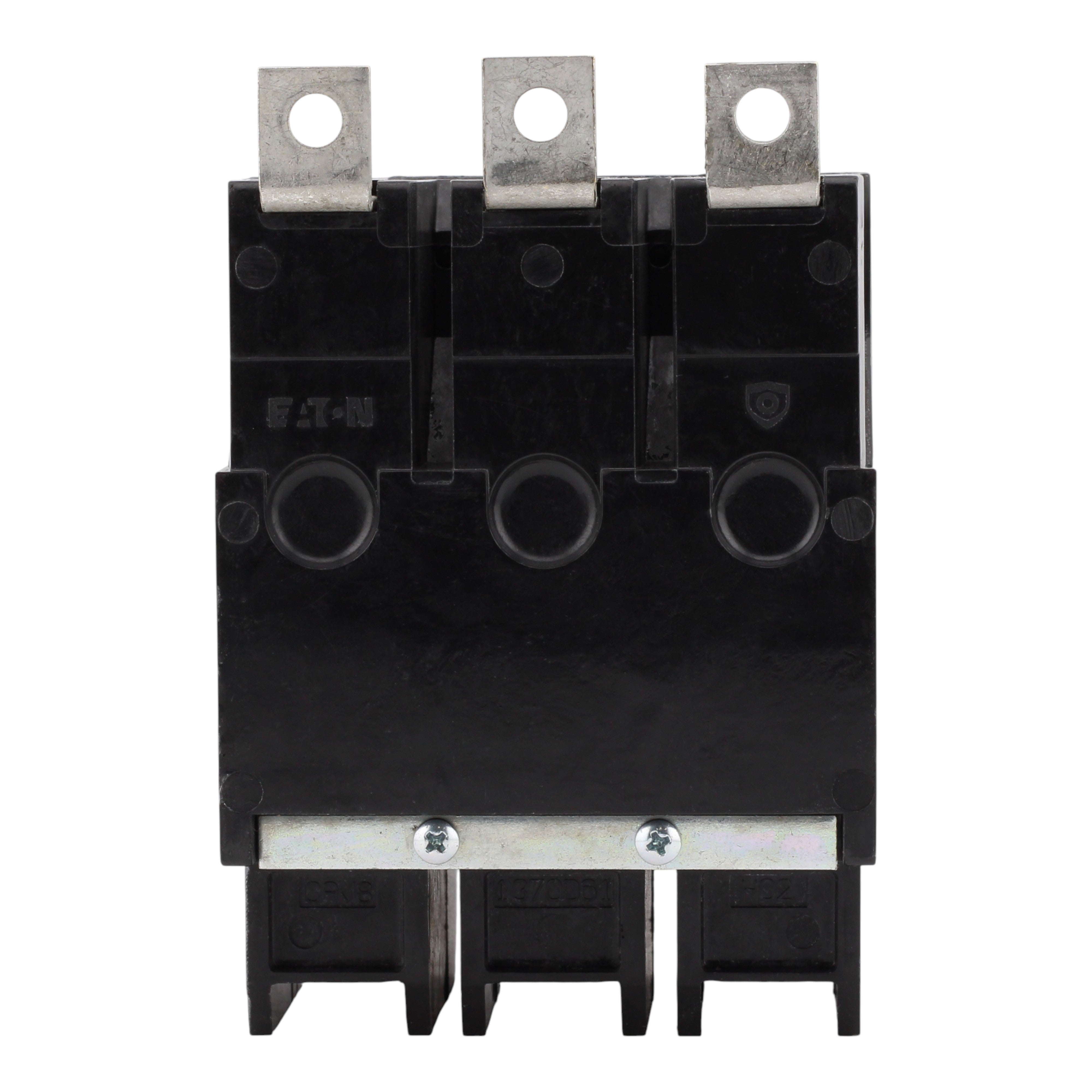

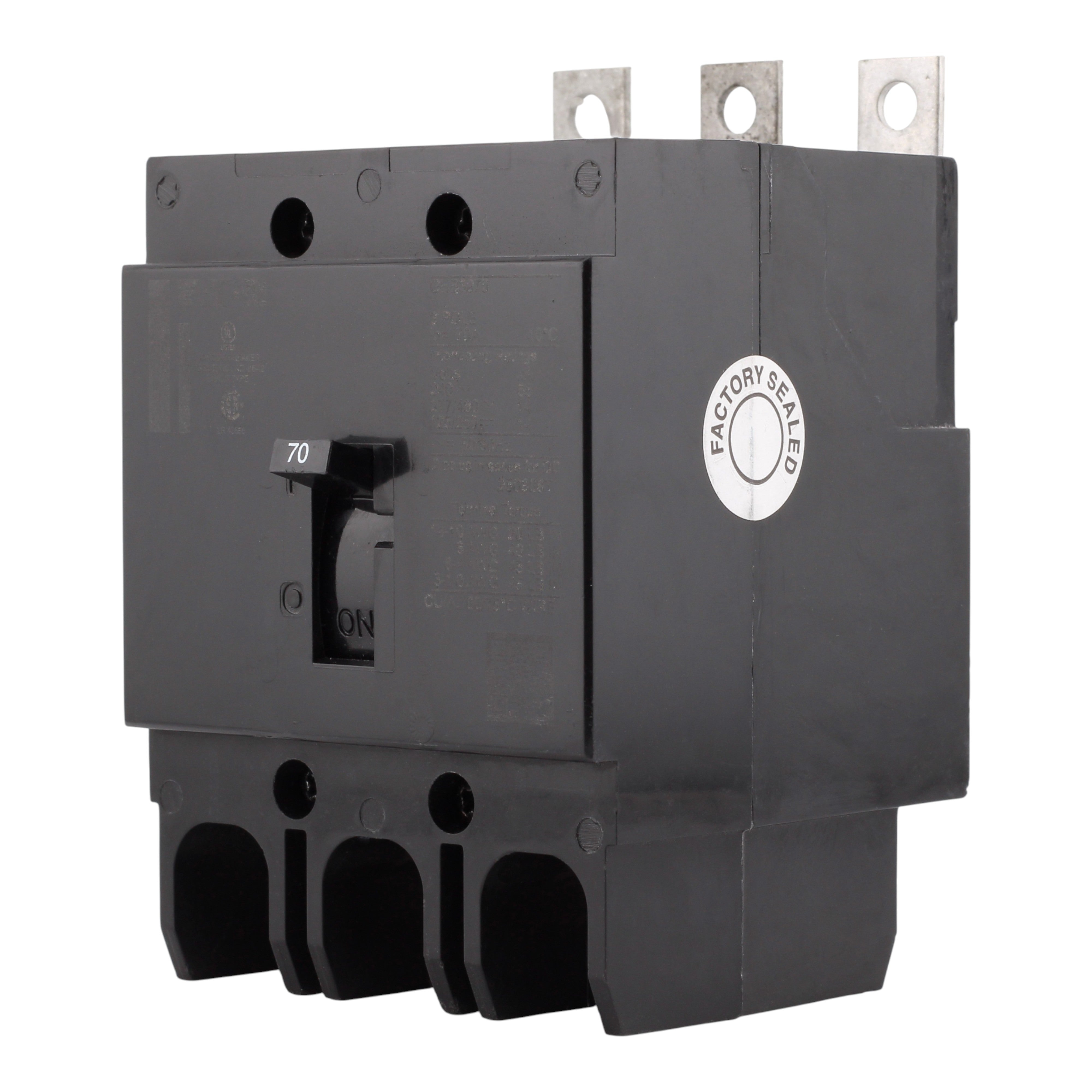

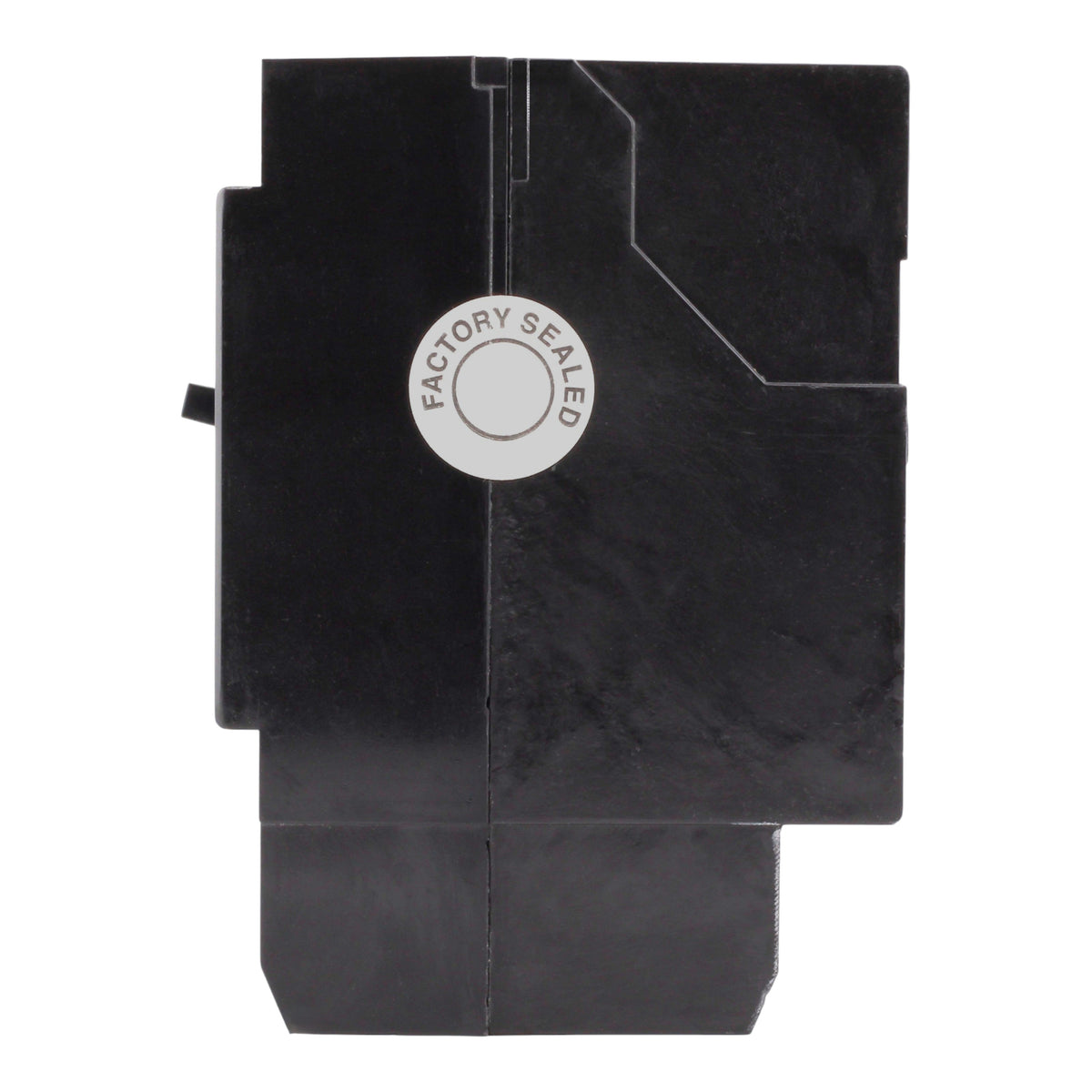

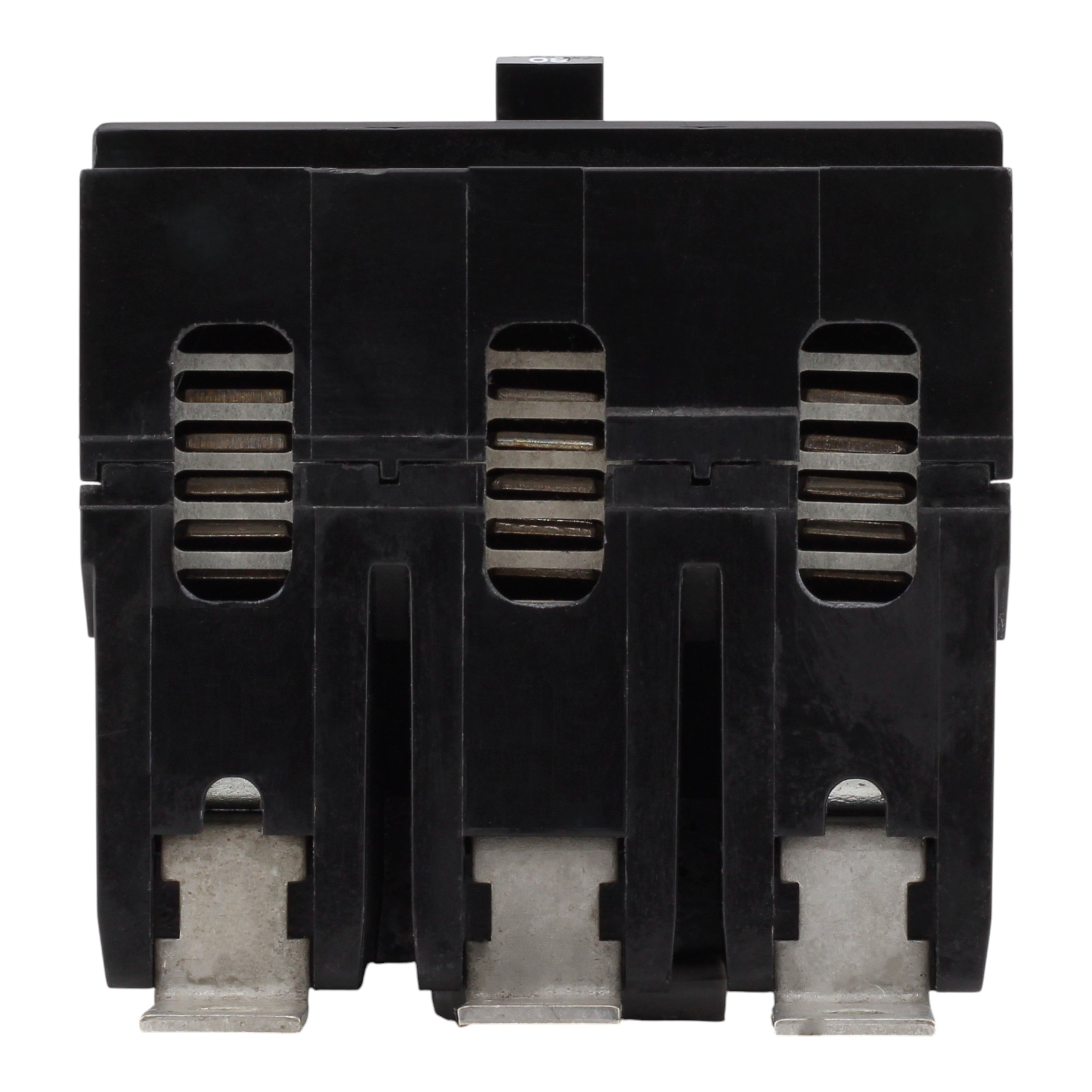

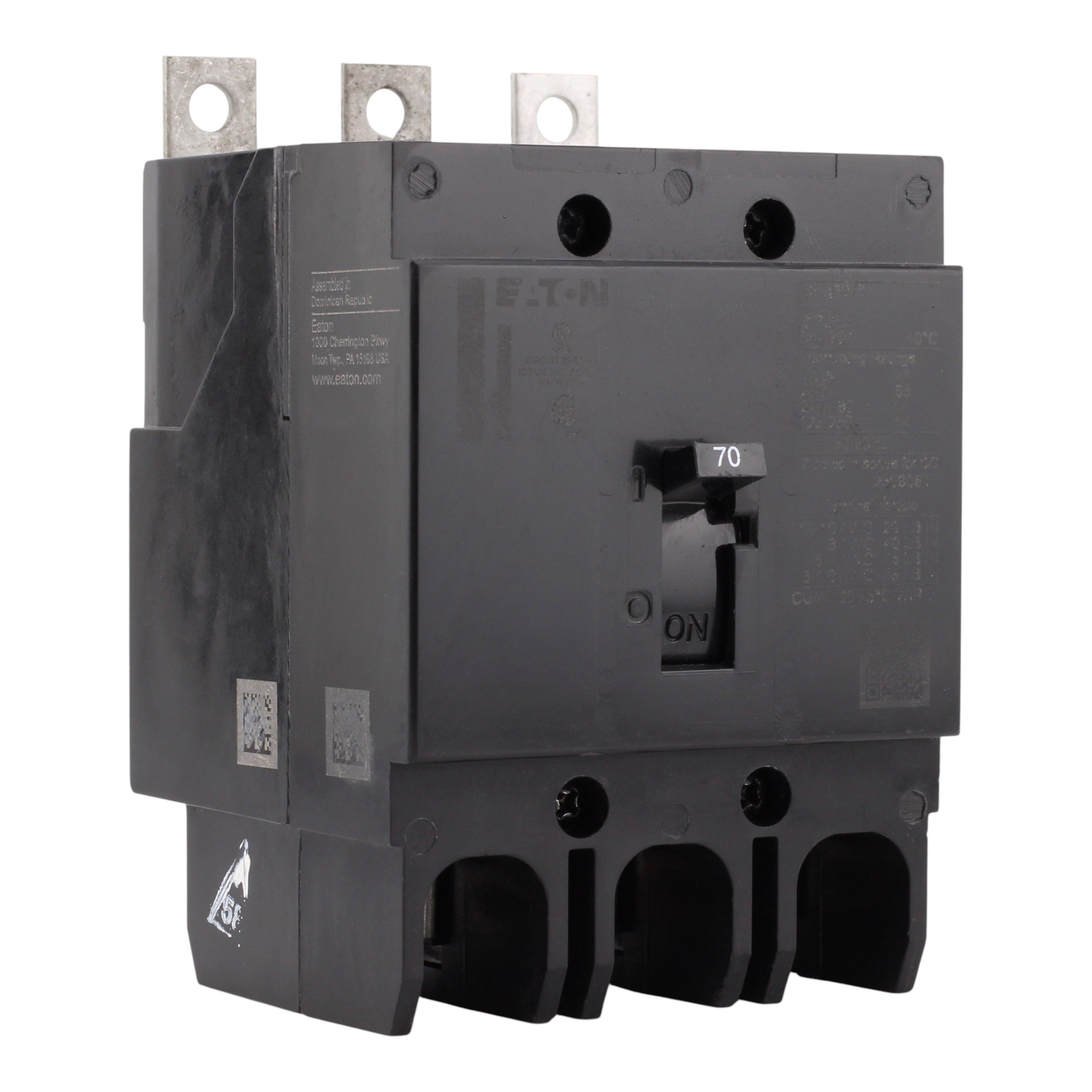

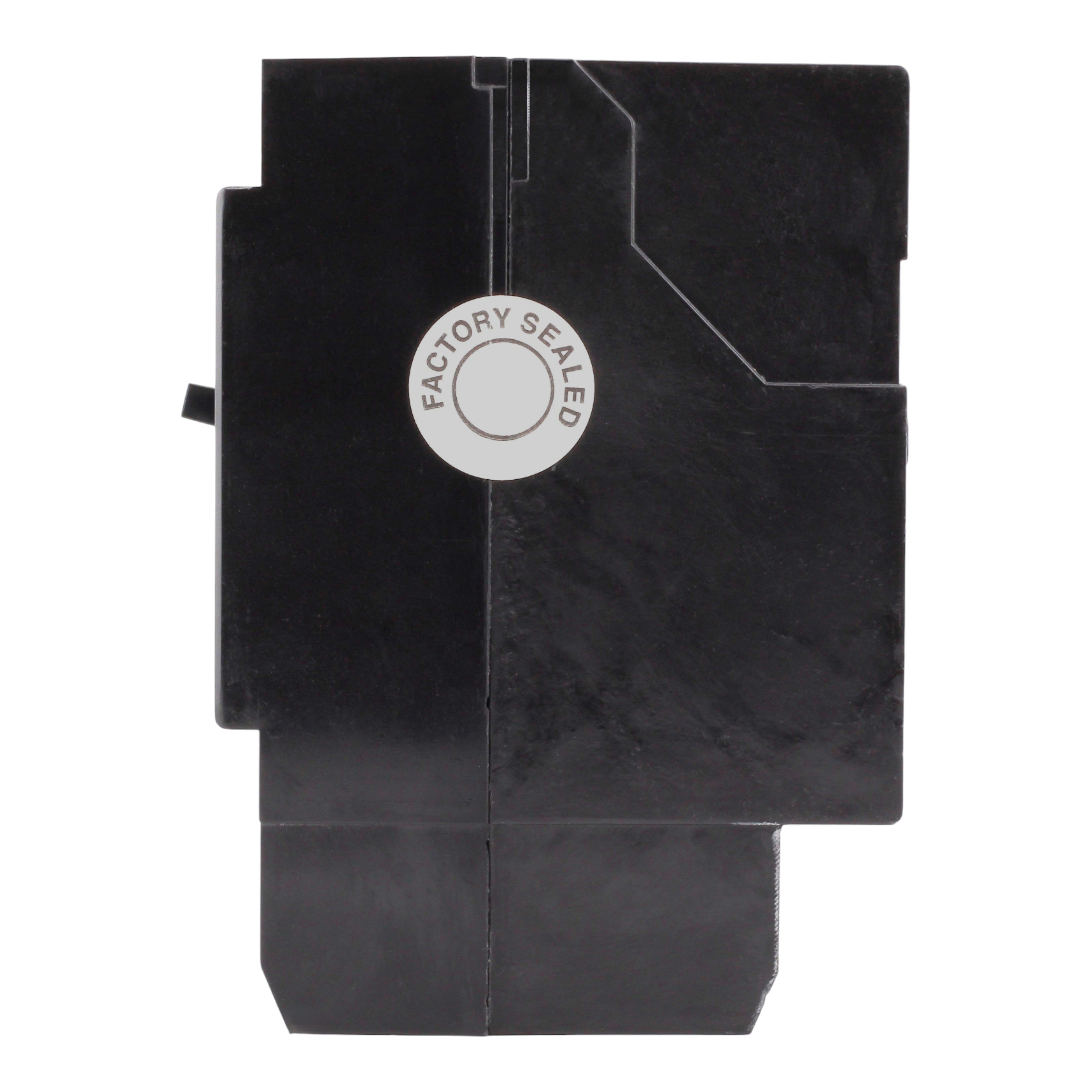

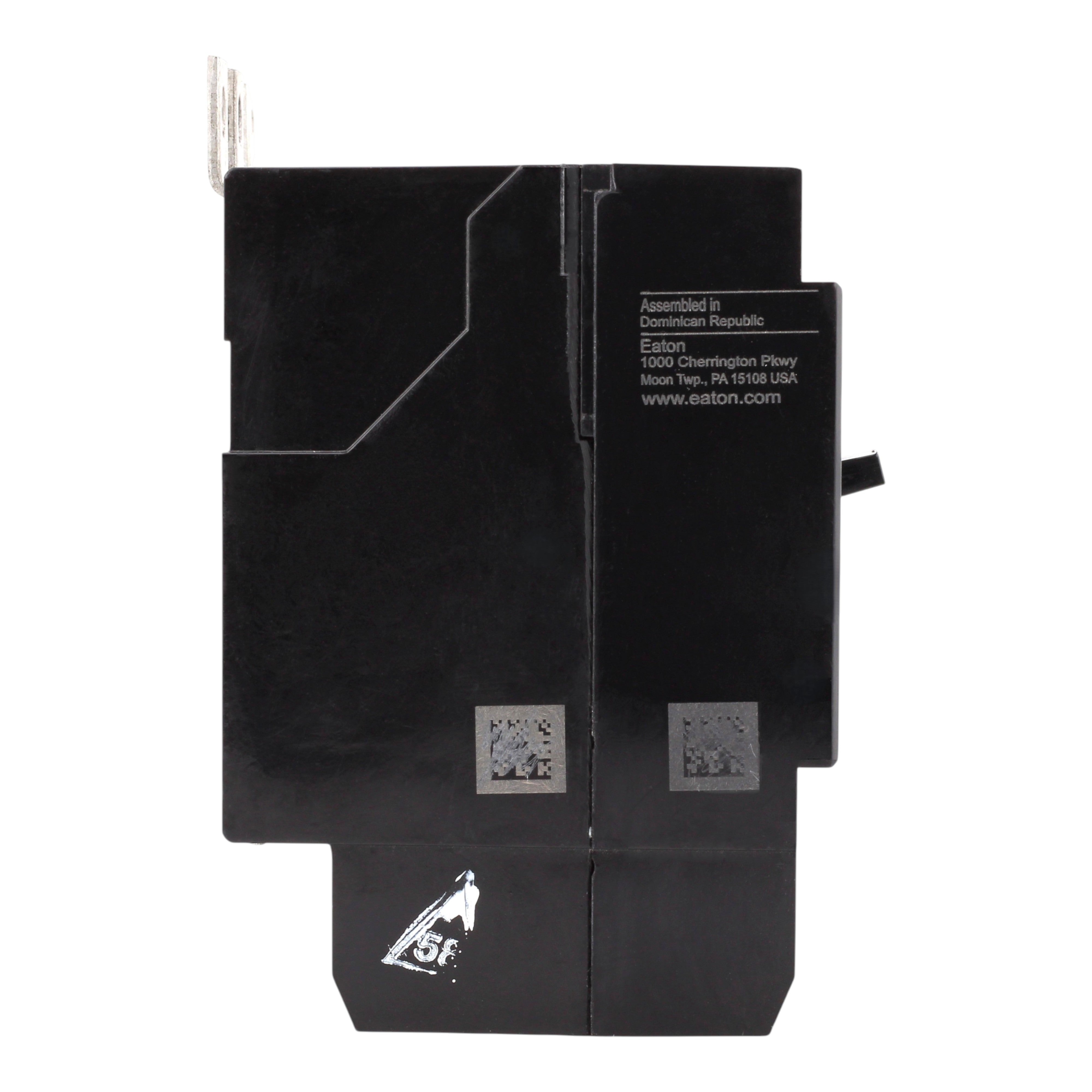

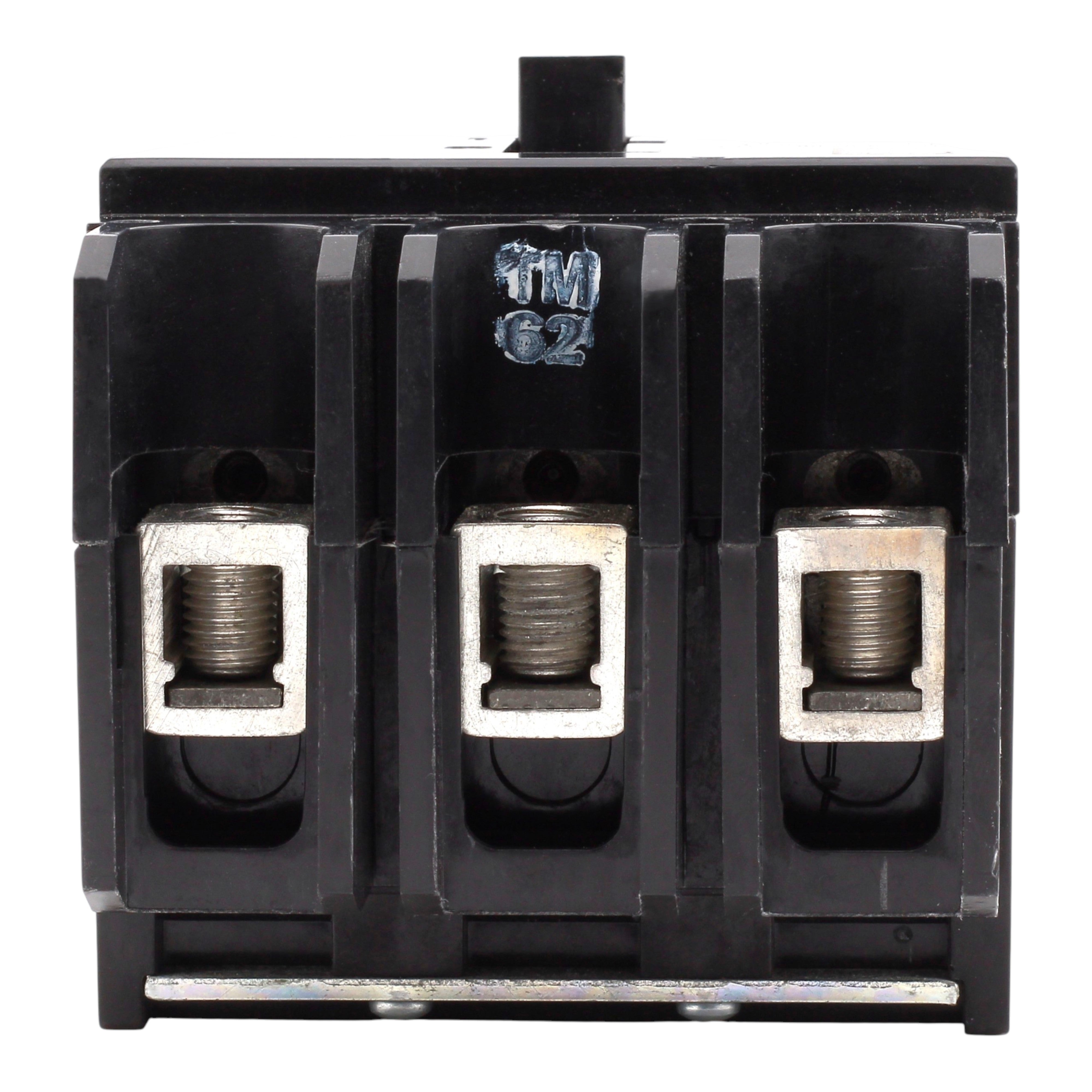

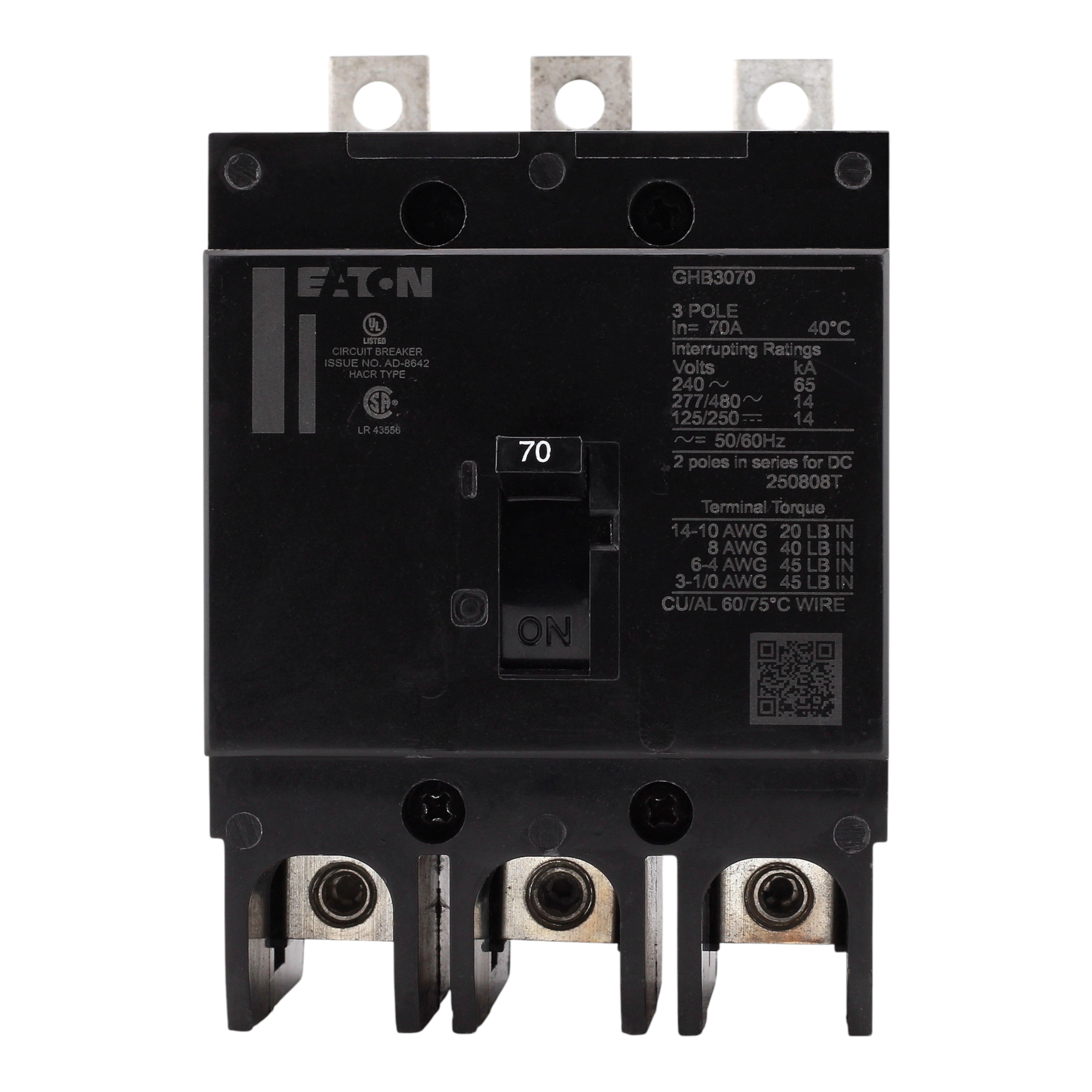

Eaton GHB3070: 70 Amp 3-Pole Molded Case Circuit Breaker, 480Y/277 Vac, 125/250 Vdc, 50/60 Hz, fixed thermal fixed magnetic trip, 14 kAIC at 480Y/277 Vac, 65 kAIC at 240 Vac, UL listed.
-
Manufacturer: Eaton
-
Brand: Eaton
-
Product Range: Series C (for Eaton molded case circuit breaker applications)
-

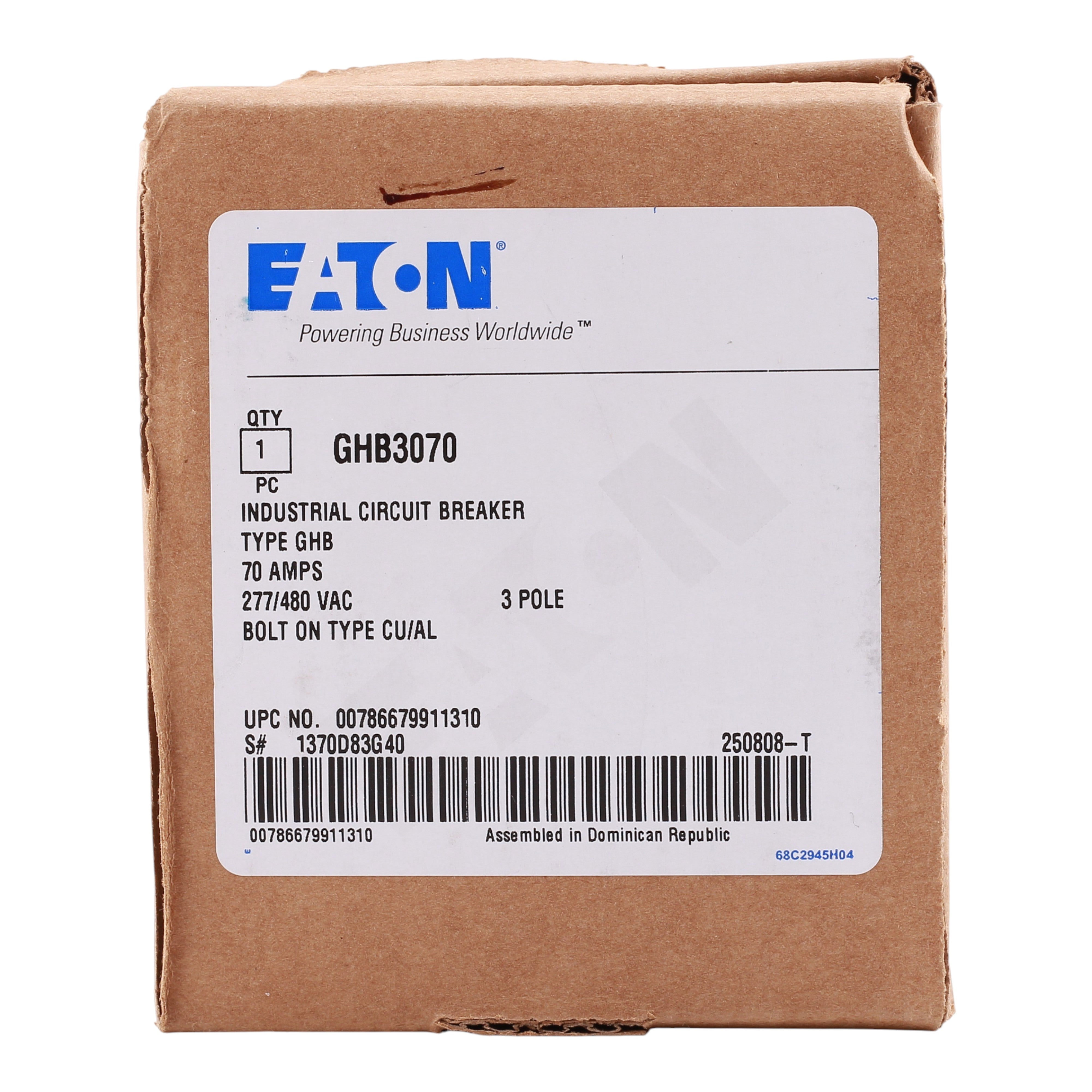

UPC: 786679911310
-
Model Number: GHB3070
-
Breaker Type: Molded Case
-
Amperage: 70 Amps
-
Poles: 3-Pole
-
Voltage: 480Y/277 Volts AC, 125/250 Volts DC
-
Interrupt Rating: 65 kAIC at 240 Vac, 14 kAIC at 480Y/277 Vac
-
Mounting Mode: Bolt-on
-
Trip Type: Fixed thermal, fixed magnetic
-
Frequency Rating: 50/60 Hz
-
Dimensions: Height: 4.0 in; Width: 3.0 in; Depth: 2.63 in
-
Weight: 1.75 lbs
-
Certifications: UL Listed
This Eaton Series C GHB3070 molded case circuit breaker delivers reliable 70A, 3-pole protection for 480Y/277 Vac or 125/250 Vdc systems with fixed thermal and magnetic trip. Offering 14 kAIC interrupt at 480Y/277 Vac and 65 kAIC at 240 Vac, it ensures robust performance in commercial and industrial applications.
