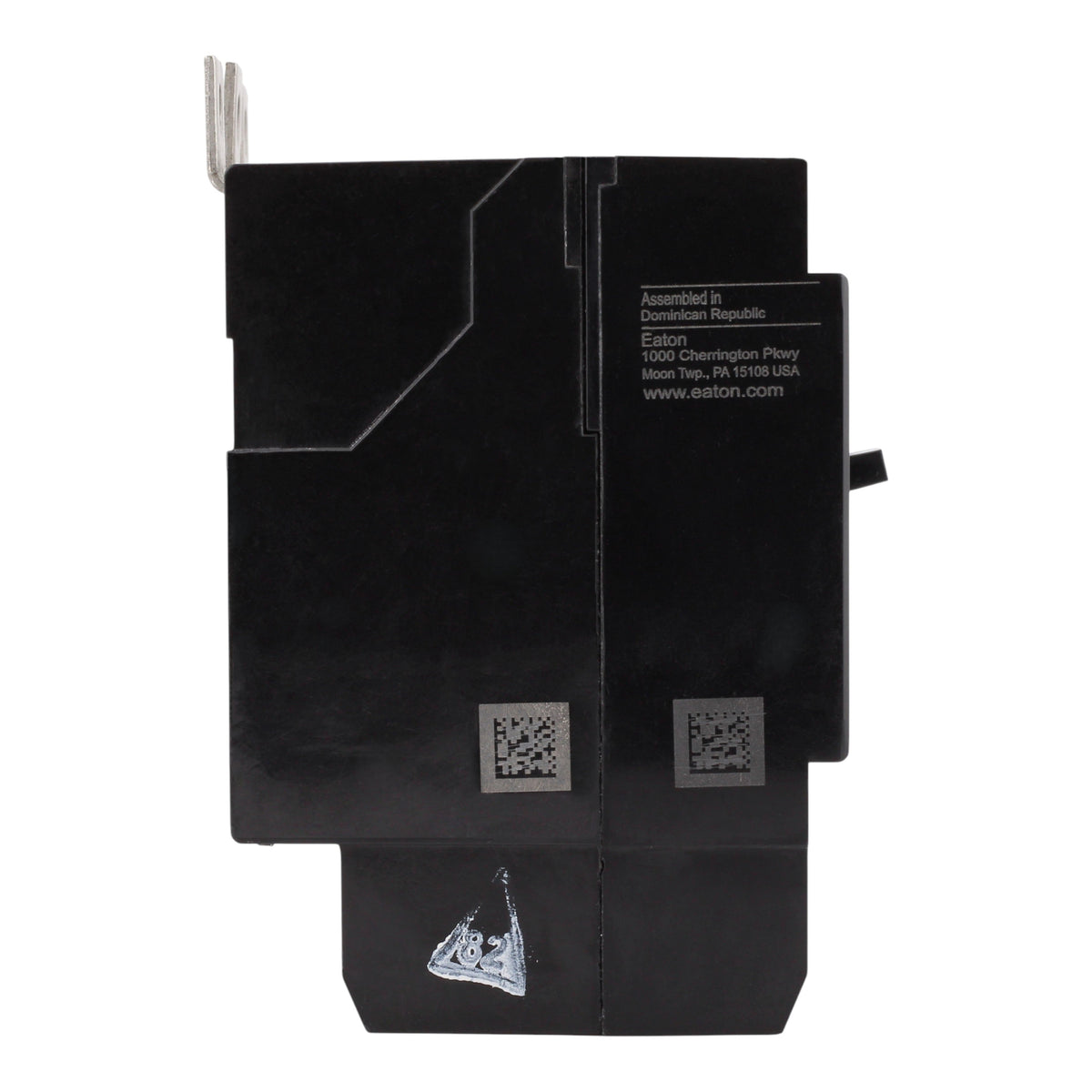

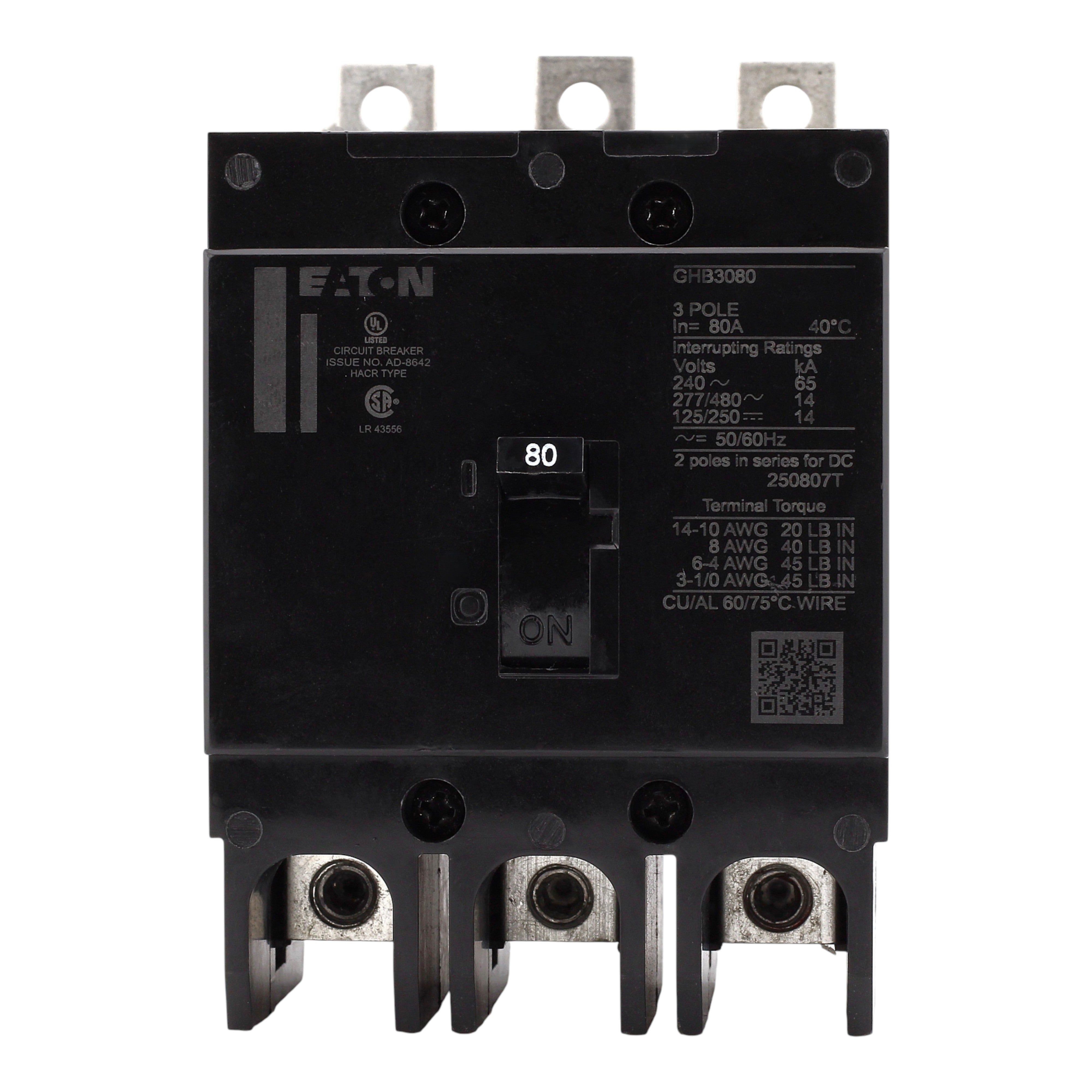

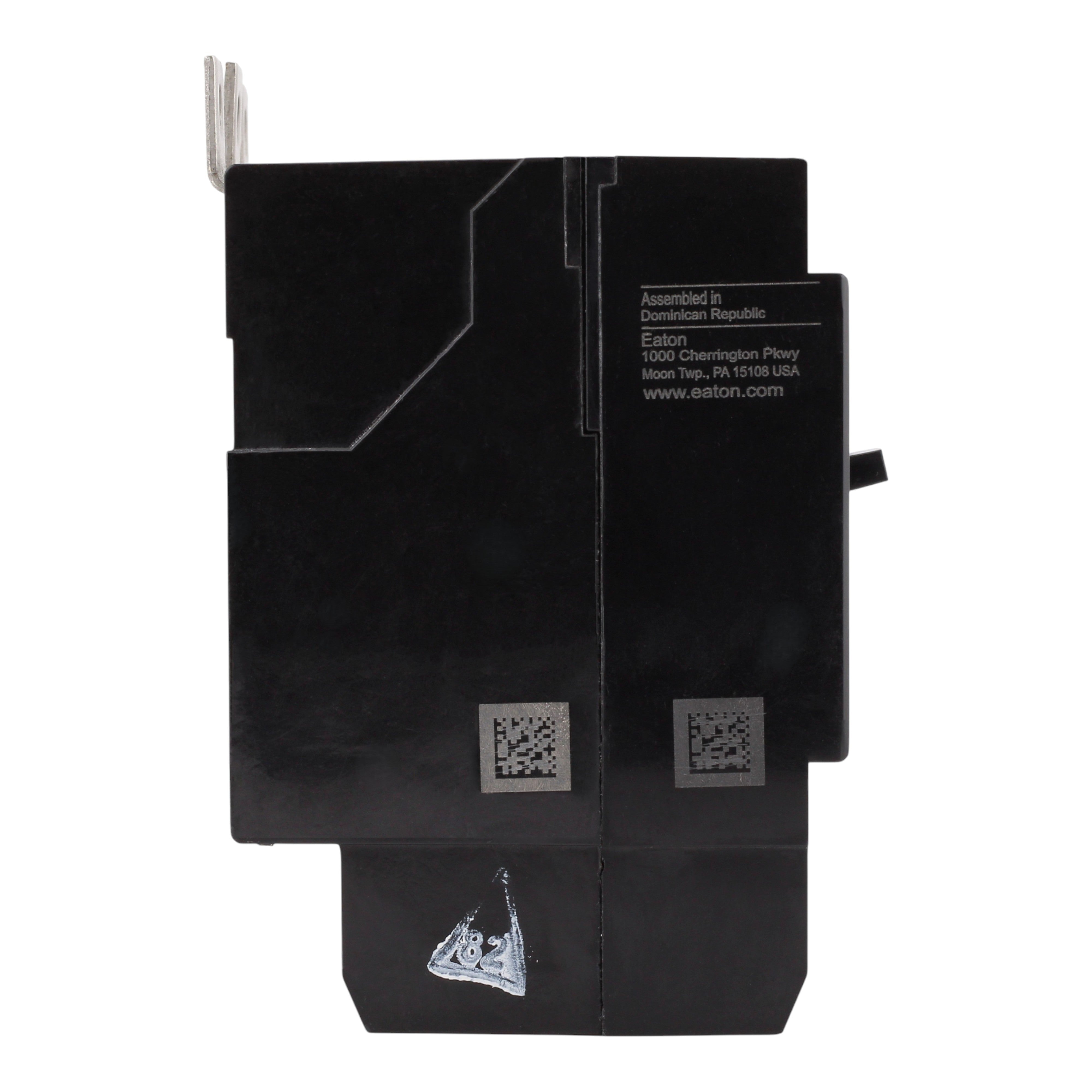

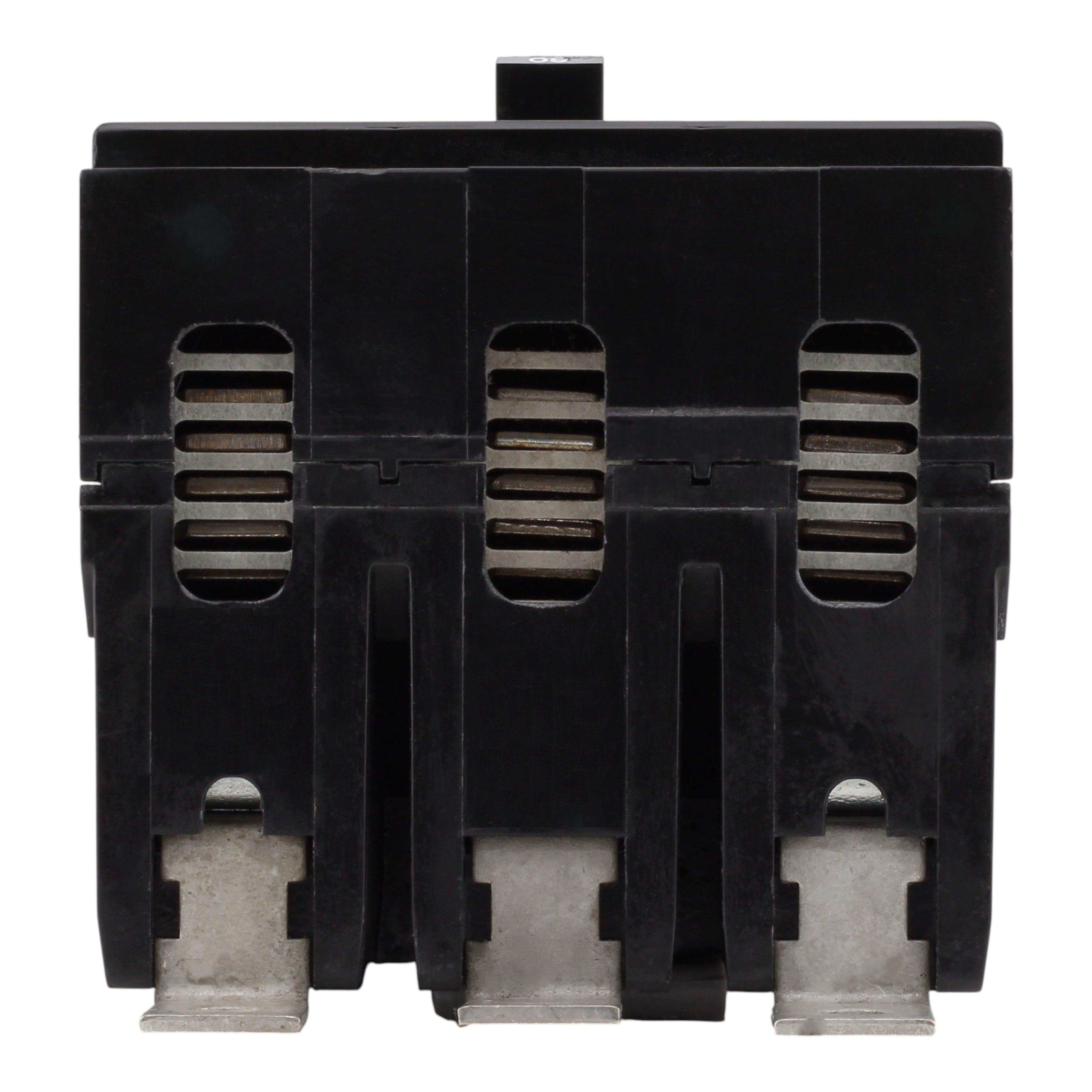

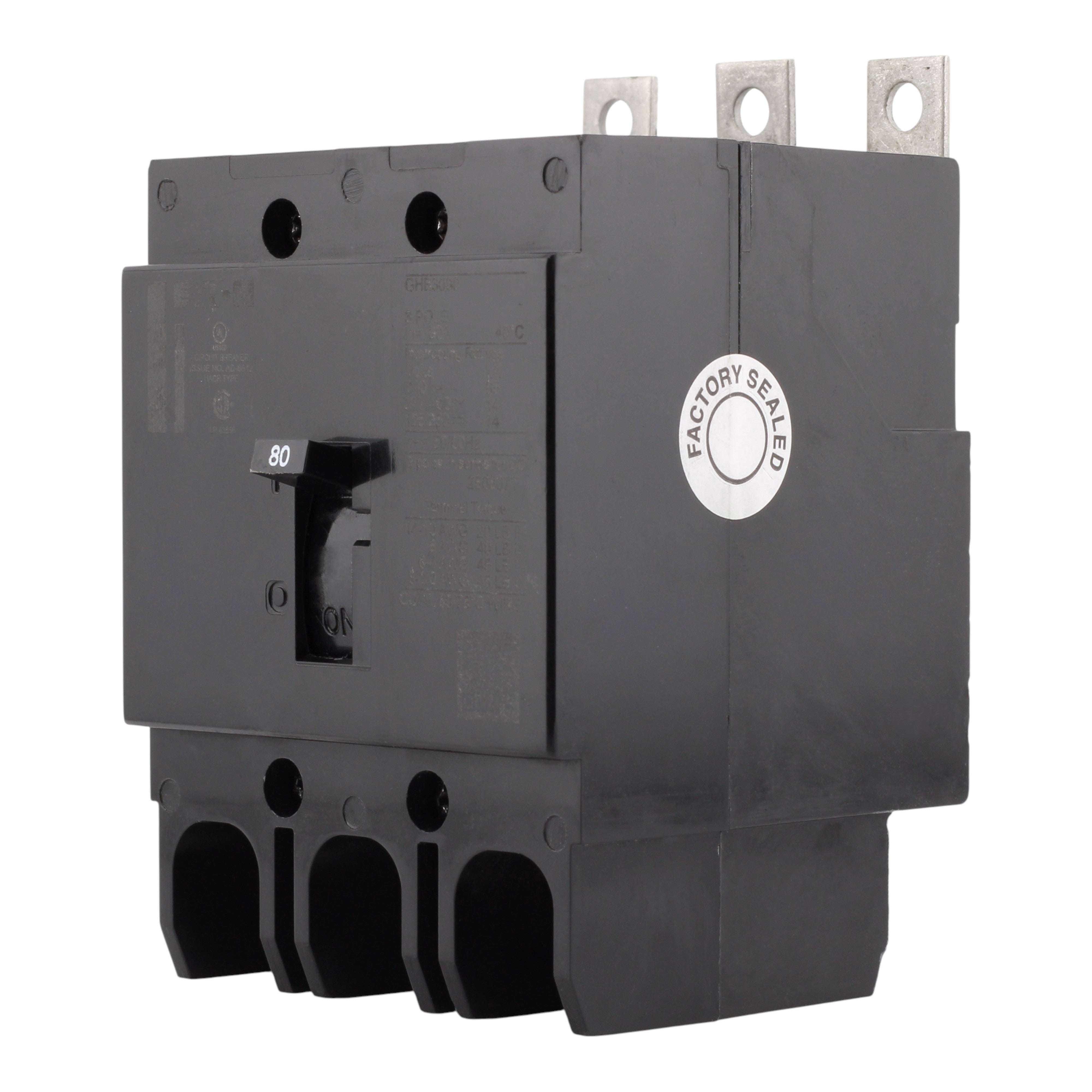

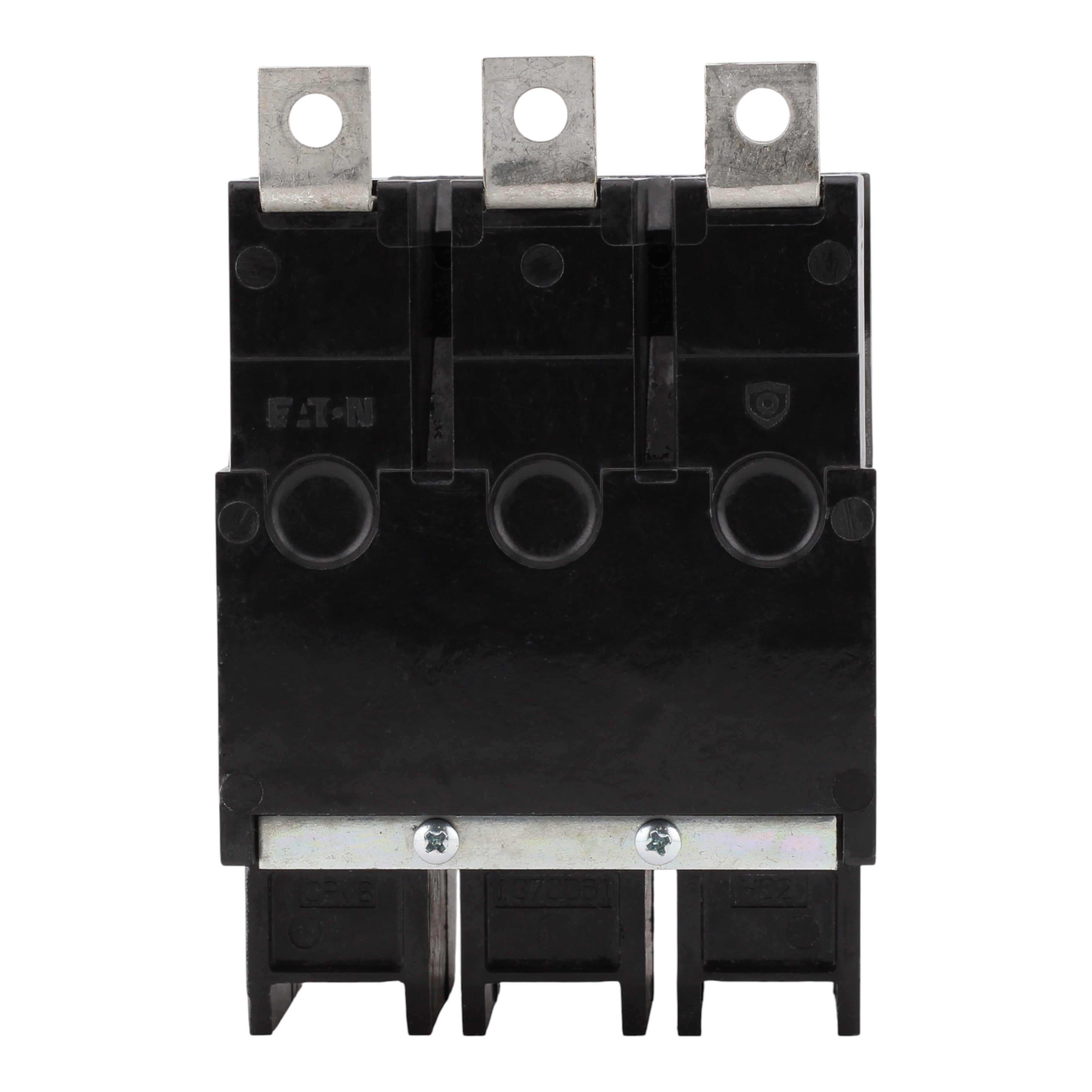

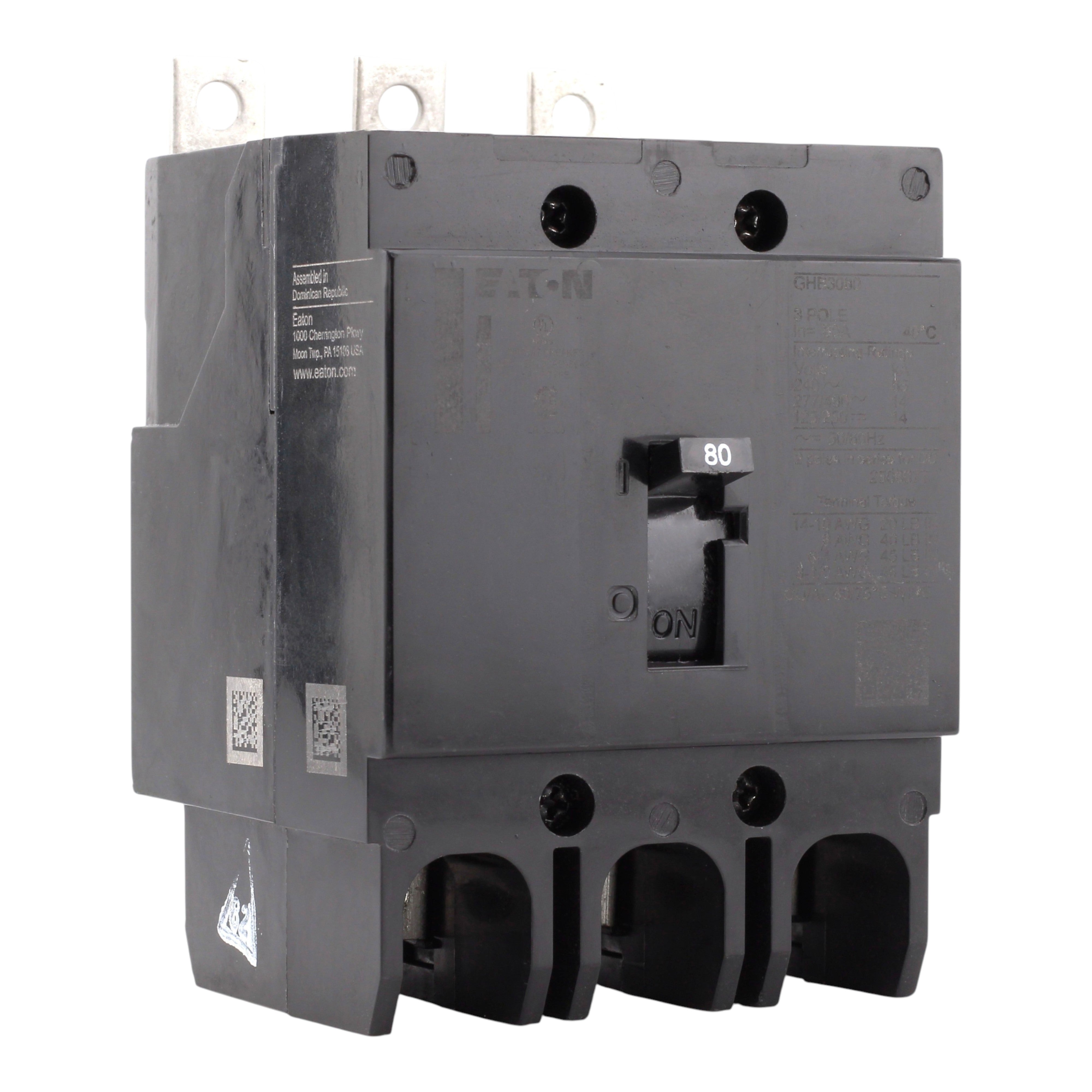

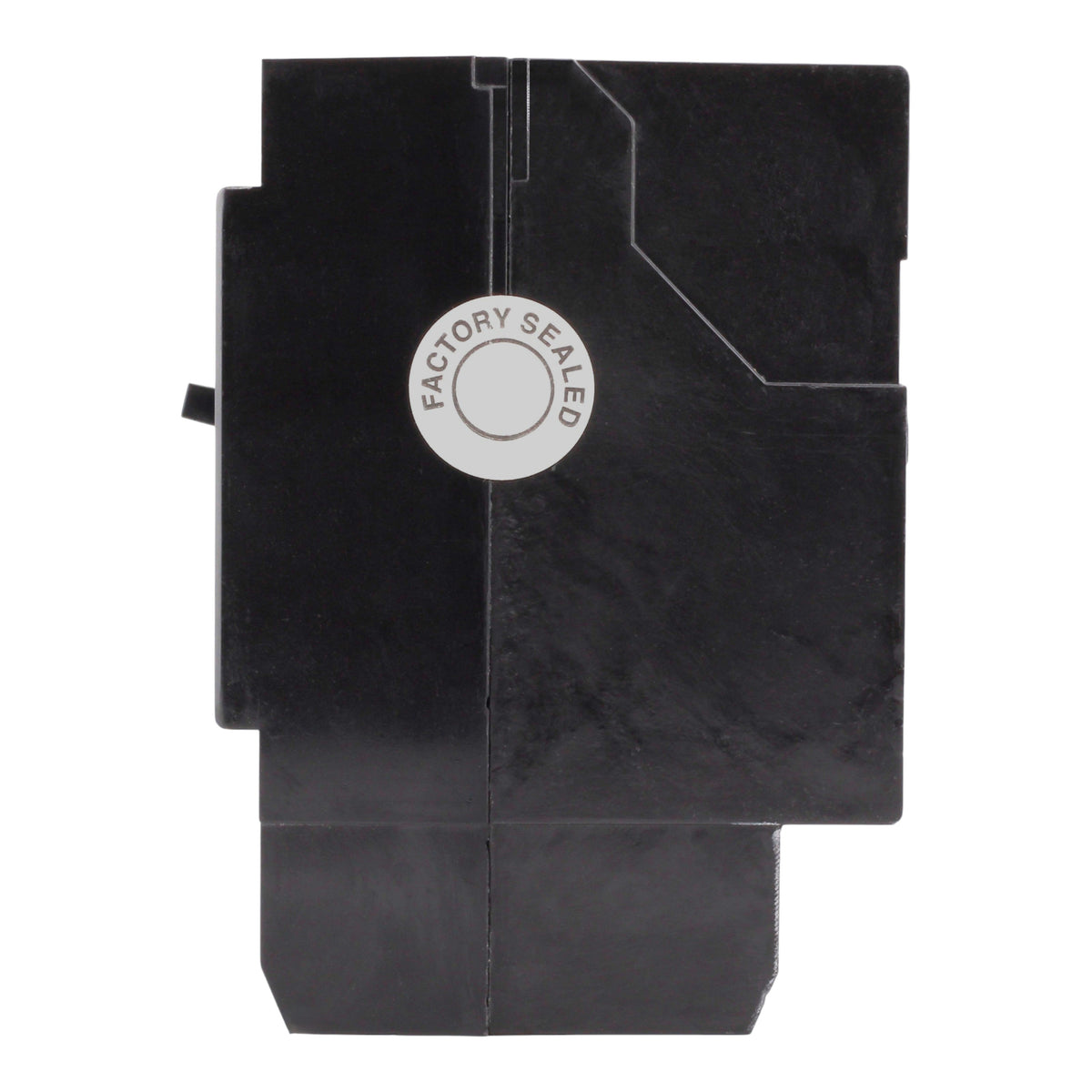

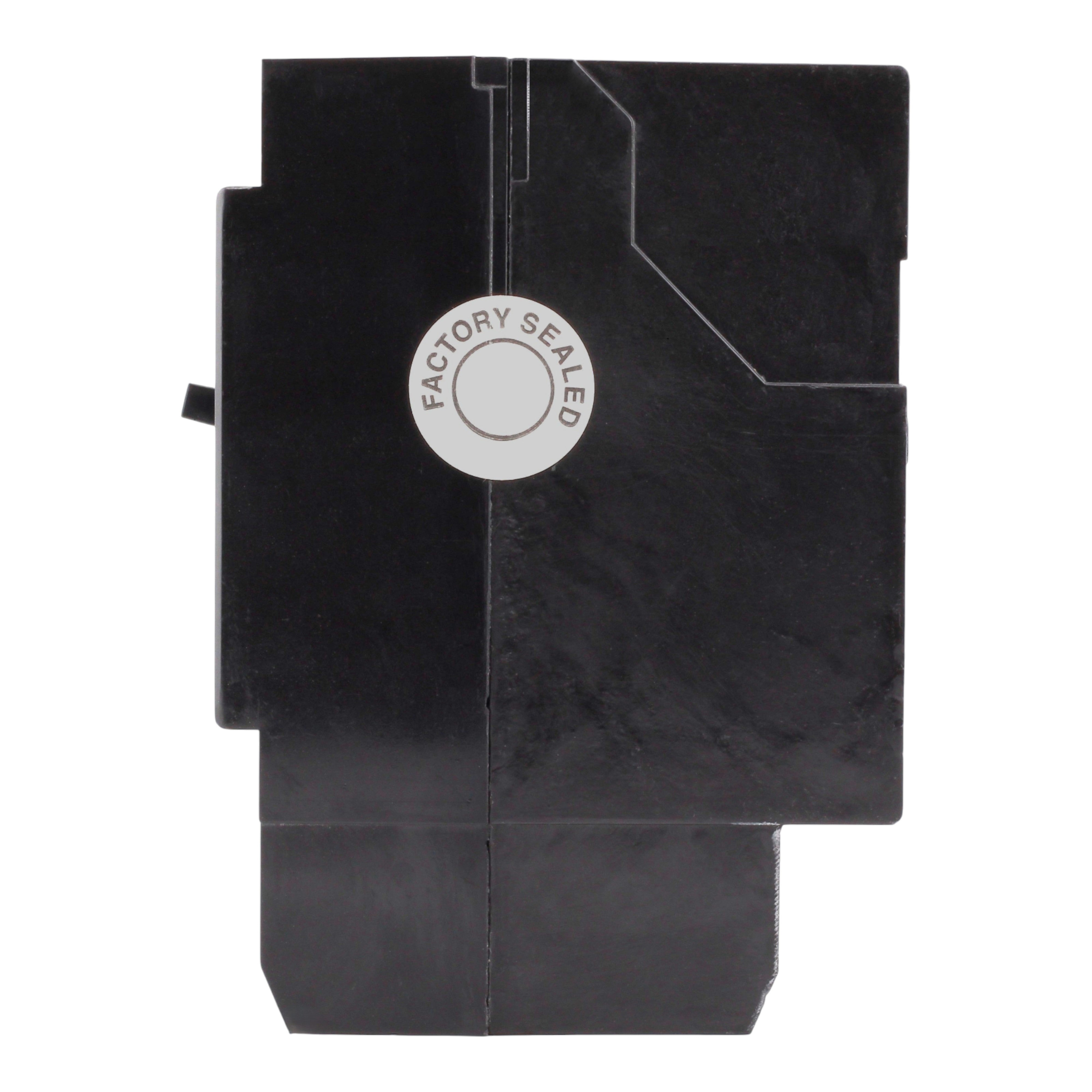

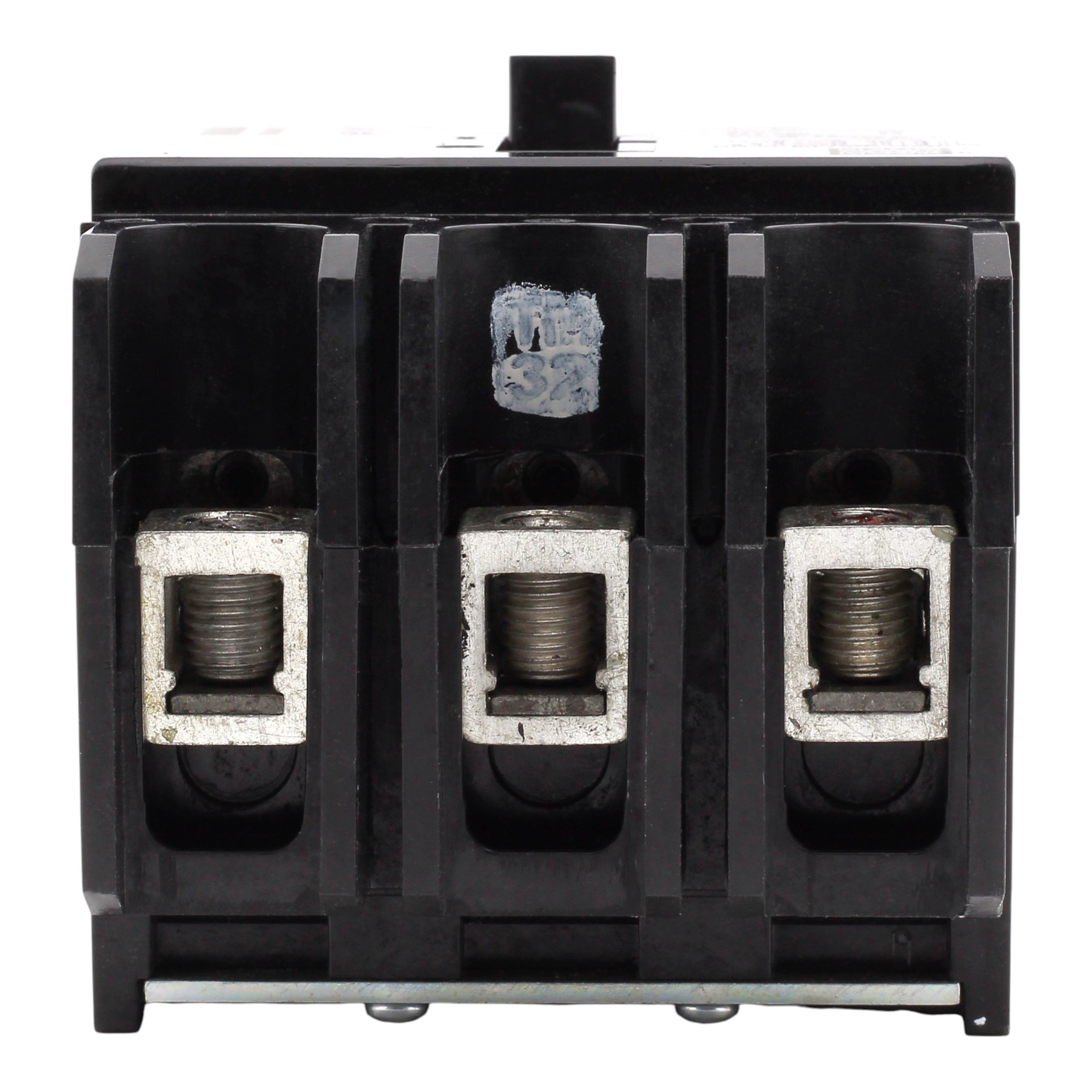

Eaton GHB3080: 80 Amp 3-Pole Molded Case Circuit Breaker, 480Y/277 Vac, 125/250 Vdc, 14kA at 480Y/277 Vac, 65kA at 240 Vac, fixed thermal fixed magnetic, 50/60 Hz, UL listed.
-
Manufacturer: Eaton
-
Brand: Eaton
-
Product Range: Series C (for Eaton panelboards and switchboards)
-
UPC: 786679762806
-
Model Number: GHB3080
-
Breaker Type: Molded Case
- ** Amperage: 80 Amps
-
Poles: 3-Pole
-
Voltage: 480Y/277 Volts AC, 125/250 Volts DC
-
Interrupt Rating: 14 kAIC at 480Y/277 Vac, 65 kAIC at 240 Vac
-
Mounting Mode: Bolt-on
-
Trip Type: Fixed thermal, fixed magnetic
-
Frequency Rating: 50/60 Hz
-
Dimensions: Height: 4.0 in; Width: 3.0 in; Depth: 2.63 in
-
Weight: 1.7 lbs
-
Certifications: UL Listed
This Eaton Series C GHB3080 molded case circuit breaker delivers reliable 80A, 3-pole protection for 480Y/277 Vac or 125/250 Vdc systems in industrial and commercial panelboards. With fixed thermal-magnetic trip, high interrupt ratings of 14kA at 480Y/277V and 65kA at 240V, it ensures robust overload and short-circuit defense.
