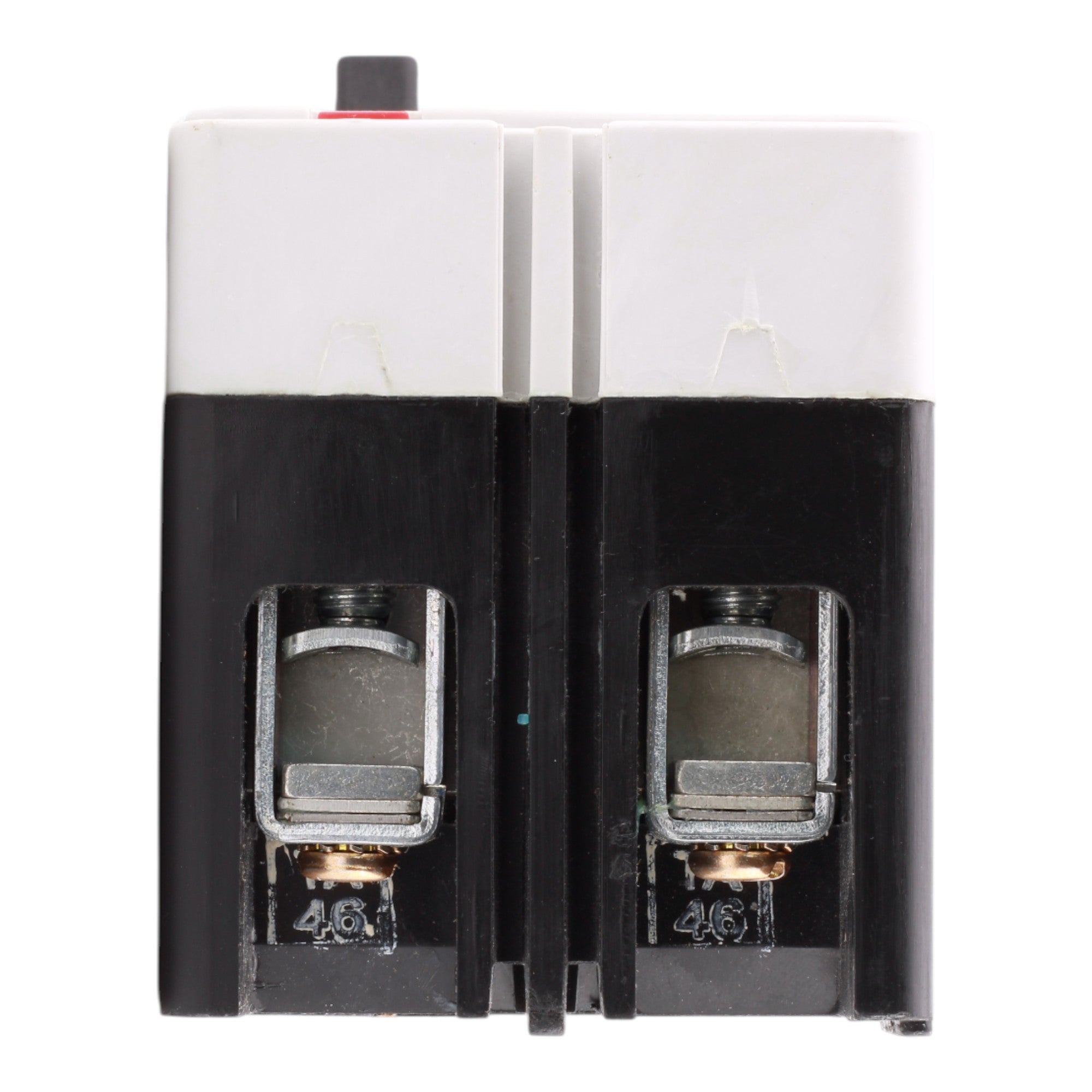

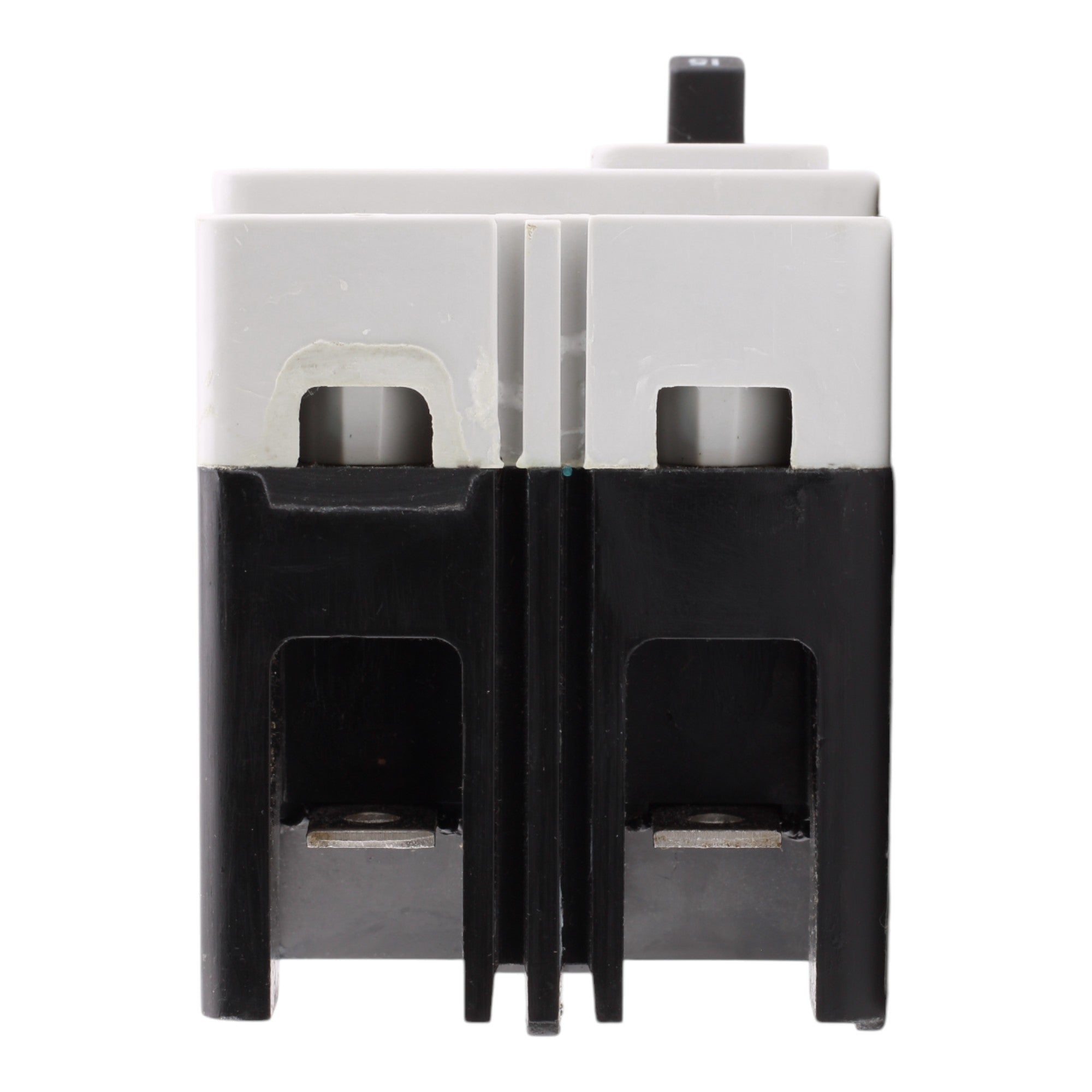

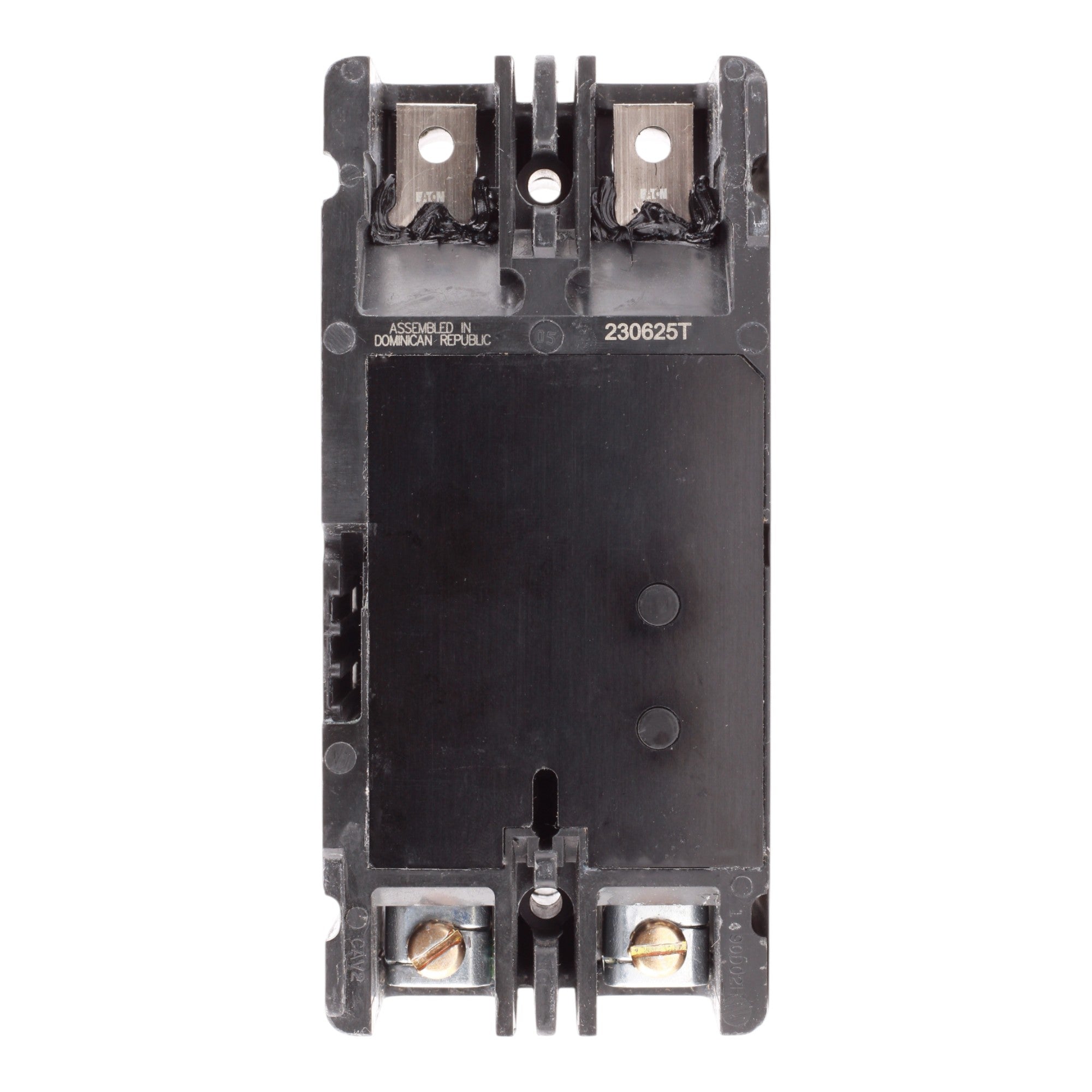

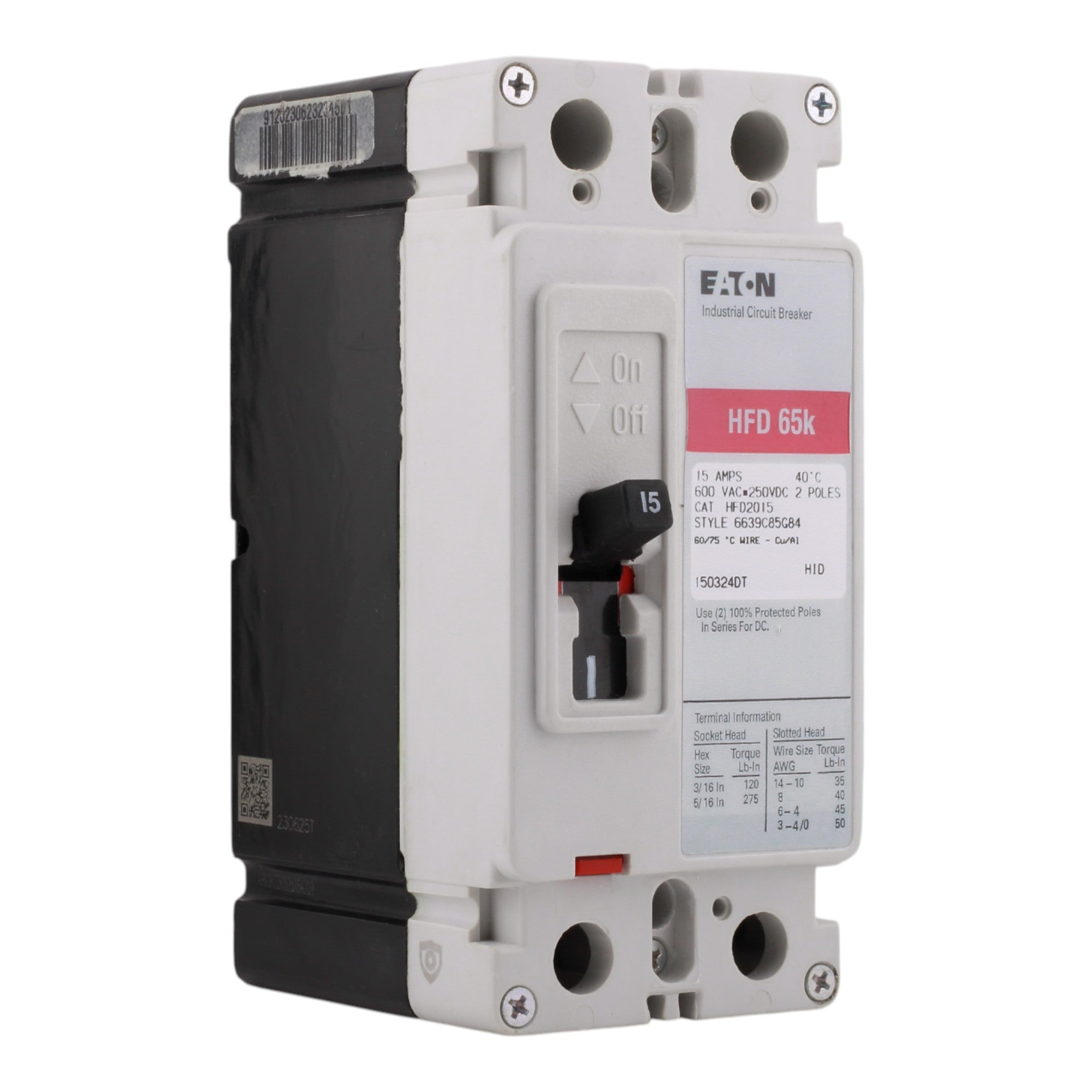

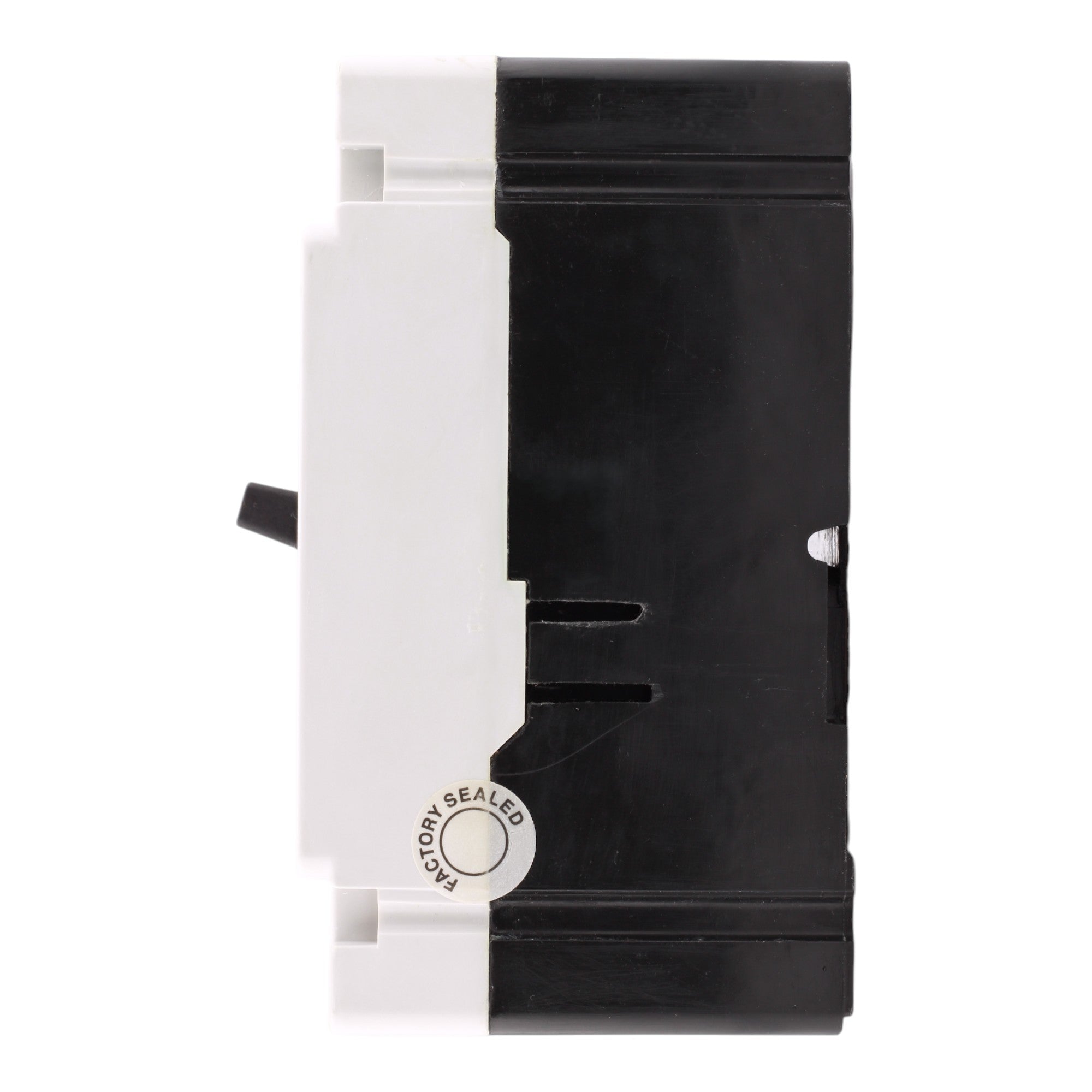

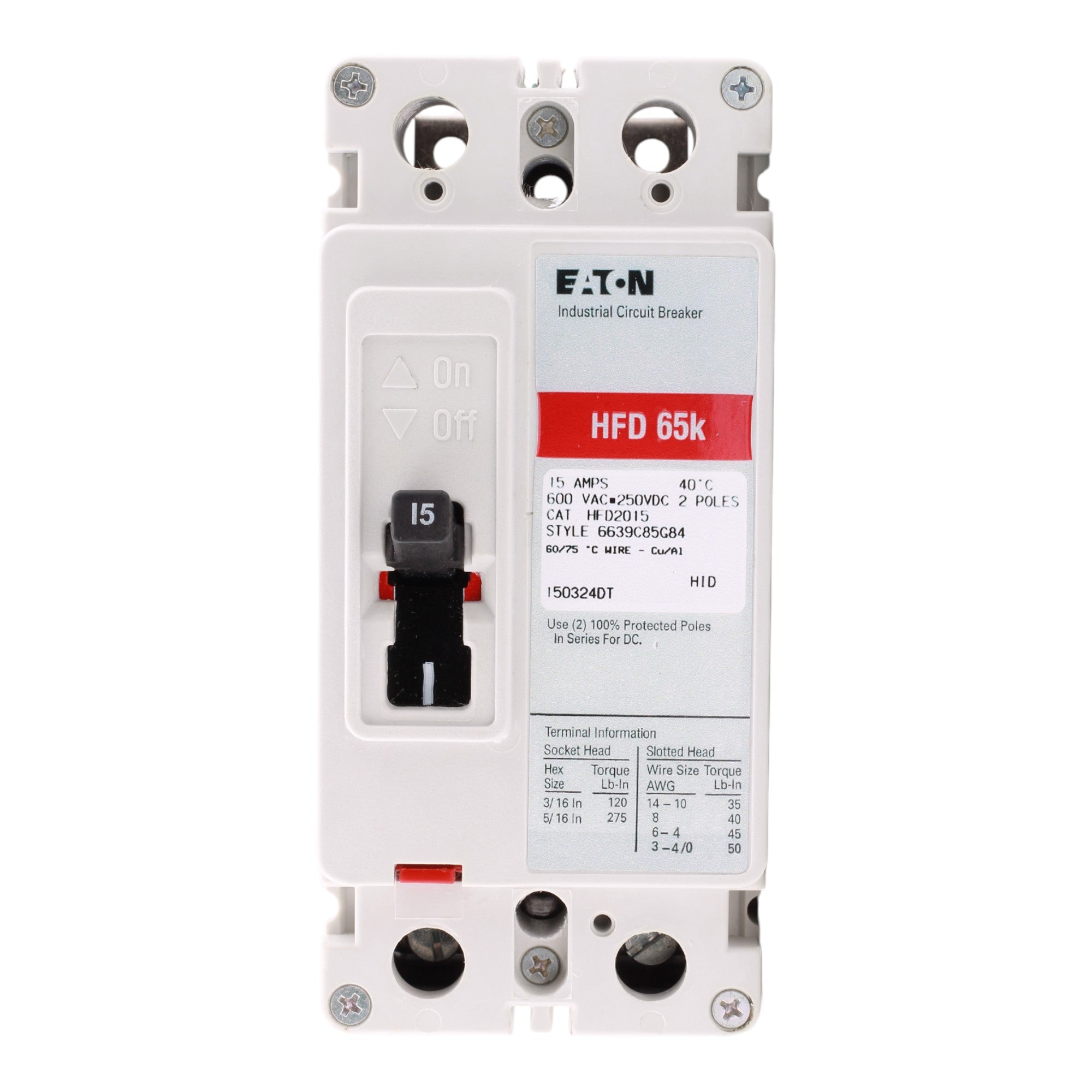

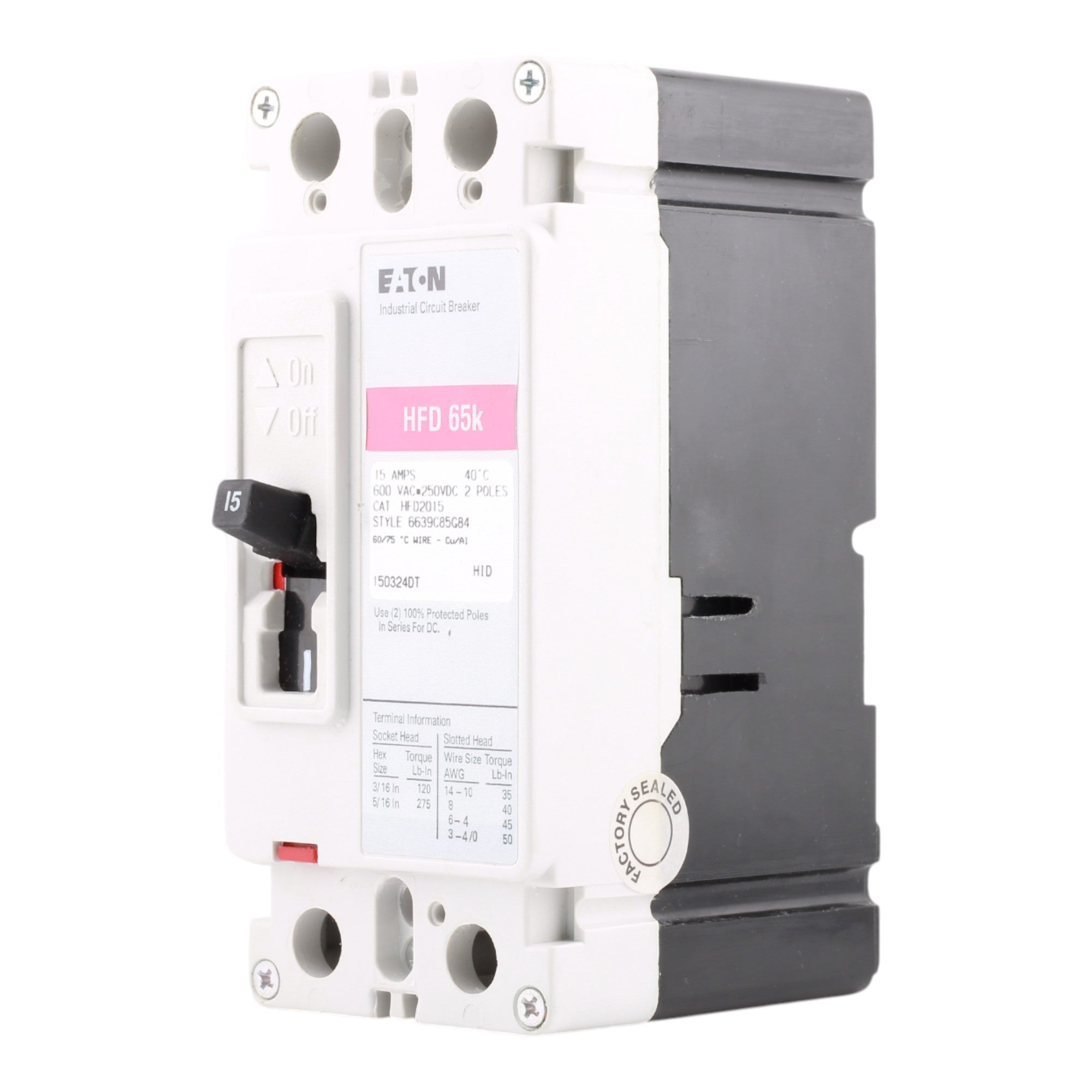

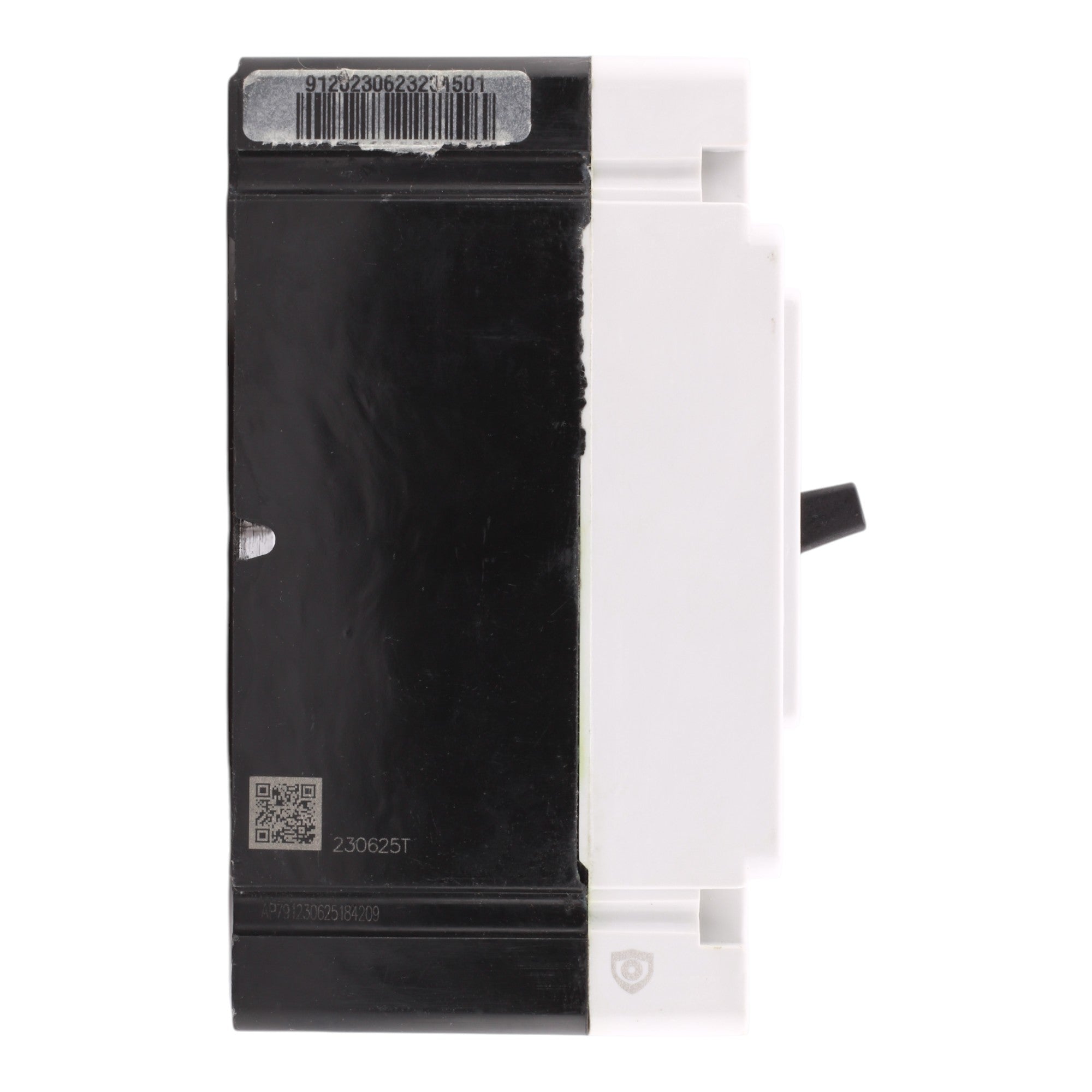

Eaton Series C HFD2015 15A 2P 600V Molded Case Circuit Breaker

Eaton HFD2015: 15 Amp 2-Pole Molded Case Circuit Breaker, 600V, 100kA at 240V, 65kA at 480V, Fixed Thermal-Magnetic Trip, UL Listed.

• Manufacturer: Eaton
• Brand: Eaton
• Product Range: Series C (for Eaton Series C loadcenters and equipment)
• UPC: 786679175361
• Model Number: HFD2015
• Breaker Type: Molded Case Circuit Breaker
• Amperage: 15 Amps
• Poles: 2-Pole
• Voltage: 600 Volts AC, 250 Volts DC
• Interrupt Rating: 100 kAIC at 240 Vac, 65 kAIC at 480 Vac
• Mounting Mode: Bolt-on
• Connections Terminals: Load side
• Wire Size: #14-1/0 AWG Cu/Al
• Tightening Torque: 45 lb-in
• Dimensions: Height: 6.0 in; Width: 2.75 in; Depth: 3.38 in
• Weight: 2.9 lbs
• Certifications: UL Listed
• Frequency Rating: 50/60 Hz

This Eaton Series C HFD2015 molded case circuit breaker provides reliable 15A, 2-pole protection for 600V circuits in Series C loadcenters. Featuring a fixed thermal-magnetic trip with 100kA at 240V and 65kA at 480V interrupt ratings, it ensures robust safety and performance for commercial and industrial applications.
