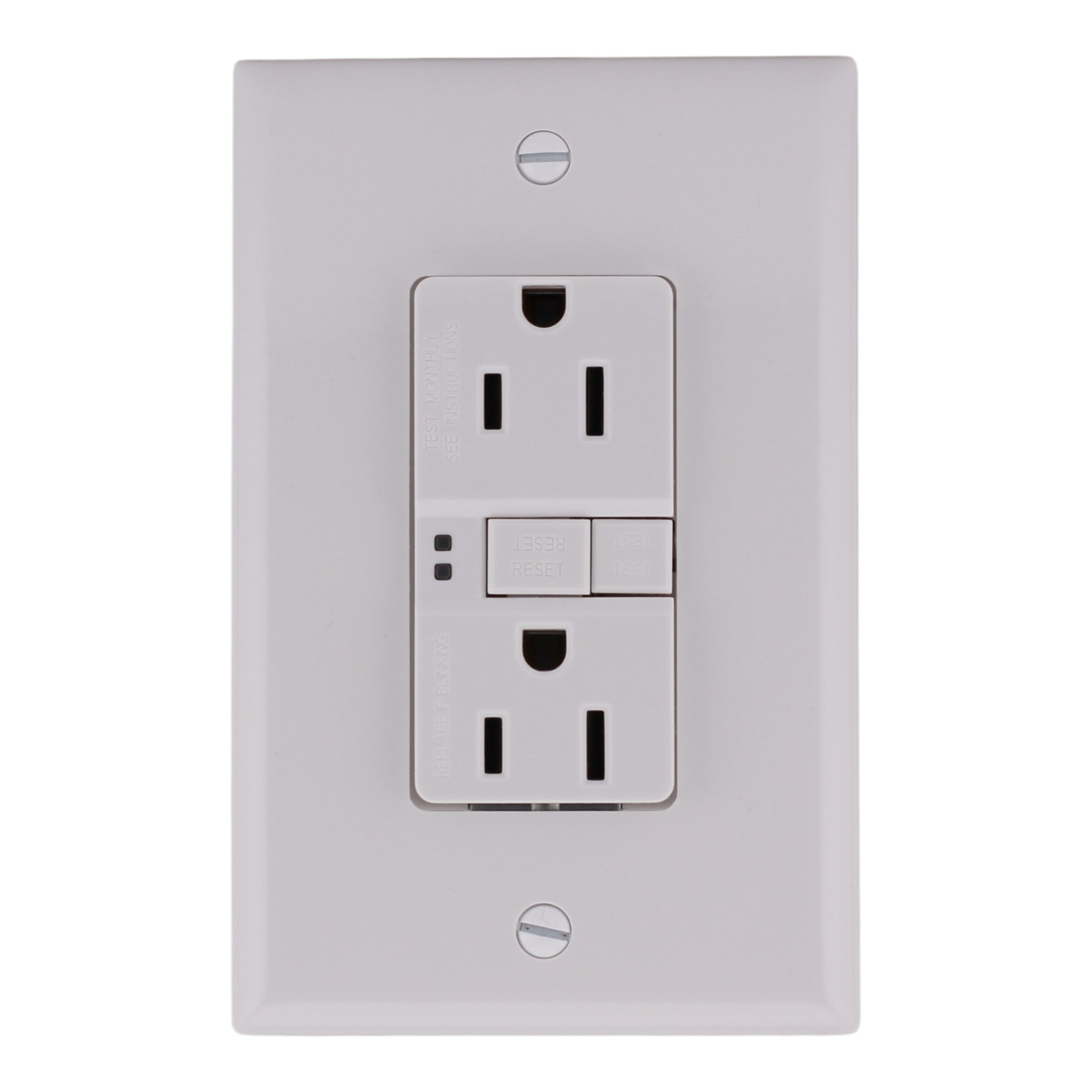

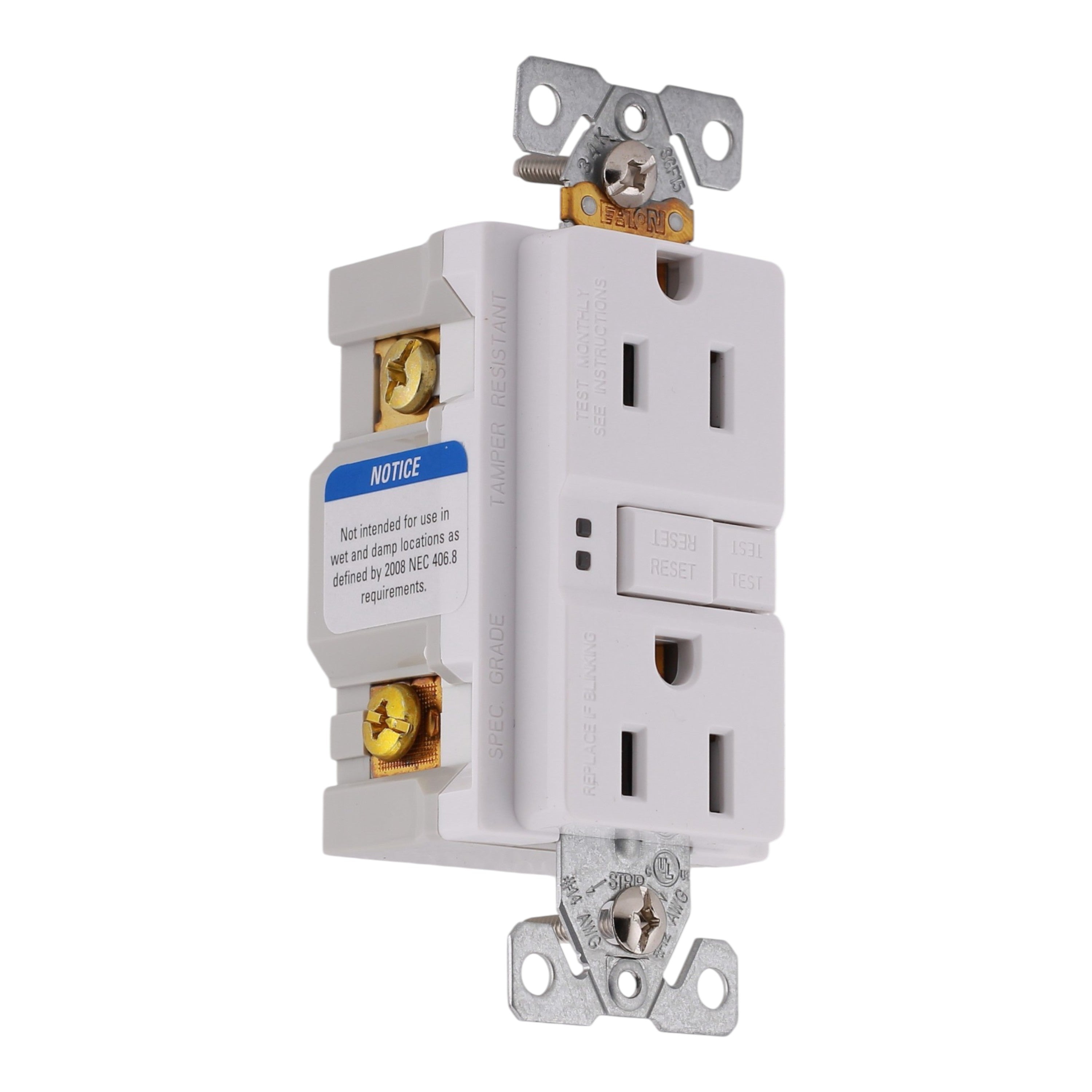

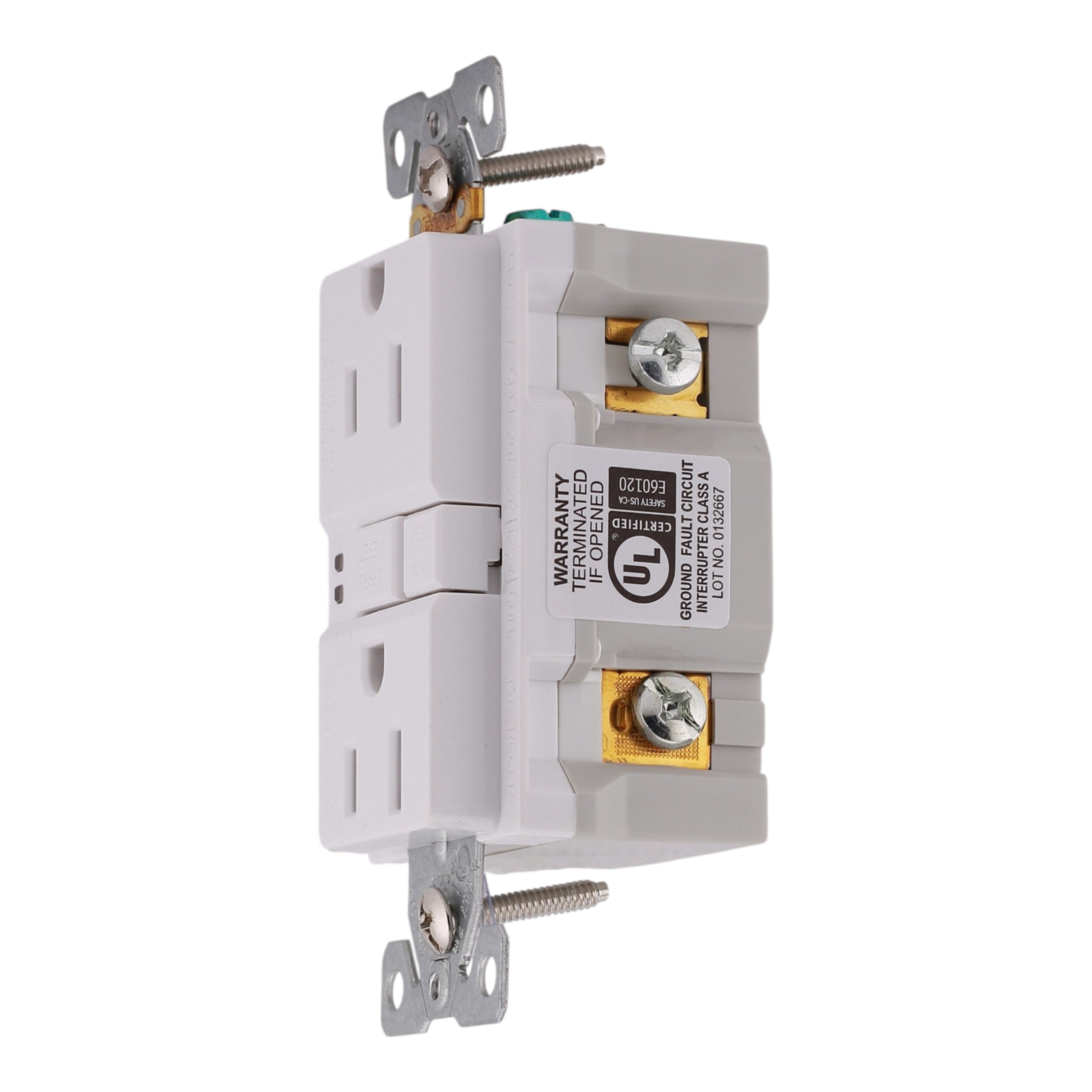

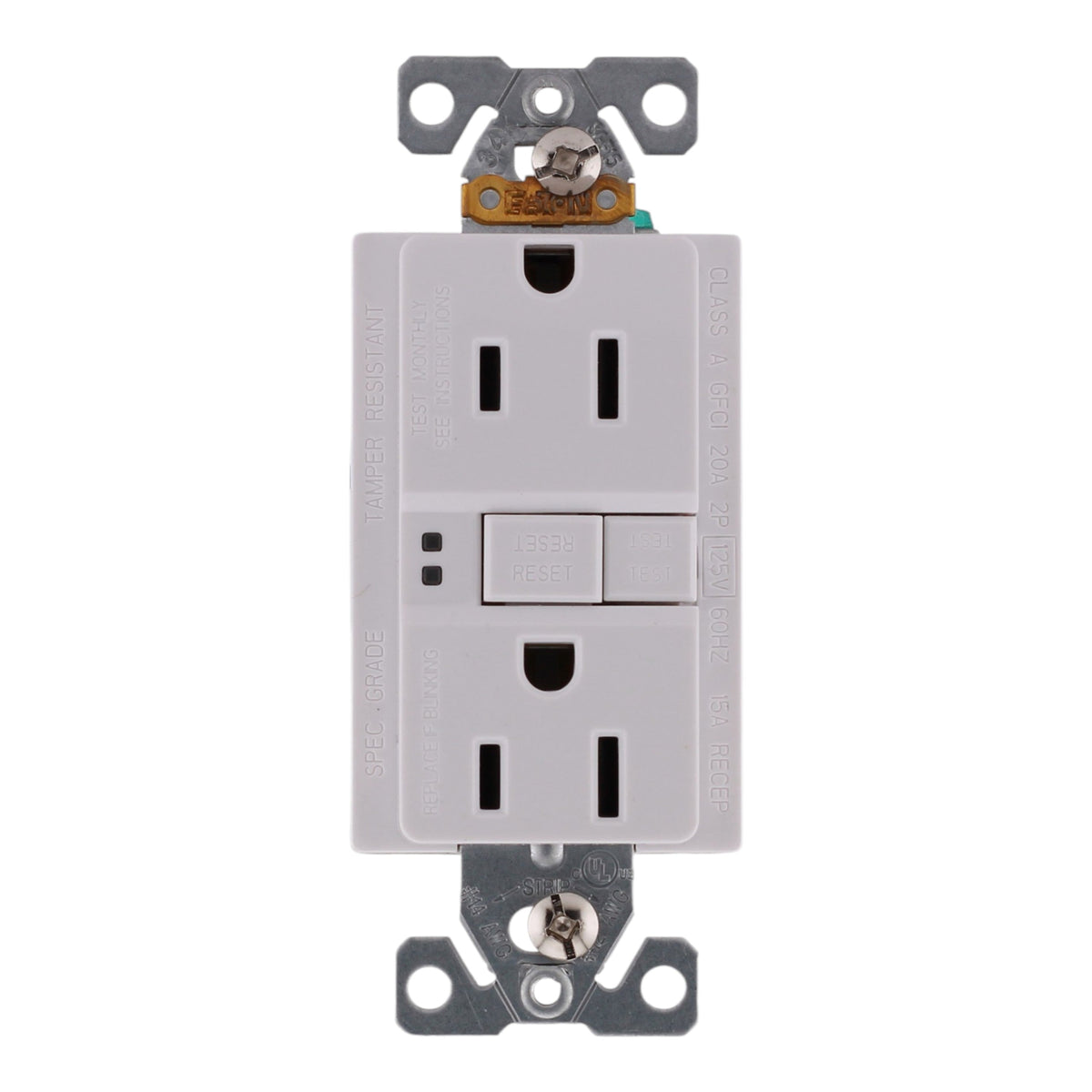

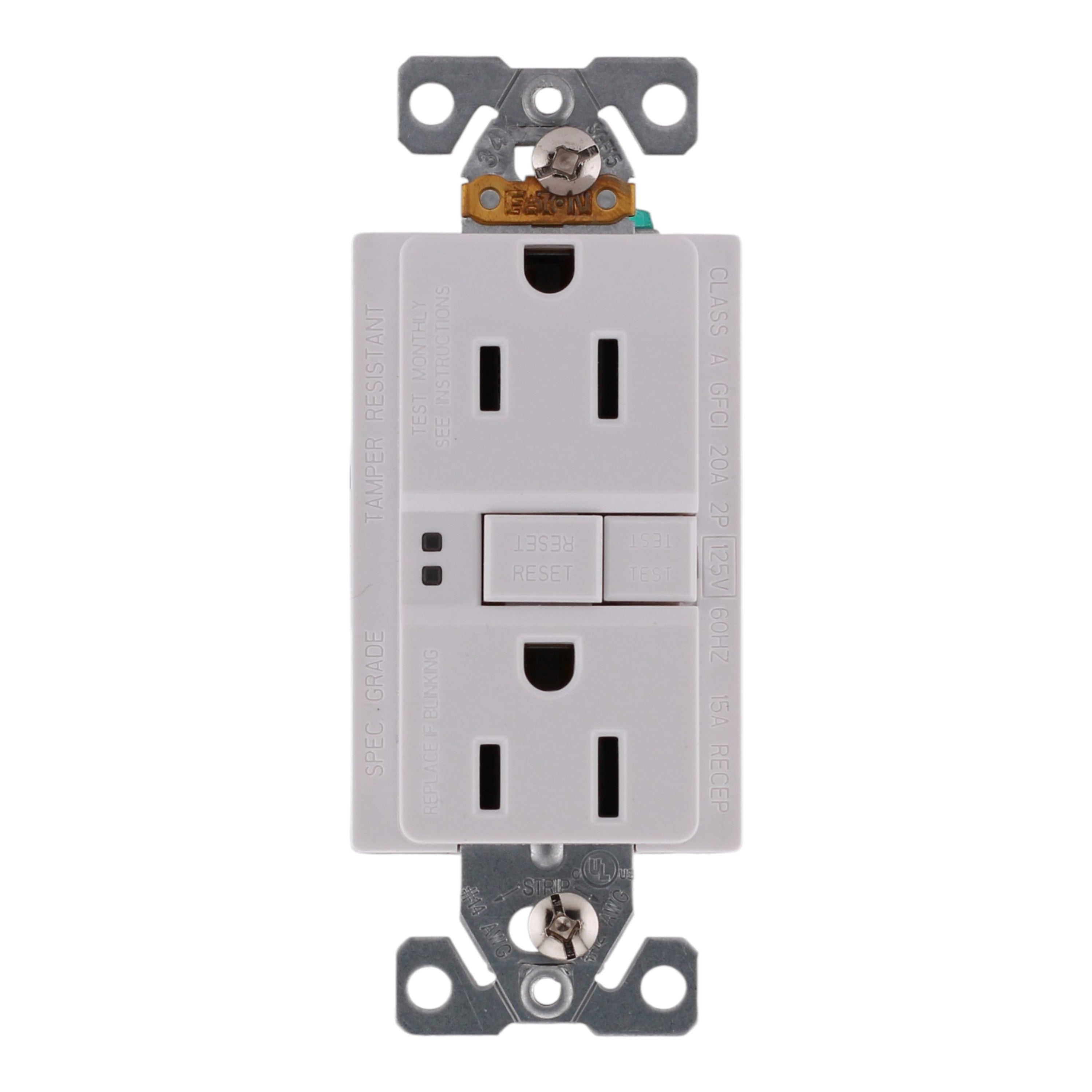

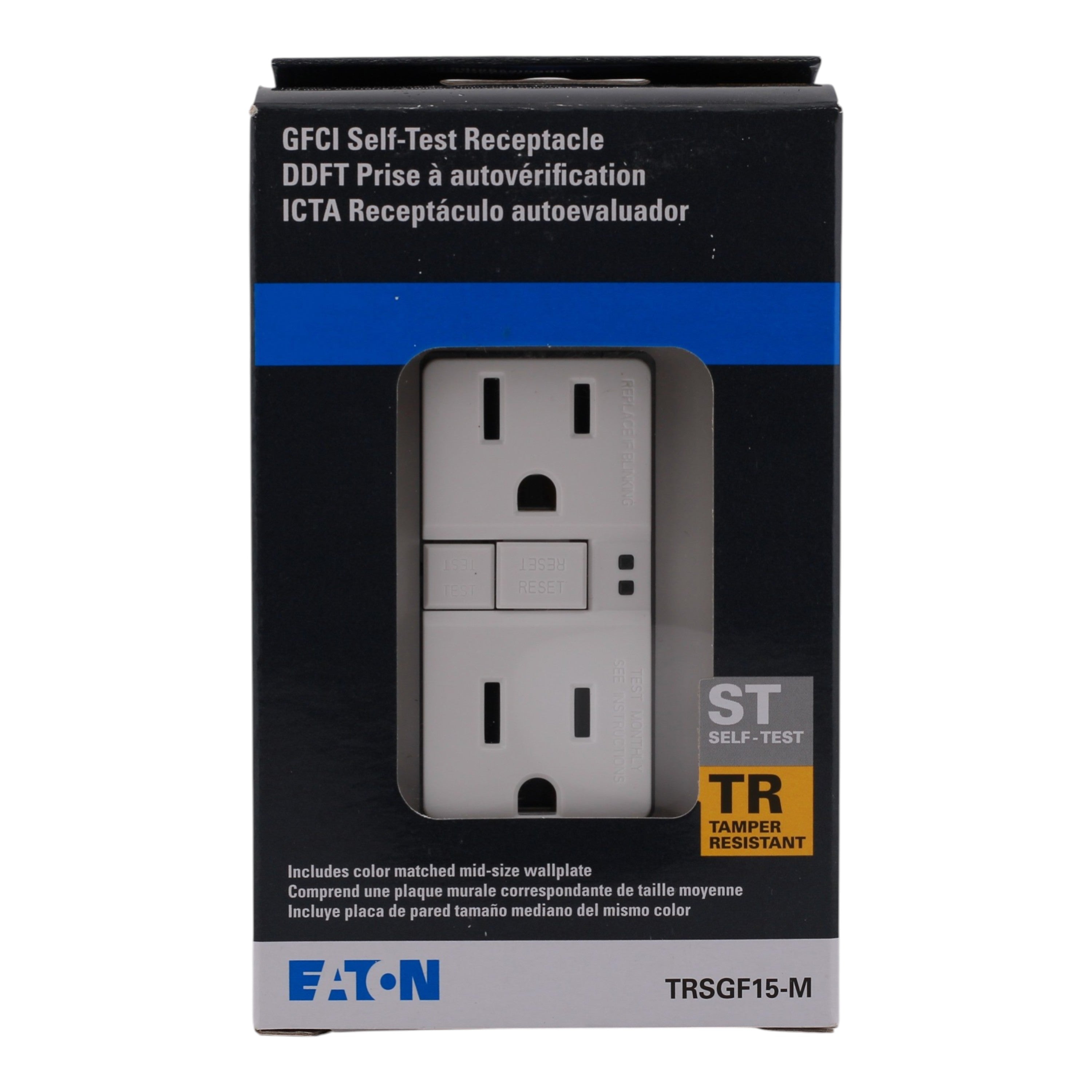

Eaton TRSGF15W-M: 15 Amp Duplex Self-Test Tamper-Resistant GFCI receptacle, 125V, 5-15R NEMA configuration, back and side wire, mid-size wallplate, cULus Listed.
-
Manufacturer: Eaton
-
Brand: Eaton
-
Product Range: Eaton Wiring Devices (for residential and commercial applications)
-
UPC: 032664742903
-
Model Number: TRSGF15W-M
-
Product Type: GFCI receptacle
-
Device Type: Receptacle
-
Type: Self-test
-
Amperage Rating: 15 Amps
-
Voltage Rating: 125 Volts AC
-
Circuit Interrupter Type: GFCI
-
Contact Material: Brass
-

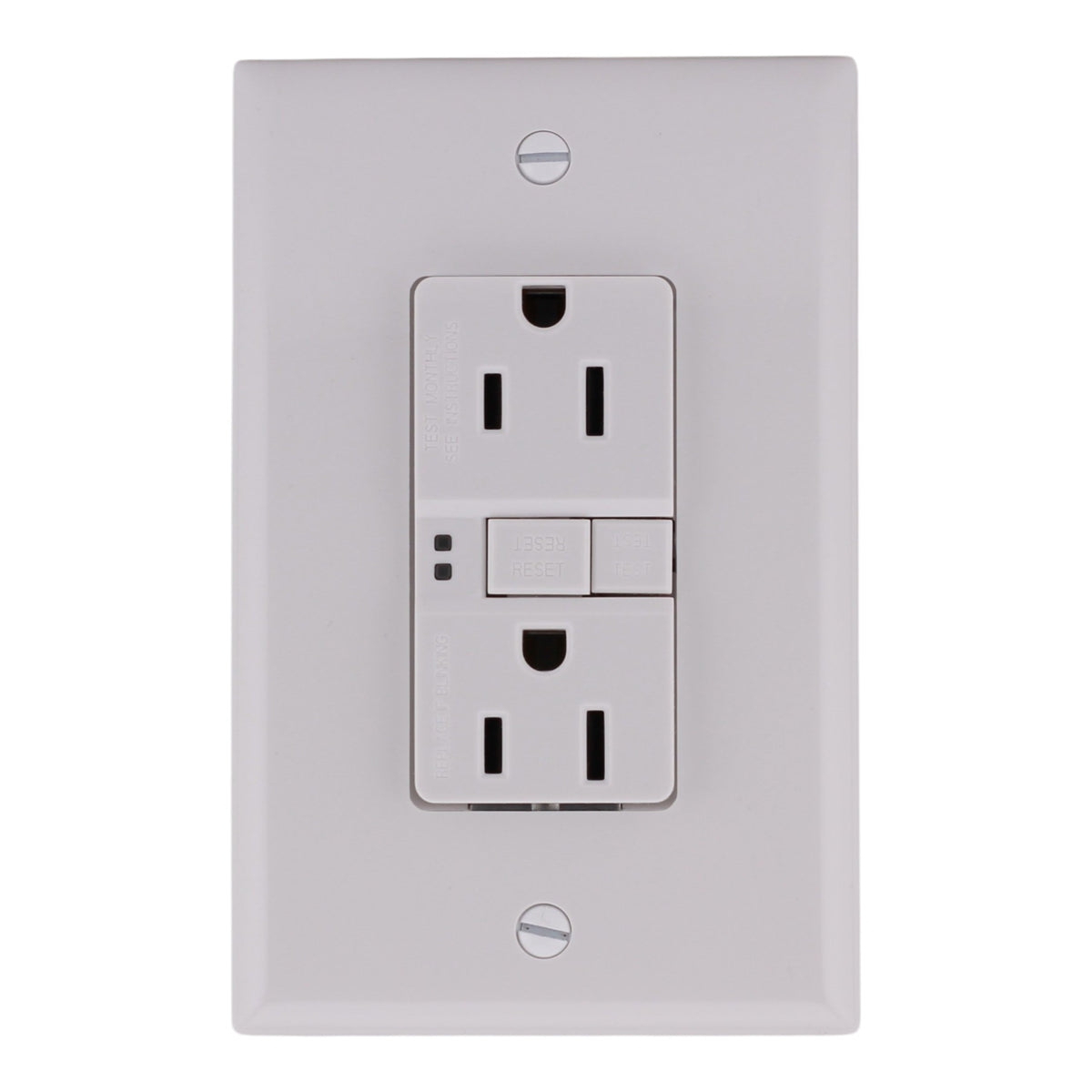

Features: Tamper resistant, Mid-size wallplate
-

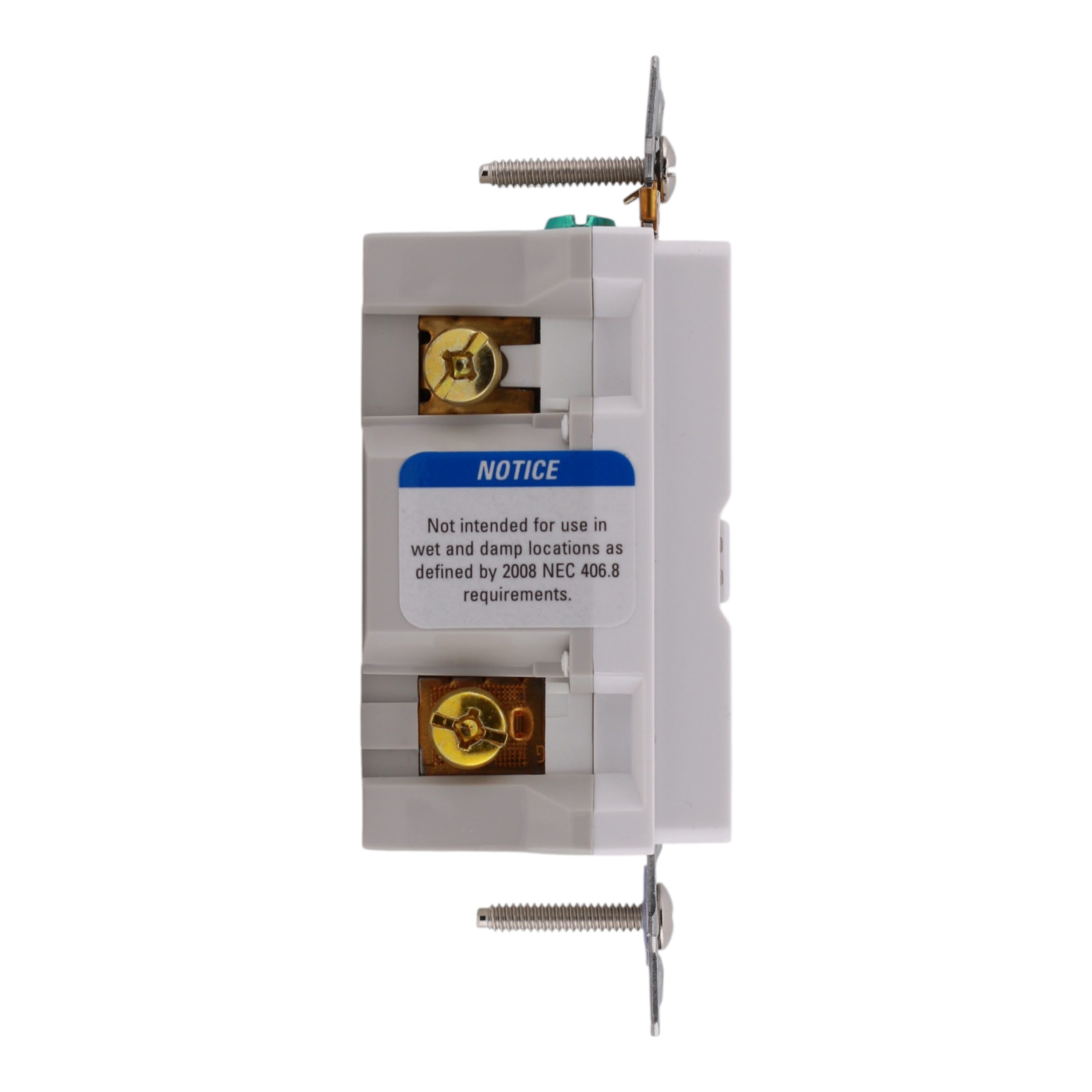

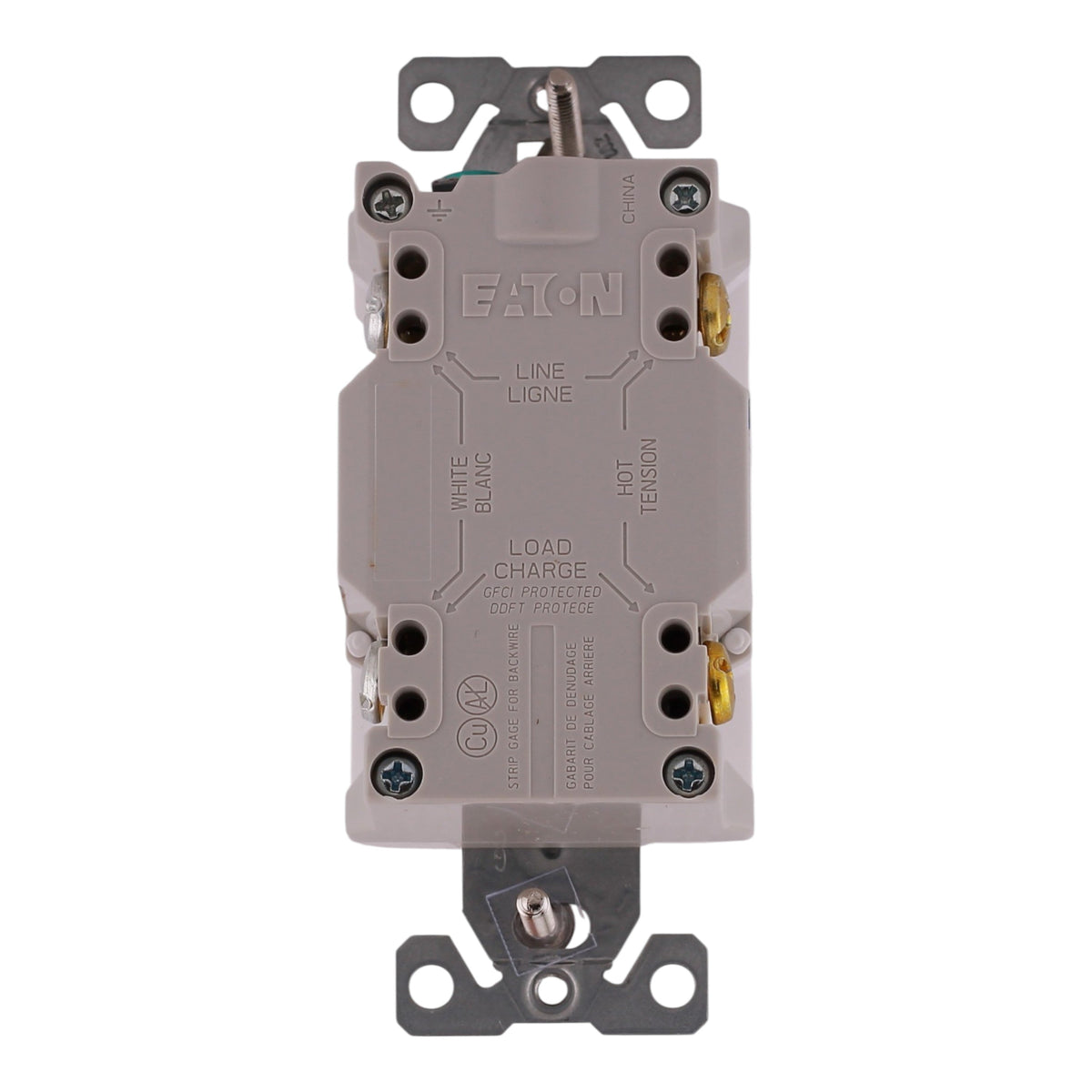

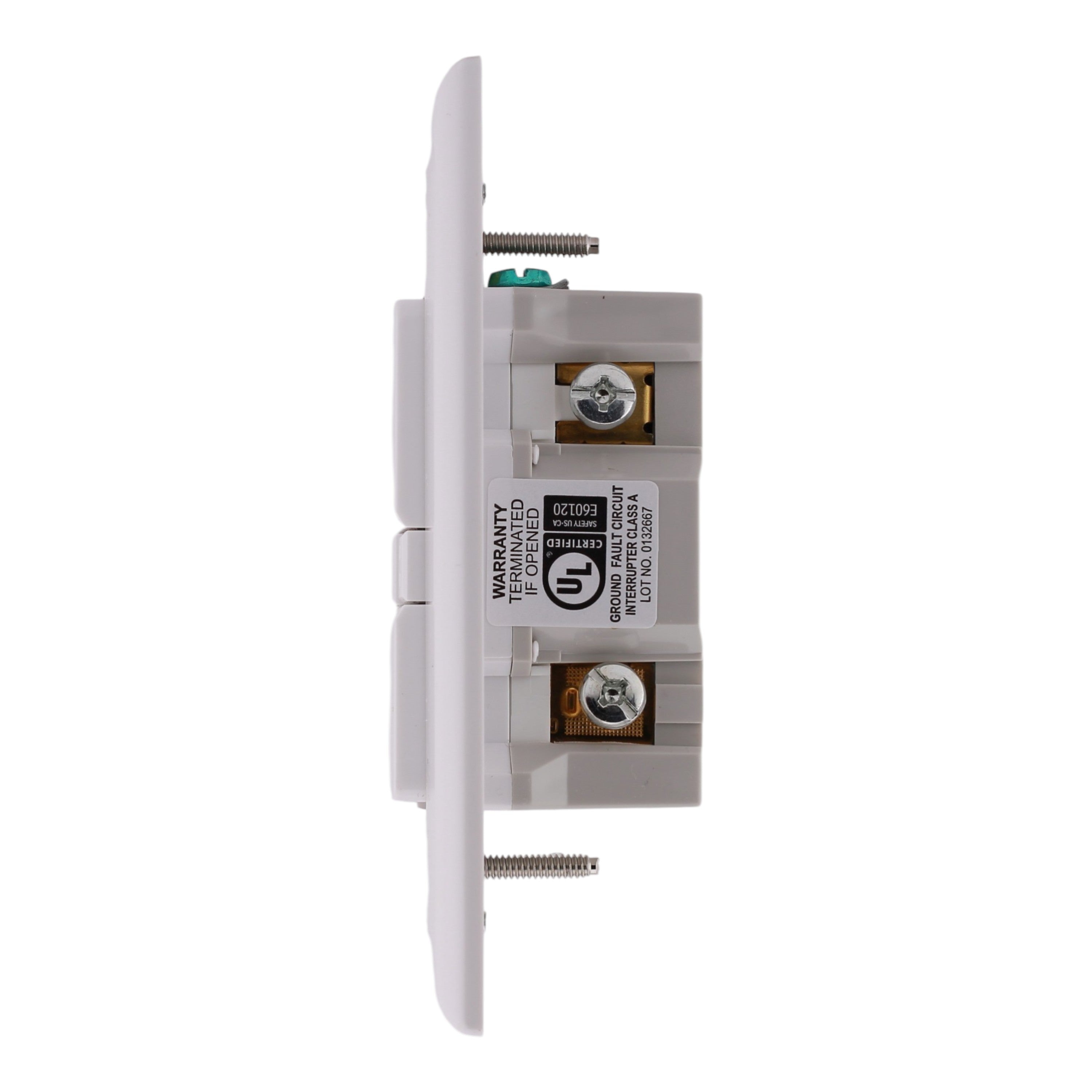

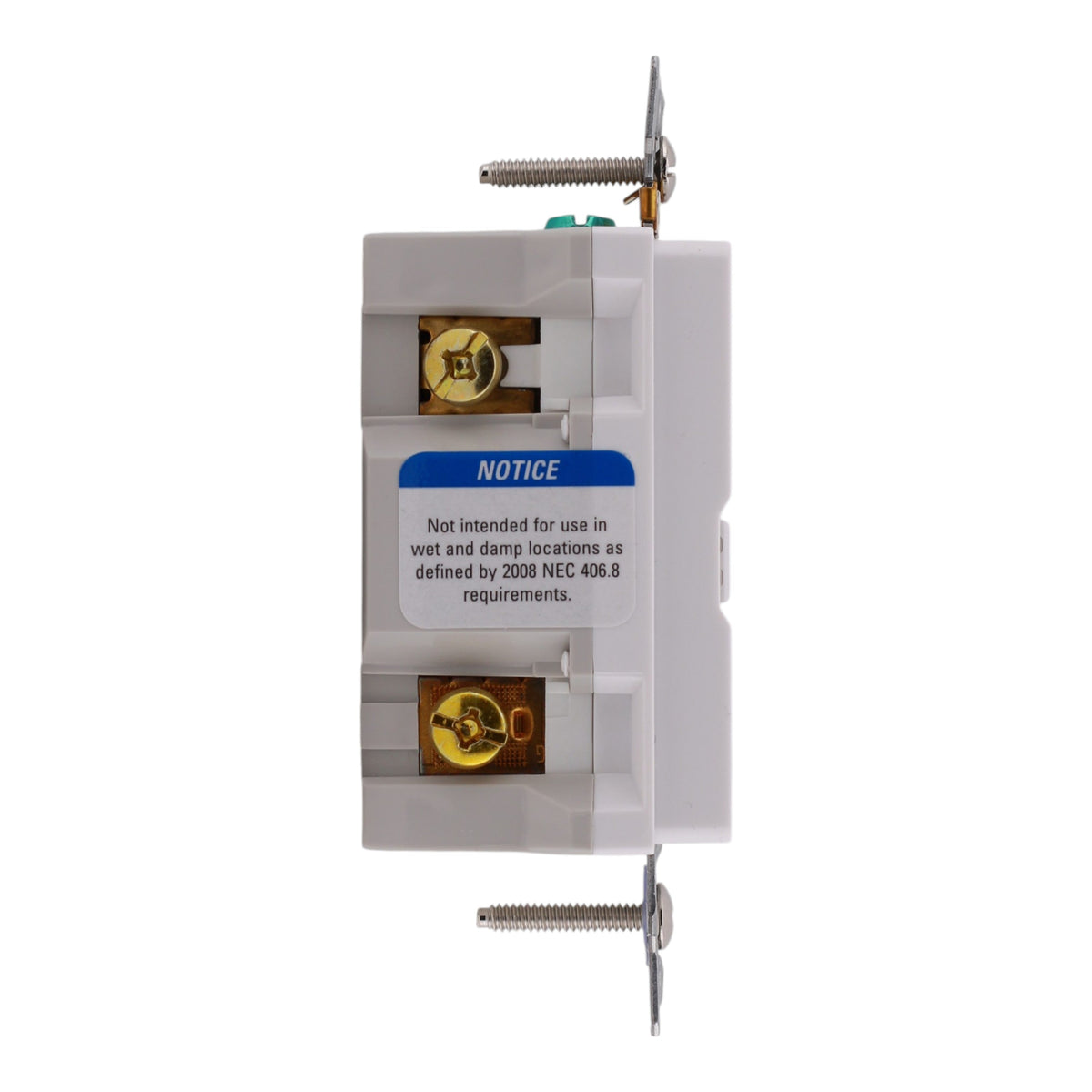

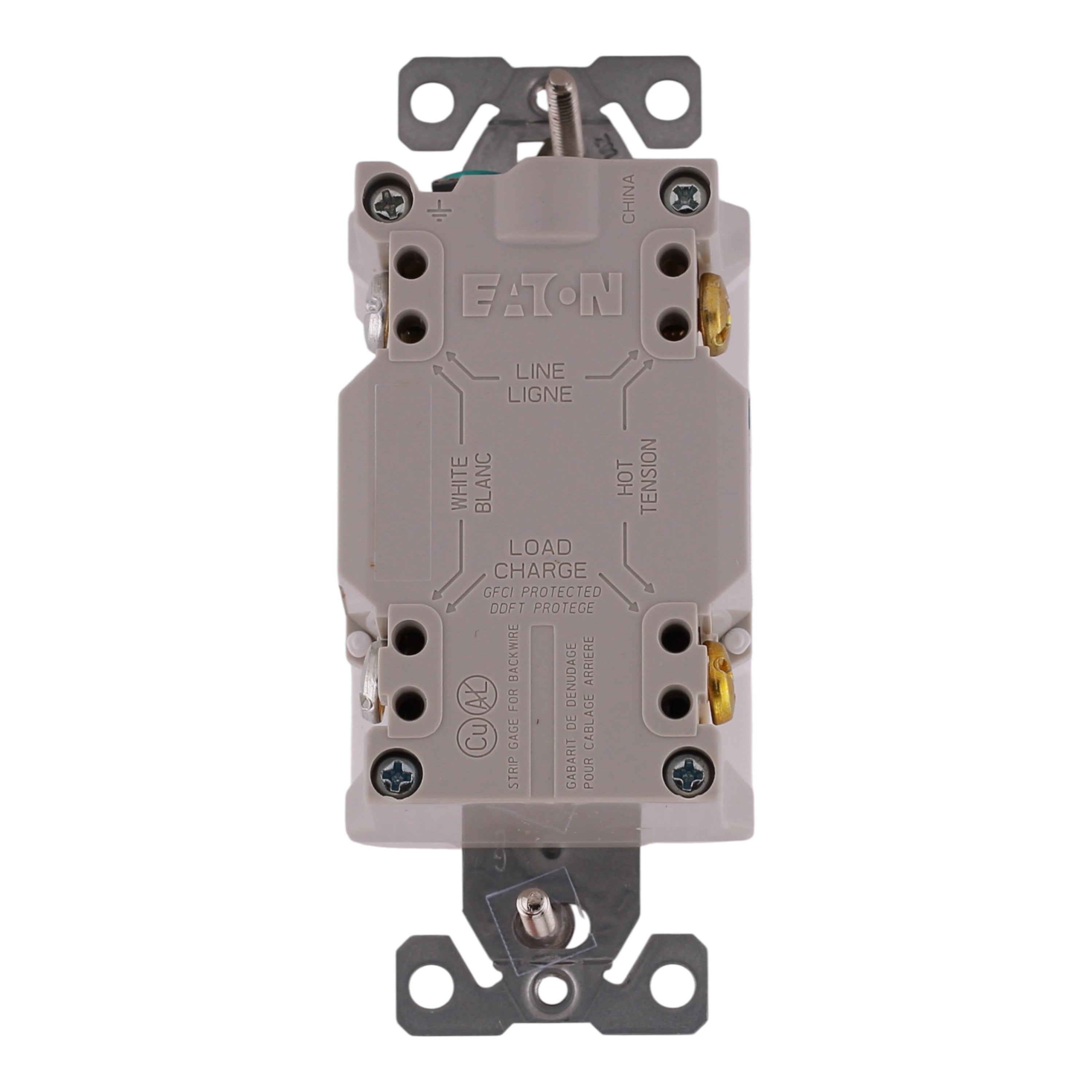

Wiring Method: Back and side wire
-
Allowable Wire Size: #14 - #10 AWG
-
Torque Rating: 16 lb-in
-
NEMA Configuration: 5-15R
-
Number of Poles: Two-pole
-
Number of Wires: Three-wire
-
Mounting Method: Flush
-
Color: White
-
Face/Body Material: Polycarbonate, PVC
-
Receptacle Type: Two-pole, three-wire, grounding
-
Dimensions: Height: 6.072 in; Width: 3.288 in; Depth: 2.055 in
-
Weight: 0.415 lbs
-
Certifications: cULus Listed, NOM
This Eaton TRSGF15W-M tamper-resistant self-test GFCI receptacle provides reliable 15A ground fault protection for 125V circuits in residential and commercial applications. Featuring automatic self-testing, tamper-resistant shutters for enhanced safety, and convenient back and side wiring with mid-size wallplate, it ensures dependable performance and code compliance in various installations.
