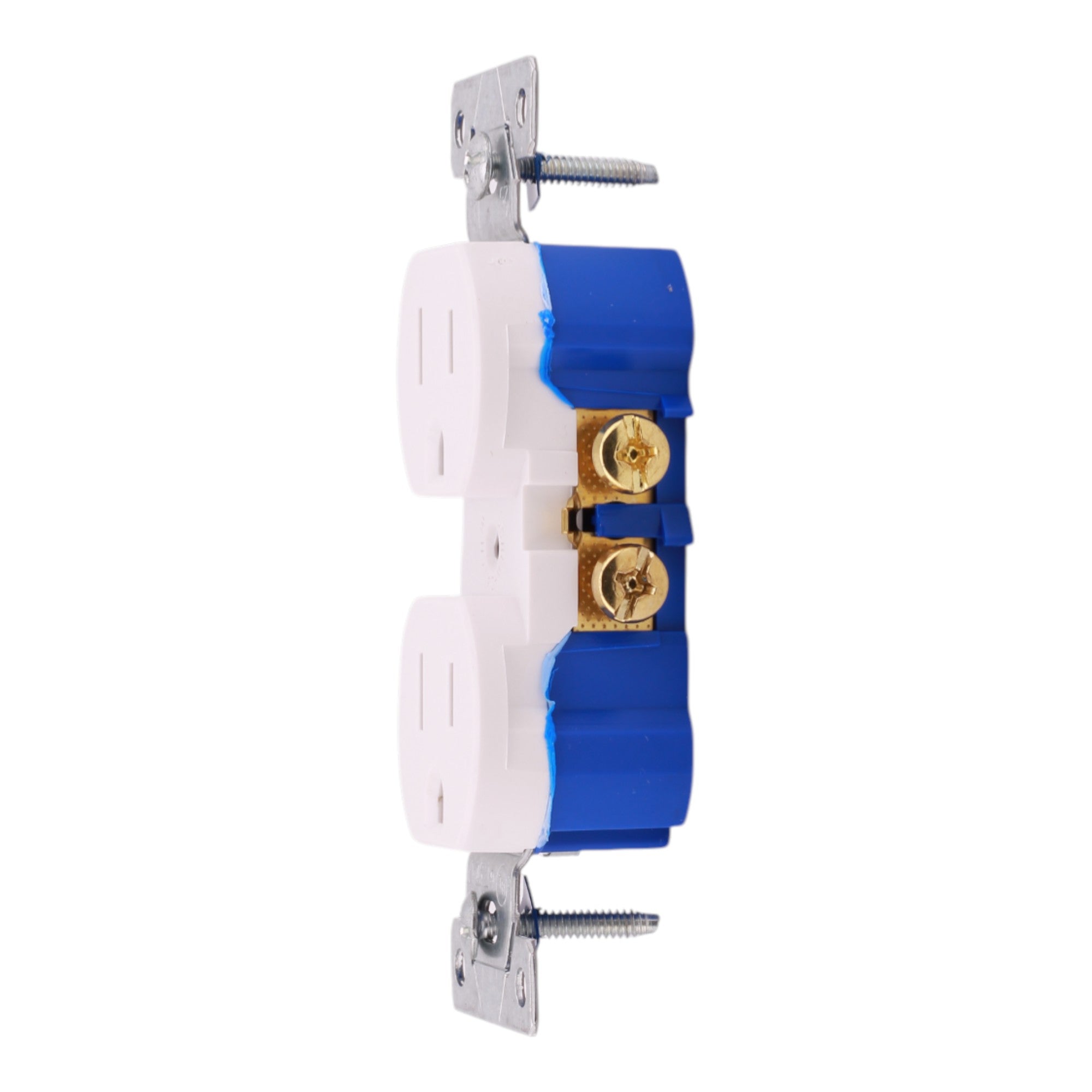

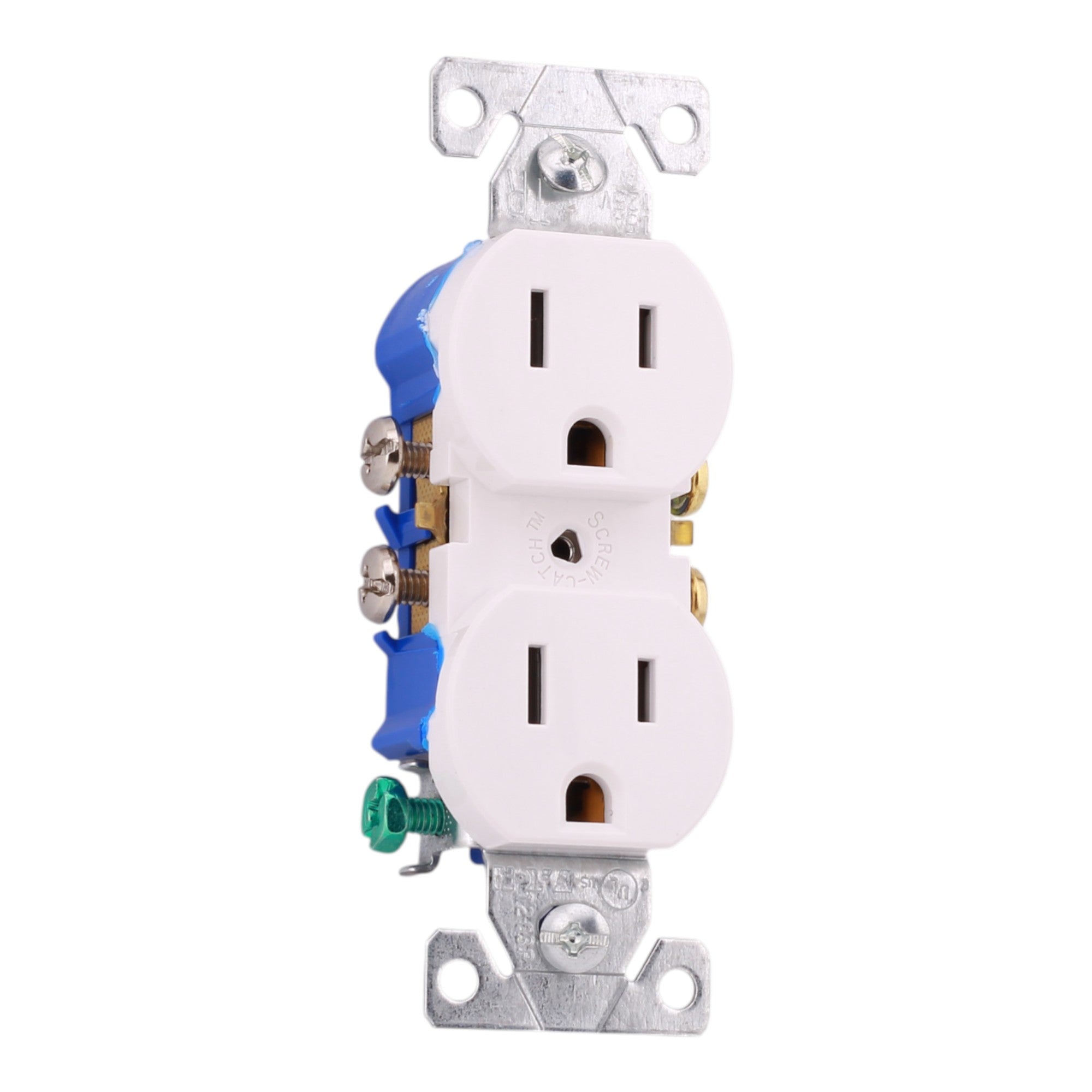

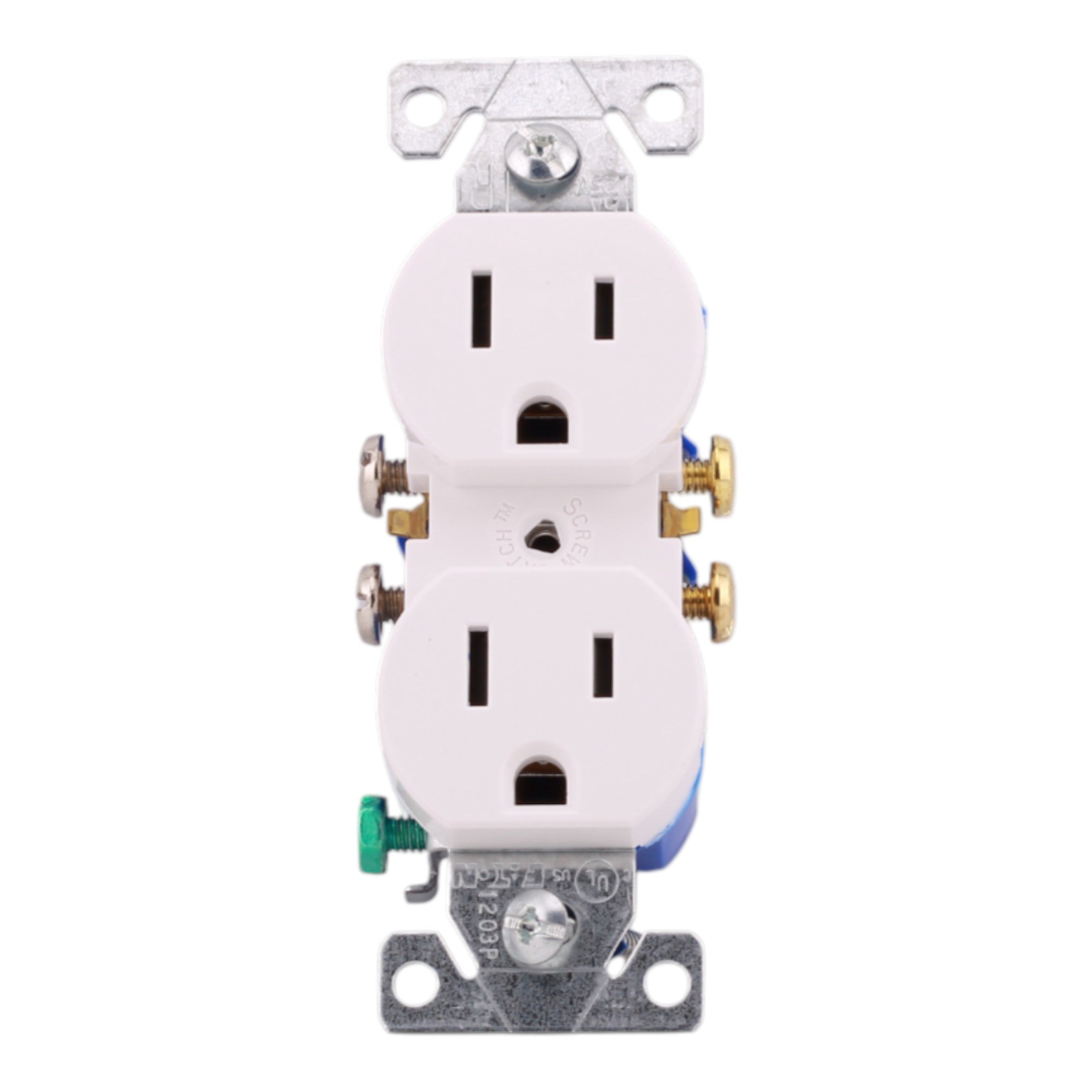

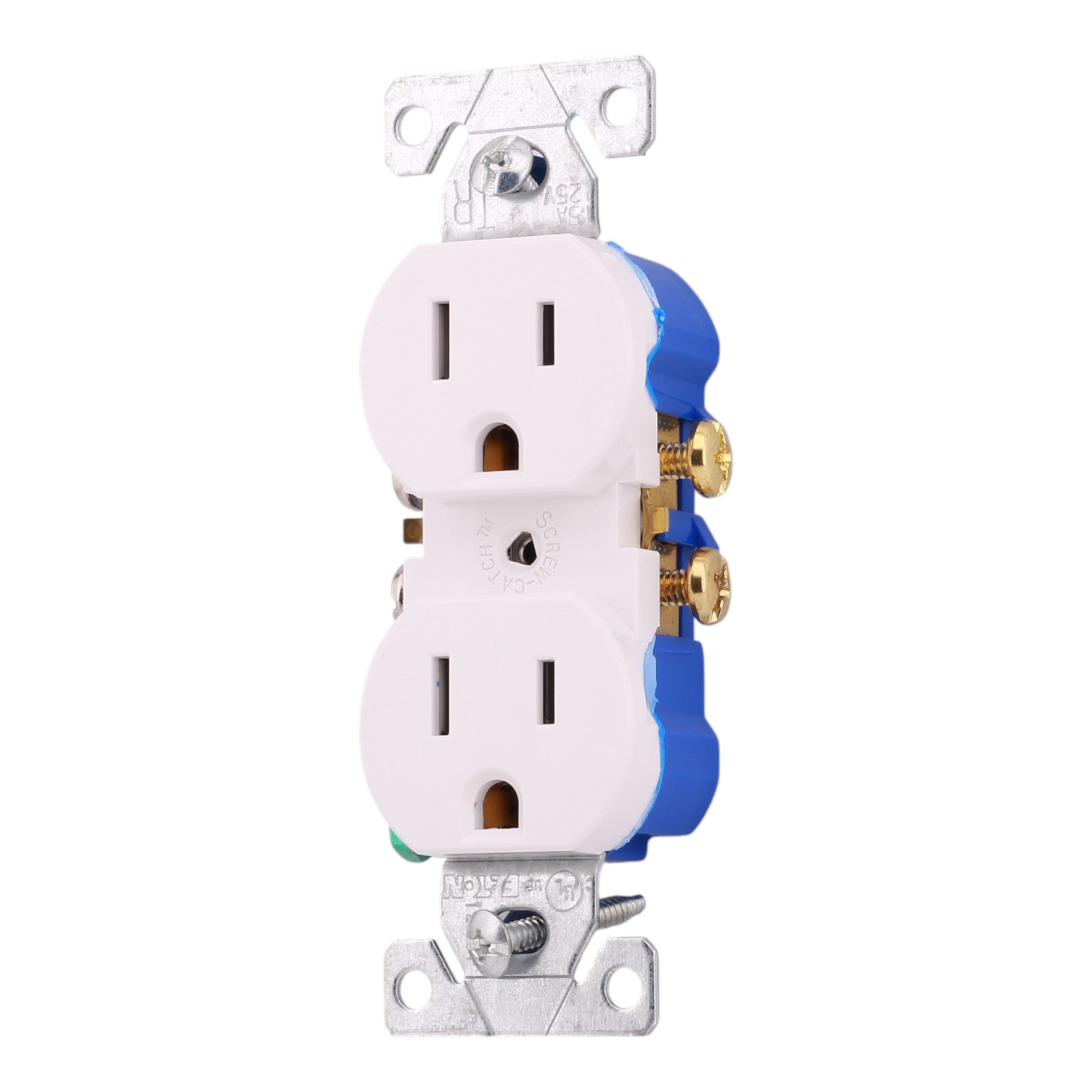

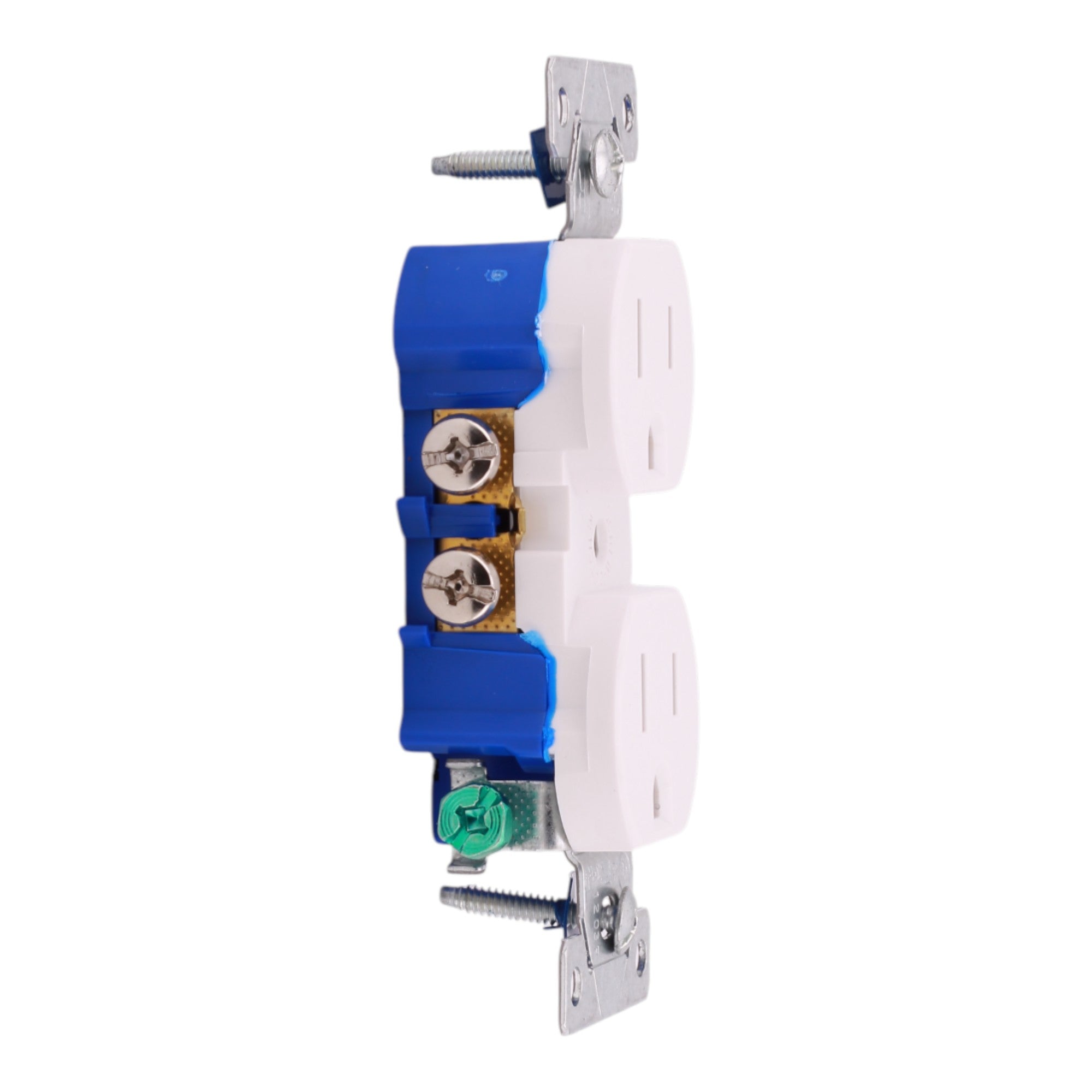

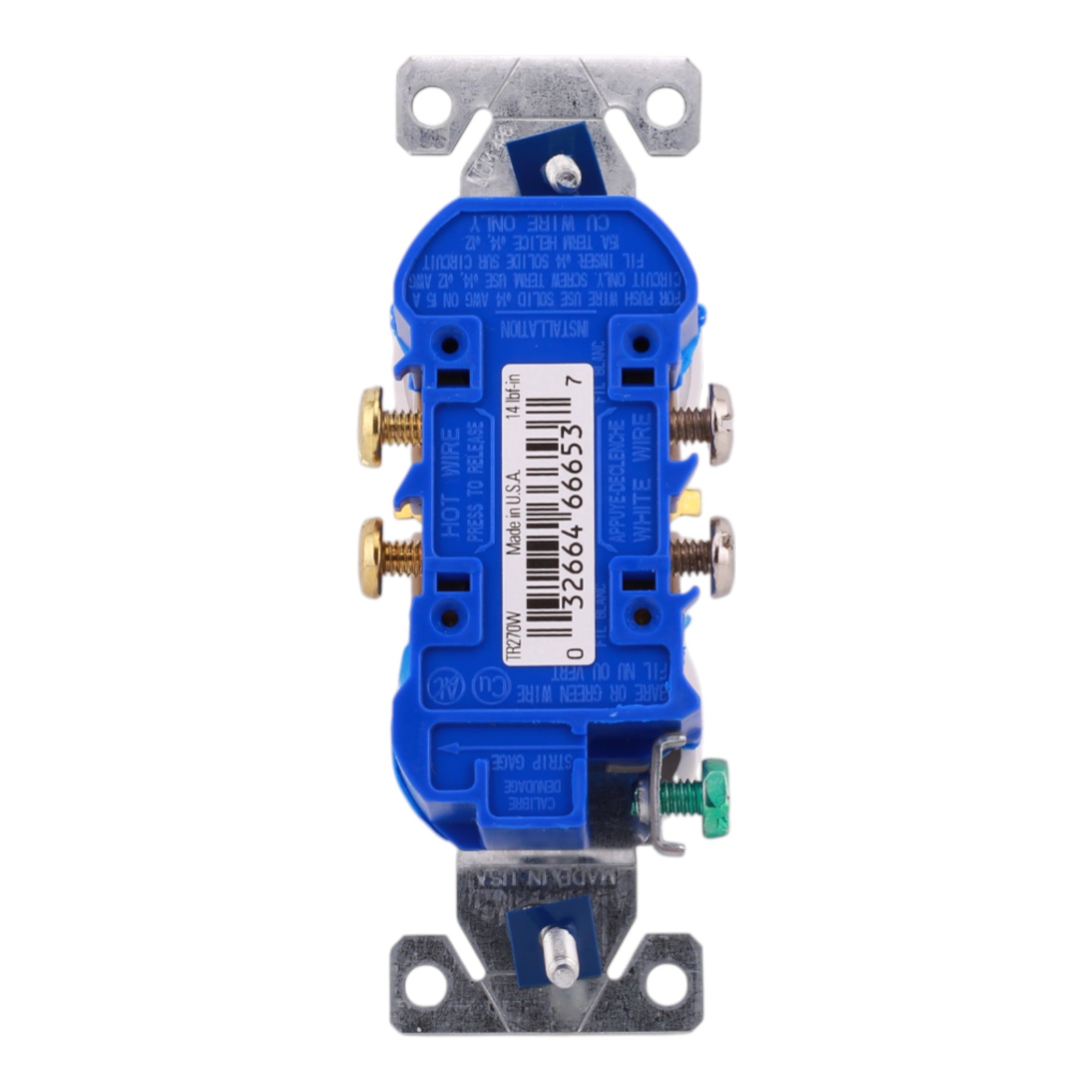

Eaton TR270W-BOX: 15 Amp 2-Pole Tamper Resistant Duplex Straight Blade Receptacle, 125V, White, 5-15R, Side and Push Wiring, cULus Listed, NOM Certified.
-
Manufacturer: Eaton
-
Brand: Eaton
-
Product Range: Eaton Wiring Devices (for commercial and residential applications)
-
UPC: 032664665325
-
Model Number: TR270W-BOX
-
Product Type: Duplex Receptacle
-
Receptacle Type: Straight Blade
-
Amperage: 15 Amps
-
Poles: 2-Pole
-
Voltage: 125 Volts AC
-
NEMA Configuration: 5-15R
-
Wiring Method: Side and Push
-
Allowable Wire Size: #14-10 AWG (Copper or Copper Clad Aluminum)
-
Tightening Torque: 14 lb-in
-
Mounting Method: Flush
-
Material: Impact-resistant thermoplastic face, PVC body
-
Contact Material: Brass
-
Dimensions: Height: 4.0 in; Width: 0.79 in; Depth: 1.24 in
-
Weight: 1.30 lbs
-
Certifications: cULus Listed, NOM Certified
-
Features: Tamper Resistant
This Eaton TR270W-BOX tamper resistant duplex receptacle provides reliable 15A, 2-pole, 125V power delivery for commercial and residential applications. Featuring side and push wiring for easy installation and a durable thermoplastic face with PVC body, it ensures safety and compatibility with NEMA 5-15R configurations.
