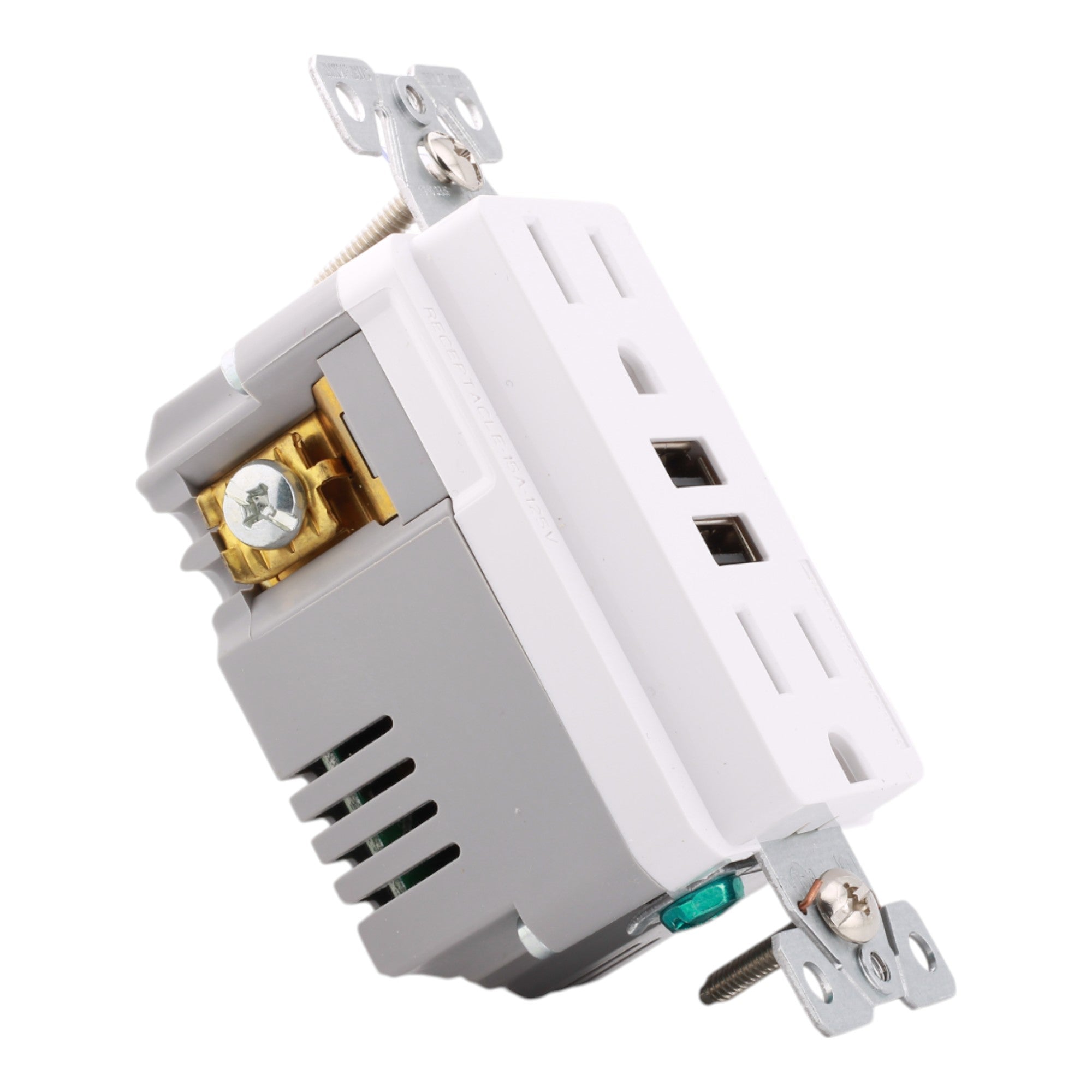

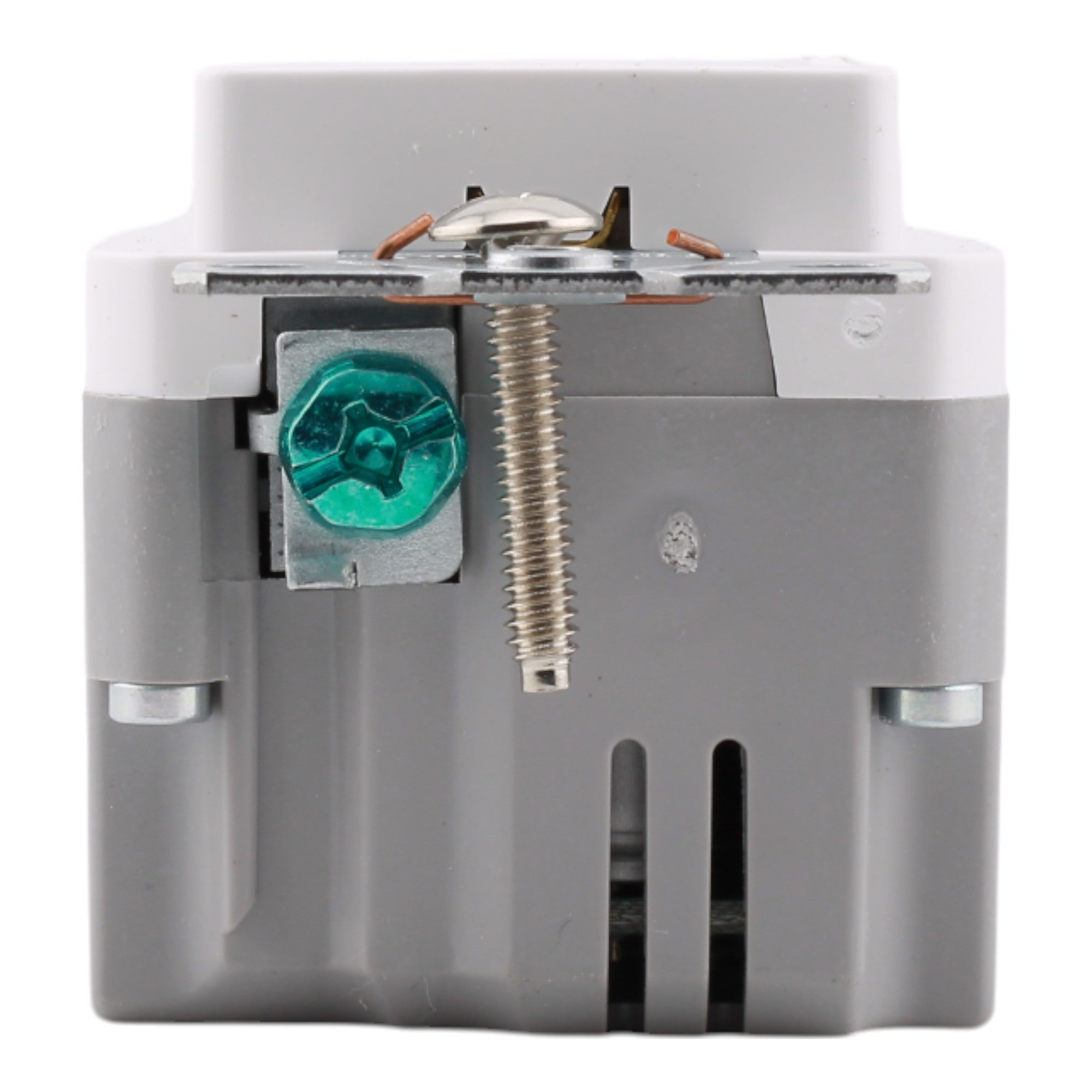

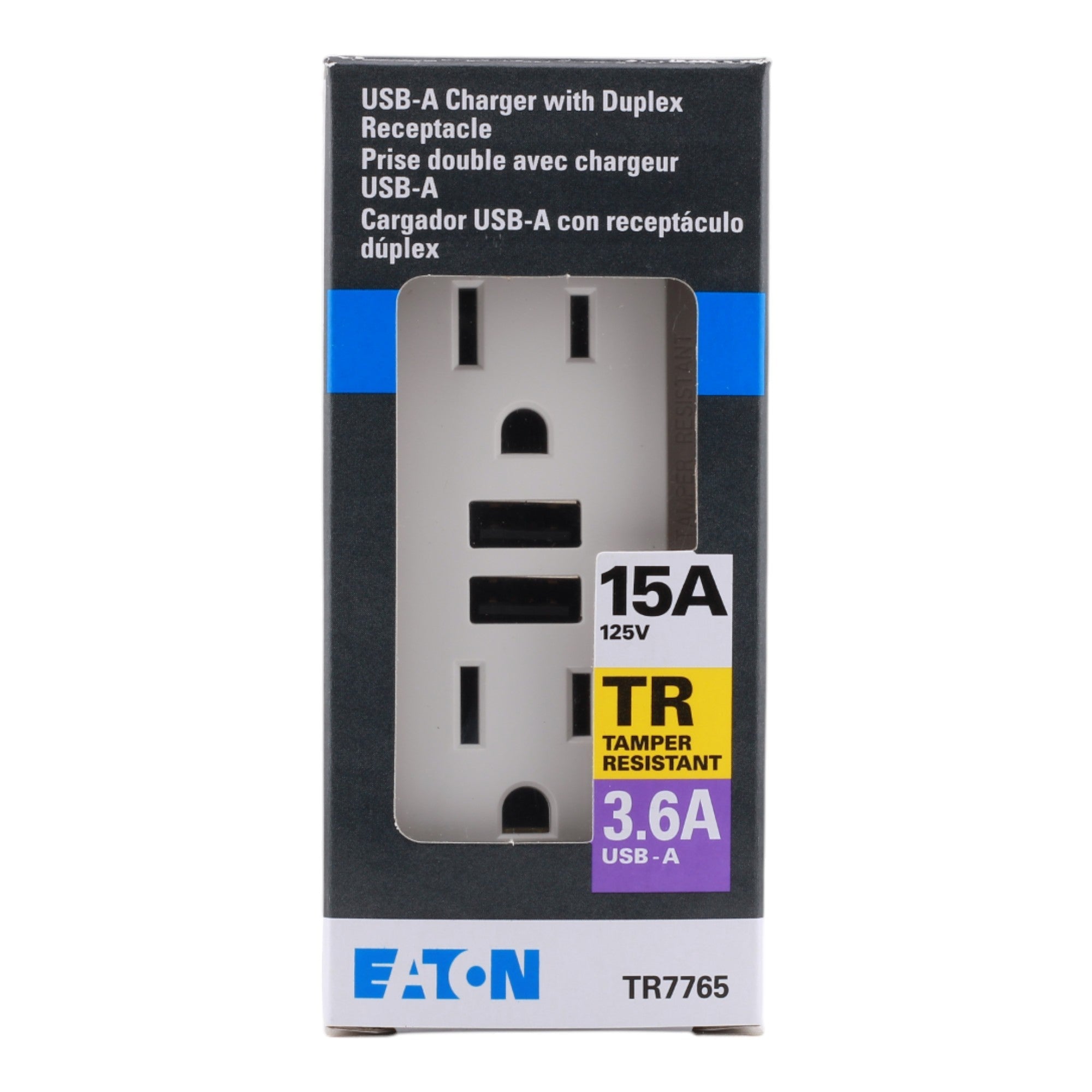

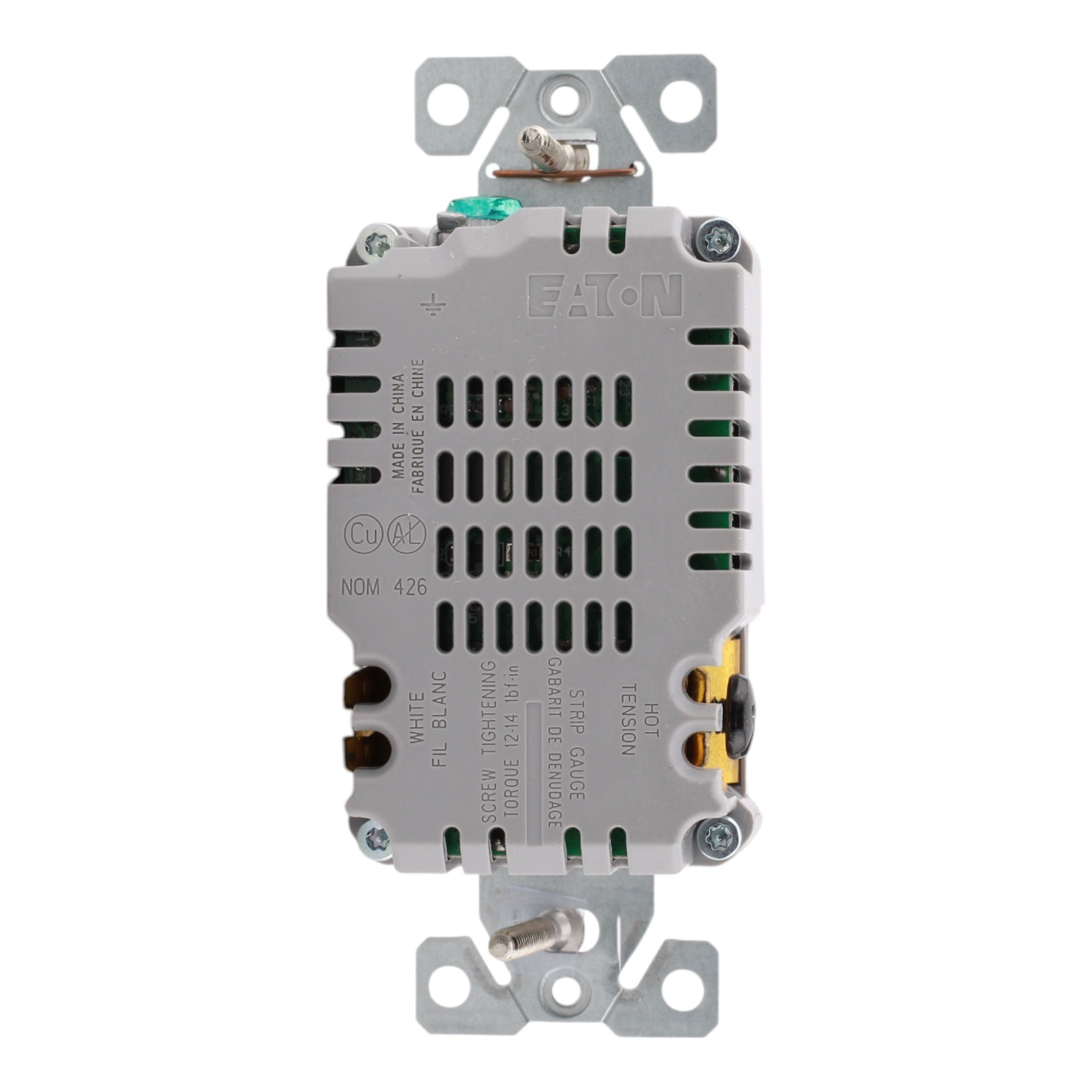

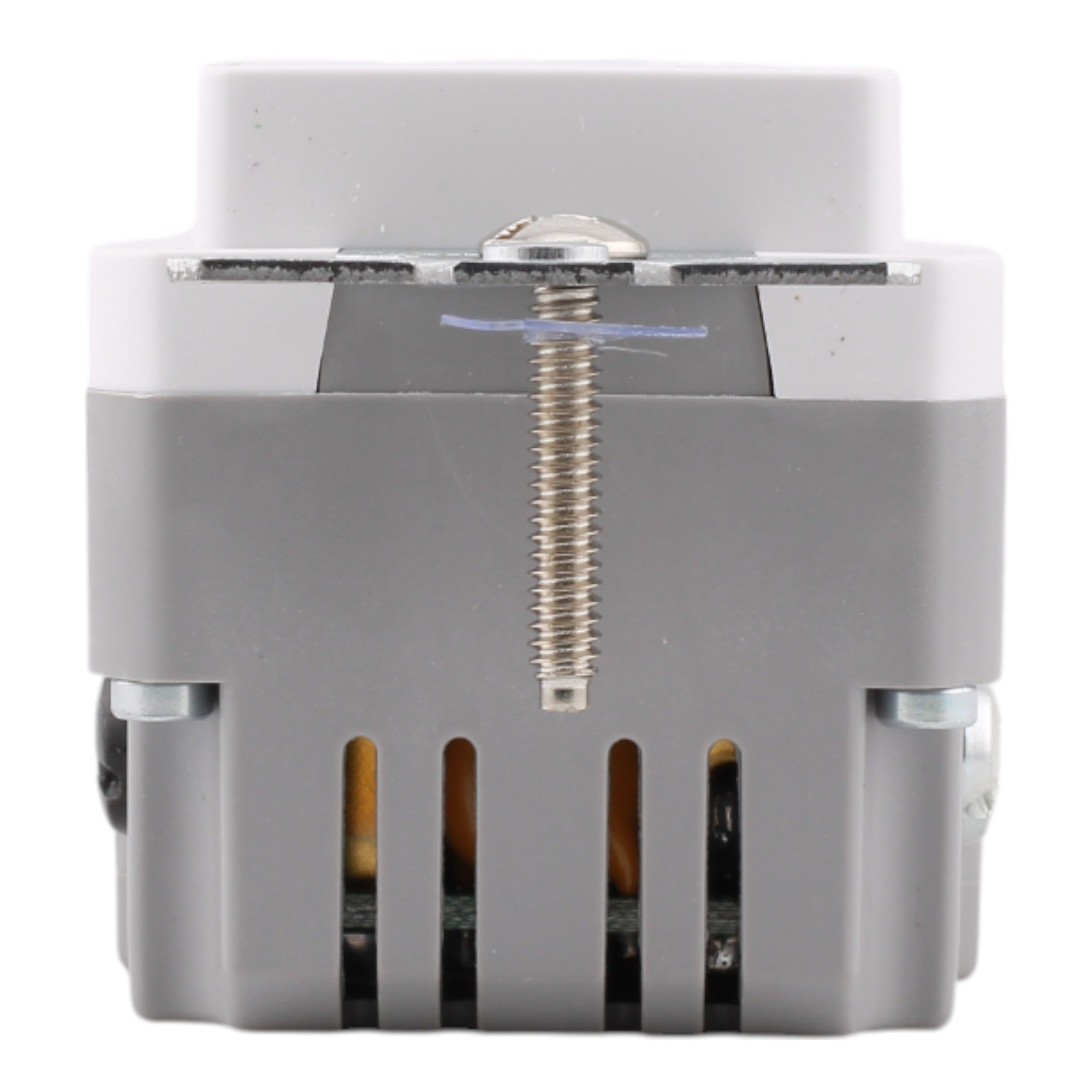

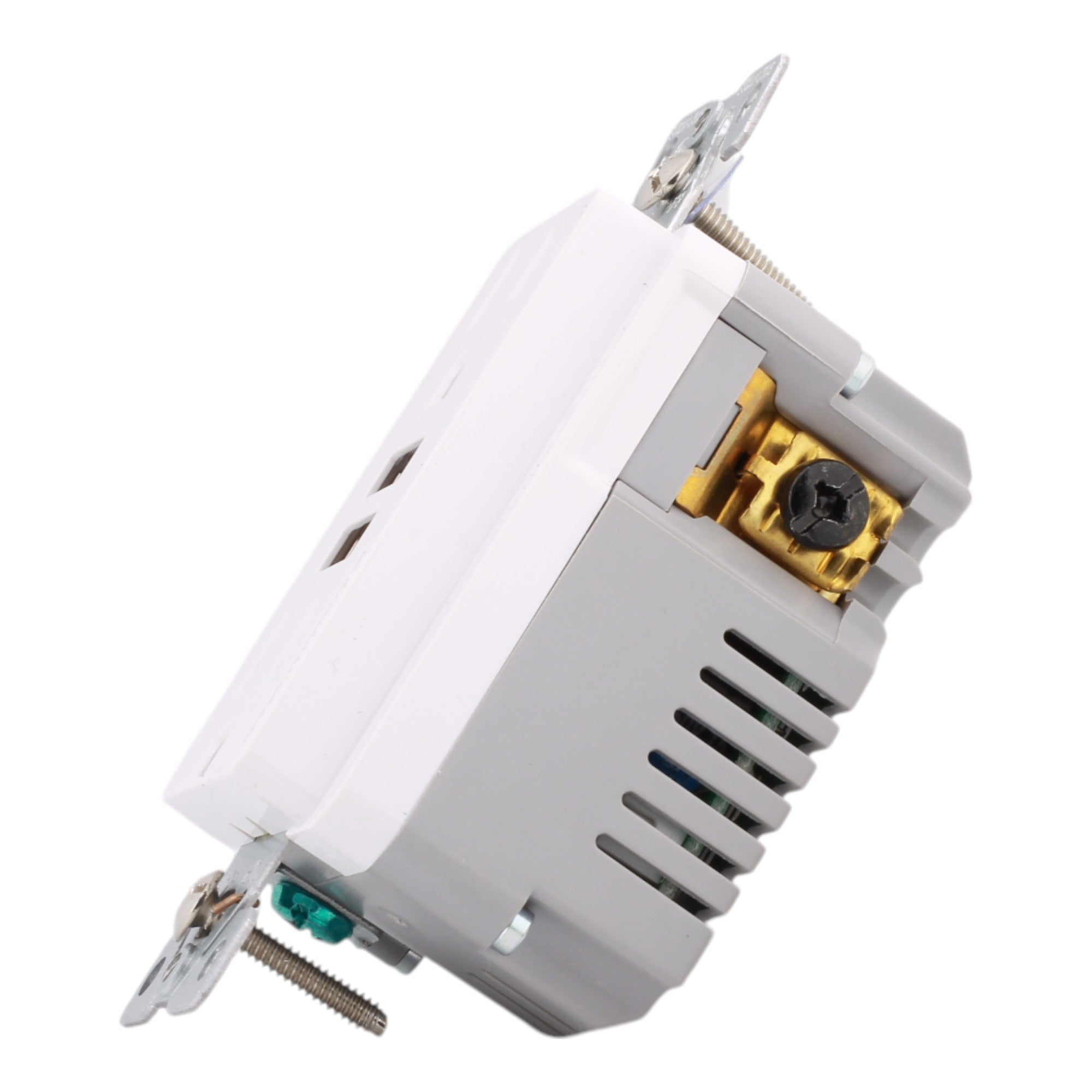

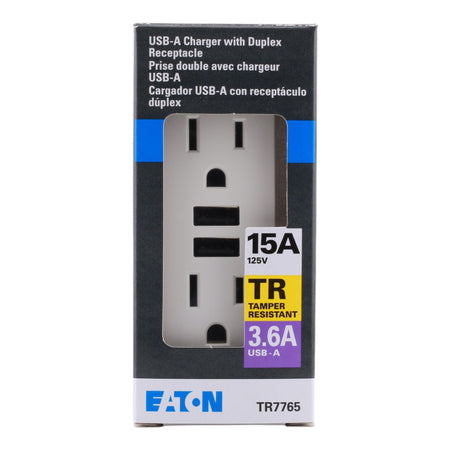

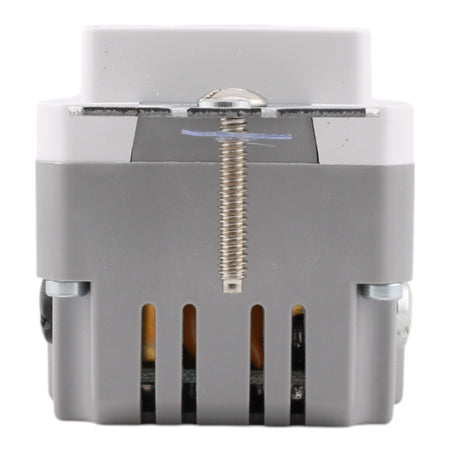

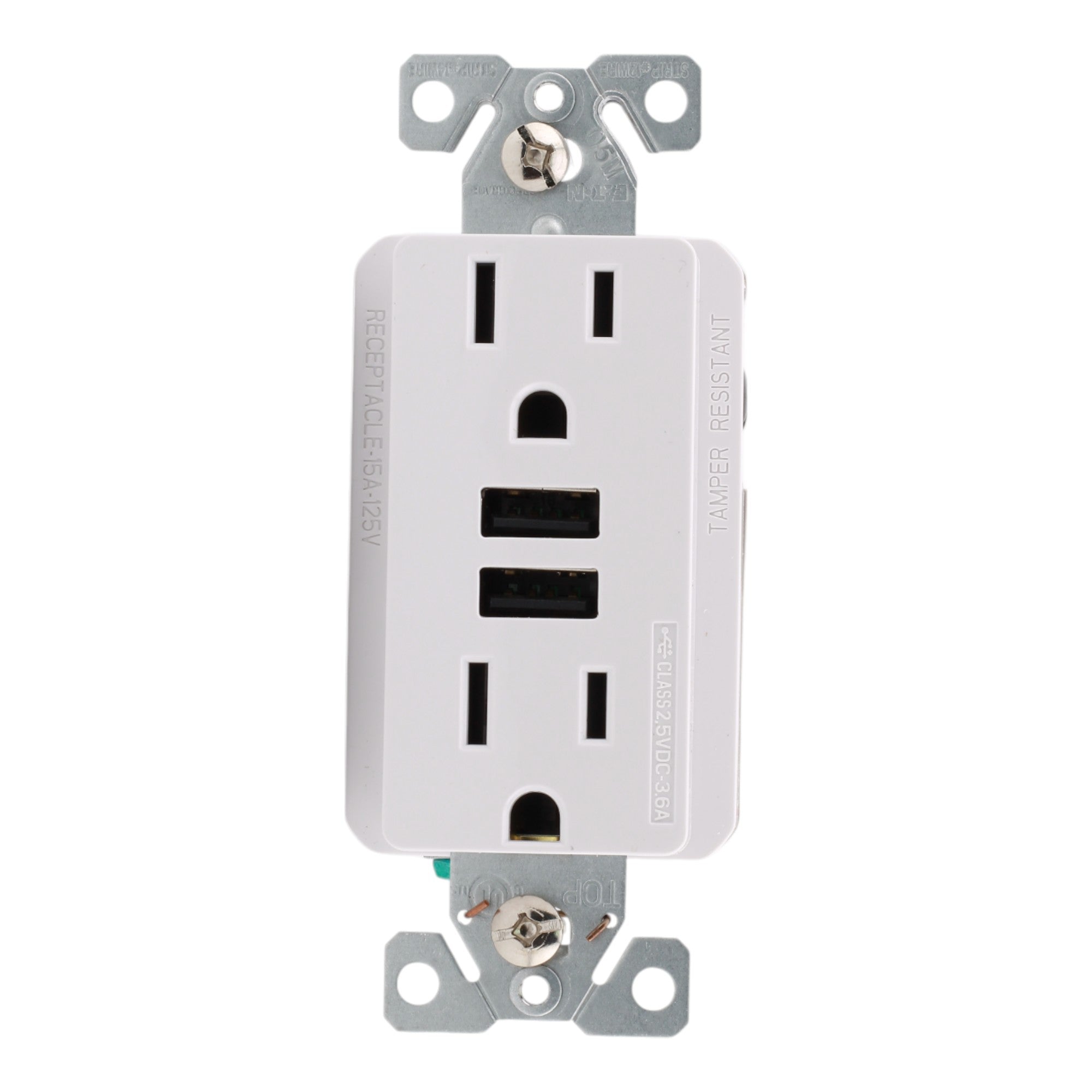

Eaton TR7765: 15A tamper-resistant duplex receptacle with 3.6A USB charger, 125VAC, 5VDC, dual USB ports, NEMA 5-15R/5-20R, built-in wire strippers, UL listed, available in multiple colors."
Product Specifications
Product Identification:
-
Manufacturer: Eaton
-
Brand: Eaton
-
UPC: 032664767029
-
Model Number: TR7765
Technical Specifications:
-
Receptacle Type: Combination USB Charger with Tamper-Resistant Duplex Receptacle
-
Number of Poles: 2-Pole, 3-Wire grounding
-
Amperage Rating: TR7765: 15A
-
Voltage Rating: 125VAC
-
USB Output: 5VDC, 3.6A total charging capacity
-
NEMA Configuration: TR7765: 5-15R
-
Wiring Type: Screw terminals/side and back wire
-
Wire Compatibility: TR7765: #14 AWG
-
Special Features:
- Dual USB charging ports
- Tamper-resistant shutters (2014 NEC Article 406.12 compliant)
- Automatic grounding system
- Built-in wire strippers
- Thermoplastic construction
- Zinc-plated steel mounting strap
-
Certifications: cULus Listed to UL498 and UL1310, NOM
-
Available Colors: Brown (B), Black (BK), Gray (GY), Light Almond (LA), Oil-Rubbed Bronze (RB), Silver Granite (SG), Ivory (V), White (W)
Dimensions:
-
Dimensions: Standard size receptacle
-
Operating Temperature: -20°C to 60°C (-4°F to 140°F)
