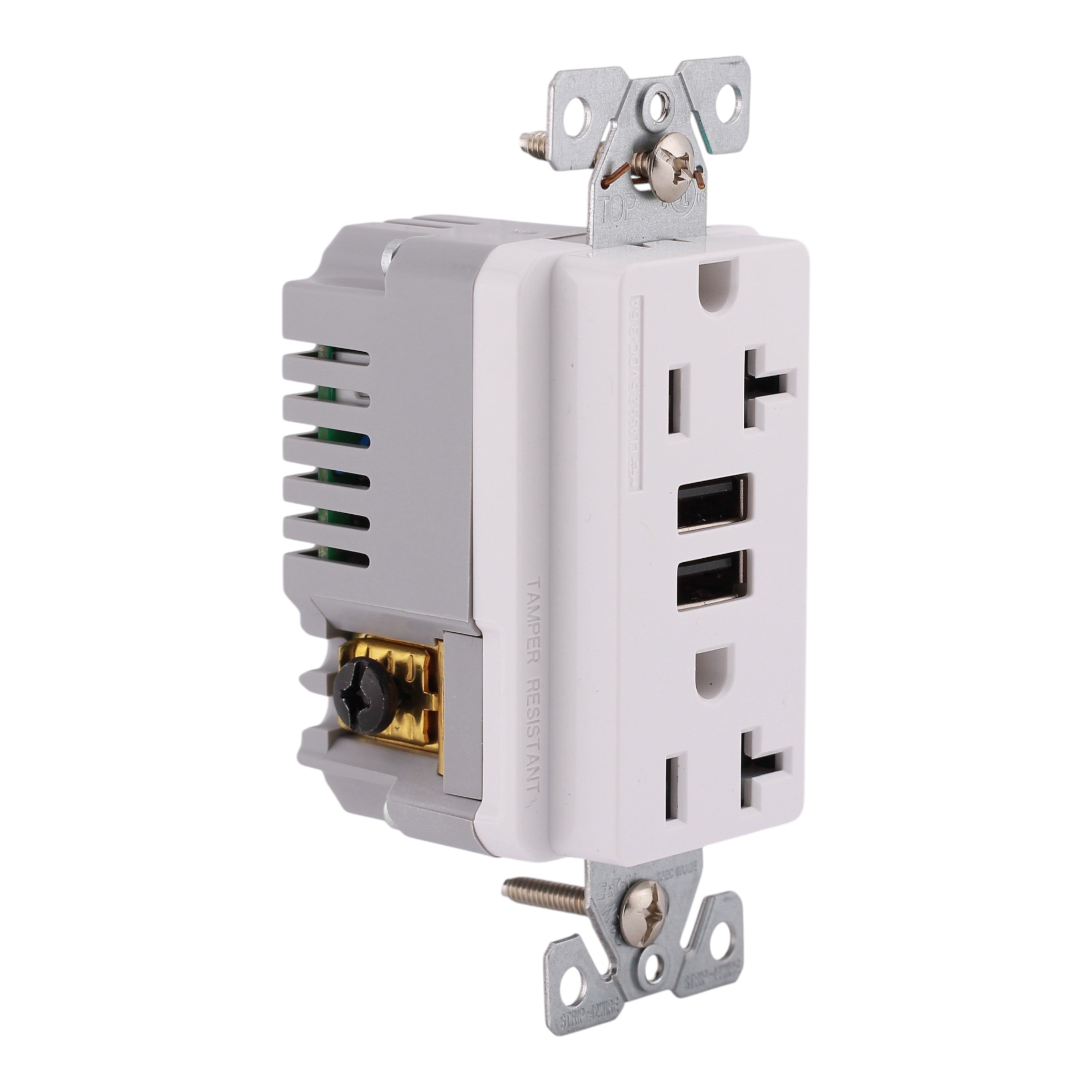

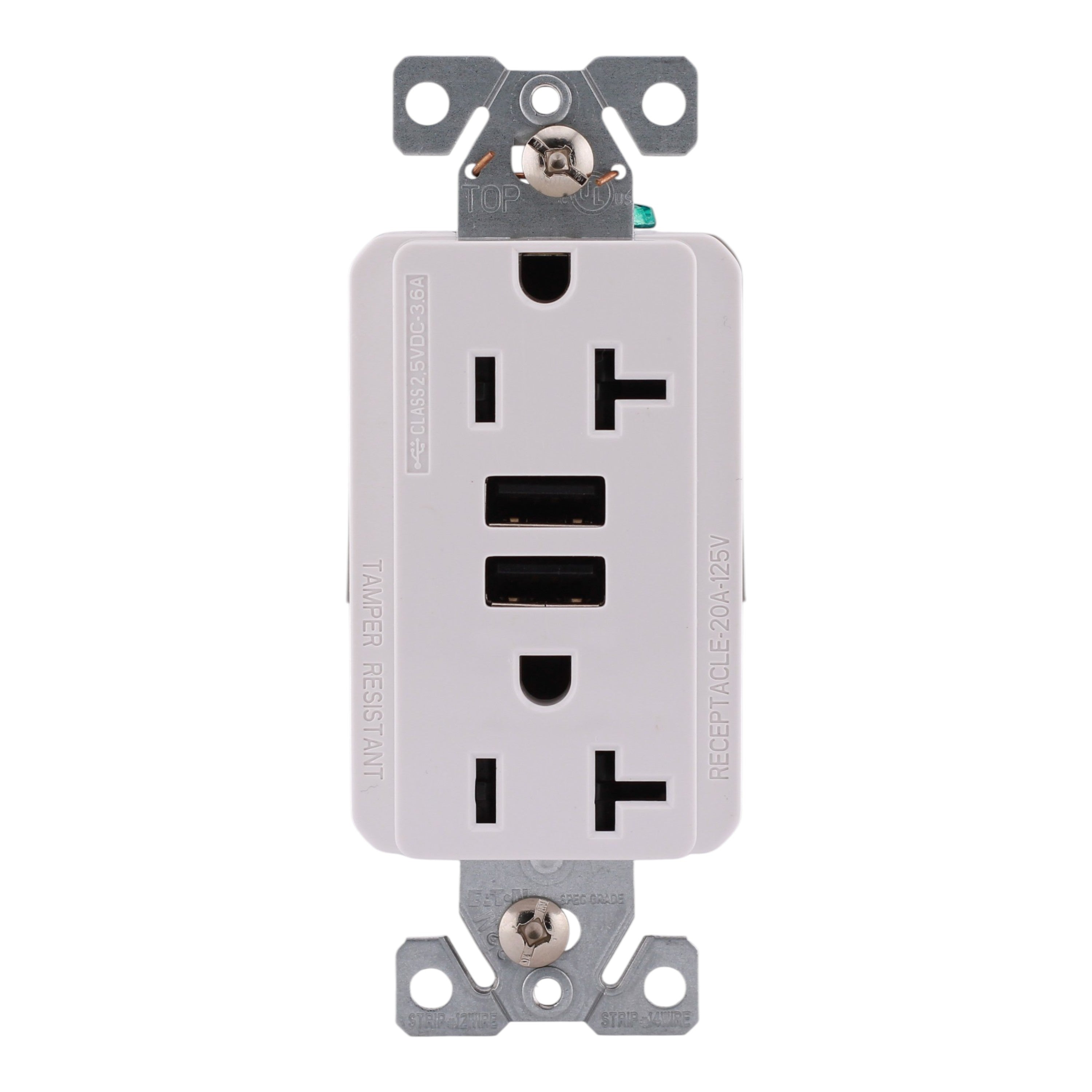

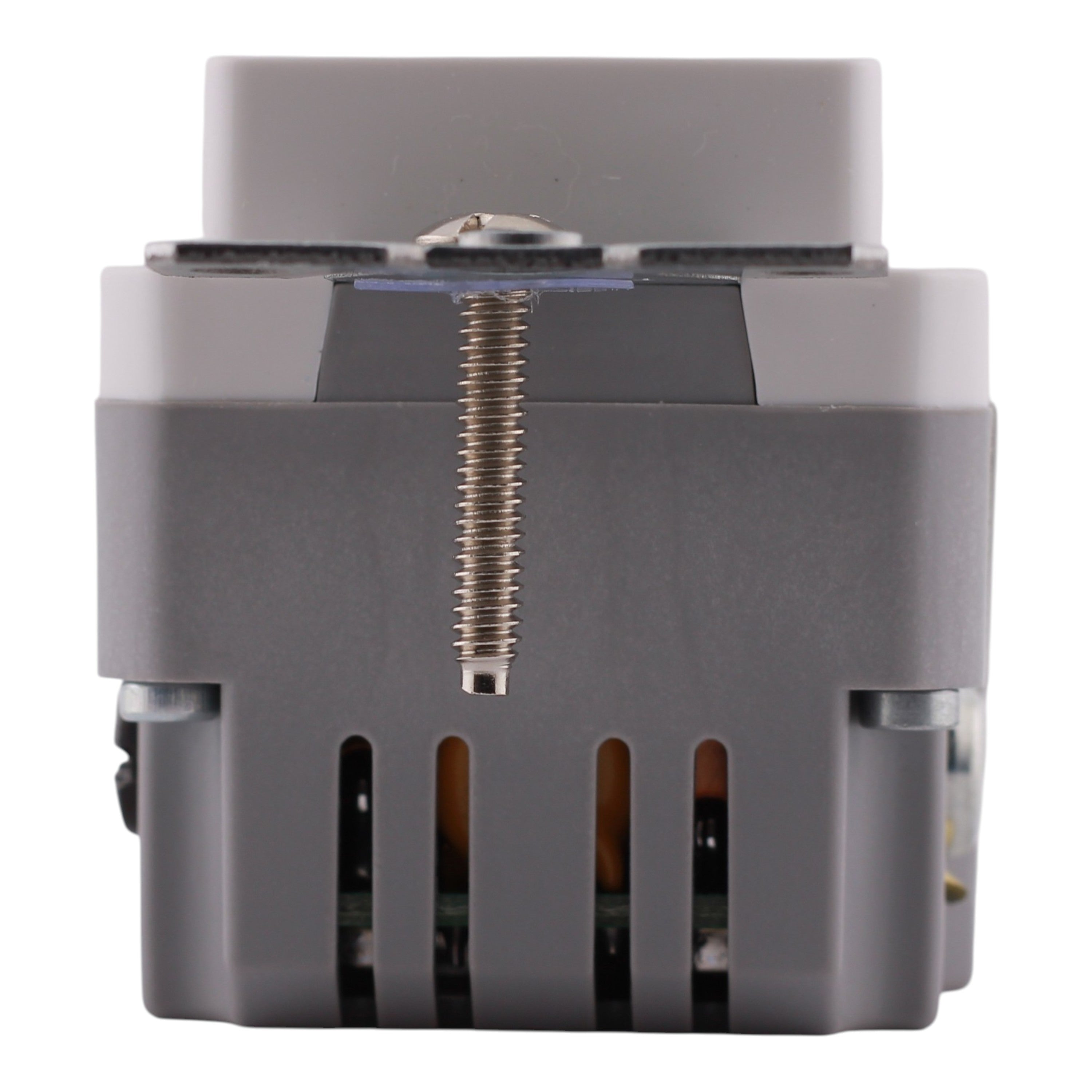

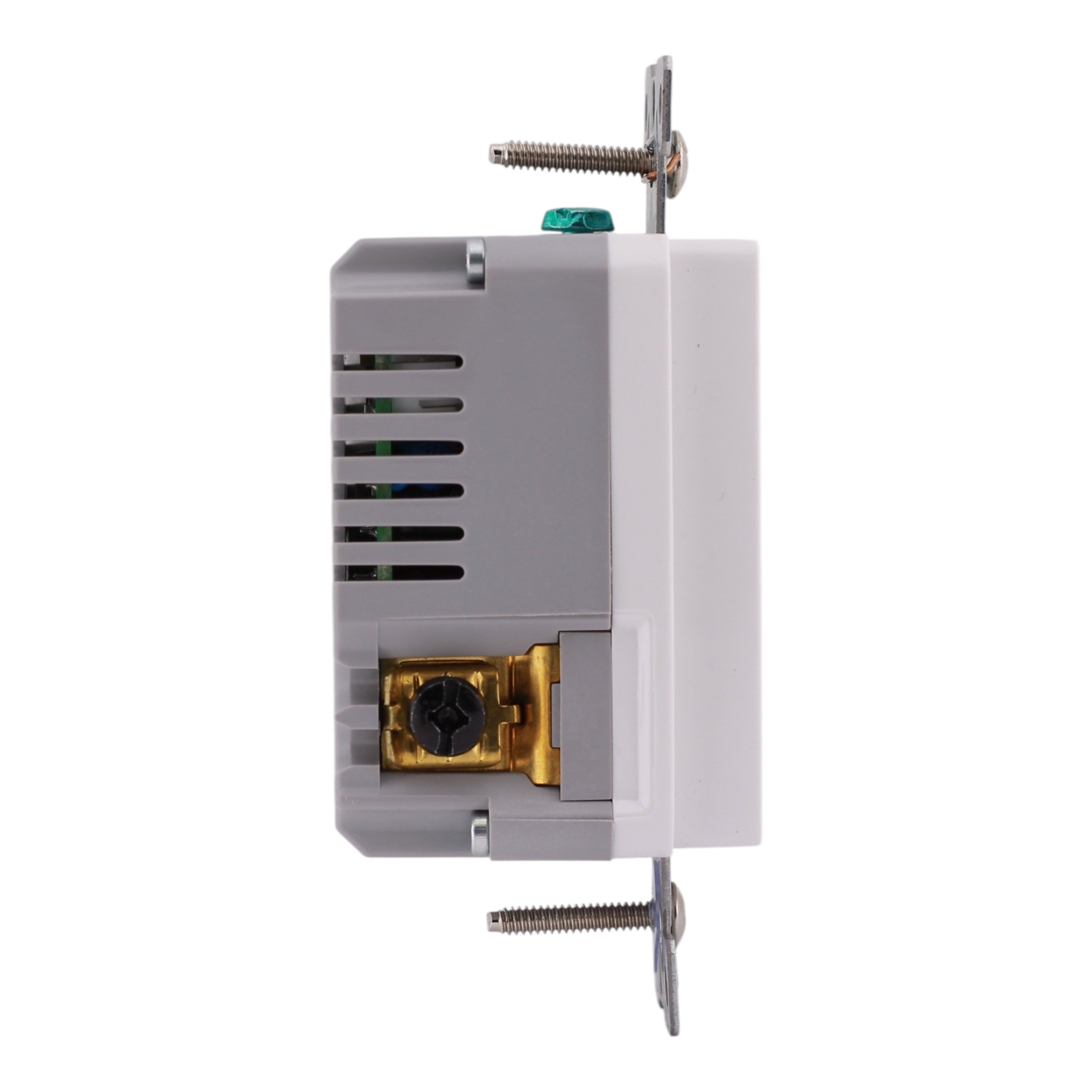

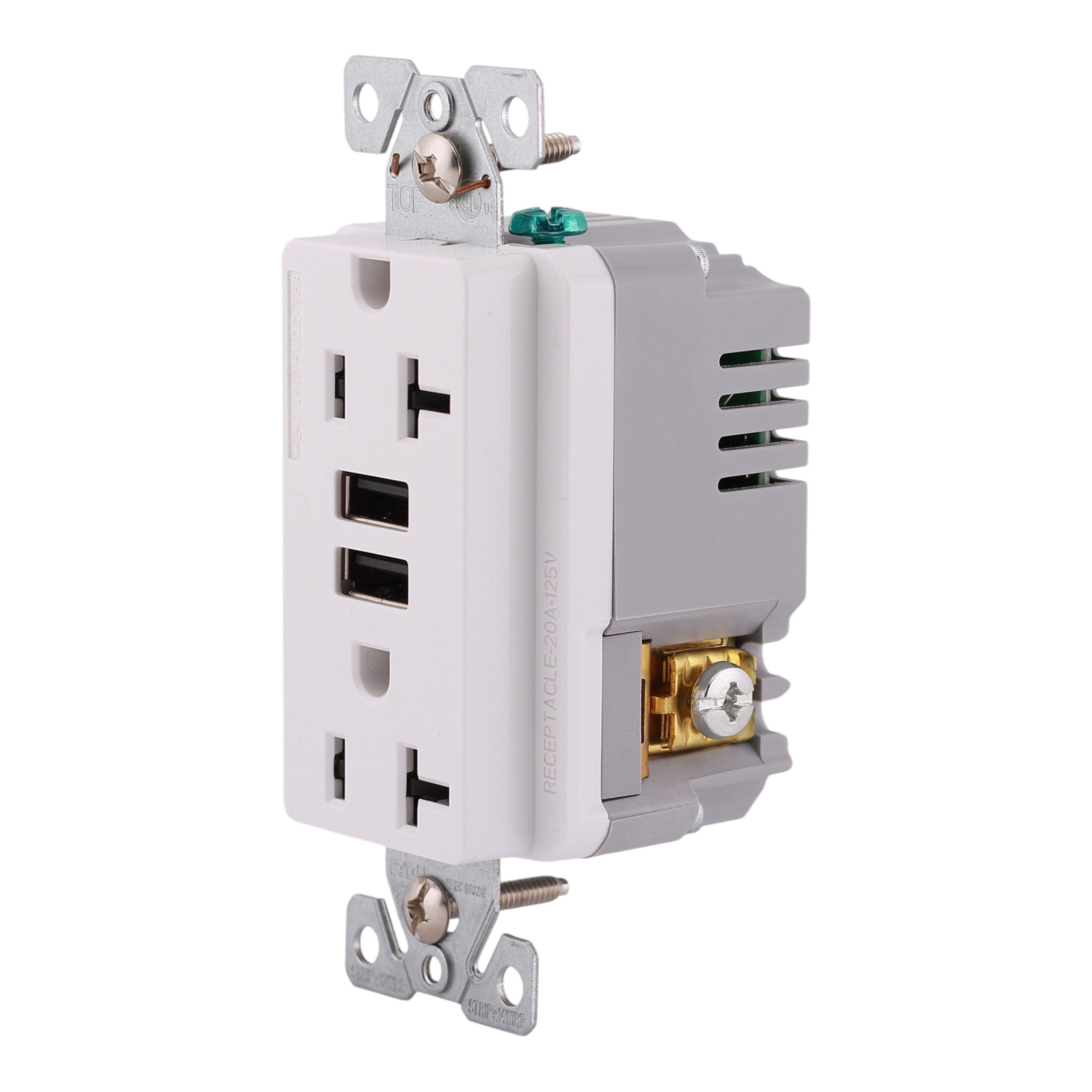

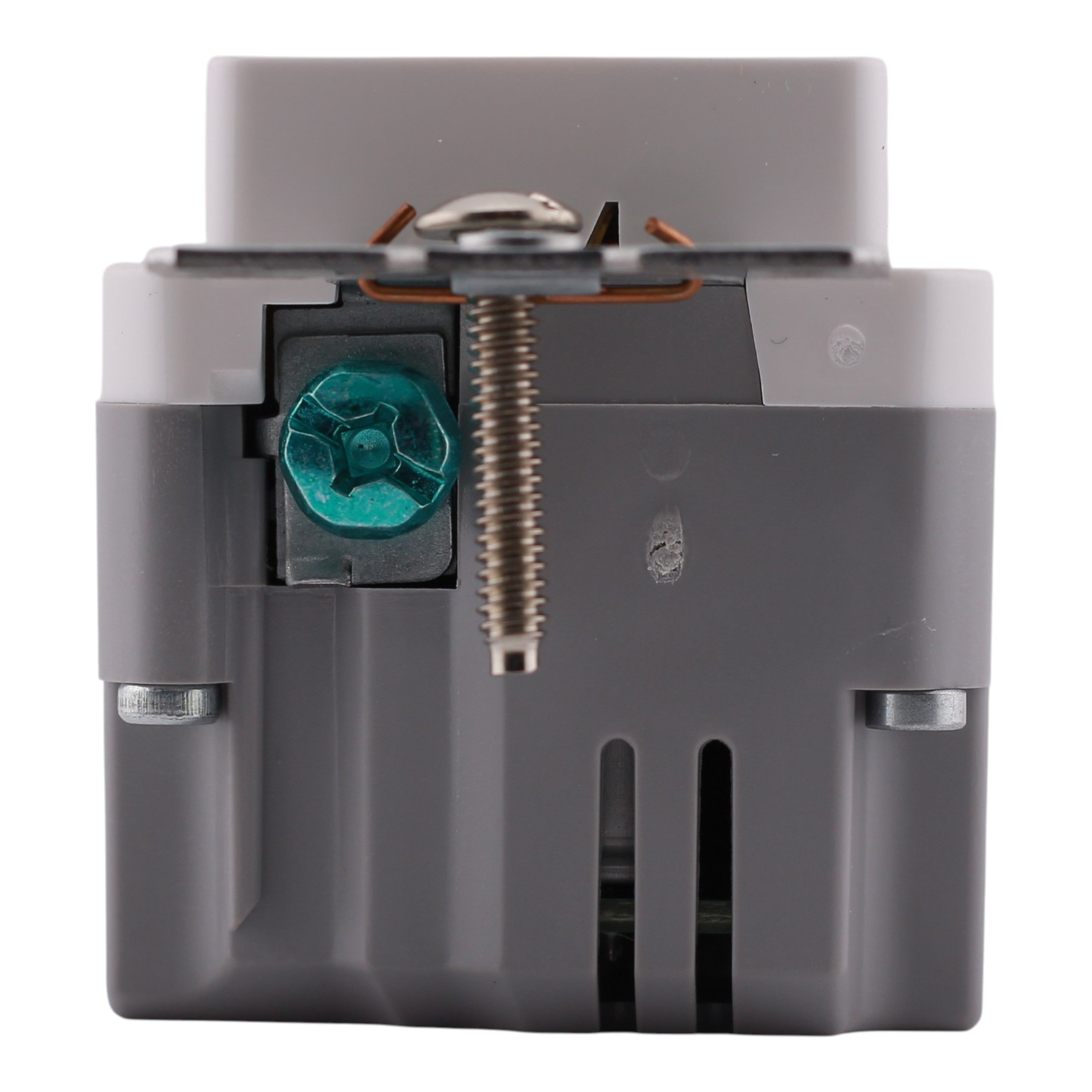

Eaton TR7766W-BOX, 20A, 125V, USB+Duplex Receptacle, TR, White

TR7766W Eaton -BOX, 20A, 125V, USB+Duplex Receptacle, TR, White.

TR7766W specifications

Specifications

• Manufacturer: Eaton
• Brand: Eaton Wiring Devices
• Product Range: TR Series (Tamper-Resistant wiring devices)
• UPC: 032664767081
• Model Number: TR7766W-BOX
• Product Type: Combination USB Charger with Duplex Receptacle
• USB Type: Type A
• USB Charging Output: 3.6A total (dual ports, 5V DC)
• Amperage: 20 Amps
• Voltage: 125 Volts AC
• NEMA Configuration: 5-20R
• Poles: 2-Pole, 3-Wire Grounding
• Mounting Method: Flush

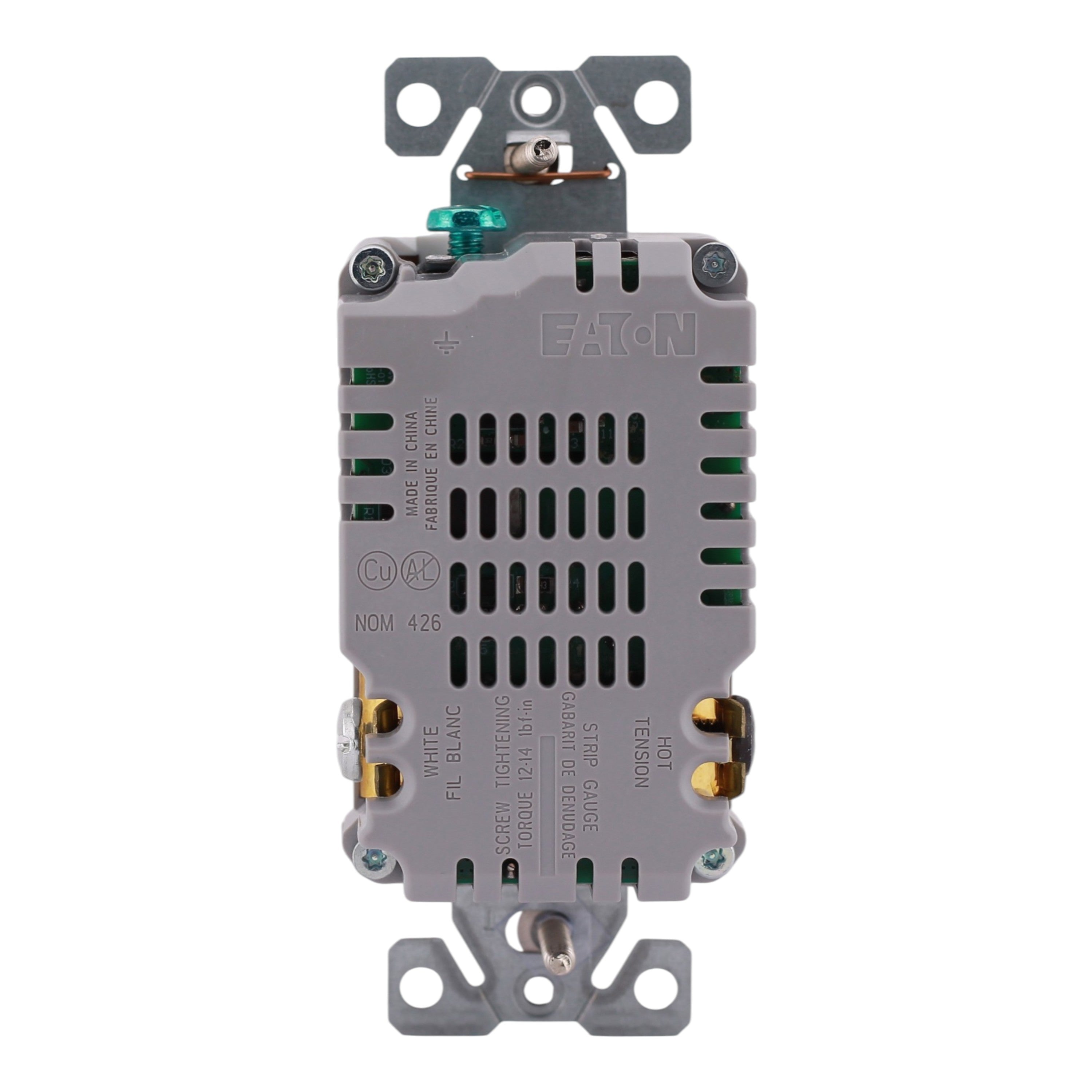

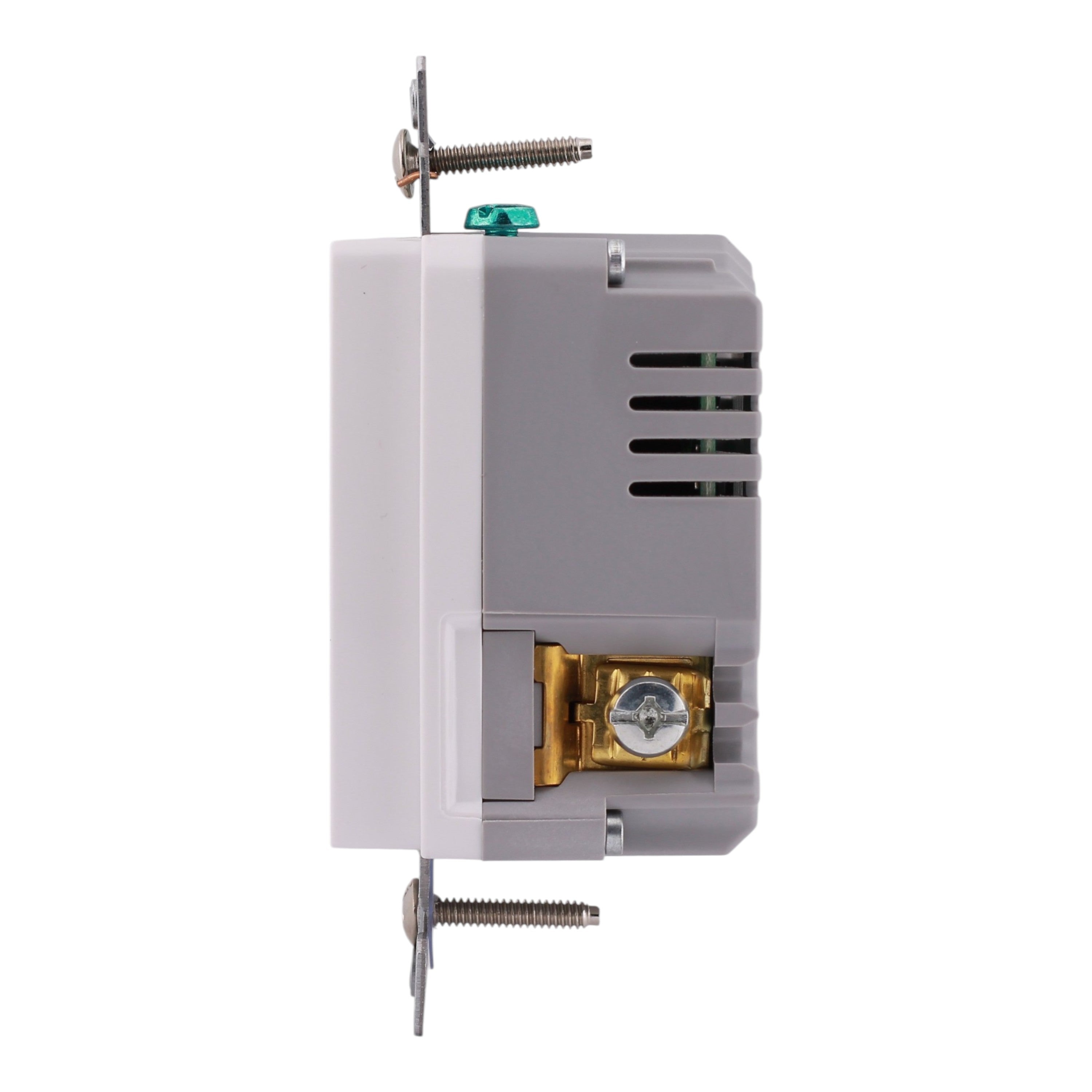

• Wiring Method: Screw Terminals
• Wire Size: #14-10 AWG Copper or Copper Clad Aluminum
• Tightening Torque: 14 lb-in
• Contact Material: Brass
• Material: Thermoplastic
• Style: Decorator
• Color: White
• Dimensions: Height: 4.19 in; Width: 1.3 in; Depth: 1.4 in
• Weight: 0.793 lbs
• Certifications: cULus Listed
• Features: Tamper-Resistant shutters (NEC Article 406.12 compliant)

This Eaton TR7766W-BOX tamper-resistant duplex receptacle combines a 20A, 125V NEMA 5-20R outlet with dual 3.6A USB Type-A charging ports for adapter-free device charging in residential and commercial flush-mount applications.
