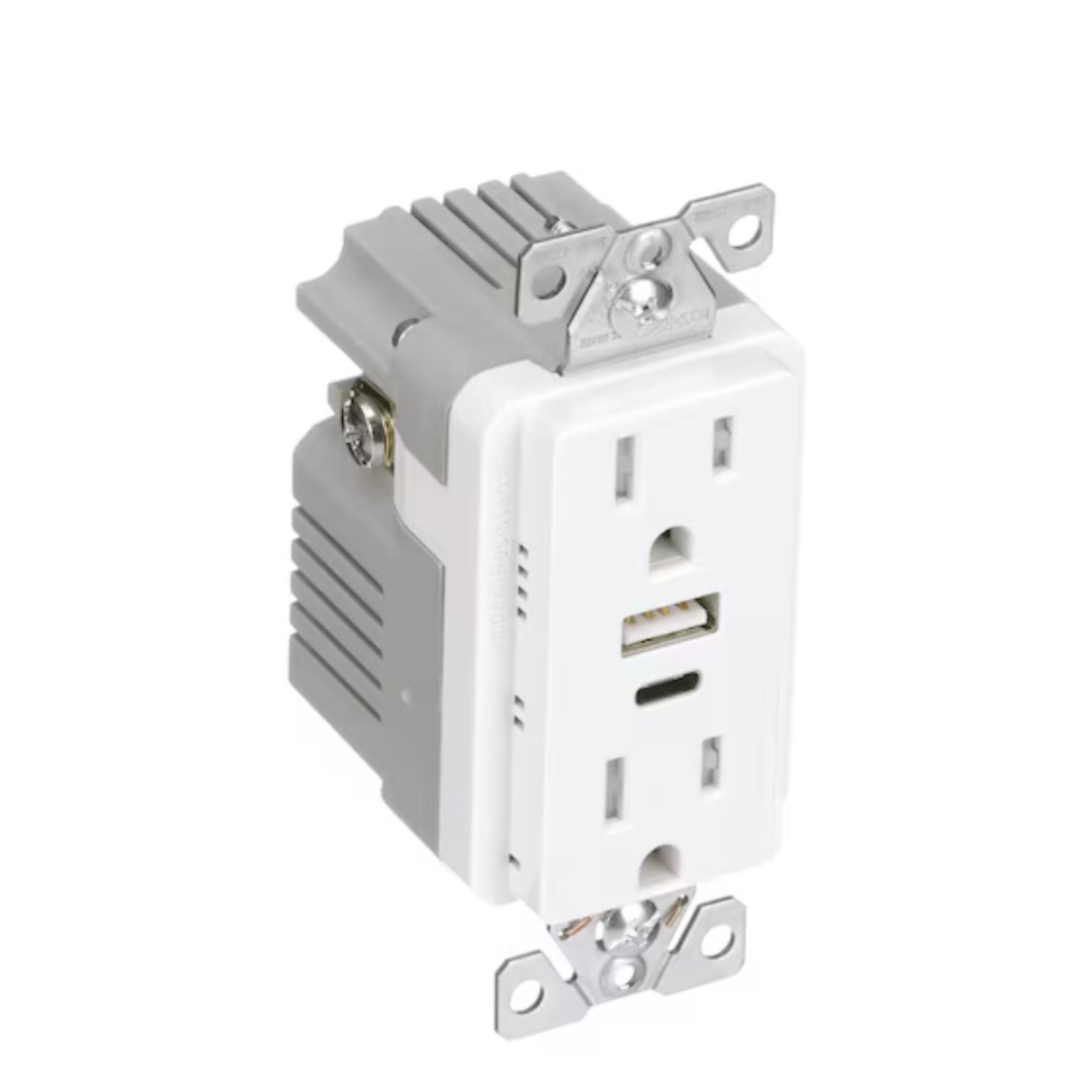

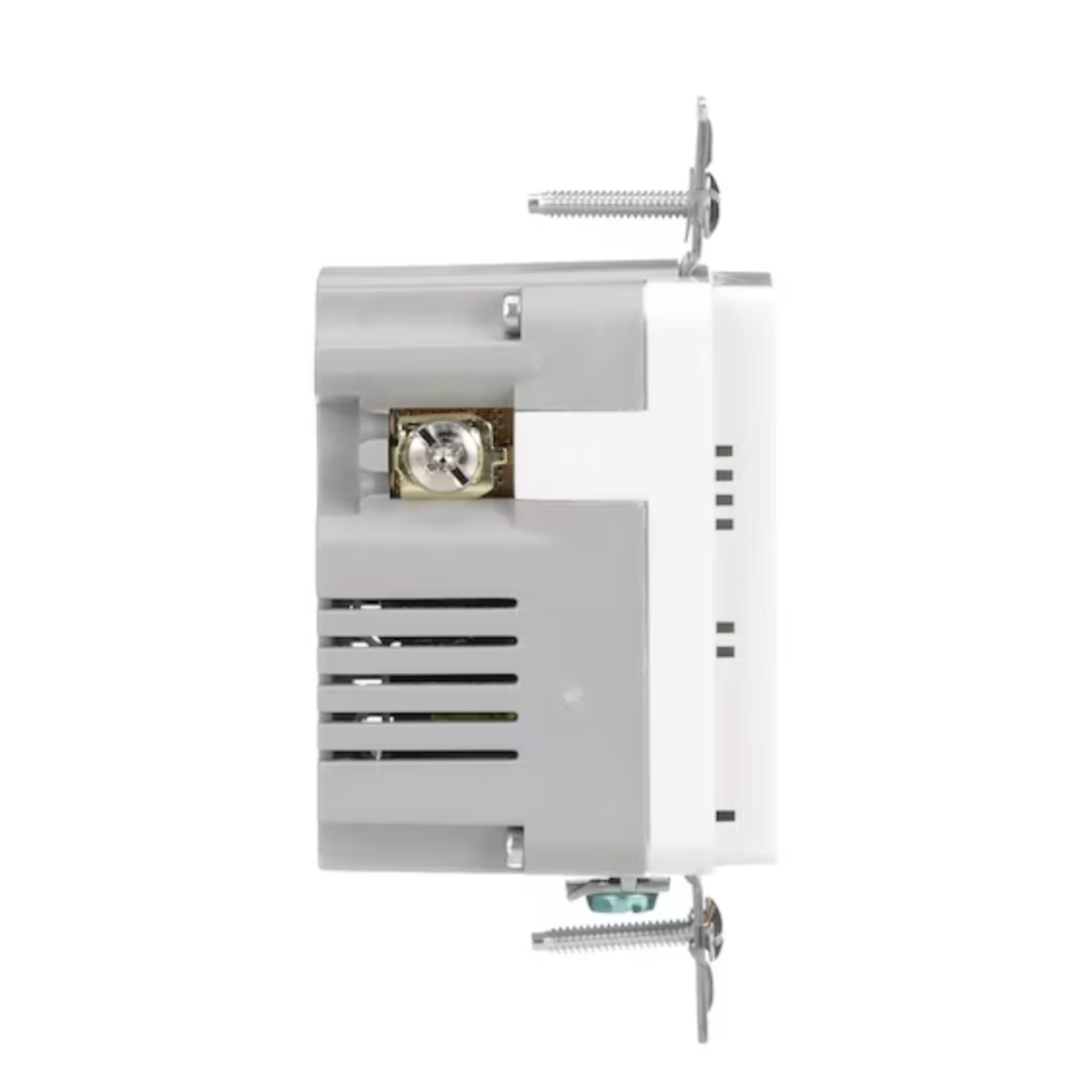

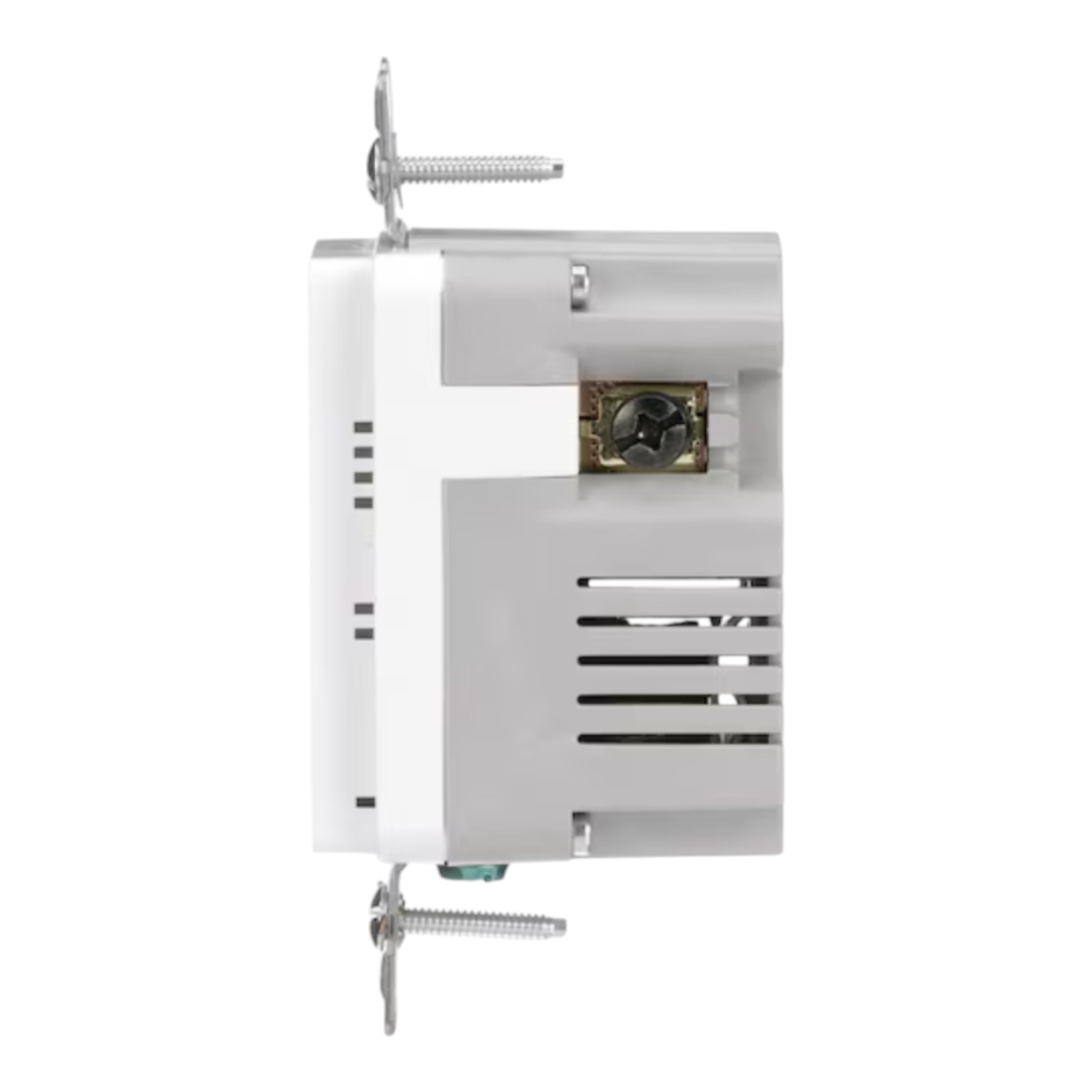

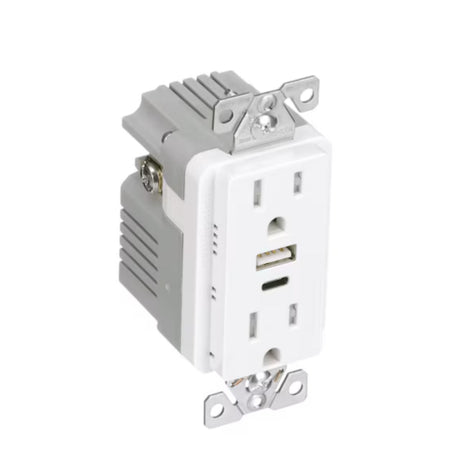

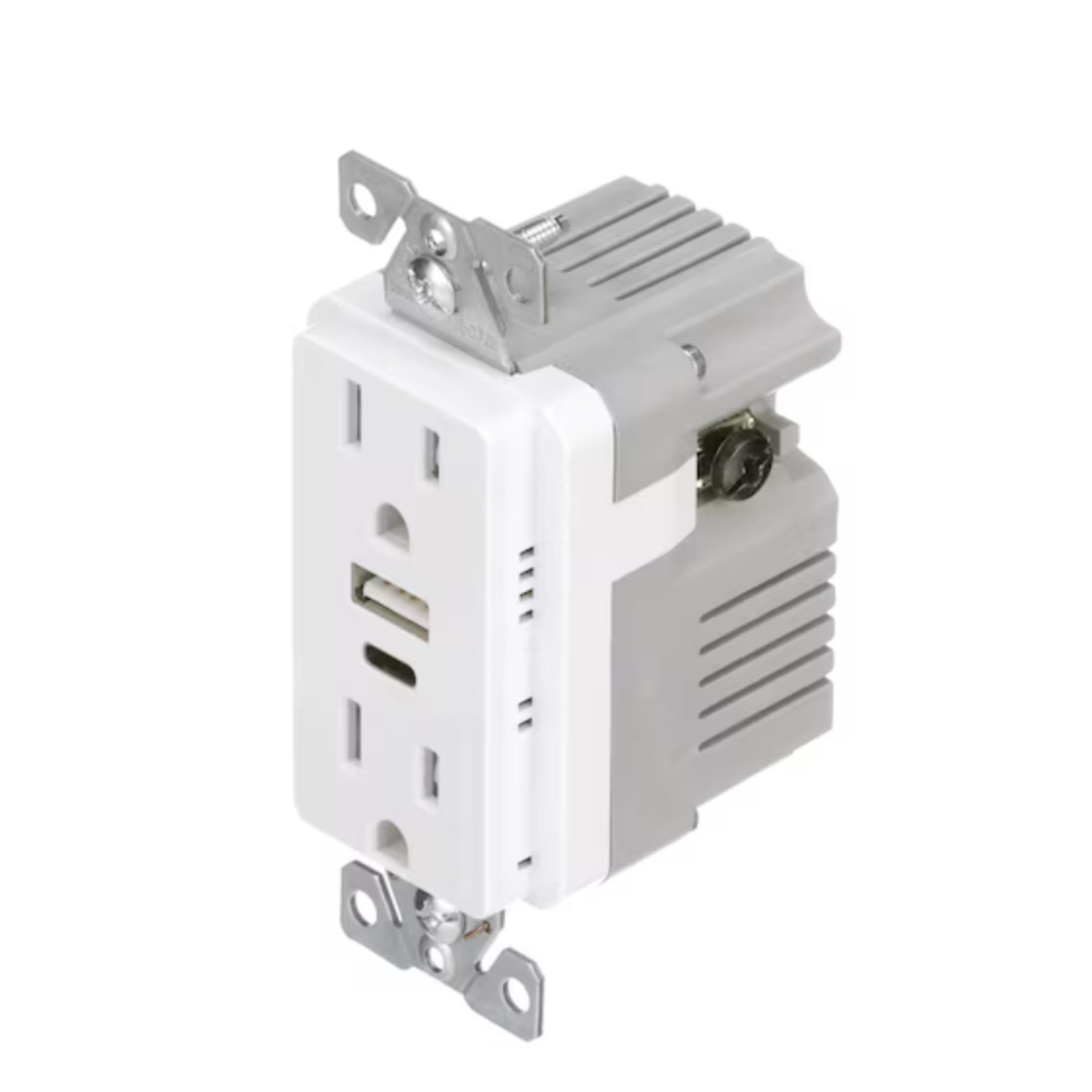

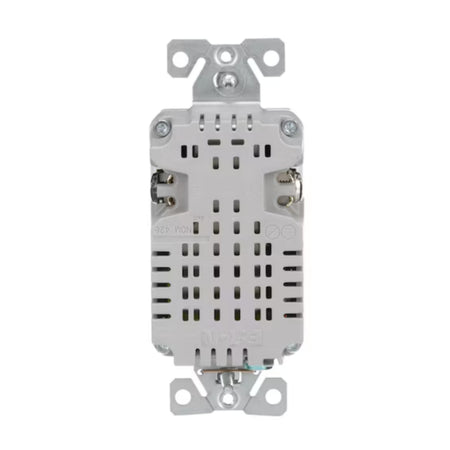

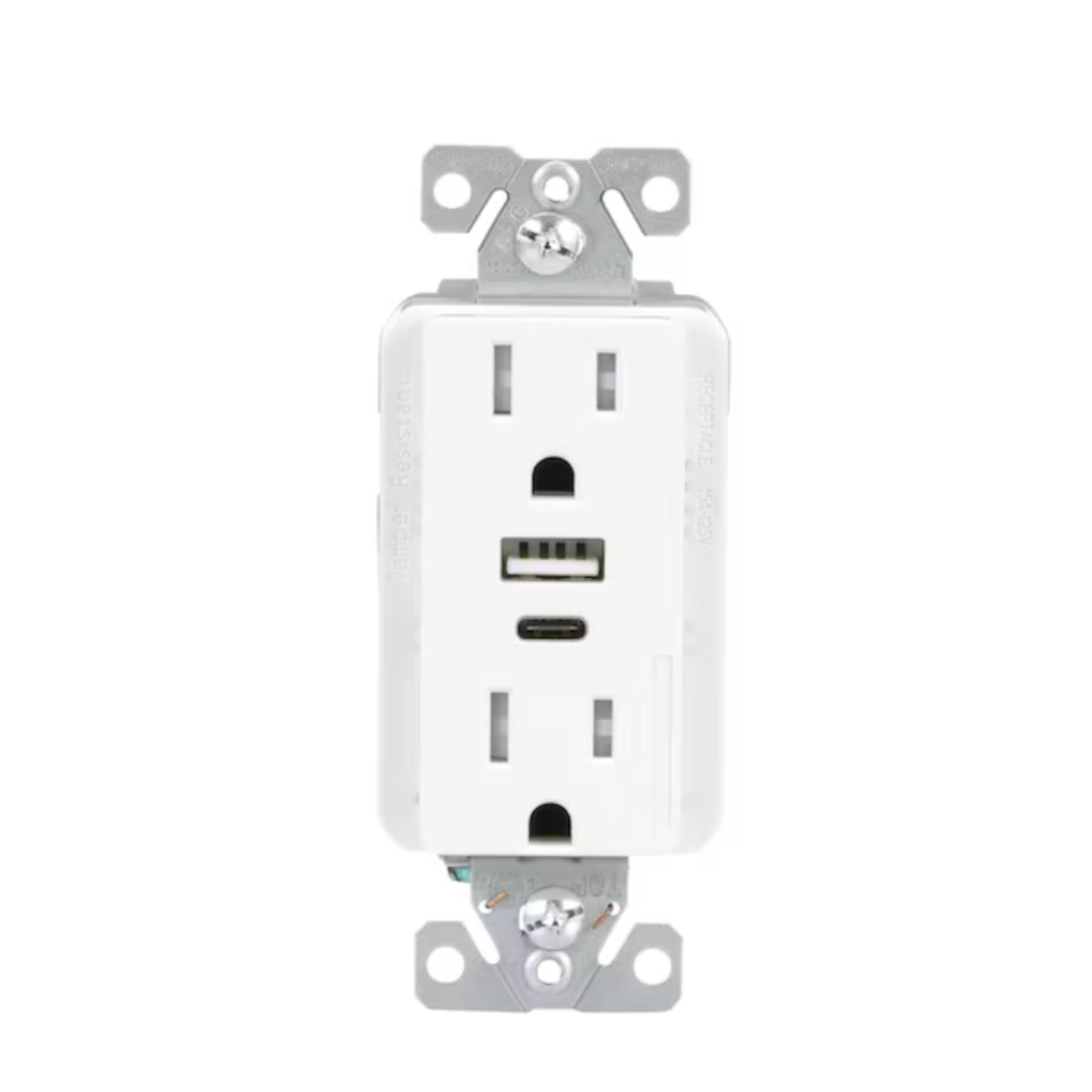

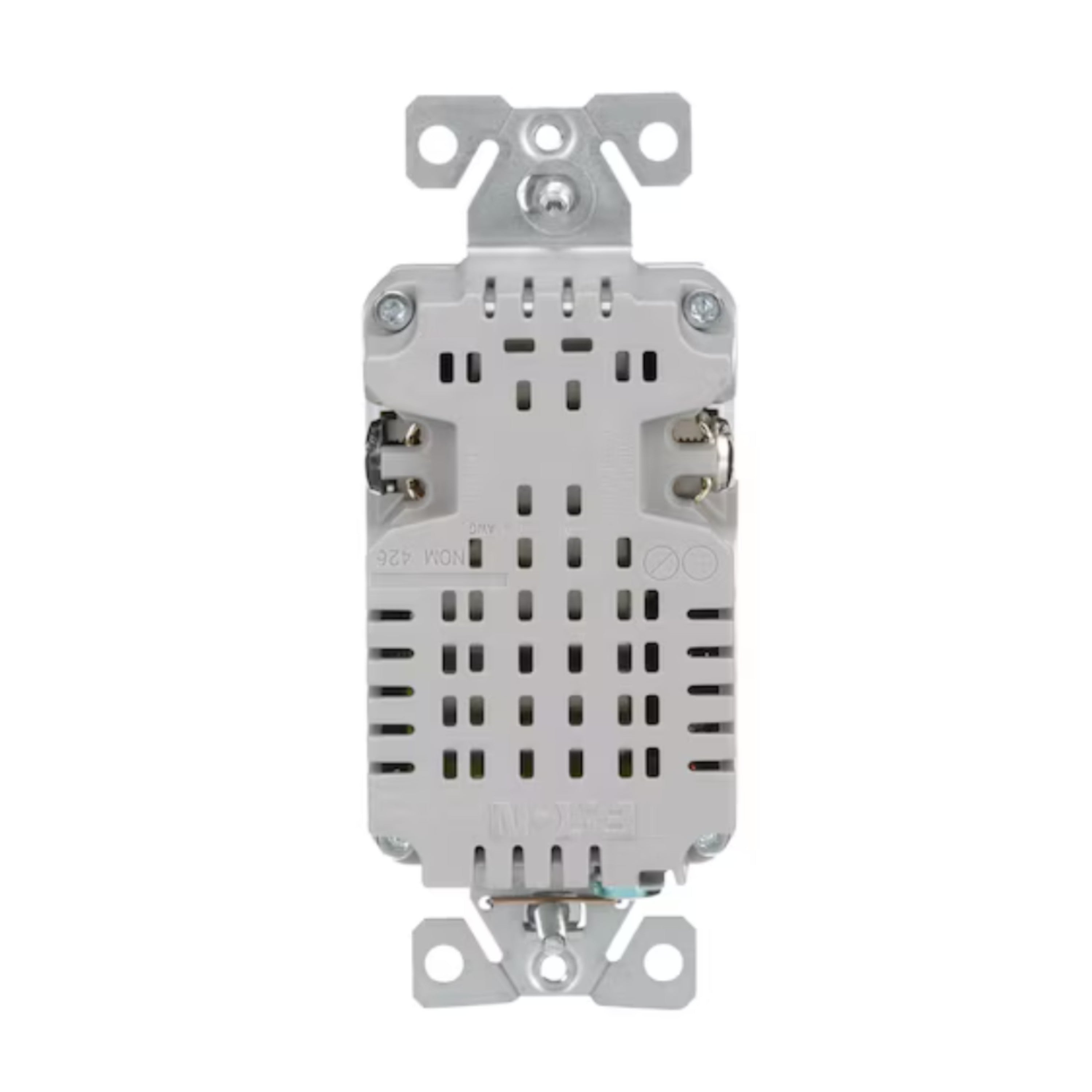

Eaton TRUSBAC15W: 15 Amp, 125V duplex receptacle with USB Type A and C charging ports, 5A combined USB charging, tamper resistant, decorator style, cULus listed.
-
Manufacturer: Eaton
-
Product Name: Eaton combination USB charger with duplex receptacle
-
Catalog Number: TRUSBAC15W
-
UPC: 032664755828
-
Model Number: TRUSBAC15W-BOX
-
Product Type: Combination USB charger with duplex receptacle
-
Receptacle Type: Two-pole, three-wire, grounding
-
Amperage Rating: 15 Amps (receptacle)
-
Voltage Rating: 125 Volts AC
-
USB Charging: 5 Amps combined (5 VDC)
-
USB Ports: 2 ports - Type A and Type C
-
Poles: Two-pole
-
Number of Wires: Three-wire
-
NEMA Configuration: 5-15R
-
Contact Material: Brass
-
Wiring Method: Screw terminals (back and side wiring)
-
Allowable Wire Size: #10-14 AWG Copper or Copper Clad Aluminum
-
Tightening Torque: 14 lb-in
-
Mounting Method: Flush
-
Style: Decorator
-
Material: Thermoplastic
-
Color: White
-
Dimensions: Height: 4.19 in; Width: 1.3 in; Depth: 1.4 in
-
Weight: 0.285 lbs
-
Features: Tamper resistant shutters, automatic grounding system, patented built-in wire strippers
-
Certifications: cULus Listed, NOM
-
Packaging Type: Retail Box
This Eaton TRUSBAC15W-BOX combination USB charger receptacle provides convenient 15 Amp, 125V power plus dual USB Type A and C charging ports rated at 5A combined output. The tamper-resistant decorator-style receptacle features brass contacts, screw terminals, and automatic grounding for reliable residential and commercial installations.
