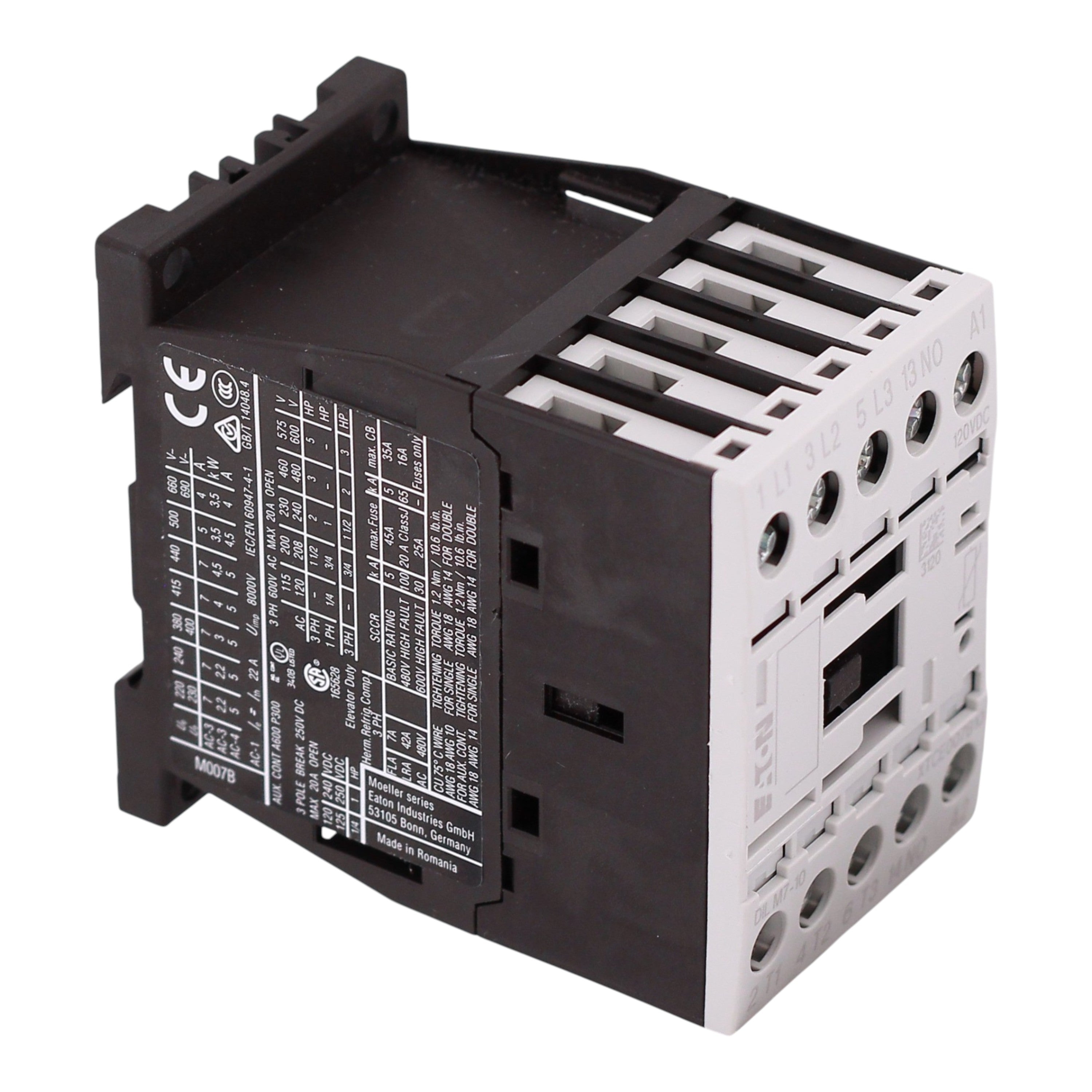

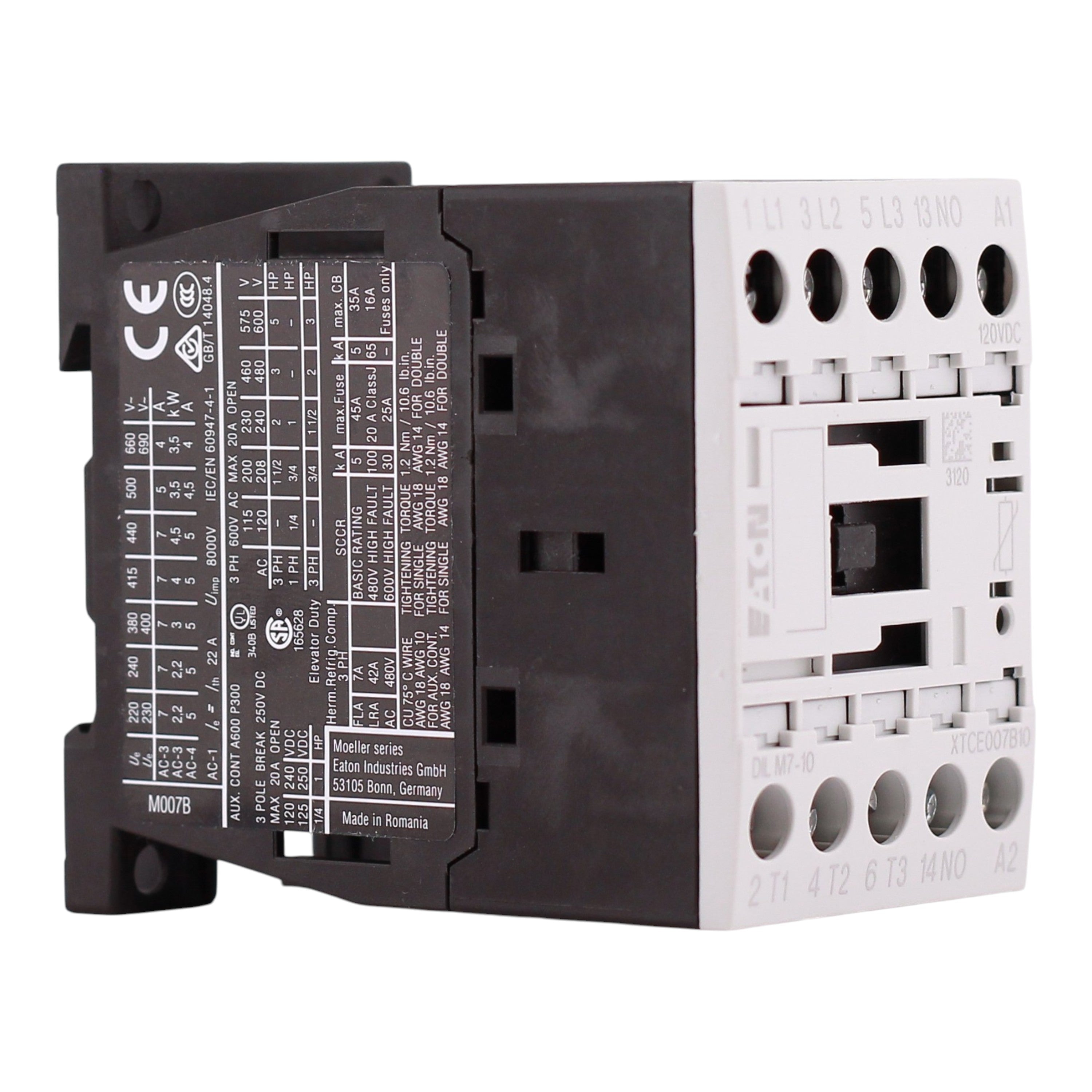

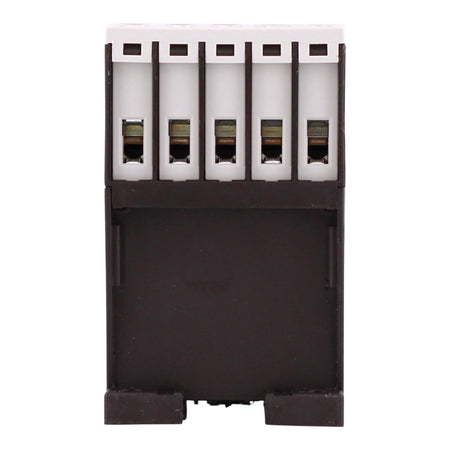

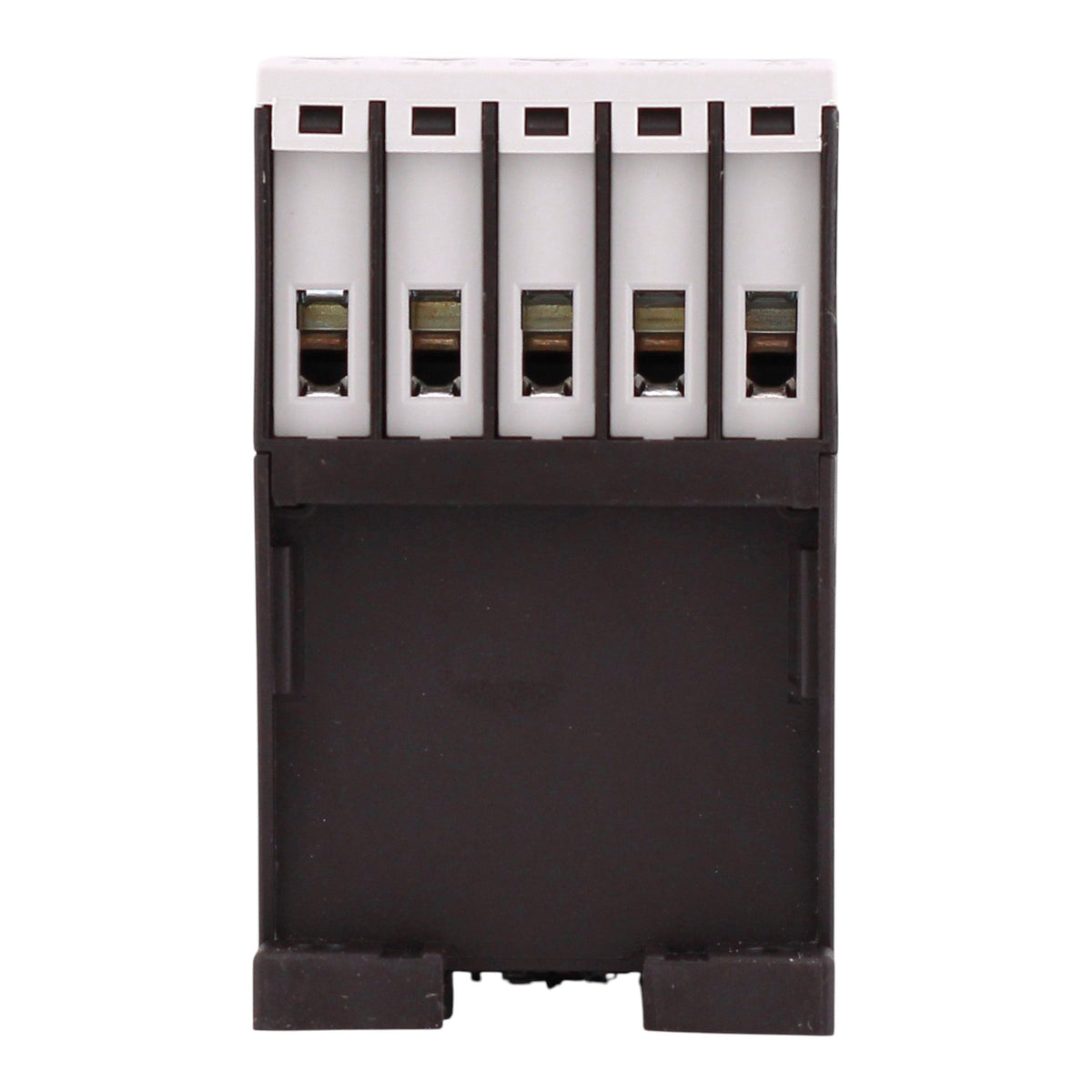

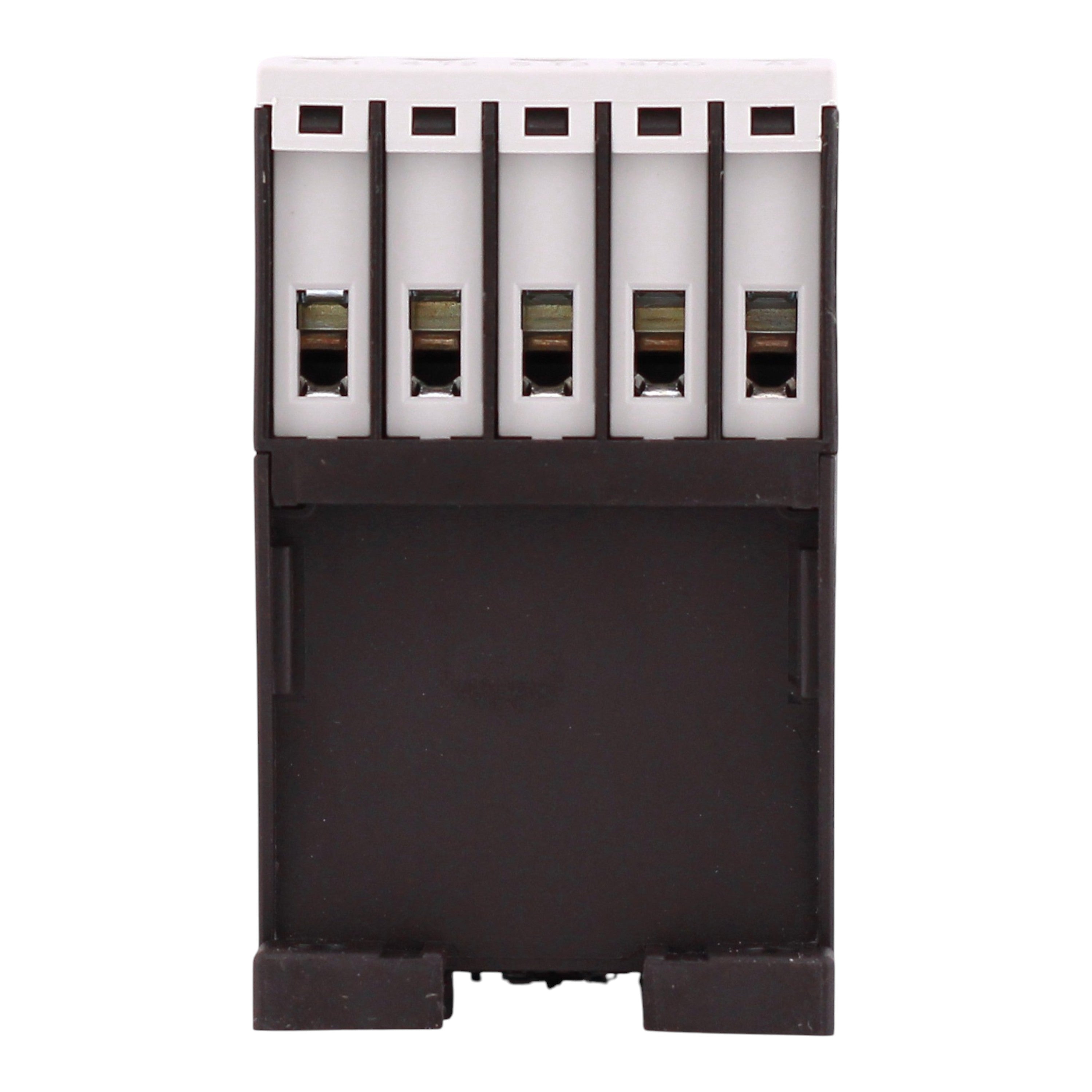

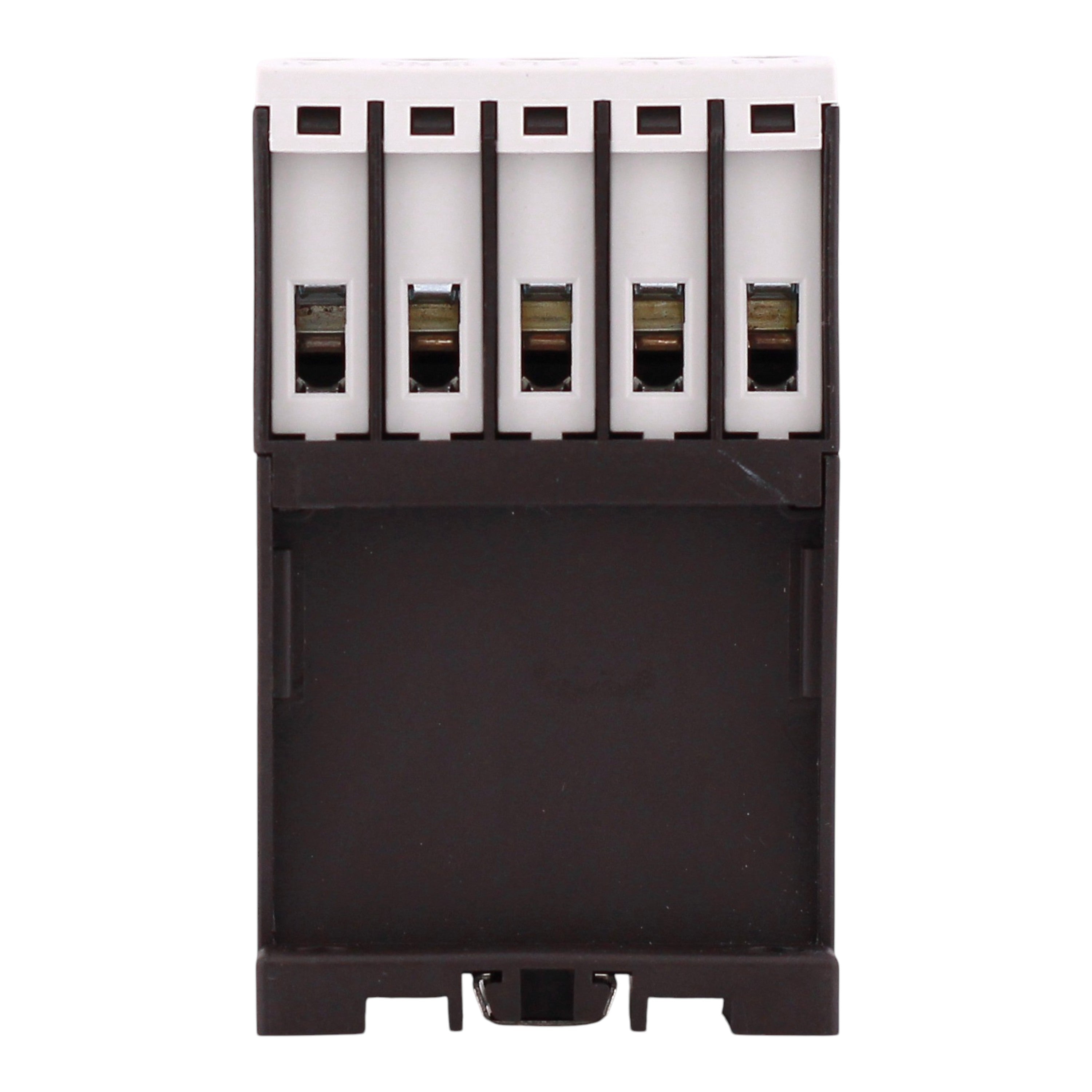

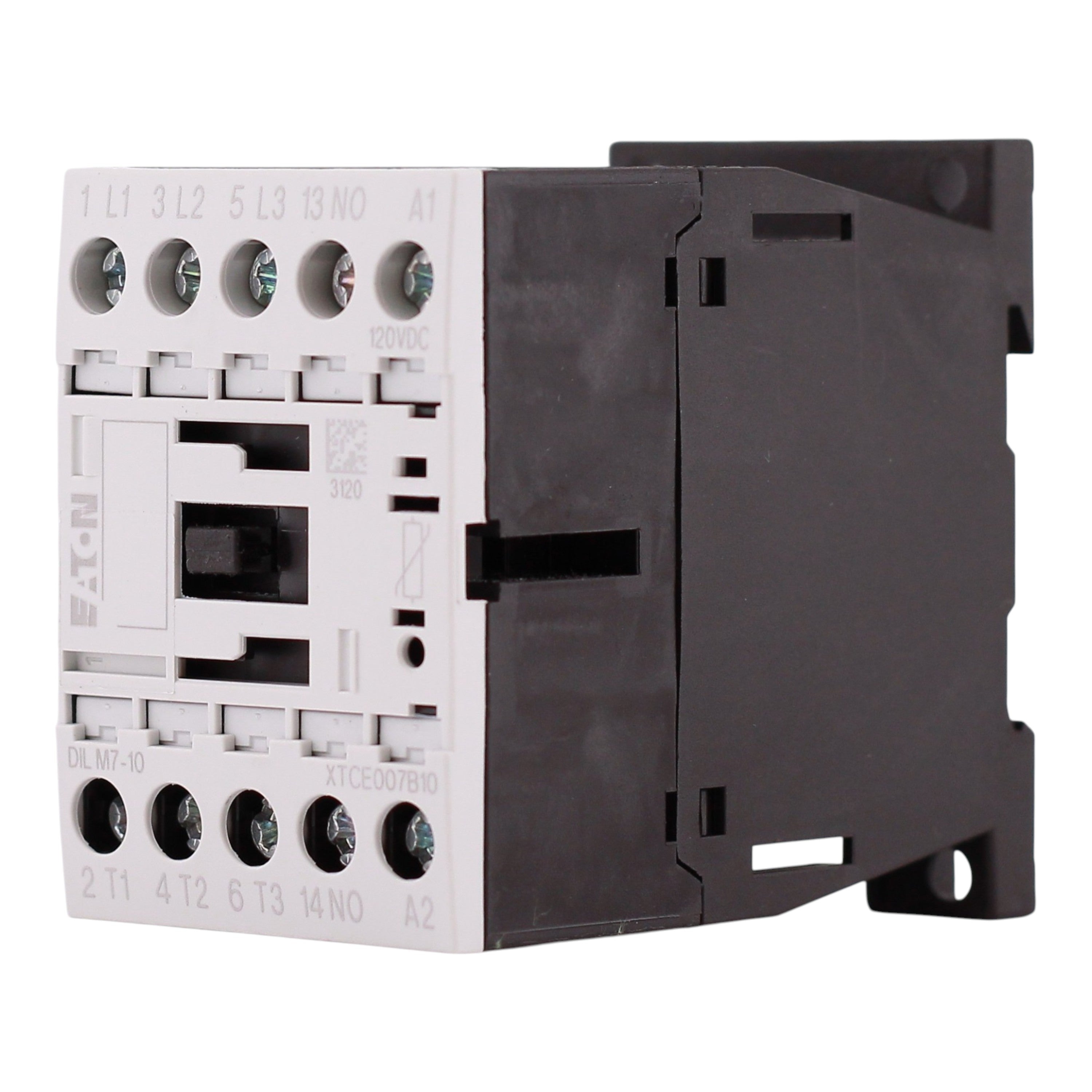

Eaton XTCE007B10AD: 7 Amp, 3-Pole, XT IEC Full Voltage Non-Reversing Contactor, 690V AC Load, 120V DC Coil, 1NO Auxiliary, Screw Terminals, UL Listed, CSA Certified, IEC 60947.
-
Manufacturer: Eaton
-
Brand: Eaton
-
Product Range: XT IEC Series (Frame B, 45mm — for DIN rail and panel mount applications)
-
EAN: 4015081548064
-
Model Number: XTCE007B10AD
-
Product Type: Full Voltage Non-Reversing IEC Contactor
-
Amperage Rating: 7 Amps AC-3; 20 Amps AC-1
-
Poles: 3-Pole
-
Maximum Load Voltage: 690 Volts AC
-
Coil Voltage: 120 Volts DC
-
Auxiliary Contacts: 1NO (base mounted)
-
Frame Size: B (45 mm)
-
Operation: Non-Reversing
-

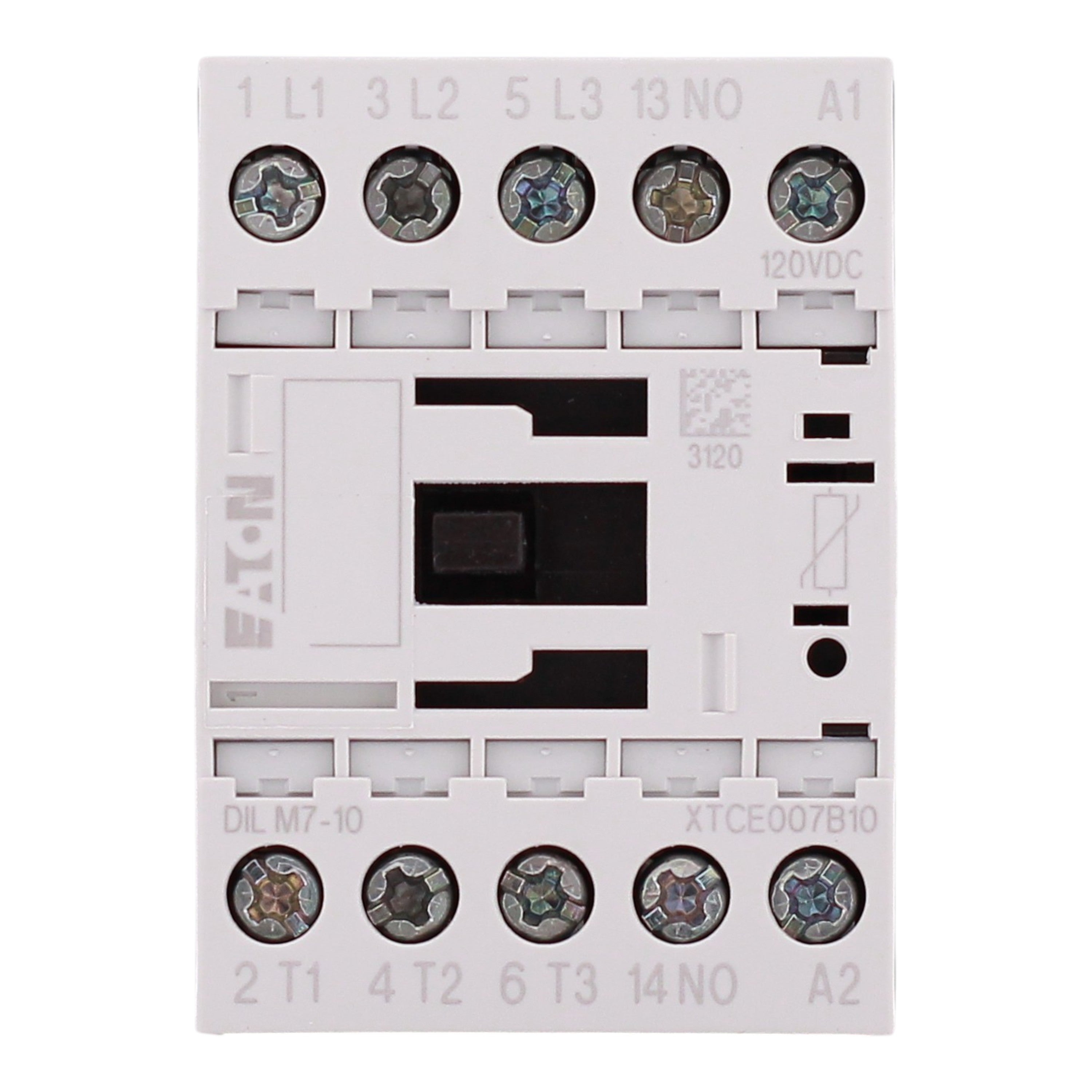

Terminals: Screw terminals (#28–12 AWG)
-

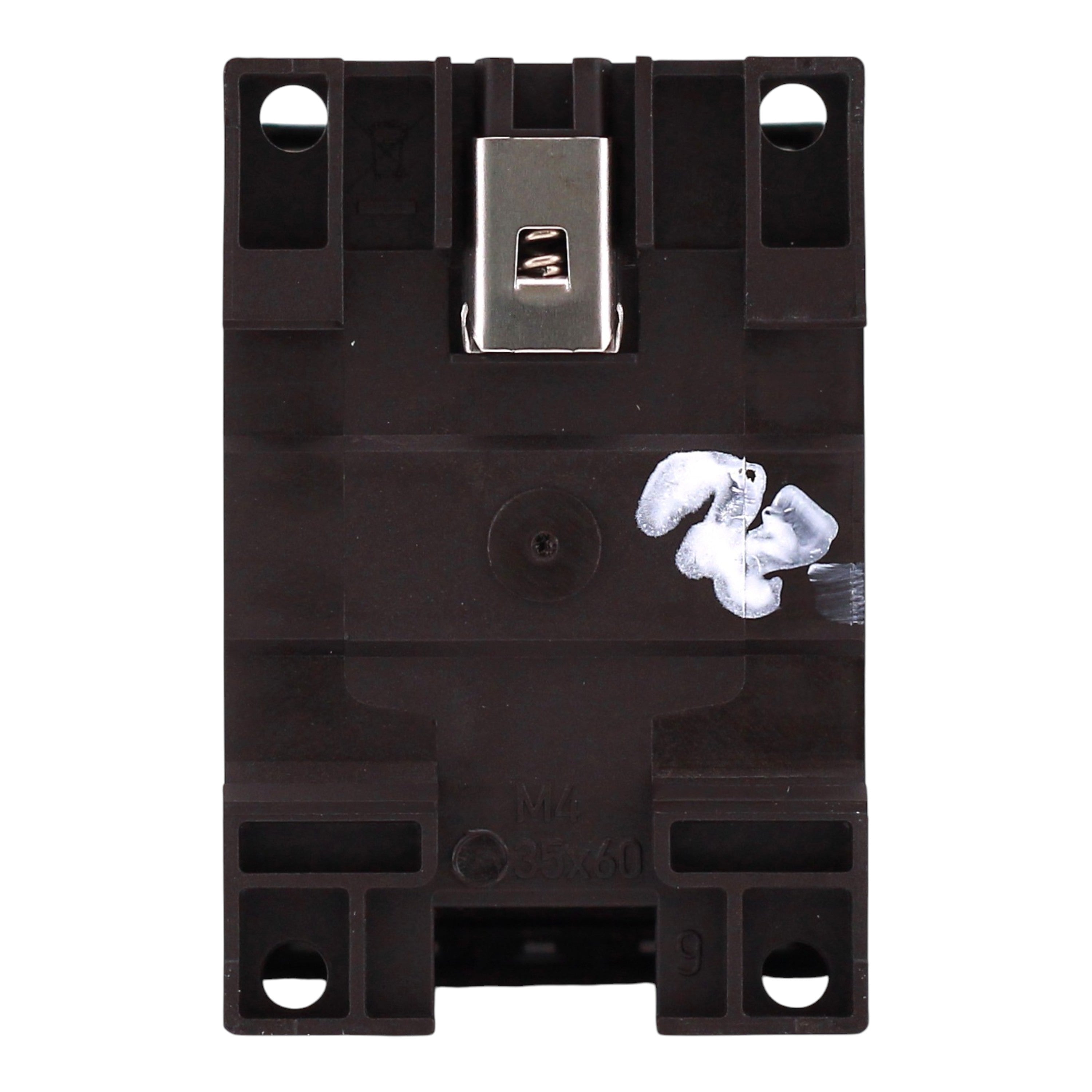

Mounting Mode: DIN rail or panel mount
-
IP Rating: IP20
-

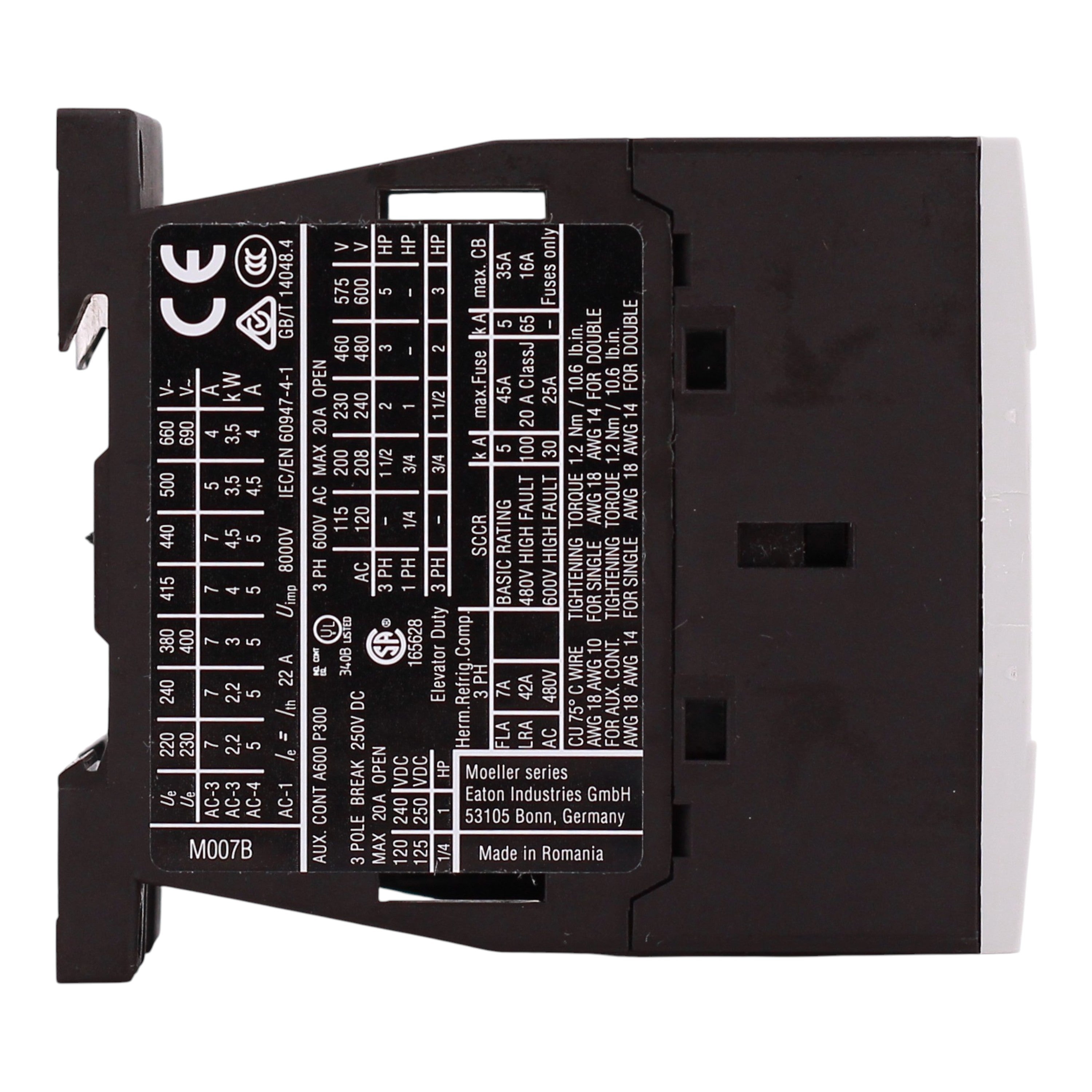

Horsepower Rating: 0.25 HP @ 115V (1PH); 0.75 HP @ 200V (1PH); 1 HP @ 230V (1PH); 1.5 HP @ 200V (3PH); 2 HP @ 230V (3PH); 3 HP @ 460V (3PH); 5 HP @ 575V (3PH)
-
Operating Temperature: -13°F to 122°F (-25°C to 50°C)
-
Dimensions: Height: 2.67 in; Width: 1.77 in; Depth: 2.95 in
-
Weight: 0.60 lbs
-
Certifications: UL Listed, CSA Certified, IEC 60947, EN 60947, CE Marked, RoHS Compliant
This Eaton XT IEC XTCE007B10AD full voltage non-reversing contactor delivers reliable 7 Amp, 3-Pole switching for 690V AC motor and control loads with a 120V DC coil, 1NO base-mounted auxiliary contact, and screw terminals in a compact 45mm Frame B package. Designed for DIN rail or panel mounting, it supports industrial motor control applications worldwide in compliance with UL, CSA, and IEC standards.
