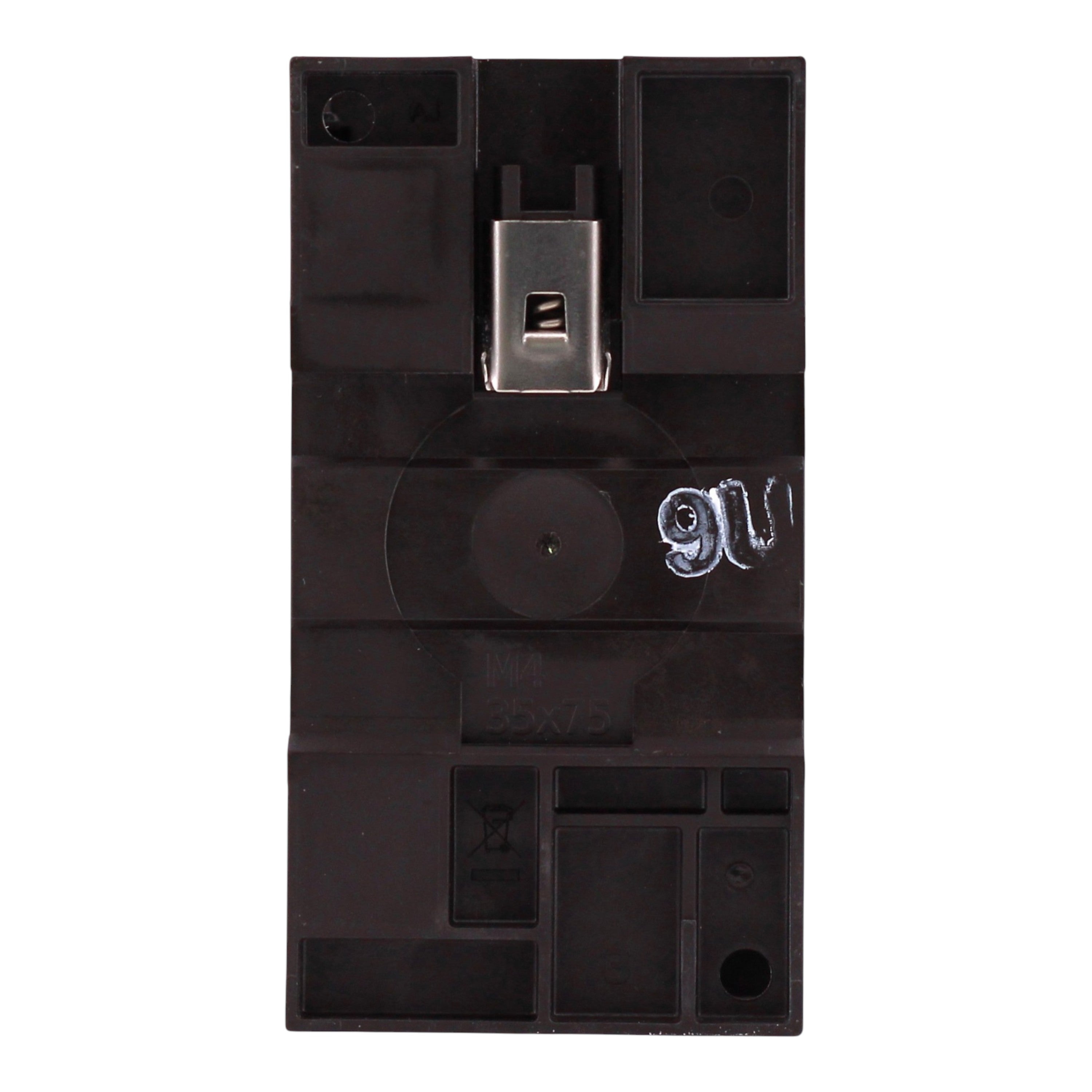

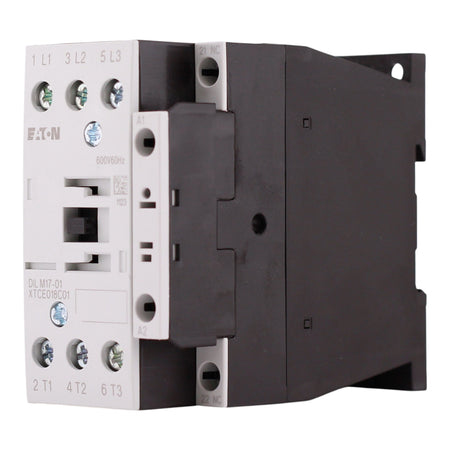

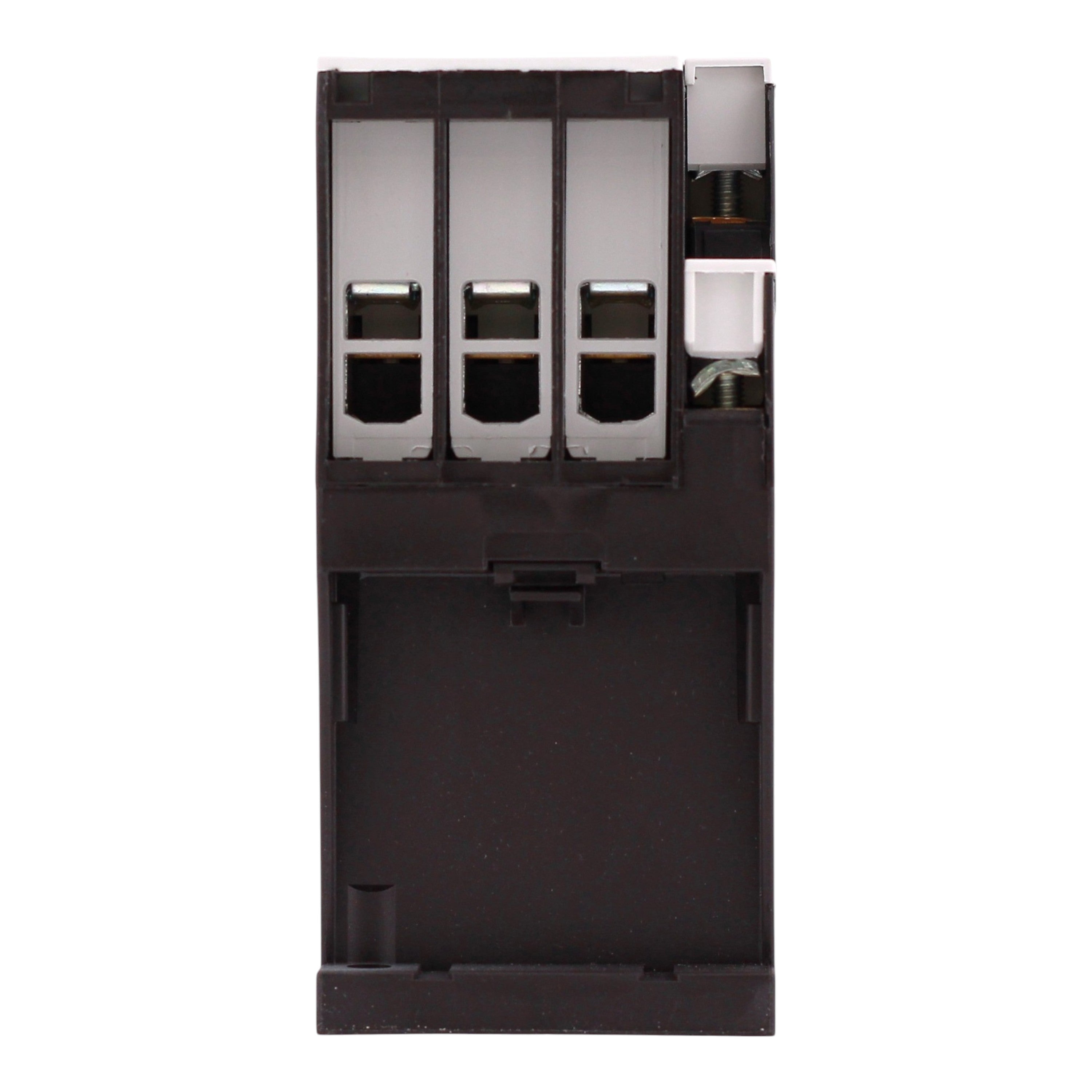

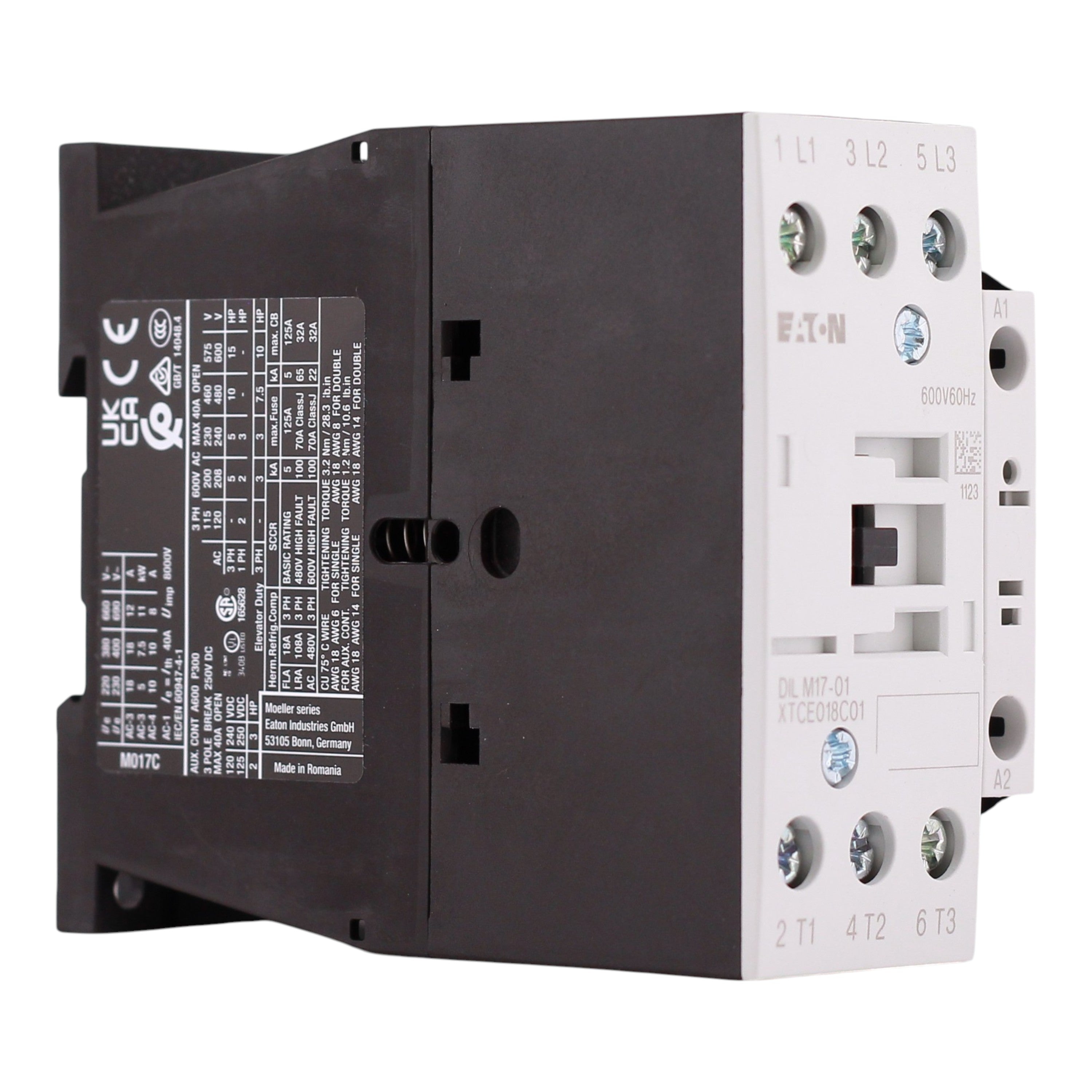

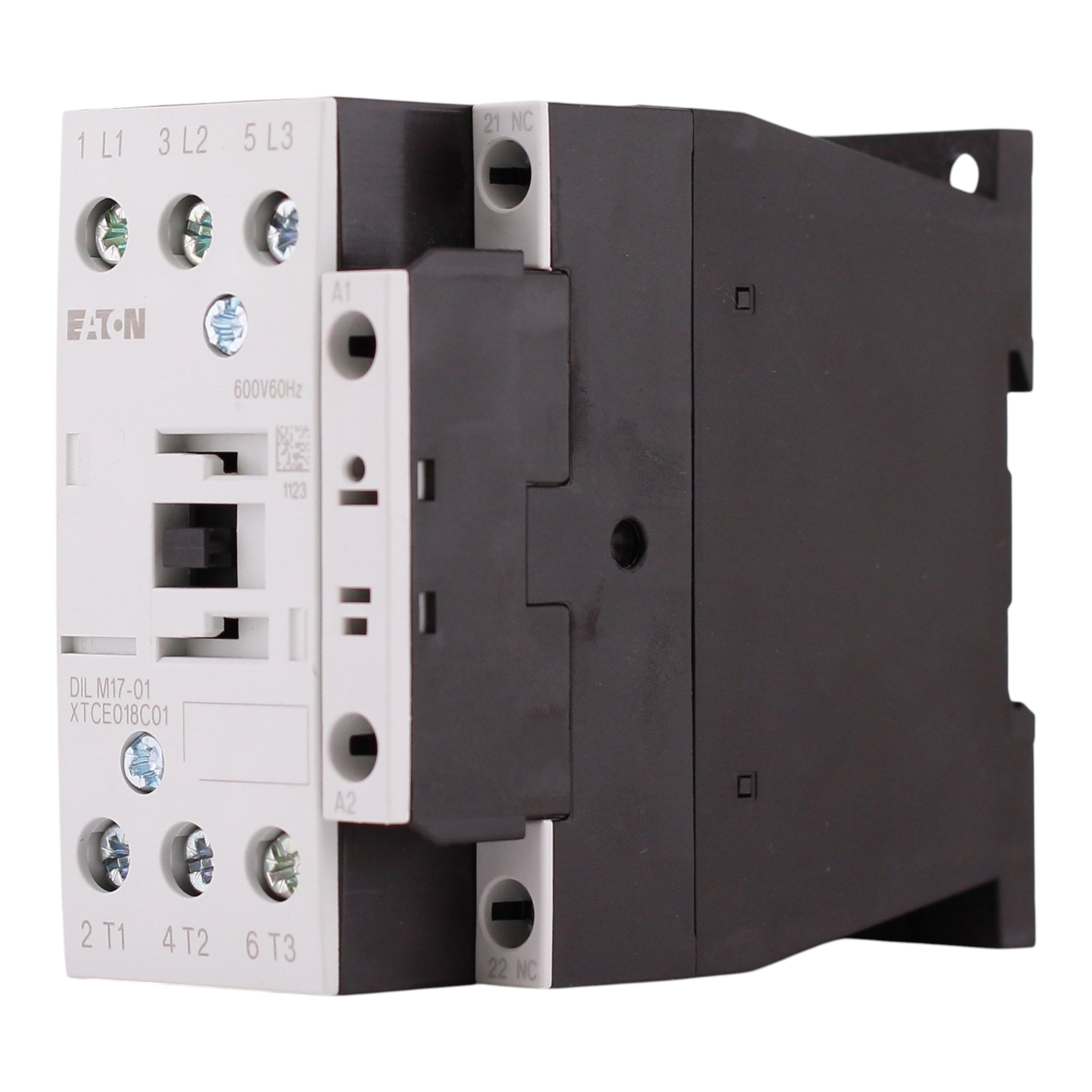

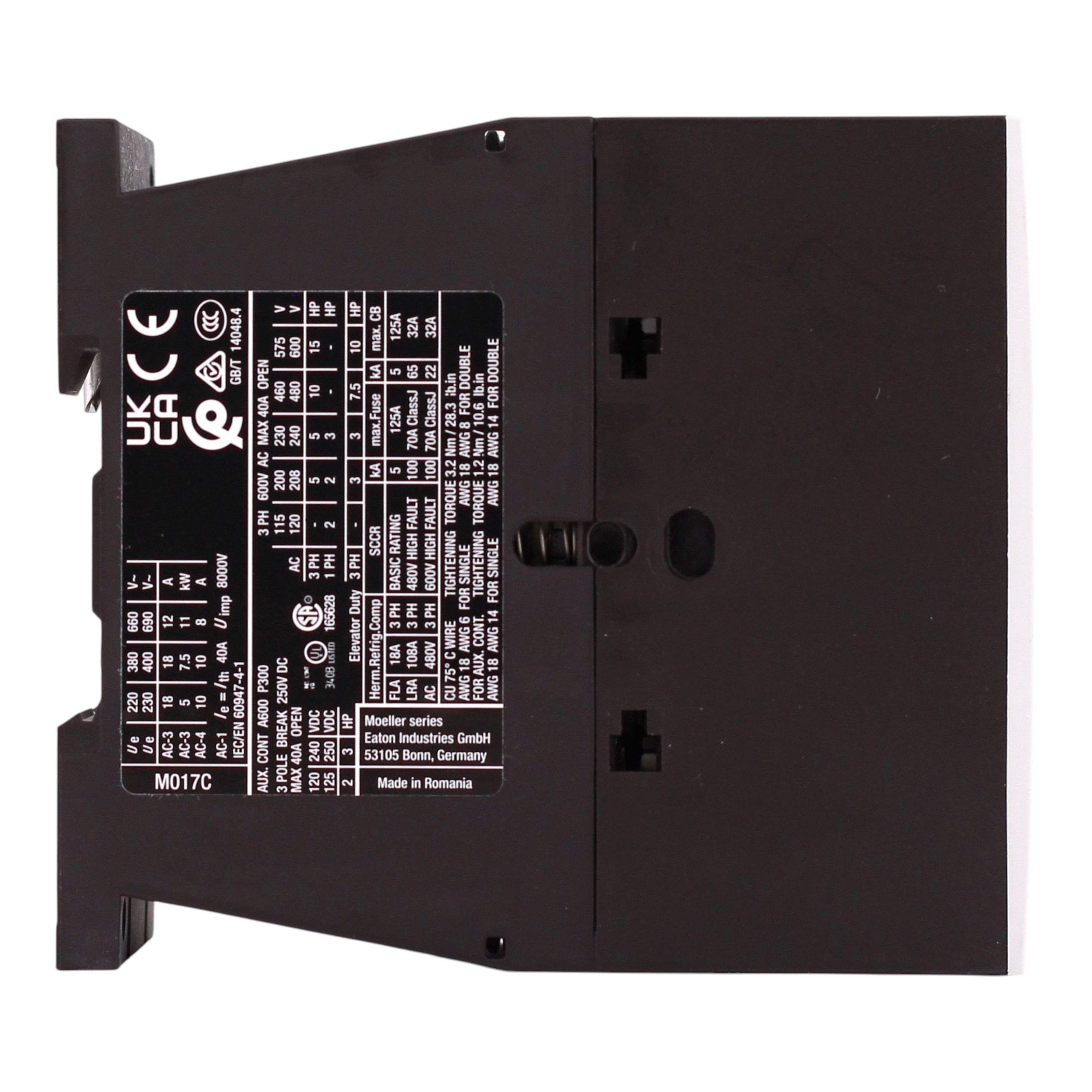

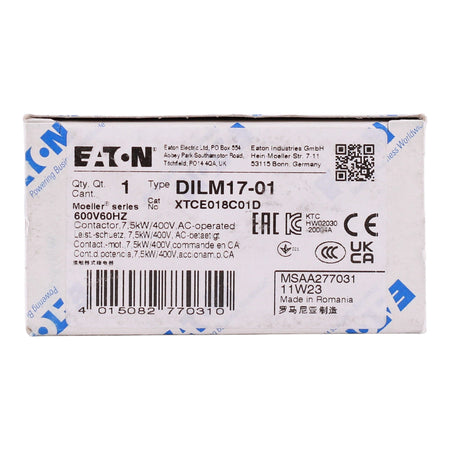

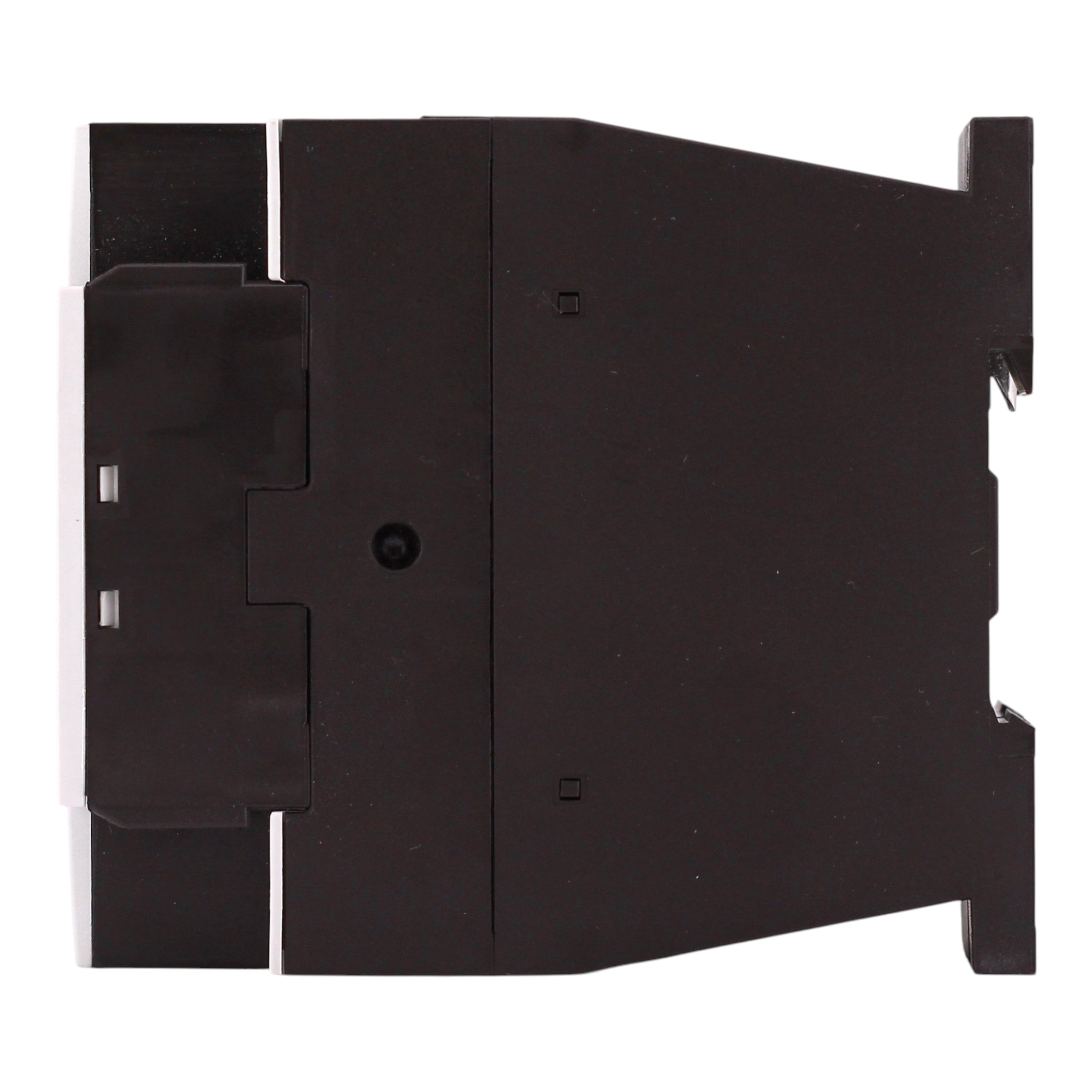

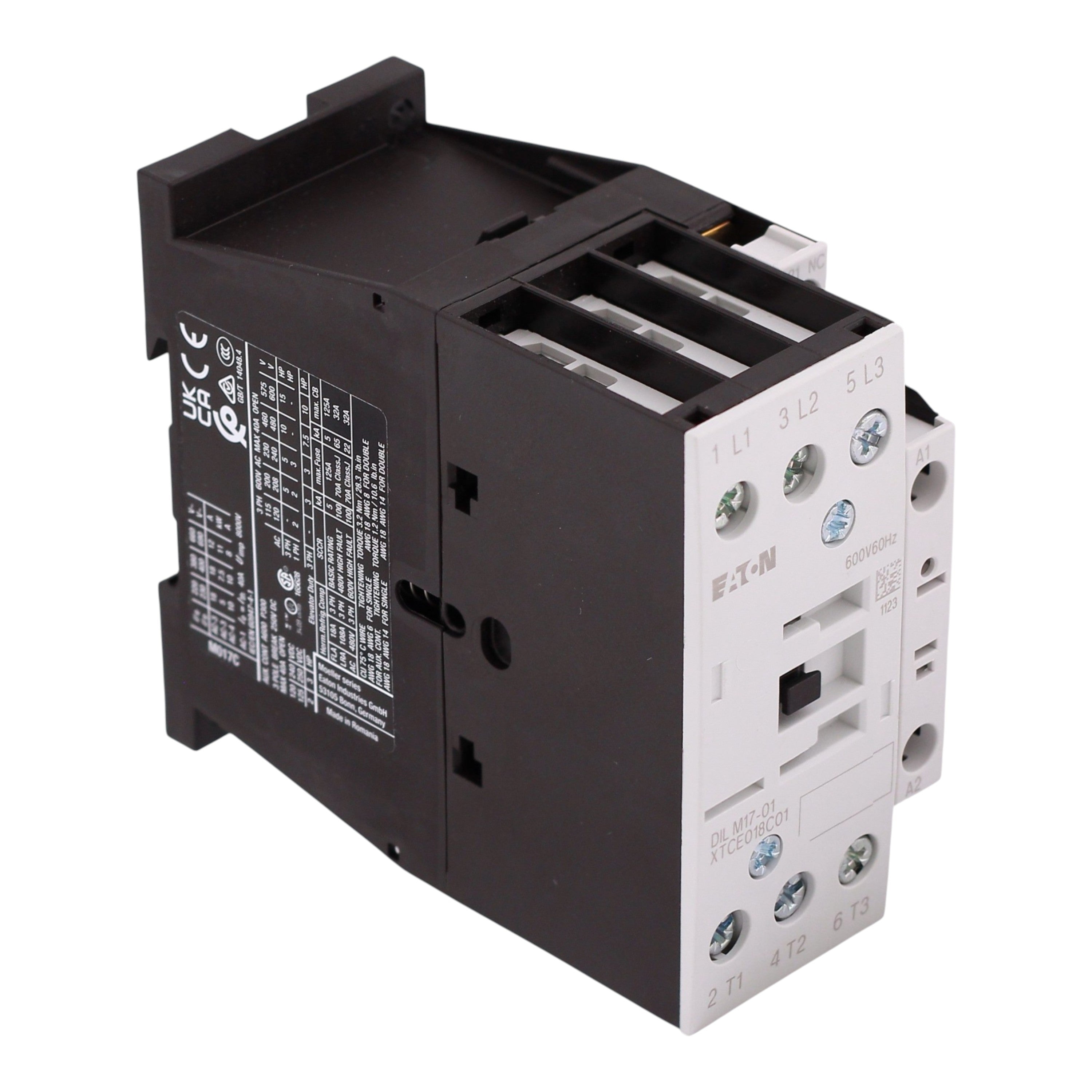

Eaton XTCE018C01D: 18 Amp, 3-Pole, XT IEC Full Voltage Non-Reversing Contactor, 690V AC Load, 550/600V AC Coil, 1NC Auxiliary, Screw Terminals, UL Listed, CSA Certified, IEC 60947.
-
Manufacturer: Eaton
-
Brand: Eaton
-
Product Range: XT IEC Series (Frame C, 45mm — for DIN rail and panel mount applications)
-
EAN: 4015082770310
-
Model Number: XTCE018C01D
-
Product Type: Full Voltage Non-Reversing IEC Contactor
-
Amperage Rating: 18 Amps AC-3; 40 Amps AC-1
-
Poles: 3-Pole
-
Maximum Load Voltage: 690 Volts AC
-
Coil Voltage: 550 Volts AC 50Hz / 600 Volts AC 60Hz
-
Frequency: 50/60 Hz
-
Auxiliary Contacts: 1NC (base mounted)
-
Frame Size: C (45 mm)
-
Operation: Non-Reversing
-
Terminals: Screw terminals (#28–10 AWG)
-
Mounting Mode: DIN rail or panel mount
-
IP Rating: IP20
-
Horsepower Rating: 2 HP @ 115V (1PH); 2 HP @ 200V (1PH); 3 HP @ 230V (1PH); 5 HP @ 200V (3PH); 5 HP @ 230V (3PH); 10 HP @ 460V (3PH); 15 HP @ 575V (3PH)
-
Operating Temperature: -13°F to 122°F (-25°C to 50°C)
-
Dimensions: Height: 3.898 in; Width: 1.85 in; Depth: 3.425 in
-
Weight: 0.90 lbs
-
Certifications: UL Listed, CSA Certified, IEC 60947, EN 60947, CE Marked, RoHS Compliant
This Eaton XT IEC XTCE018C01D full voltage non-reversing contactor delivers reliable 18 Amp, 3-Pole switching for 690V AC motor and control loads with a 550/600V AC coil, 1NC base-mounted auxiliary contact, and screw terminals in a compact 45mm Frame C package. Designed for DIN rail or panel mounting, it supports industrial motor control applications worldwide in compliance with UL, CSA, and IEC standards.
