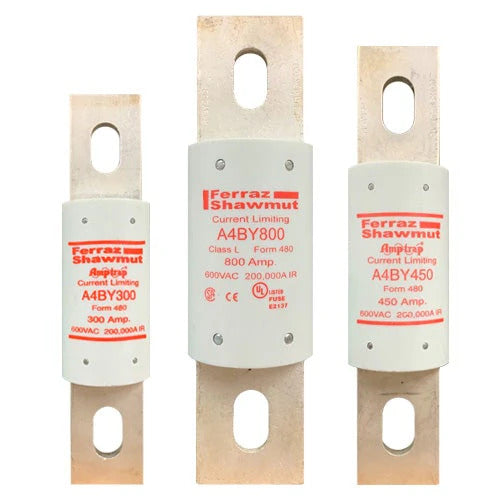

Ferraz Shawmut A4BY1200 1200A 600V Class L Time Delay Current Limiting Fuse
Ferraz Shawmut A4BY1200 1200A 600V Class L Time Delay Current Limiting Fuse

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Ferraz Shawmut

Ferraz Shawmut A4BY1200 1200A 600V Class L Time Delay Current Limiting Fuse

Only 3 left
SKU: BY1200 UPC: 782001939168
(0)
$500.00
-20% $625.00 $500.00
Only 3 left
Low inventory - Hurry up!
Condition

A4BY1200 application note: Mersen/Ferraz Shawmut A4BY1200 is an Amp-Trap fuse in the UL Class L family for high-capacity service and feeder protection. Its delayed response allows normal system inrush while the current-limiting design reduces fault energy under specified conditions.

A4BY1200 specifications

  • Catalog number: A4BY1200
  • Series: A4BY Amp-Trap
  • Fuse class: UL Class L with time delay
  • Current: 1200A
  • Voltage: 600VAC / 300VDC
  • Terminal form: Class L blade/bolted connection

Coordination matters

A4BY fuses are 100%-rated and have a minimum four-second delay at 500% of rating. That behavior is useful for inrush and ground-fault coordination, but it must be checked against the project's time-current and arc-flash studies.

Fuse and holder verification

Confirm the exact A4BY1200 marking, Class L mounting dimensions, voltage, interrupting requirement, holder hardware, and equipment listing. Do not install or remove a fuse on energized equipment. Selection and service should be handled by qualified electrical personnel.
