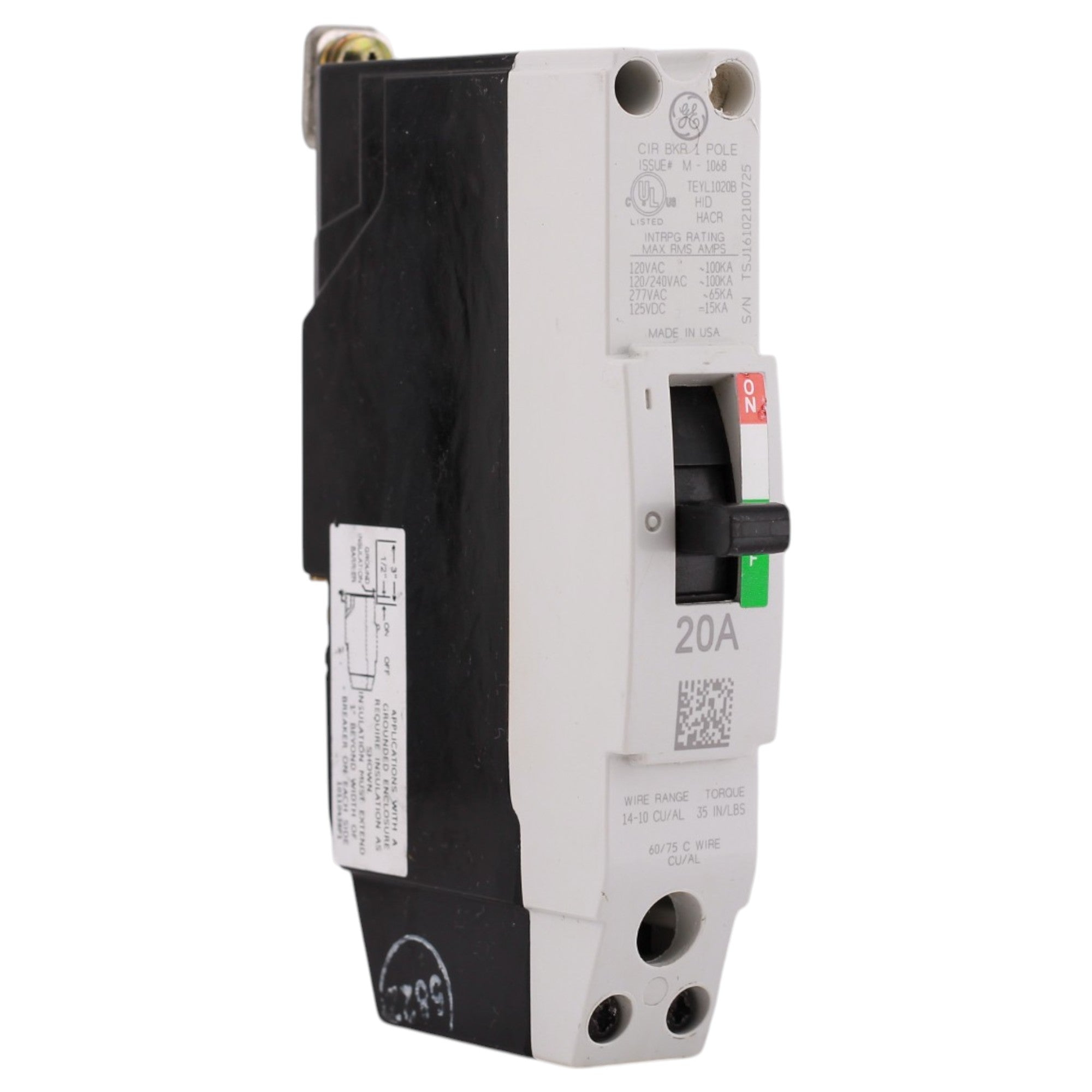

GE TEY, TEYL1020B, 20A, 1P, 480/277V, 65kAIC, Bolt-On, Lighting Panel Circuit Breaker
GE TEY, TEYL1020B, 20A, 1P, 480/277V, 65kAIC, Bolt-On, Lighting Panel Circuit Breaker - Image 2
GE TEY, TEYL1020B, 20A, 1P, 480/277V, 65kAIC, Bolt-On, Lighting Panel Circuit Breaker - Image 3
GE TEY, TEYL1020B, 20A, 1P, 480/277V, 65kAIC, Bolt-On, Lighting Panel Circuit Breaker - Image 4
GE TEY, TEYL1020B, 20A, 1P, 480/277V, 65kAIC, Bolt-On, Lighting Panel Circuit Breaker - Image 5
GE TEY, TEYL1020B, 20A, 1P, 480/277V, 65kAIC, Bolt-On, Lighting Panel Circuit Breaker - Image 6
GE TEY, TEYL1020B, 20A, 1P, 480/277V, 65kAIC, Bolt-On, Lighting Panel Circuit Breaker - Image 7
GE TEY, TEYL1020B, 20A, 1P, 480/277V, 65kAIC, Bolt-On, Lighting Panel Circuit Breaker - Image 8
GE TEY, TEYL1020B, 20A, 1P, 480/277V, 65kAIC, Bolt-On, Lighting Panel Circuit Breaker

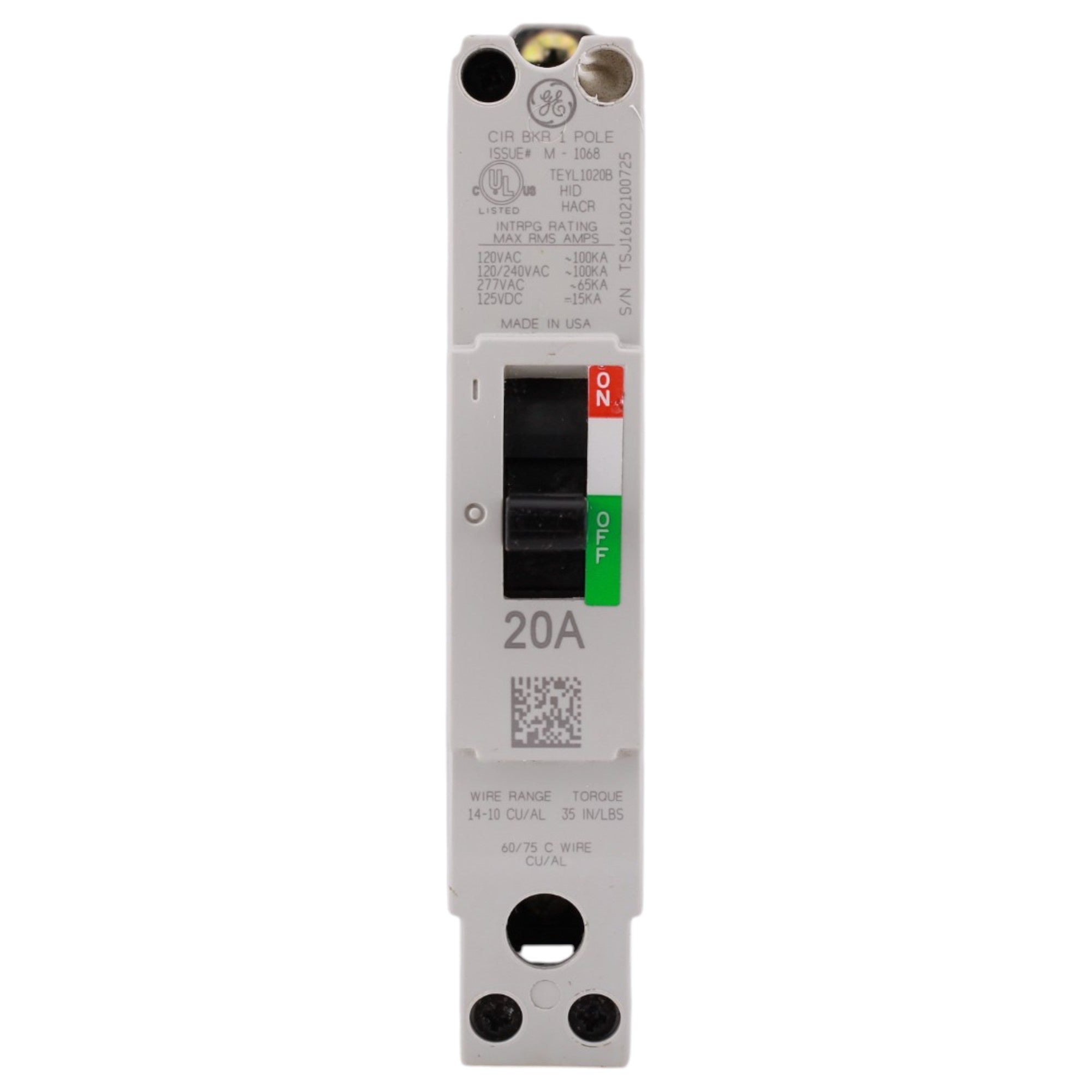

GE TEY, TEYL1020B, 20A, 1P, 480/277V, 65kAIC, Bolt-On, Lighting Panel Circuit Breaker - Image 2

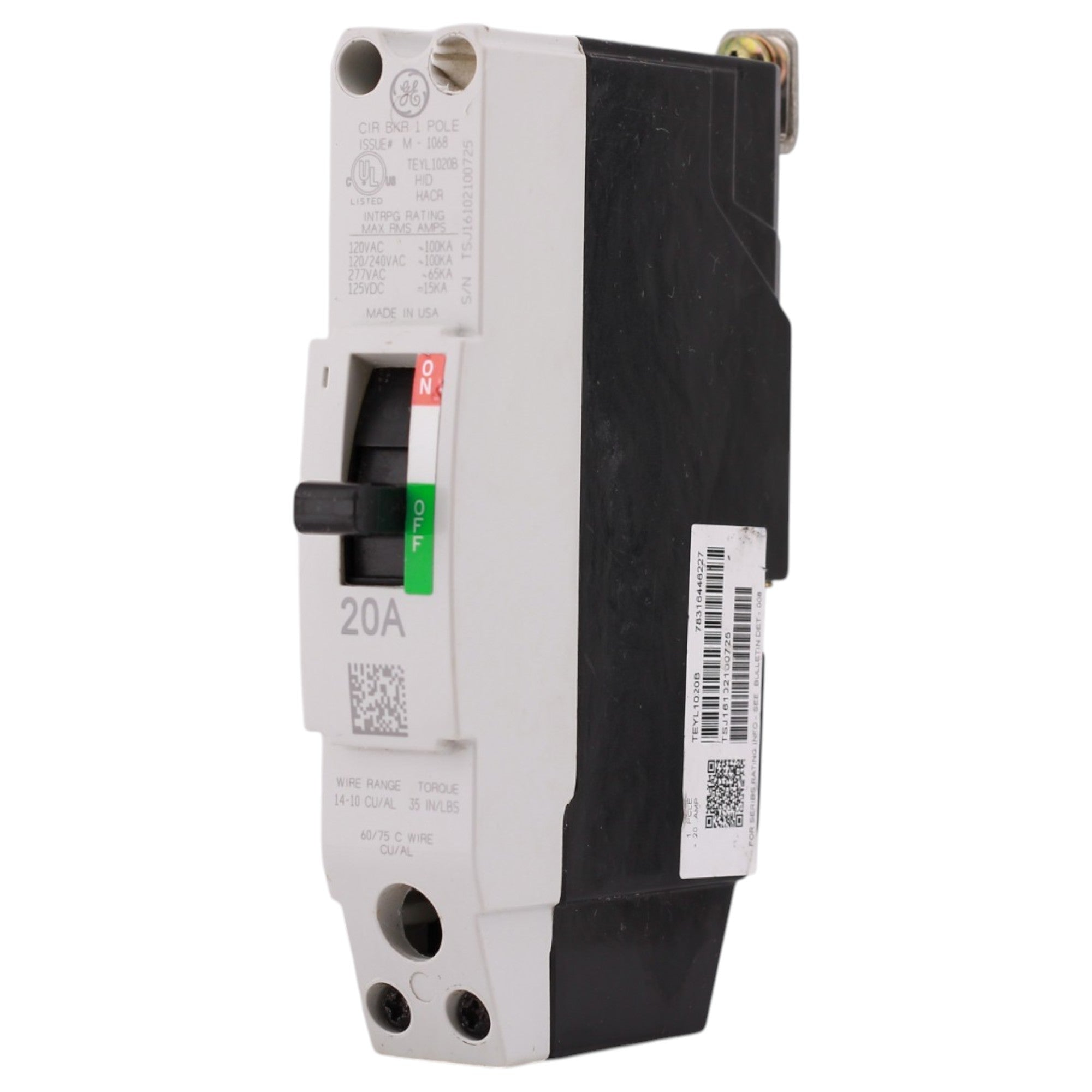

GE TEY, TEYL1020B, 20A, 1P, 480/277V, 65kAIC, Bolt-On, Lighting Panel Circuit Breaker - Image 3

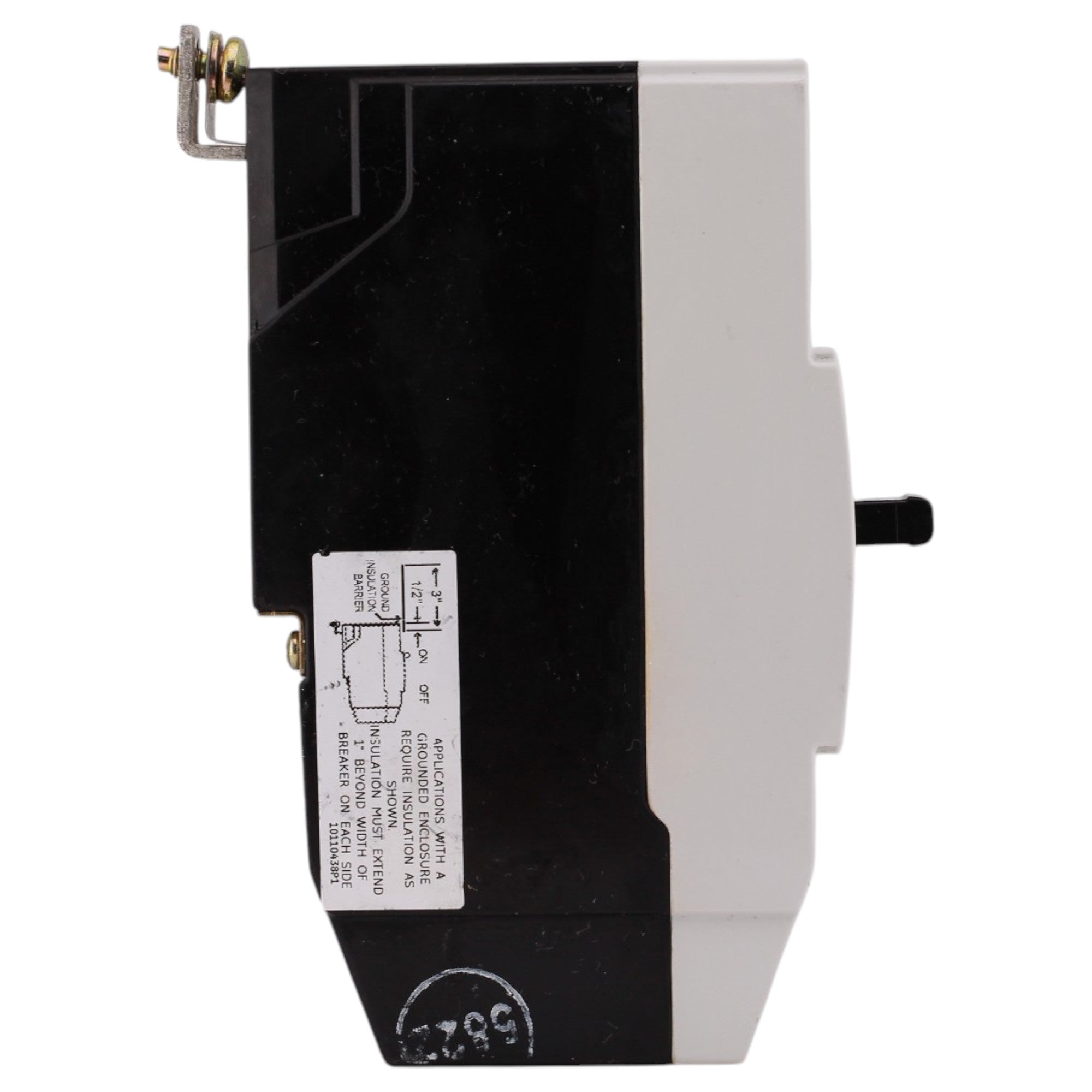

GE TEY, TEYL1020B, 20A, 1P, 480/277V, 65kAIC, Bolt-On, Lighting Panel Circuit Breaker - Image 4

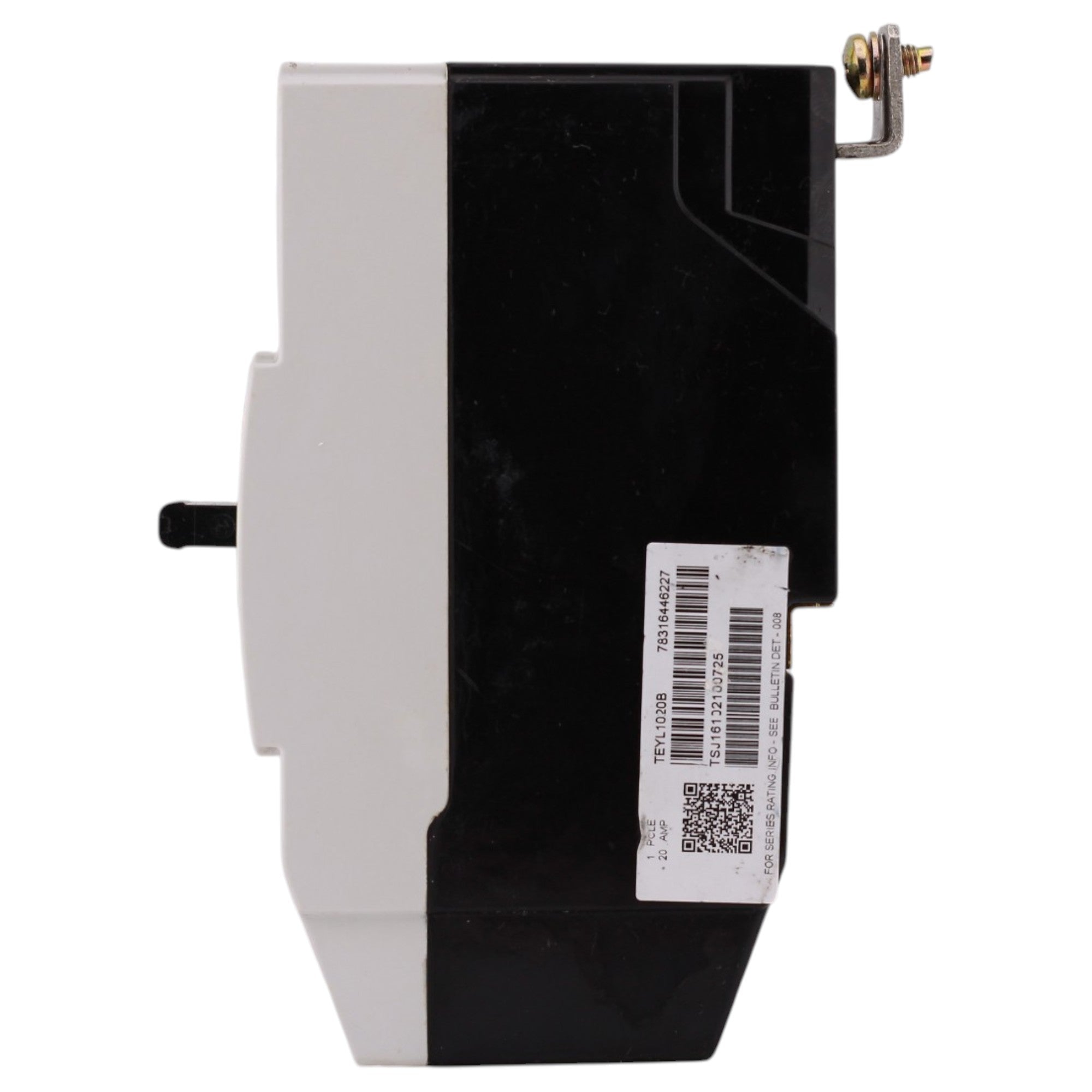

GE TEY, TEYL1020B, 20A, 1P, 480/277V, 65kAIC, Bolt-On, Lighting Panel Circuit Breaker - Image 5

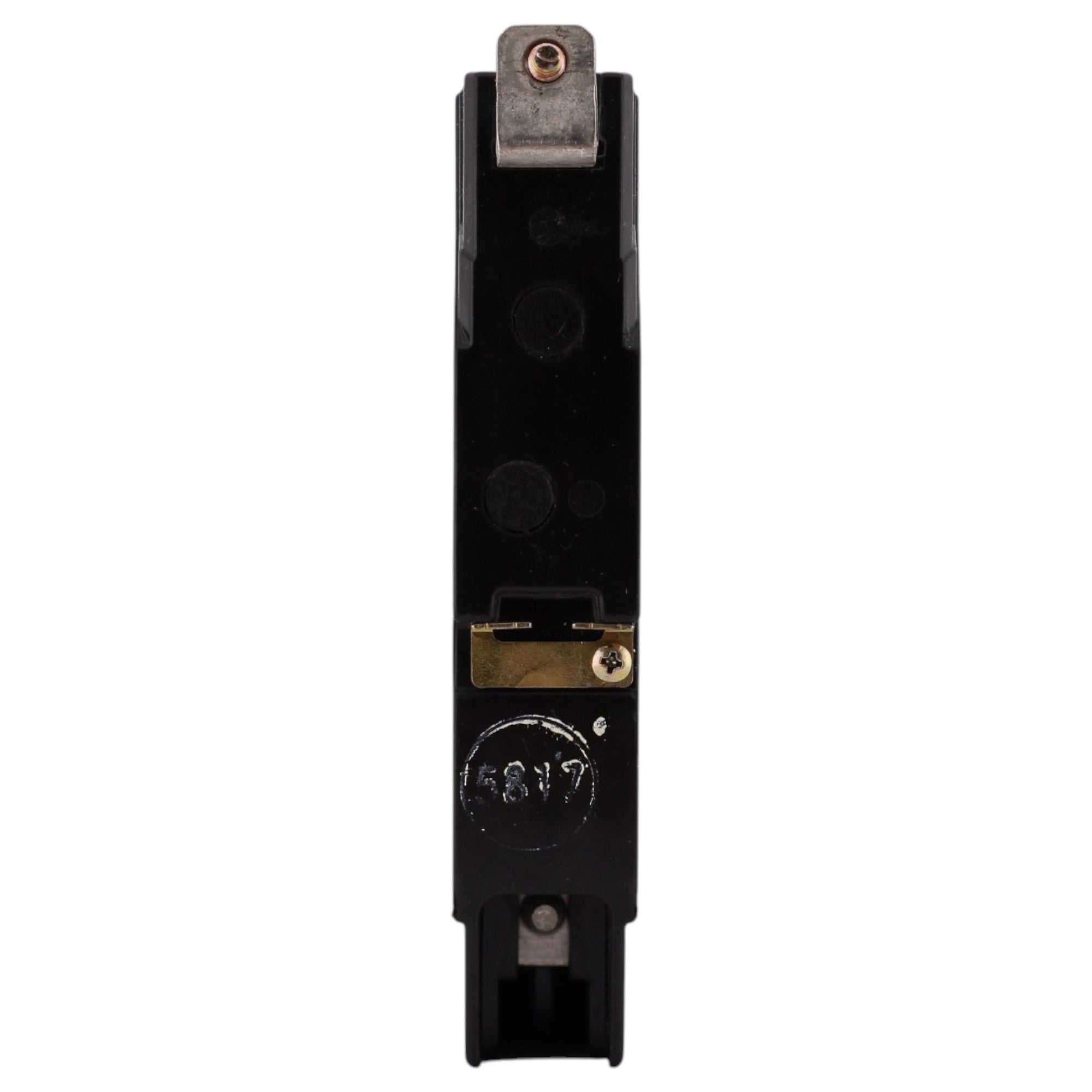

GE TEY, TEYL1020B, 20A, 1P, 480/277V, 65kAIC, Bolt-On, Lighting Panel Circuit Breaker - Image 6

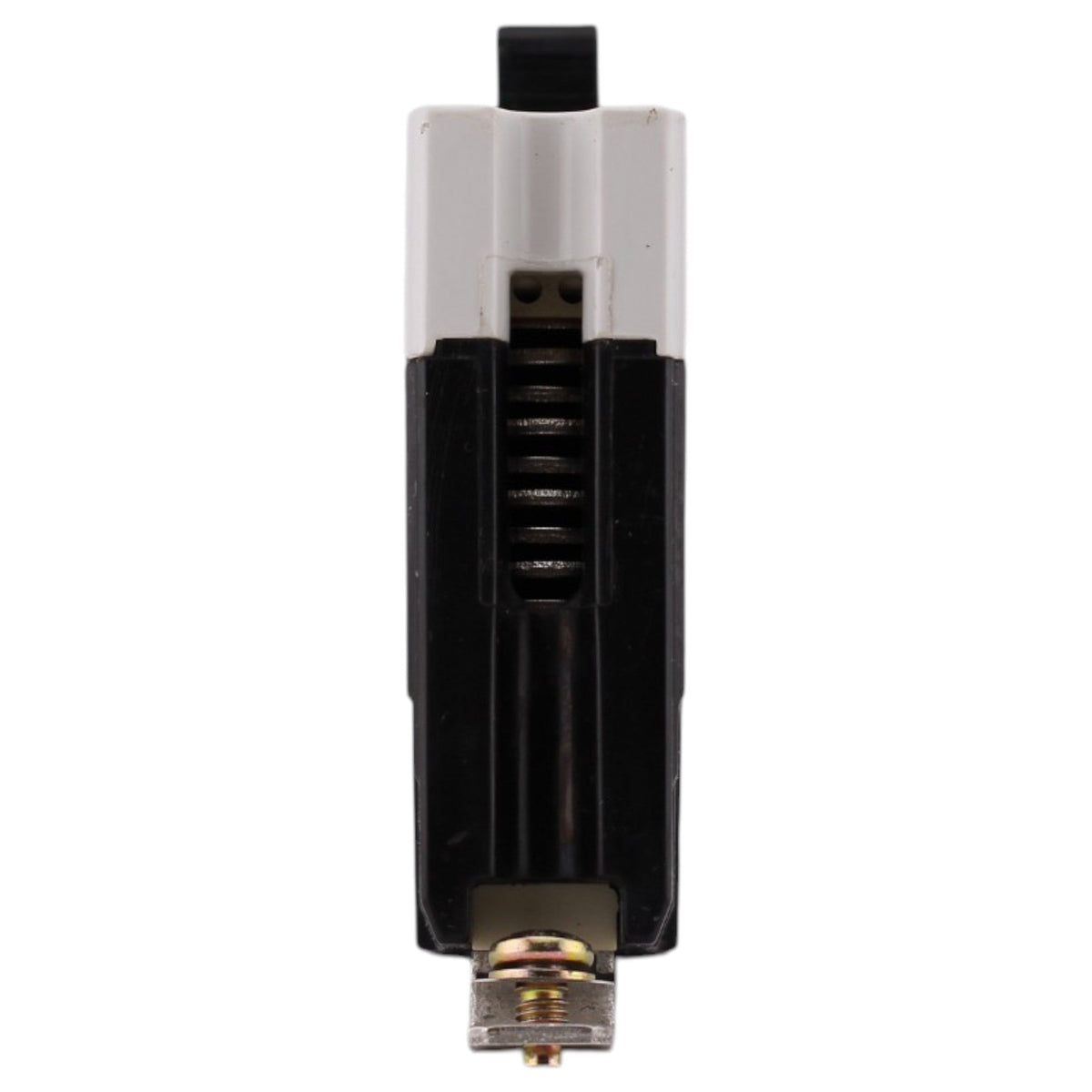

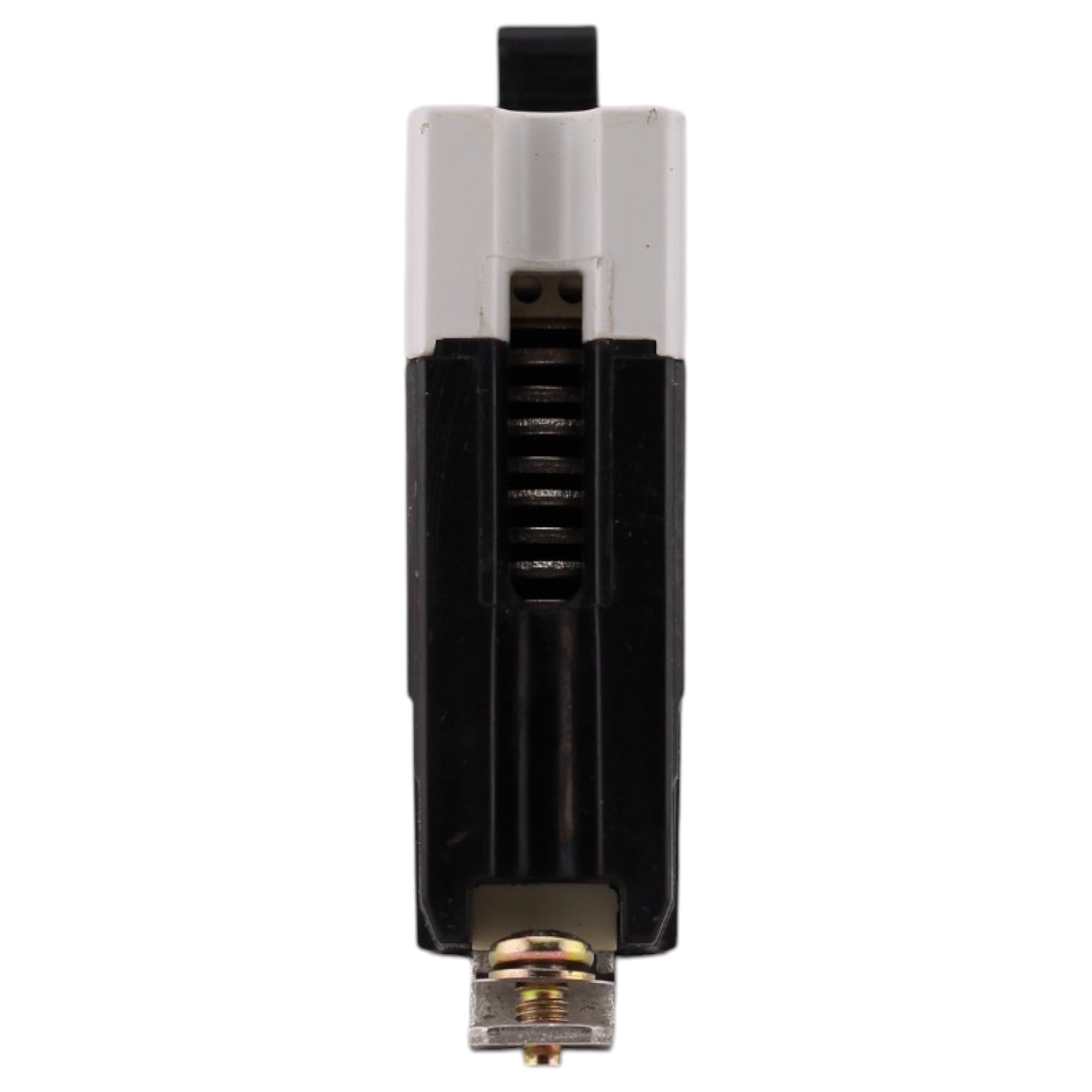

GE TEY, TEYL1020B, 20A, 1P, 480/277V, 65kAIC, Bolt-On, Lighting Panel Circuit Breaker - Image 7

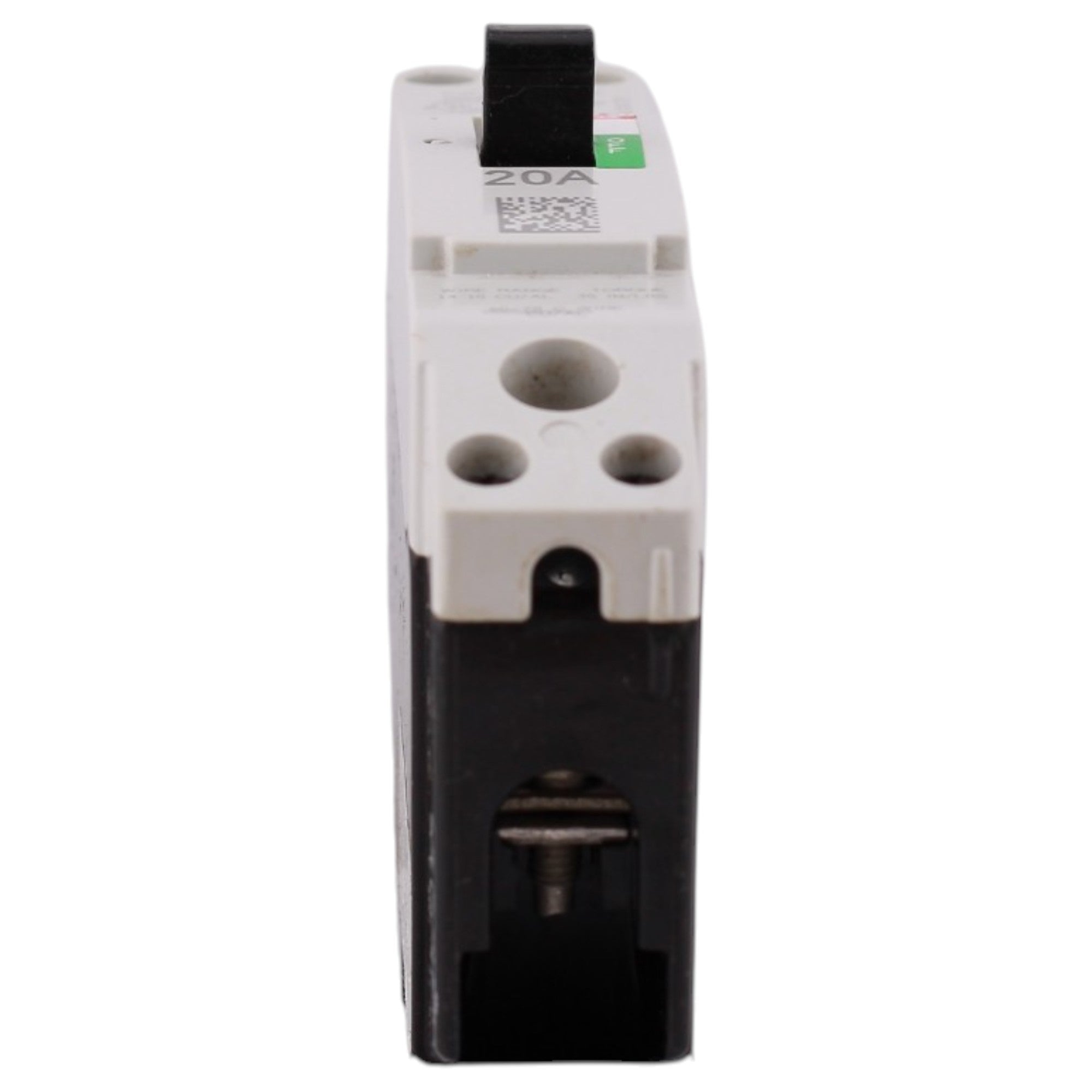

GE TEY, TEYL1020B, 20A, 1P, 480/277V, 65kAIC, Bolt-On, Lighting Panel Circuit Breaker - Image 8

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

GE

GE TEY, TEYL1020B, 20A, 1P, 480/277V, 65kAIC, Bolt-On, Lighting Panel Circuit Breaker

Out of stock
SKU: TEYL1020B UPC: 783164462272
(0)
$26.00
-46% $48.00 $26.00
Out of stock
Condition

GE TEYL1020B: 20 Amp, 1-Pole, TEY Compact Lighting Panel Circuit Breaker, 480/277V, 65kA, bolt-on, lug-lug, UL listed, CSA certified.

  • Manufacturer: ABB (formerly GE Industrial Solutions)
  • Brand: GE Q-Line
  • Product Range: TEY – TEYL Series (for GE AS Series lighting panelboards; lug-lug via bolt-on mounting base accessory)
  • UPC: 783164462272
  • Model Number: TEYL1020B
  • Breaker Type: Compact Thermal Magnetic Lighting Panel Circuit Breaker (Molded Case)
  • Amperage: 20 Amps
  • Poles: 1-Pole
  • Voltage: 480/277V AC (rated); also rated 120/240V AC, 125V DC
  • Interrupt Rating: 65 kAIC @ 277/480V AC; 100 kAIC @ 120/240V AC; 15 kAIC @ 125V DC
  • Mounting Mode: Bolt-on (1 in per pole); lug-lug when used with bolt-on mounting base accessory
  • Trip Type: Non-Interchangeable (LI — Long-Time and Instantaneous)
  • Wire Size: #14–10 AWG Cu/Al
  • Suitable for Reverse Feed: Yes
  • Dimensions: Height: 5.2 in; Width: 1.0 in; Depth: 3.0 in
  • Weight: 1.0 lbs
  • Certifications: UL Listed (UL File #E11592), CSA Certified

This ABB (formerly GE Industrial Solutions) TEYL1020B bolt-on compact lighting panel circuit breaker delivers dependable 20 Amp, 1-Pole thermal magnetic protection for 480/277V grounded WYE circuits in GE AS Series lighting panelboards. With 65 kAIC interrupt rating at 480/277V, 100 kAIC at 120/240V, and lug-lug capability via mounting base accessory, it supports commercial and industrial lighting distribution applications.
