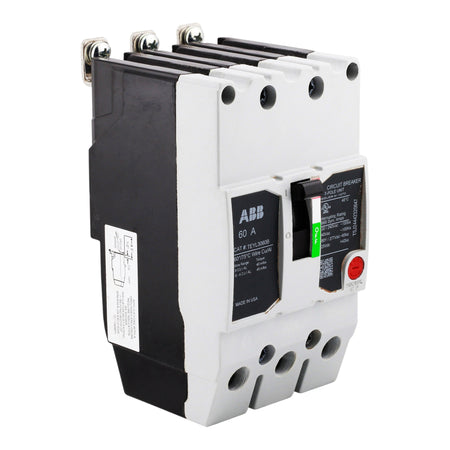

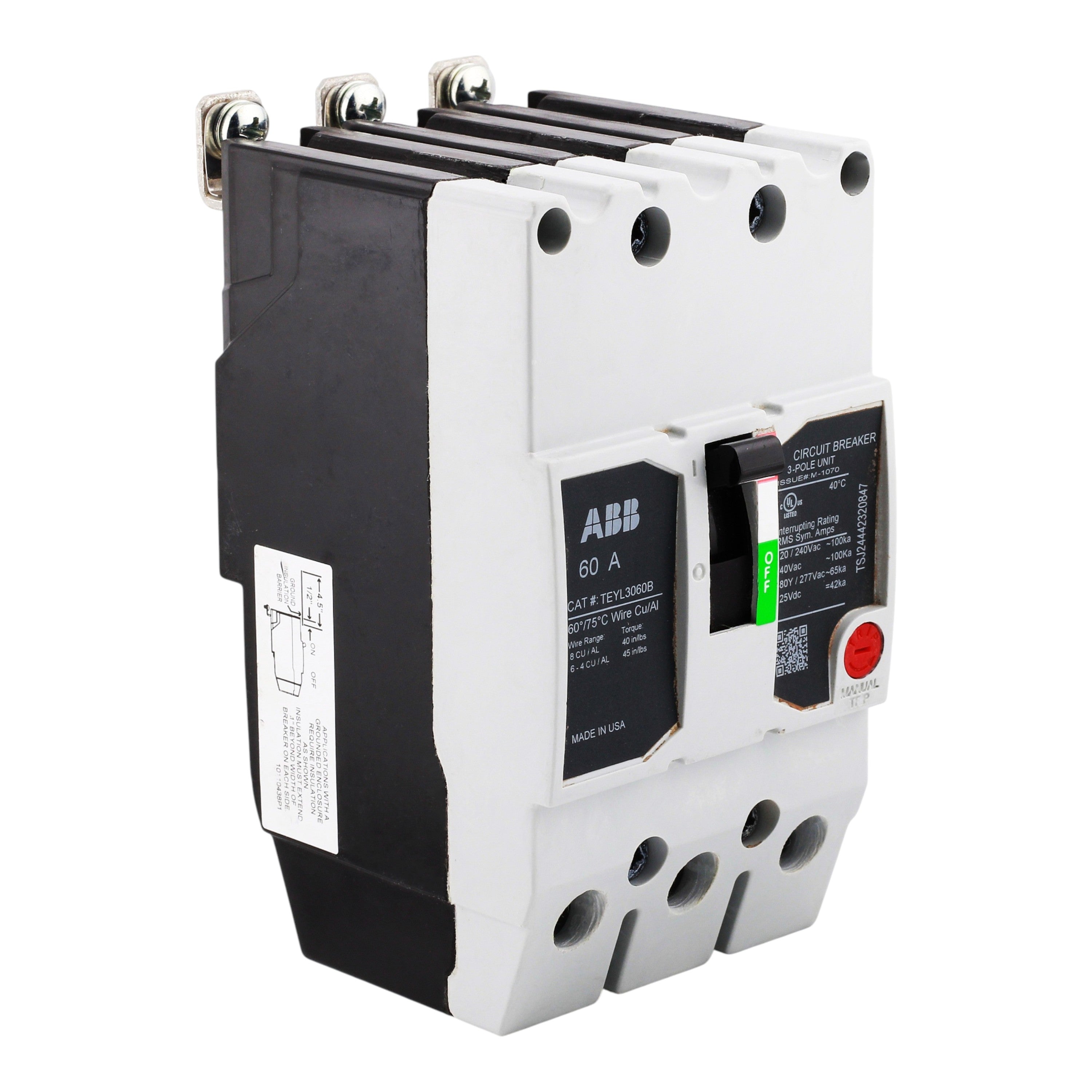

GE TEYL3060B: 60 Amp 3-Pole Bolt-On Molded Case Circuit Breaker, 480Y/277 Vac, 65kAIC at 480Y/277V, 100kAIC at 240V, LI Long-Time & Instantaneous Trip, UL Listed
-
Manufacturer: ABB
-
Brand: GE
-
Product Range: TEY / Q-Line Bolt-On (for use in lighting panels, switchboards, and grounded 480Y/277 Vac systems)
-
UPC: 783164462593
-
Model Number: TEYL3060B
-
Breaker Type: Molded Case Circuit Breaker
-
Amperage: 60 Amps
-
Poles: 3-Pole
-
Voltage: 480Y/277 Vac, 240 Vac, 120/240 Vac
-
Interrupt Rating: 65 kAIC at 480Y/277 Vac; 100 kAIC at 240 Vac; 100 kAIC at 120/240 Vac
-
Trip Function: LI (Long-Time and Instantaneous)
-
Long Time: Fixed
-
Instantaneous: Fixed
-
Mounting Mode: Bolt-On
-
Connections Terminals: Lug-Lug (line/lug - load/lug)
-
Wire Size: #10 - #4 AWG Cu/Al
-
Tightening Torque: 50 lb-in (for #10-#8 AWG), 55 lb-in (for #6-#4 AWG)
-
Dimensions: Height: 5.25 in; Width: 3.00 in; Depth: 3.38 in
-
Weight: 2.25 lbs
-
Certifications: UL Listed (File E11592), Suitable for Reverse Feed
-
Continuous Current Rated: Standard
This GE TEYL3060B bolt-on molded case circuit breaker delivers reliable 60A, 3-pole protection with LI trip function for 480Y/277 Vac and 240 Vac lighting panels and power distribution systems. Featuring high interrupting ratings up to 100 kAIC at 240V and 65 kAIC at 480Y/277V, fixed thermal-magnetic trip, and compact 1-inch per pole design, it ensures superior overcurrent and short-circuit protection in commercial and industrial applications.
