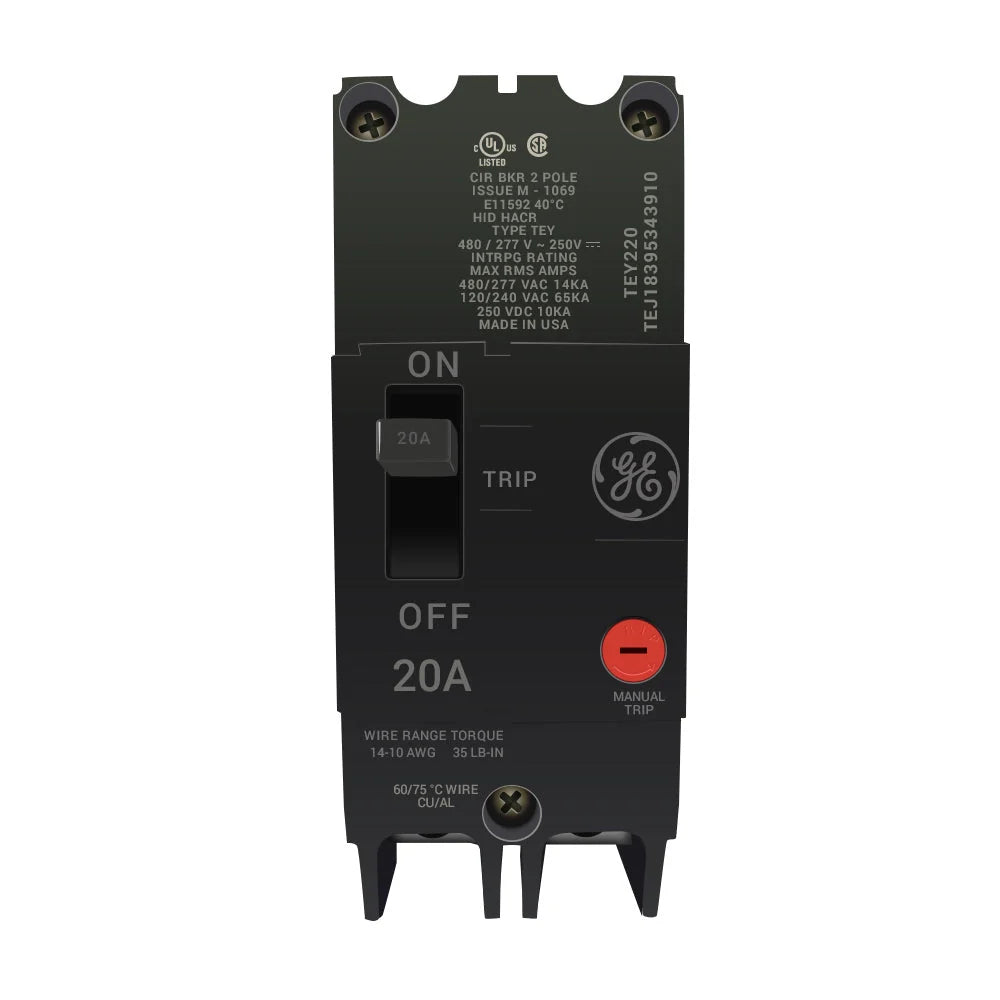

GE TEY220 - 20A 2 Pole Miniature Circuit Breaker
GE TEY220 - 20A 2 Pole Miniature Circuit Breaker

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

GE

GE TEY220 - 20A 2 Pole Miniature Circuit Breaker

Only 3 left
SKU: TEY220 UPC: 783164180954
(0)
$150.00
Only 3 left
Low inventory - Hurry up!

TEY220 panelboard fit: ABB/GE TEY220 is a compact two-pole bolt-on breaker developed for grounded 480Y/277-volt panelboard systems. It can carry lower-voltage ratings too, but the interrupting value changes with system voltage.

TEY220 specifications

  • Catalog number: TEY220
  • Rating: 20A, 2-pole
  • Mounting: TEY bolt-on
  • Trip: Fixed long-time and instantaneous, common trip
  • Interrupting rating: 65kA at 120, 120/240, or 240VAC; 14kA at 277VAC

Why one AIC number is incomplete

The marked voltage-specific interrupting ratings must be applied to the actual system. The breaker is not simply “65kA at 480V,” and its grounded 480Y/277 use must follow the manufacturer limitations.

Before installation

Confirm the full TEY220 marking, panelboard acceptance, system grounding and voltage, available fault current, conductor range, and bolt-on hardware. BreakerSmart's current variant has no SKU recorded, so use the product label—not the storefront SKU field—as the final identifier. Installation should be performed by qualified personnel.
