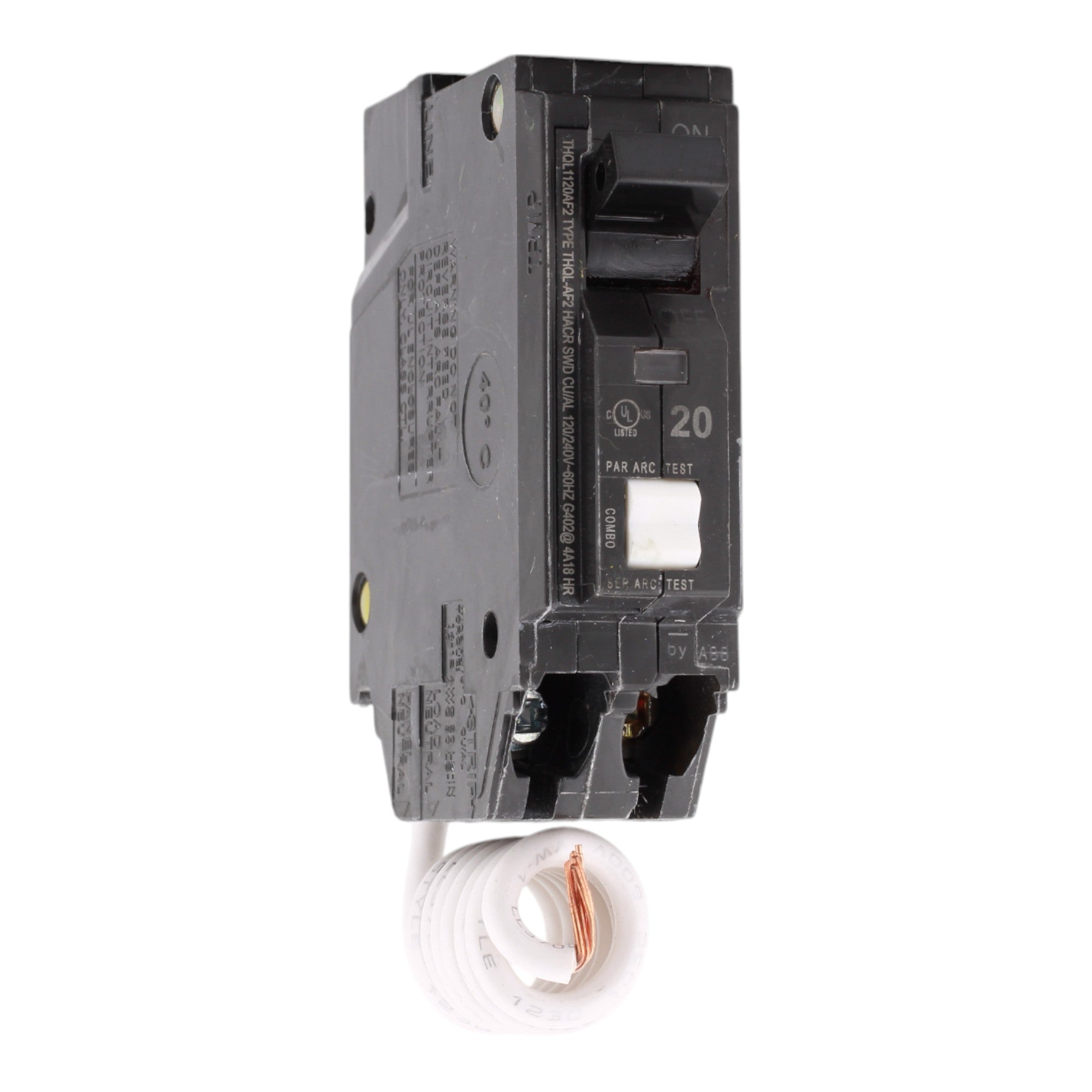

GE Q Line THQL1120AF2 20A 1P 120V AFCI Pigtail Neutral Circuit Breaker

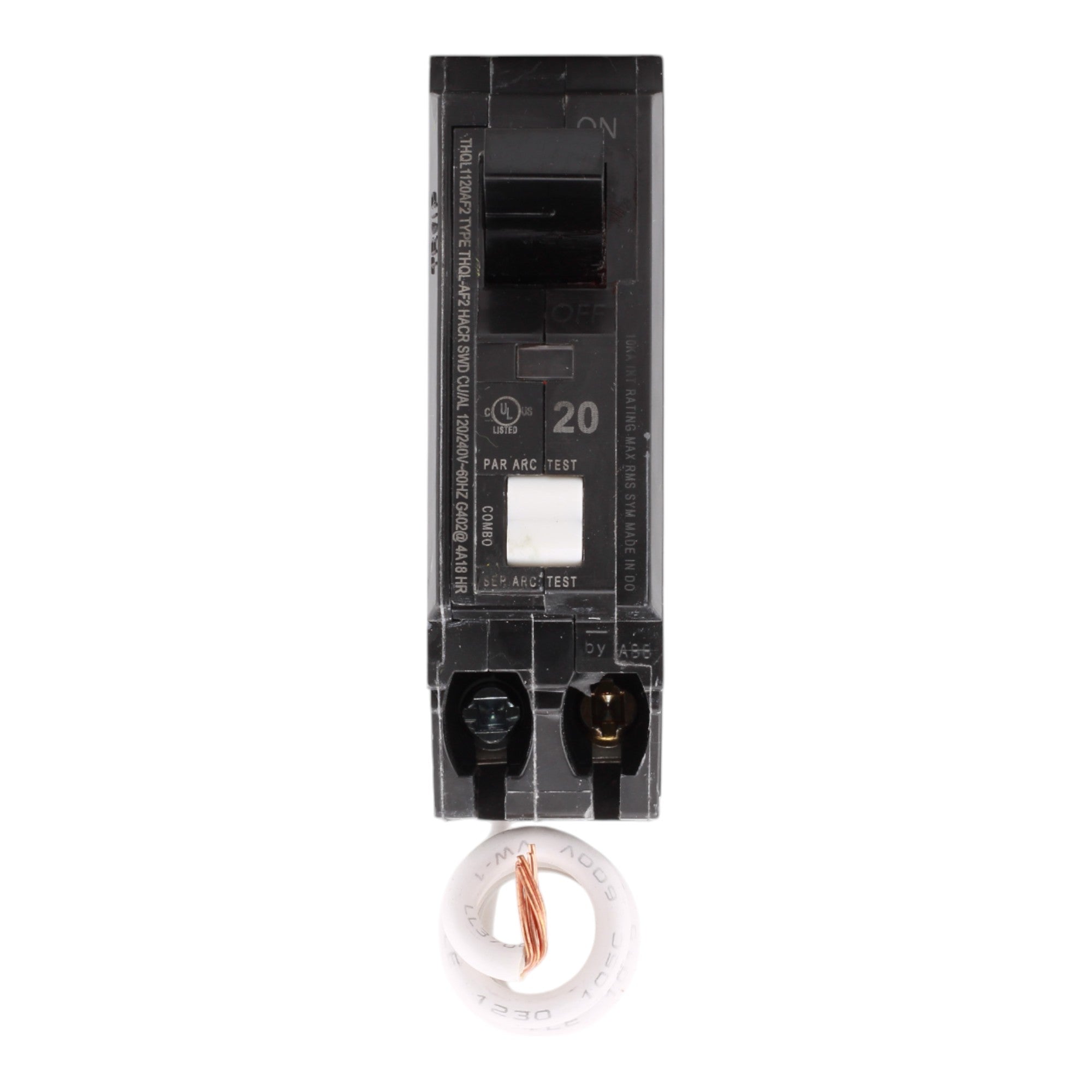

GE Q Line THQL1120AF2 20A 1P 120V AFCI Pigtail Neutral Circuit Breaker - Image 2

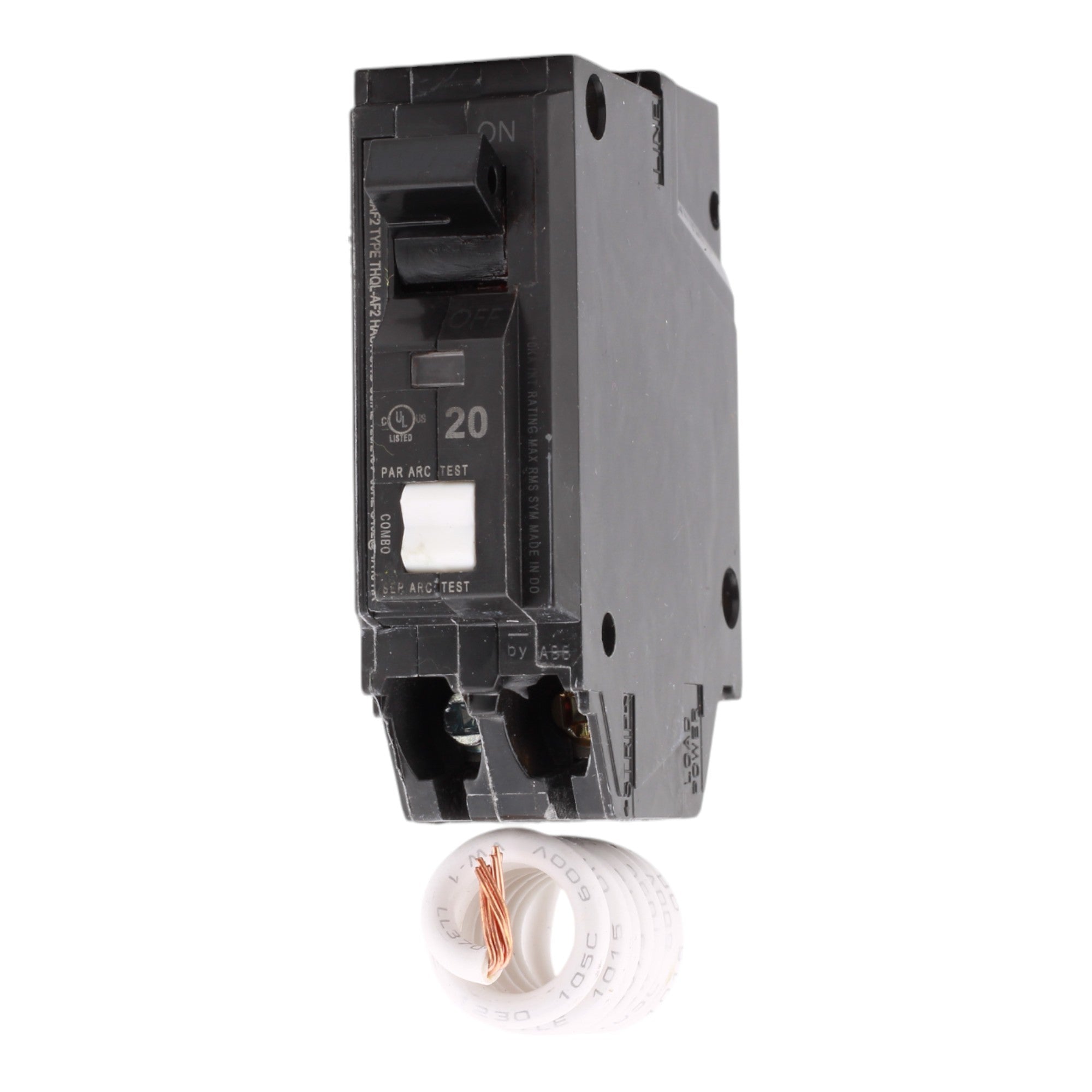

GE Q Line THQL1120AF2 20A 1P 120V AFCI Pigtail Neutral Circuit Breaker - Image 3

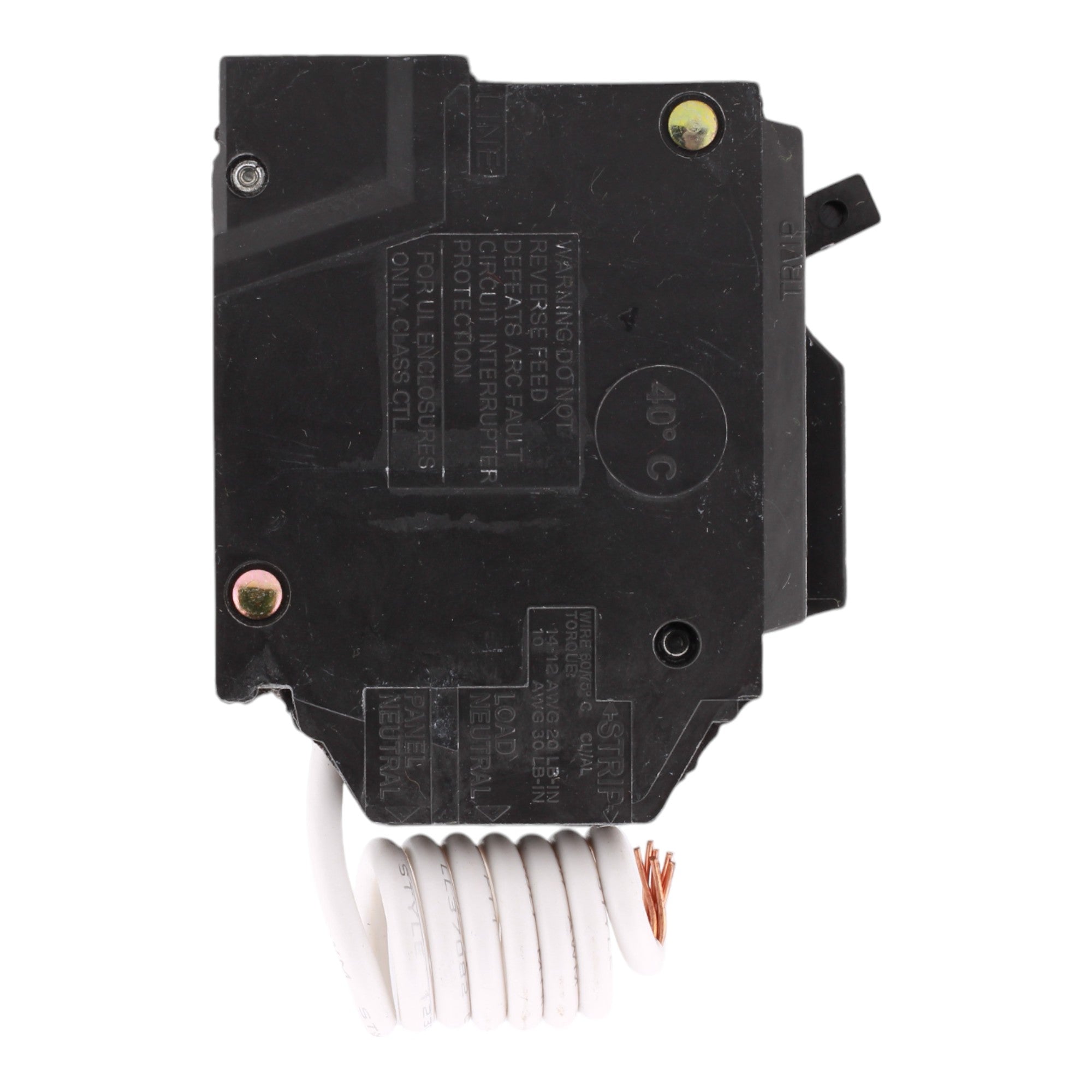

GE Q Line THQL1120AF2 20A 1P 120V AFCI Pigtail Neutral Circuit Breaker - Image 4

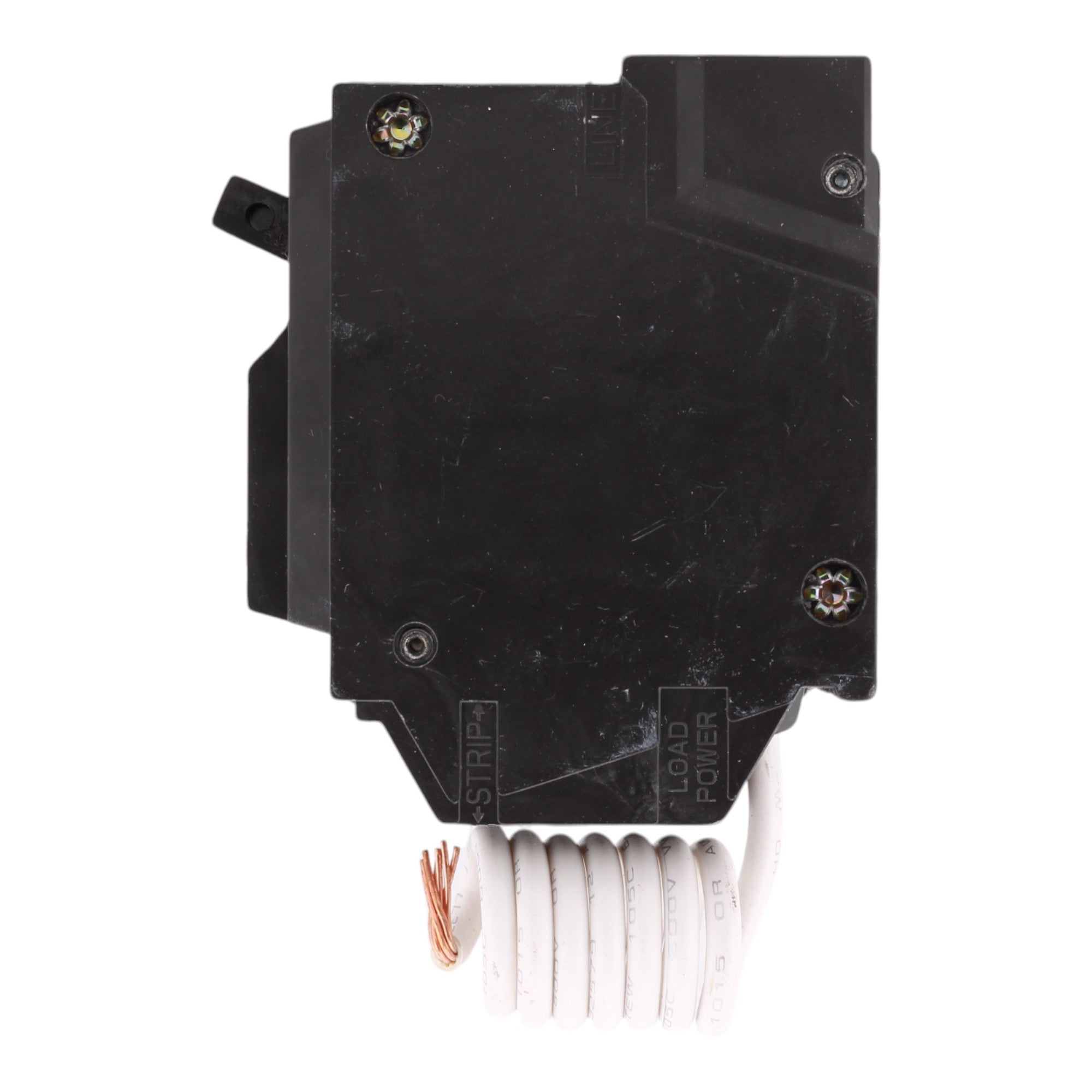

GE Q Line THQL1120AF2 20A 1P 120V AFCI Pigtail Neutral Circuit Breaker - Image 5

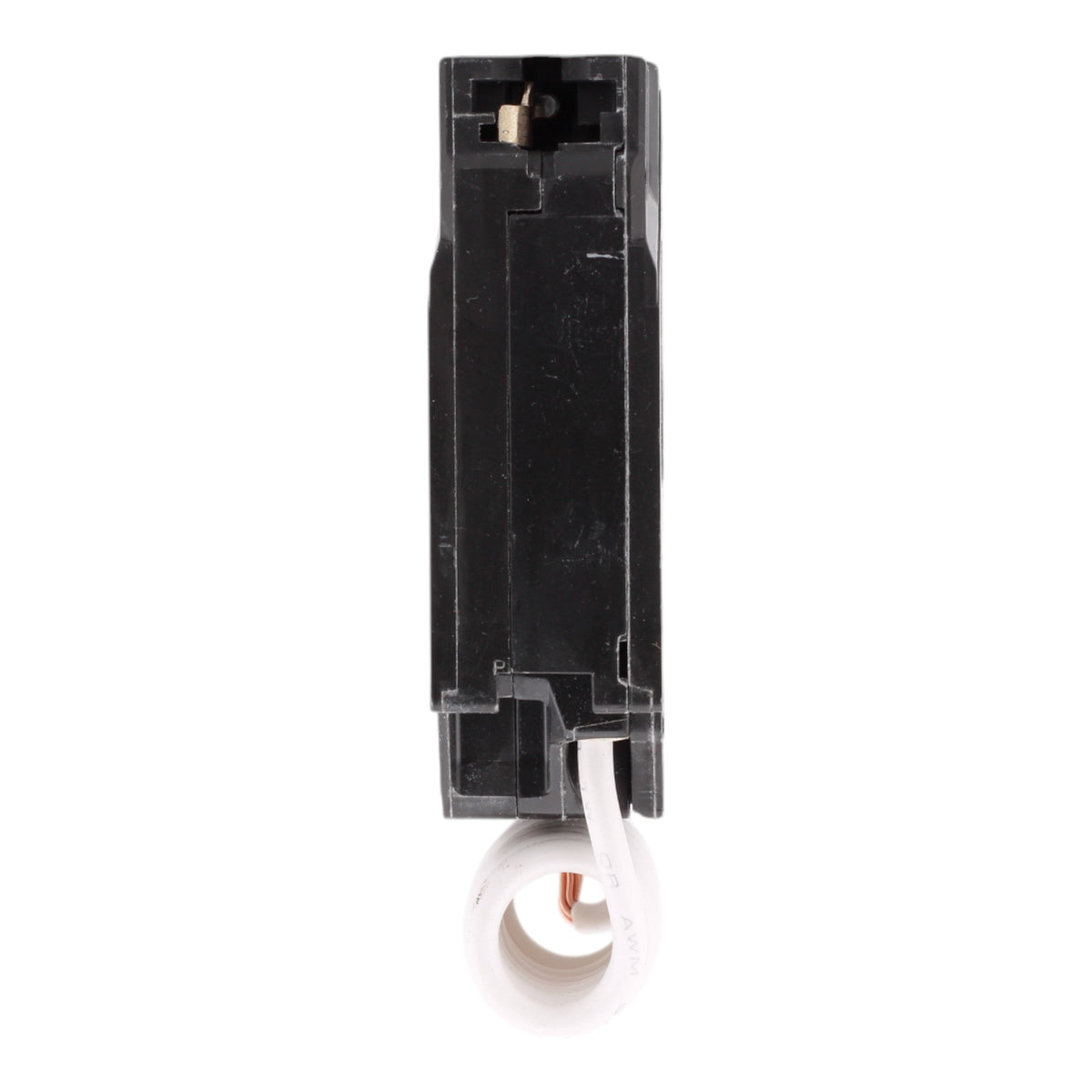

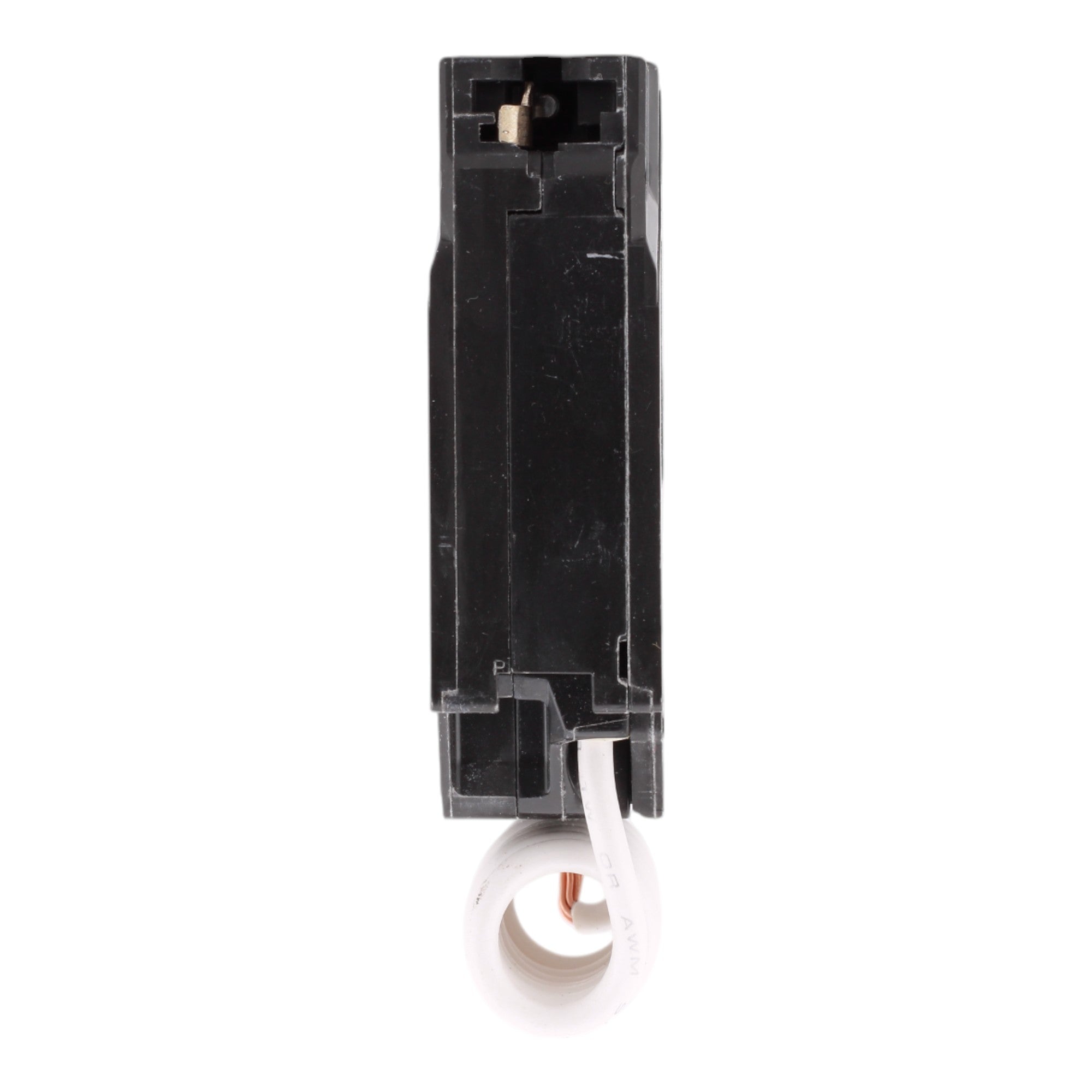

GE Q Line THQL1120AF2 20A 1P 120V AFCI Pigtail Neutral Circuit Breaker - Image 6

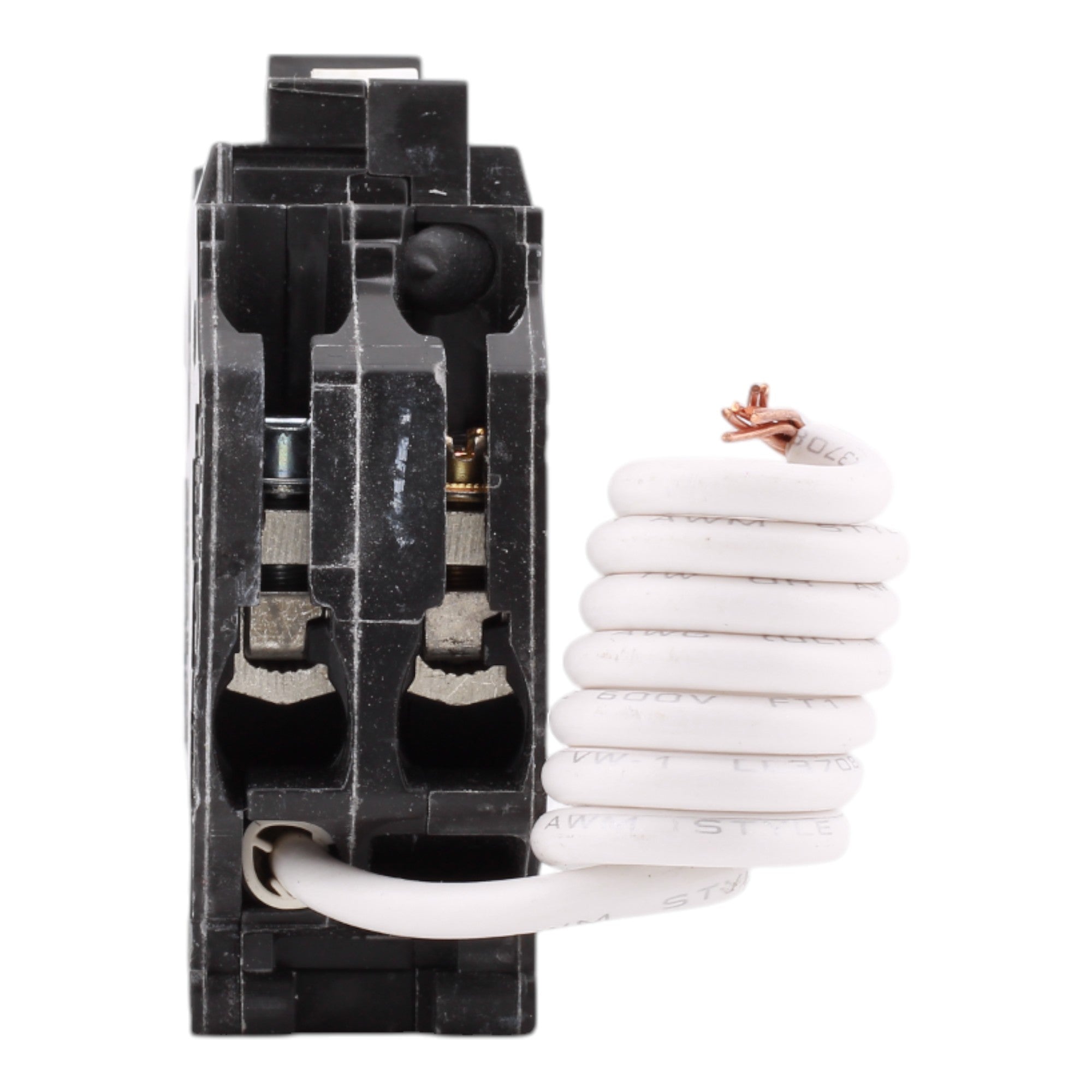

GE Q Line THQL1120AF2 20A 1P 120V AFCI Pigtail Neutral Circuit Breaker - Image 7

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

GE

GE Q Line THQL1120AF2 20A 1P 120V AFCI Pigtail Neutral Circuit Breaker

Out of stock
SKU: THQL1120AF2 UPC: 783164652895
(0)
$42.95
-32% $63.00 $42.95
Out of stock
Condition

THQL1120AF2 specifications

  • Manufacturer: GE
  • Brand: GE
  • Product Range: Q Line (for GE Q Line loadcenters and equipment)
  • UPC: 783164652819
  • Model Number: THQL1120AF2
  • Breaker Type: Arc-Fault Circuit Interrupter (AFCI)
  • Amperage: 20 Amps
  • Poles: 1-Pole
  • Voltage: 120 Volts AC
  • Interrupt Rating: 10 kAIC
  • Mounting Mode: Plug-on
  • Connections Terminals: Pigtail neutral
  • Wire Size: #14-8 AWG
  • Tightening Torque: 20 lb-in
  • Dimensions: Height: 3.0 in; Width: 1.0 in; Depth: 4.5 in
  • Weight: 0.48 lbs
  • Certifications: UL Listed, CSA Certified, ANSI Certified

This GE THQL1120AF2 pigtail neutral circuit breaker delivers reliable 20A, 1-pole AFCI protection for 120V circuits in GE Q Line loadcenters. Ideal for residential and commercial use, it detects arc faults to enhance electrical safety.

There is a $15 charge for delivery. Additional charges will be imposed by our couriers for delivery to remote areas, a surcharge may be levied to cover carriage to these areas.

Warranty Coverage

We stand behind every product we sell. Coverage depends on the condition of the item at time of purchase:

  • New: 12-month warranty
  • New Open Box: 10-month warranty
  • Reconditioned: 90-day warranty

Warranty coverage begins on the date of delivery and covers manufacturing and functional defects under normal use. It does not cover damage from misuse, improper installation, or unauthorized repair. To make a warranty claim, contact us at support@breakersmart.com with your order number and a description of the issue.
