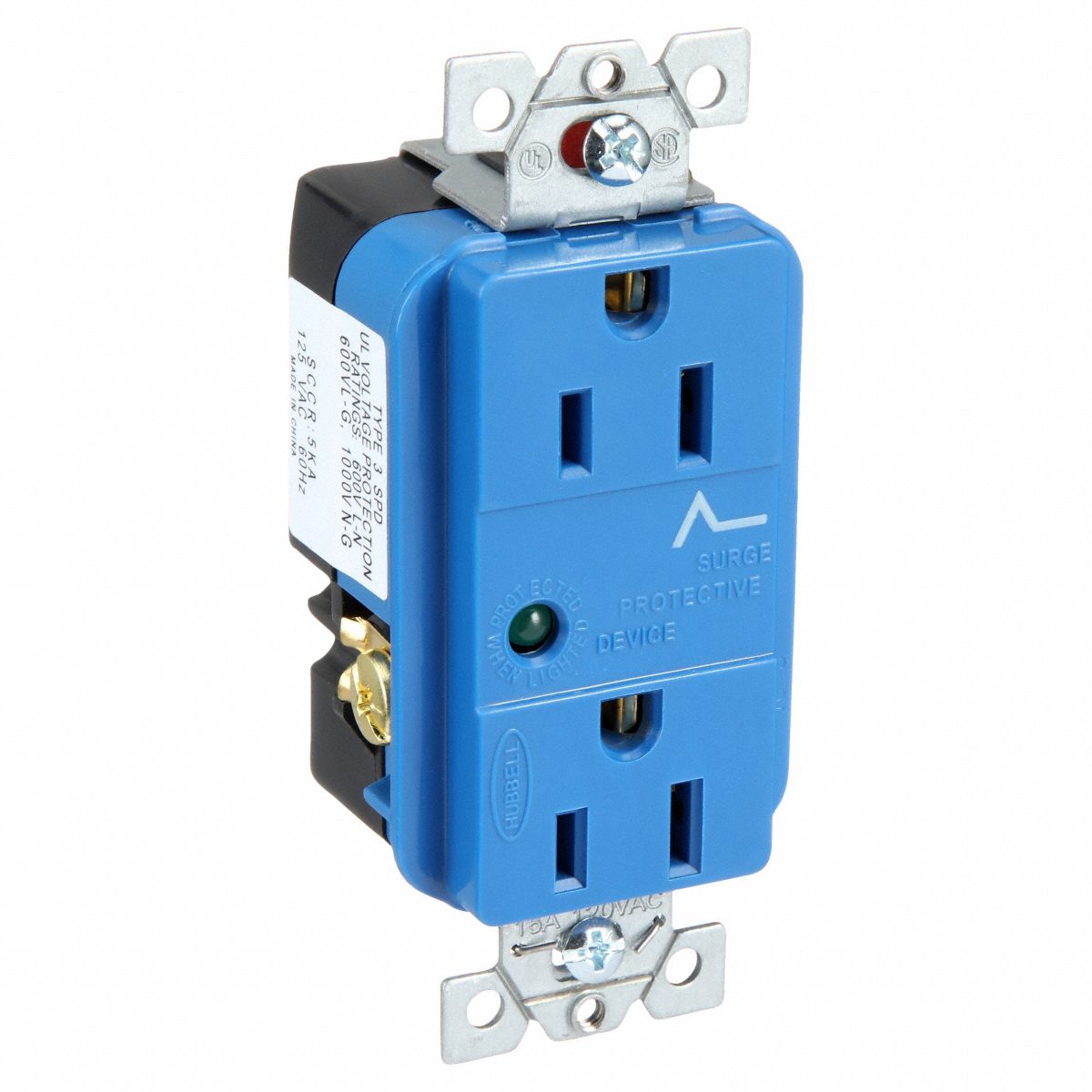

Hubbell HBL5260SA blue 15A 125V surge-protective duplex receptacle front view

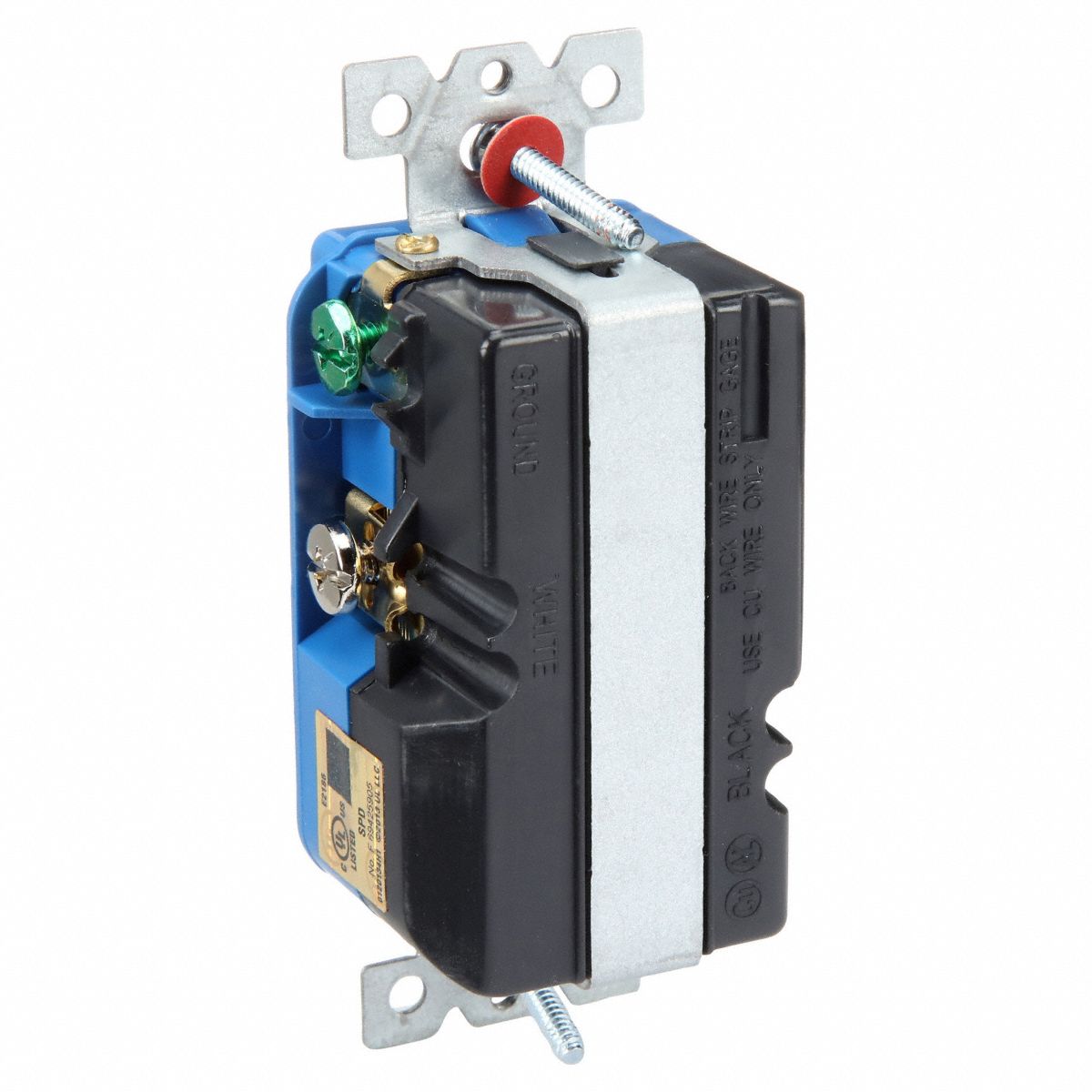

Hubbell HBL5260SA surge-protective receptacle rear and screw-terminal view

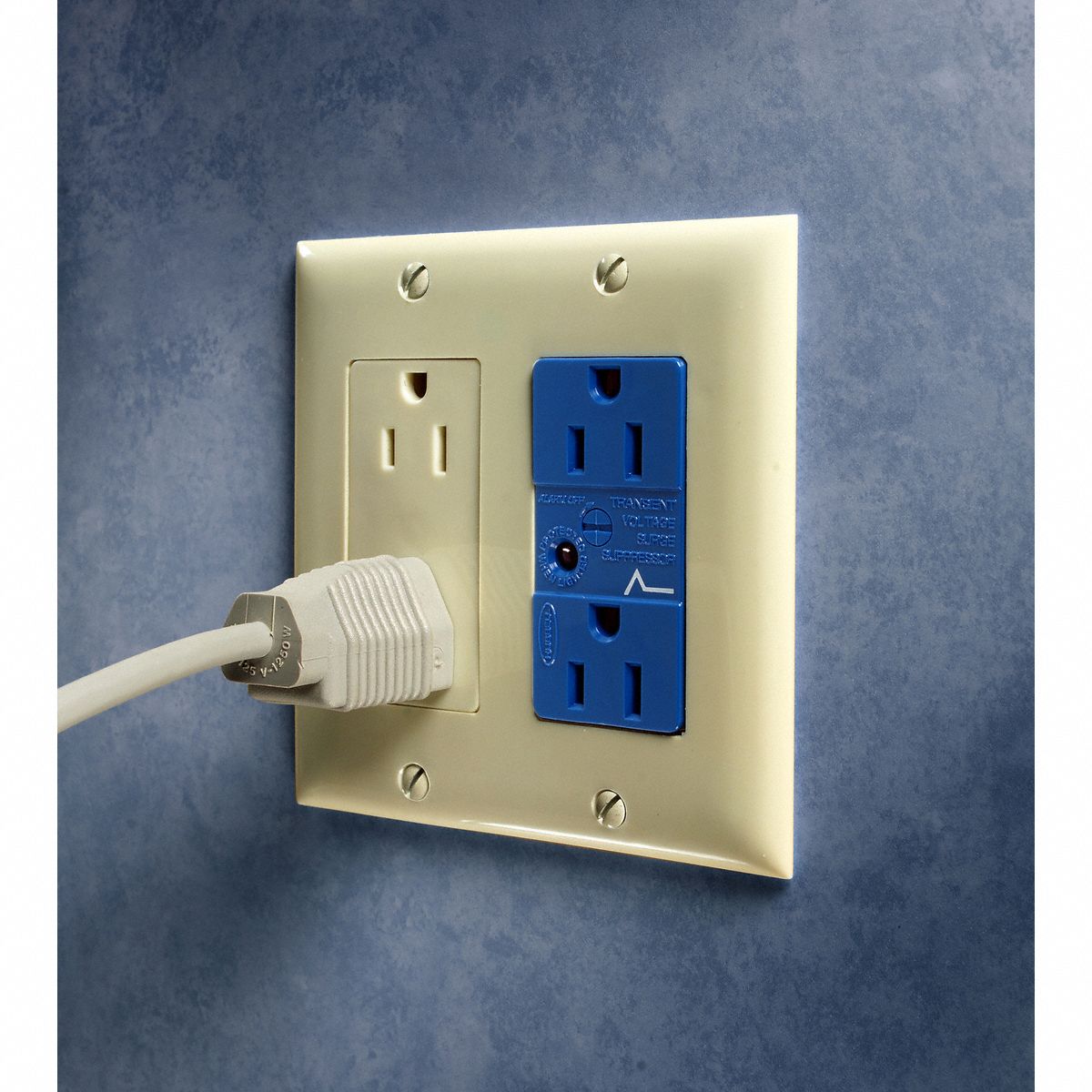

Hubbell HBL5260SA surge-protective receptacle installed example
Hubbell HBL5260SA blue 15A 125V surge-protective duplex receptacle front view
Hubbell HBL5260SA surge-protective receptacle rear and screw-terminal view
Hubbell HBL5260SA surge-protective receptacle installed example

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Hubbell

Hubbell HBL5260SA – 15A 125V Surge-Protective Duplex Receptacle, Blue

In stock
SKU: HBL5260SA UPC: 783585060019
(0)
$49.99
In stock
Usually ships within 24 hours

The Hubbell HBL5260SA SpikeShield surge-protective duplex receptacle combines two NEMA 5-15R outlets with point-of-use surge suppression. Its blue decorator face and surge symbol make it easy to identify, while the power indicator shows when electricity is available.

Key Features

  • 15A, 125V AC rating for compatible grounded circuits.
  • Normal- and common-mode surge protection with an approximately 5 ns response time.
  • Self-grounding staple and screw-terminal connections.
  • Nylon face and base with brass contacts and a zinc-coated steel mounting strap.
  • Specification-grade construction for indoor, dry locations.

Specifications

Manufacturer Hubbell Wiring Device-Kellems
MPN / Catalog Number HBL5260SA
UPC 783585060019
Series SpikeShield
Device Type Surge-protective duplex receptacle
Amperage / Voltage 15A / 125V AC
NEMA Configuration 5-15R
Poles / Wires 2-pole / 3-wire grounding
Frequency / Phase 60 Hz / Single phase
Color Blue
Connections Screw terminals
Operating Temperature 32–140°F (0–60°C)
Certifications UL 498; UL file E2186; CSA C22.2 No. 42
