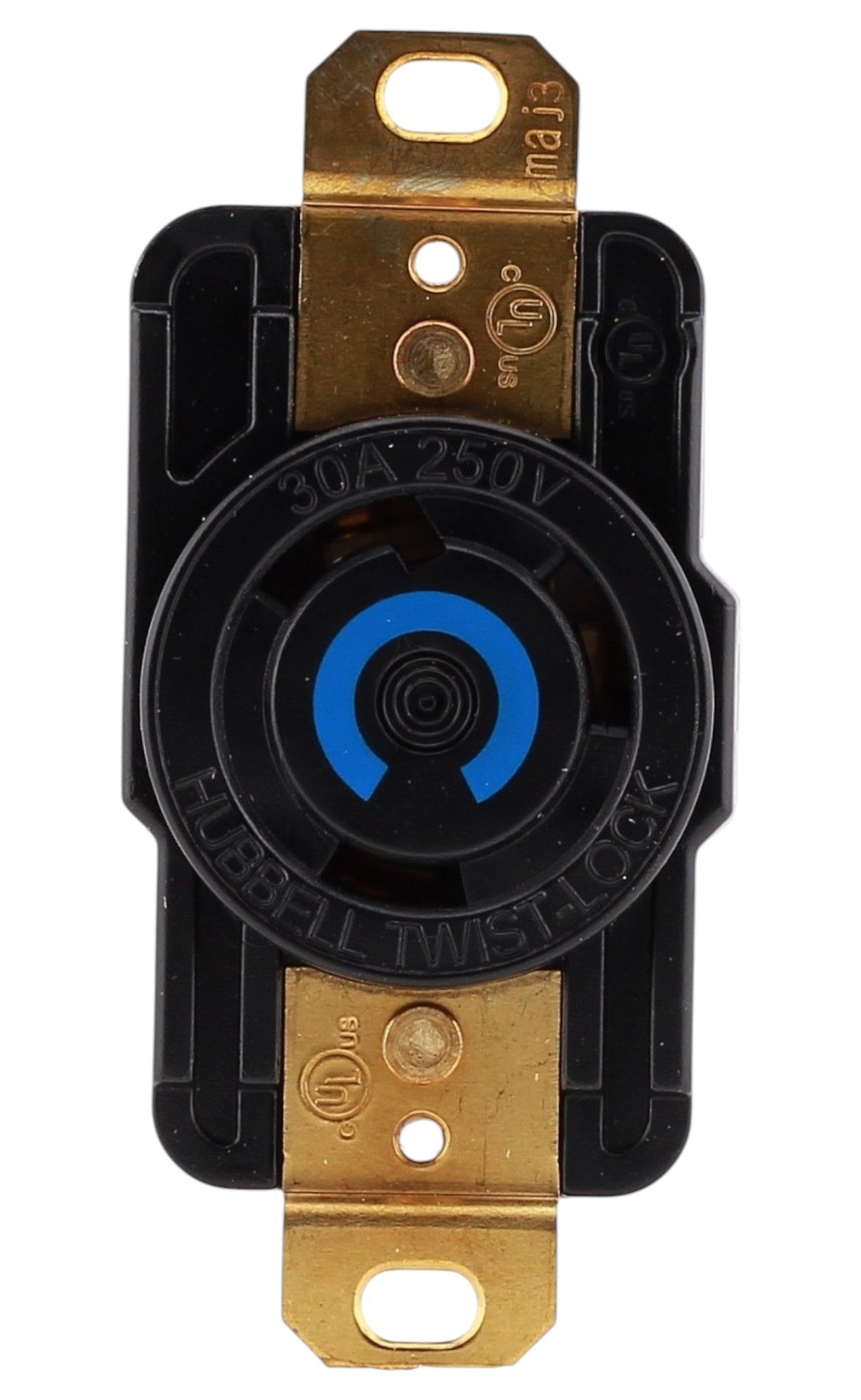

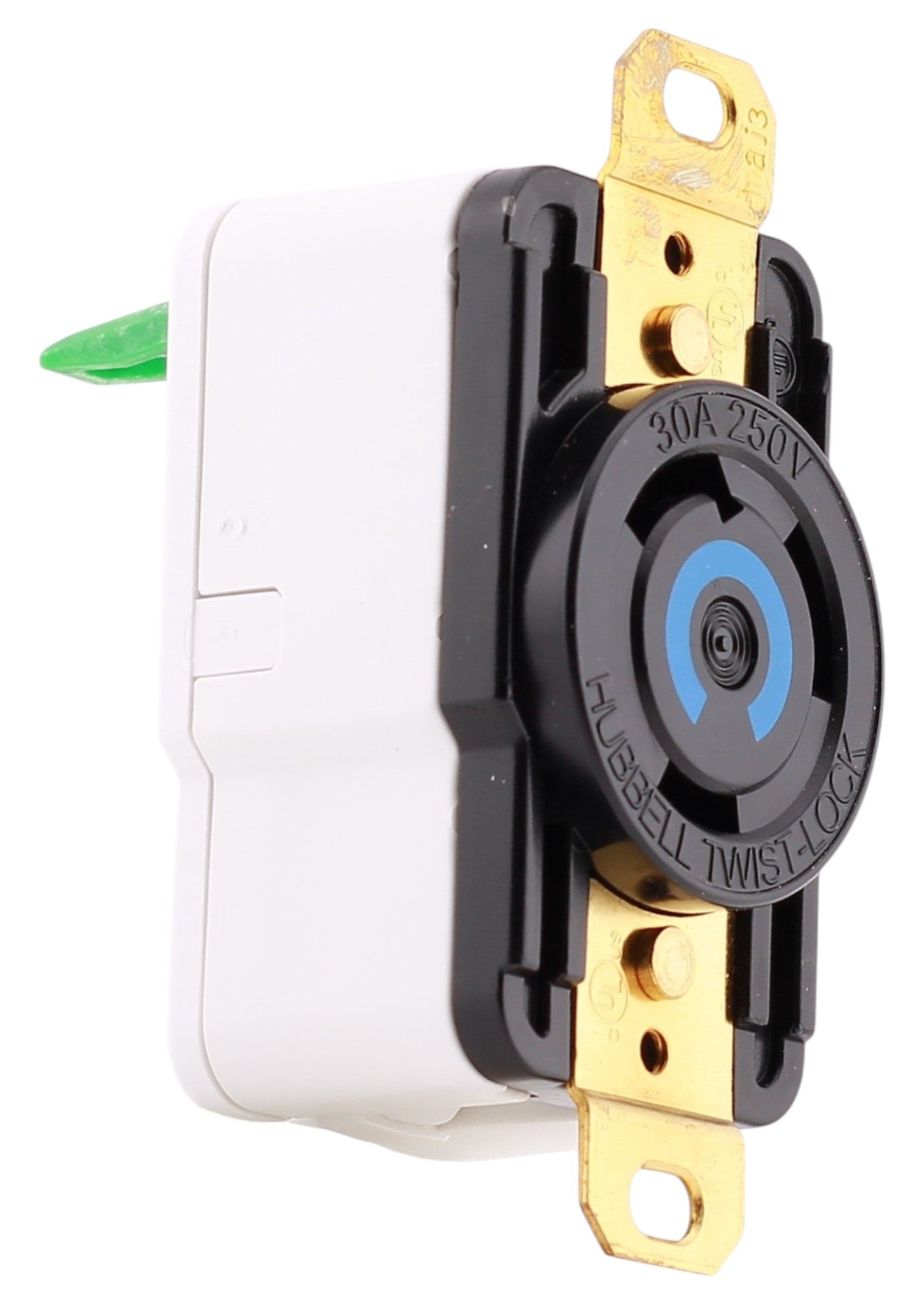

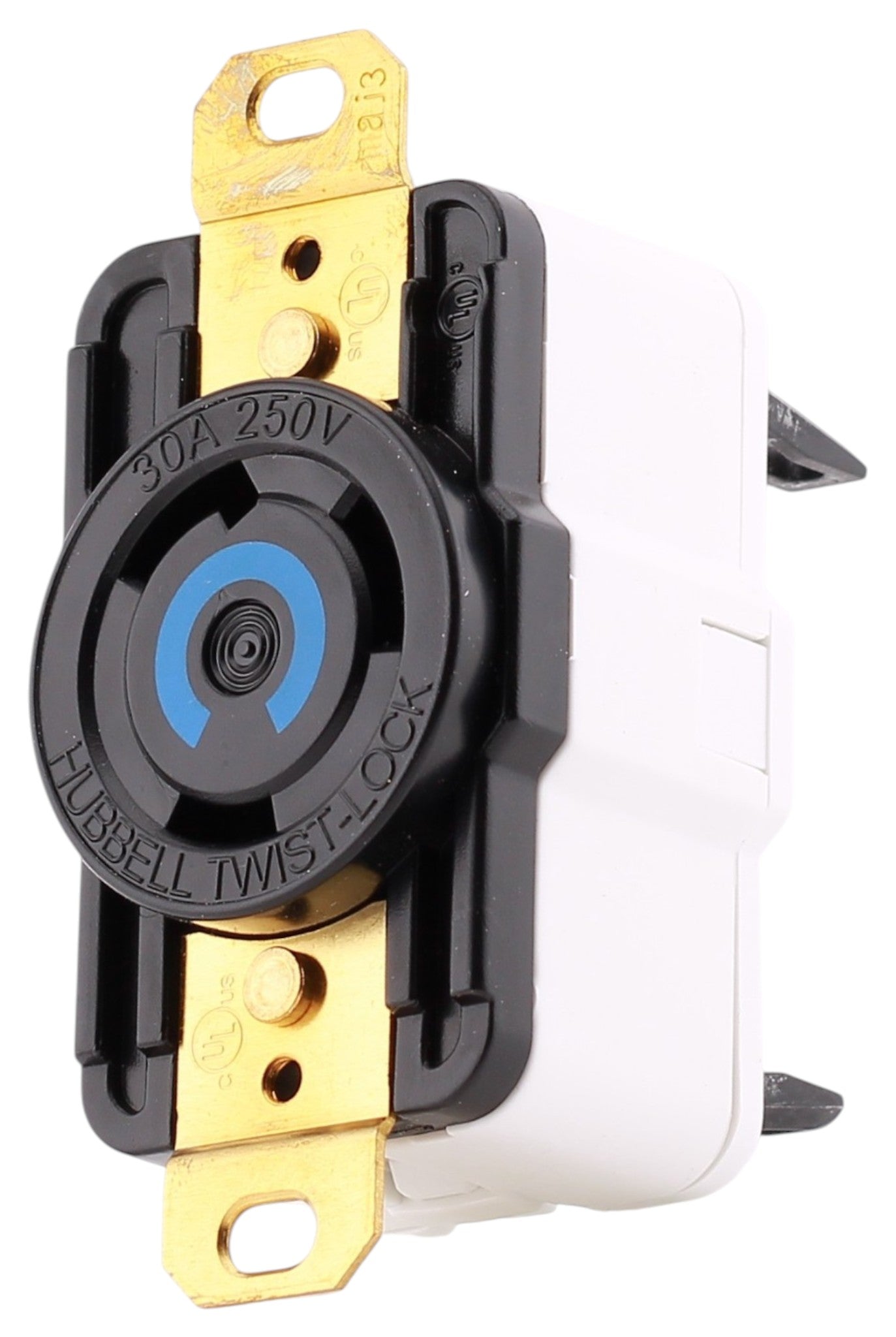

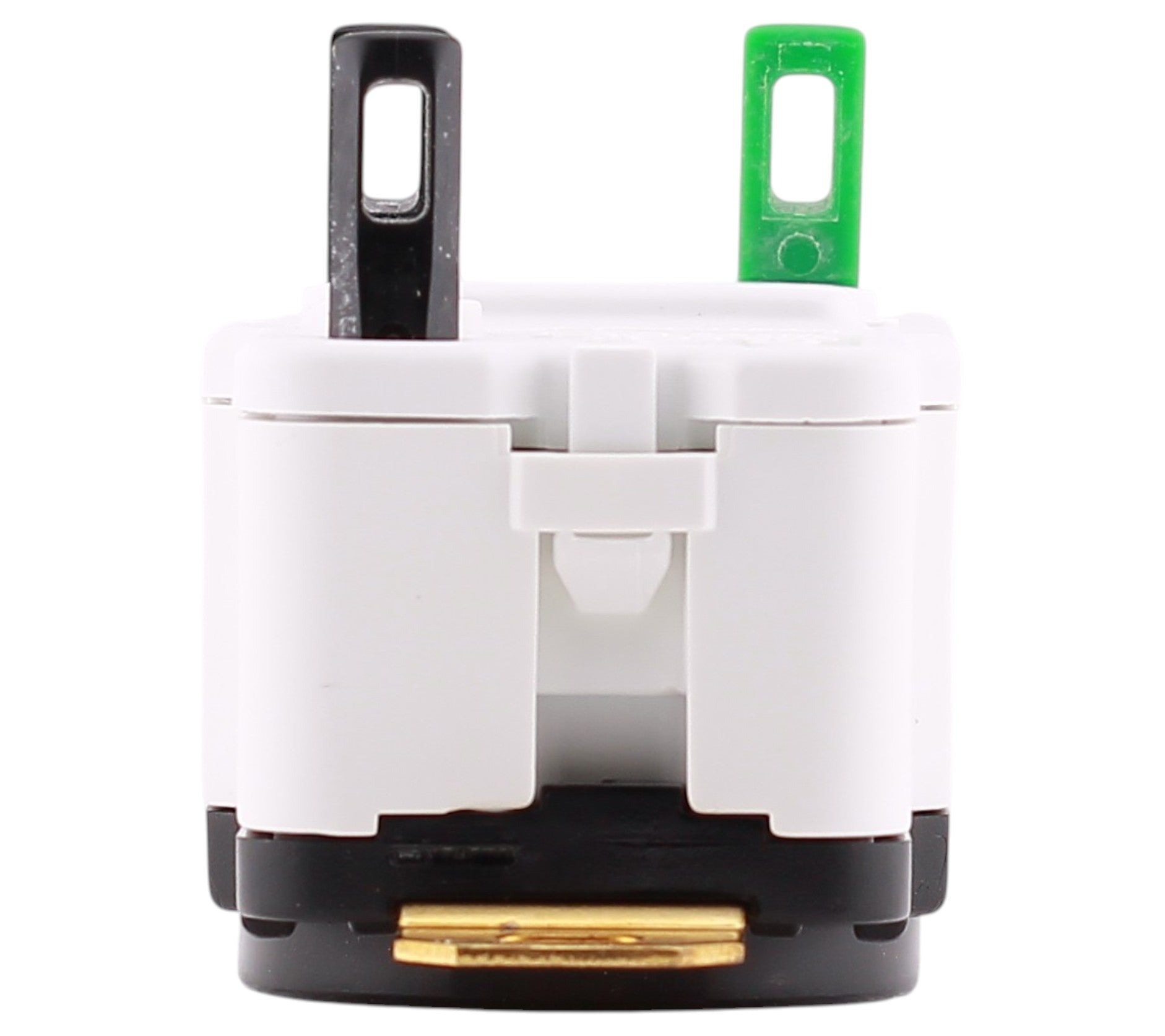

Hubbell HBL2620ST: 30 Amp, 250V, NEMA L6-30R, EdgeConnect Twist-Lock Flush Receptacle with Spring Termination, 2-Pole, 3-Wire, Black, UL Listed.
-
Manufacturer: Hubbell Incorporated
-
Brand: Hubbell Wiring Device-Kellems
-
Product Line: EdgeConnect™ Twist-Lock® Industrial Series
-
UPC: 783585569574
-
Model Number: HBL2620ST
-
Product Type: Twist-Lock Grounding Single Flush Receptacle — Spring Termination
-
NEMA Configuration: L6-30R
-
Amperage: 30 Amps
-
Voltage: 250 Volts AC
-
Poles: 2-Pole
-
Wires: 3-Wire Grounding
-

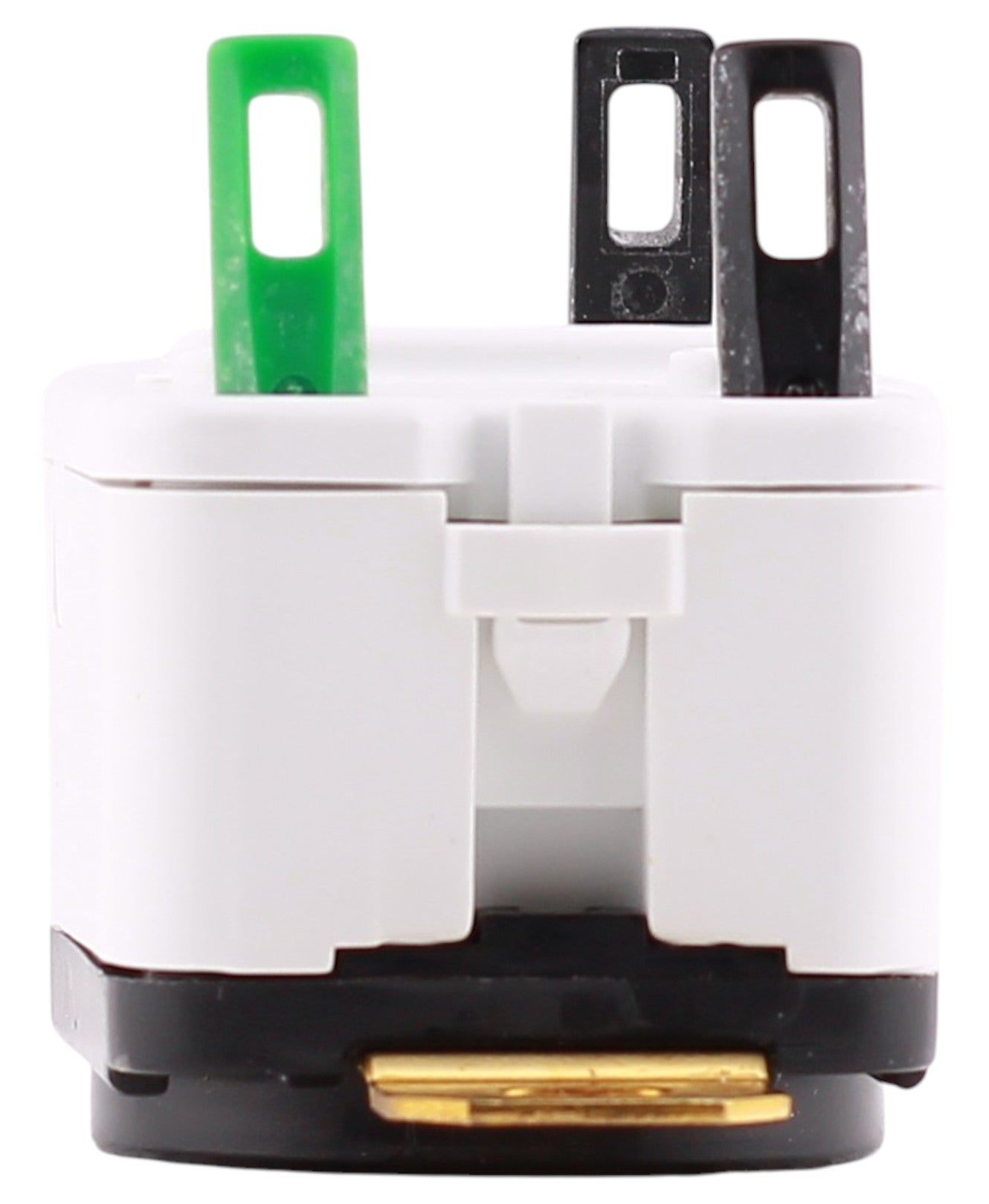

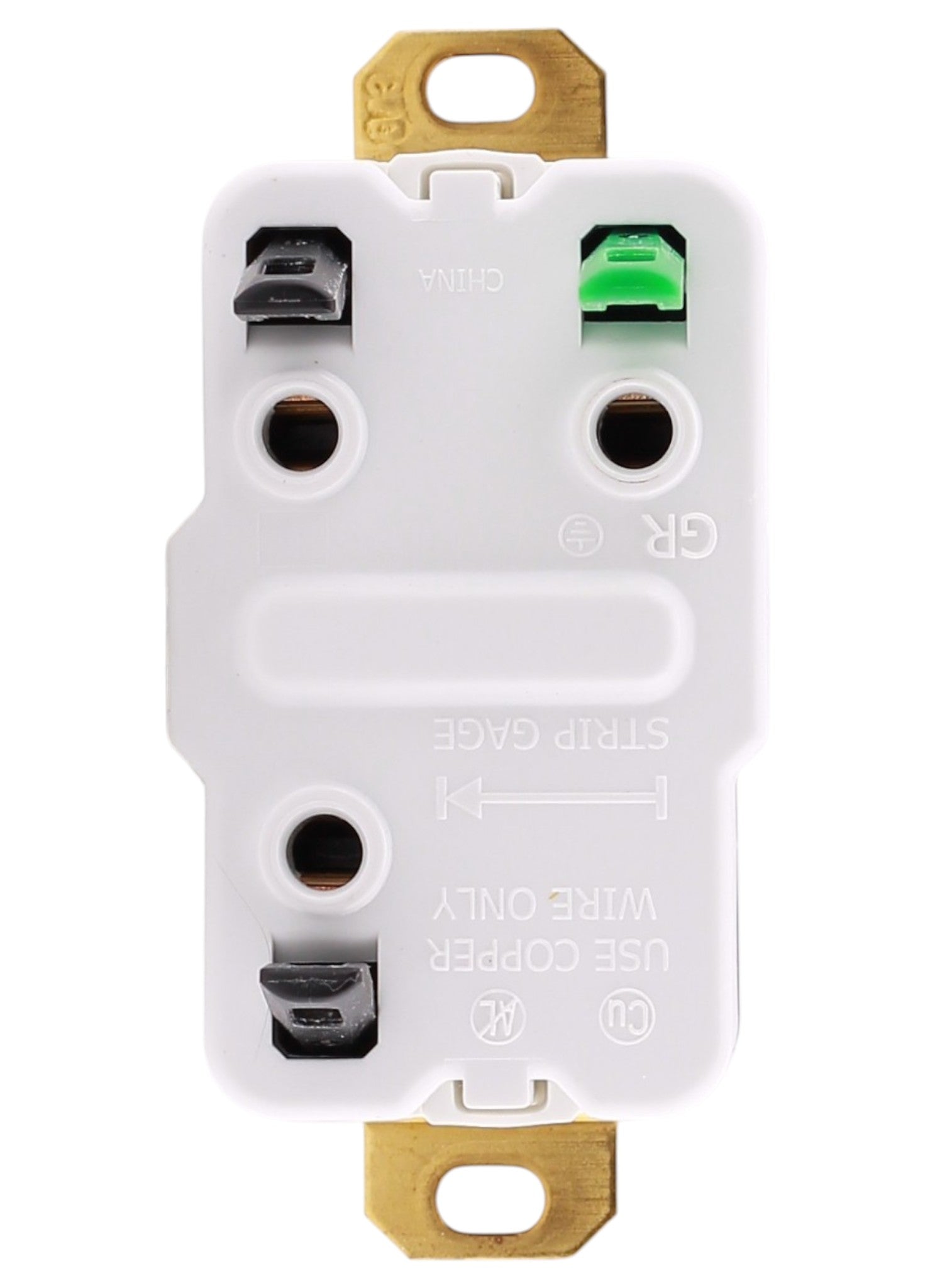

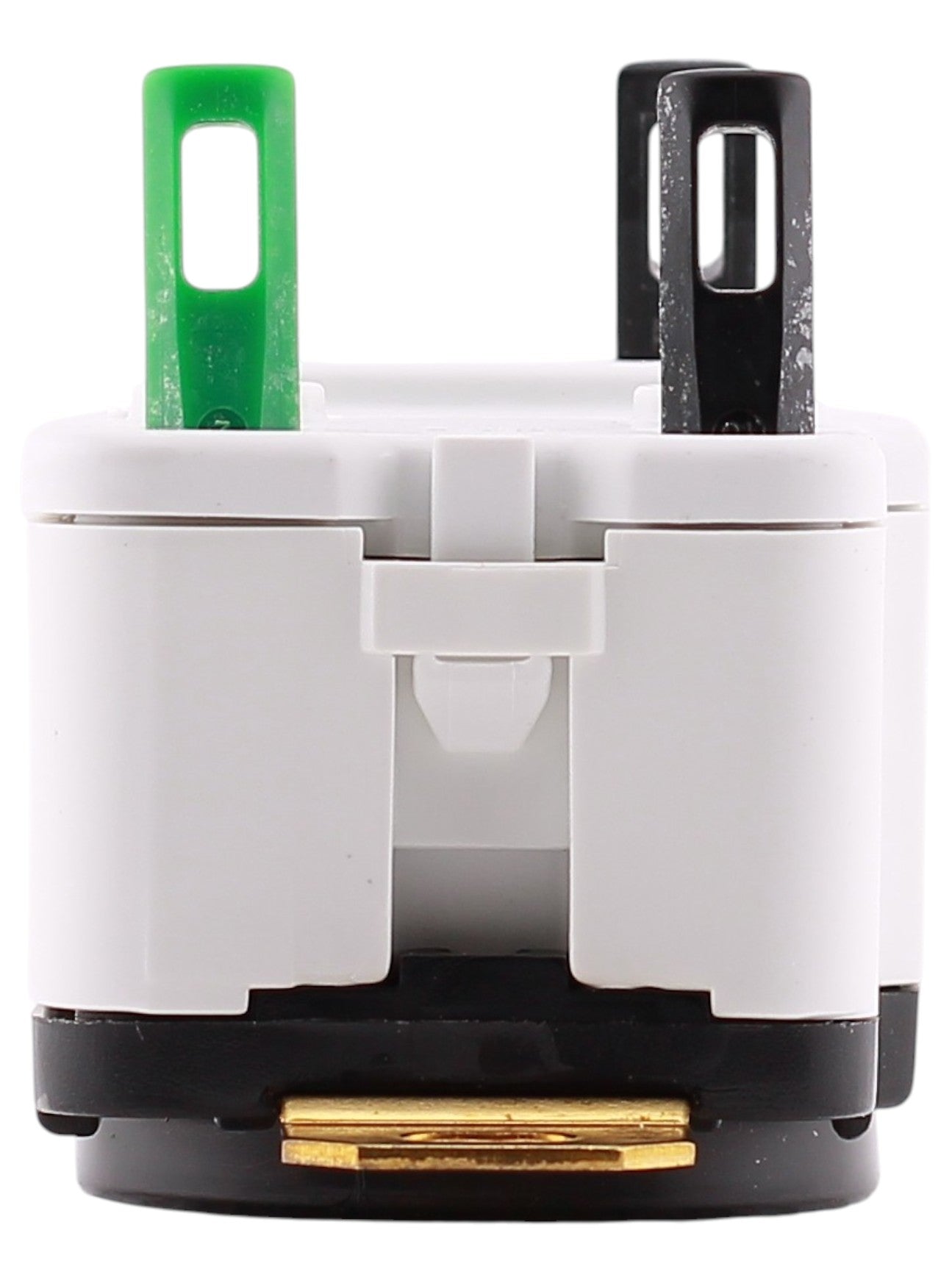

Termination Type: Spring termination (screwdriver-free; no torque wrench required)
-
Wire Size: #16–8 AWG (solid or stranded copper)
-
Color: Black
-
Face Material: High-impact, abuse-resistant nylon
-
Contact Material: Brass
-
Grounding: All-brass mounting and grounding system
-
Enclosure Rating: IP20
-
Indoor/Outdoor: Indoor, dry location (unless additionally protected)
-
Horsepower Rating: 2 HP
-
Operating Temperature: -40°C to +75°C
-
Dielectric Voltage: Withstands 2,000V minimum
-
Flammability: V-2 or better per UL 94
-
Application: Heavy Duty Industrial
-

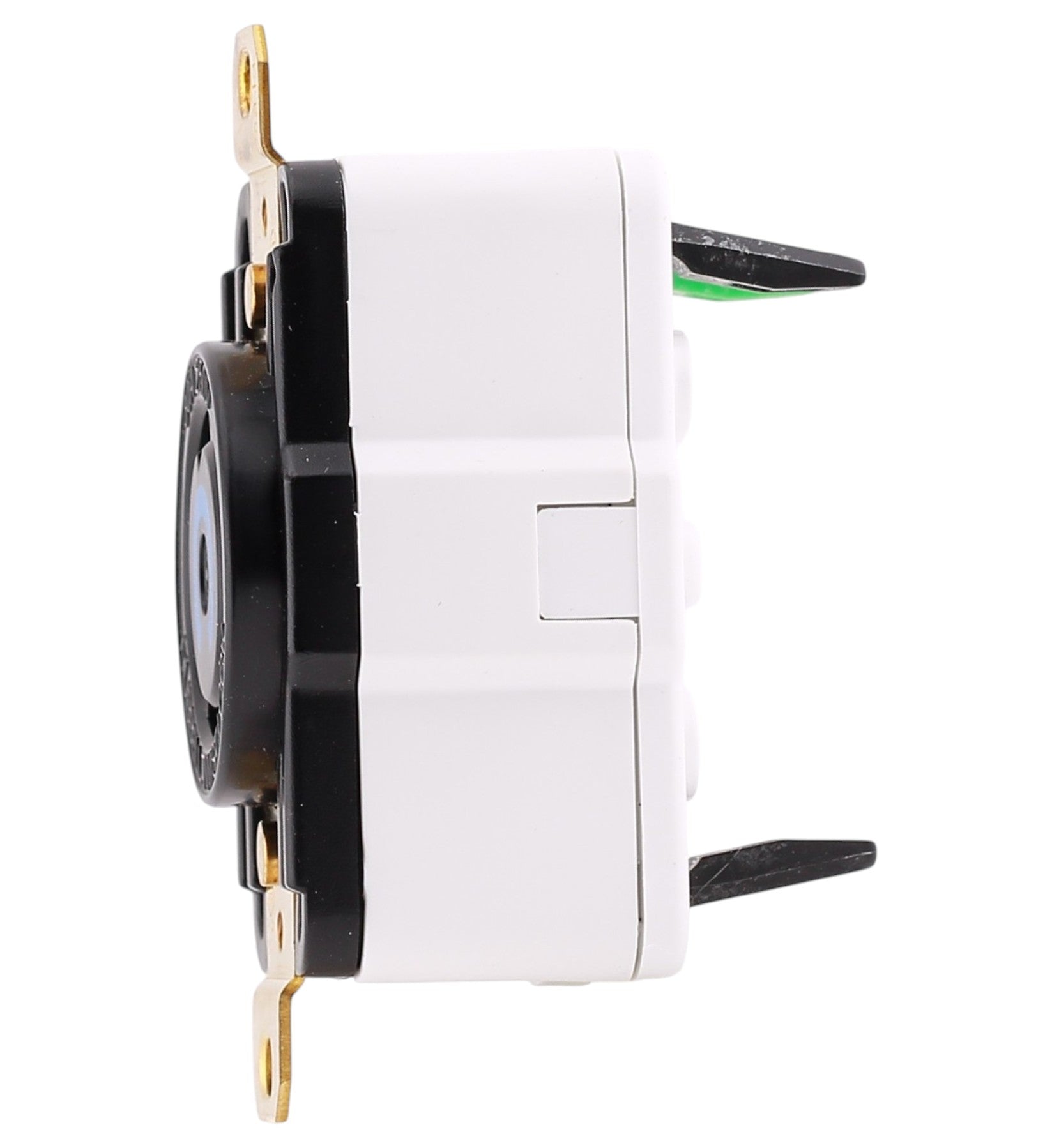

Dimensions: Height: 2.77 in; Width: 1.701 in; Depth: 1.551 in
-
Weight: 0.25 lbs
-
Certifications: UL 498, CSA C22.2 No. 42, Federal Specification W-C-596, NOM
This Hubbell HBL2620ST EdgeConnect Twist-Lock flush receptacle delivers reliable 30 Amp, 2-Pole, 3-Wire grounding power for 250V NEMA L6-30R heavy-duty industrial applications. Spring termination eliminates the need for a screwdriver and torque wrench, prevents strand relaxation, and speeds installation, while face color coding facilitates proper device mating.
