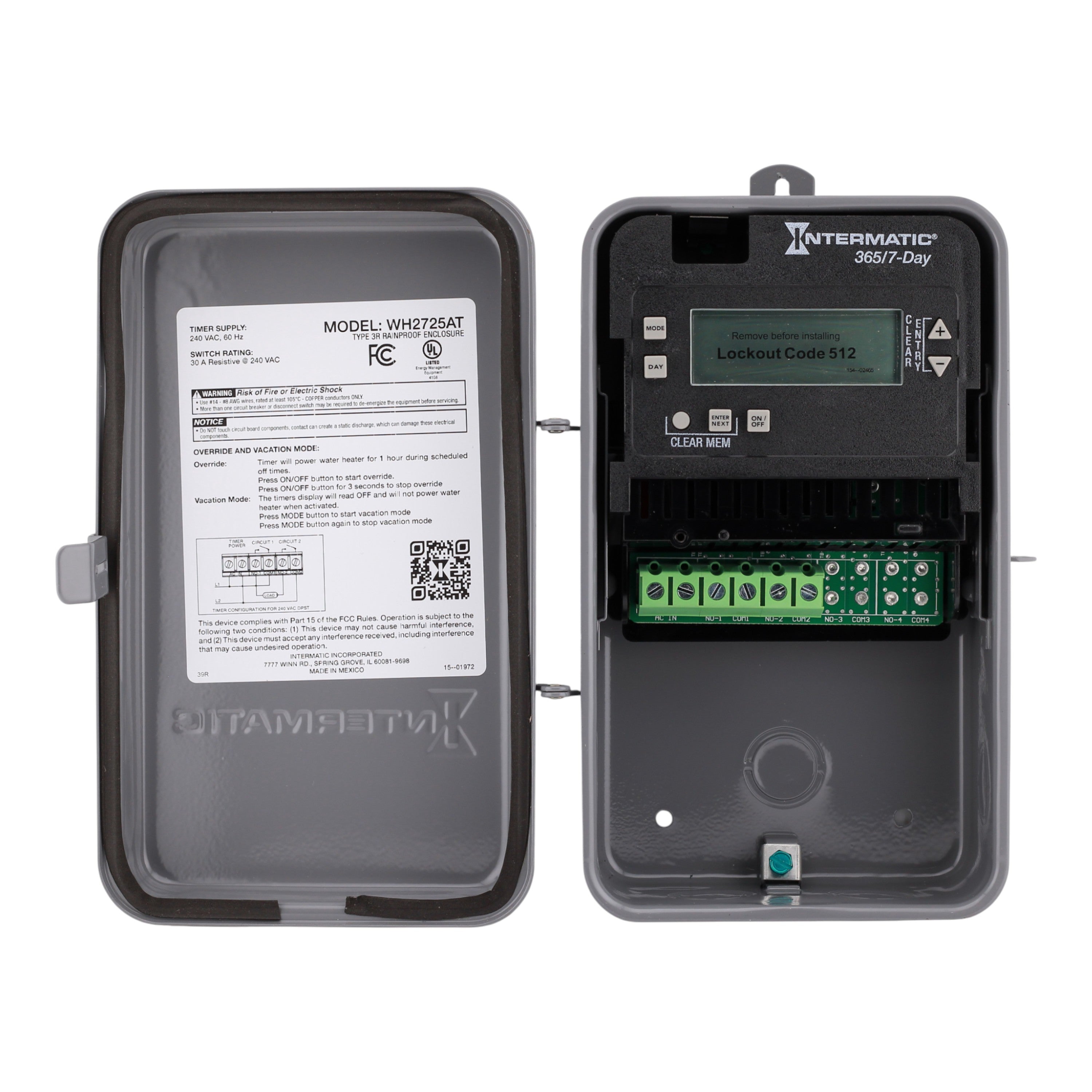

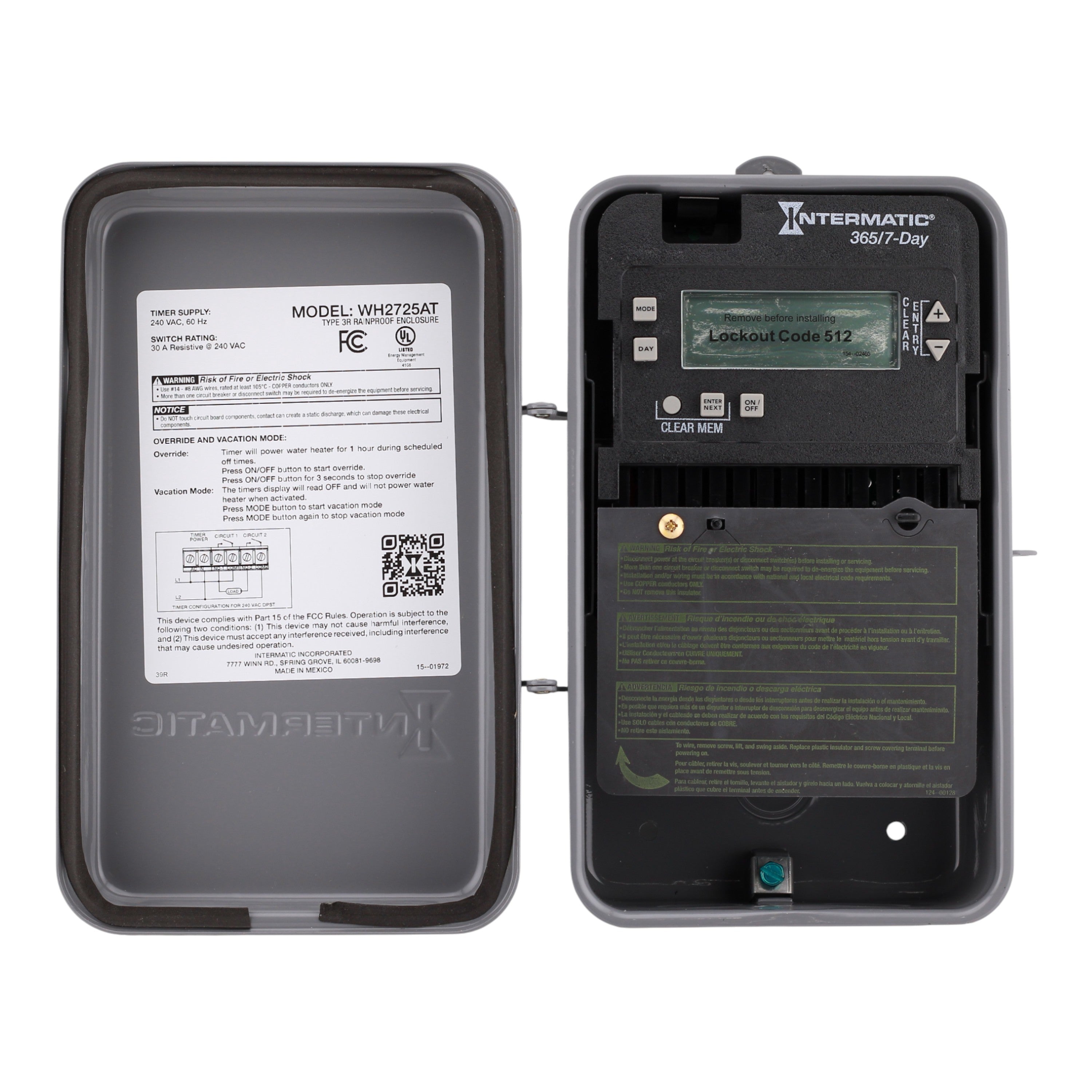

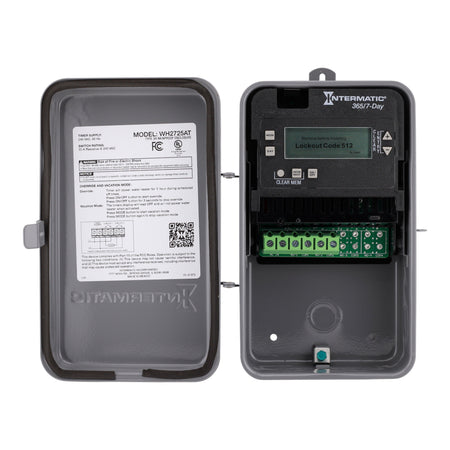

Intermatic WH2725AT: 7-Day Pre-Programmed Water Heater Timer, 240 Volts AC, 30 Amp, DPST contact form, NEMA 3R enclosure, automatic DST adjustment, UL listed.
-
Manufacturer: Intermatic
-
Brand: Intermatic
-
Product Range: WH Series (Specialty Time Switches)
-
UPC: 078275149991
-
Model Number: WH2725AT
-
Timer Type: Pre-Programmed 7-Day Water Heater Timer
-
Operation Mode: 7-Day programming
-
Voltage: 240 Volts AC, 60 Hz
-
Amperage: 30 Amps
-
Contact Form: DPST (Double-Pole Single-Throw)
-
Power Consumption: 5 Watts
-
Max Events: 16 fixed OFF events
-

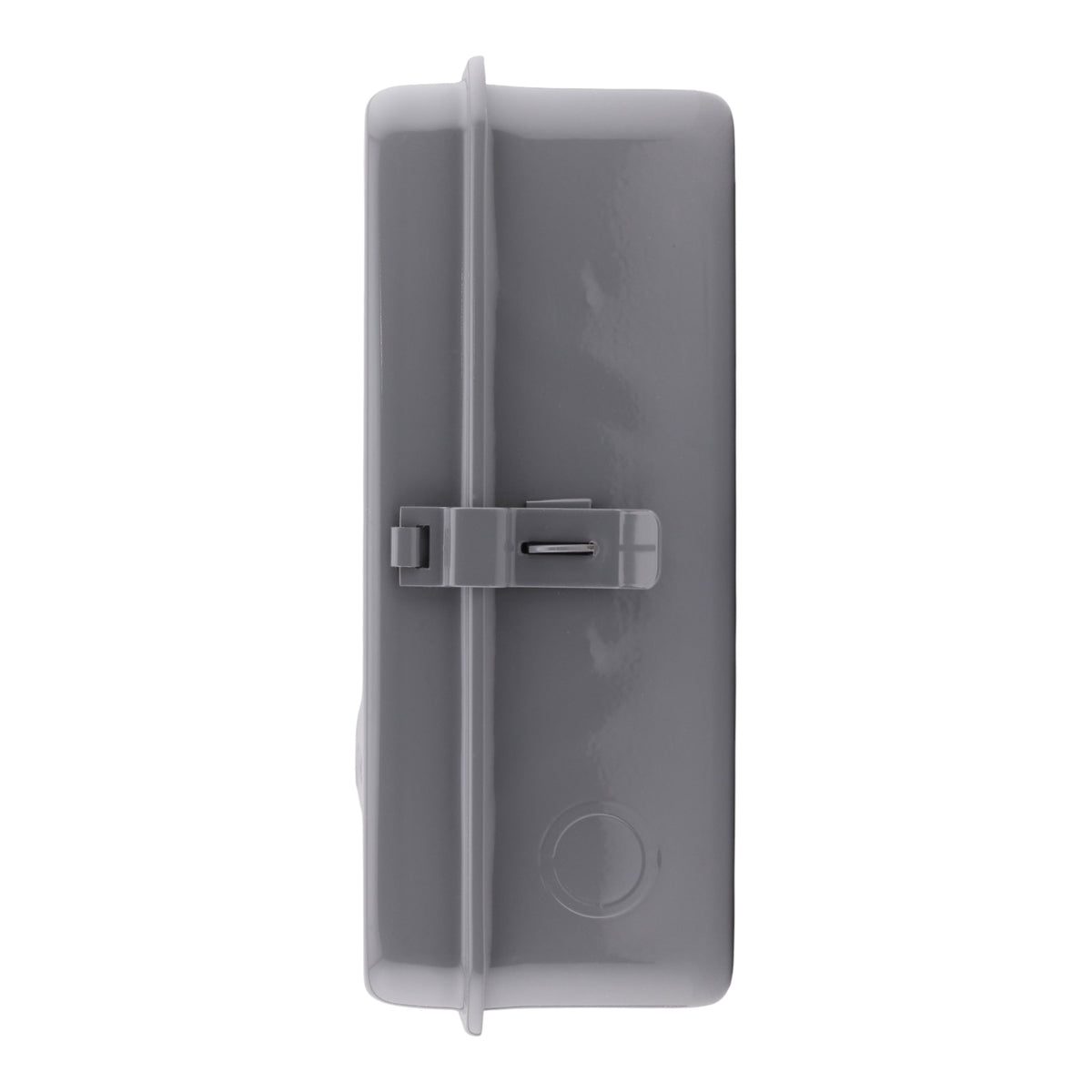

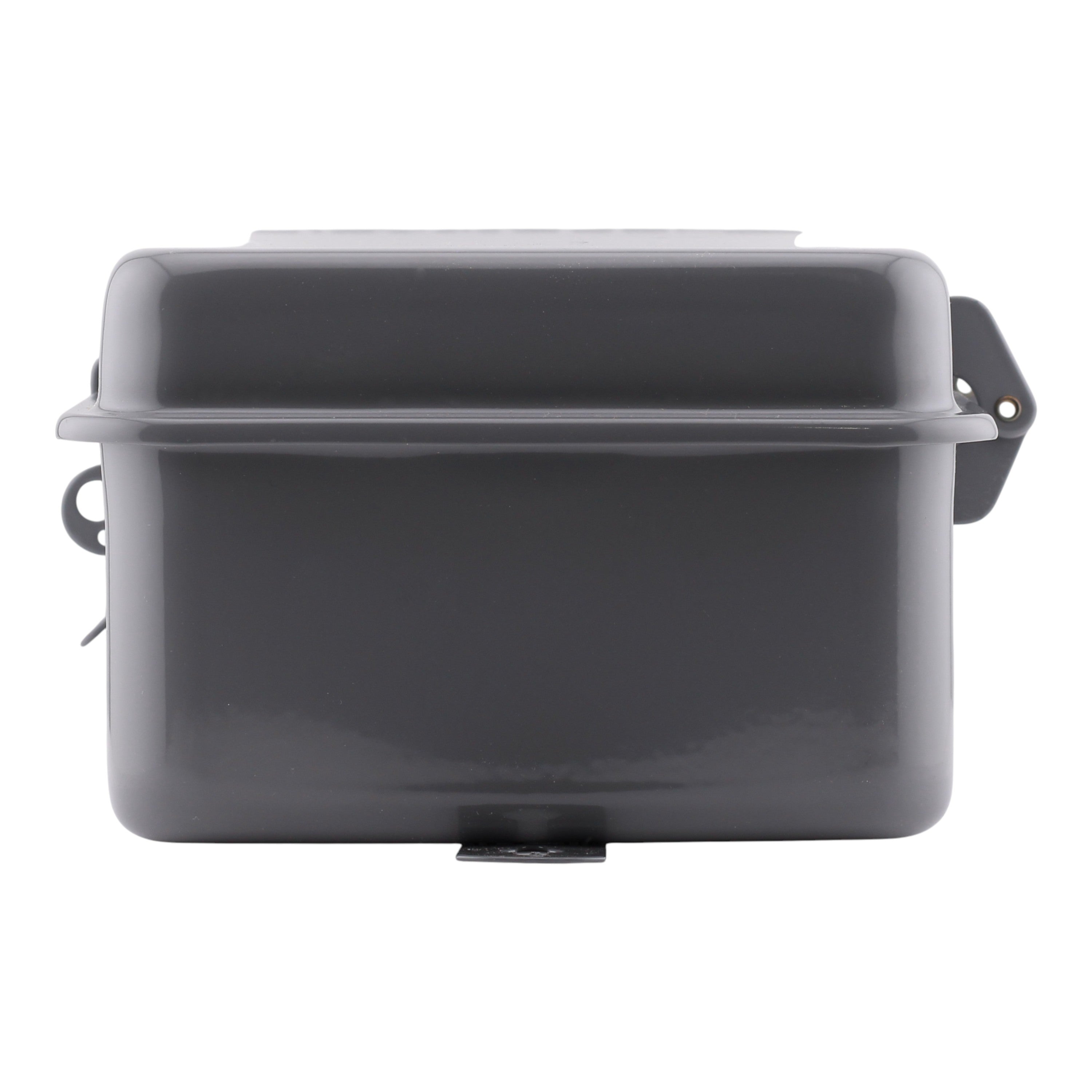

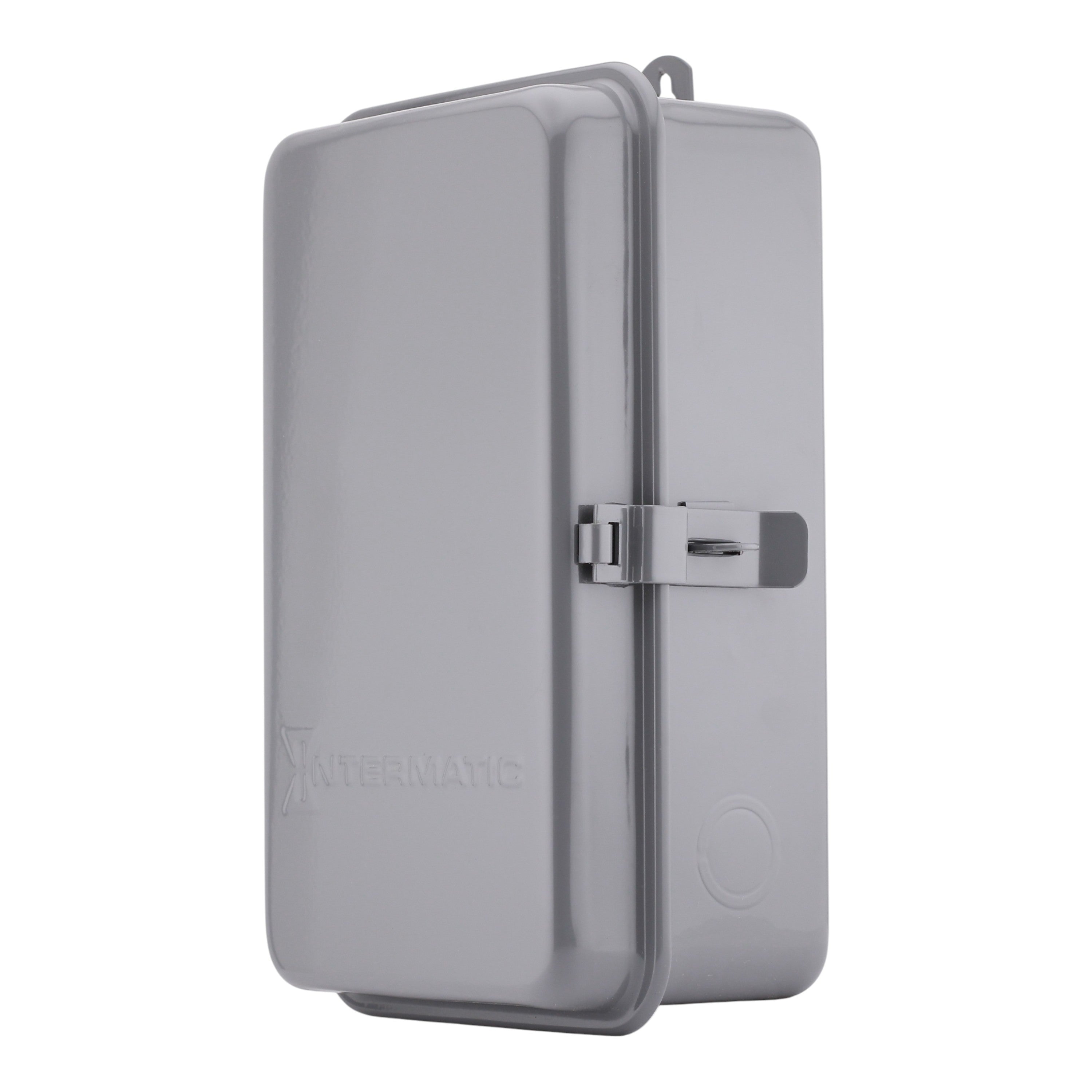

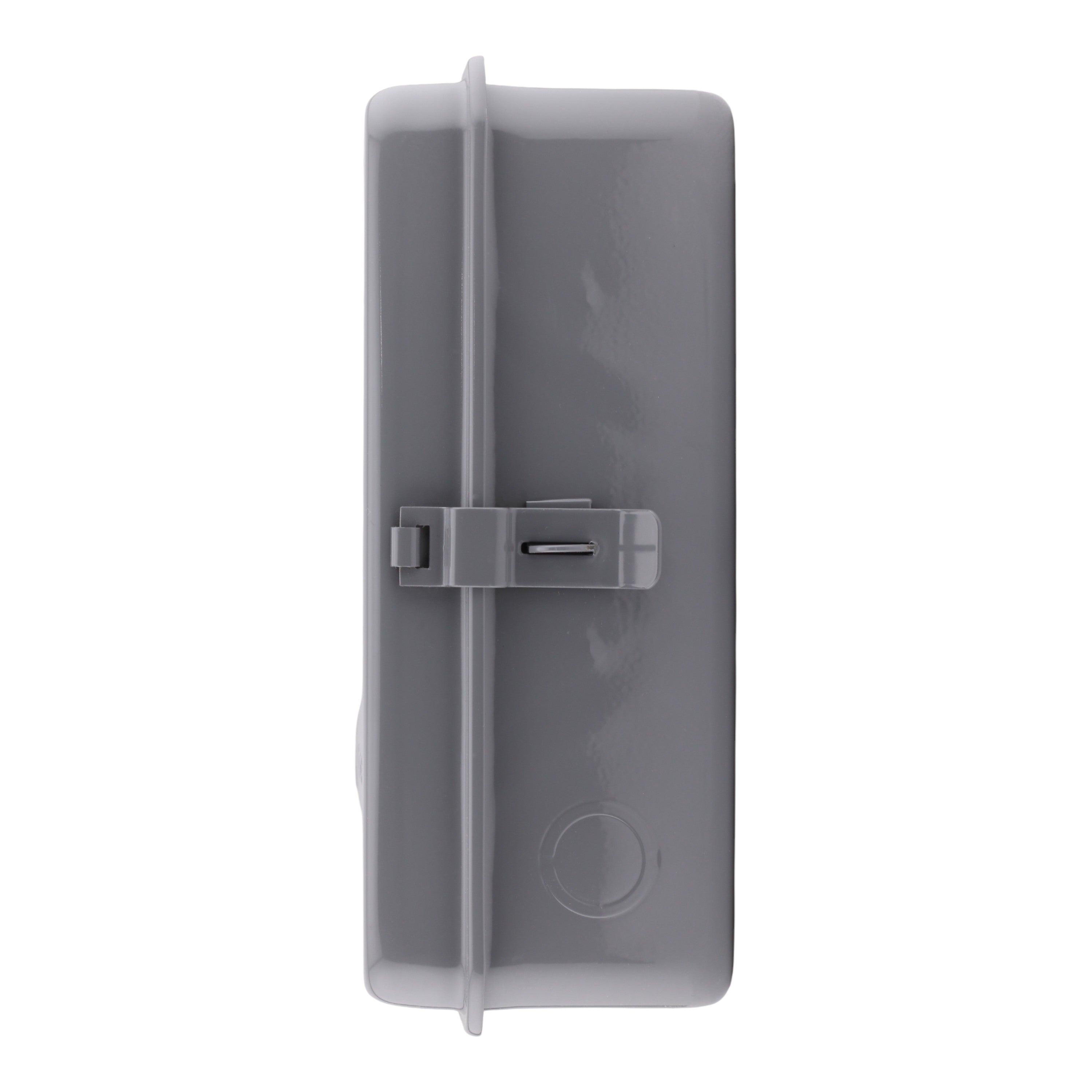

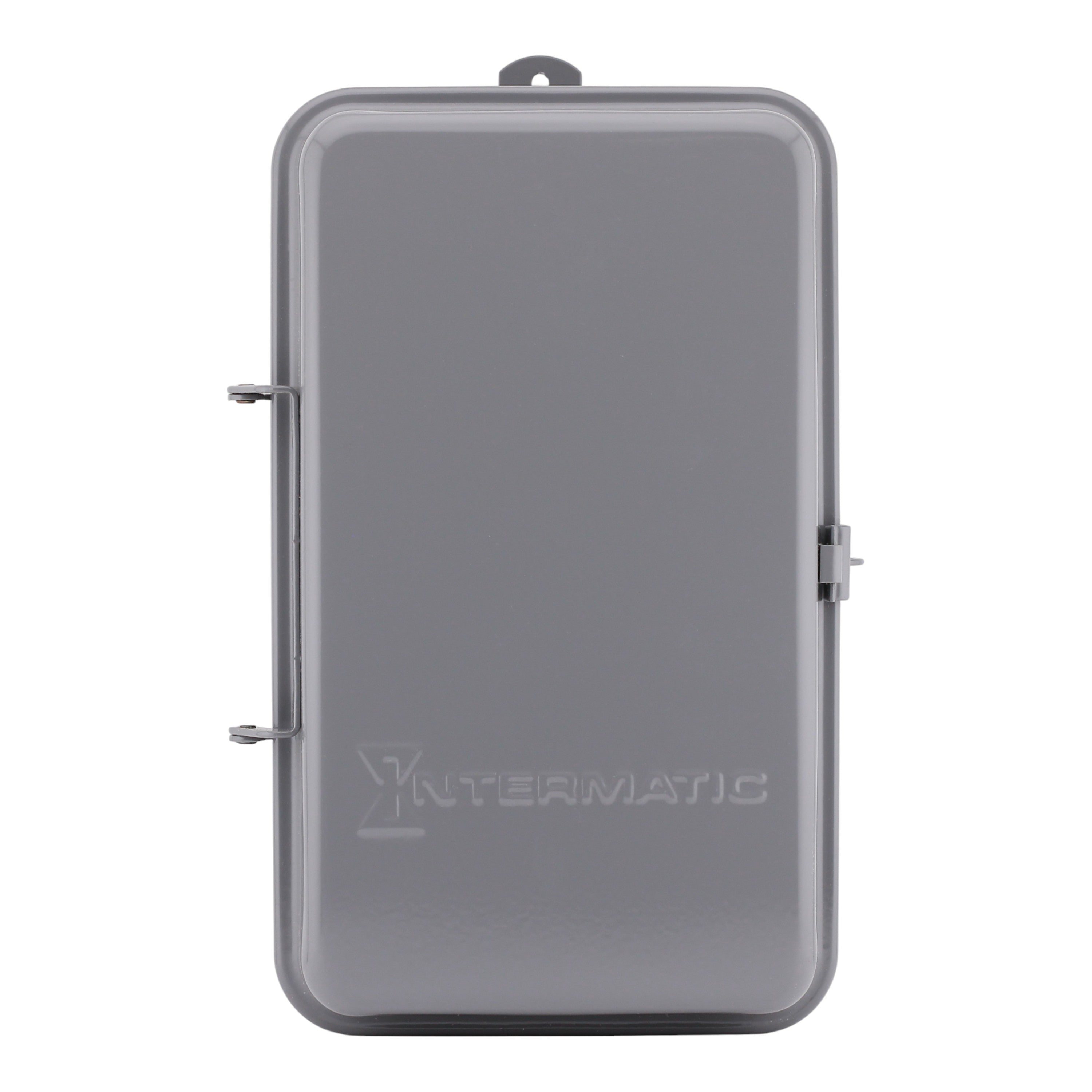

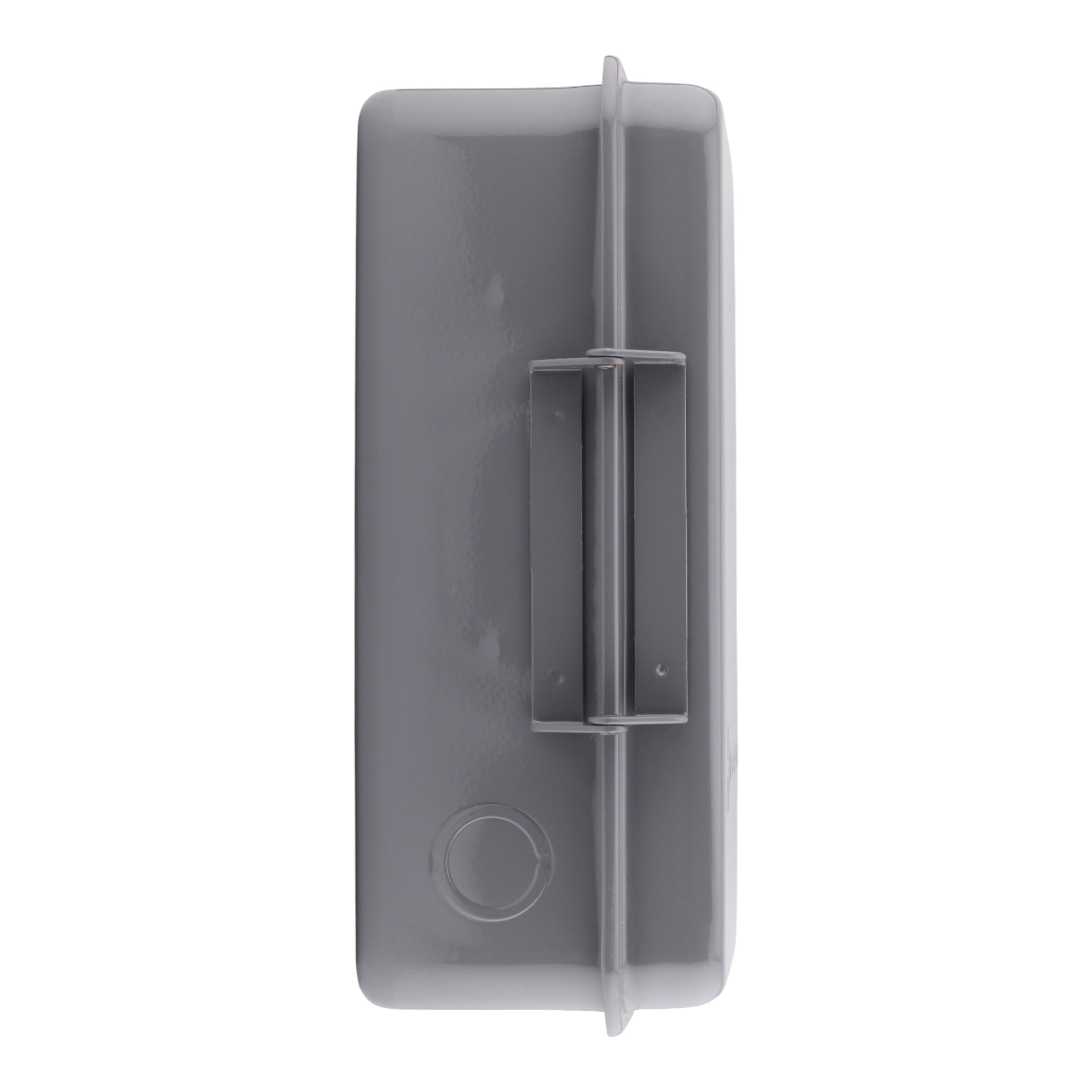

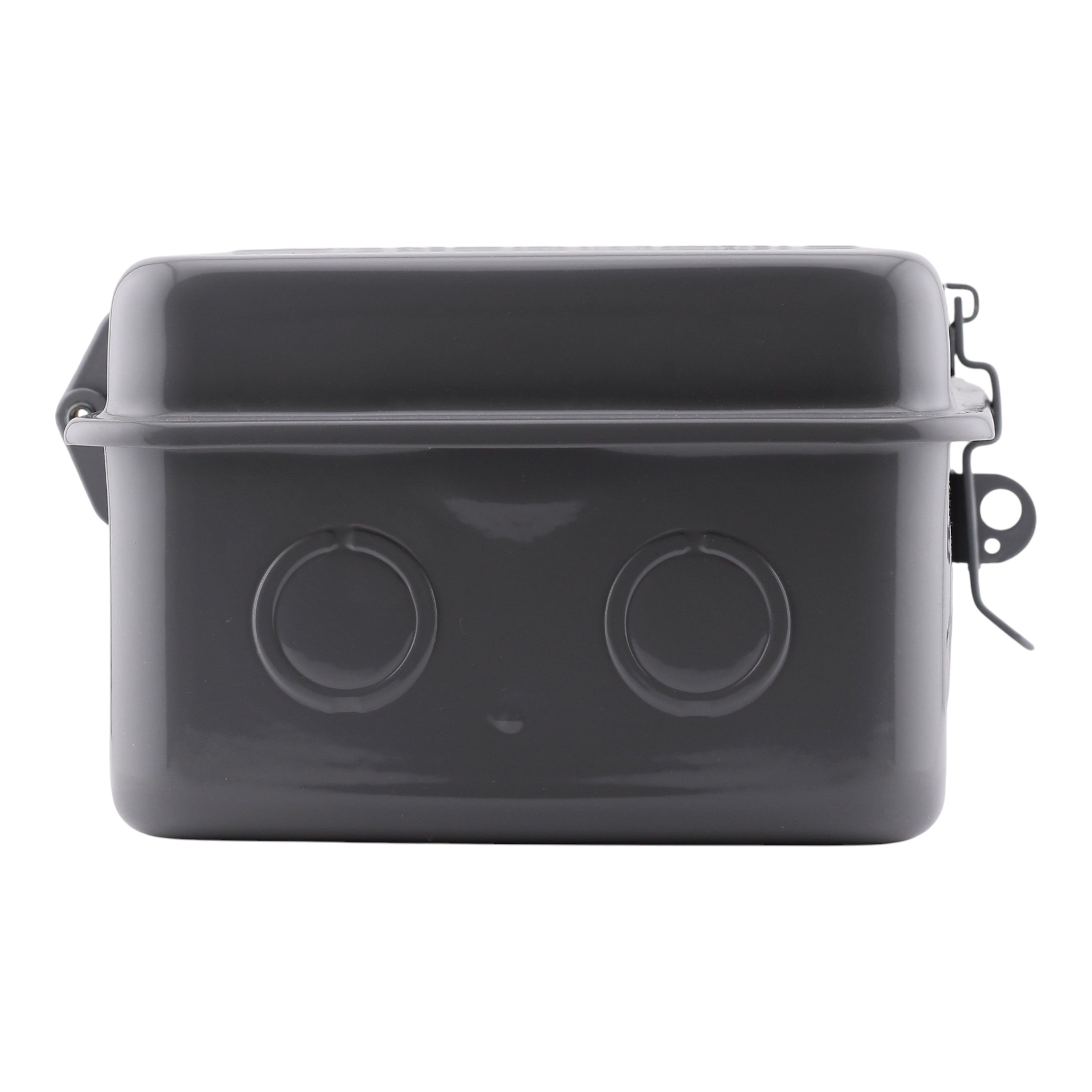

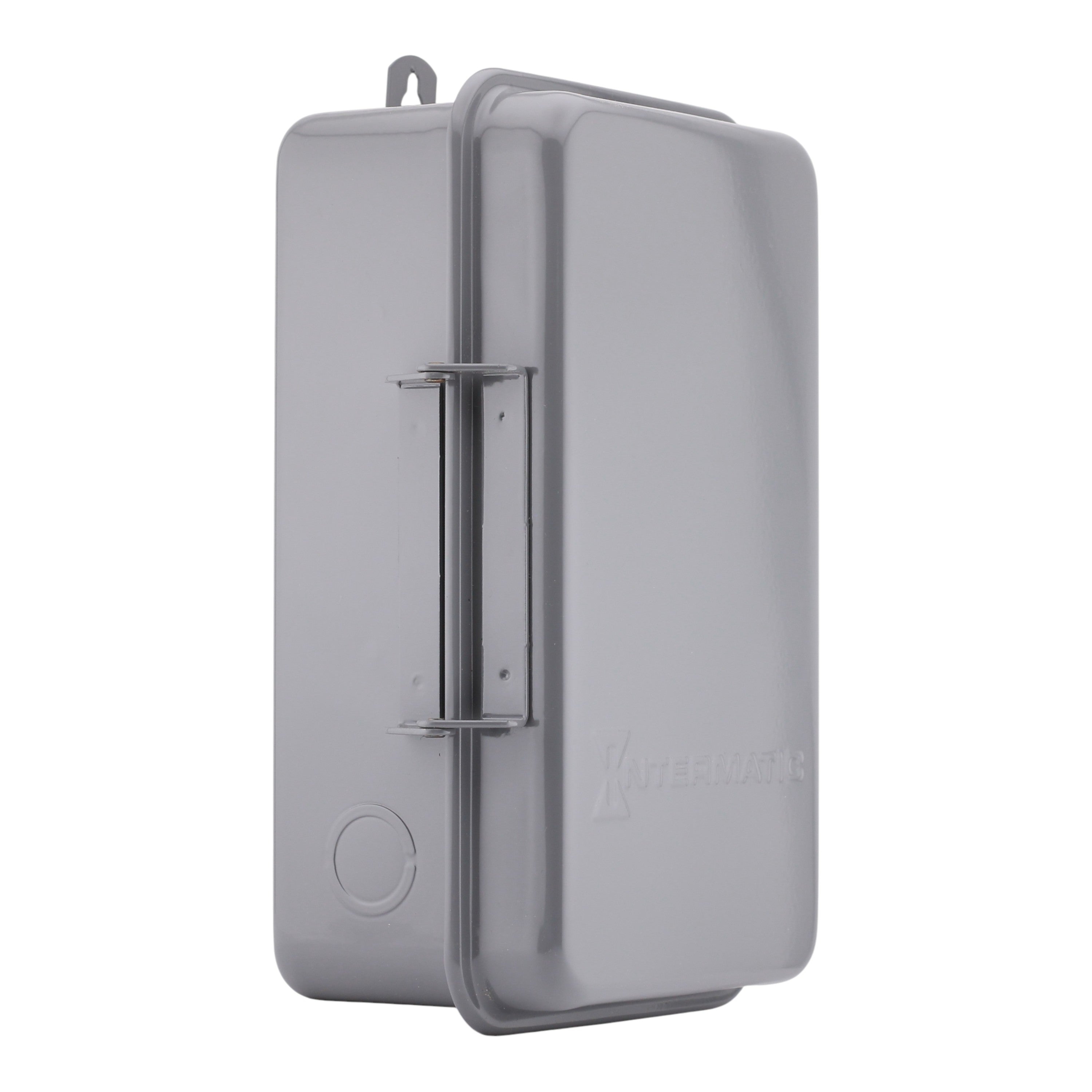

Enclosure Type: NEMA 3R (outdoor-rated metal enclosure)
-
Operating Temperature Range: -40°F to 122°F
-
Backup Power: 100-hour supercapacitor (battery-free)
-
Dimensions: Width: 6.5 in; Depth: 3.625 in; Height: 10.125 in
-
Features: Automatic Daylight Saving Time adjustment, lockout feature for city code protection, zero-crossing relay technology, 1-hour temporary override
-
Certifications: UL Listed, CSA
-
Applications: Water heater control, agriculture feeders, greenhouse misting control
This Intermatic WH2725AT pre-programmed water heater timer delivers reliable 7-day scheduling for 240V, 30A water heater circuits. Pre-programmed to meet Austin energy code requirements with lockout protection, it features automatic DST adjustment, 100-hour supercapacitor backup, and to-the-minute programming for optimized energy control in residential and agricultural applications.
