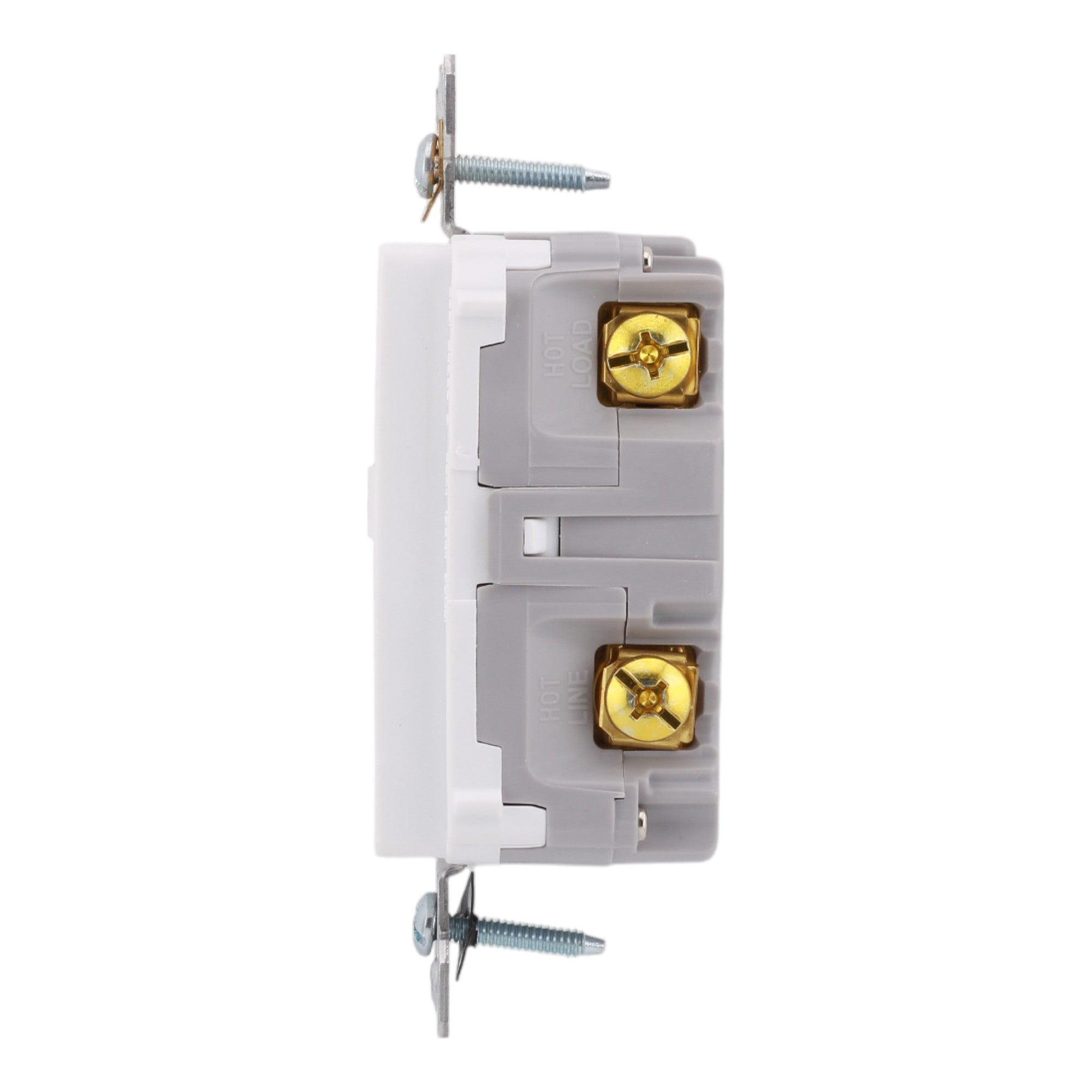

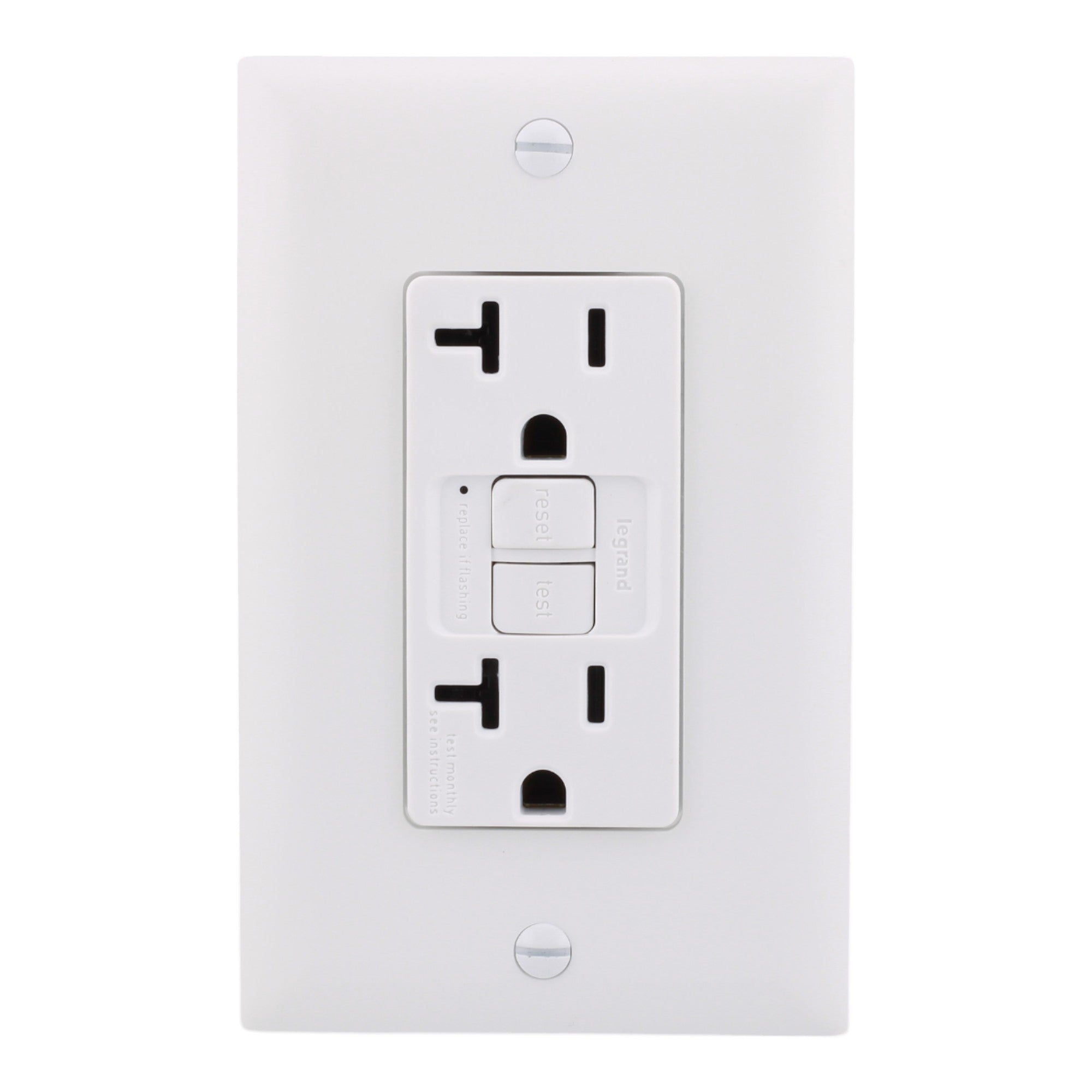

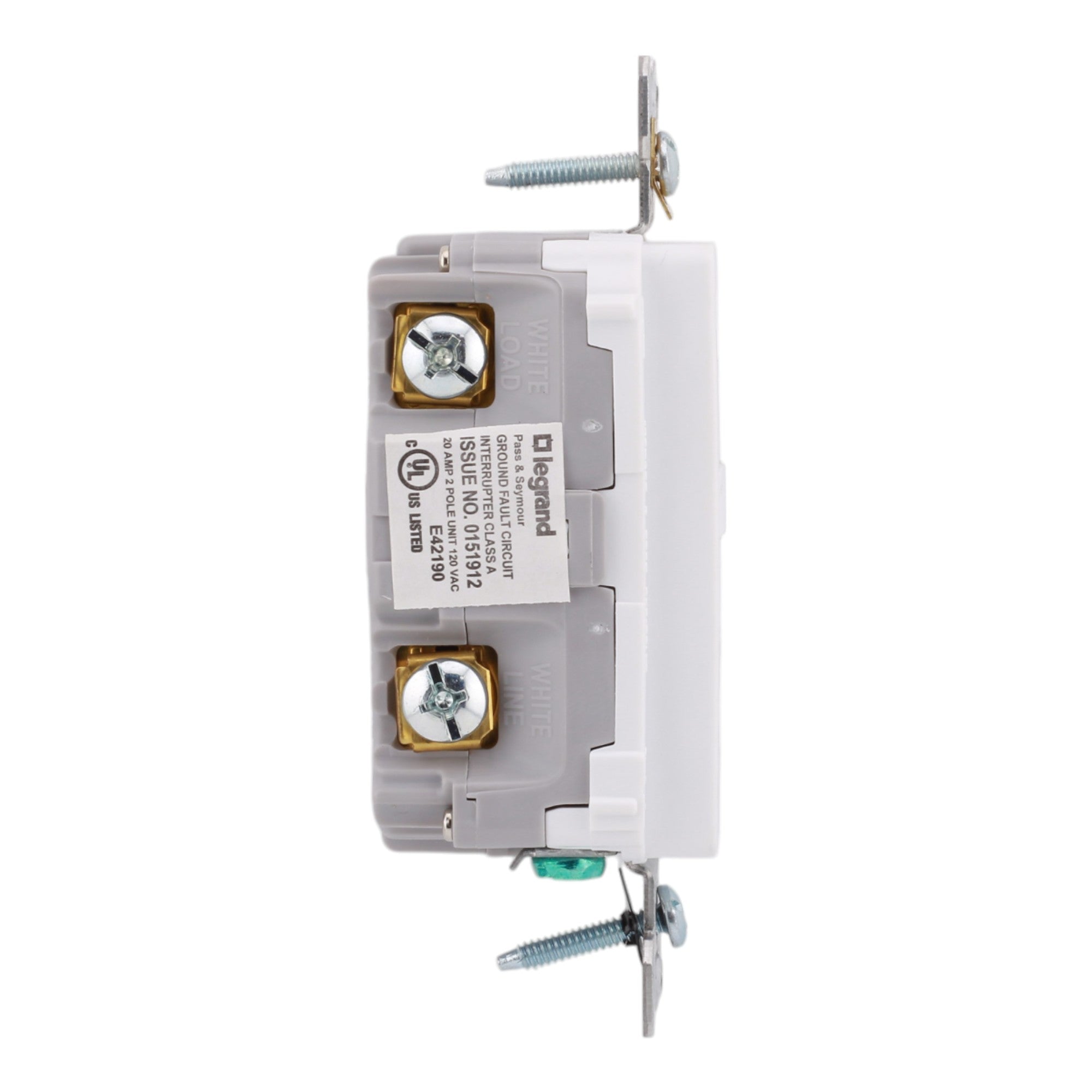

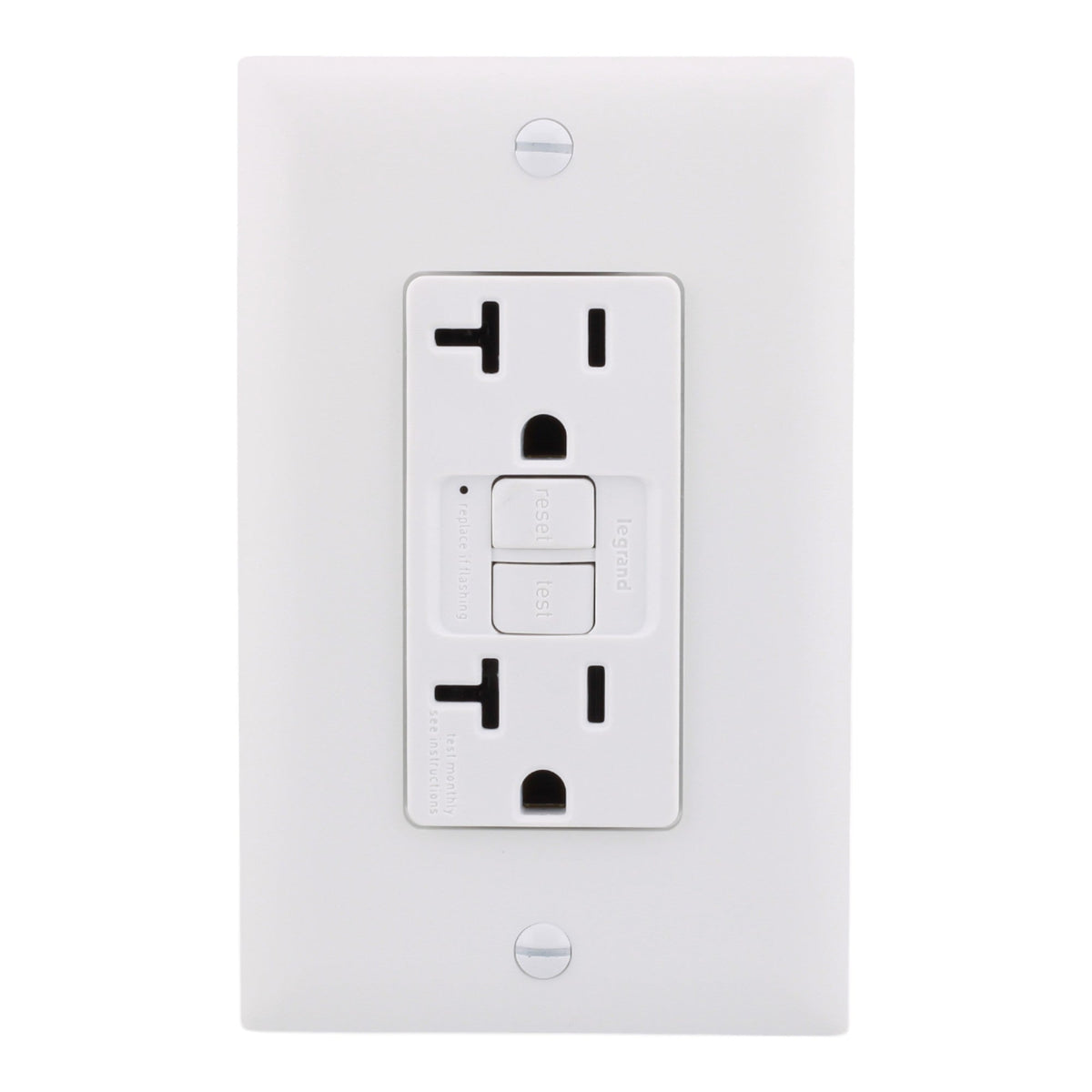

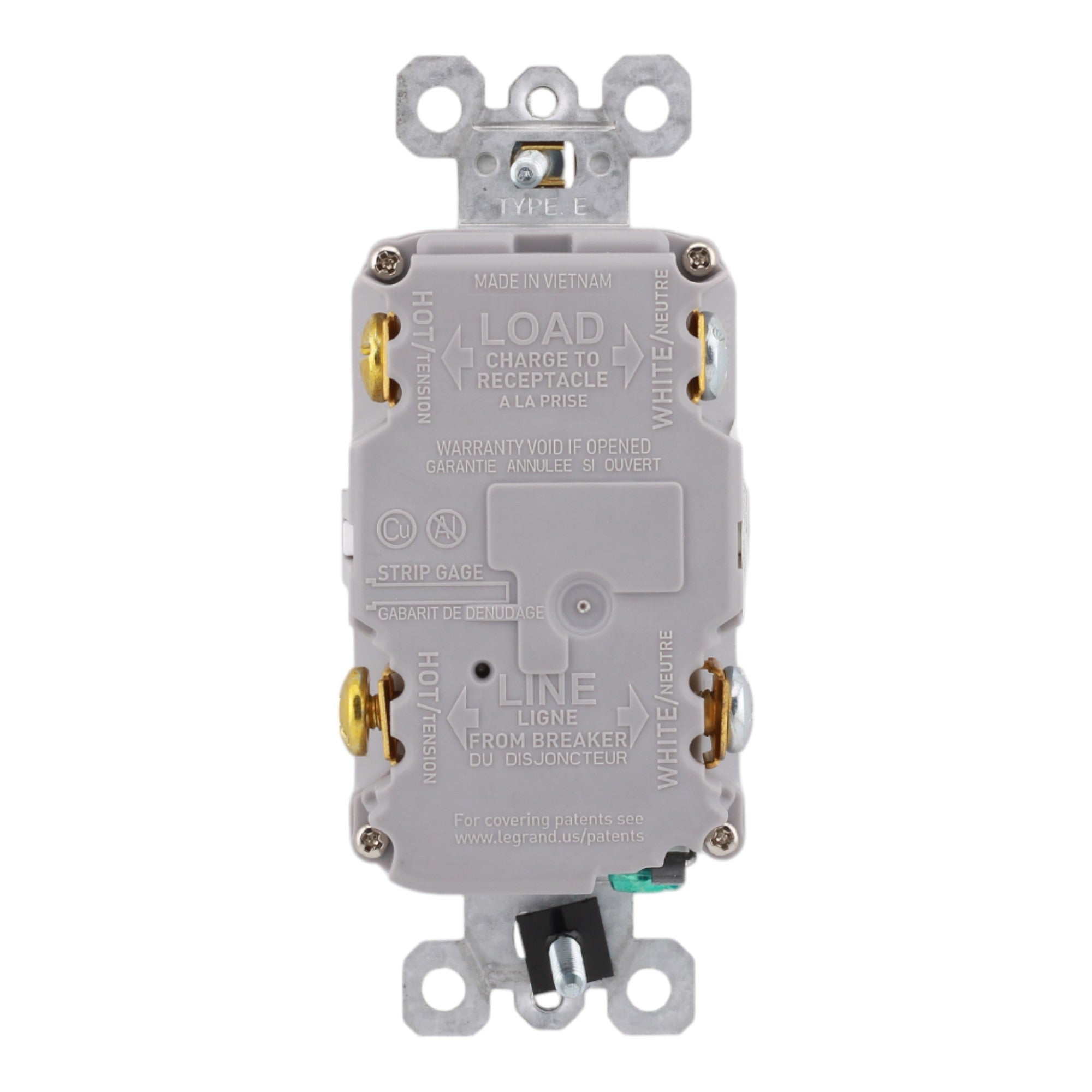

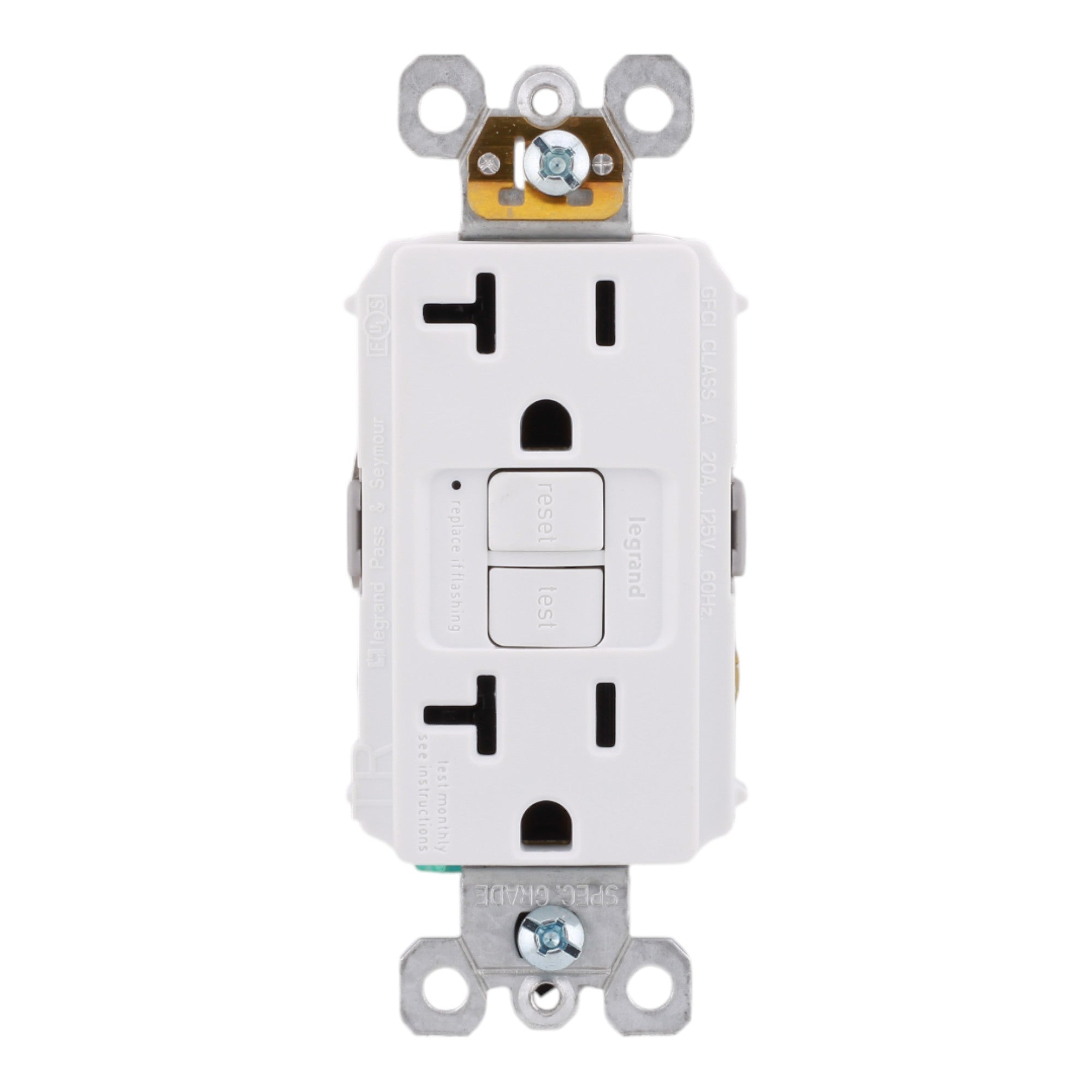

2097TRW Legrand , 20A, 125V, GFCI Receptacle, Tamper-Resistant, Self-Test, SafeLock® Protection, White.
2097TRW specifications
-
Brand: Legrand
-
Model Number: 2097TRW
-
UPC Number: 785007035872
-
Type: GFCI Receptacle (Self-Test, Tamper-Resistant)
-
Amperage Rating: 20 Amps
-
Voltage Rating: 125 Volts AC
-
Number of Poles: Double-Pole
-
Certifications: cULus, UL Listed
-
Dimensions (H × W × D): 4.2 Inches × 1.73 Inches × 1.13 Inches
-
Weight: 0.32 lb
-
Special Features: SafeLock® Protection, Automatic Self-Test Every 3 Seconds, High-Impact Resistant Thermoplastic Construction, 10kA Short Circuit Rating
-
Compatibility: Works with Radiant® Screwless Wall Plates (Sold Separately)
-
Indoor/Outdoor: Indoor
-
Mounting Type: Box Mount
-
Number of Receptacles: 2
-
Feed-Thru Capacity: 20 Amp
Key Features and Benefits
-
GFCI Protection: Provides advanced safety against ground-fault occurrences.
-
Self-Test Function: Automatically runs a self-test every 3 seconds to confirm proper functionality.
-
SafeLock® Protection: Disconnects power to the outlet if critical components fail, ensuring safety.
-
Tamper-Resistant: Equipped with patented "invisi-shutters" to prevent accidental insertion of foreign objects.
-
Ideal for High-Powered Appliances: 20A rating supports larger appliances and commercial applications.
-
Feed-Thru Wiring Capability: Extends GFCI protection to downstream outlets.
-
High-Impact Resistant: Built with durable thermoplastic for long-lasting performance.
-
Modern Design: Complements other switches and outlets in the Radiant® Collection.
-
Easy Installation: Replaces standard receptacles in just 10 minutes.
Applications
-
Residential Use: Ideal for kitchens, bathrooms, garages, basements, and any areas within six feet of a sink or water source.
-
Commercial Use: Meets federal specifications for commercial installations, making it suitable for offices, restaurants, and other business environments.
-
Code Compliance: Required by NEC (National Electrical Code) in areas near water sources.
