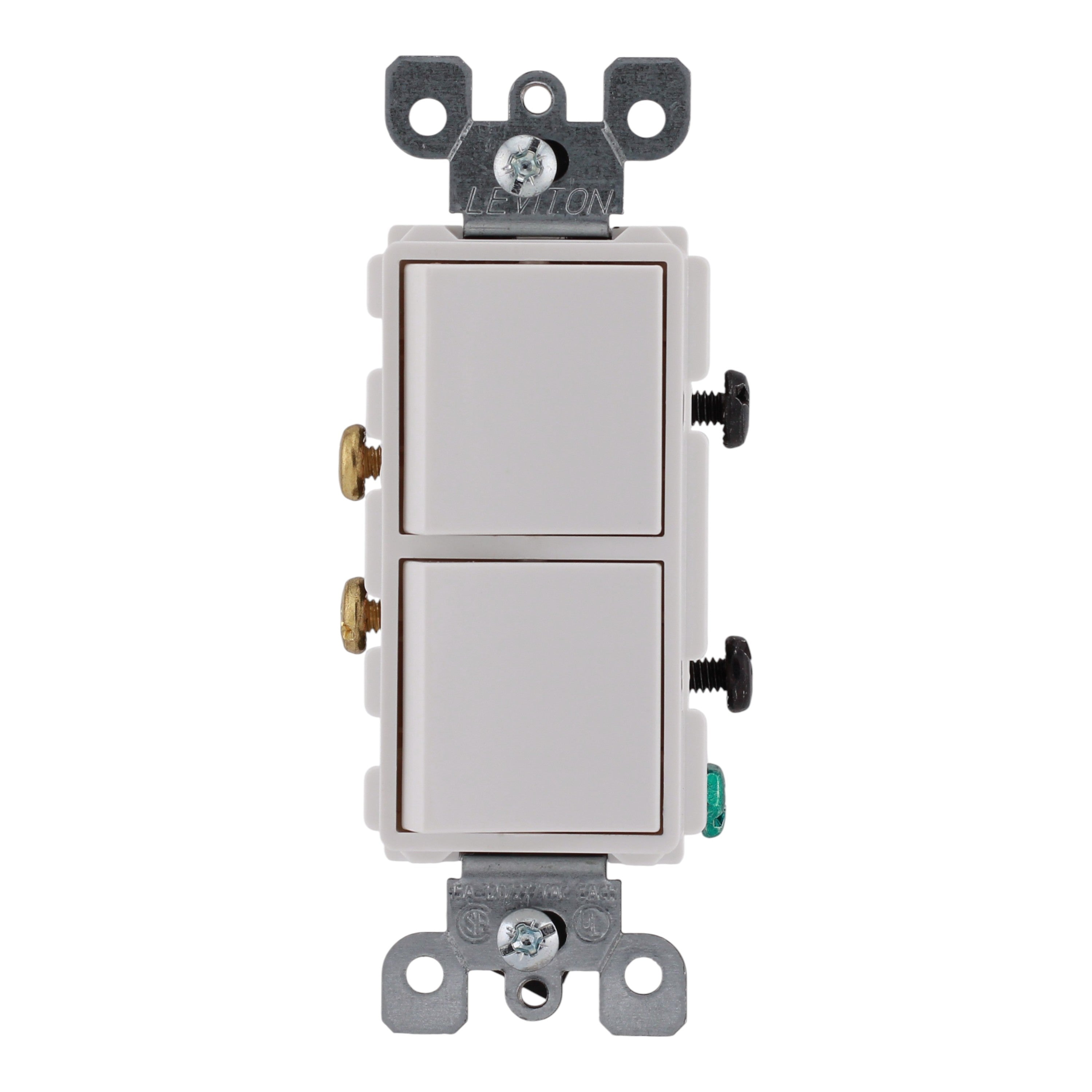

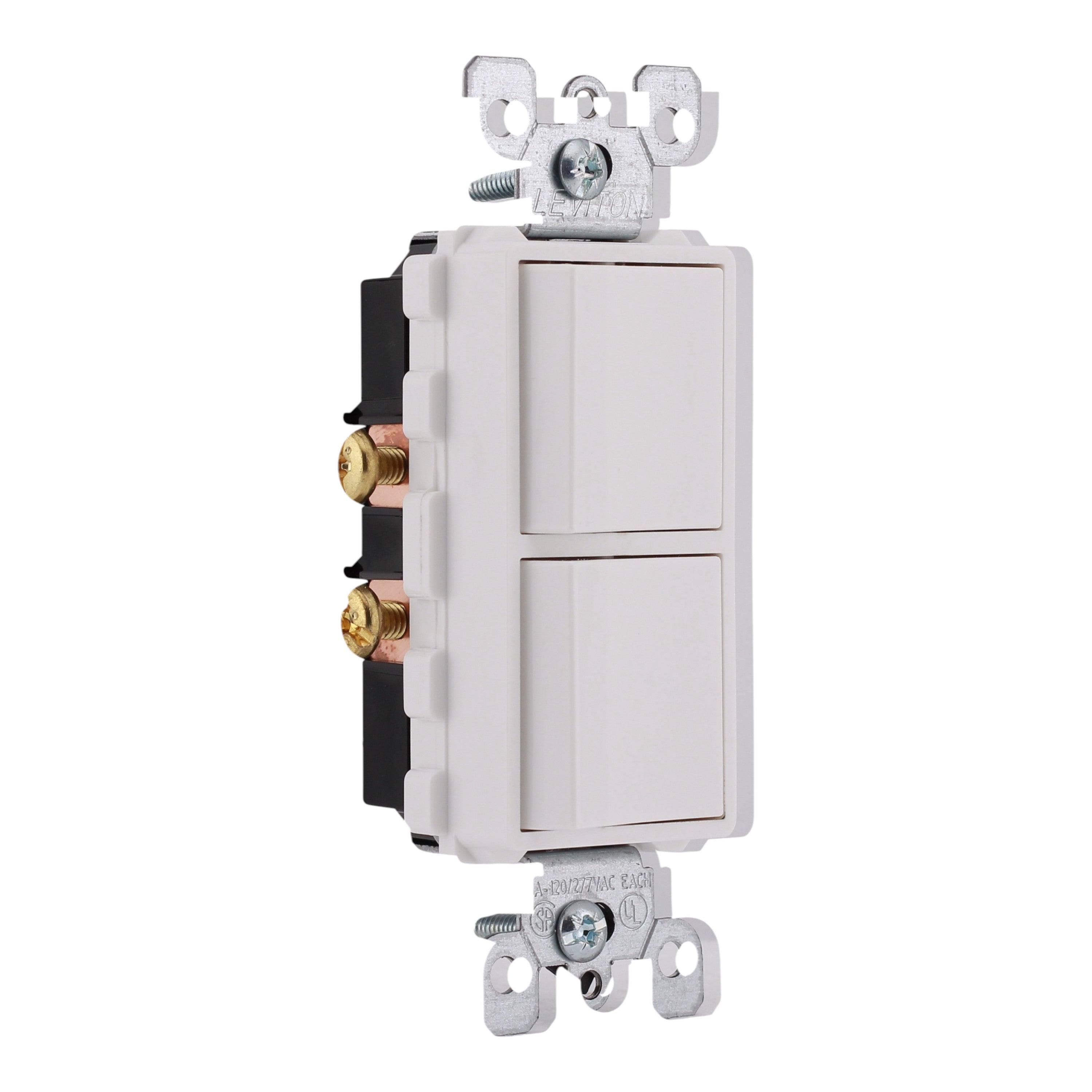

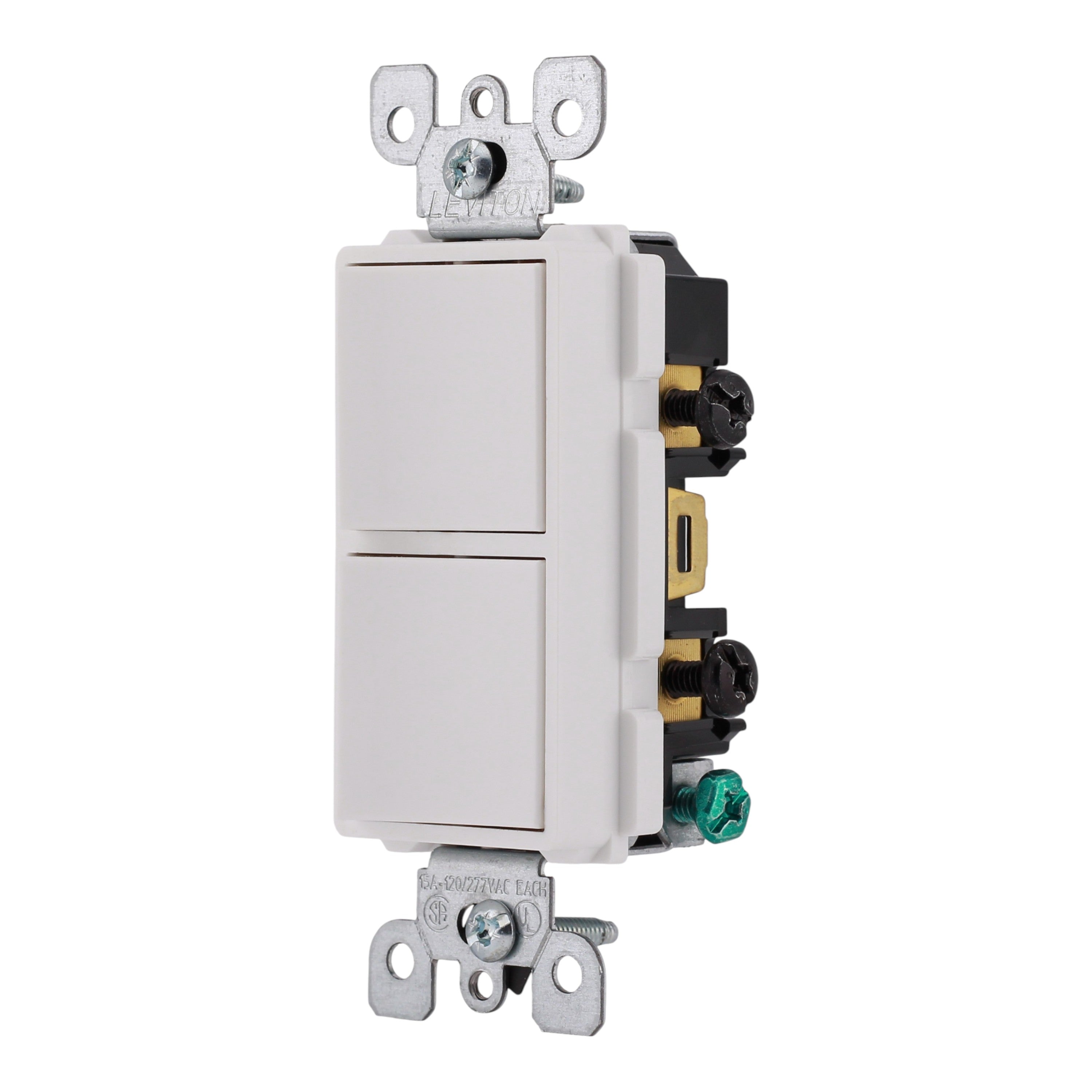

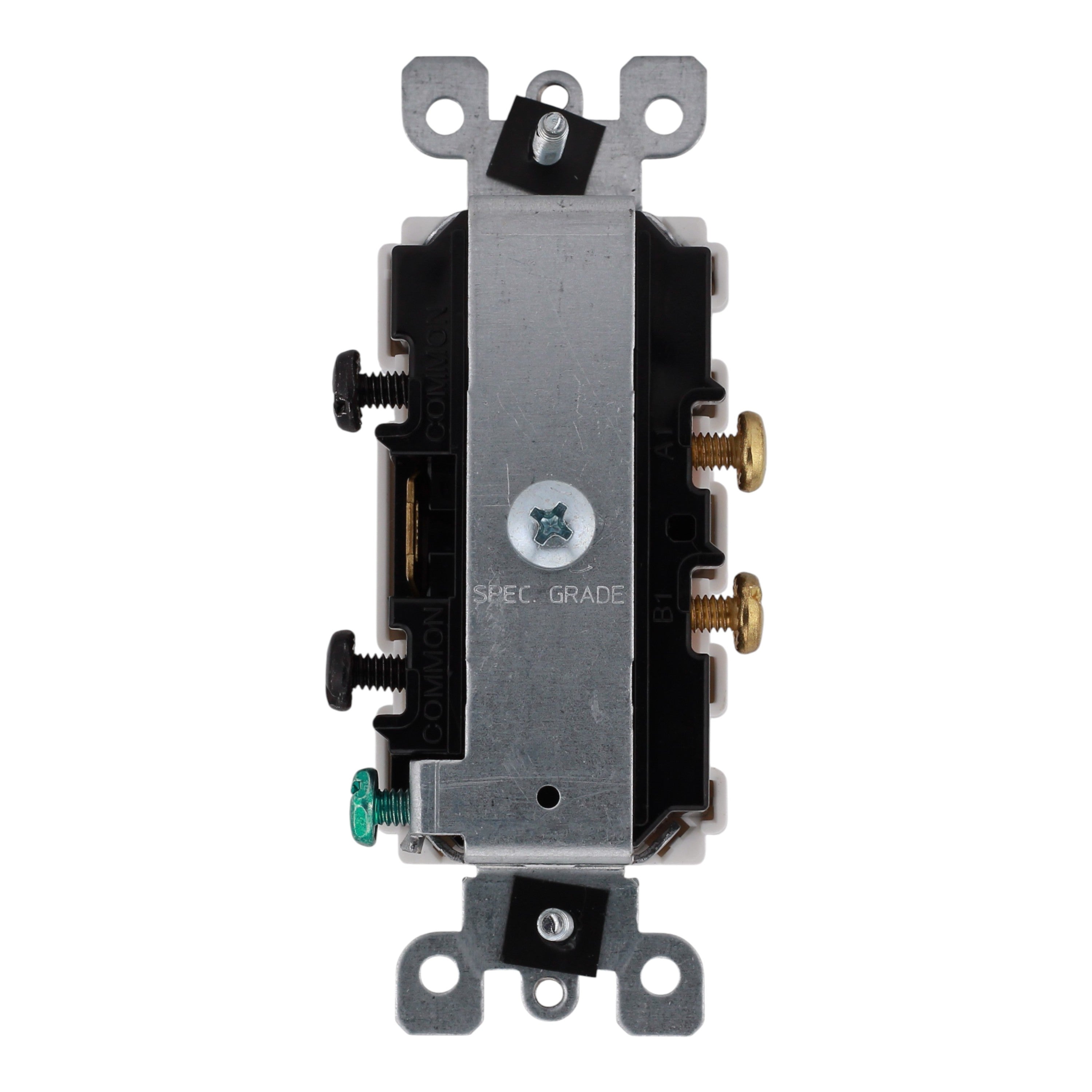

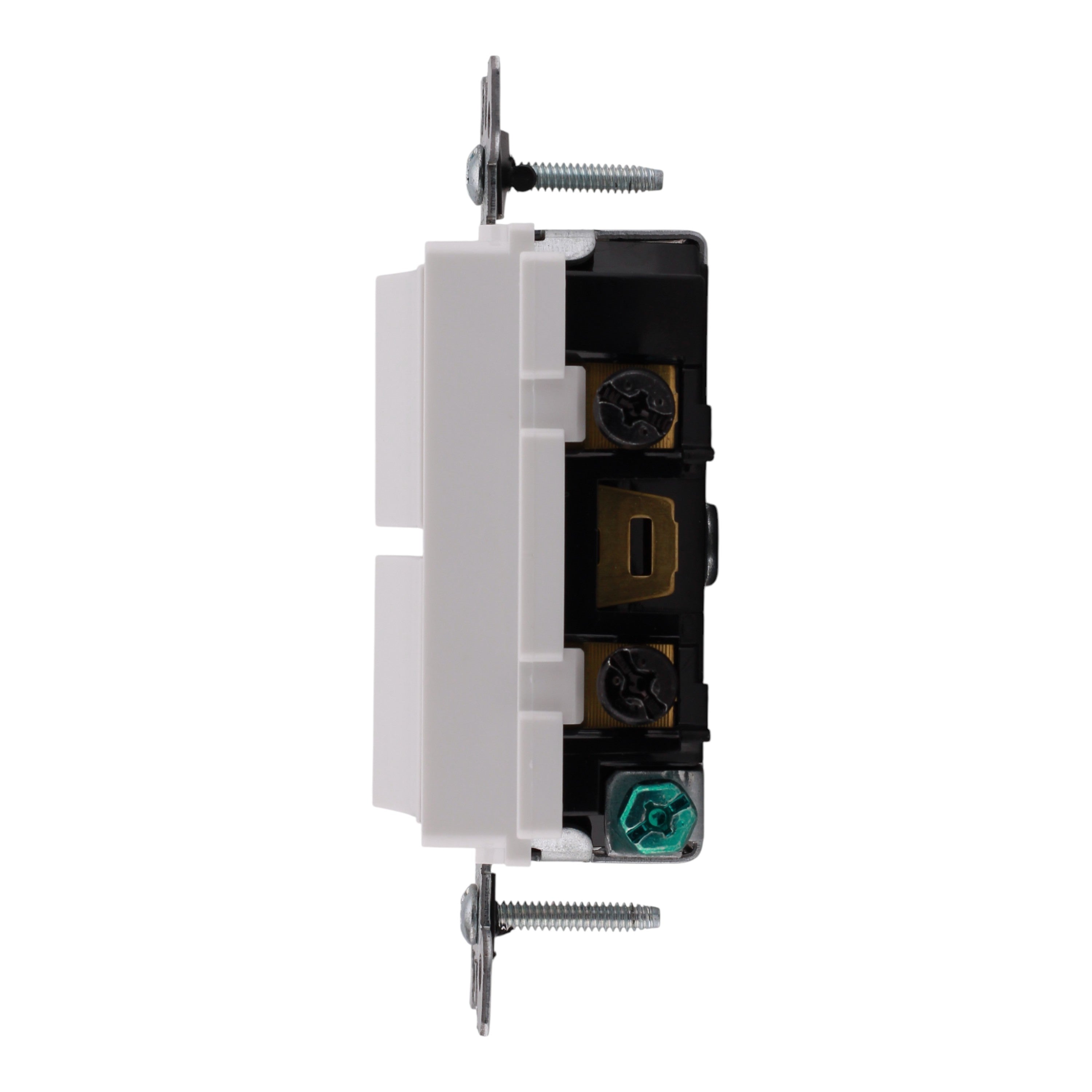

Leviton 5634-W: 15 Amp Single-Pole / Single-Pole Decora AC combination switch, 120/277V, grounding, commercial/residential specification grade, side wired, UL/CSA listed.
-
Manufacturer: Leviton Manufacturing Co., Inc.
-
Brand: Leviton
-
Product Range: Decora (for residential and commercial wiring devices)
-

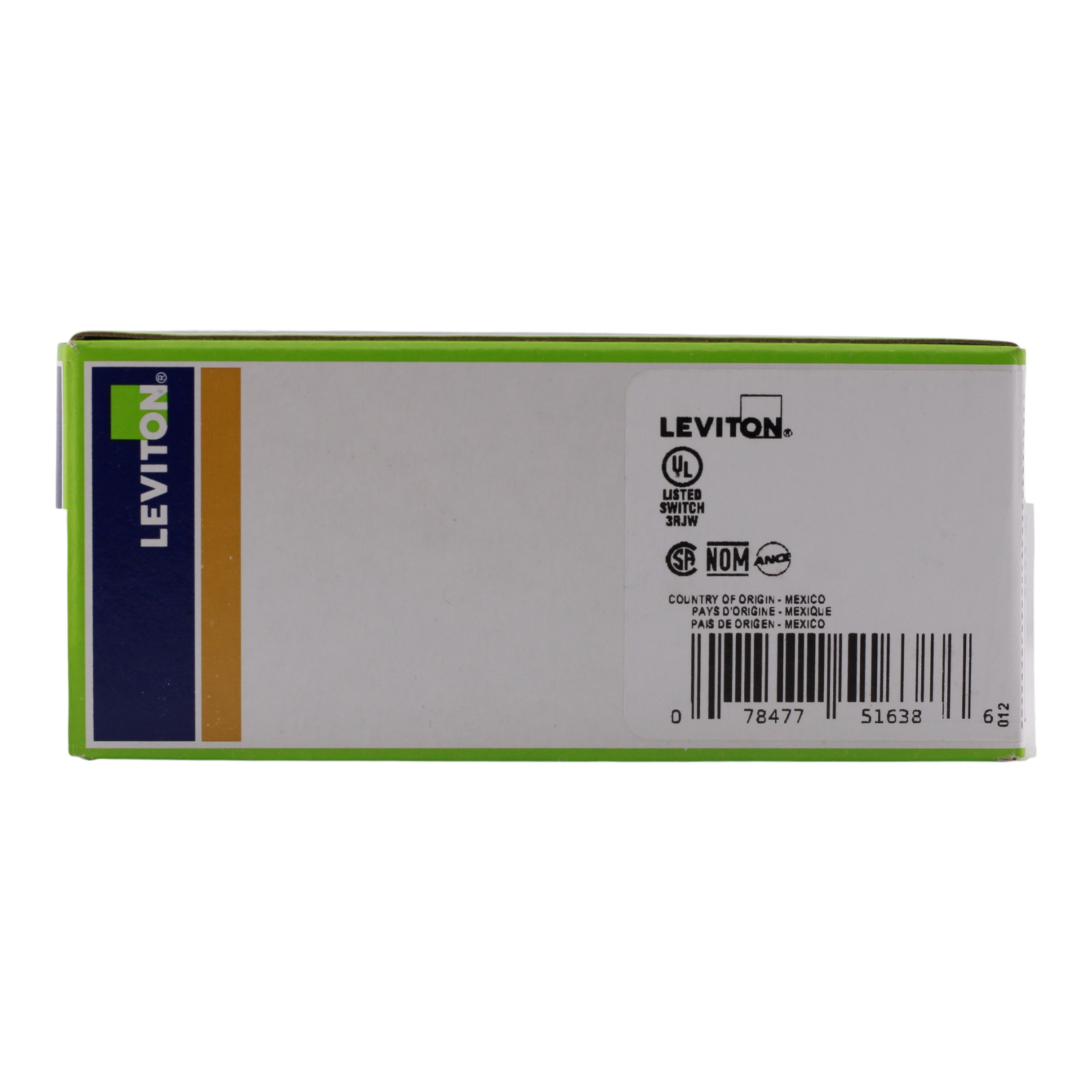

UPC: 078477516386
-

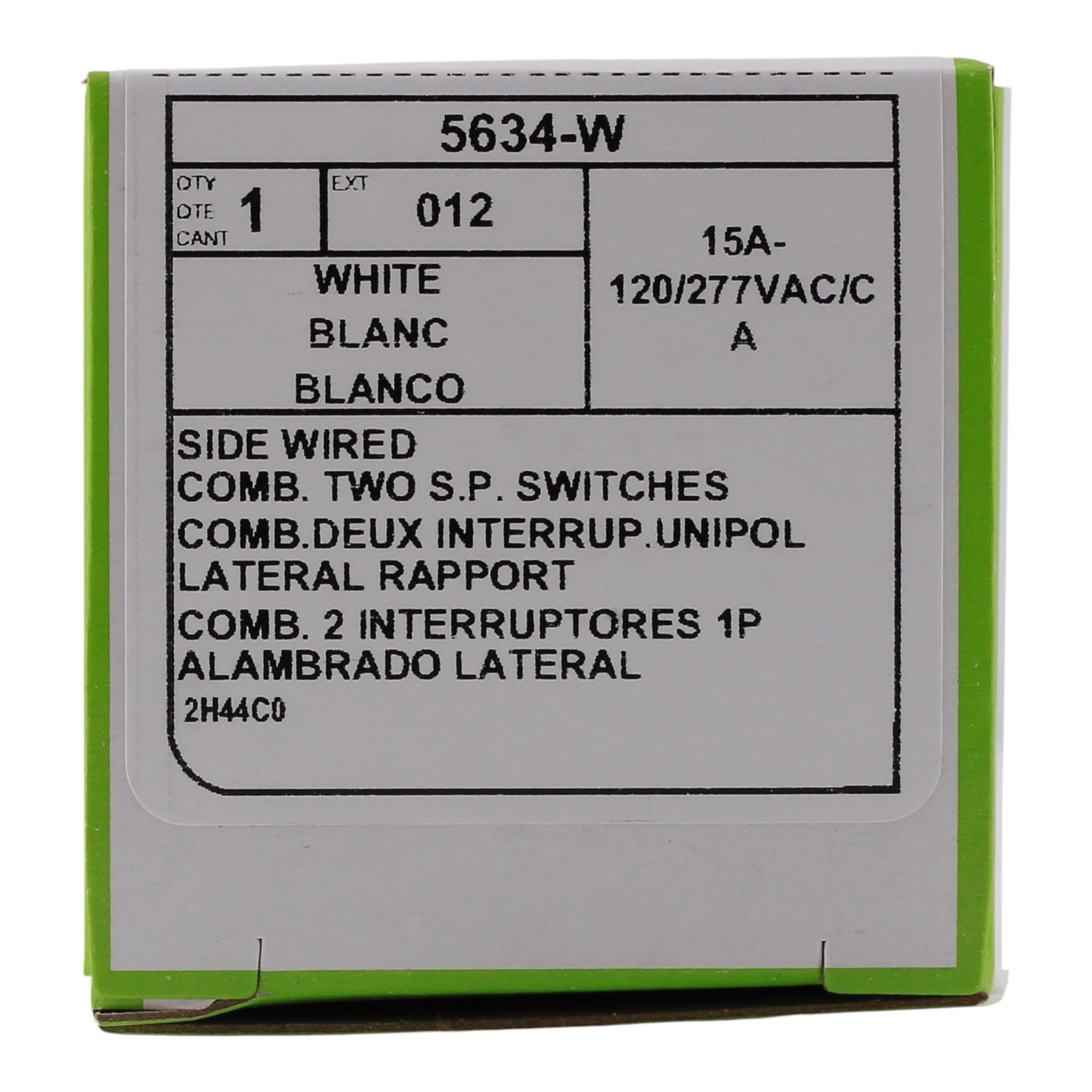

Model Number: 5634-W
-
Product Type: Combination Switch (Two Single-Pole Switches)
-
Amperage: 15 Amps
-
Voltage: 120/277 Volts AC
-
Horsepower Rating: 1/2 HP at 120V; 2 HP at 240-277V
-
Switch Type: Single-Pole / Single-Pole
-
Mounting Mode: Wallbox / Surface
-

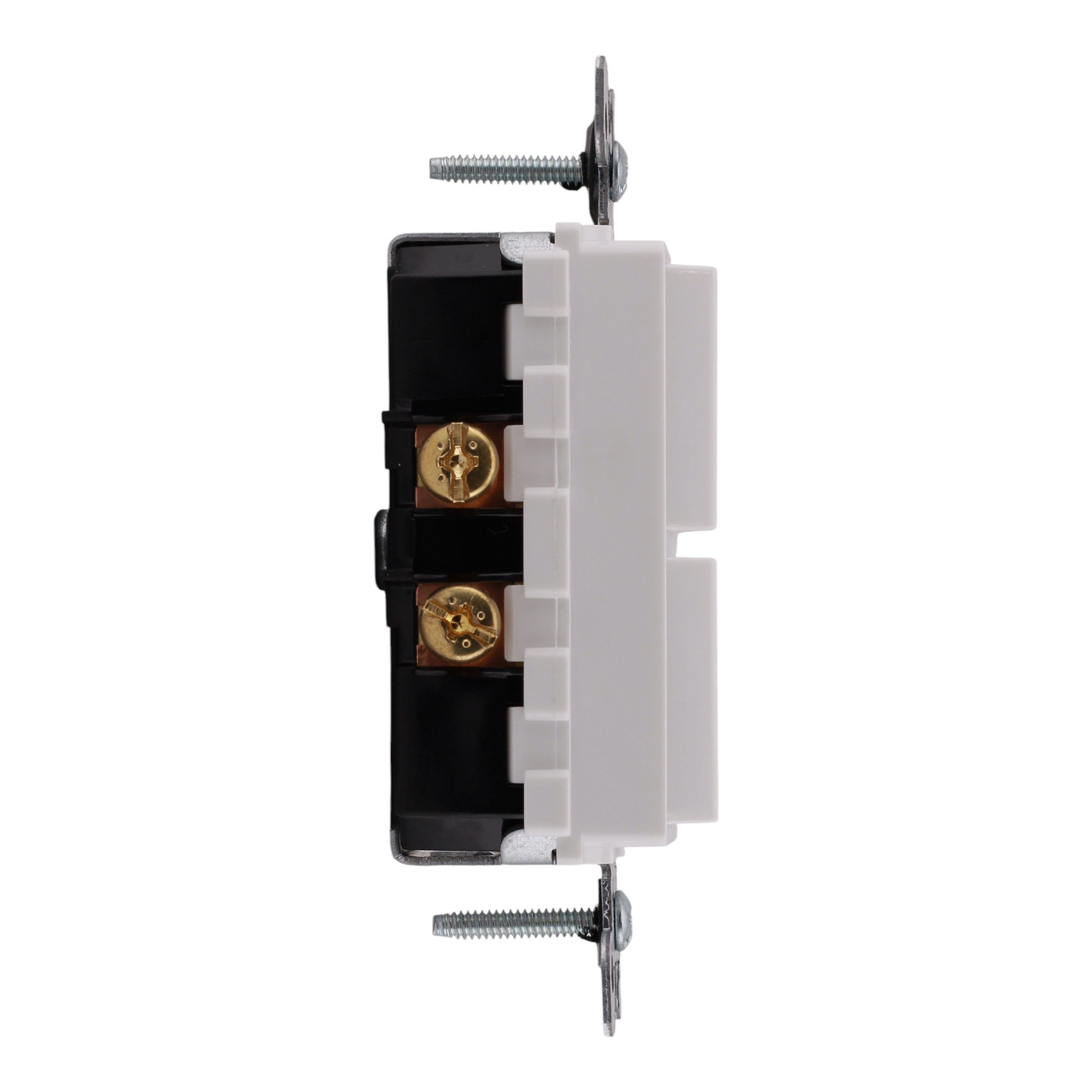

Connections Terminals: Side wired
-
Wire Size: #14-12 AWG Cu (typical for 15A switches)
-
Tightening Torque: 14-18 lb-in
-
Dimensions: Height: 4.2 in; Width: 1.31 in; Depth: 1.6 in
-
Weight: 0.26 lbs
-
Certifications: UL Listed, CSA Certified
-

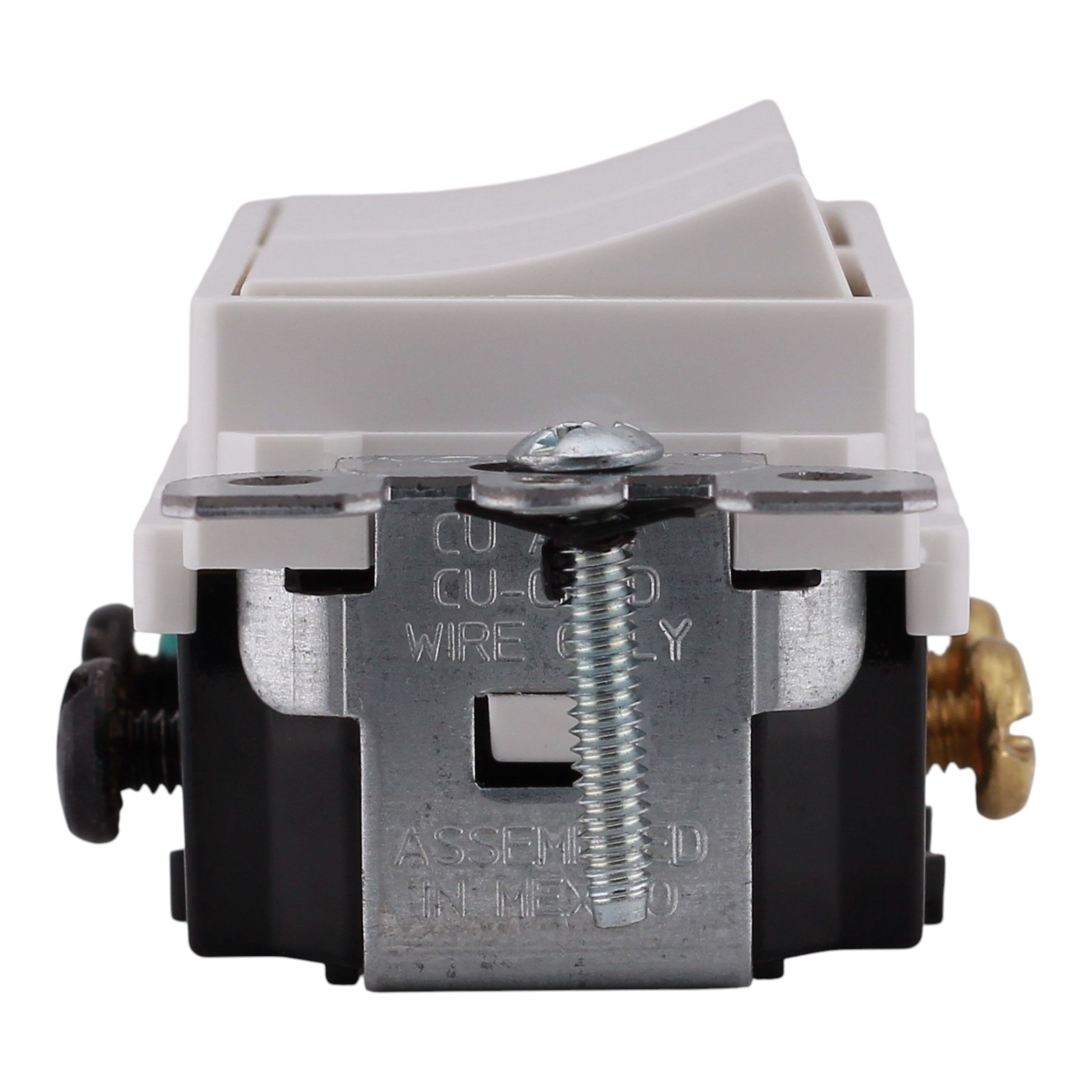

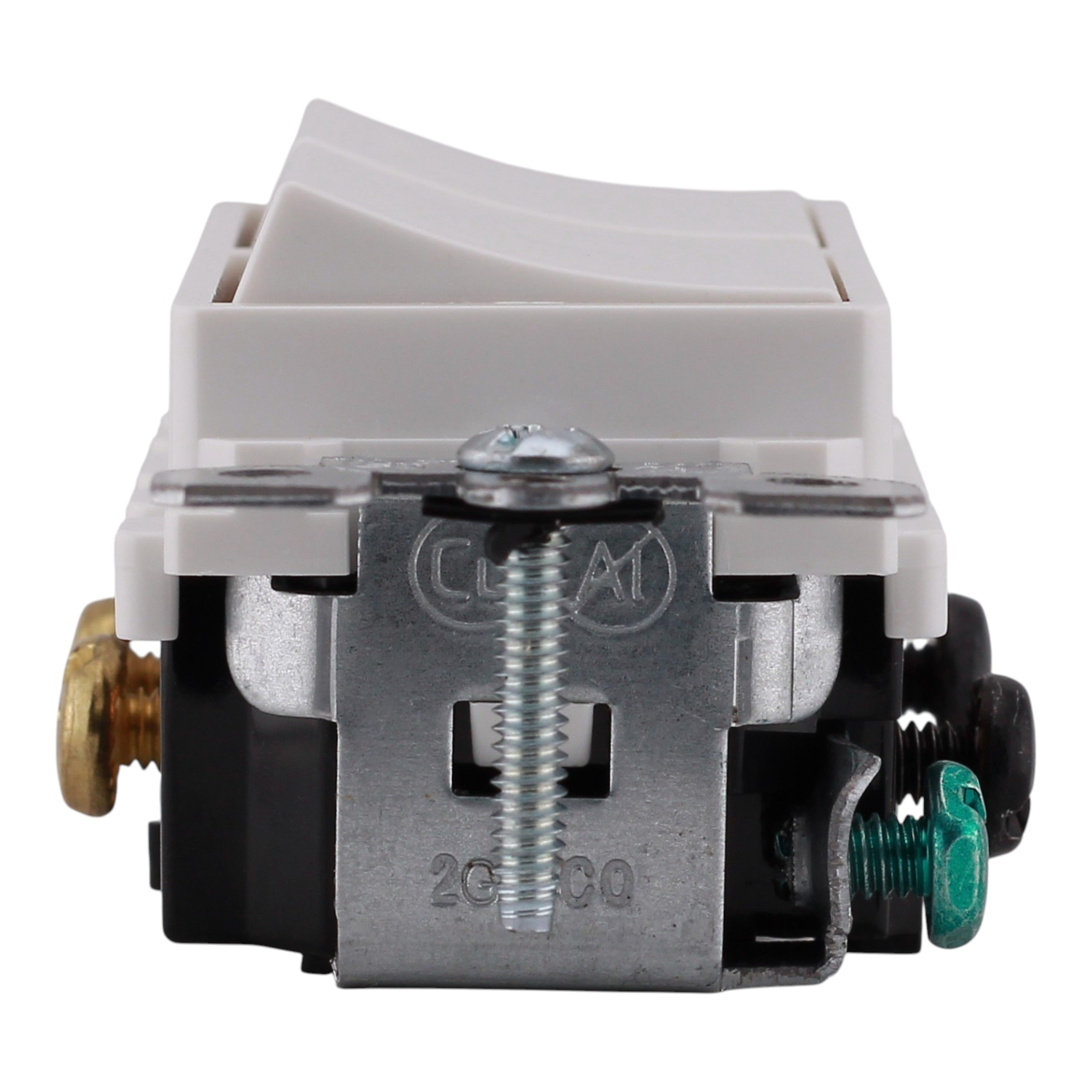

Materials: Thermoplastic actuator and body; Steel strap
This Leviton Decora 5634-W 15A combination switch in white provides reliable dual single-pole control in a single-gang wallbox, ideal for residential and commercial applications. With impact-resistant thermoplastic construction, grounding, and side wiring, it offers durable, space-saving operation for lighting and appliance circuits at 120/277V.
