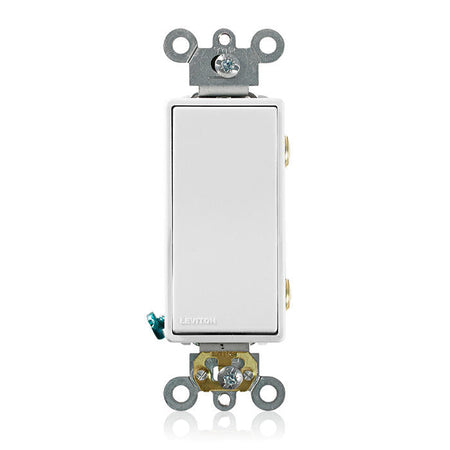

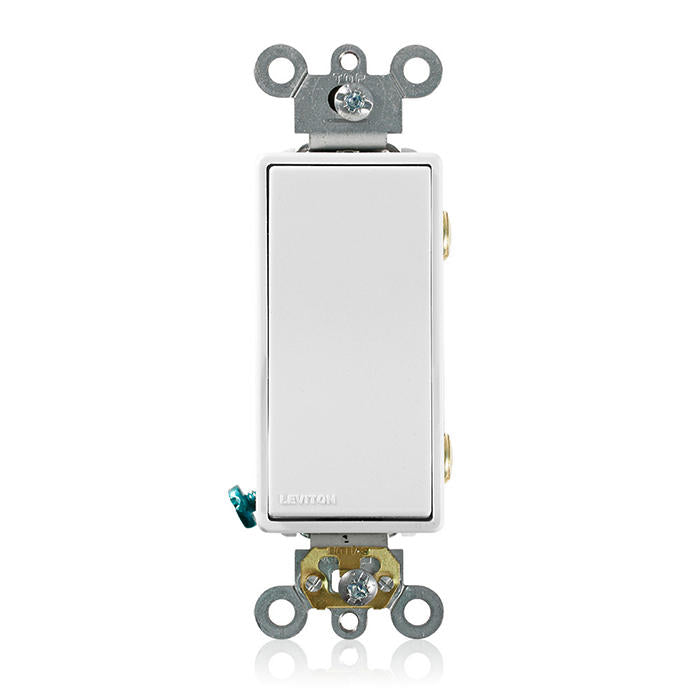

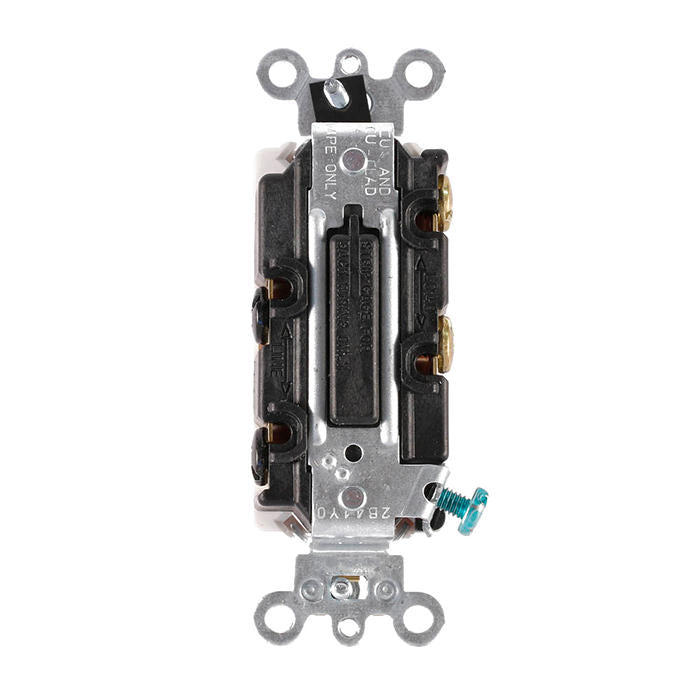

Leviton, Decora Plus, 5622-2W, 20A, 2-Pole, 120/277V, AC Quiet Switch, White

Leviton 5622-2W: 20 Amp, 2-Pole, Decora Plus Rocker AC Quiet Switch, 120/277V, Commercial Spec Grade, self-grounding, back & side wired, UL listed, CSA.

• Manufacturer: Leviton
• Brand: Leviton
• Product Range: Decora Plus (Commercial Specification Grade)
• UPC: 078477515198
• Model Number: 5622-2W
• Switch Type: Double-Pole AC Quiet Rocker Switch
• Amperage: 20 Amps
• Poles: 2-Pole
• Voltage: 120/277 Volts AC
• Mounting Mode: Back & Side Wired, Self-Grounding
• Wire Size (Back terminals): #14–10 AWG (solid and stranded)
• Wire Size (Side terminals): #14–12 AWG
• HP Rating: 1 hp @ 120V; 2 hp @ 240V
• Dielectric Strength: 1,500 Volts
• Construction: Heavy-duty impact-resistant thermoplastic
• Dimensions: Height: 4.06 in; Width: 1.30 in; Depth: 1.16 in
• Certifications: UL Listed (File #E7458, UL 20), CSA (C22.2 No. 111, File #152105), HACR Rated, ANSI C-73, NEMA WD-1 & WD-6
• Color: White

This Leviton 5622-2W Decora Plus 2-Pole AC quiet rocker switch delivers dependable 20 Amp, 120/277V switching for commercial and specification-grade applications. Self-grounding with back and side wiring options, it fits standard Decora-style wallplates in commercial panels and lighting circuits.
