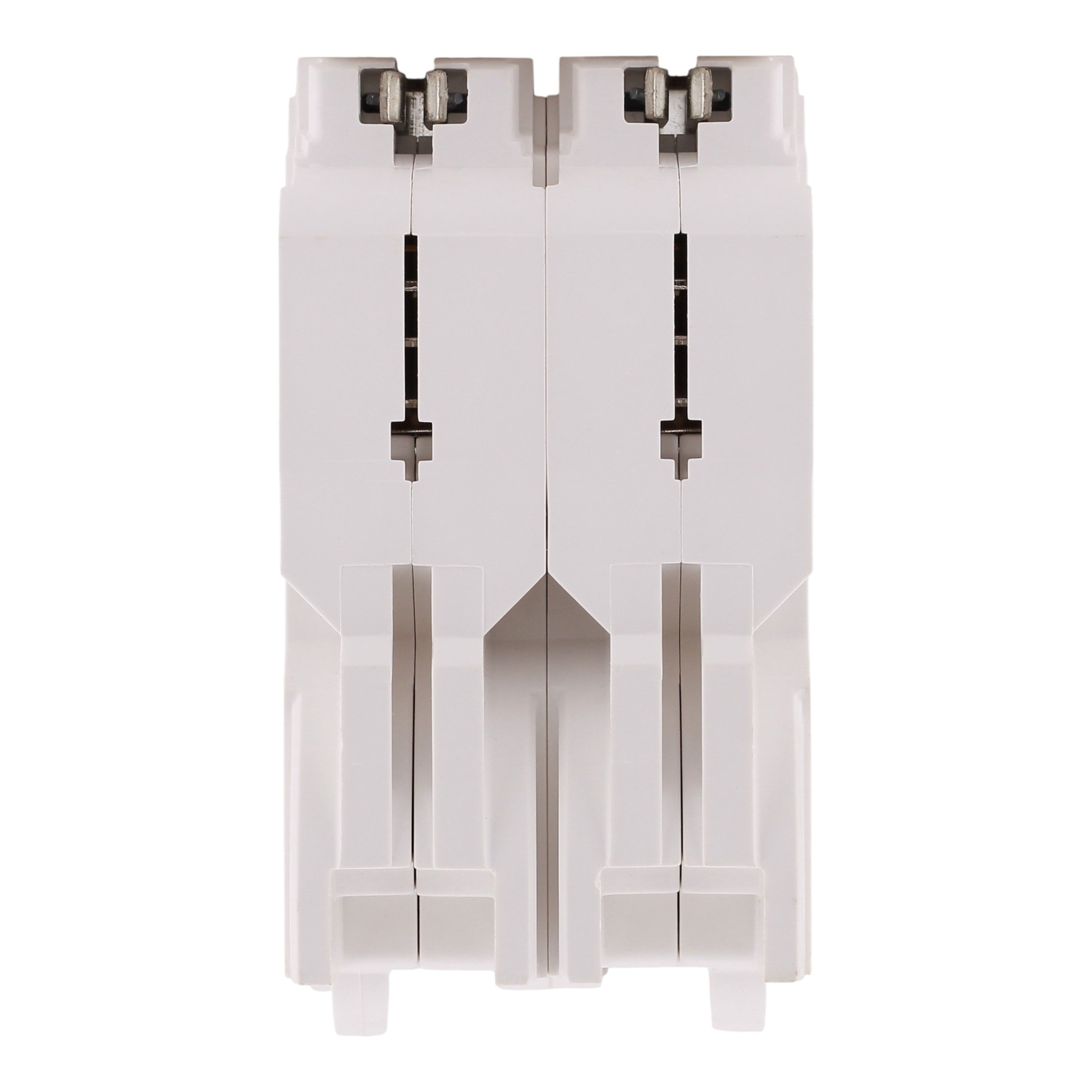

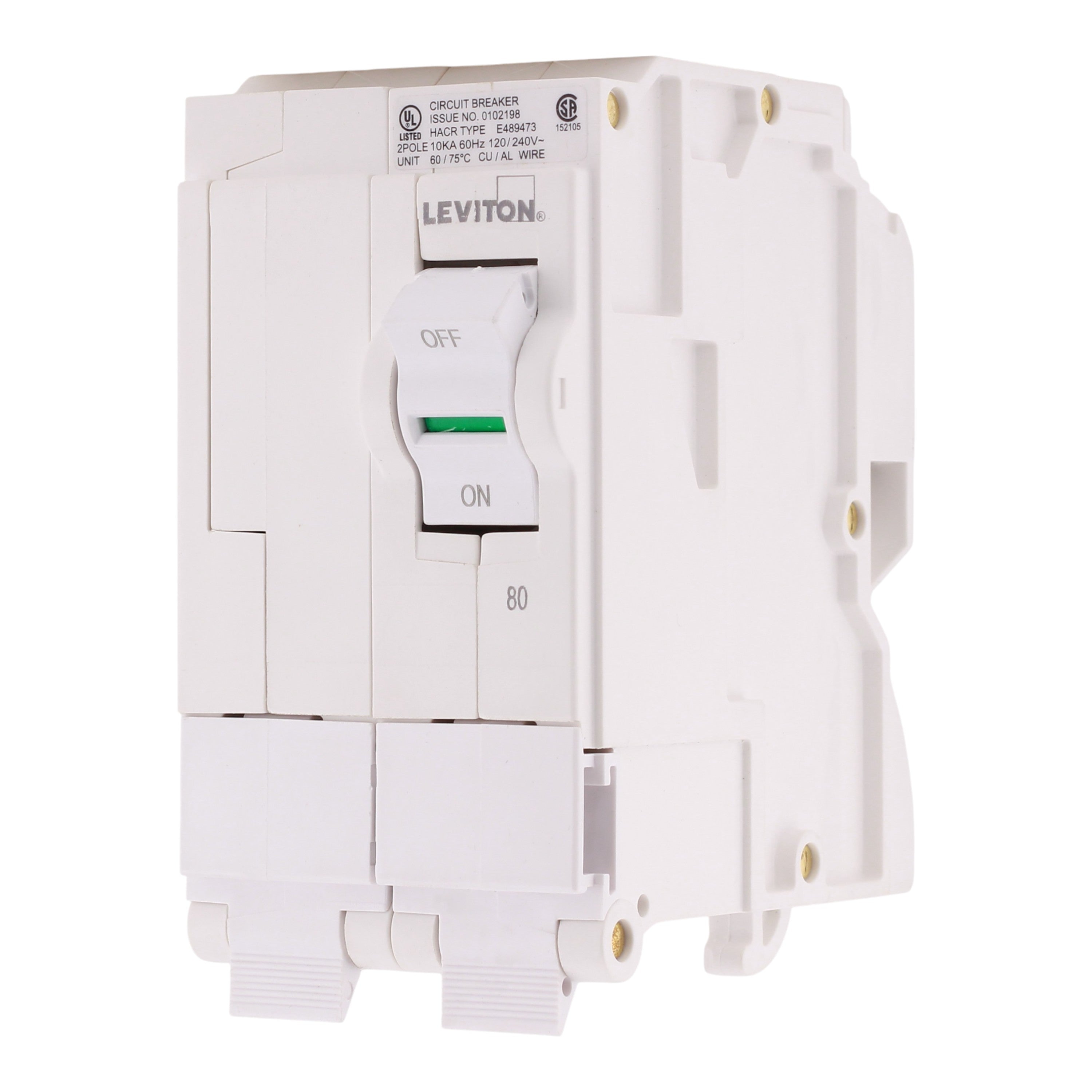

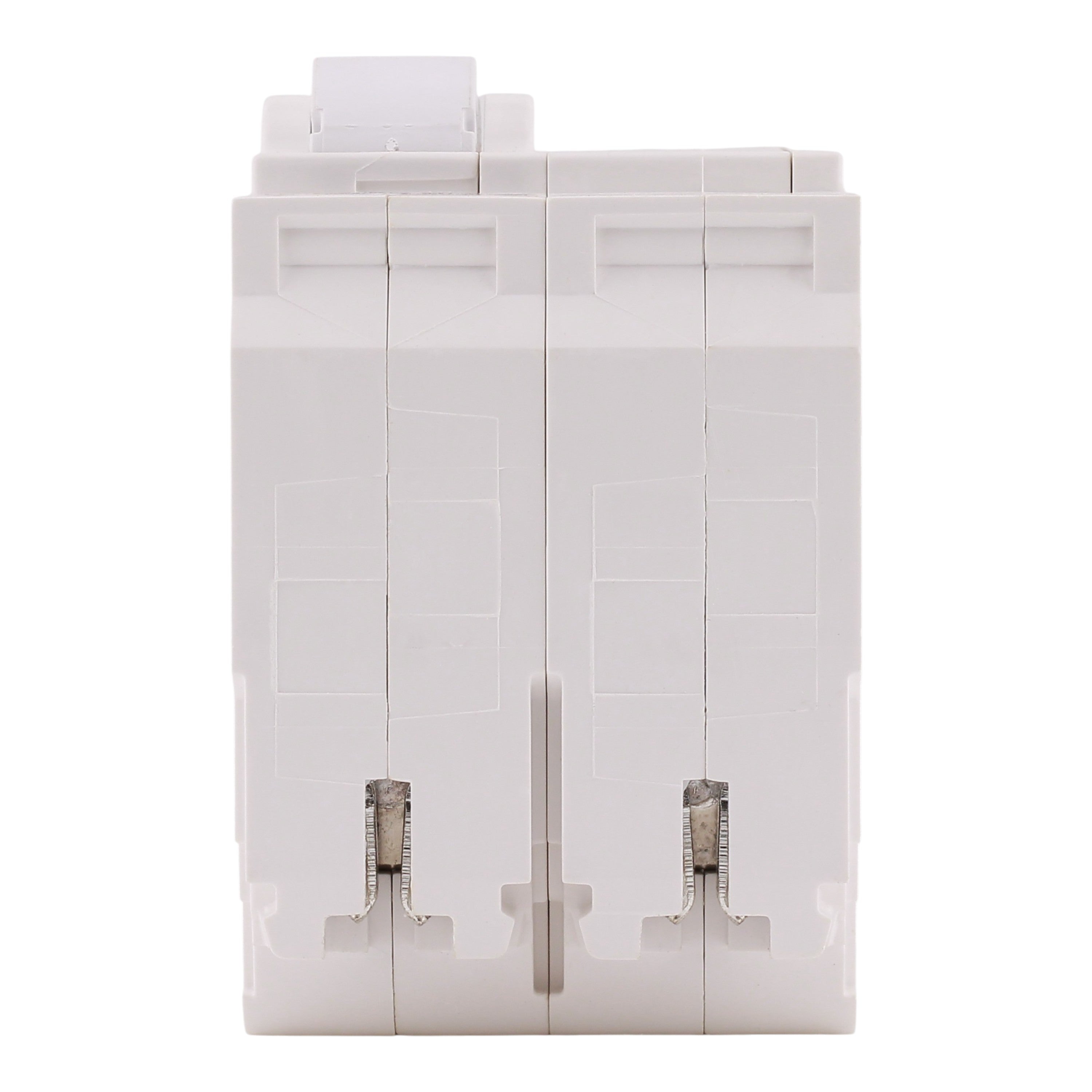

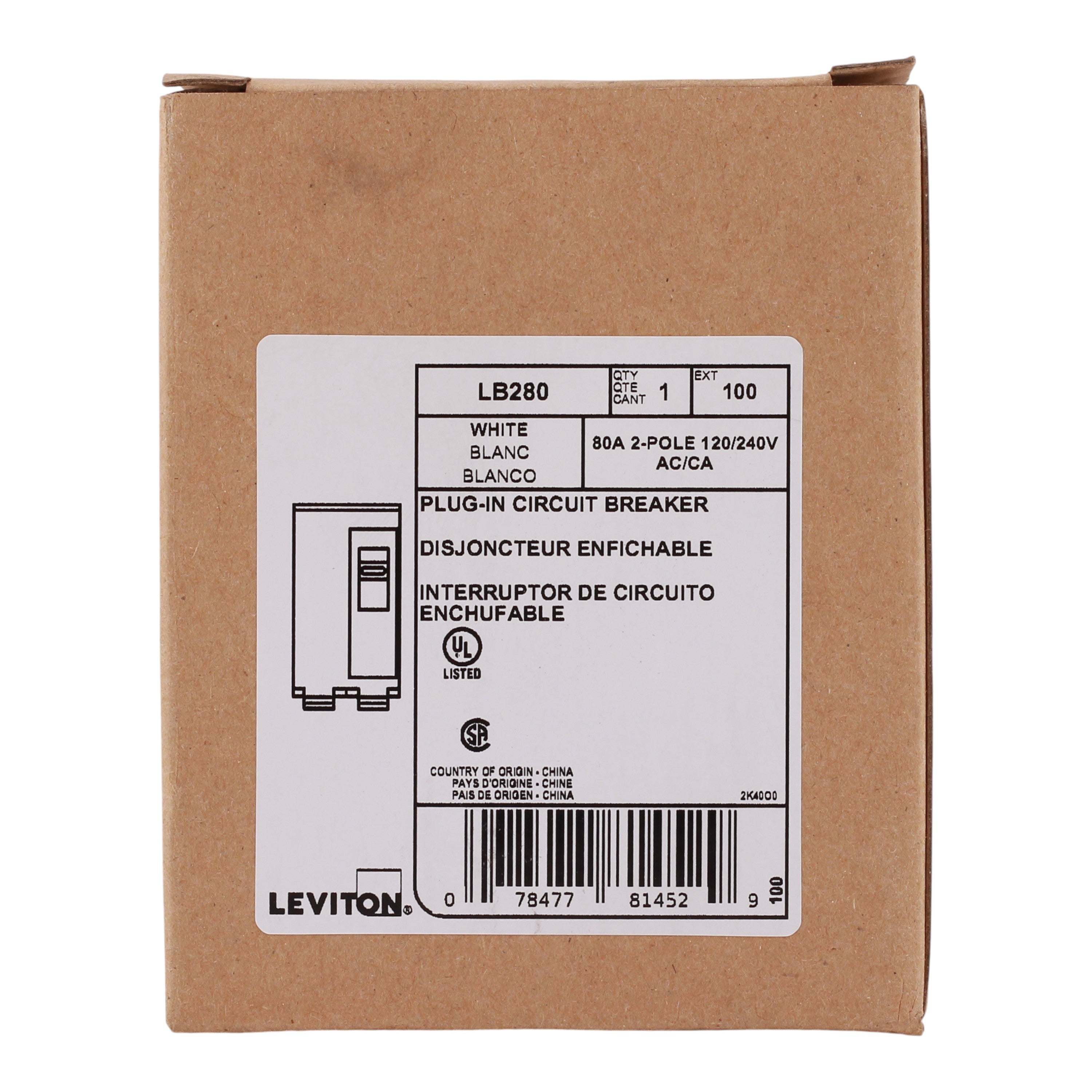

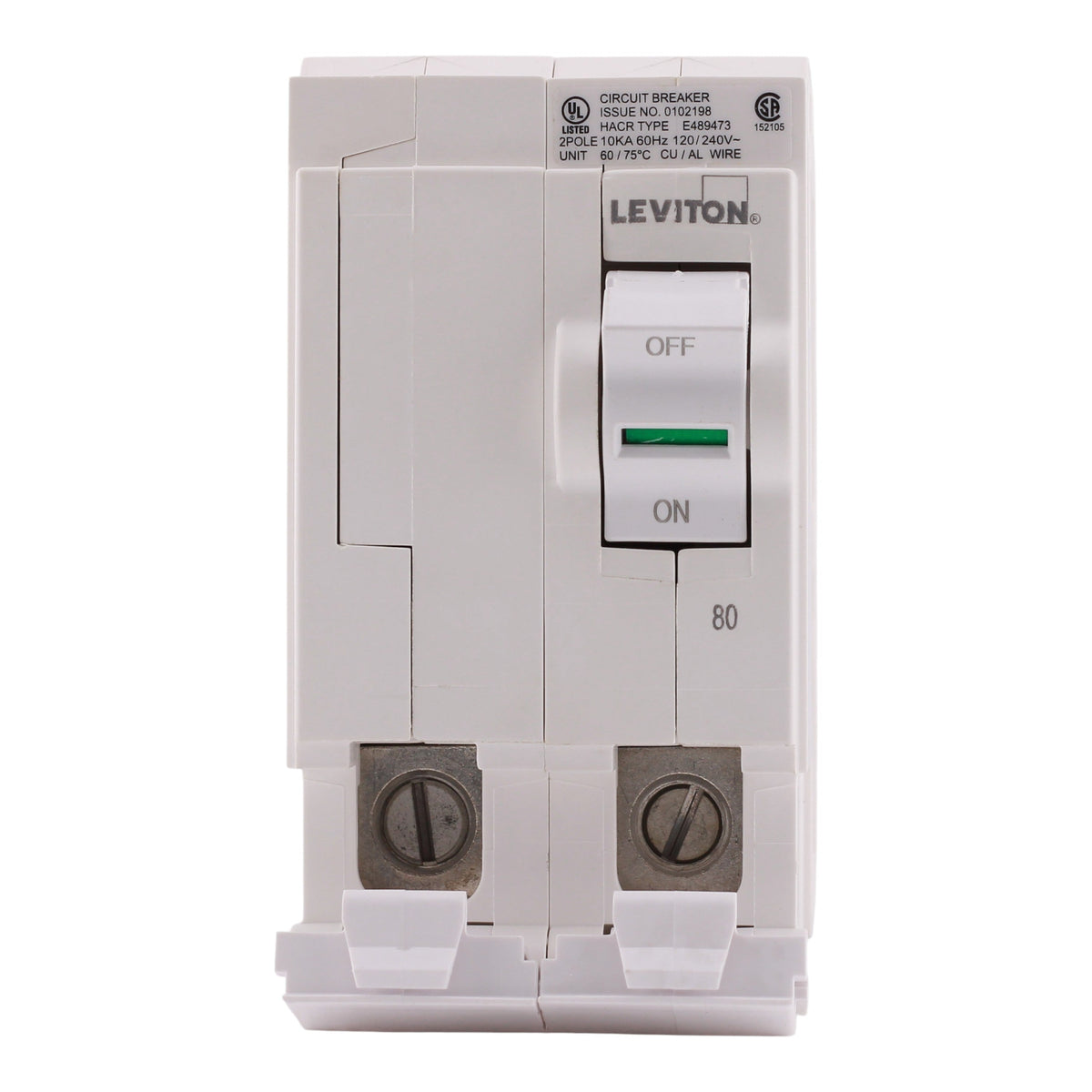

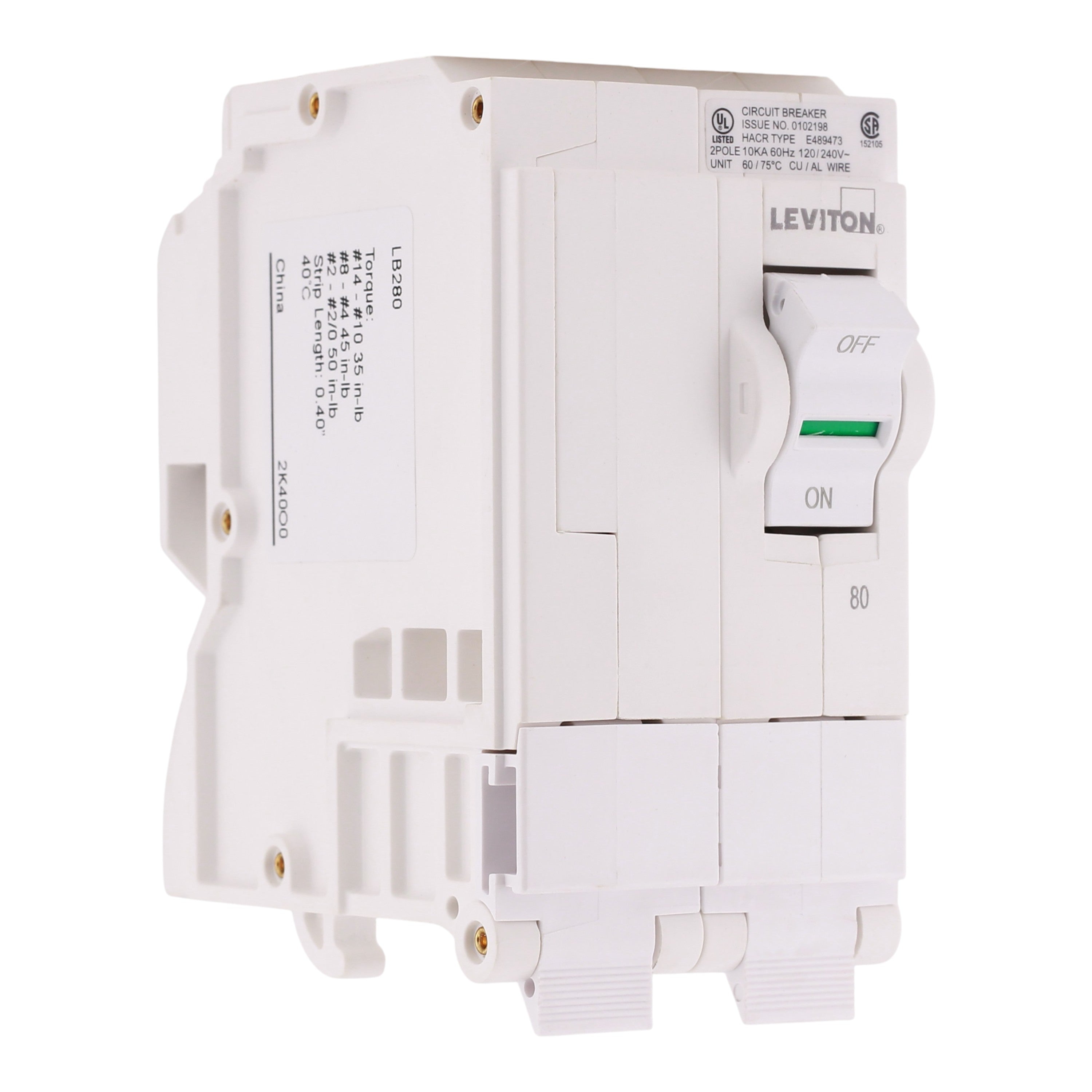

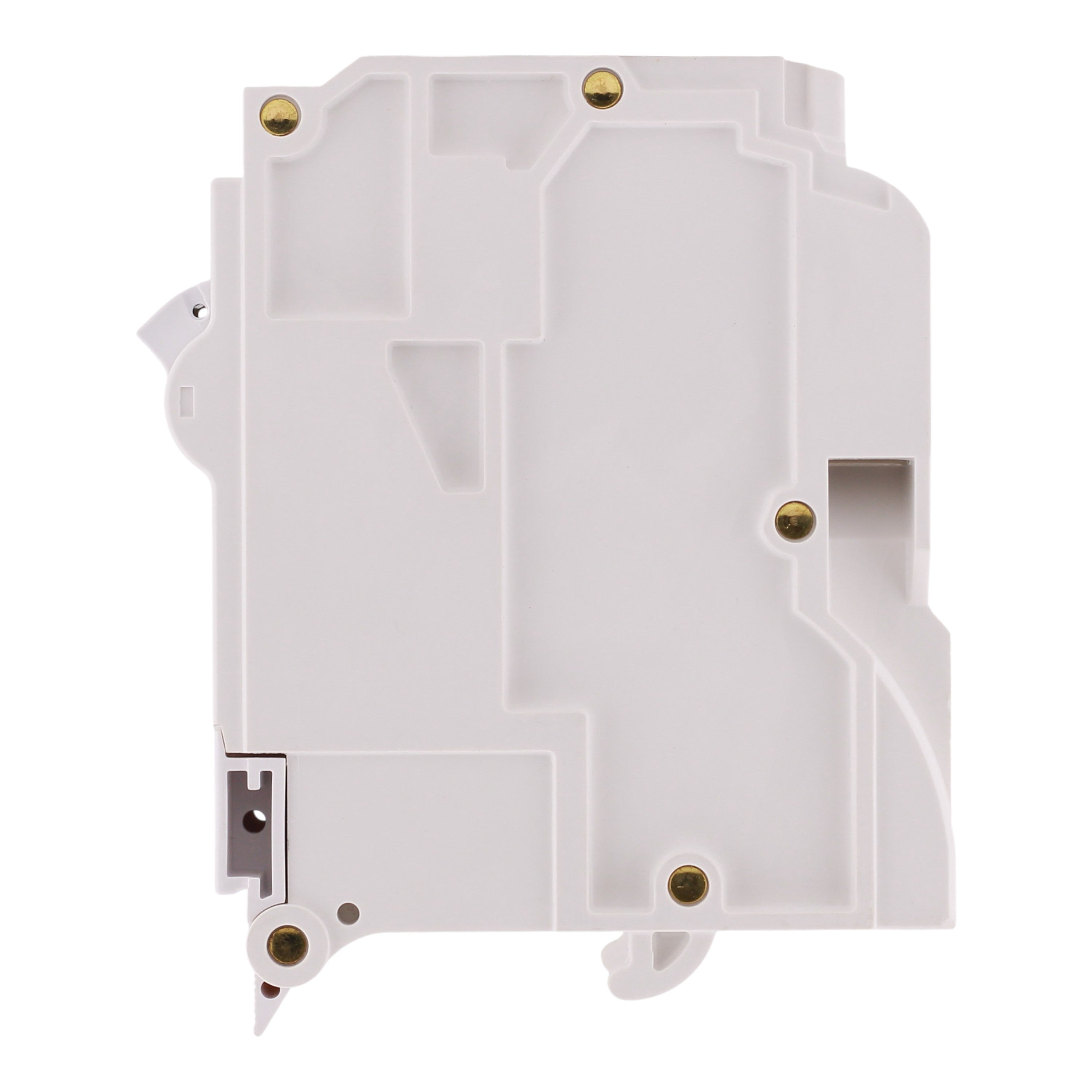

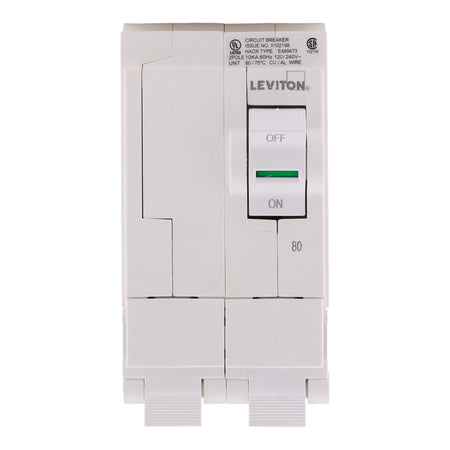

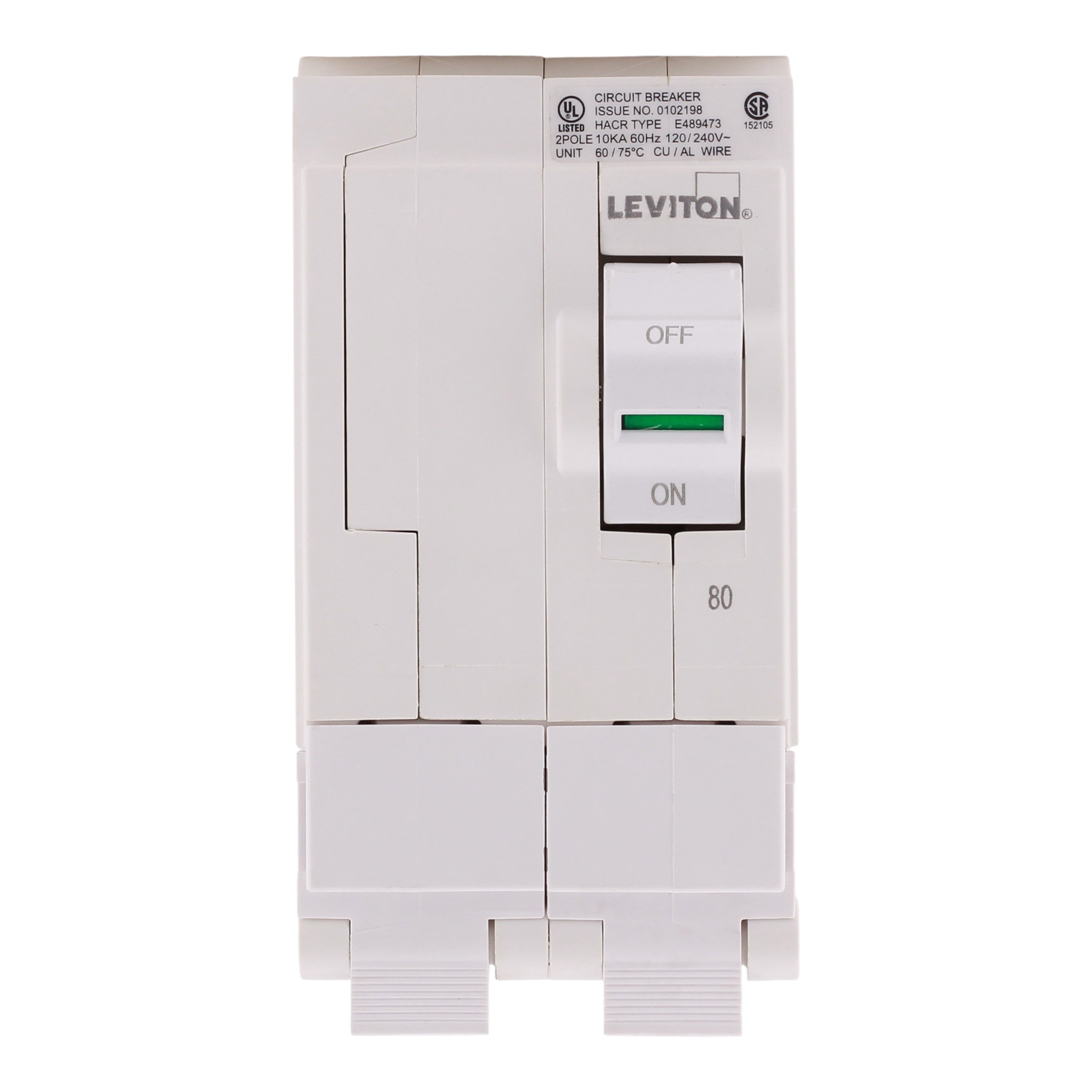

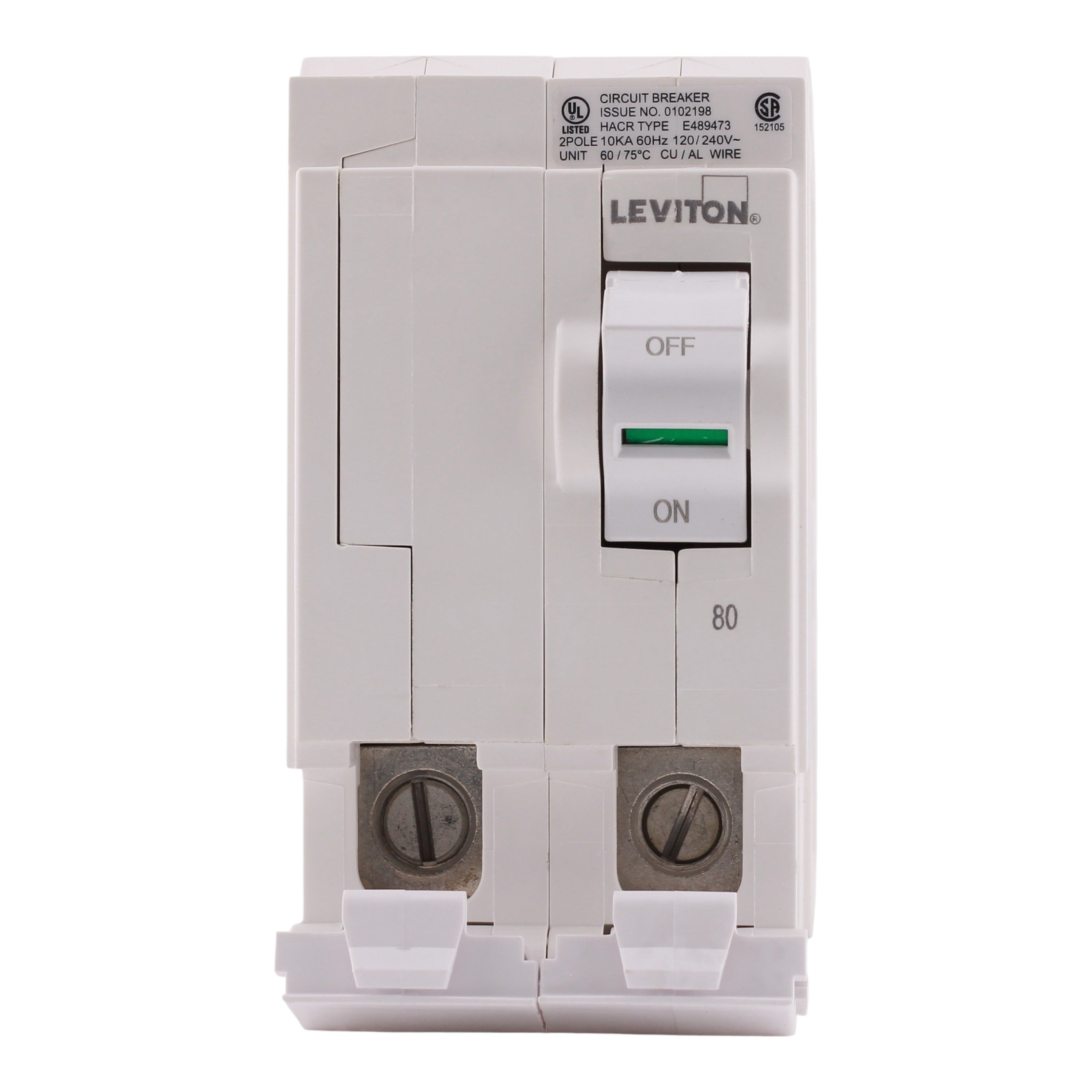

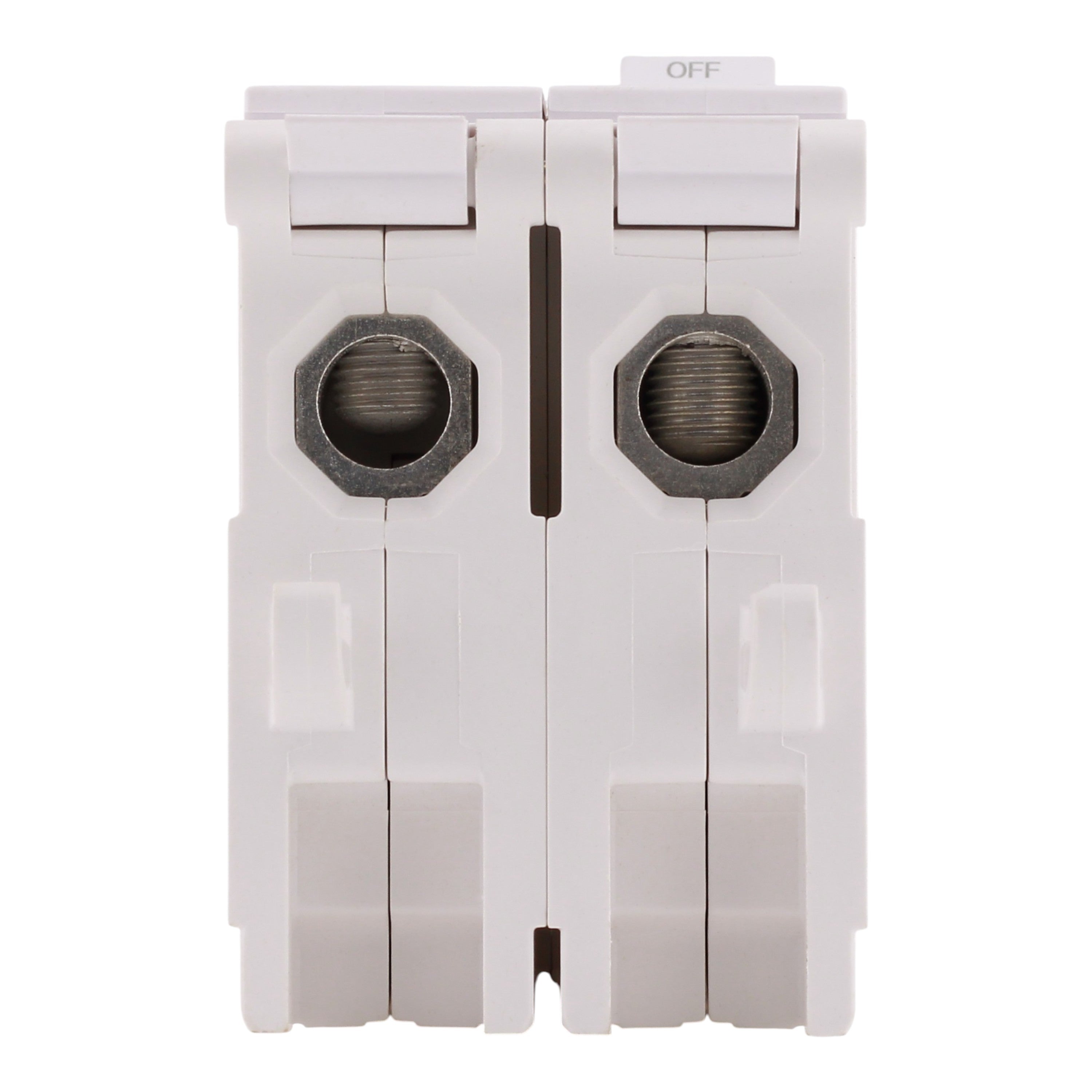

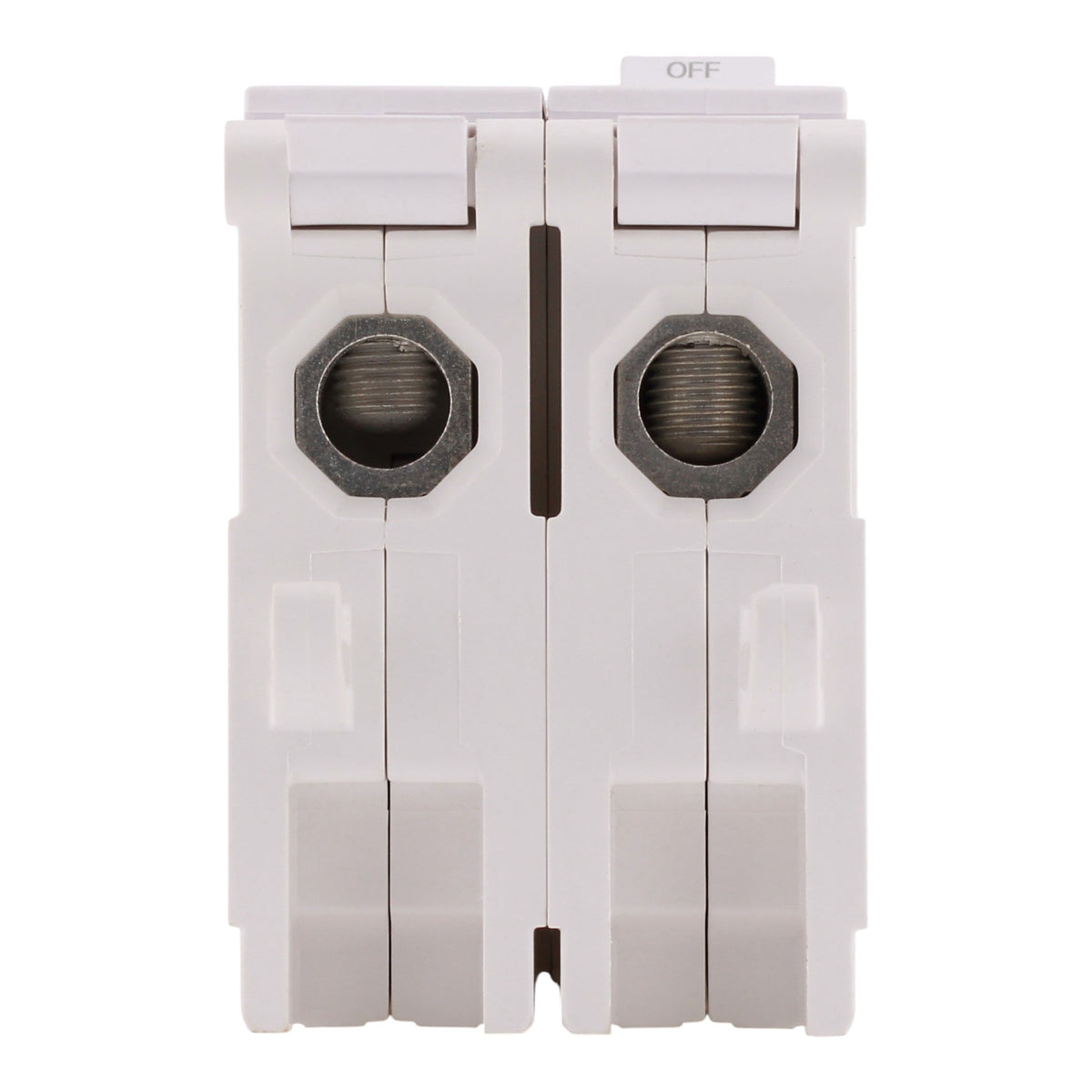

Leviton LB280 80A 2P 120/240V Standard Hydraulic Magnetic Circuit Breaker

LB280 specifications

• Manufacturer: Leviton Manufacturing Co., Inc.
• Brand: Leviton
• Product Range: Leviton Smart Load Center (compatible with Leviton Plug-On Neutral loadcenters)
• UPC: 078477814529
• Model Number: LB280
• Breaker Type: Standard Thermal-Magnetic (Hydraulic Magnetic Trip)
• Amperage: 80 Amps
• Poles: 2-Pole
• Voltage: 120/240 Volts AC (also supports 120/208V applications)
• Interrupt Rating: 10 kAIC
• Mounting Mode: Plug-in
• Connections Terminals: Plug-on neutral
• Wire Size: #14-4 AWG Cu/Al (typical for 80A Leviton hydraulic-magnetic breakers)

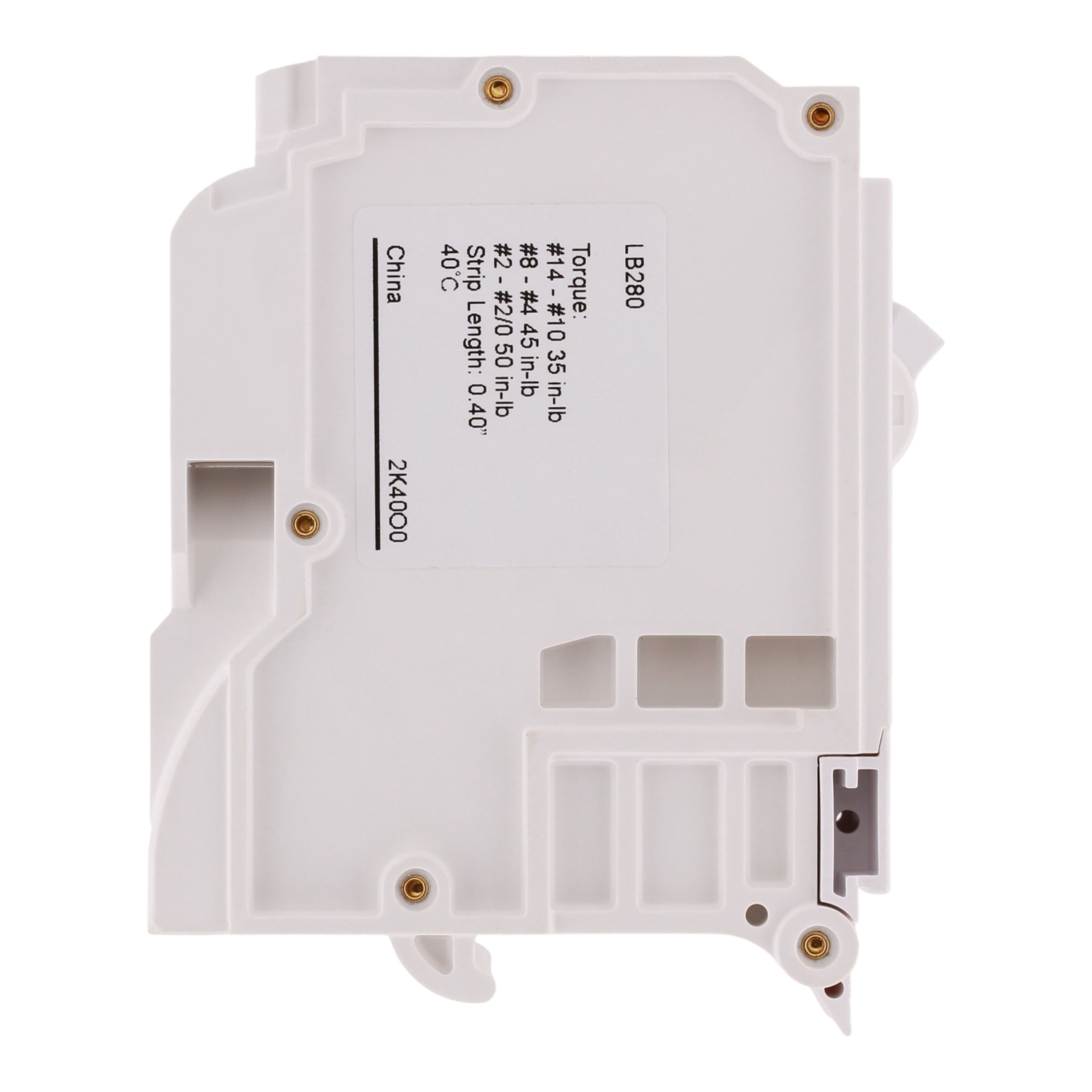

• Tightening Torque: 40 lb-in
• Dimensions: Height: 3.9 in; Width: 2.0 in; Depth: 3.1 in
• Weight: 0.85 lbs
• Certifications: UL Listed

This Leviton LB280 plug-on neutral circuit breaker delivers reliable 80A, 2-pole protection for 120/240V and 120/208V circuits in Leviton Smart Load Centers. Featuring advanced hydraulic-magnetic trip technology, it maintains precise performance across extreme temperatures (-40°F to 185°F) without de-rating, providing superior branch circuit protection and easy installation in modern residential and light commercial applications.
