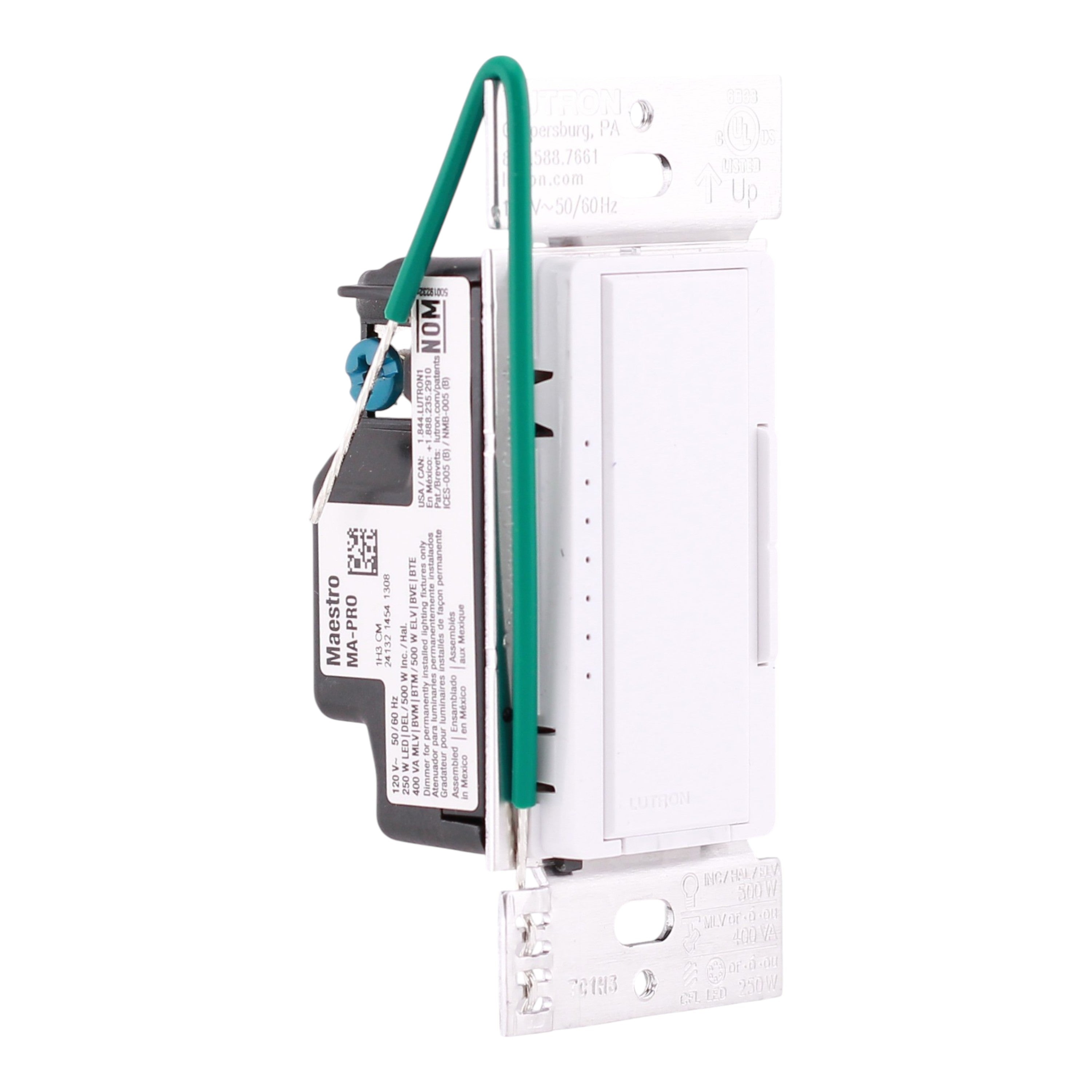

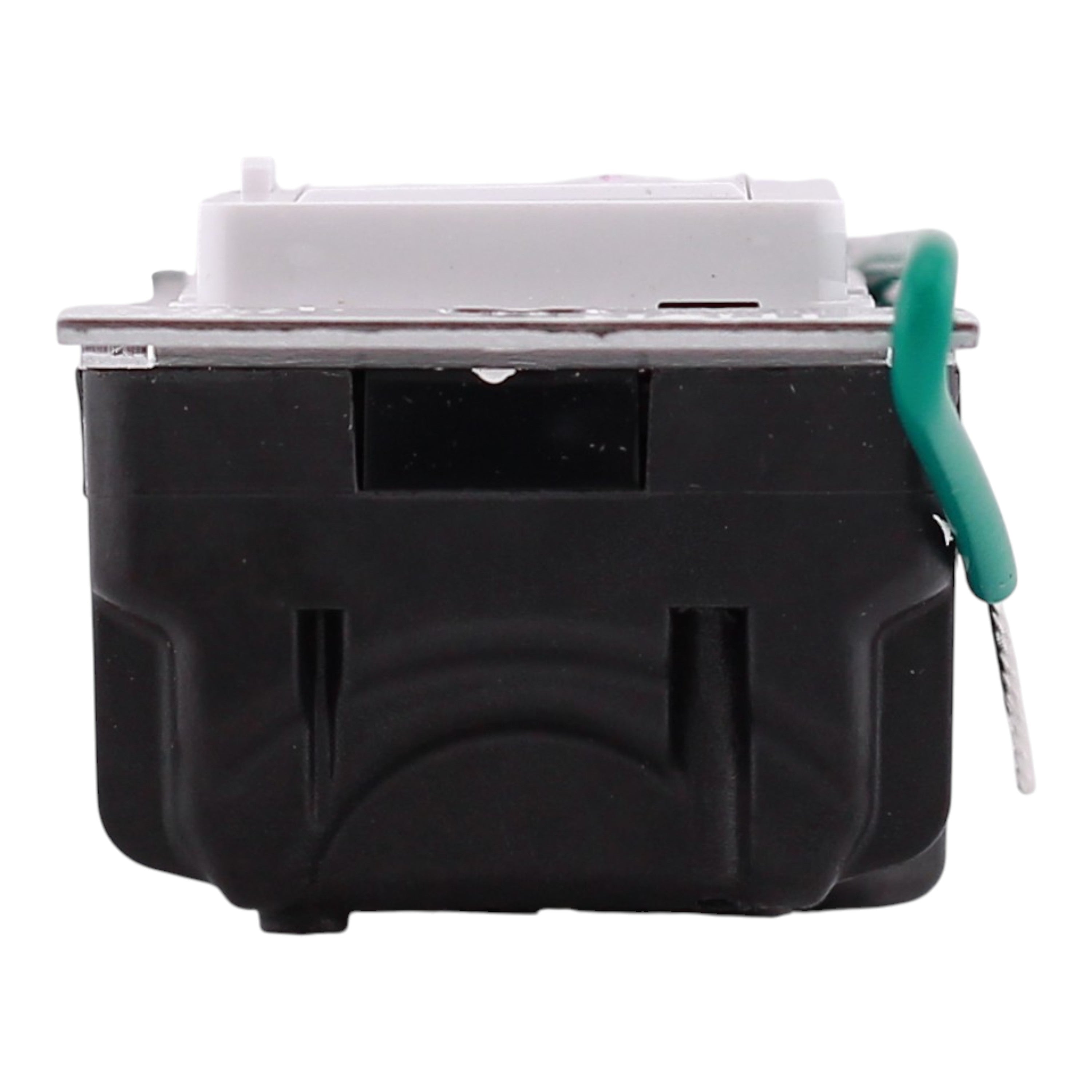

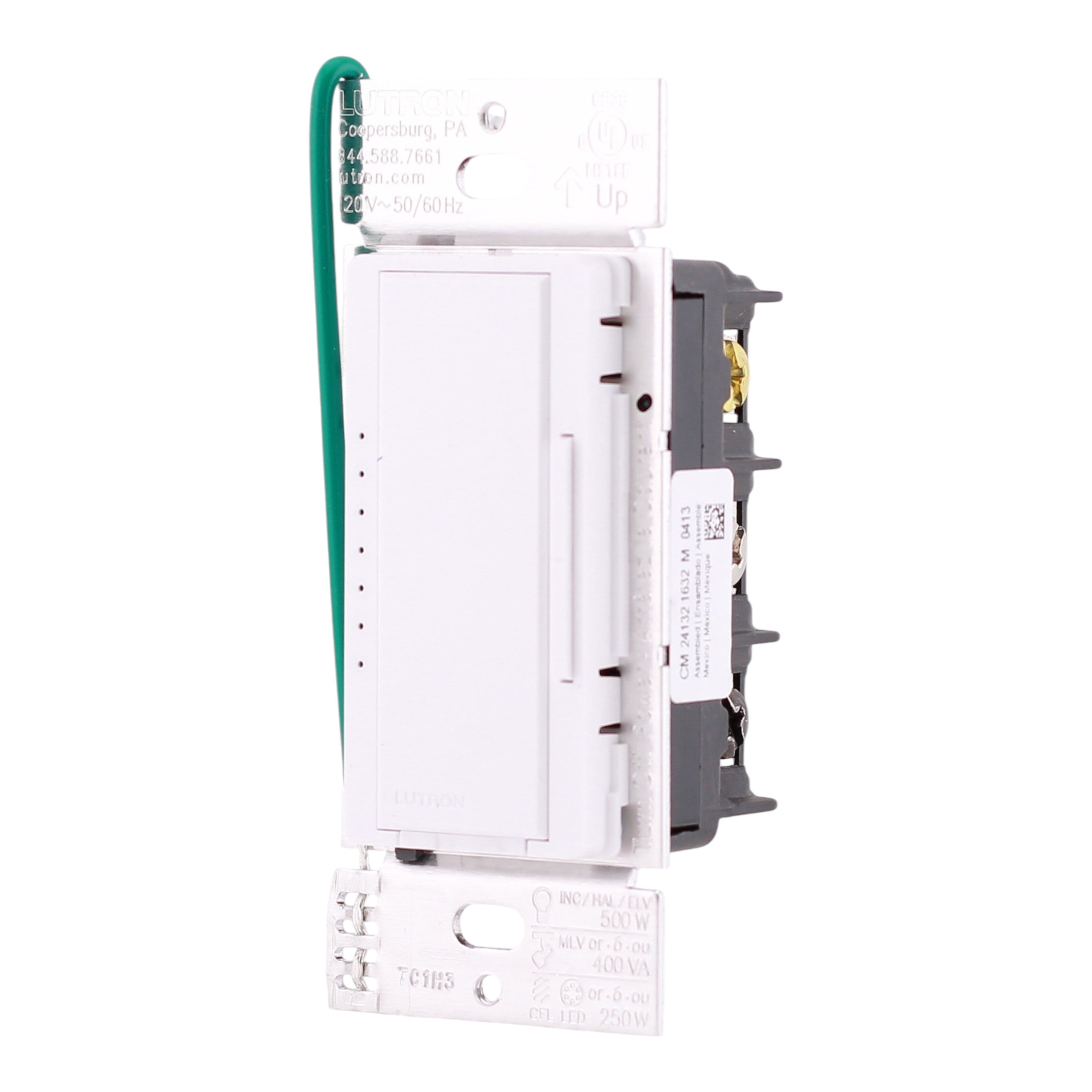

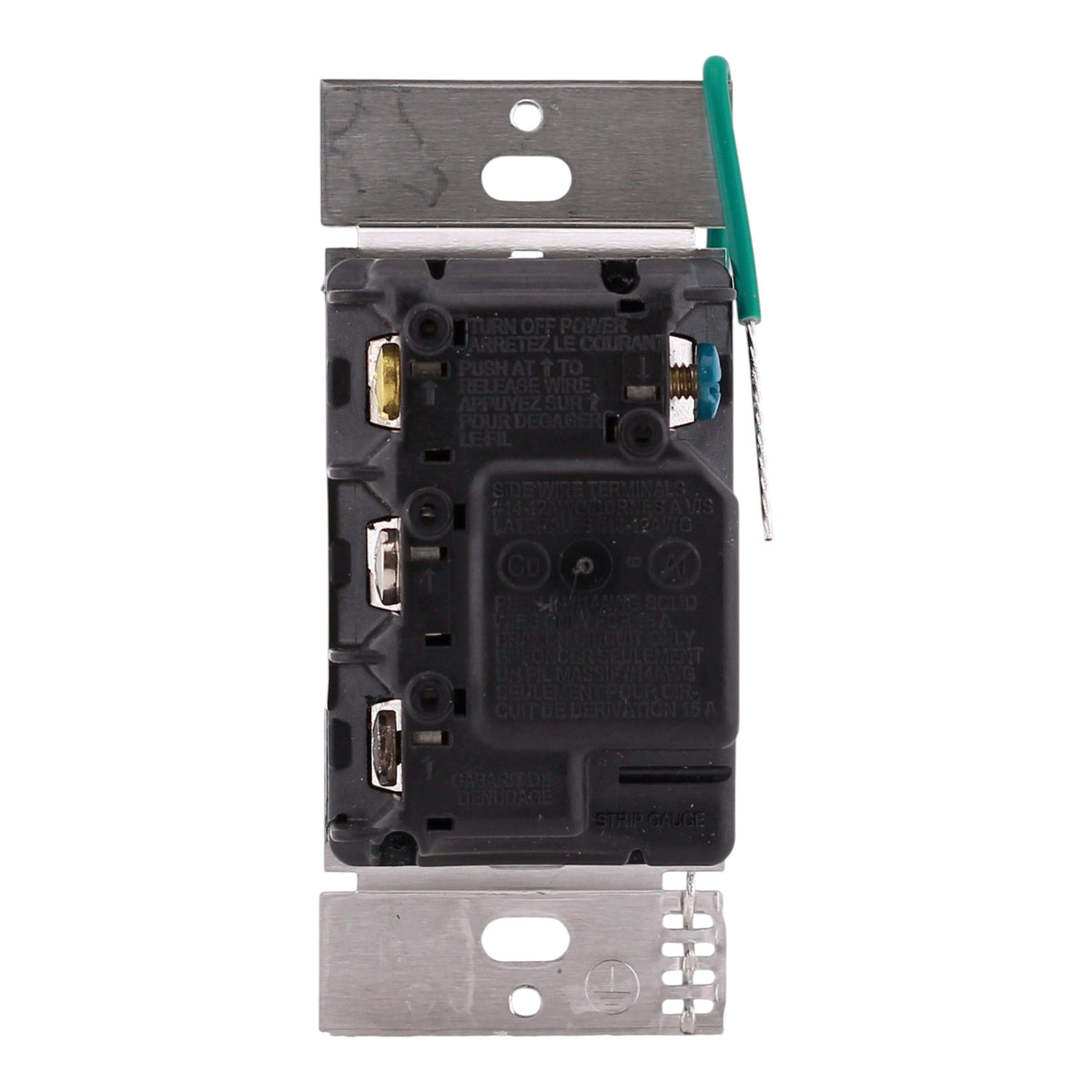

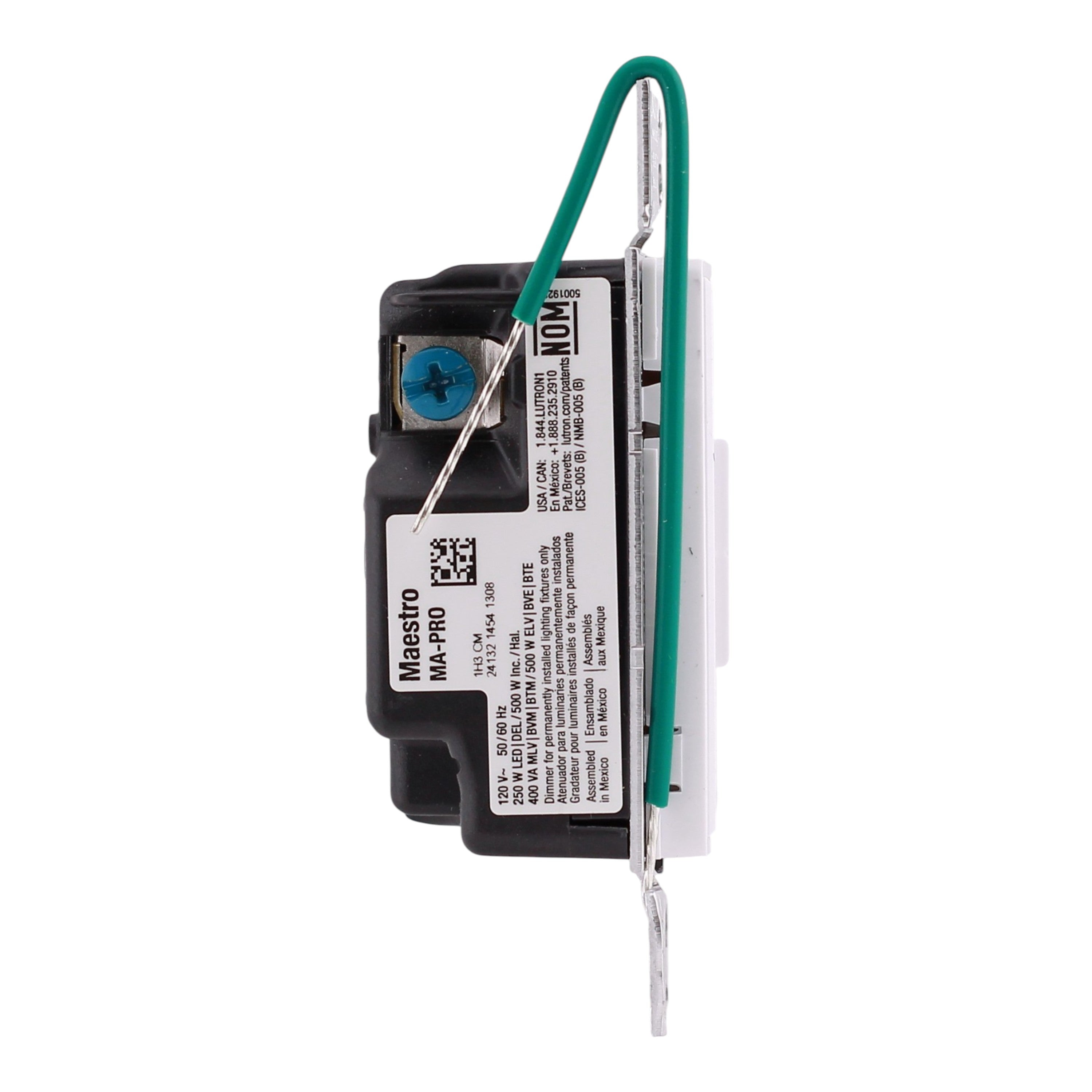

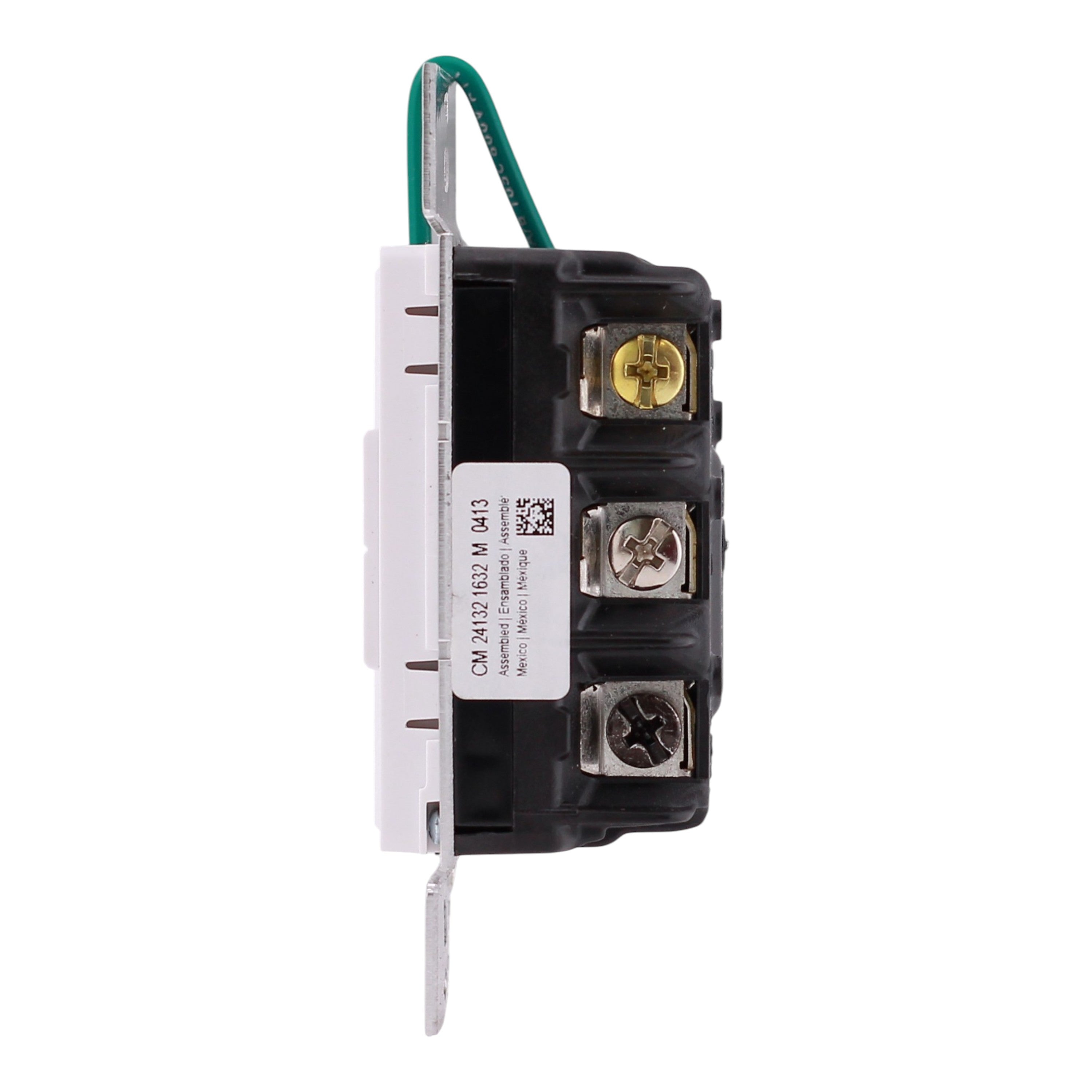

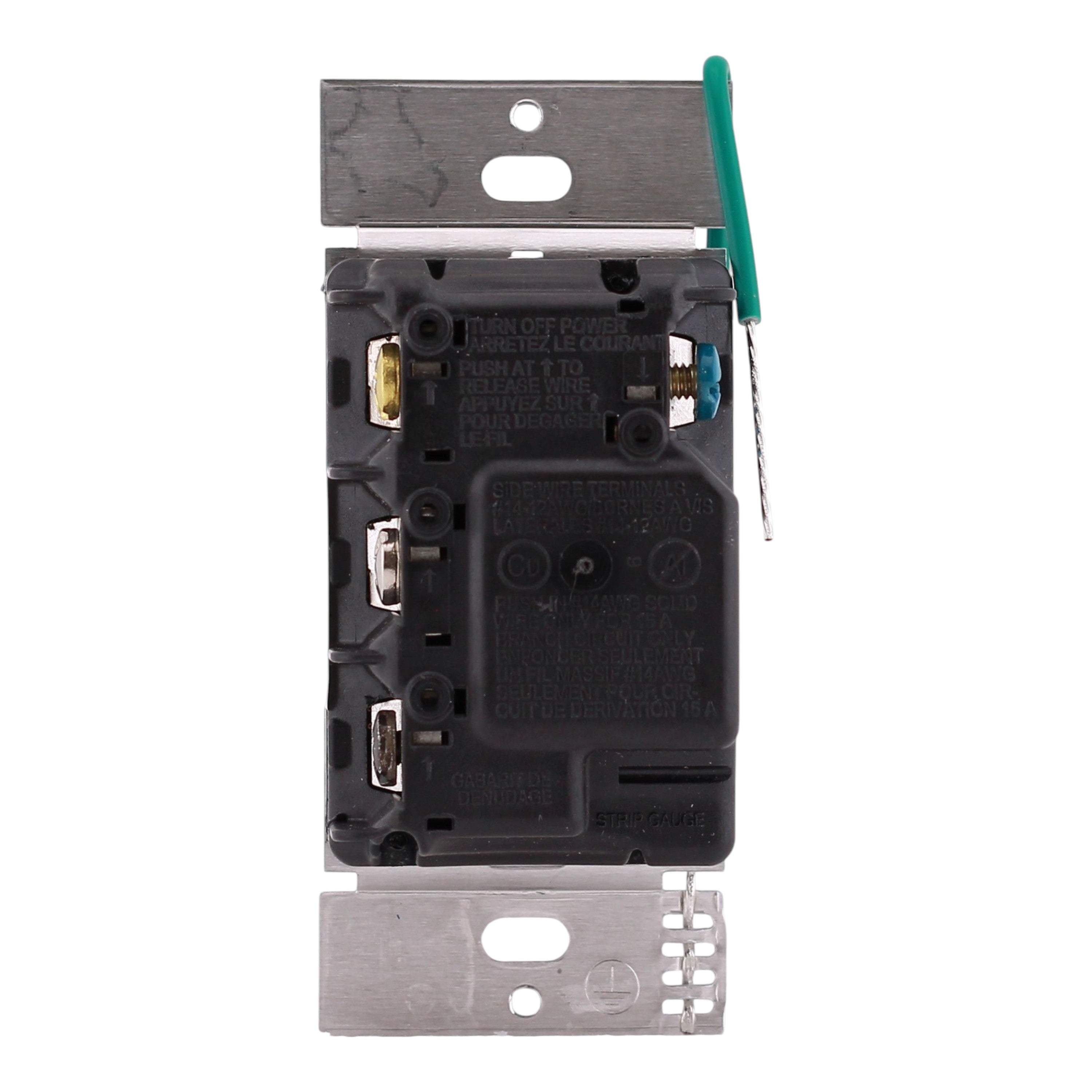

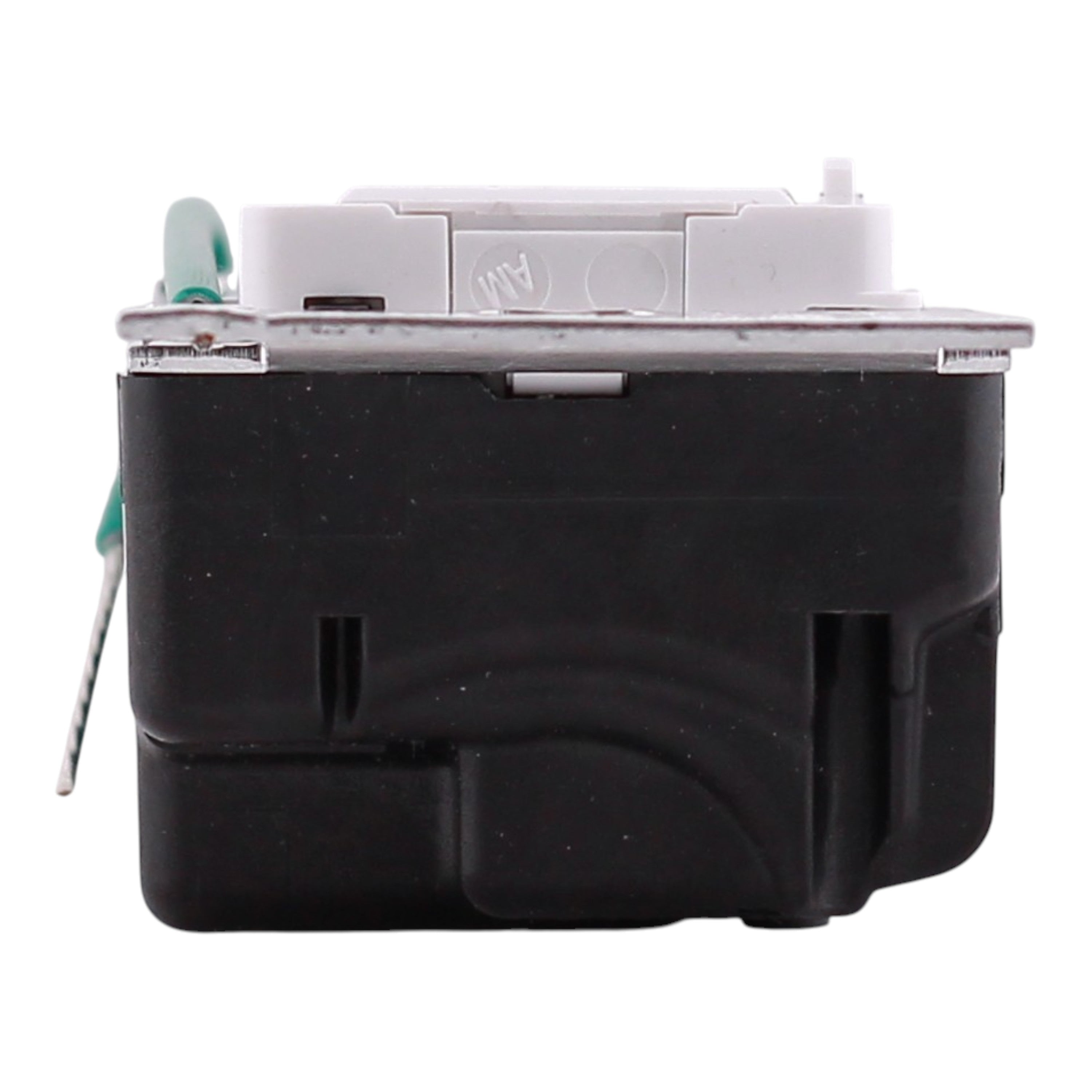

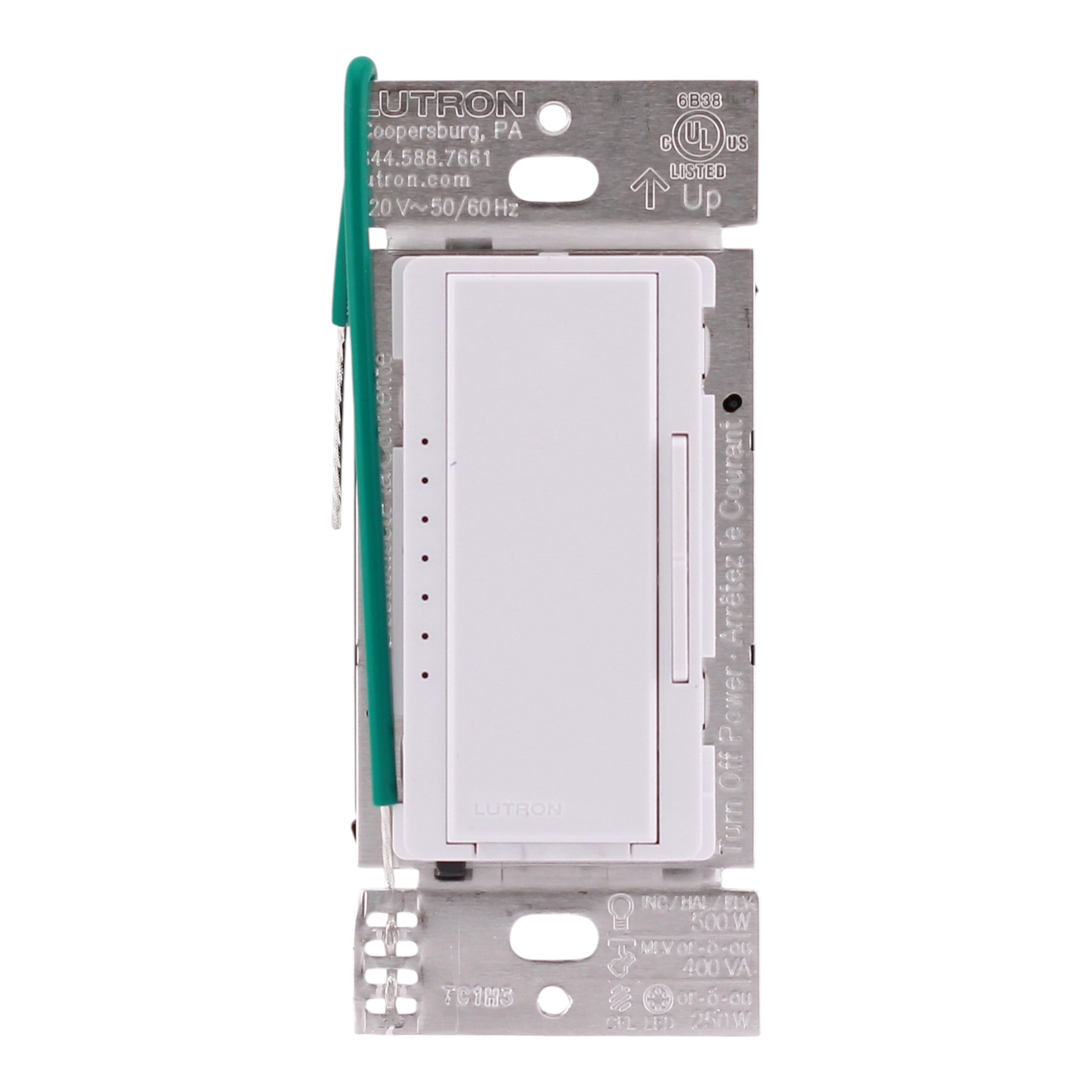

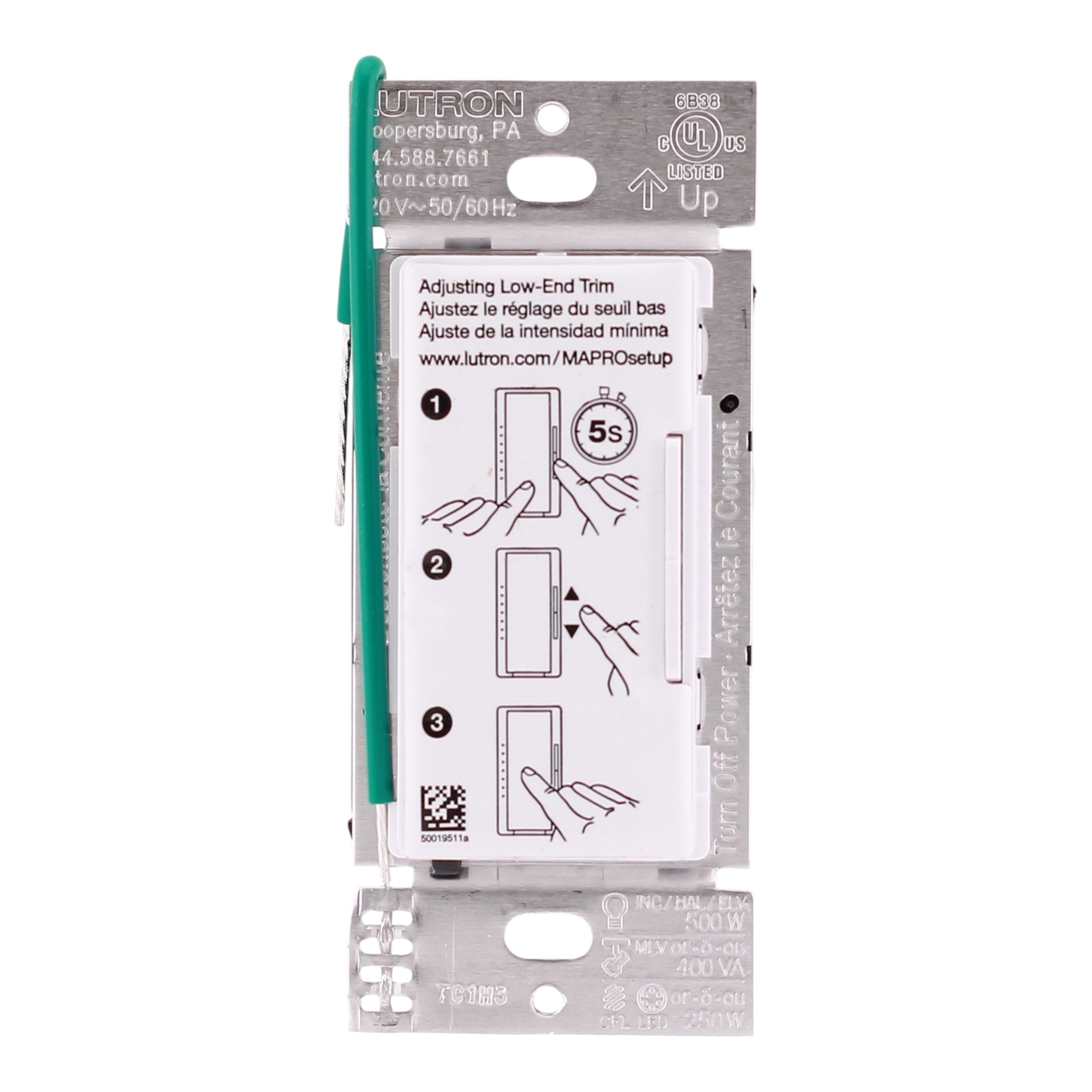

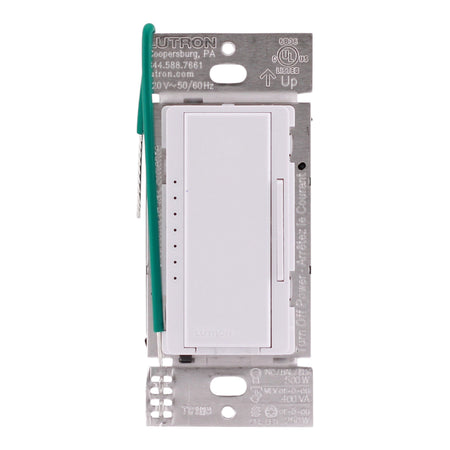

Lutron MA-PRO-WH: 250W LED / 500W Incandescent/Halogen/ELV / 400VA MLV, 120V, Single Pole/Multi-Location, Maestro PRO LED+ Phase-Selectable Tap Dimmer, Gloss White, UL Listed.
-
Manufacturer: Lutron Electronics
-
Brand: Lutron Maestro
-
Product Line: Maestro PRO LED+ Series
-

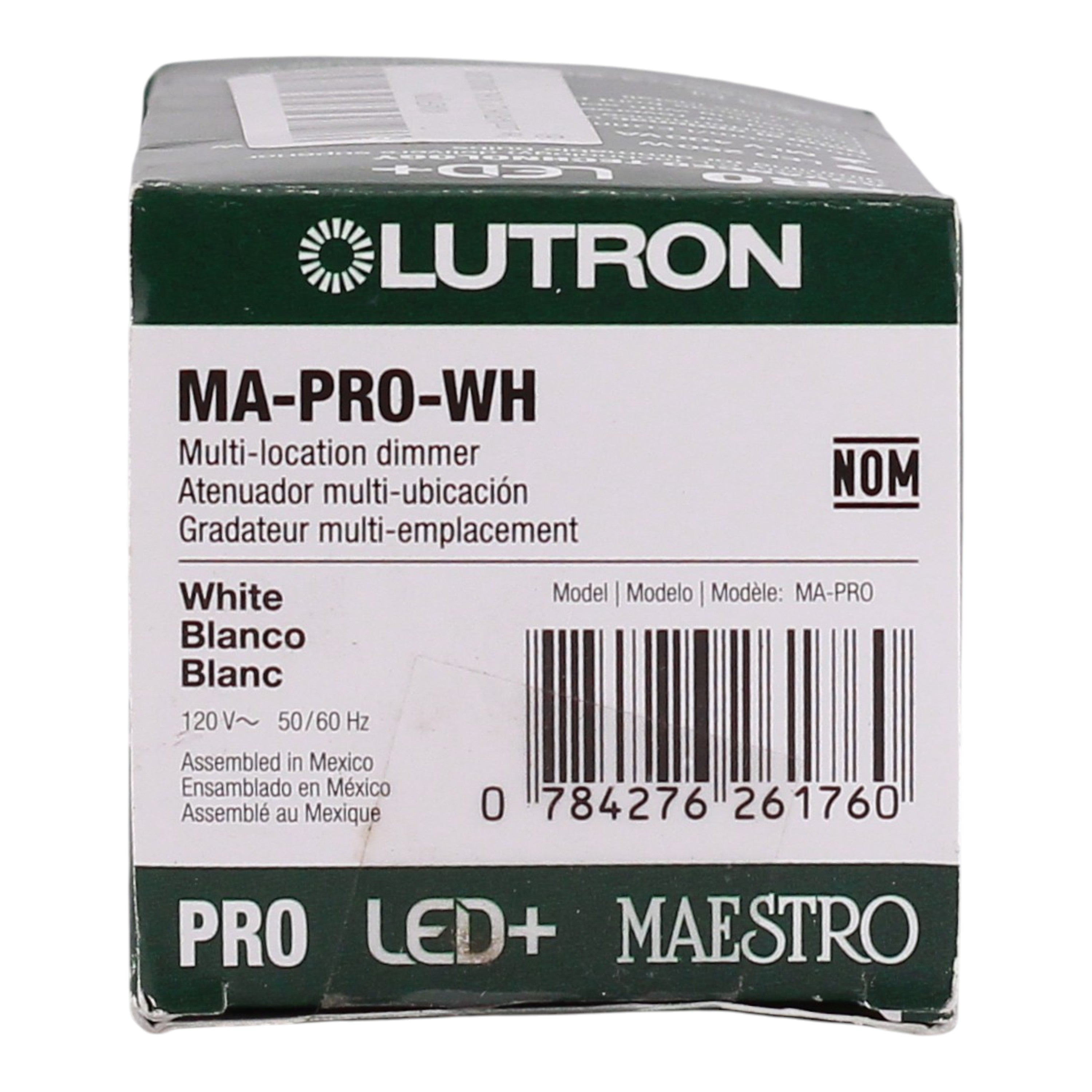

UPC: 784276261760
-
Model Number: MA-PRO-WH
-
Product Type: Phase-Selectable PRO LED+ Tap Dimmer Switch
-
Load Types: Dimmable LED (250W max); Incandescent/Halogen/ELV (500W max); MLV (400VA max); up to 20 Lutron Hi-Lume 1% 2-Wire (LTE) LED drivers
-
Voltage: 120 Volts AC
-
Frequency: 50/60 Hz
-
Poles: 1-Pole
-
Switch Function: Single Pole or Multi-Location (up to 10 locations with MA-R companion dimmers, sold separately)
-
Control Style: Tap switch on/off with rocker dimmer; preset start; delayed fade-to-off (10–60 sec)
-
Phase Technology: Auto phase-select (forward or reverse phase); advanced programming mode
-
Neutral Wire: Optional for LED/CFL/Incandescent/Halogen; Required for ELV, MLV, dimmable fluorescent ballasts, Hi-Lume 1% LED drivers
-
Color: Gloss White
-
Finish: Gloss
-
Mounting: In-Wall, screw terminal installation
-
Wire Size: #12–14 AWG
-
Wallplate: Sold separately (compatible with Lutron Claro wallplates)
-
Indoor/Outdoor: Indoor
-
Application: Residential and Commercial
-
Operating Temperature: 0°C to 40°C
-
Humidity: 0–90% relative humidity (non-condensing)
-
Dimensions: Height: 4.69 in; Width: 2.94 in; Depth: 0.32 in
-
Warranty: 10 years with product registration
-
Certifications: UL Listed (UL 1472), cULus
This Lutron Maestro MA-PRO-WH PRO LED+ phase-selectable tap dimmer delivers reliable 250W LED or 500W incandescent/halogen/ELV dimming for 120V single pole and multi-location residential and commercial applications. With automatic phase selection, advanced programming for presets and fade times, neutral-optional installation, and compatibility across LED, ELV, MLV, and incandescent loads, it provides broad, flicker-free lighting control in as little as 15 minutes.
