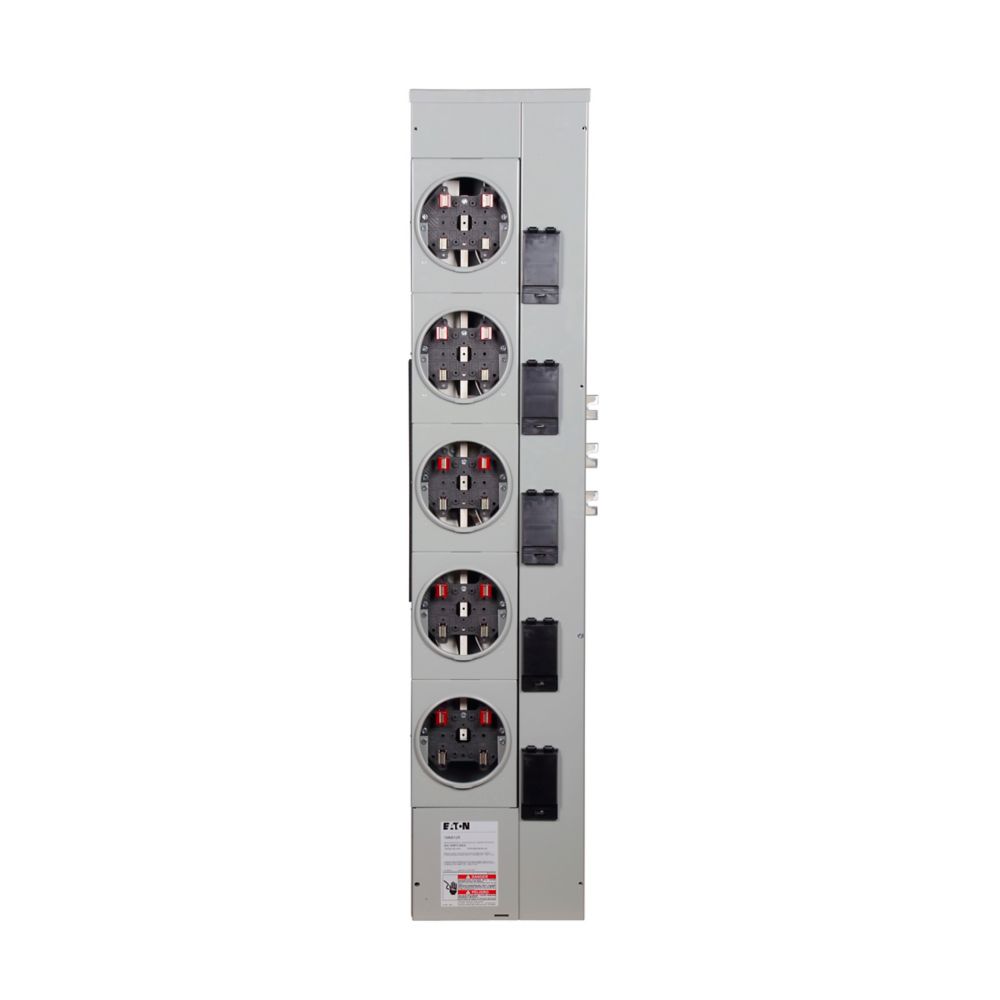

Eaton MM512R Meter Box 800A 125A/Socket Indoor Outdoor 5 Socket

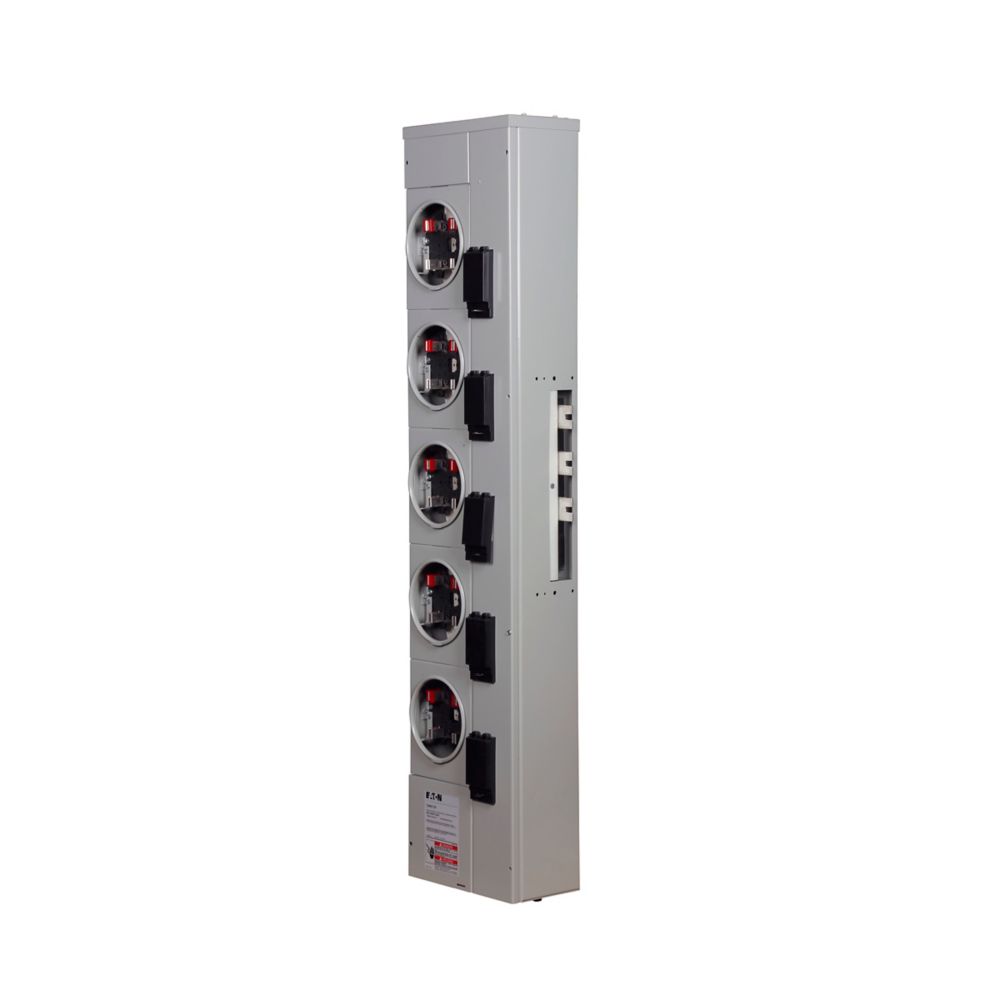

Eaton MM512R Meter Box 800A 125A/Socket Indoor Outdoor 5 Socket — alternate product view 2
Eaton MM512R Meter Box 800A 125A/Socket Indoor Outdoor 5 Socket
Eaton MM512R Meter Box 800A 125A/Socket Indoor Outdoor 5 Socket — alternate product view 2

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Eaton

Eaton MM512R Meter Box 800A 125A/Socket Indoor Outdoor 5 Socket

Only 1 left
SKU: MM512R UPC: 786849051914
(0)
$1,500.00
-20% $1,875.00 $1,500.00
Only 1 left
Low inventory - Hurry up!
Condition

1MM512R meter-stack identity: Eaton's full catalog number is 1MM512R. It is a five-position residential meter stack with a 125-amp rating per socket and an 800-amp aluminum bus for single-phase 120/240-volt service.

MM512R specifications

  • Catalog number: 1MM512R
  • Meter positions: Five
  • Rating per socket: 125A
  • Bus rating: 800A aluminum
  • Service: Single-phase in/out, 120/240VAC
  • Enclosure: Indoor/outdoor
  • Meter cover: Ring type

Ring type—not ringless

The inherited copy described a ringless five-jaw unit. Eaton's product data identifies a ring-style residential meter stack; the exact jaw and utility configuration must be taken from the unit label and approval table.

Utility-specific approval

This model has utility approvals that vary by service territory, and its interrupting rating depends on the selected main breaker. Confirm meter form, main device, tenant breakers, bus bracing, and utility acceptance with the serving utility and qualified contractor.

There is a $15 charge for delivery. Additional charges will be imposed by our couriers for delivery to remote areas, a surcharge may be levied to cover carriage to these areas.

Warranty Coverage

We stand behind every product we sell. Coverage depends on the condition of the item at time of purchase:

  • New: 12-month warranty
  • New Open Box: 10-month warranty
  • Reconditioned: 90-day warranty

Warranty coverage begins on the date of delivery and covers manufacturing and functional defects under normal use. It does not cover damage from misuse, improper installation, or unauthorized repair. To make a warranty claim, contact us at support@breakersmart.com with your order number and a description of the issue.
