Milbank U1797-O-K3L-K2L: 320 Amp, 1-Phase, 4-Terminal Ringless Plain Top Lever Bypass Meter Socket, 600V, Underground, Surface Mount, UL Listed, Type 3R.
Specifications:
-
Manufacturer: Milbank Manufacturing Company
-
Brand: Milbank
-
Product Range: U-Series Meter Sockets (Residential/Underground Service)
-
UPC: 784572301726
-
Model Number: U1797-O-K3L-K2L
-
Socket Type: Ringless Meter Socket
-
Amperage: 320 Continuous Amps
-
Phase: 1-Phase
-
Voltage: 600 Volts AC
-
Frequency: 60 Hz
-
Bypass Provision: Lever Bypass
-
Hub/Top: Plain Top (Ringless)
-
Number of Jaws: 4 Terminal
-
Number of Meter Positions: 1 Position
-
Main Breaker: None
-
Cable Entry: Underground
-
Mounting: Surface Mount
-
Connection Terminal: Single Mechanical
-
Line Side Wire Range: #4 AWG – 600 kcmil, or Two #1/0 AWG – 250 kcmil
-
Load Side Wire Range: Two #6 AWG – 350 kcmil
-
Equipment Ground: 3 Barrel Ground Lug
-
Insulation: Glass Polyester
-
Enclosure: G90 Galvanized Steel with Powder Coat Finish
-

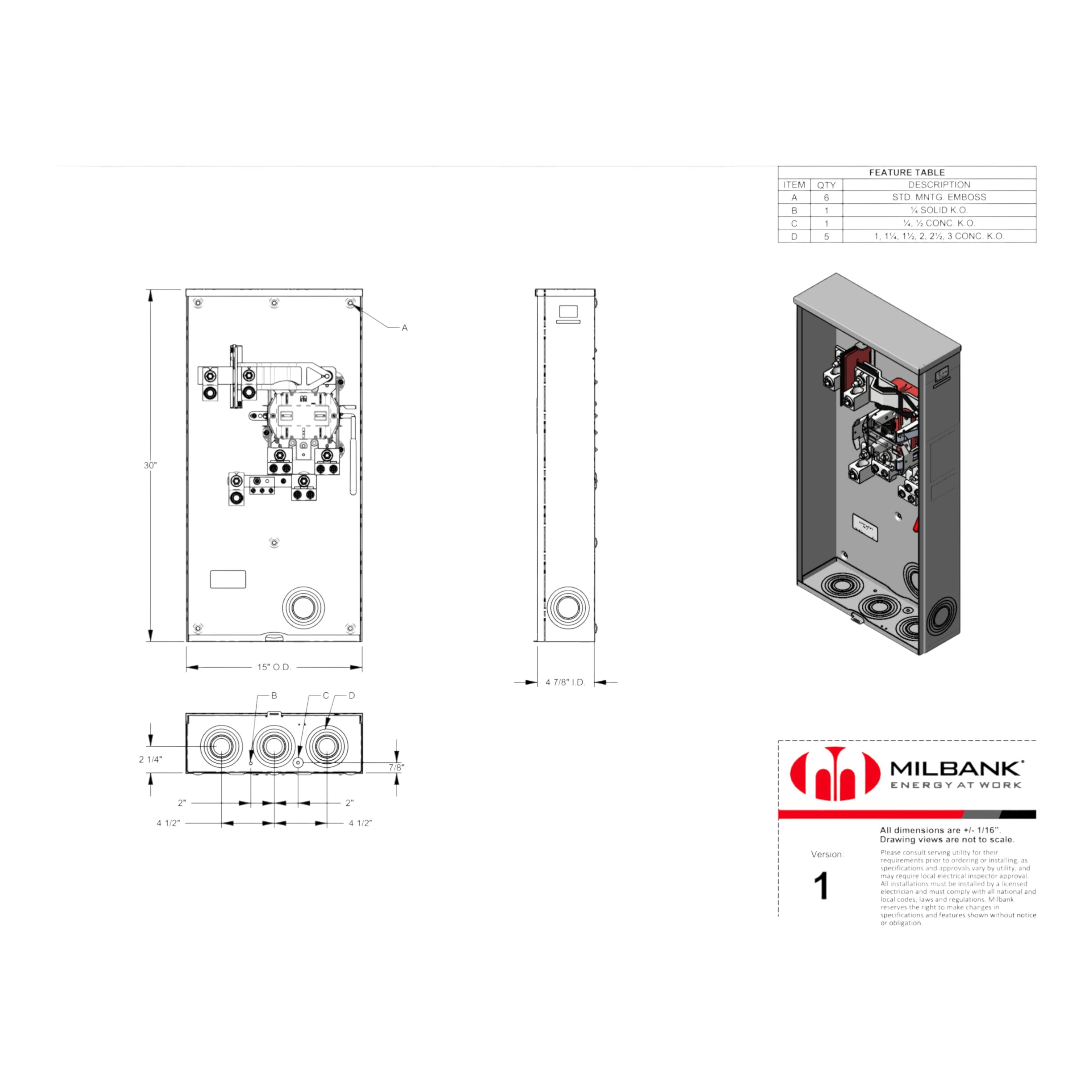

Dimensions: Height: 30 in; Width: 15 in; Depth: 4.844 in
-
Weight: 32.4 lbs
-
Certifications: UL Listed, Type 3R
This Milbank U1797-O-K3L-K2L 4-terminal ringless meter socket provides dependable 320 Amp, 1-Phase underground service with lever bypass for 600V circuits in surface-mount residential applications. Features a plain top, G90 galvanized steel Type 3R enclosure with powder coat finish.
