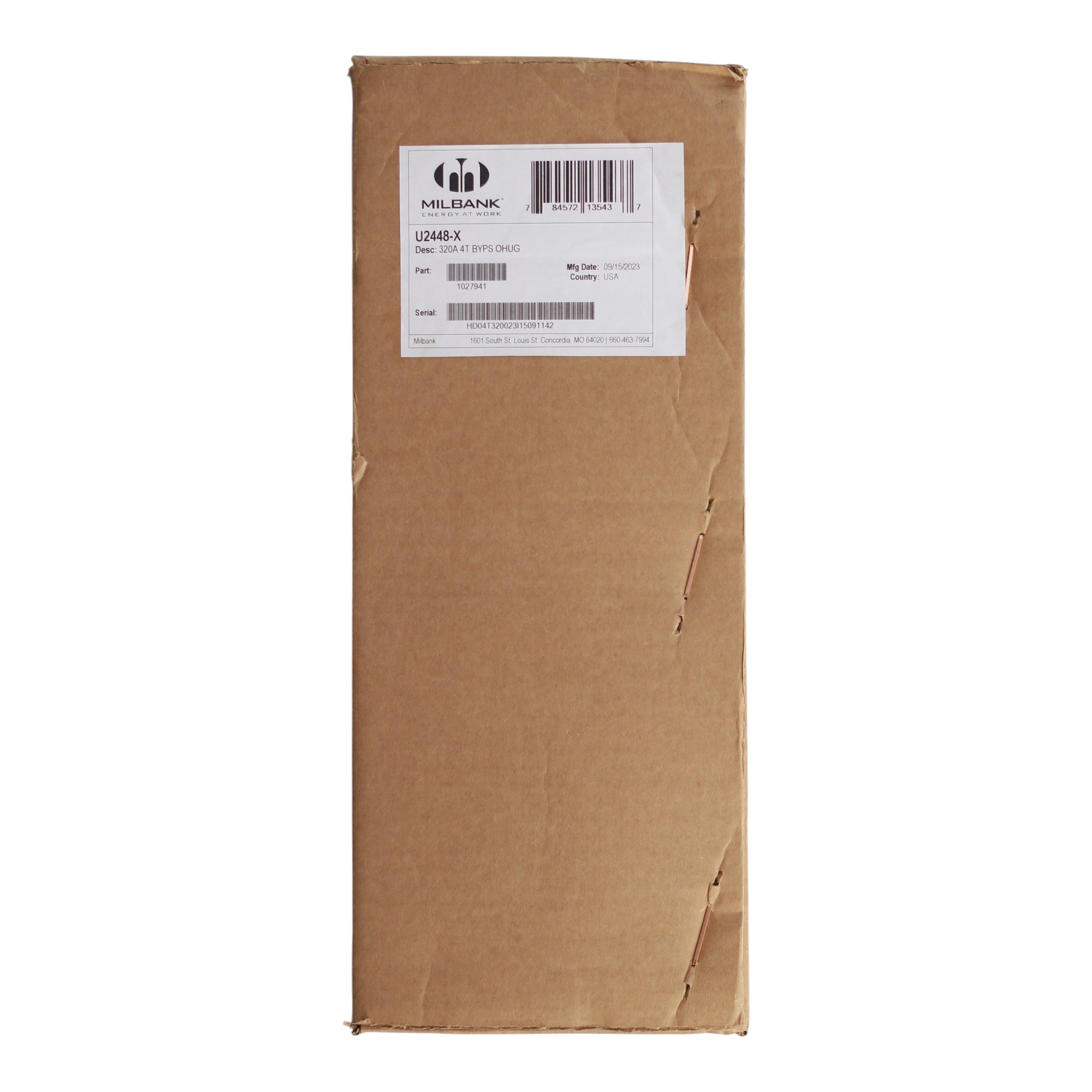

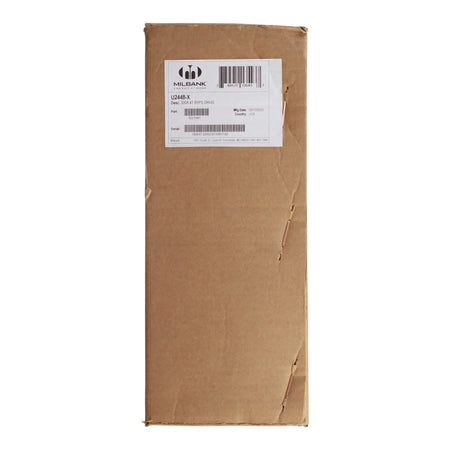

Milbank, U2448-X, 320A, 600VAC, 4-Terminal, Ringless, Lever Bypass, Meter Socket - Image 4

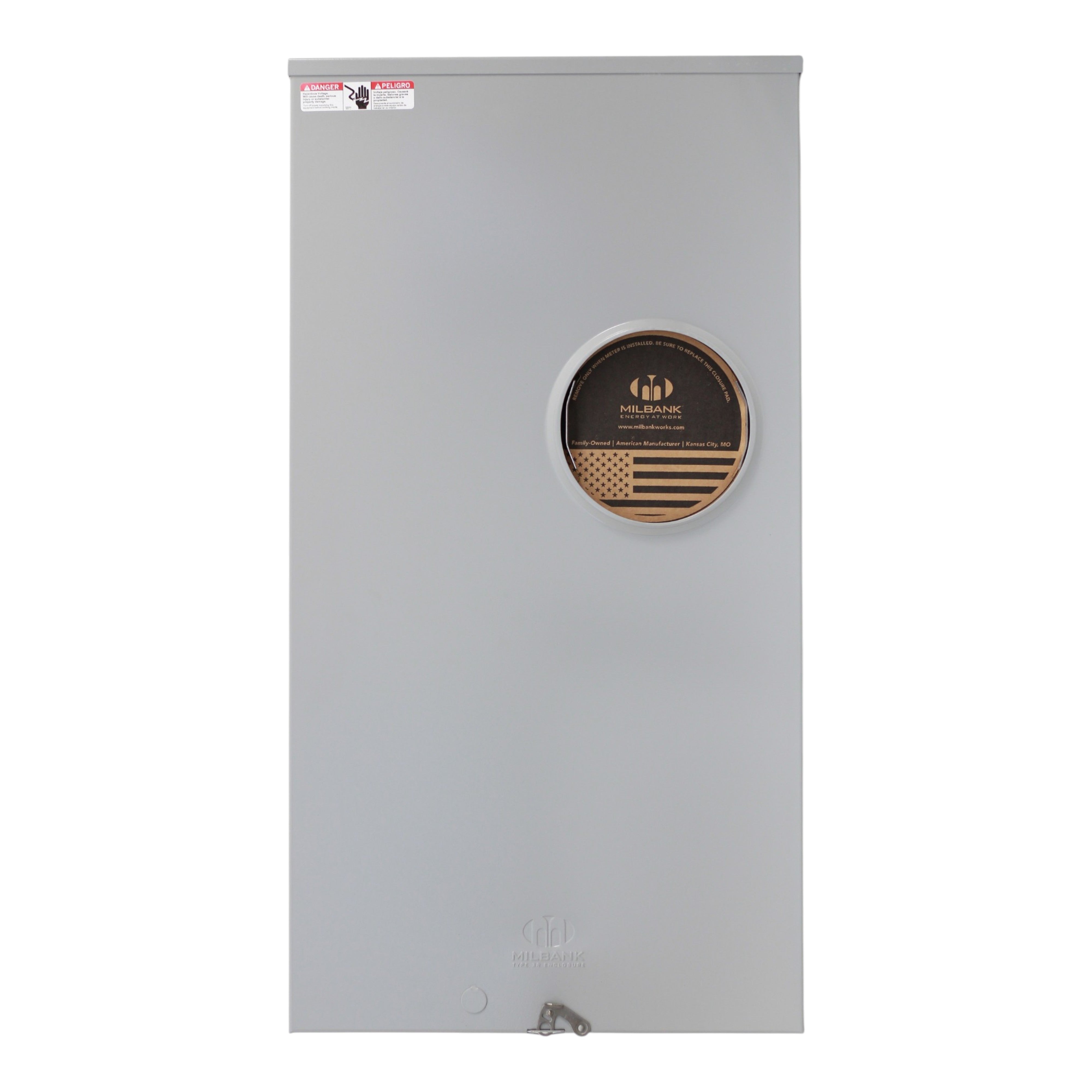

Milbank, U2448-X, 320A, 600VAC, 4-Terminal, Ringless, Lever Bypass, Meter Socket - Image 5

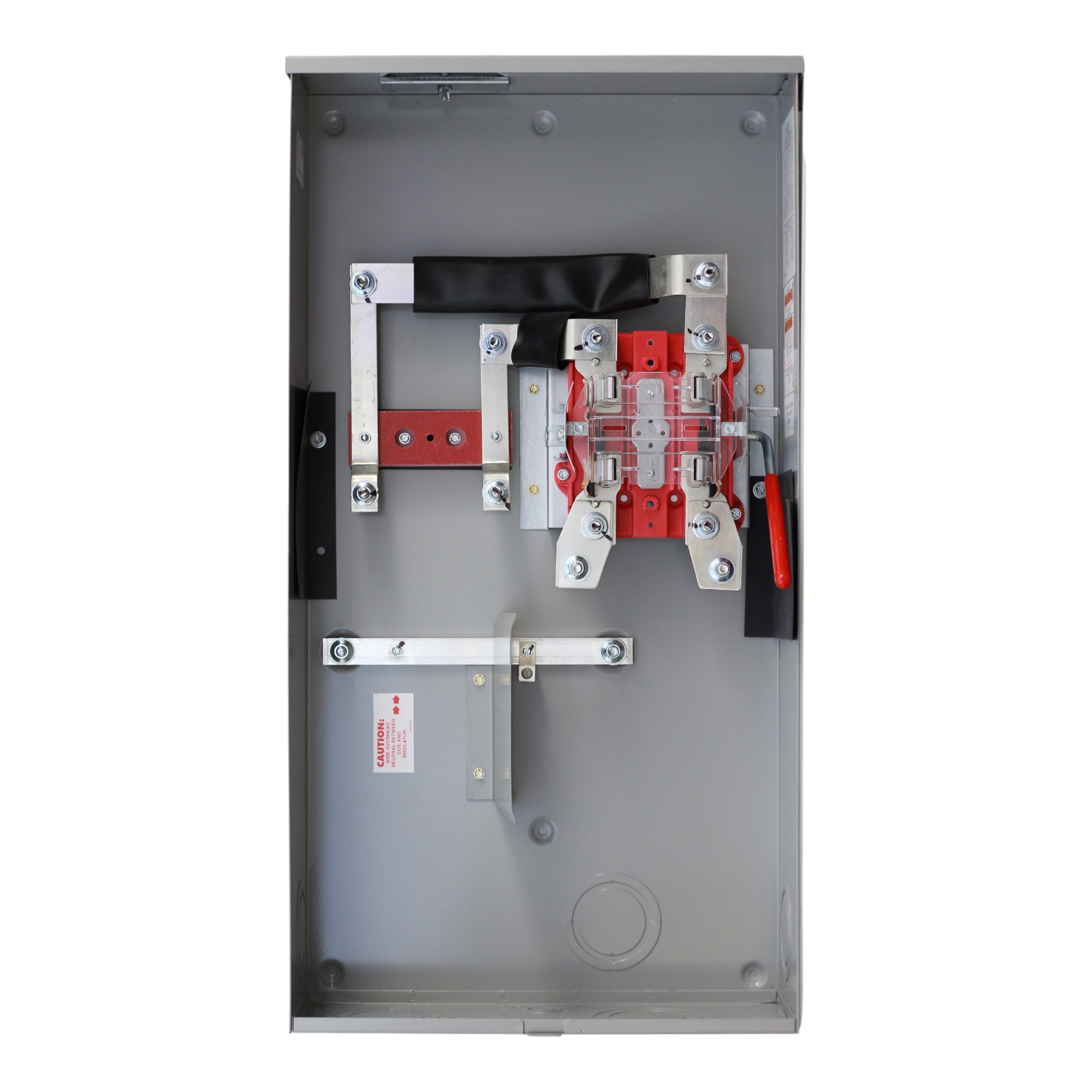

Milbank, U2448-X, 320A, 600VAC, 4-Terminal, Ringless, Lever Bypass, Meter Socket - Image 6
Milbank, U2448-X, 320A, 600VAC, 4-Terminal, Ringless, Lever Bypass, Meter Socket - Image 7

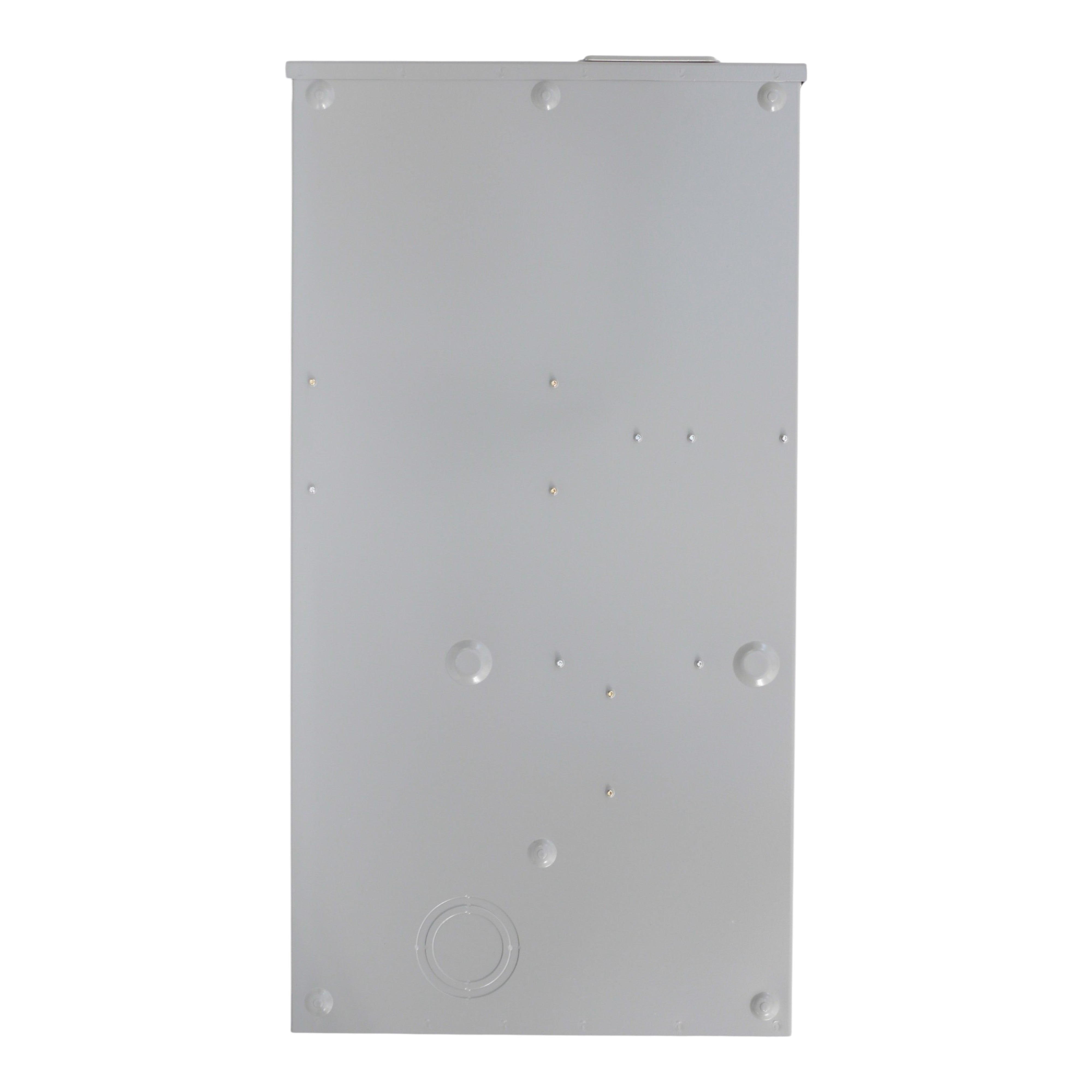

Milbank, U2448-X, 320A, 600VAC, 4-Terminal, Ringless, Lever Bypass, Meter Socket - Image 8
Milbank, U2448-X, 320A, 600VAC, 4-Terminal, Ringless, Lever Bypass, Meter Socket - Image 9
Milbank, U2448-X, 320A, 600VAC, 4-Terminal, Ringless, Lever Bypass, Meter Socket - Image 10
Milbank, U2448-X, 320A, 600VAC, 4-Terminal, Ringless, Lever Bypass, Meter Socket - Image 11
Milbank, U2448-X, 320A, 600VAC, 4-Terminal, Ringless, Lever Bypass, Meter Socket
Milbank, U2448-X, 320A, 600VAC, 4-Terminal, Ringless, Lever Bypass, Meter Socket - Image 2
Milbank, U2448-X, 320A, 600VAC, 4-Terminal, Ringless, Lever Bypass, Meter Socket - Image 3
Milbank, U2448-X, 320A, 600VAC, 4-Terminal, Ringless, Lever Bypass, Meter Socket - Image 4
Milbank, U2448-X, 320A, 600VAC, 4-Terminal, Ringless, Lever Bypass, Meter Socket - Image 5
Milbank, U2448-X, 320A, 600VAC, 4-Terminal, Ringless, Lever Bypass, Meter Socket - Image 6
Milbank, U2448-X, 320A, 600VAC, 4-Terminal, Ringless, Lever Bypass, Meter Socket - Image 7
Milbank, U2448-X, 320A, 600VAC, 4-Terminal, Ringless, Lever Bypass, Meter Socket - Image 8
Milbank, U2448-X, 320A, 600VAC, 4-Terminal, Ringless, Lever Bypass, Meter Socket - Image 9
Milbank, U2448-X, 320A, 600VAC, 4-Terminal, Ringless, Lever Bypass, Meter Socket - Image 10
Milbank, U2448-X, 320A, 600VAC, 4-Terminal, Ringless, Lever Bypass, Meter Socket - Image 11

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Milbank

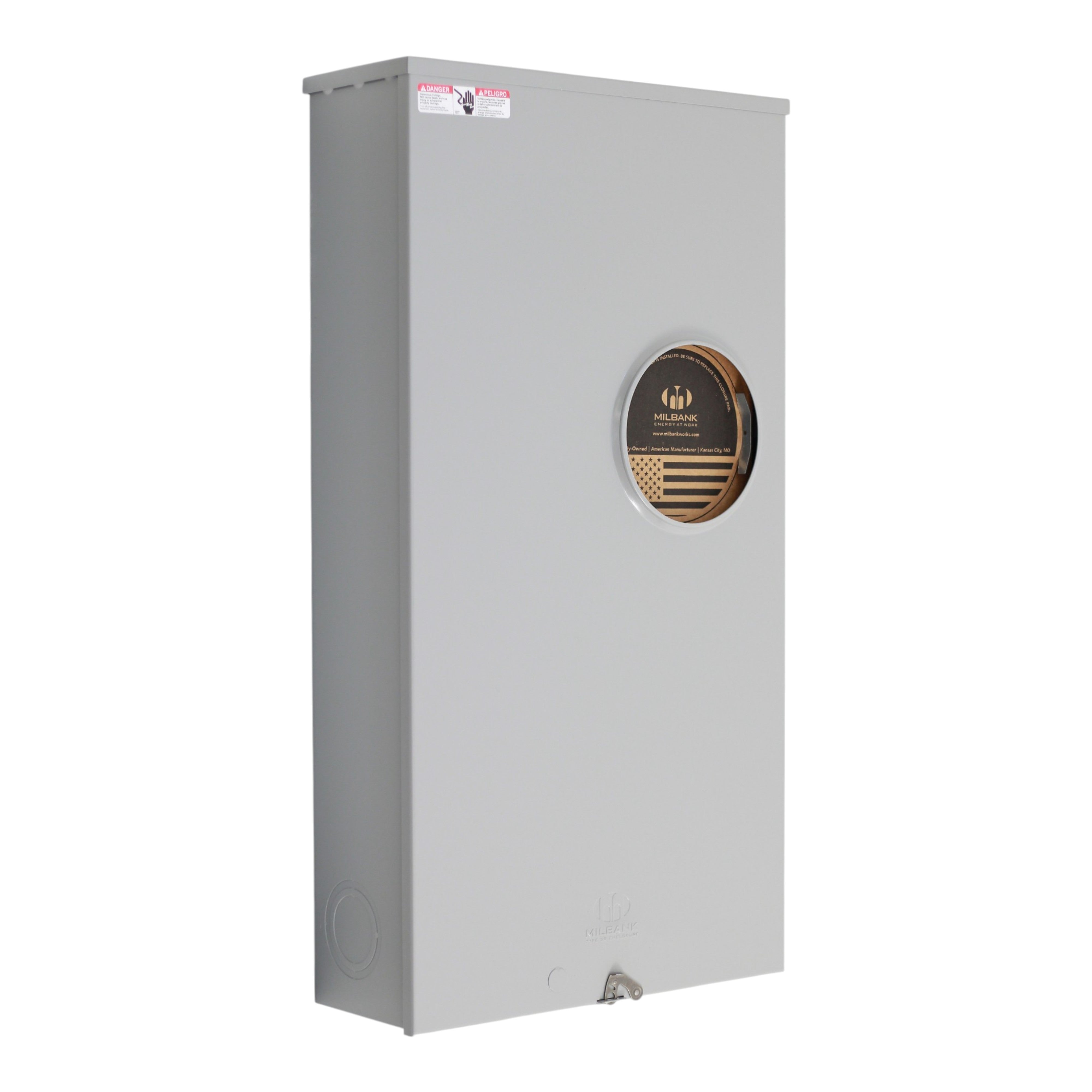

Milbank, U2448-X, 320A, 600VAC, 4-Terminal, Ringless, Lever Bypass, Meter Socket

Out of stock
SKU: U2448-X UPC: 784572135437
(0)
$890.00
-29% $1,249.00 $890.00
Out of stock
Condition

U2448-X specifications

  • Manufacturer: Milbank Manufacturing Company
  • Brand: Milbank
  • Product Line: Ringless Meter Sockets
  • UPC: 784572135437
  • Model Number: U2448-X
  • Product Type: Ringless Meter Socket with Lever Bypass
  • Amperage Rating: 320 Amps continuous
  • Voltage Rating: 600 Volts AC
  • Phase: 1-Phase
  • Frequency: 60 Hz
  • Number of Jaws/Terminals: 4-Terminal
  • Bypass Provision: Lever Bypass
  • Bus Configuration: Side Bussed
  • Hub/Closing Plate: Large Closing Plate
  • Cable Entry: Overhead or Underground
  • Terminal Type: 3/8 in × 16 Stud — Aluminum/Copper, Line/Load
  • Equipment Ground: Ground Lug
  • Number of Meter Positions: 1
  • Number of Main Breakers: None
  • Mounting Type: Surface Mount
  • Enclosure Material: G90 Galvanized Steel with Powder Coat Finish
  • Insulation: Glass Polyester
  • Knockouts: True

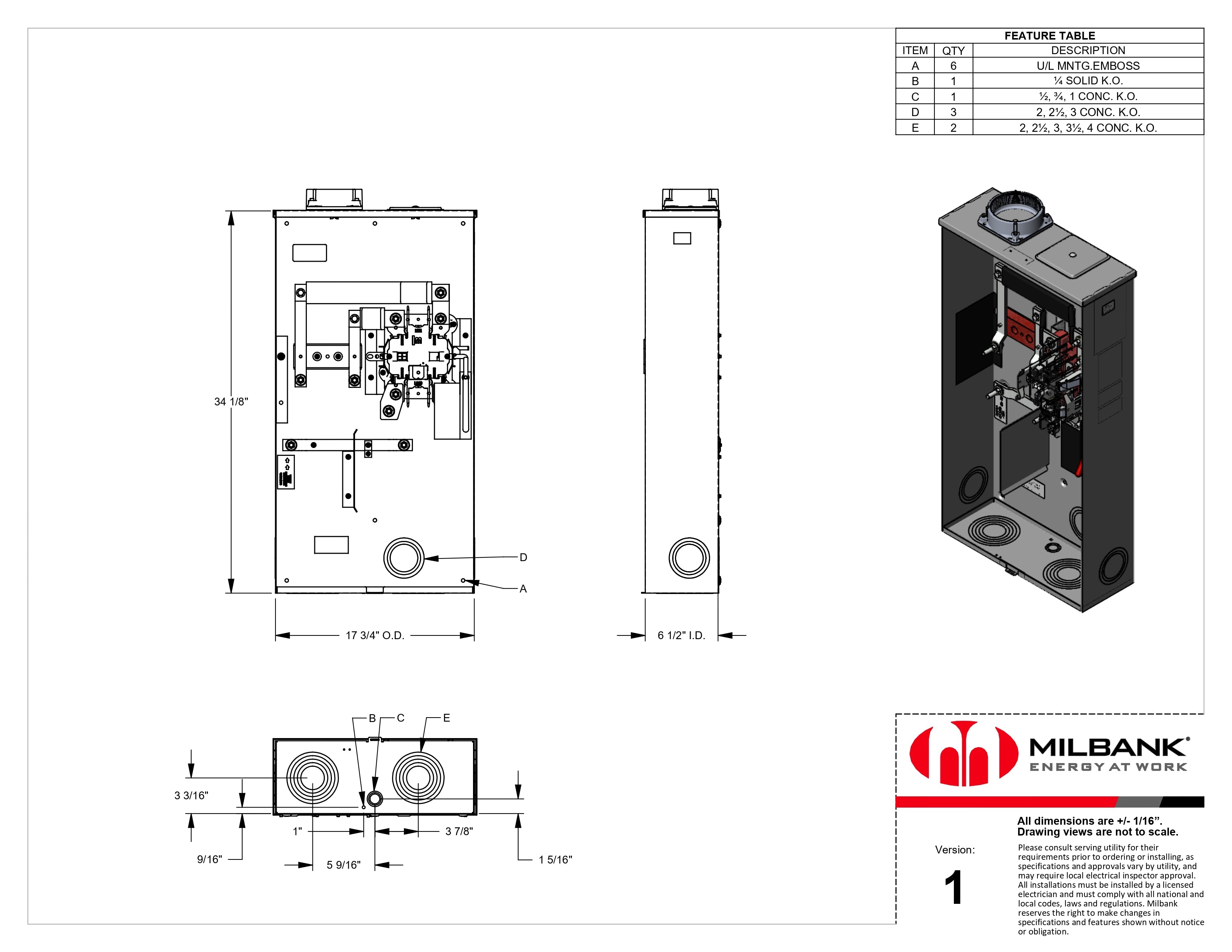

  • Dimensions: Height: 34.125 in; Width: 17.75 in; Length/Depth: 6.5 in
  • Weight: 48.0 lbs
  • Certifications: UL Listed, NEMA Type 3R

This Milbank U2448-X ringless meter socket delivers reliable 320 Amp, 1-Phase metering for 600VAC overhead or underground service applications. With lever bypass, 4-terminal side-bussed configuration, large closing plate, 3/8 in stud terminals rated for aluminum and copper conductors, and a durable G90 galvanized steel powder coat enclosure rated NEMA Type 3R, it is approved for use in Alliant Energy, MidAmerican Energy, Georgia/Alabama, and Kentucky/South Indiana utility service areas.
