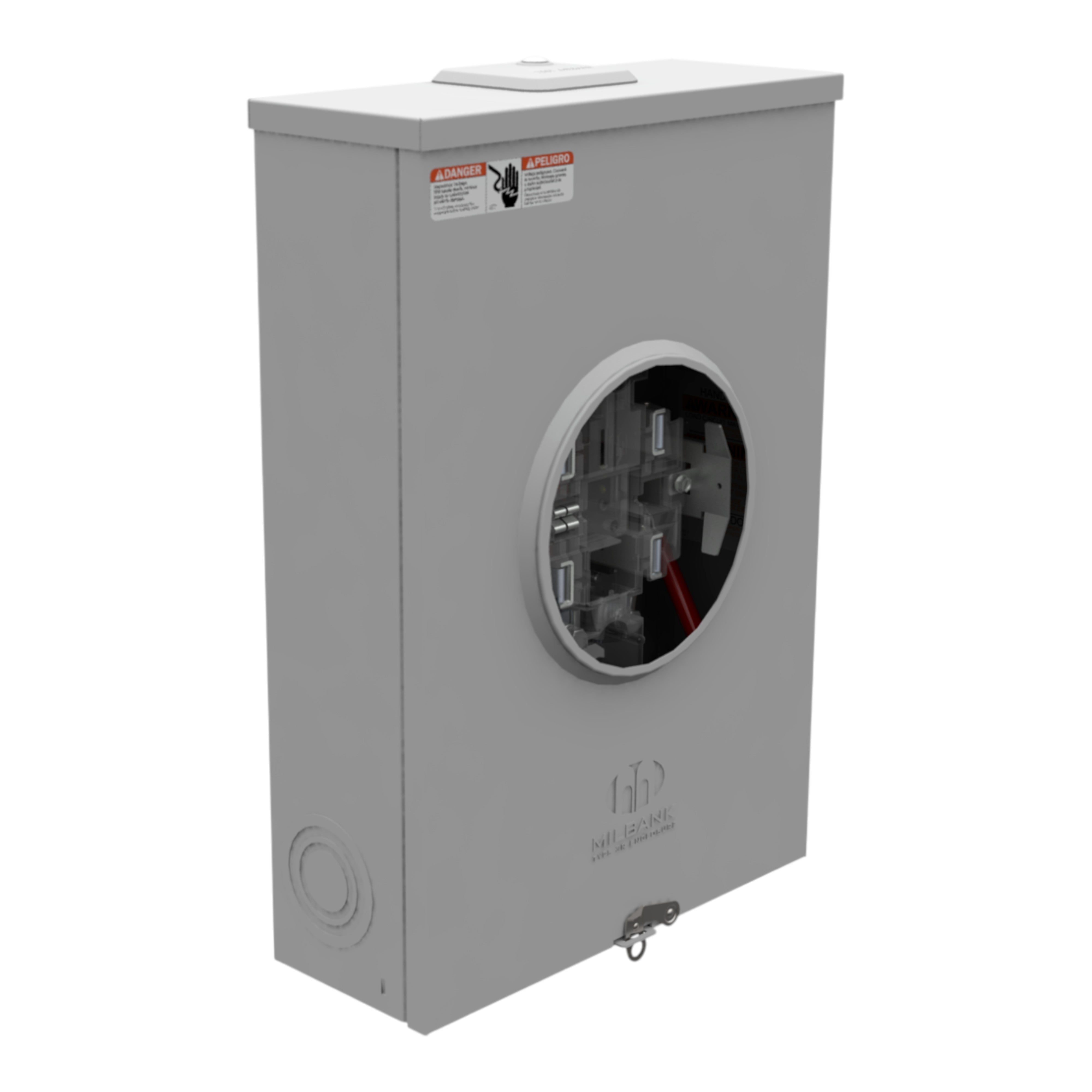

Milbank, U4801-XL-5T9, 200A, 600VAC, 5-Terminal, Ringless, Lever Bypass, Meter Socket
Milbank, U4801-XL-5T9, 200A, 600VAC, 5-Terminal, Ringless, Lever Bypass, Meter Socket - Image 2
Milbank, U4801-XL-5T9, 200A, 600VAC, 5-Terminal, Ringless, Lever Bypass, Meter Socket - Image 3
Milbank, U4801-XL-5T9, 200A, 600VAC, 5-Terminal, Ringless, Lever Bypass, Meter Socket - Image 4
Milbank, U4801-XL-5T9, 200A, 600VAC, 5-Terminal, Ringless, Lever Bypass, Meter Socket - Image 5
Milbank, U4801-XL-5T9, 200A, 600VAC, 5-Terminal, Ringless, Lever Bypass, Meter Socket - Image 6
Milbank, U4801-XL-5T9, 200A, 600VAC, 5-Terminal, Ringless, Lever Bypass, Meter Socket - Image 7

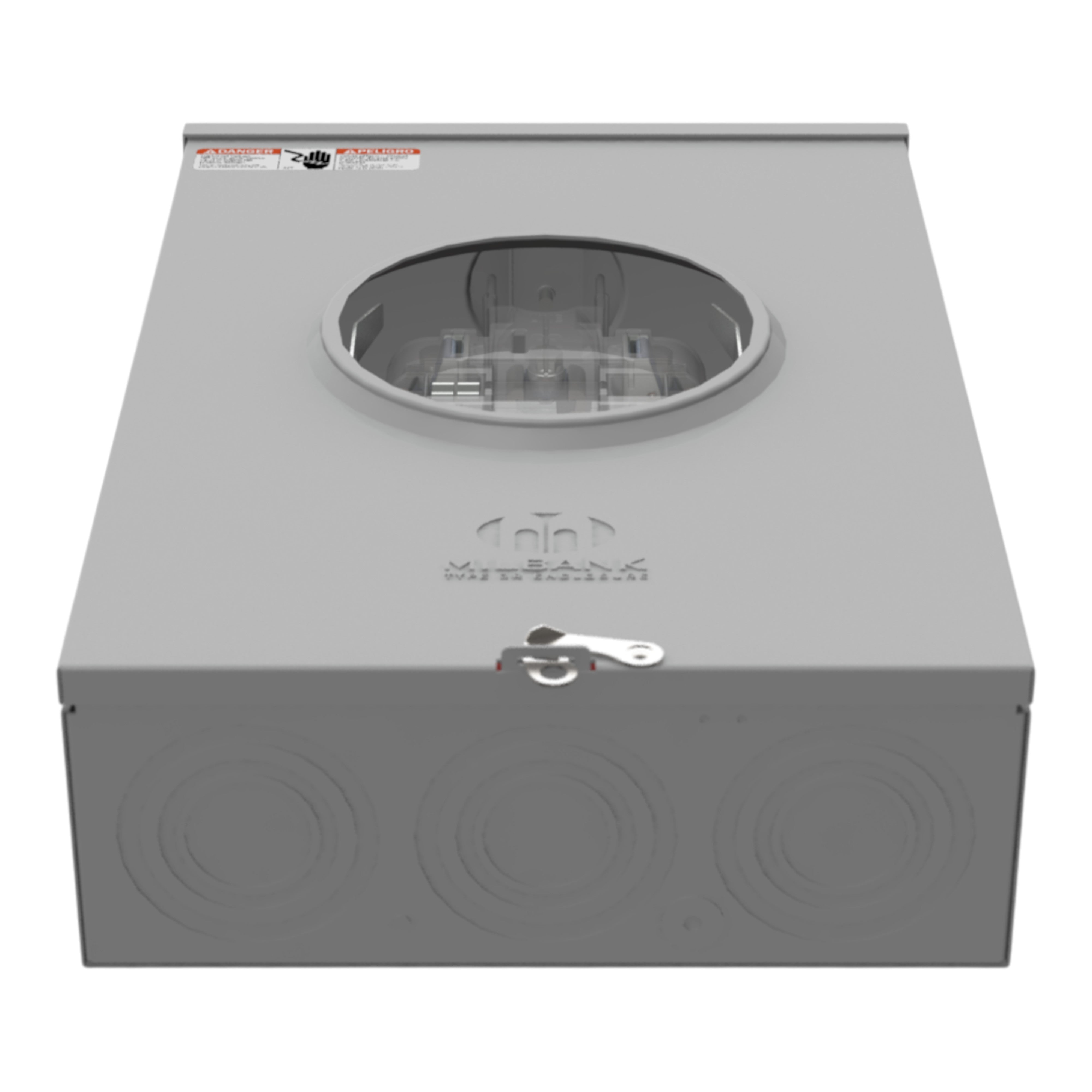

Milbank, U4801-XL-5T9, 200A, 600VAC, 5-Terminal, Ringless, Lever Bypass, Meter Socket - Image 8
Milbank, U4801-XL-5T9, 200A, 600VAC, 5-Terminal, Ringless, Lever Bypass, Meter Socket - Image 9
Milbank, U4801-XL-5T9, 200A, 600VAC, 5-Terminal, Ringless, Lever Bypass, Meter Socket

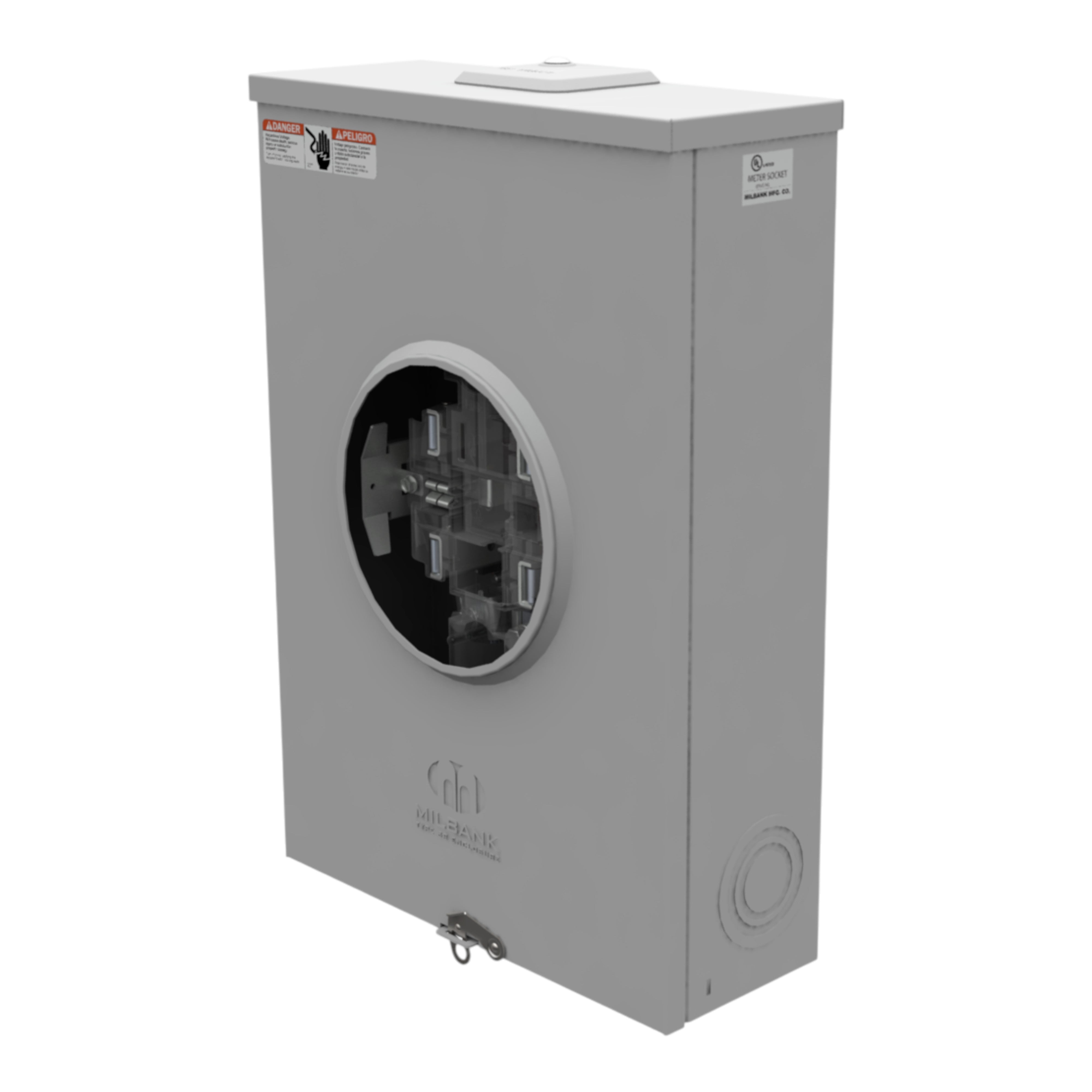

Milbank, U4801-XL-5T9, 200A, 600VAC, 5-Terminal, Ringless, Lever Bypass, Meter Socket - Image 2

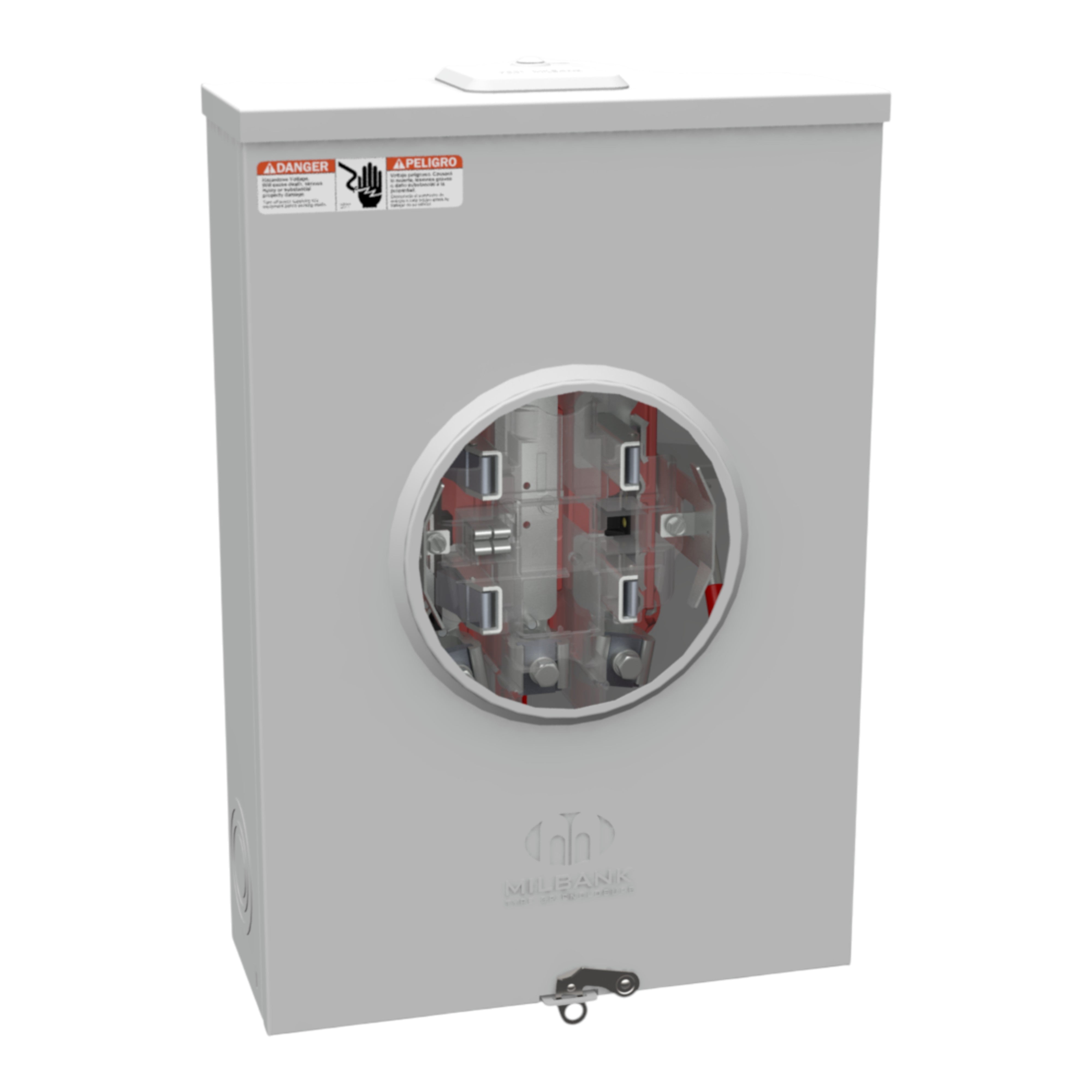

Milbank, U4801-XL-5T9, 200A, 600VAC, 5-Terminal, Ringless, Lever Bypass, Meter Socket - Image 3

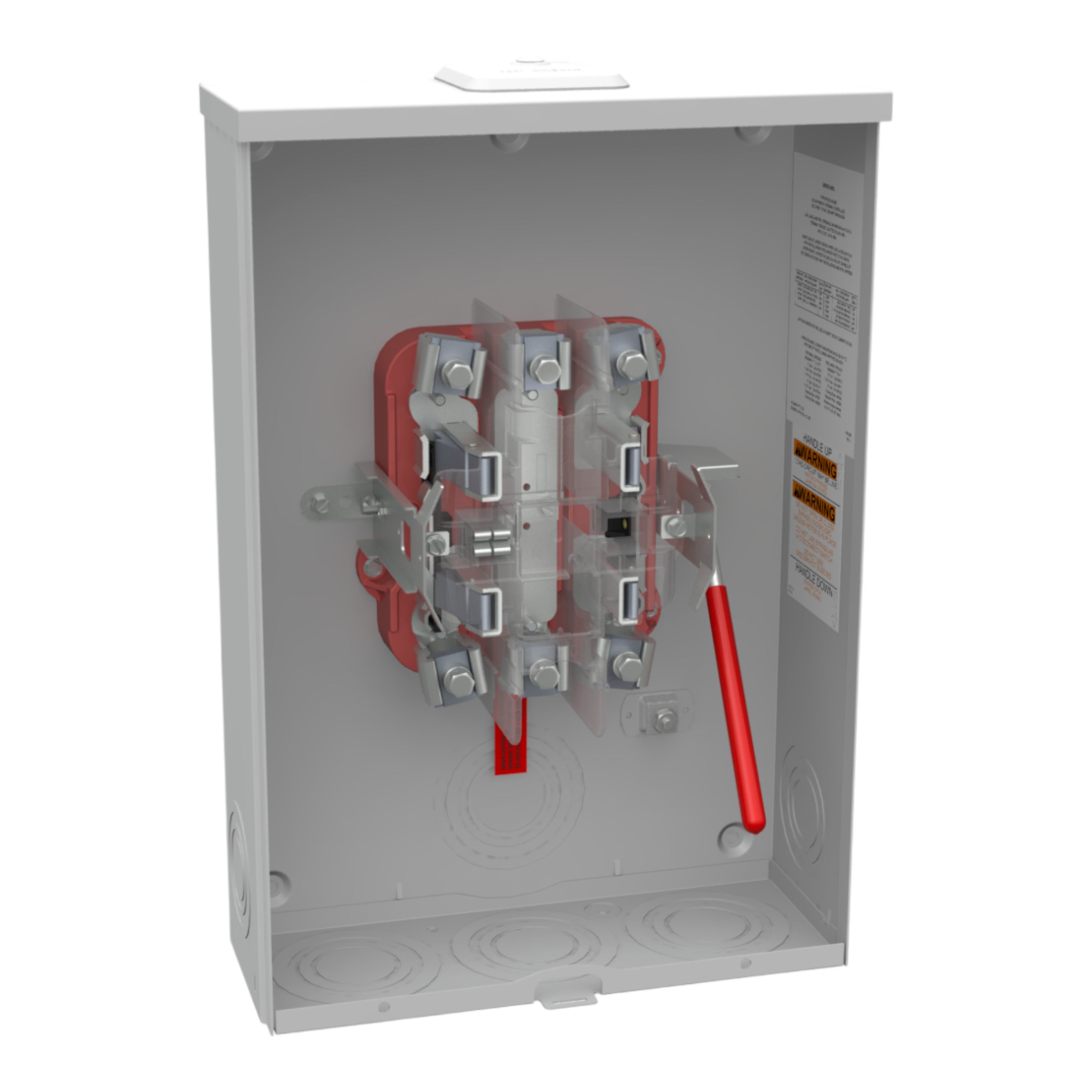

Milbank, U4801-XL-5T9, 200A, 600VAC, 5-Terminal, Ringless, Lever Bypass, Meter Socket - Image 4

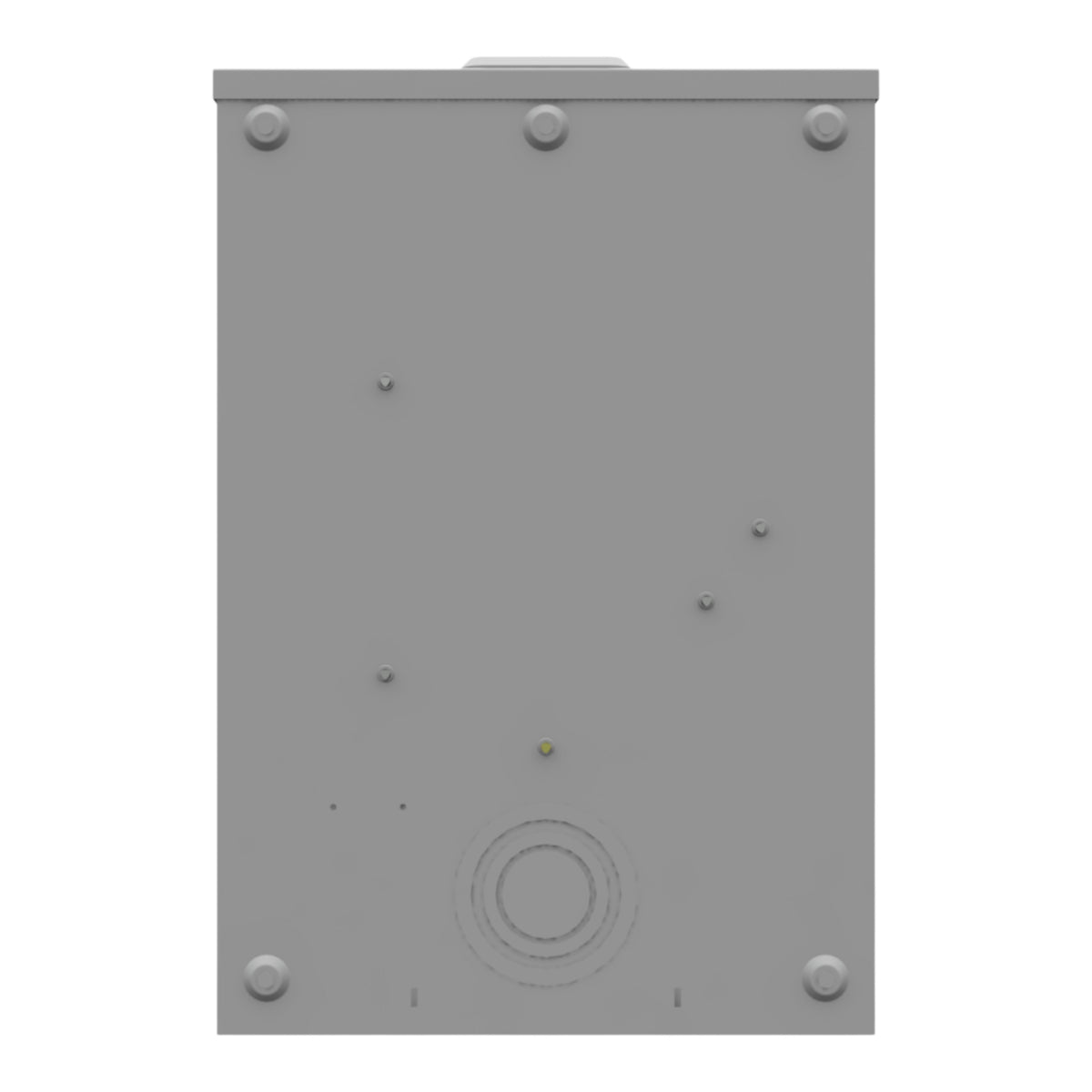

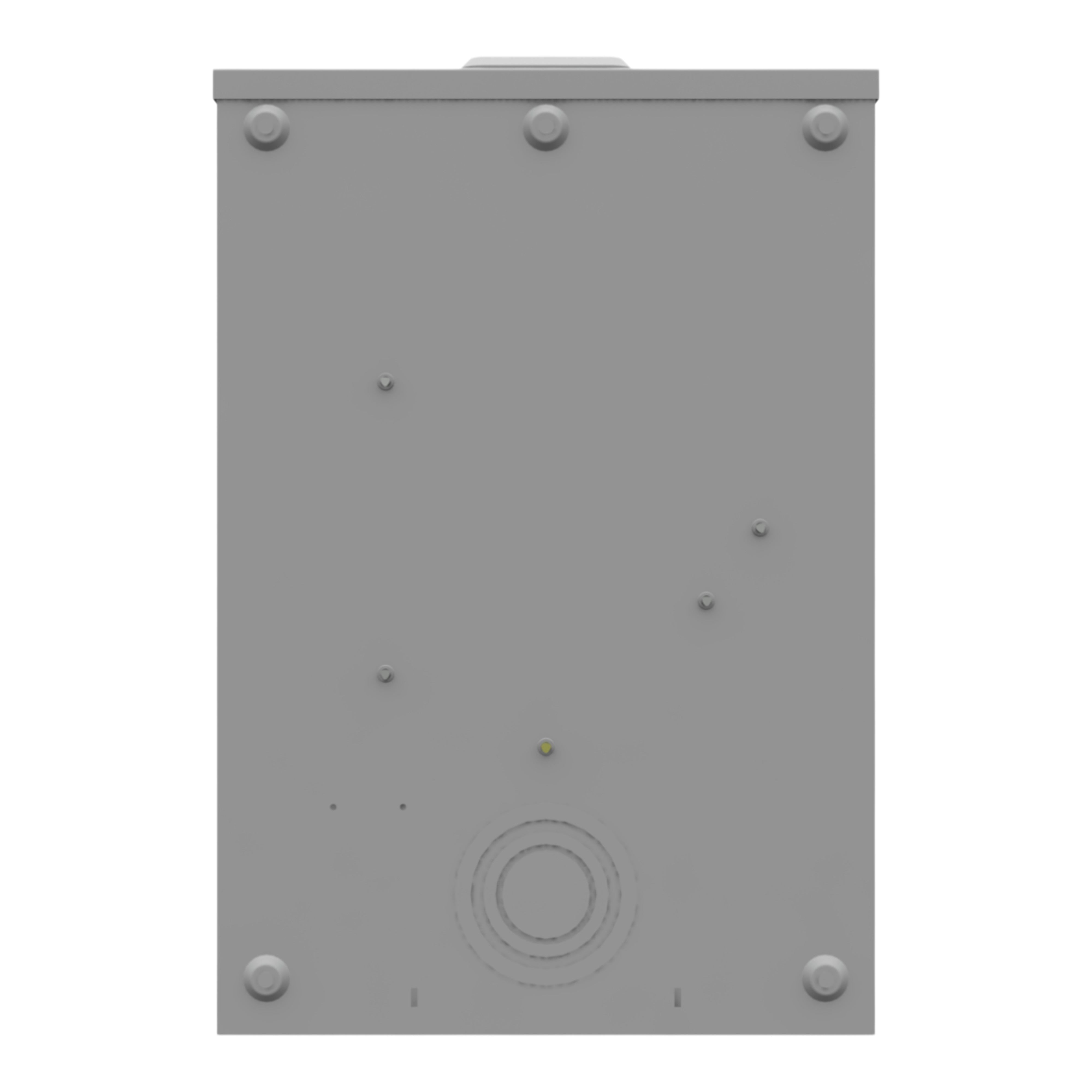

Milbank, U4801-XL-5T9, 200A, 600VAC, 5-Terminal, Ringless, Lever Bypass, Meter Socket - Image 5

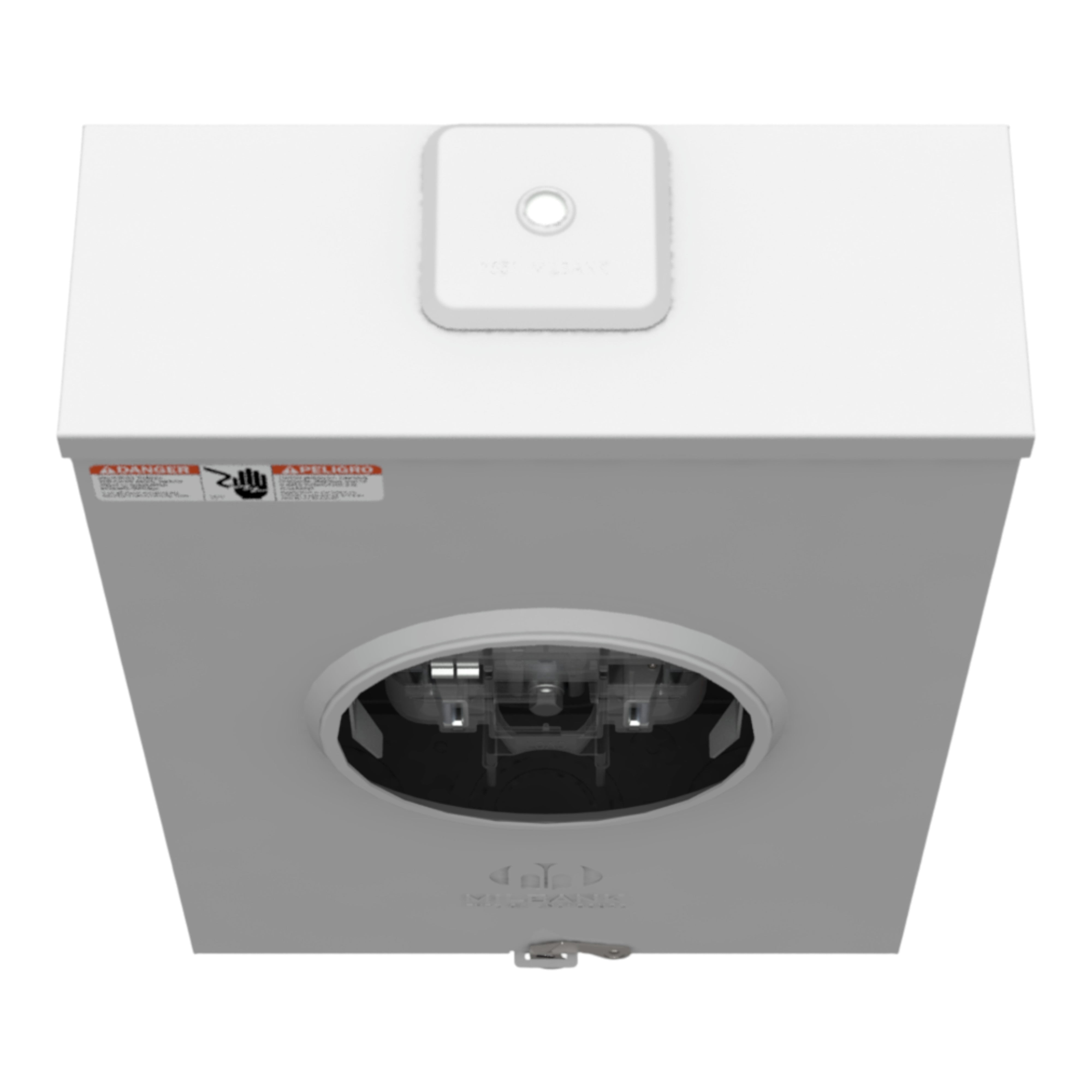

Milbank, U4801-XL-5T9, 200A, 600VAC, 5-Terminal, Ringless, Lever Bypass, Meter Socket - Image 6

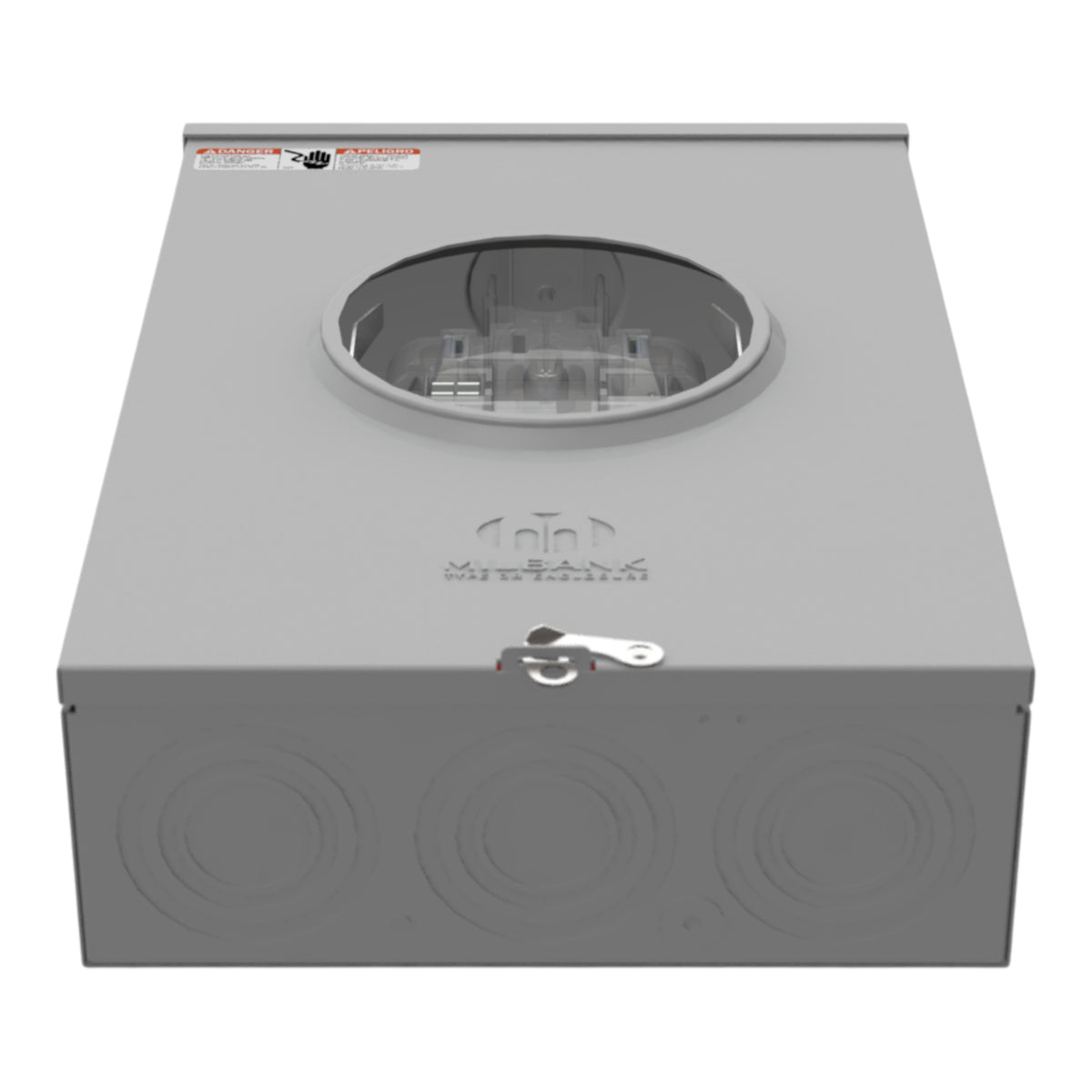

Milbank, U4801-XL-5T9, 200A, 600VAC, 5-Terminal, Ringless, Lever Bypass, Meter Socket - Image 7
Milbank, U4801-XL-5T9, 200A, 600VAC, 5-Terminal, Ringless, Lever Bypass, Meter Socket - Image 8

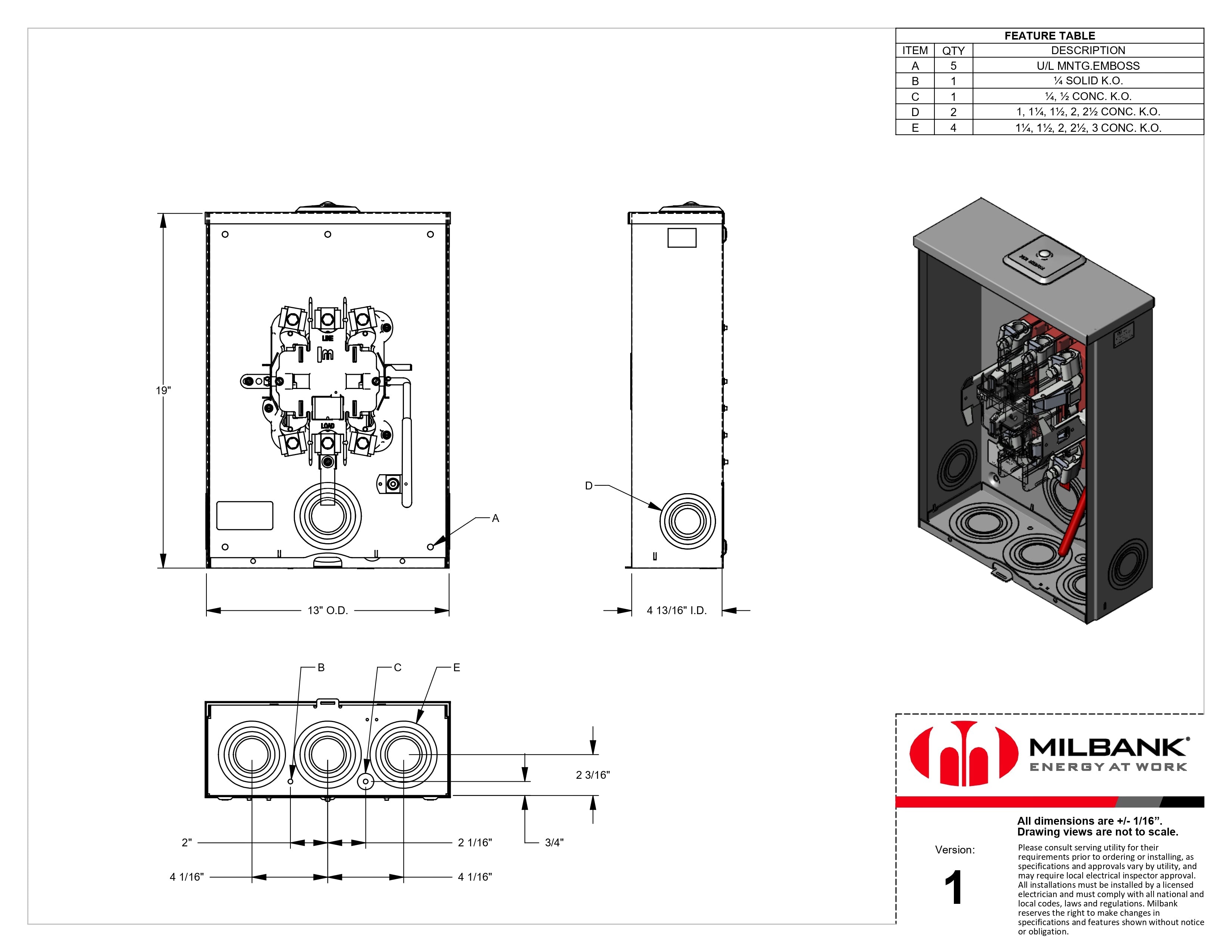

Milbank, U4801-XL-5T9, 200A, 600VAC, 5-Terminal, Ringless, Lever Bypass, Meter Socket - Image 9

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Milbank

Milbank, U4801-XL-5T9, 200A, 600VAC, 5-Terminal, Ringless, Lever Bypass, Meter Socket

Out of stock
SKU: U4801-XL-5T9 UPC: 784572288218
(0)
$170.00
-41% $286.00 $170.00
Out of stock
Condition

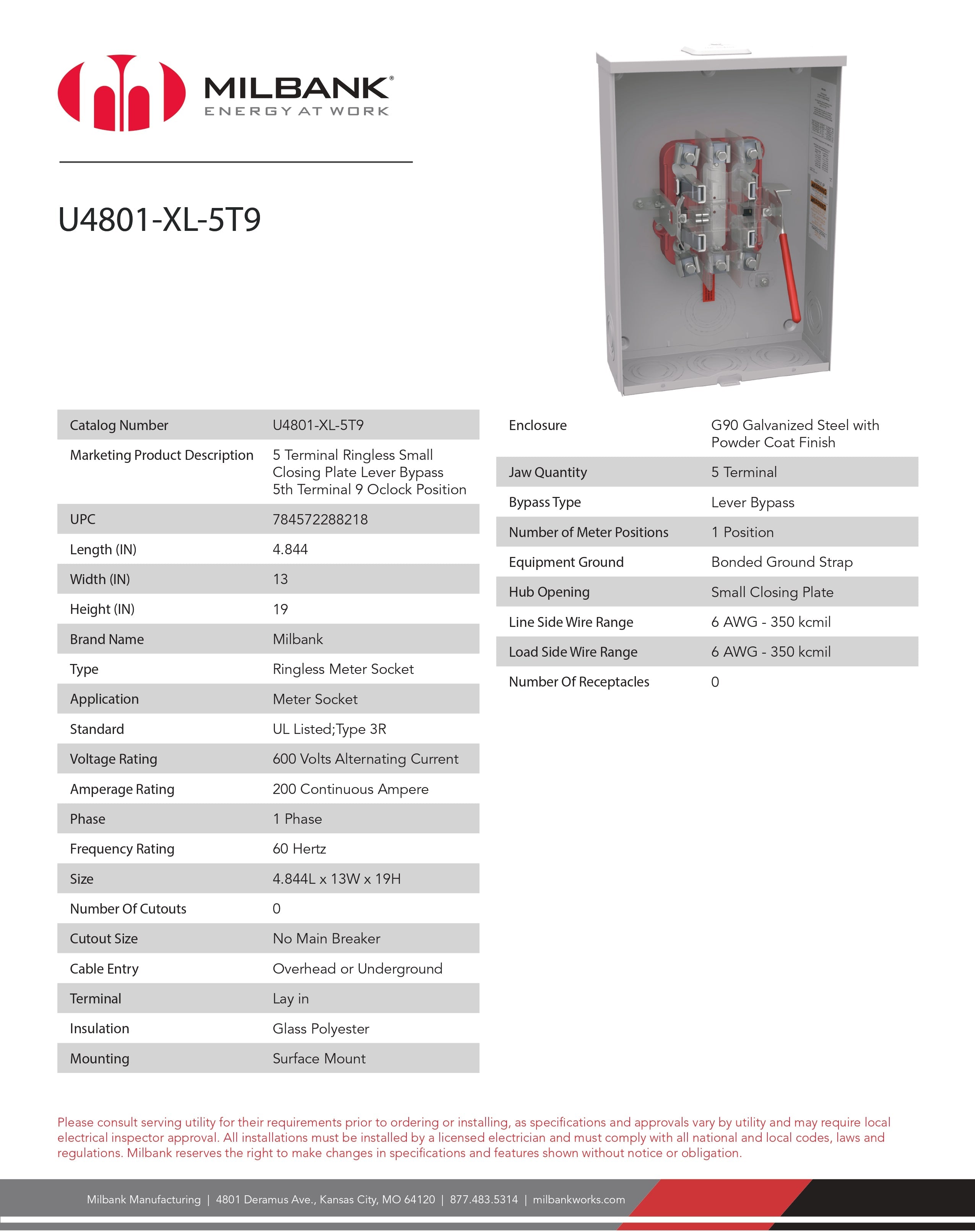

U4801-XL-5T9 specifications

  • Manufacturer: Milbank Manufacturing Company
  • Brand: Milbank
  • Product Line: Ringless Meter Sockets
  • UPC: 784572288218
  • Model Number: U4801-XL-5T9
  • Product Type: Ringless Meter Socket with Lever Bypass
  • Amperage Rating: 200 Amps continuous
  • Voltage Rating: 600 Volts AC
  • Phase: 1-Phase
  • Frequency: 60 Hz
  • Number of Jaws/Terminals: 5-Terminal (5th terminal at 9 o'clock position)
  • Bypass Provision: Lever Bypass
  • Hub/Closing Plate: Small Closing Plate
  • Cable Entry: Overhead or Underground
  • Terminal Type: Lay-in — Aluminum/Copper, Line/Load
  • Wire Size (Line/Load): #6 AWG–350 kcmil Cu/Al
  • Equipment Ground: Bonded Ground Strap
  • Number of Meter Positions: 1
  • Number of Main Breakers: None
  • Mounting Type: Surface Mount
  • Enclosure Material: G90 Galvanized Steel with Powder Coat Finish
  • Insulation: Glass Polyester
  • Knockouts: True
  • Dimensions: Height: 19.0 in; Width: 13.0 in; Length/Depth: 4.844 in
  • Certifications: UL Listed, NEMA Type 3R

This Milbank U4801-XL-5T9 ringless meter socket delivers reliable 200 Amp, 1-Phase metering for 600VAC overhead or underground service applications in Wisconsin utility service areas. With lever bypass, 5-terminal configuration with the 5th terminal at the 9 o'clock position, lay-in terminals rated for #6 AWG to 350 kcmil aluminum and copper conductors, and a durable G90 galvanized steel powder coat enclosure rated NEMA Type 3R, it meets Wisconsin utility service requirements.
